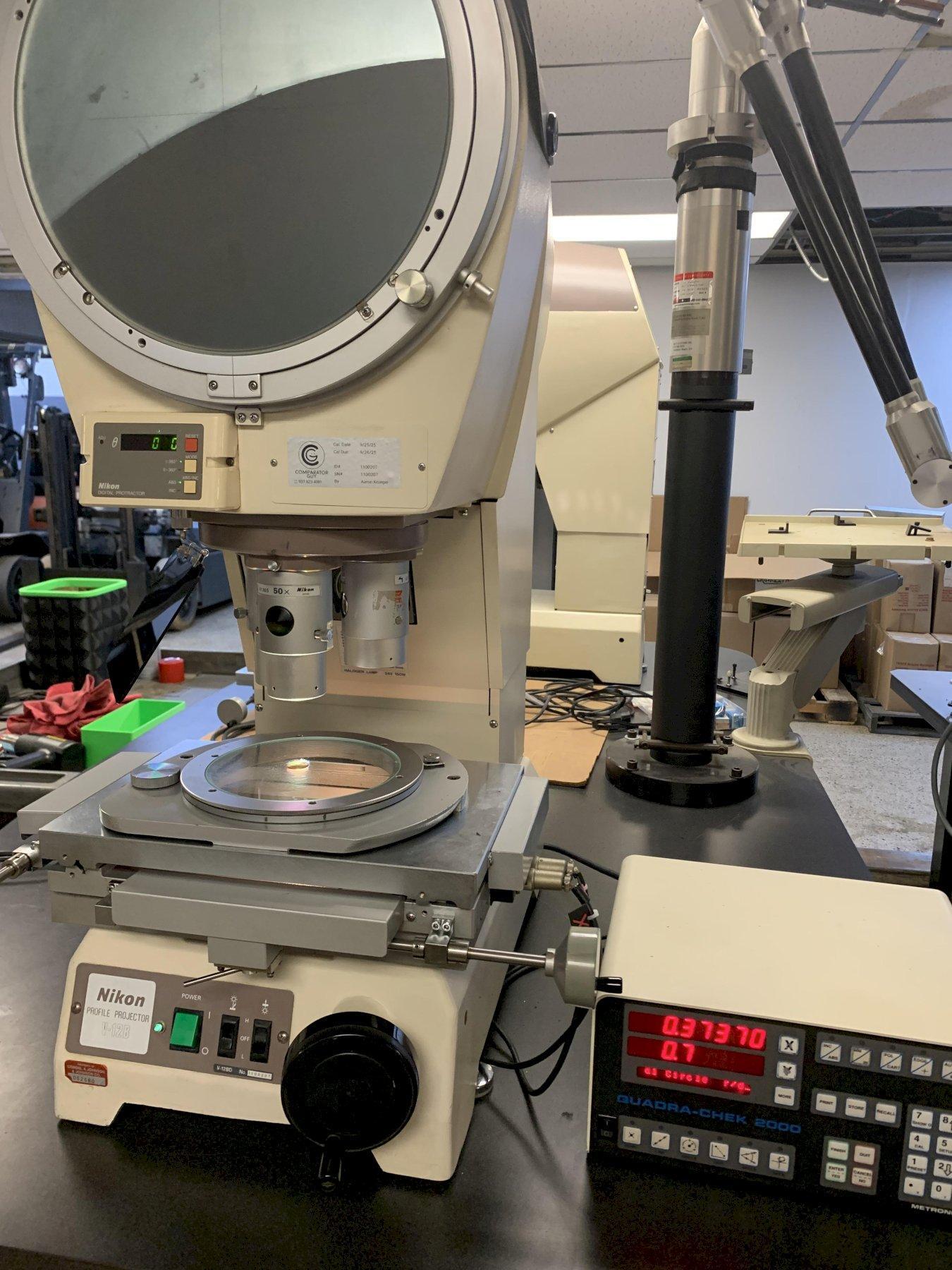

Specifications
Equipped With
Specifications:

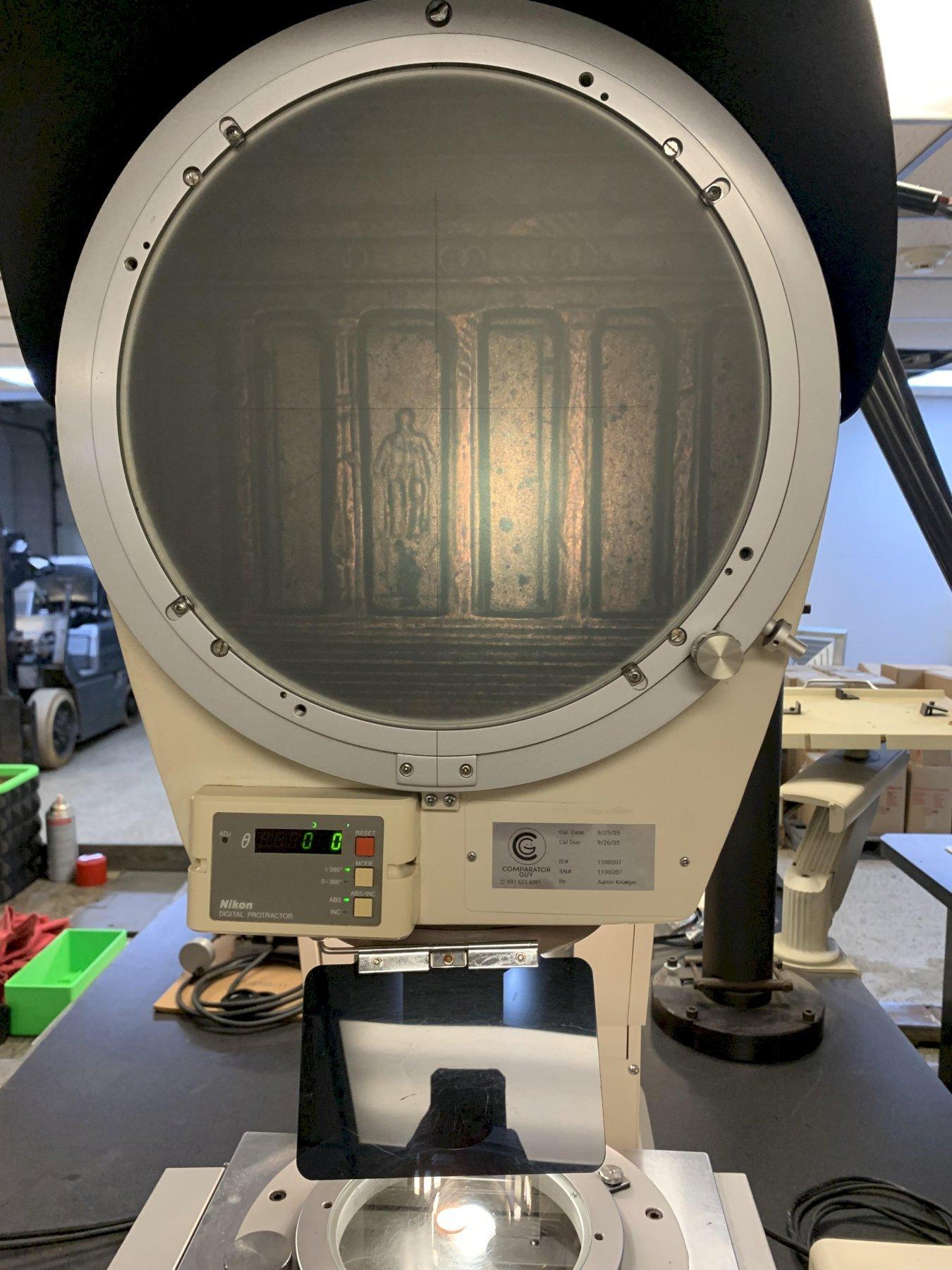

Screen Diameter - 12"
Stage Table Size - 7.1" z 13.9"
Stage Travels - 6" x 4"
Stage Capacity - 15 Lbs. (not including sub table)
Stage Glass Insert - 6.3" x 8.2"
Glass Insert Size in Rotating Table - 6.5" diameter
Max Height of Specimen - 4" (not including sub table)
Chart Rotation - 360º

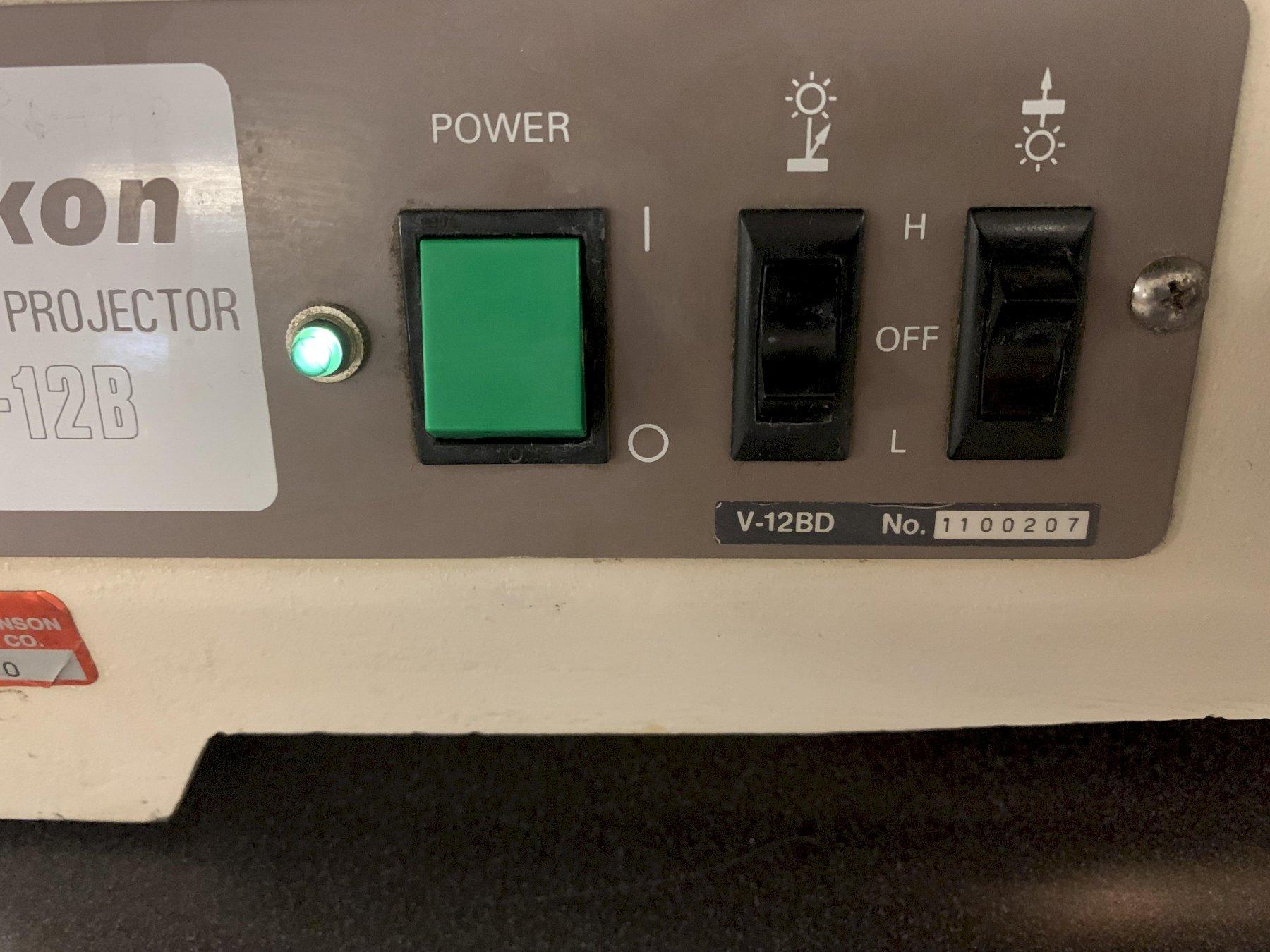

Illumination - High/Low Intensity Control , 24v / 150w

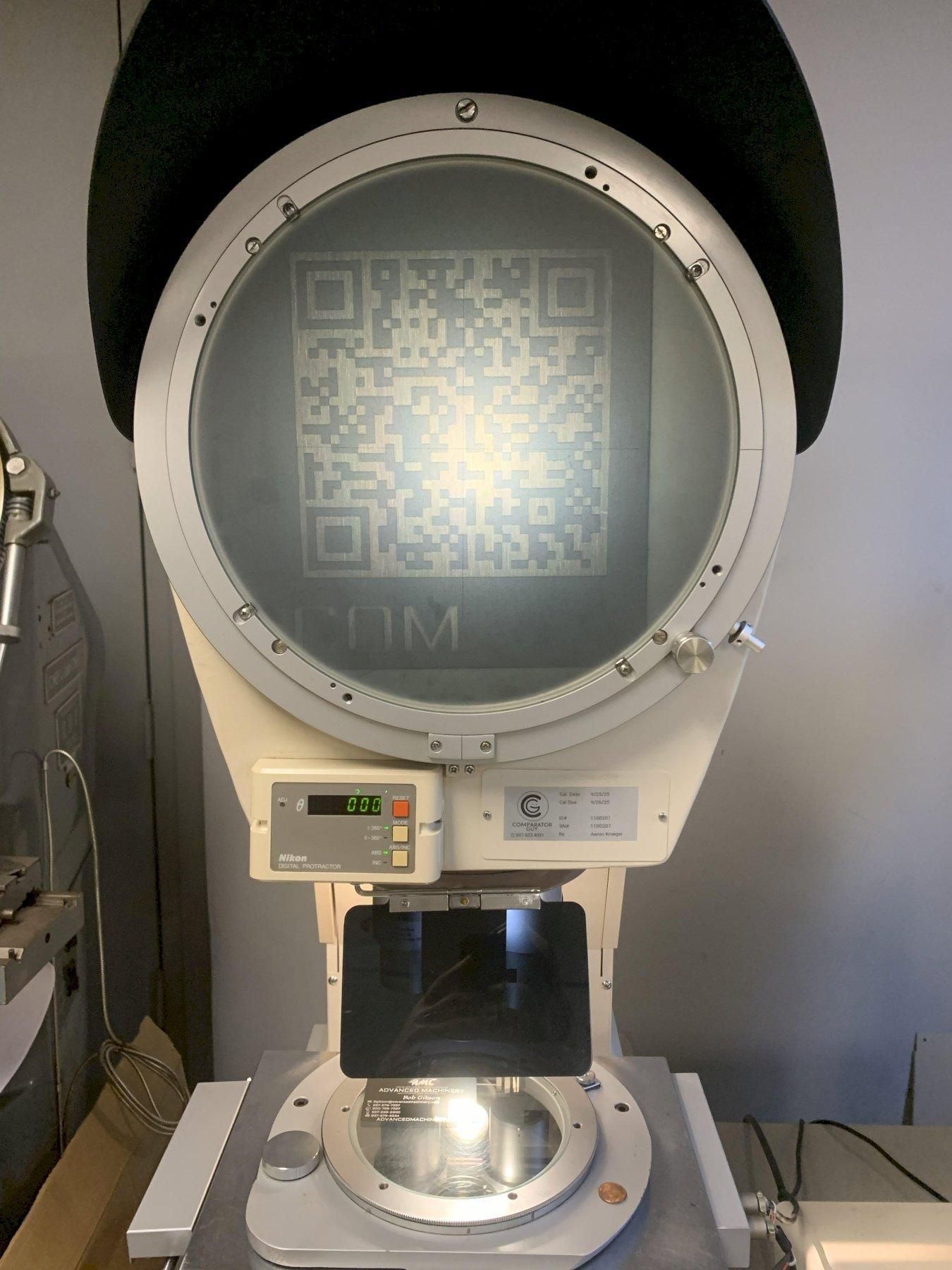

Image Type - Erect and Unreversed
Electrics - 1/60/110 VAC
Unit Dimensions - 16.1" x 25.5" x 42.1"
Unit Net Weight - Approx 245 Lbs.
Shipping Weight - Approx 450 Lbs.

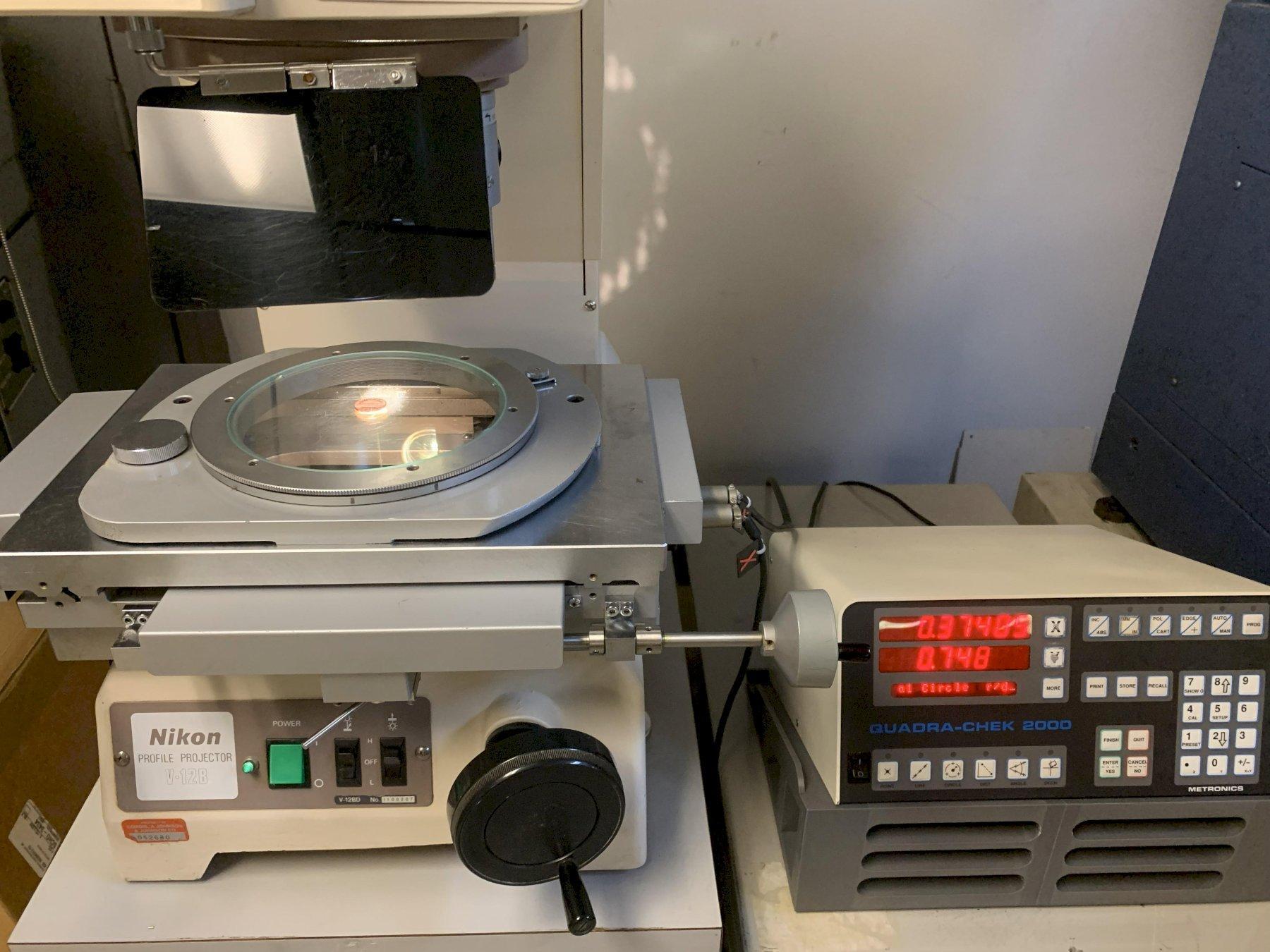

Equipped with:

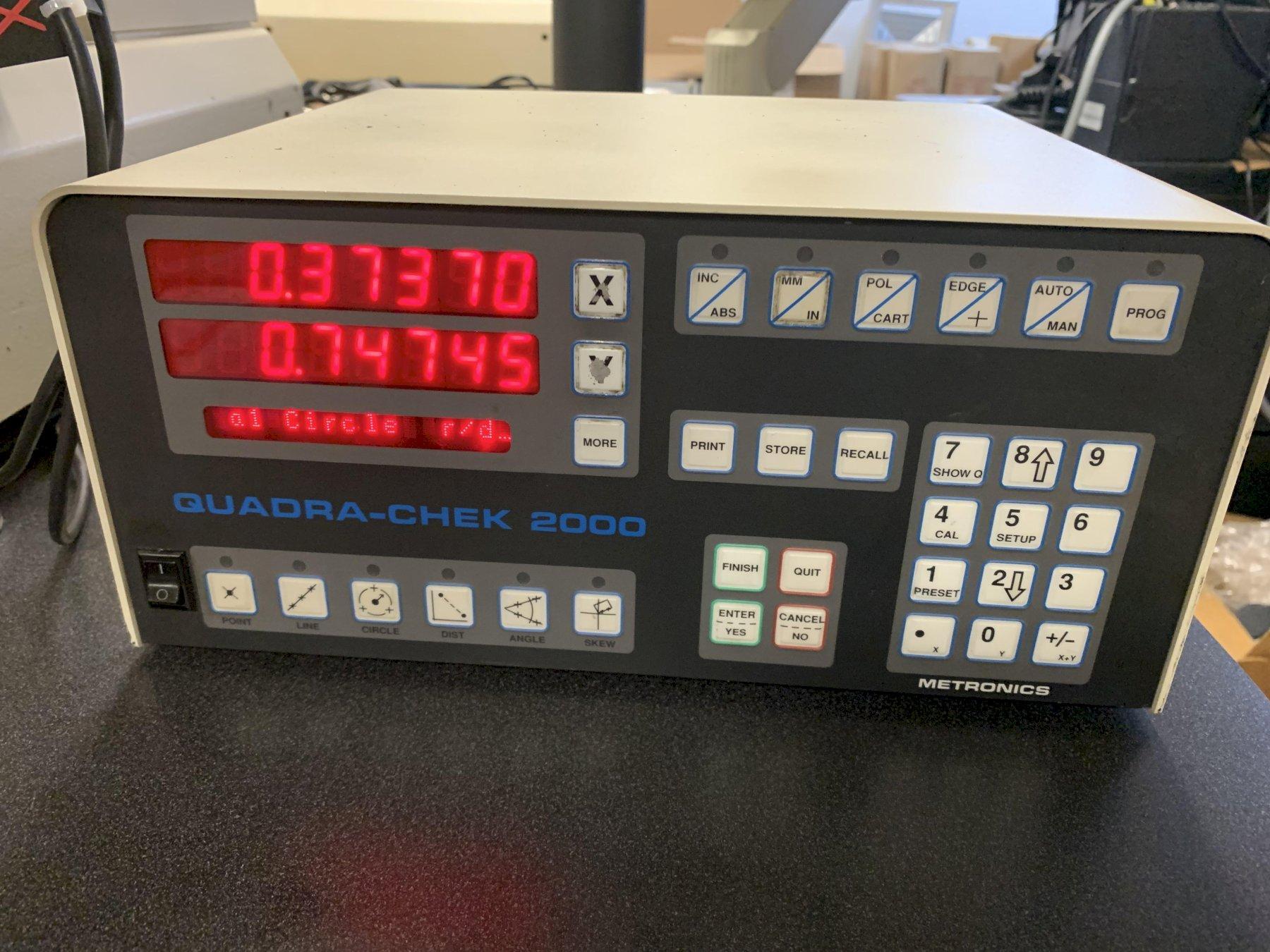

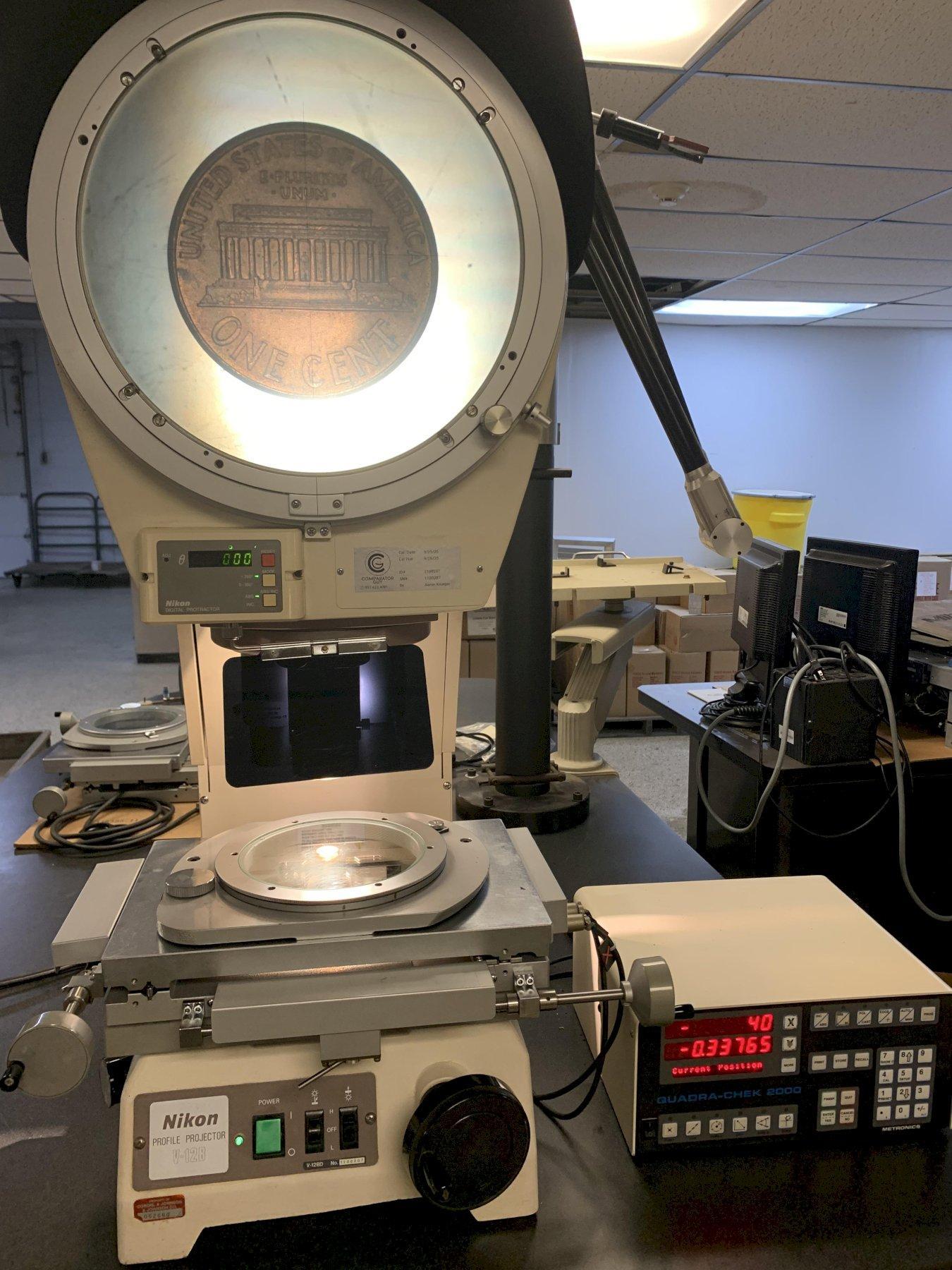

Quadra Chek 2000 Digital Readout

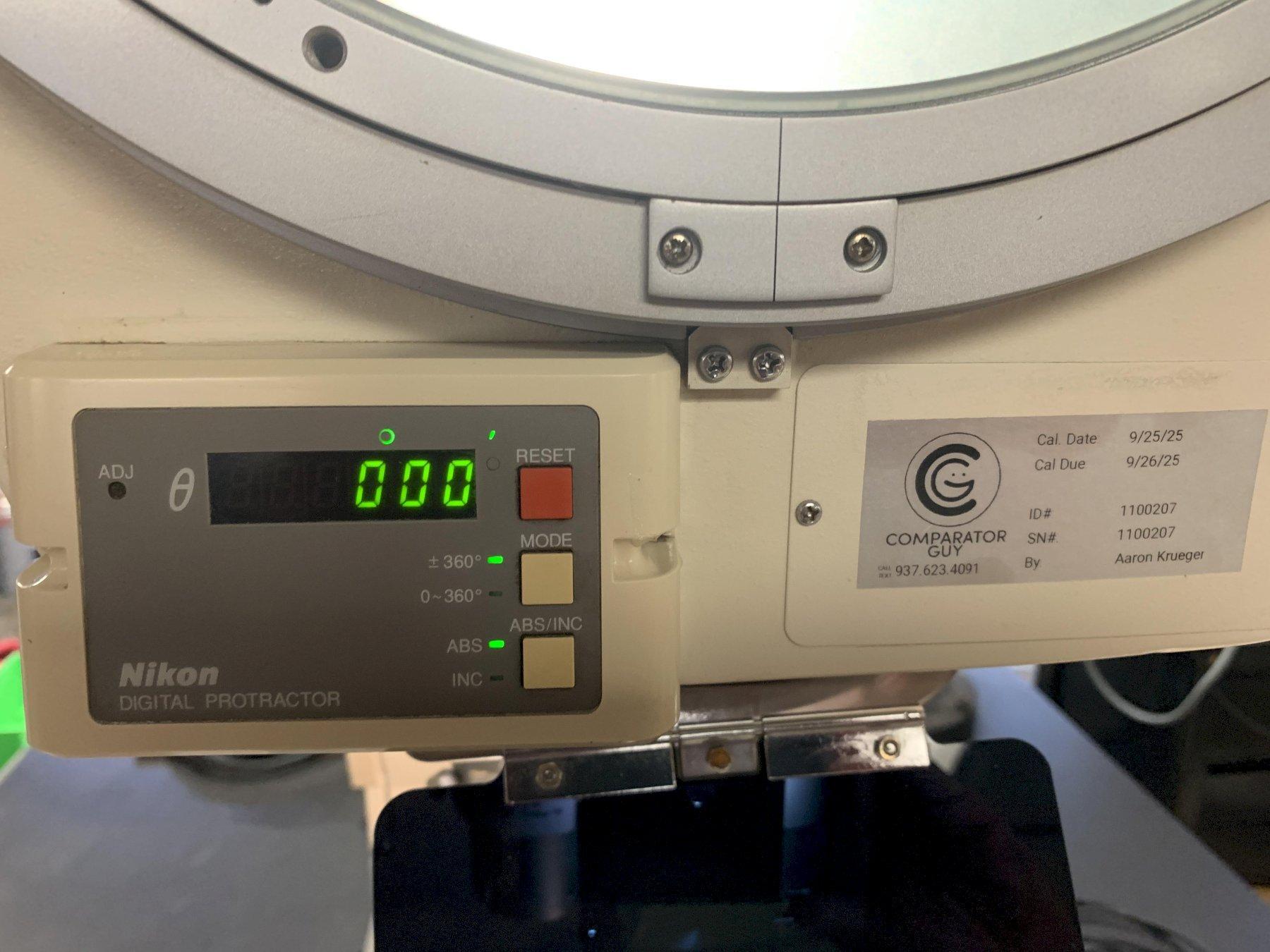

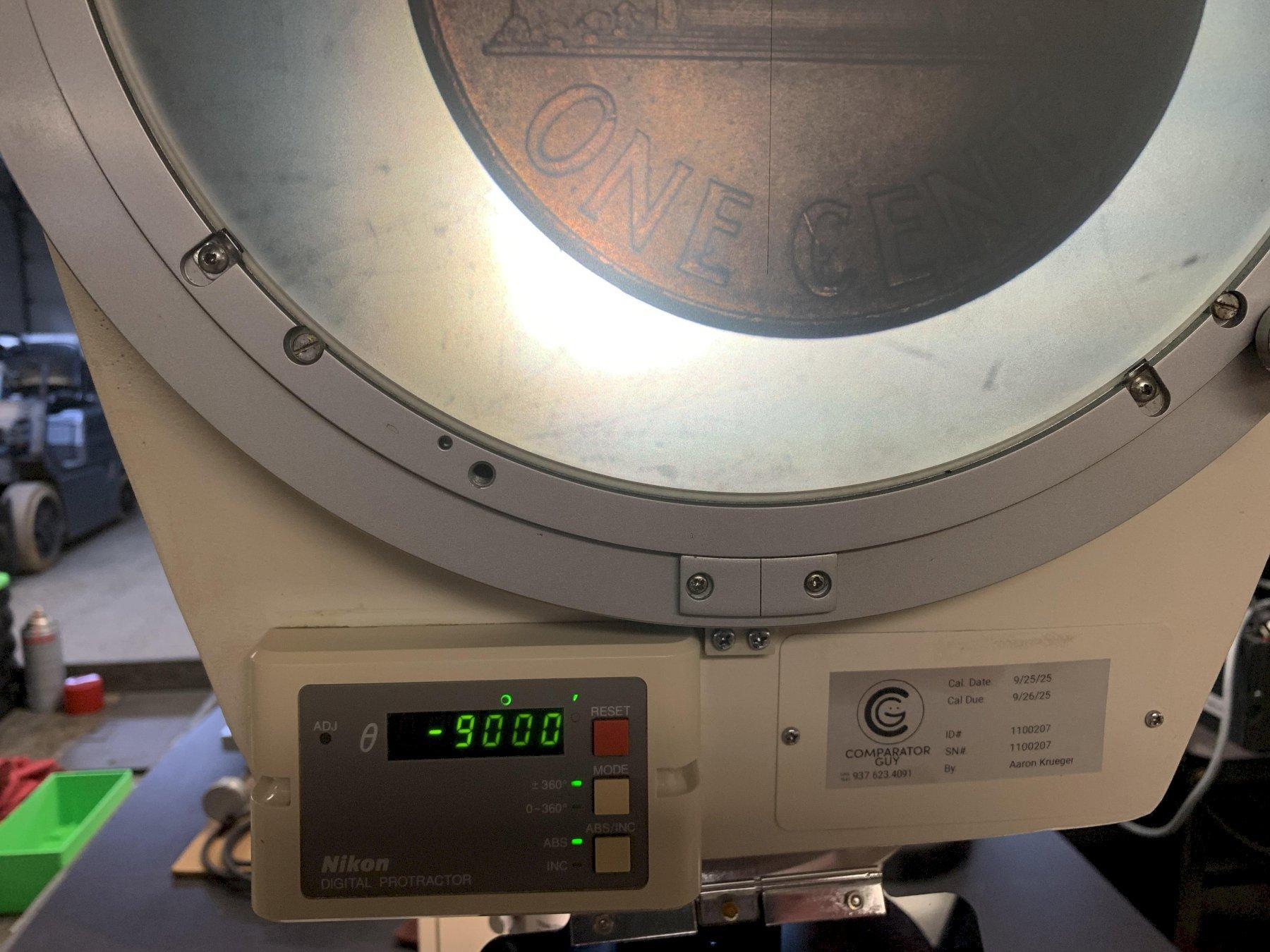

Built-In Digital Protractor with Fine Rotation Knob (reading to 1 minute arc).

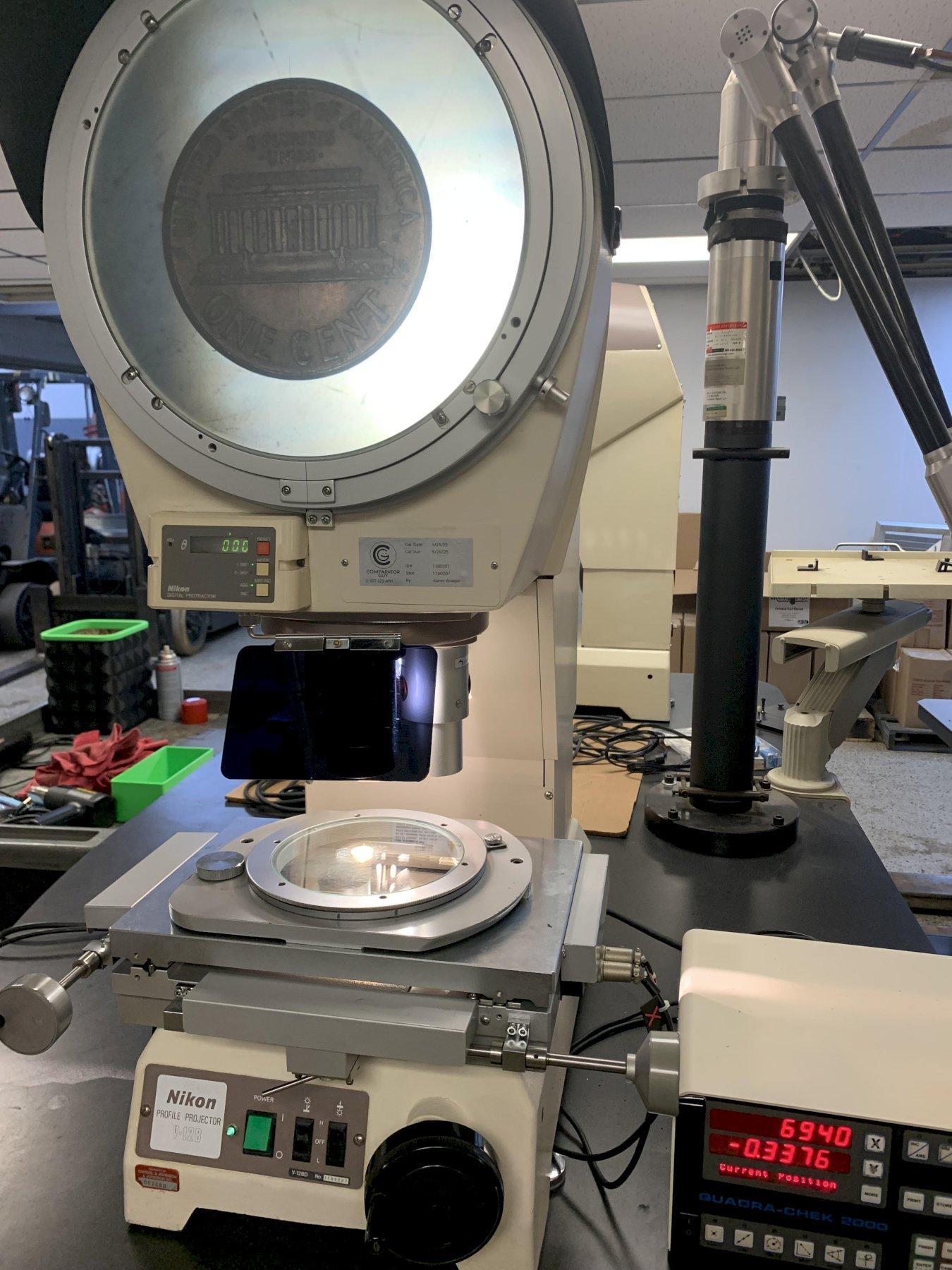

6 x 4 Linear Measuring Stage with Hand Cranks
Removable Rotating Sub Table (Type 3)
Linear Encoders / Min Reading 0.001" mm / .00005"
Digital Protractor Fine Rotation Knob
Built-In Surface Illumination
Manual 3-Position Lens Turret - 10x 50x 100x (others may be available)

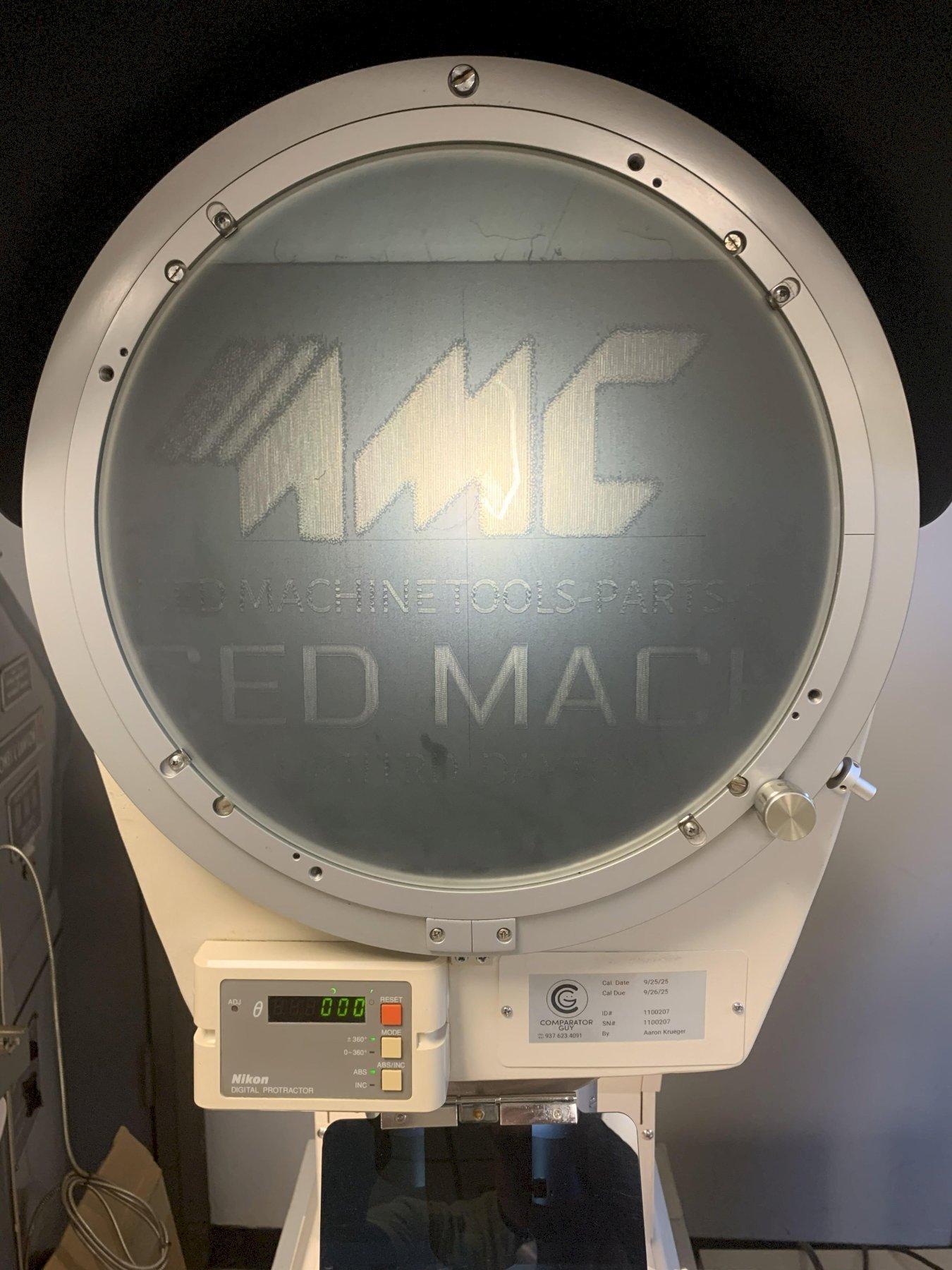

Screen Hood
Instruction Manuals
Machine currently being serviced and should be ready soon.
Specifications subject to independent verification by the buyer.
