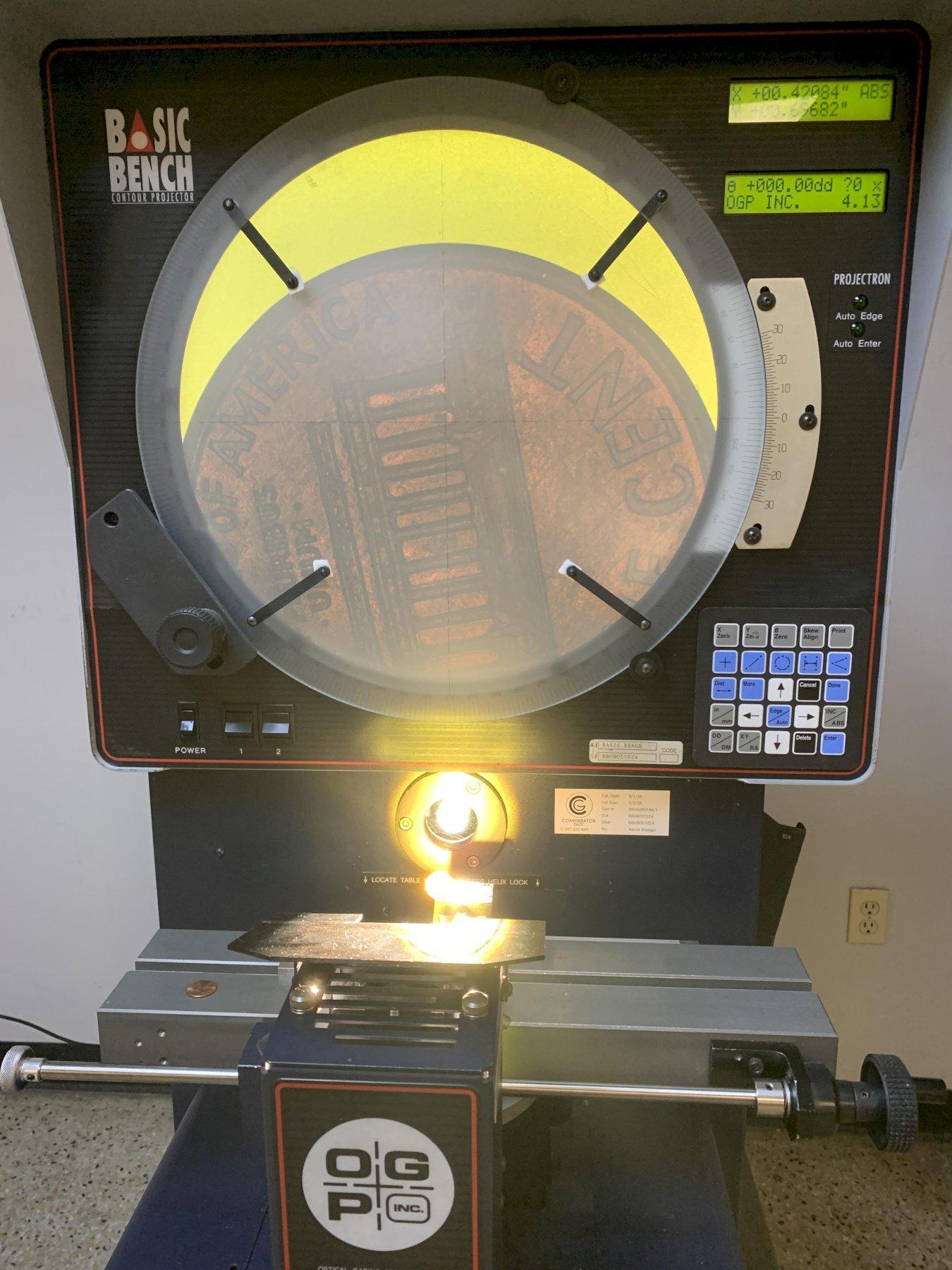

Specifications
Equipped With
Specifications:
Screen Diameter - 14"
Table Size - 4.3" x 17.8"
Horizontal Measuring Travel - 8"
Vertical Measuring Travel - 5"
Focus Adjustment - 1.5"
Table Load Capacity - 45 Lbs.
Electrics - 1/60/115 VAC
Dimensions - 33" L-R x 22½" F-B x 41" H
Net Weight, Approx - 315 Lbs.
Shipping Weight, Approx - 500 Lbs.
Equipped with:
Built-In LCD Displays
Geometric Measuring Processor
0.00004" Resolution Scales
Projectron Internally Mounted Automatic Edge Detection
Screen Rotation Protractor
Work Table Helix Motion
Quick Release X-Axis Travel

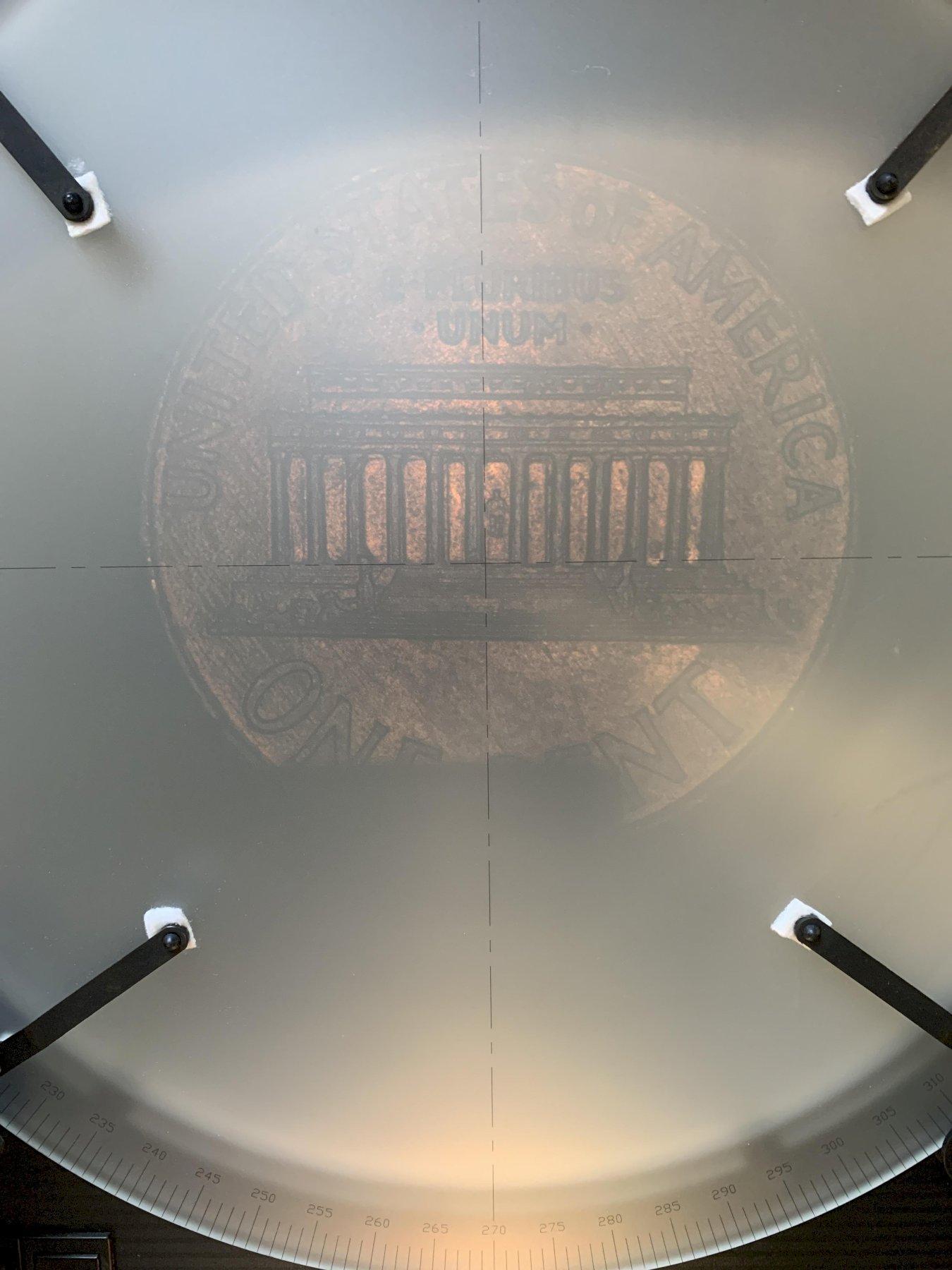

Square On Surface Illumination
Under Screen Fresnel Lens
Vertically Corrected Image
3-Position Lens Turret
10 / 20 / 50X Lenses
Operation and Maintenance Manual
Optional Stand available as shown
Notes:
New arrival. Machine needs cleaned and serviced prior to shipping.
Specification subject to independent verification by the buyer.
Buyer responsible for shipping. Seller can provide rates on request.
Number of OGP Bench Tops Sold by AMC currently 32 machines.
