High-Quality Precision Manual Lathe – Reliable Performance for Shop and Toolroom Use
Key Features
- Gap Bed Design – Removable bridge section allows for larger diameter workpieces when needed
- Rugged Construction – Heavy-duty cast iron bed and components for vibration damping and long-term accuracy
- Geared Headstock – Smooth, quiet operation with wide range of speeds
- Inch/Metric Threading Capability – Quick-change gearbox for versatile threading
- Powerful Drive – Ample power for demanding cuts in steel, aluminum, and more
- Complete with Common Accessories – Ready for immediate productive use
Machine Specifications
|
Category
|
Specification
|
|
Swing Over Bed
|
14"
|
|
Swing Over Cross Slide
|
8.1"
|
|
Swing in Gap
|
18"
|
|
Distance Between Centers
|
40"
|
|
Spindle Bore
|
2"
|
|
Spindle Nose
|
D1-6 Camlock
|
|
Spindle Speeds
|
(Variable, typically 12 steps) 50–2000 RPM (approx. range)
|
|
Main Motor
|
5 HP
|
|
Feed & Threading
|
Quick-change gearbox – Inch & Metric threads
|
|
Tailstock
|
Quill travel 5"
|
|
Approximate Weight
|
4,100 lbs
|
|
Floor Space (approx.)
|
71" L × 44" W × 62" H
|
Equipped with
- 8" 3-Jaw Chuck
- Taper Attachment
- Drill Chuck
- Quick Change Tool Post
- Steady Rest
- Coolant System
- Work Light
- Foot Brake
- Chip Pan
- Acu-Rite DRO (X-Axis only)
- Parts List Manual

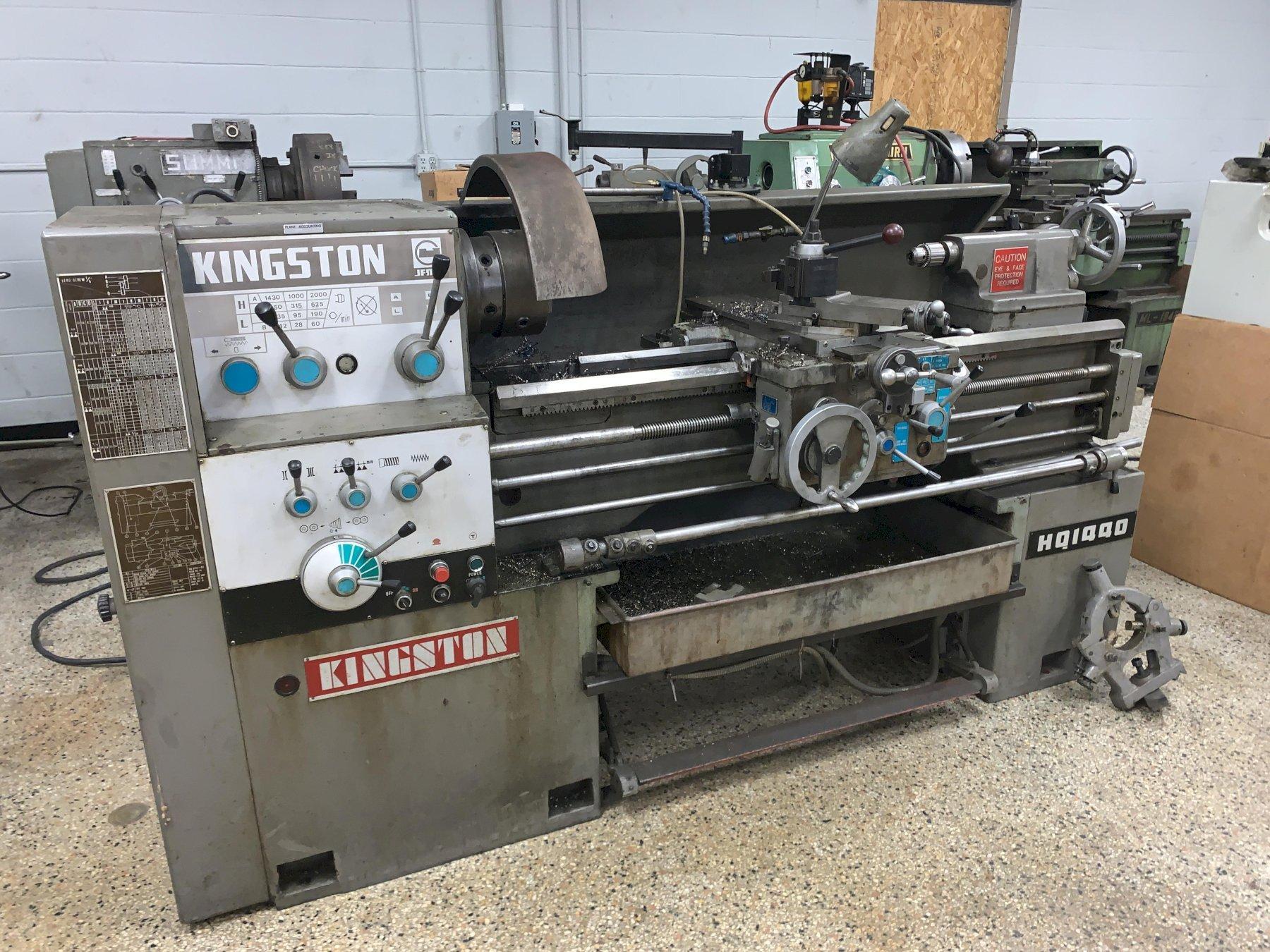

Why Choose the Kingston HQ-1440? The HQ-1440 combines solid build quality, a generous 2" spindle bore, and gap-bed versatility in a compact footprint — making it ideal for general machining, maintenance, prototyping, and light-to-medium production work. This proven model (often compared to similar 14×40 imports like Birmingham, Enco, or Jet equivalents) delivers excellent value with its weight, power, and reliability.
Ideal For
- Machine shops
- Tool & die operations
- Vocational training programs
- Maintenance & repair facilities
For current availability, pricing, or to arrange inspection/demo, contact us today
