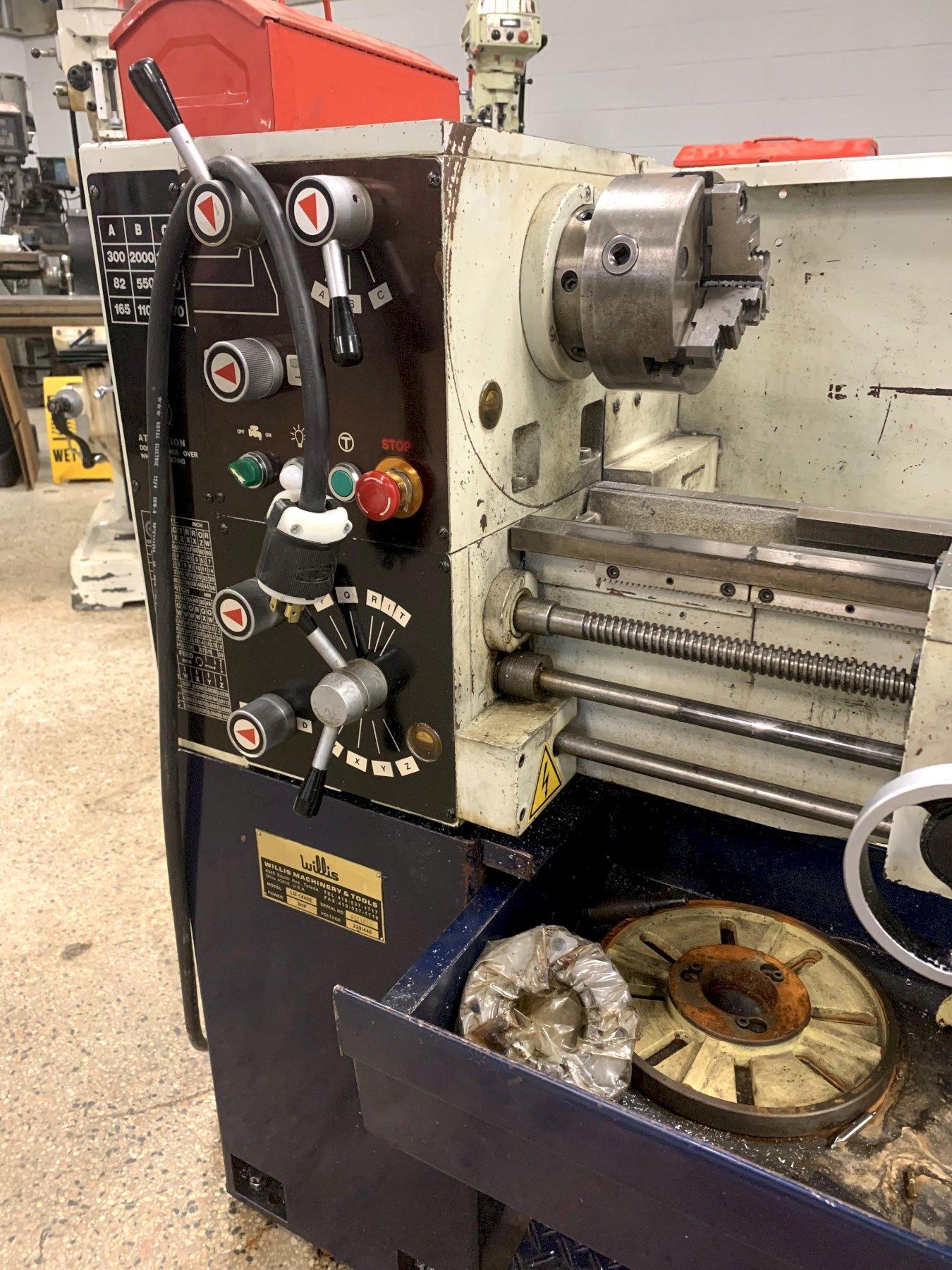

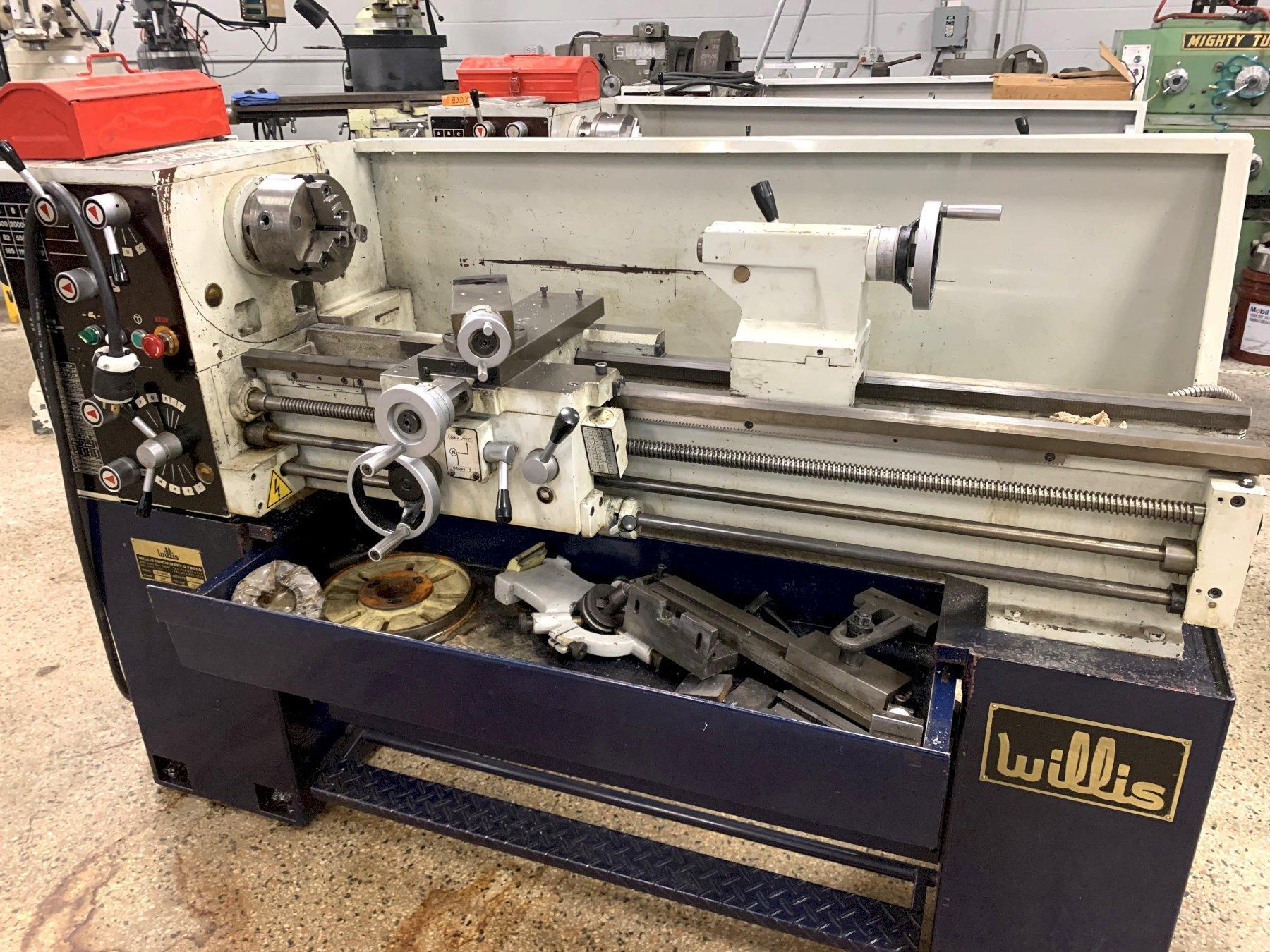

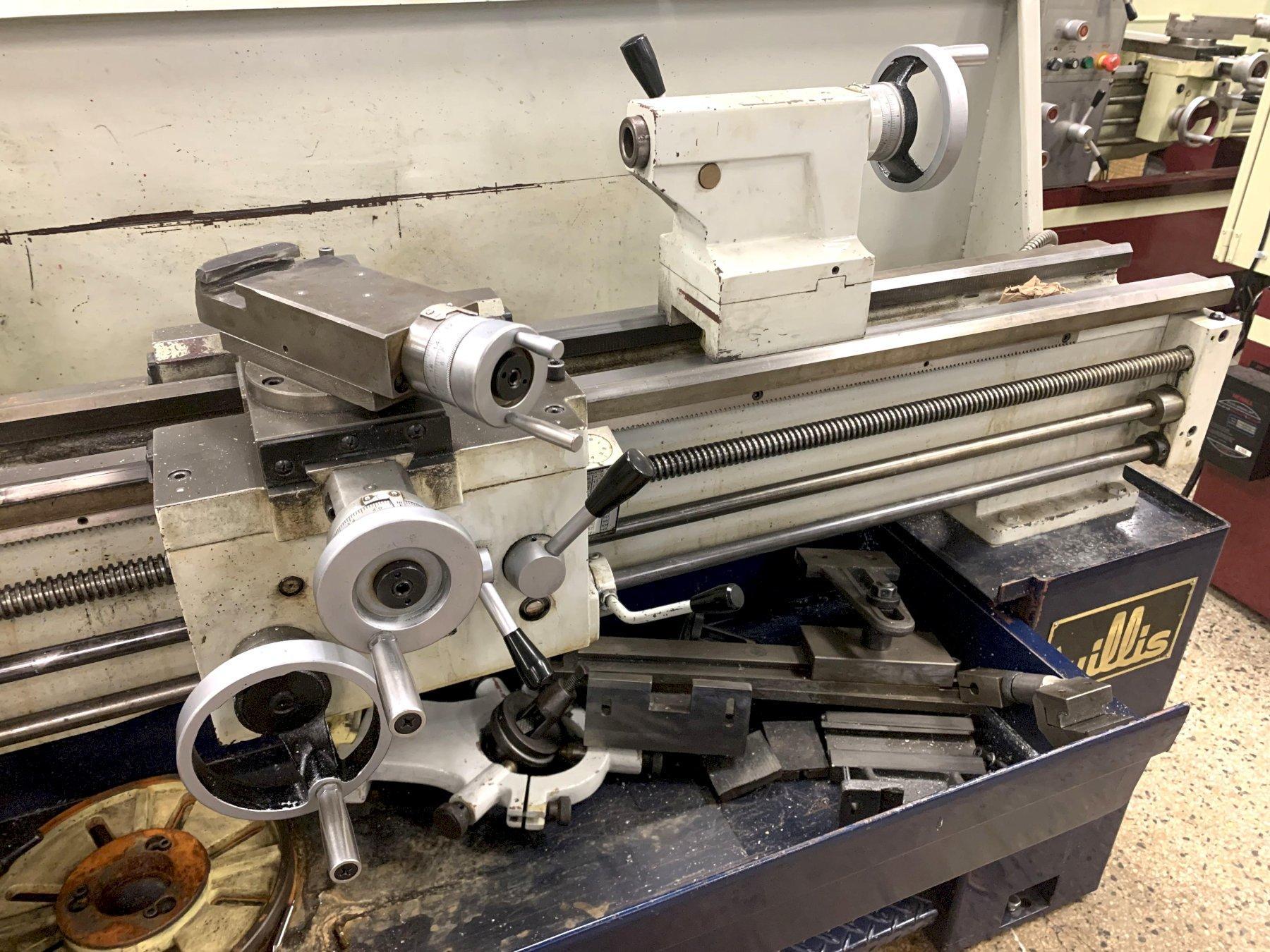

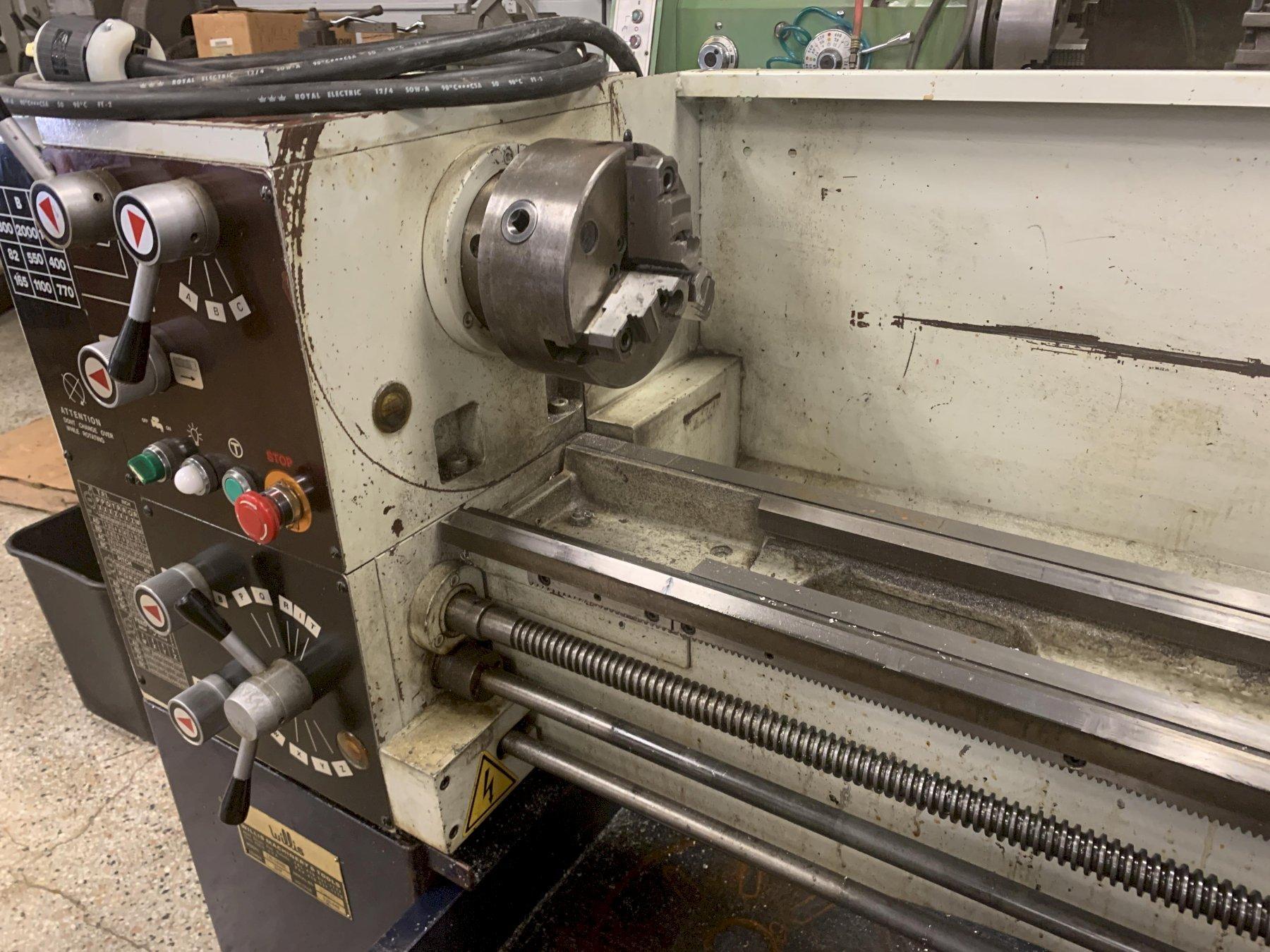

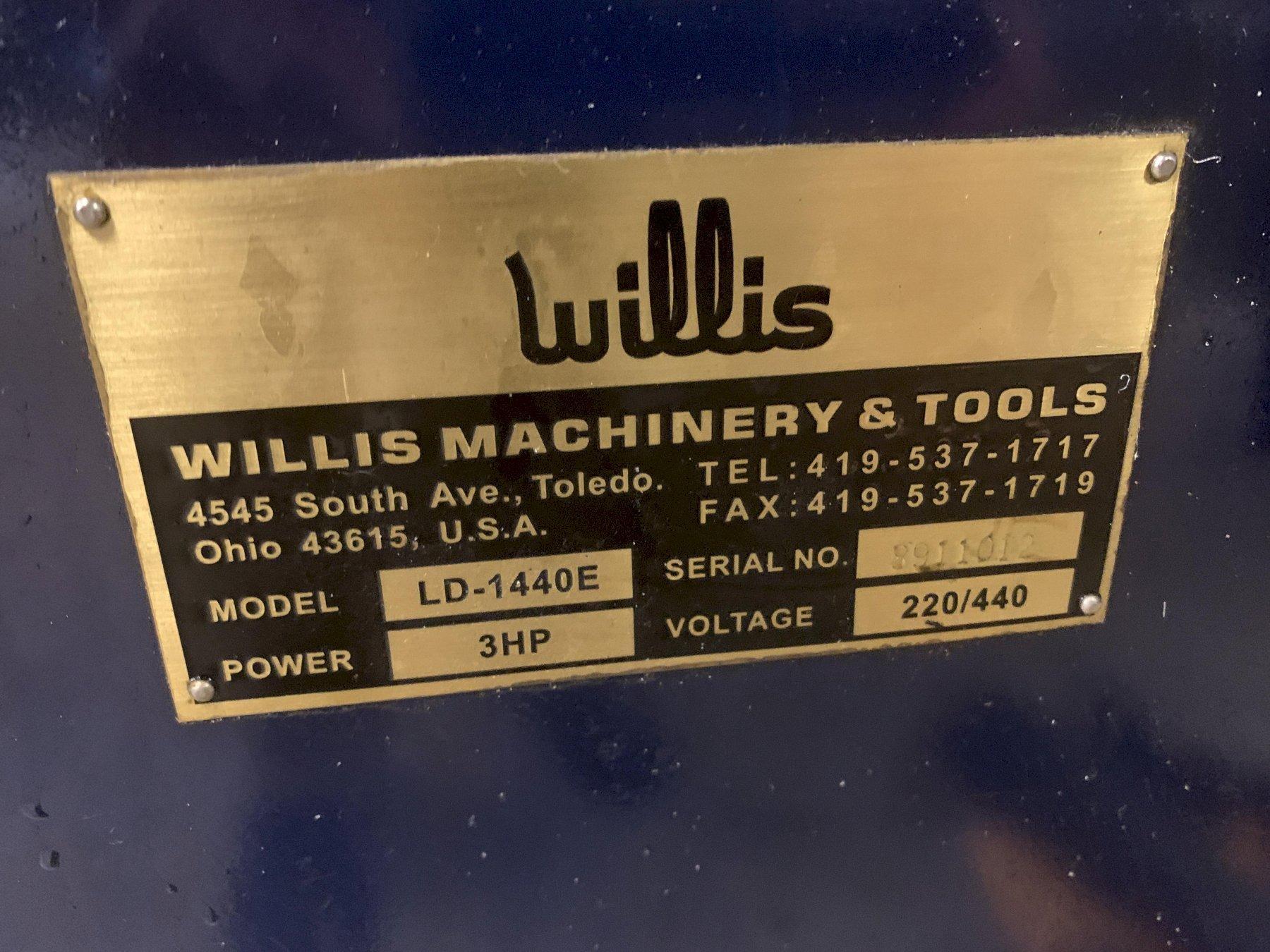

14" x 40" WILLIS Model LD-1440E Precision Engine Lathe, S/N 8911012.

Brand
WILLIS

Model
1440E

Type
Lathes, Engine

Stock #
34894T

Condition
Used

Year

Location
City Not Specified,

Price
$4,995.00

Specifications

Equipped With

Specifications:
Swing - 14"
Swing in gap - 20-1/4"
Swing over cross slide - 8-5/8"
Bed width - 7-1/2"
Centers - 40"
Spindle bore - 1-1/2"
Spindle nose - D1-4

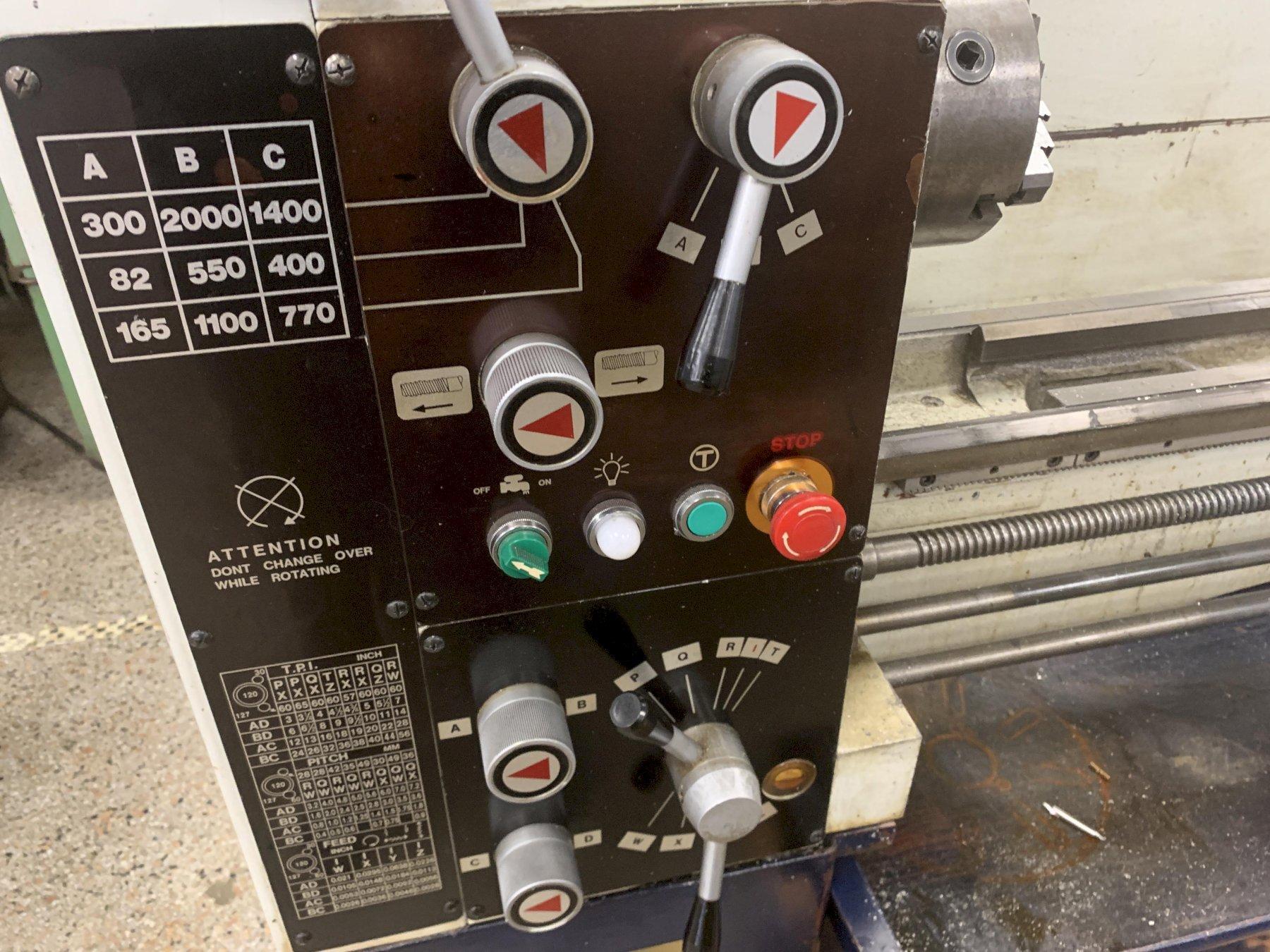

Spindle speeds (9) - 80 to 2000 rpm

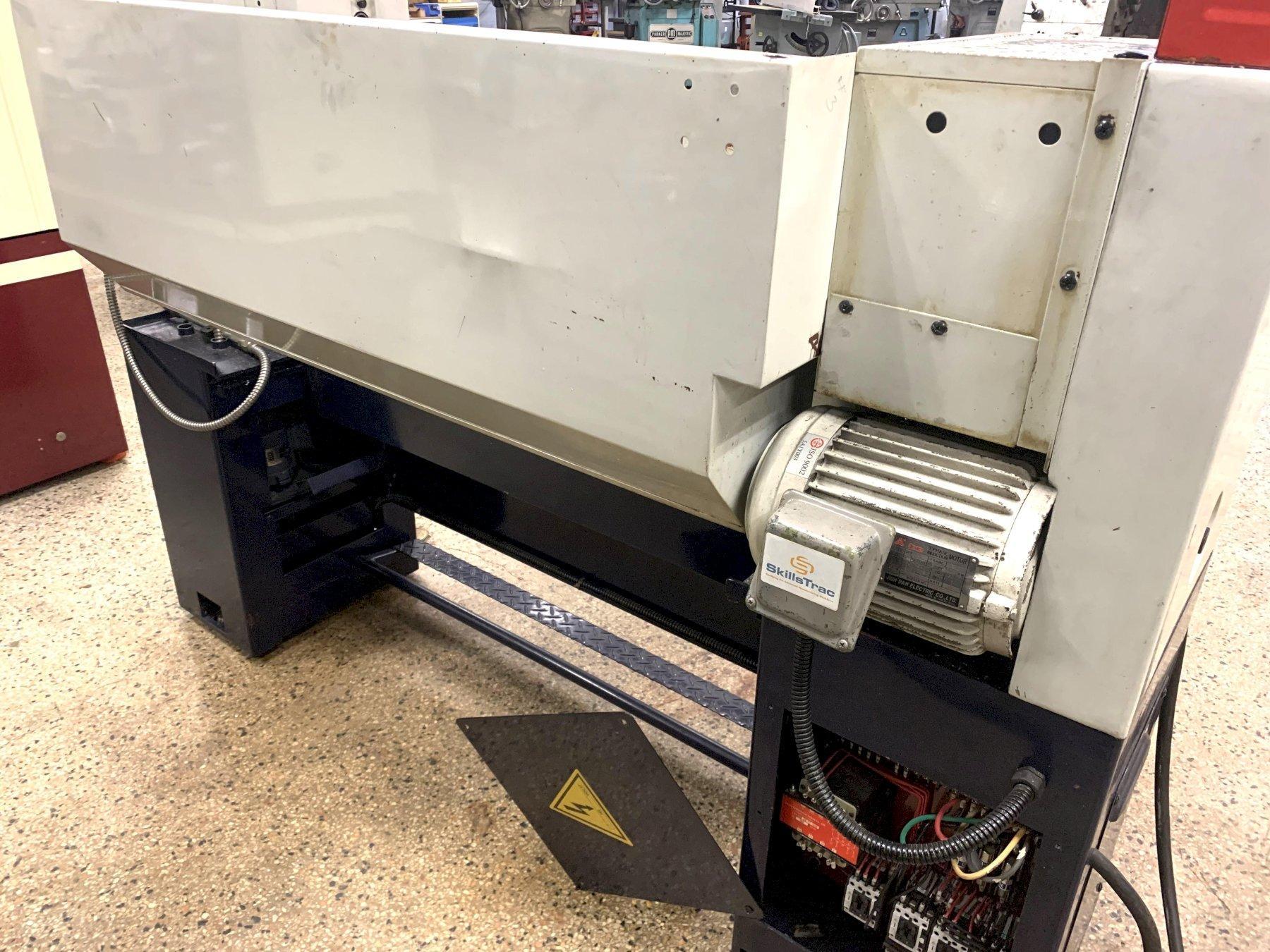

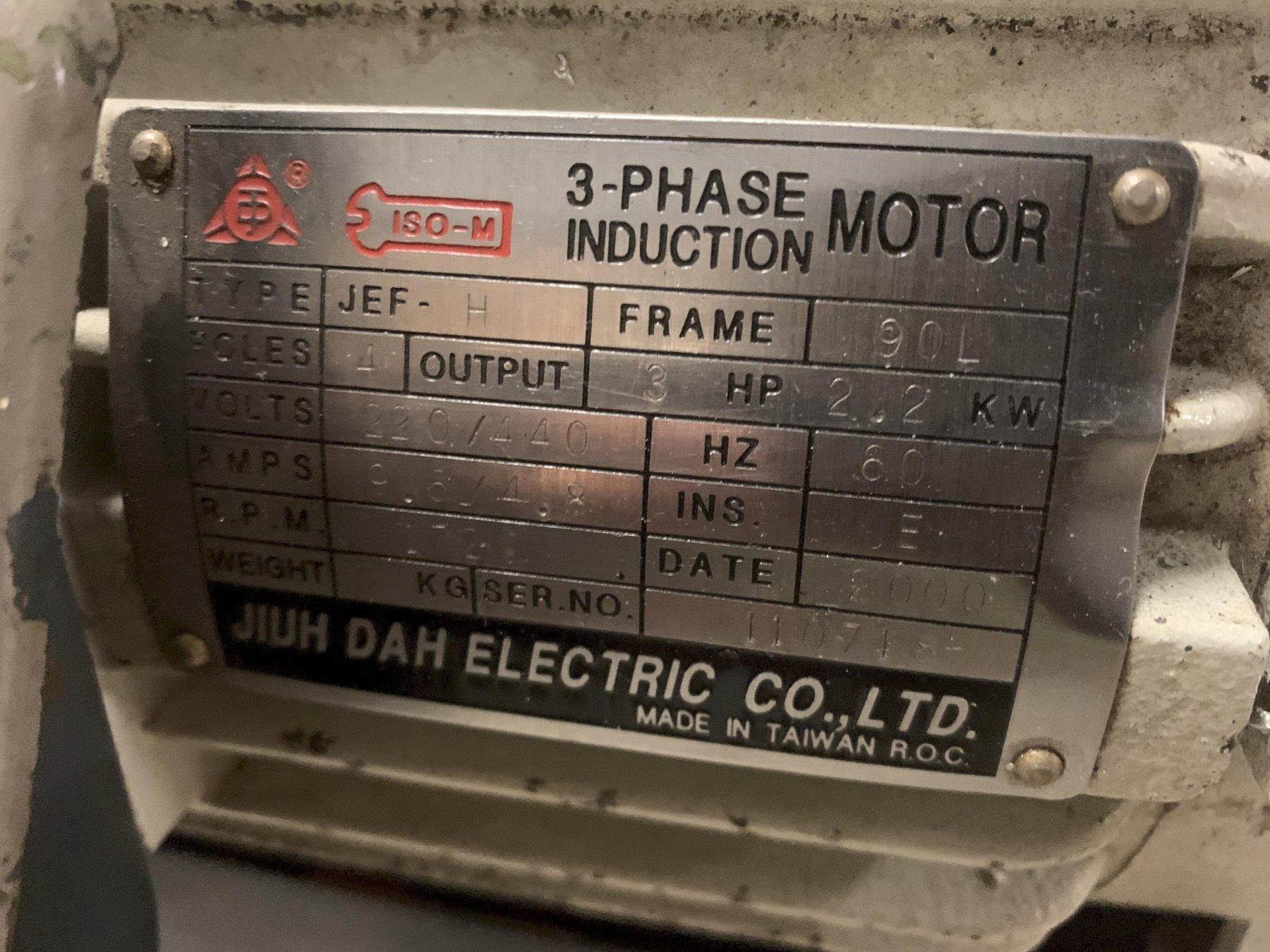

Spindle motor - 3 HP (wired 3/60/220v)
Longitudinal feeds (16) - .0026 - .064 ipr
Cross feeds (16) - .0013 - .032 ipr
Metric threads (30) - 4 to 7.2 mm
Inch threads (32) - 4 to 56 tpi
Bed length - 66"
Tailstock taper - 3 MT
Tailstock spindle travel - 4-3/8"
Tailstock spindle diameter - 1-5/8"

Floor space - 71" x 18" x 46"
Weight, approx - 1364 lbs.

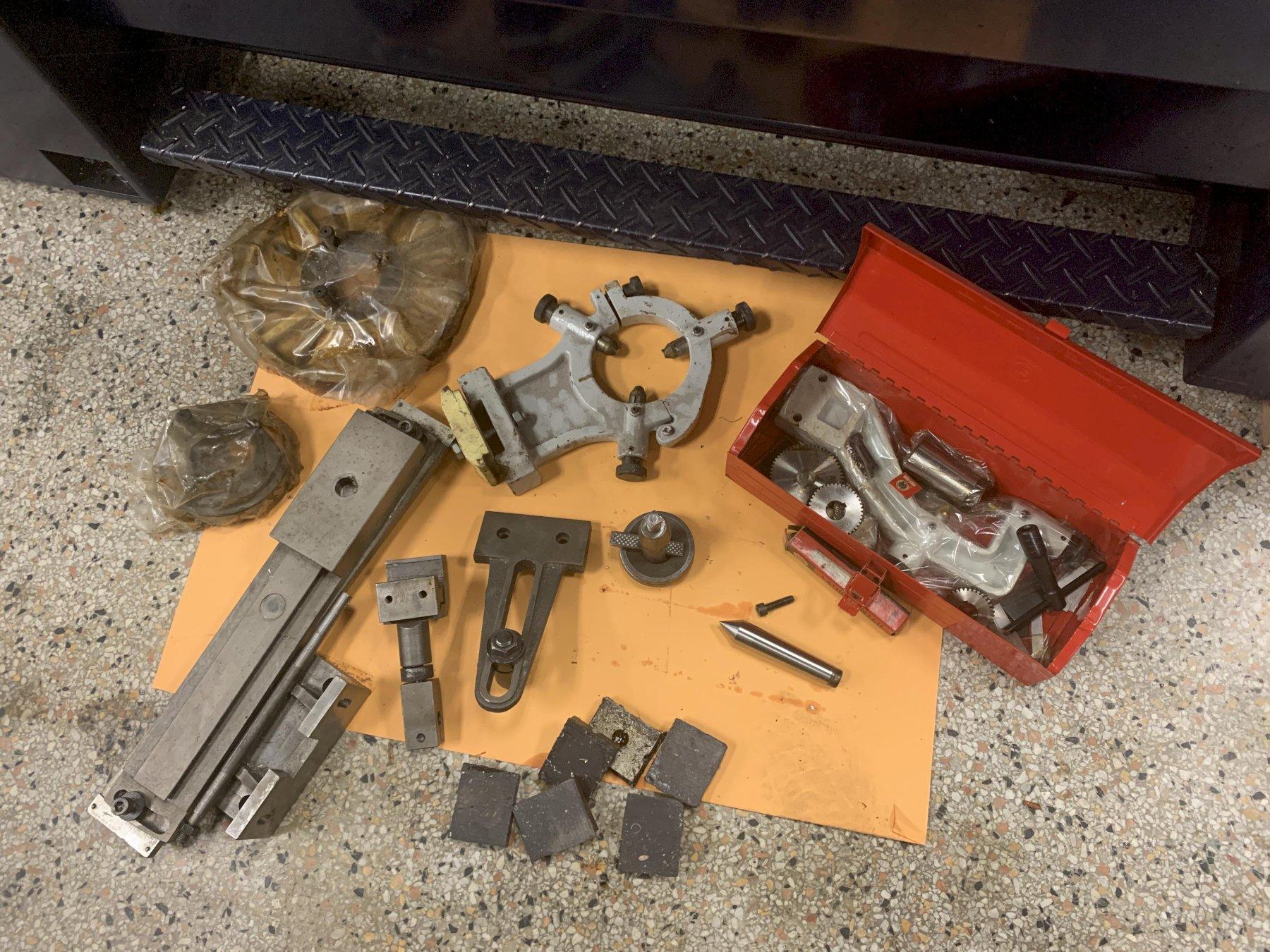

Equipped with:
3-Jaw Chuck
Face Plate
Taper Attachment
Steady Rest
Threading Dial
Back Splash Guard

Specifications subject to independent verification by the buyer.
This lathe is in very good operating condition and can be inspected under power.
Buyer pays shipping. Add $300 if skidding is required for transport.
