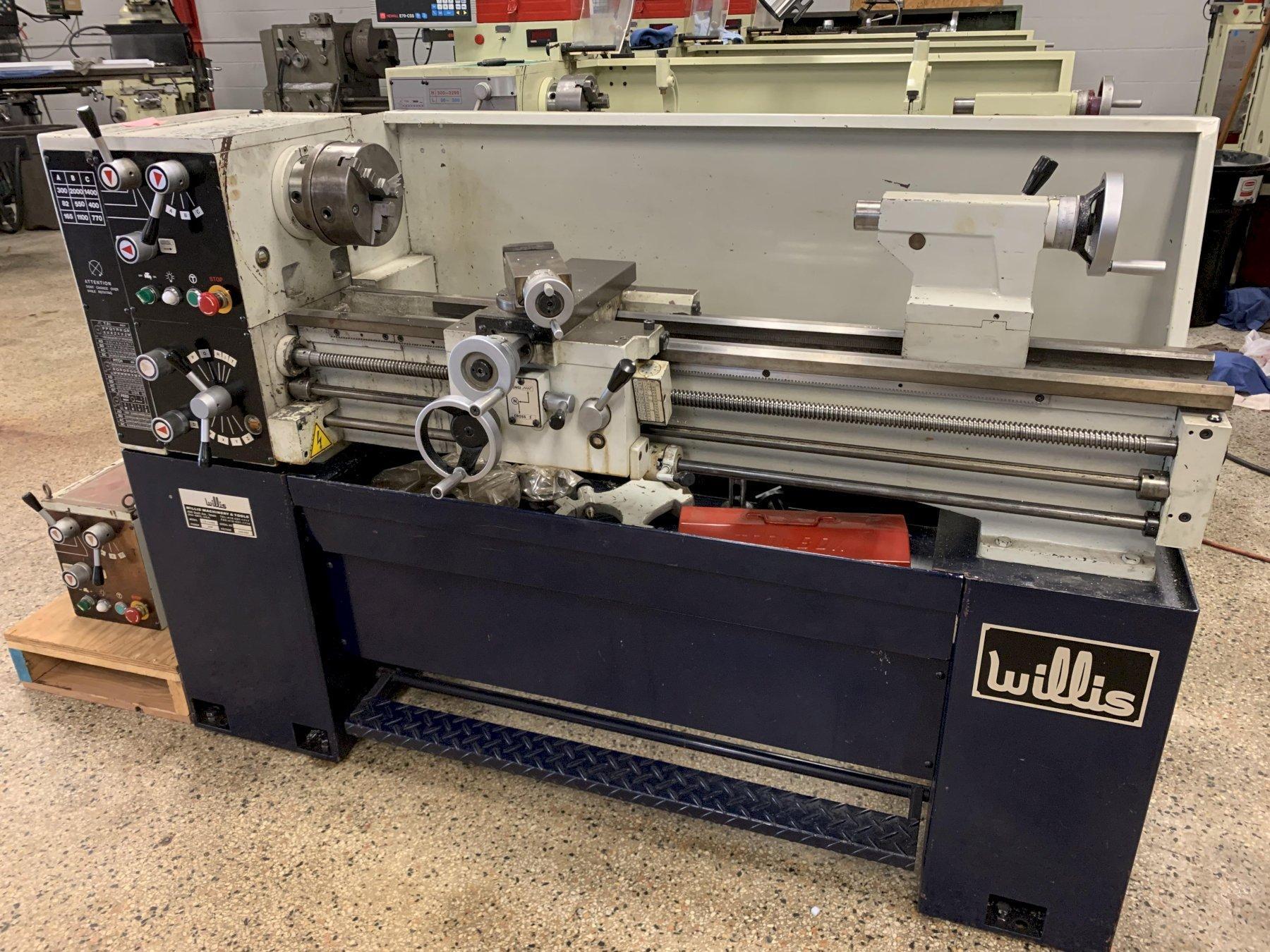

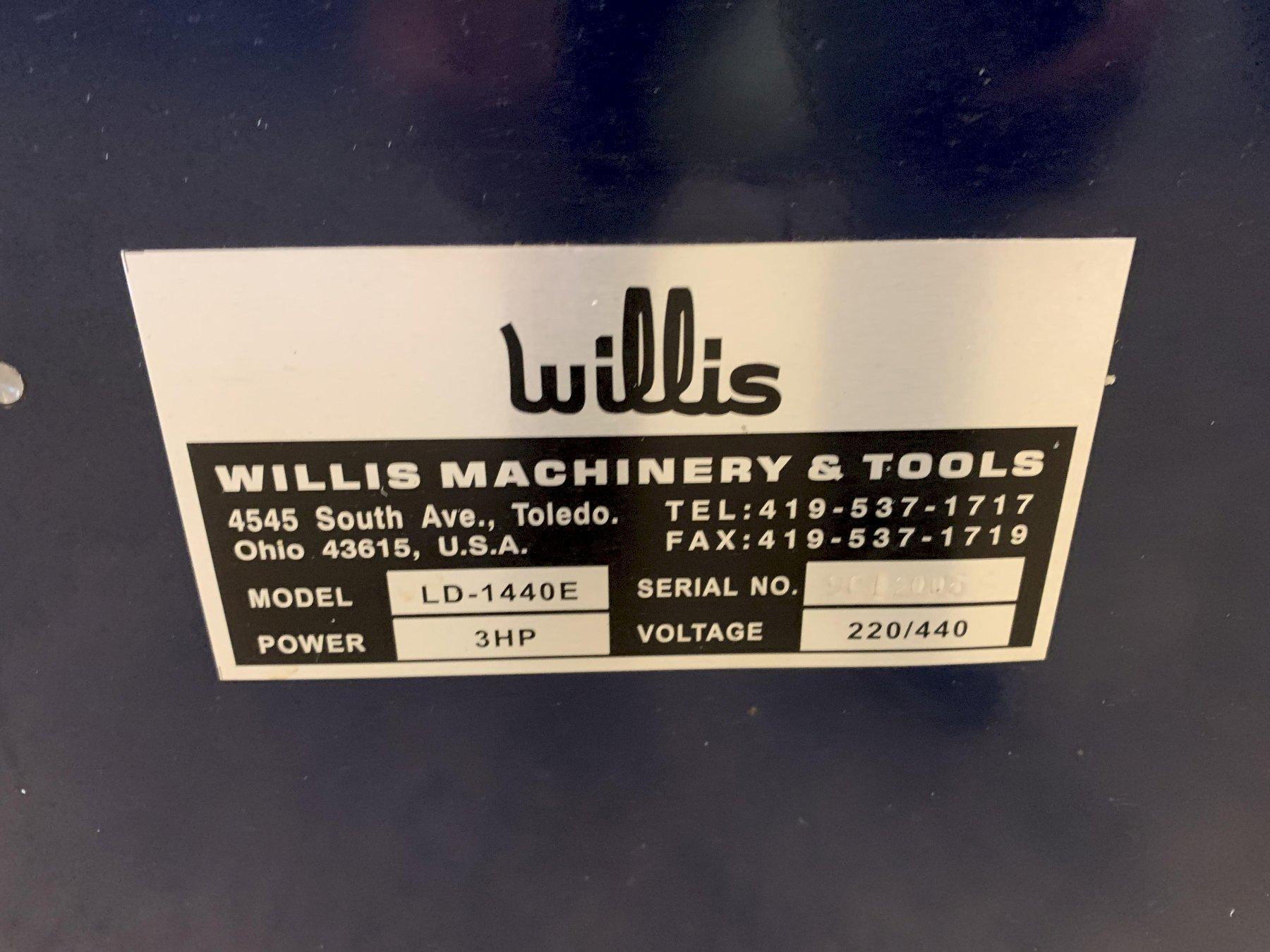

14" x 40" WILLIS Model LD-1440E Precision Engine Lathe, S/N 9012005.

Brand
WILLIS

Model
1440E

Type
Lathes, Engine

Stock #
34893T

Condition
Used

Year
0

Location
City Not Specified,

Price
$4,995.00

Request Quote

Specifications

Equipped With

Specifications:
Swing - 14"
Swing in gap - 20-1/4"
Swing over cross slide - 8-5/8"
Bed width - 7-1/2"
Centers - 40"
Spindle bore - 1-1/2"
Spindle nose - D1-4

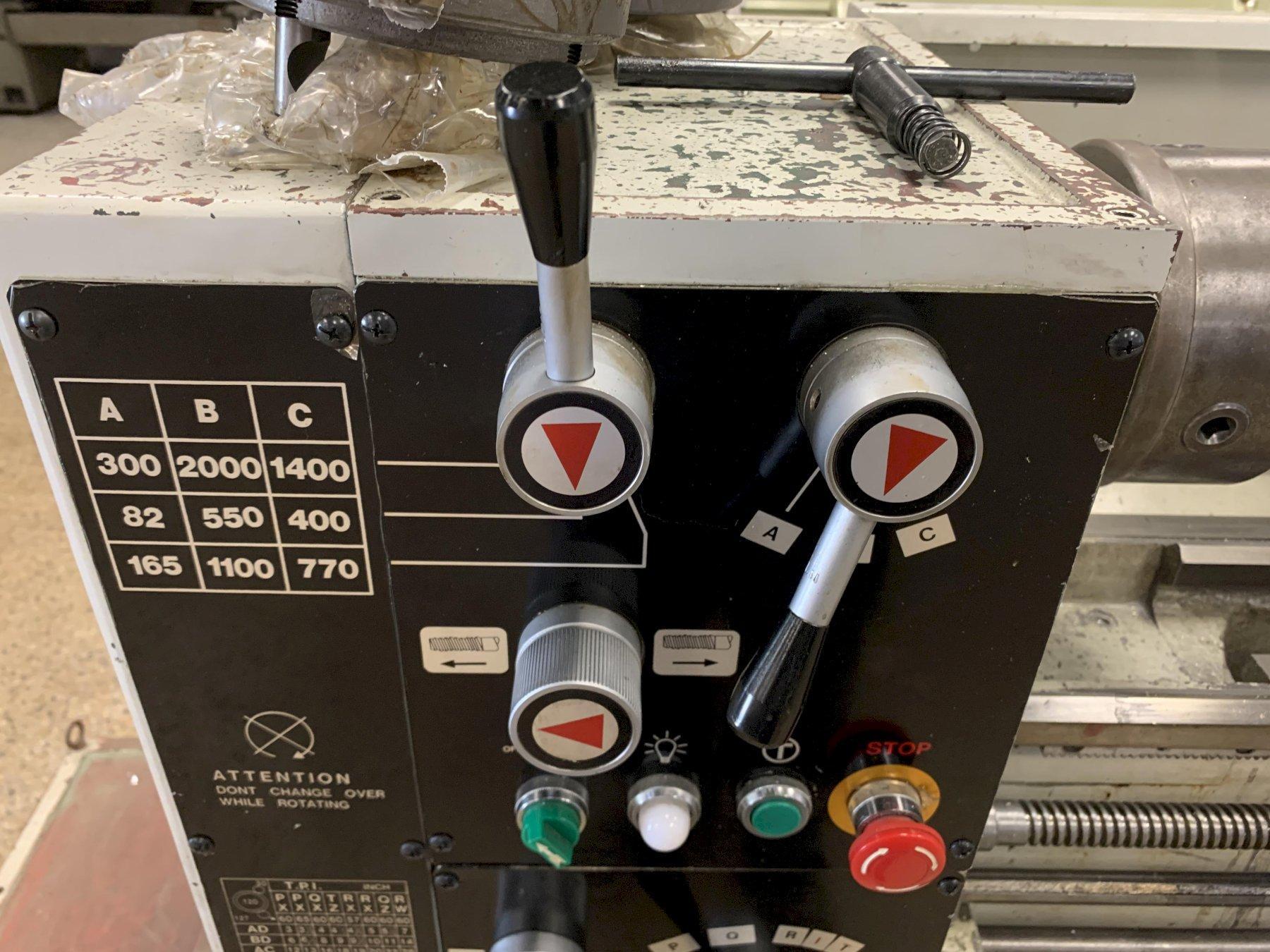

Spindle speeds (9) - 80 to 2000 rpm
Spindle motor - 3 HP
Longitudinal feeds (16) - .0026 - .064 ipr
Cross feeds (16) - .0013 - .032 ipr
Metric threads (30) - 4 to 7.2 mm
Inch threads (32) - 4 to 56 tpi
Bed length - 66"

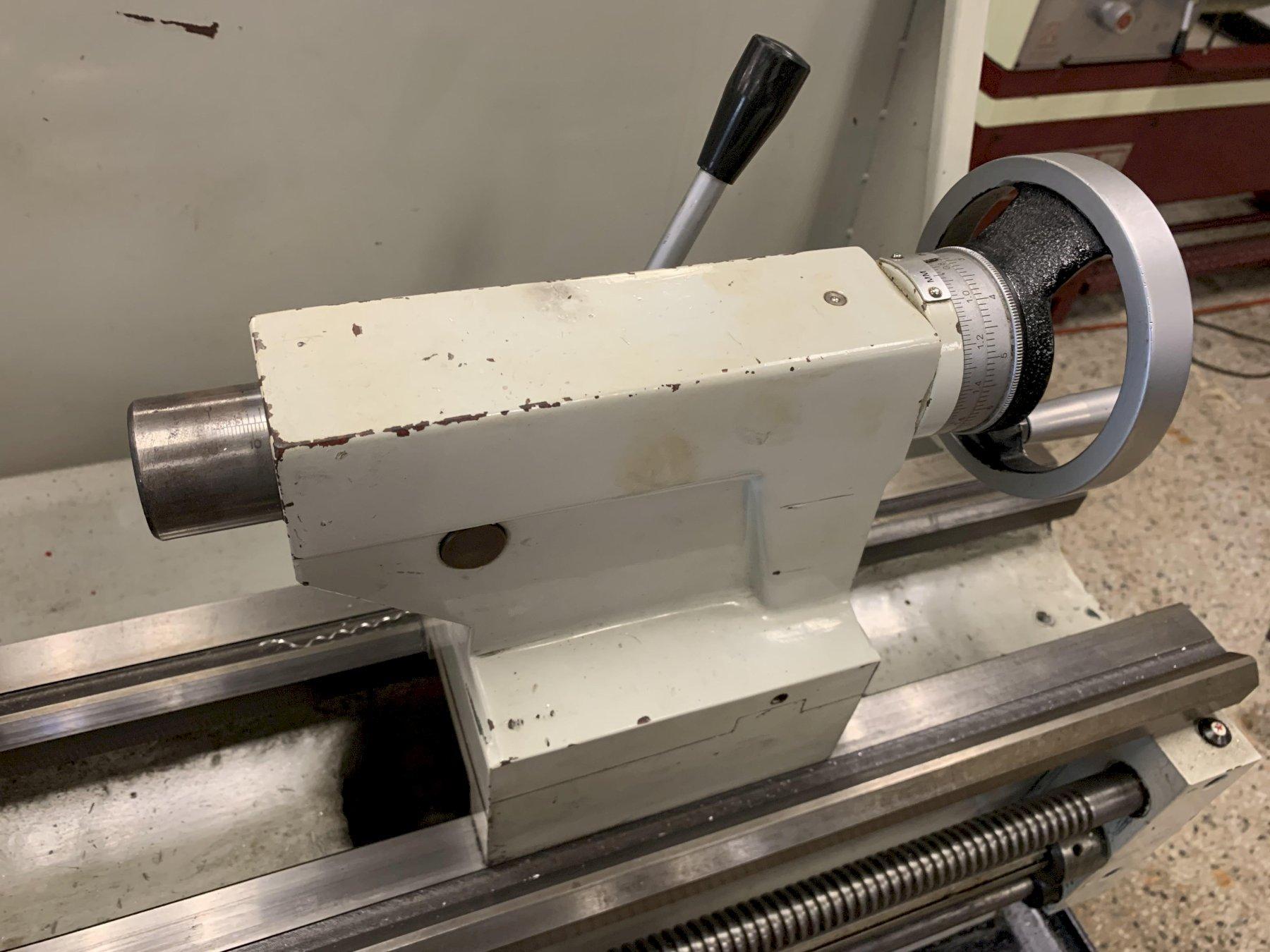

Tailstock taper - 3 MT
Tailstock spindle travel - 4-3/8"
Tailstock spindle diameter - 1-5/8"
Floor space - 71" x 18" x 46"
Weight, approx - 1364 lbs.

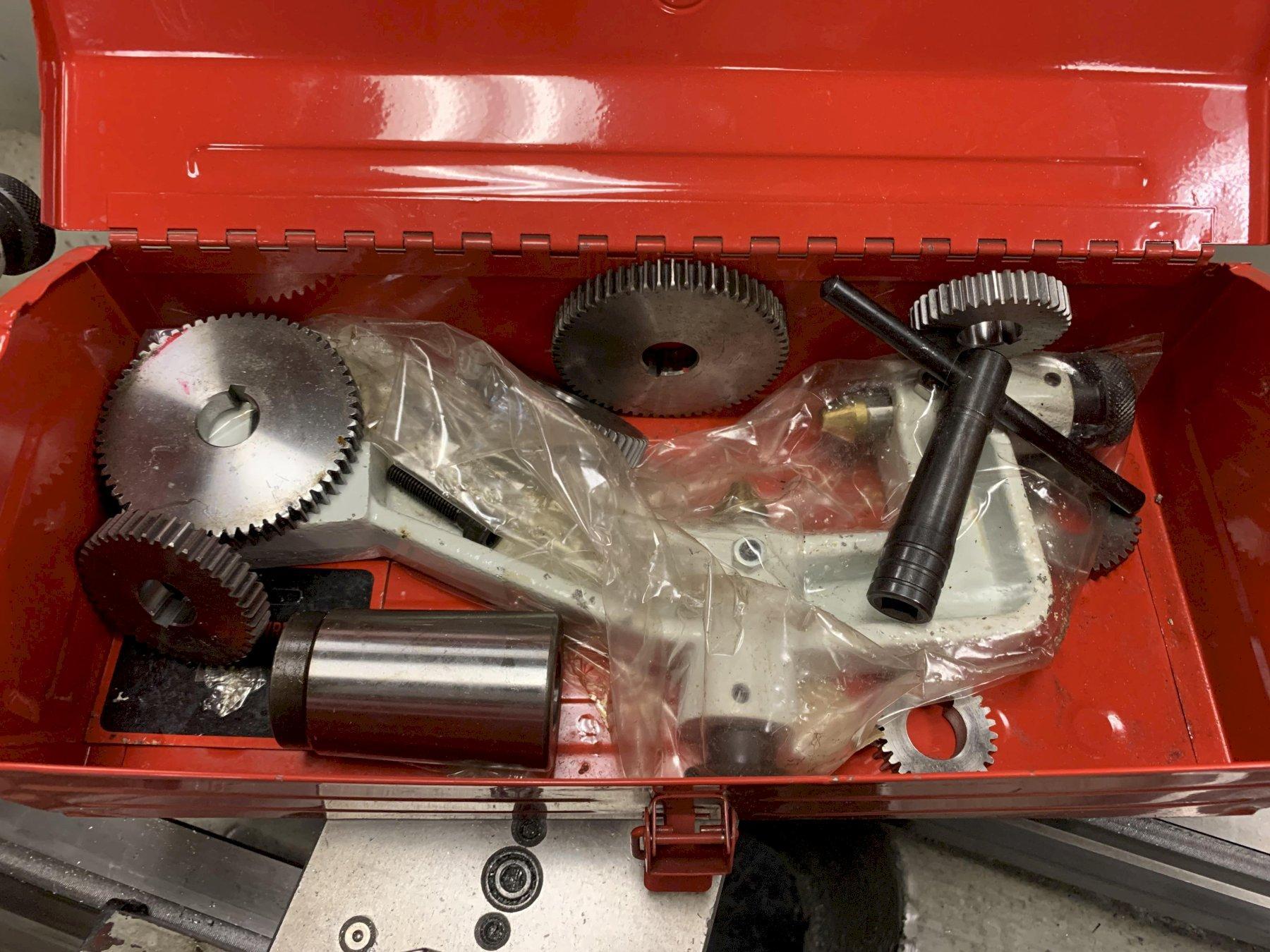

Includes:
3-Jaw Chuck
Steady Rest
Follow Rest

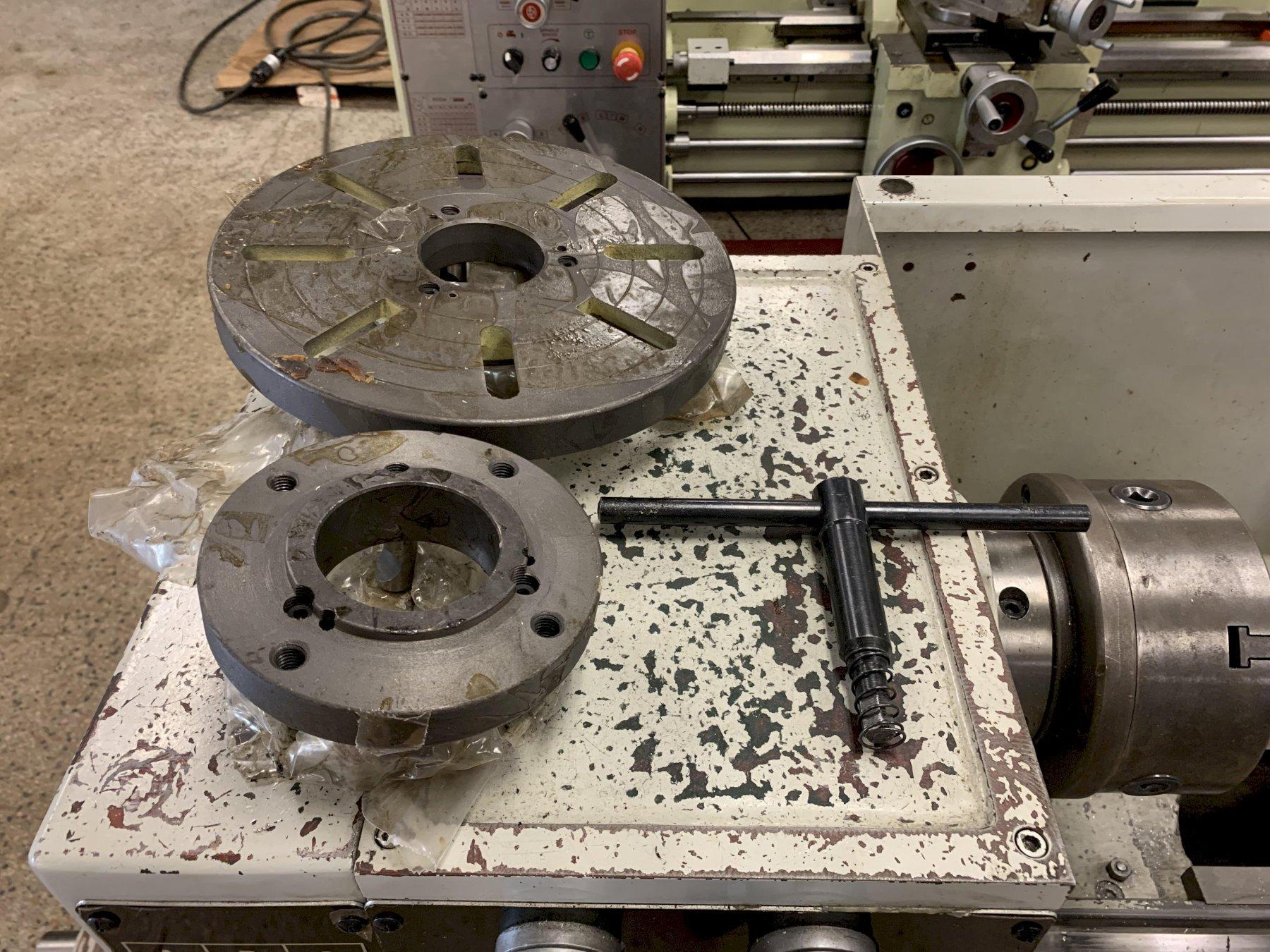

Face Plate
Threading Dial

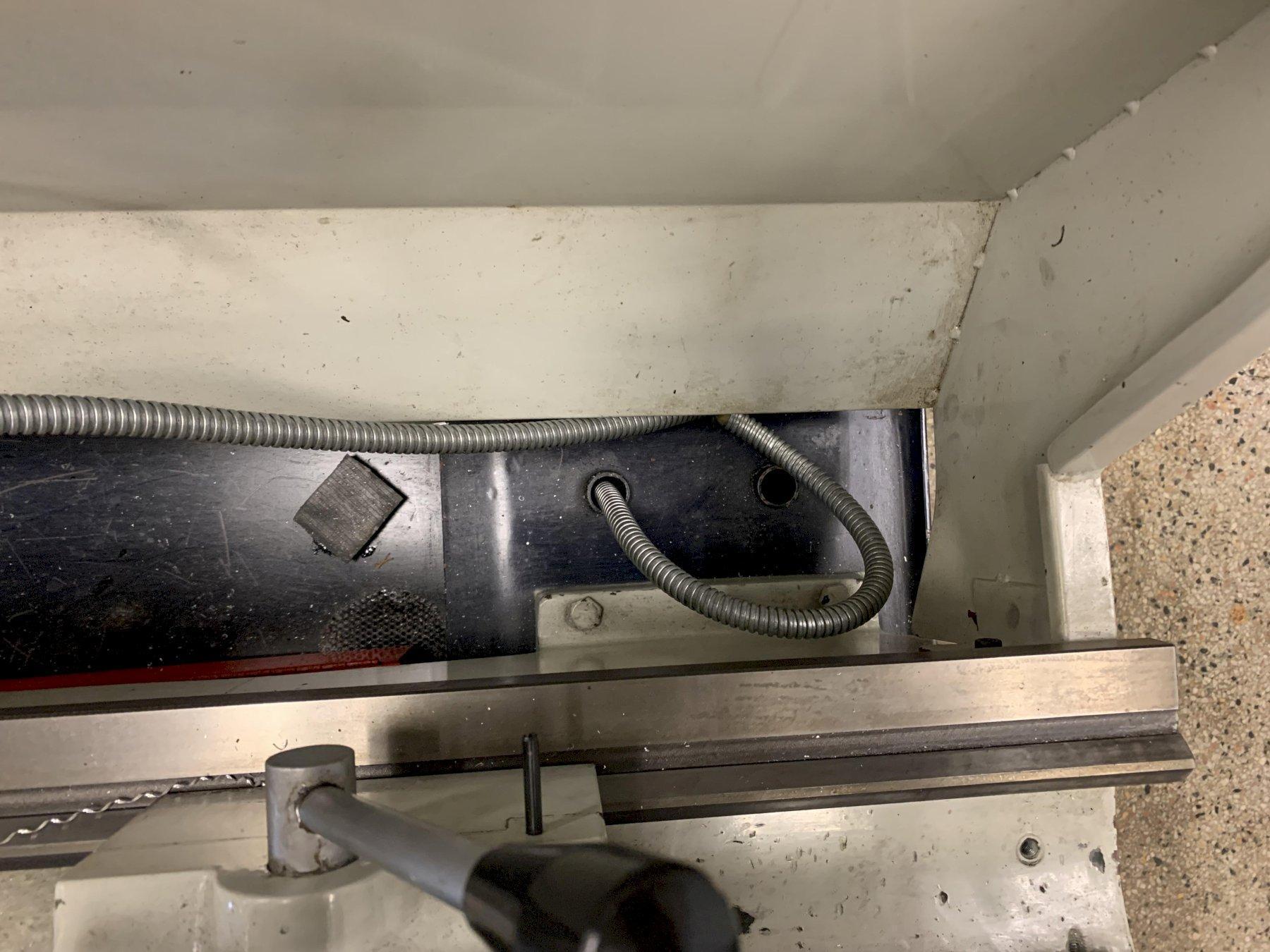

Coolant Pump
Back Splash Guard

Specifications subject to independent verification by the buyer.
Machine is believed to be in good operating condition but is currently untested.
Seller can load. Buyer responsible for freight.
Skidding additional charge of $300 if required for transport.
