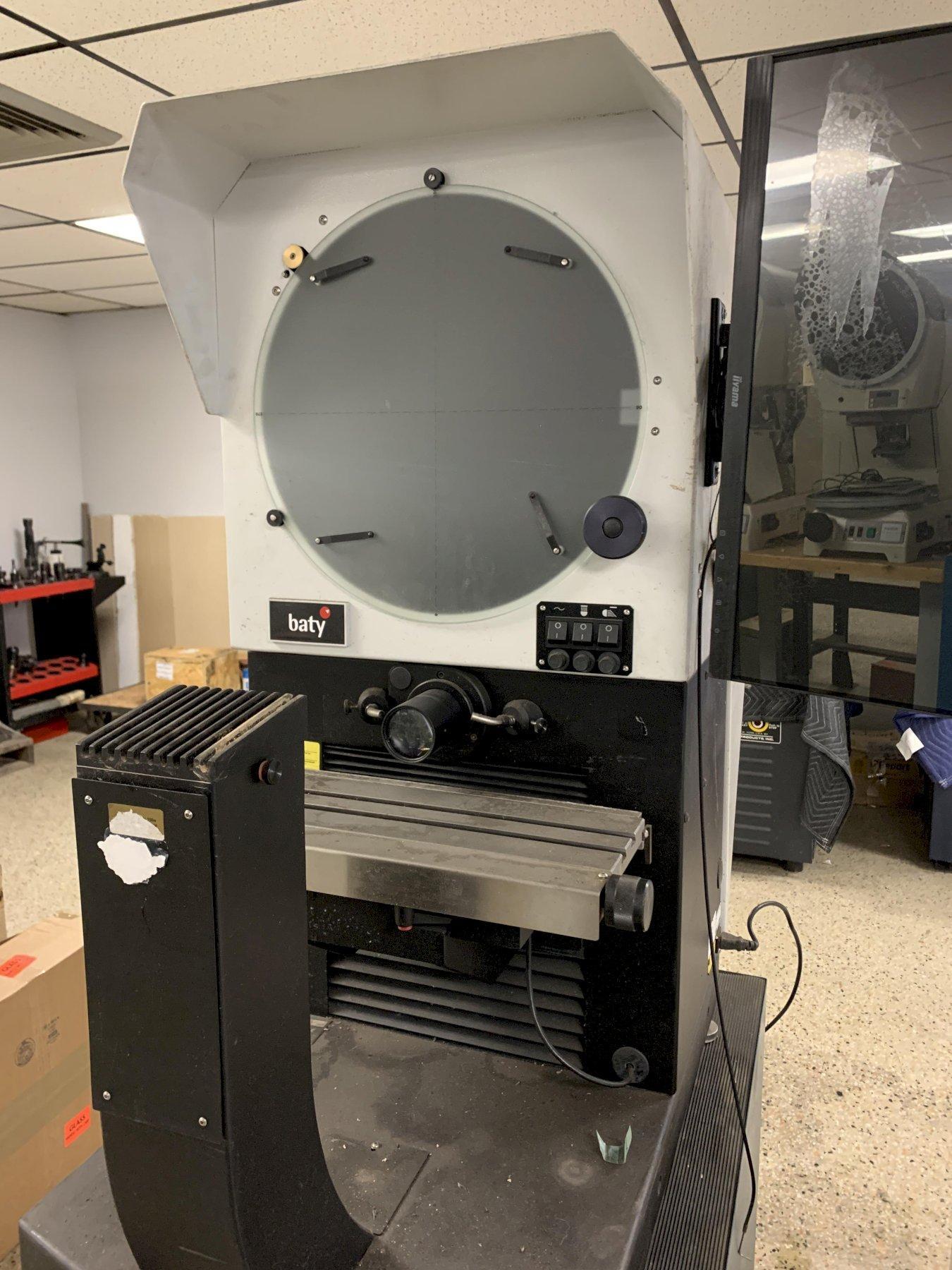

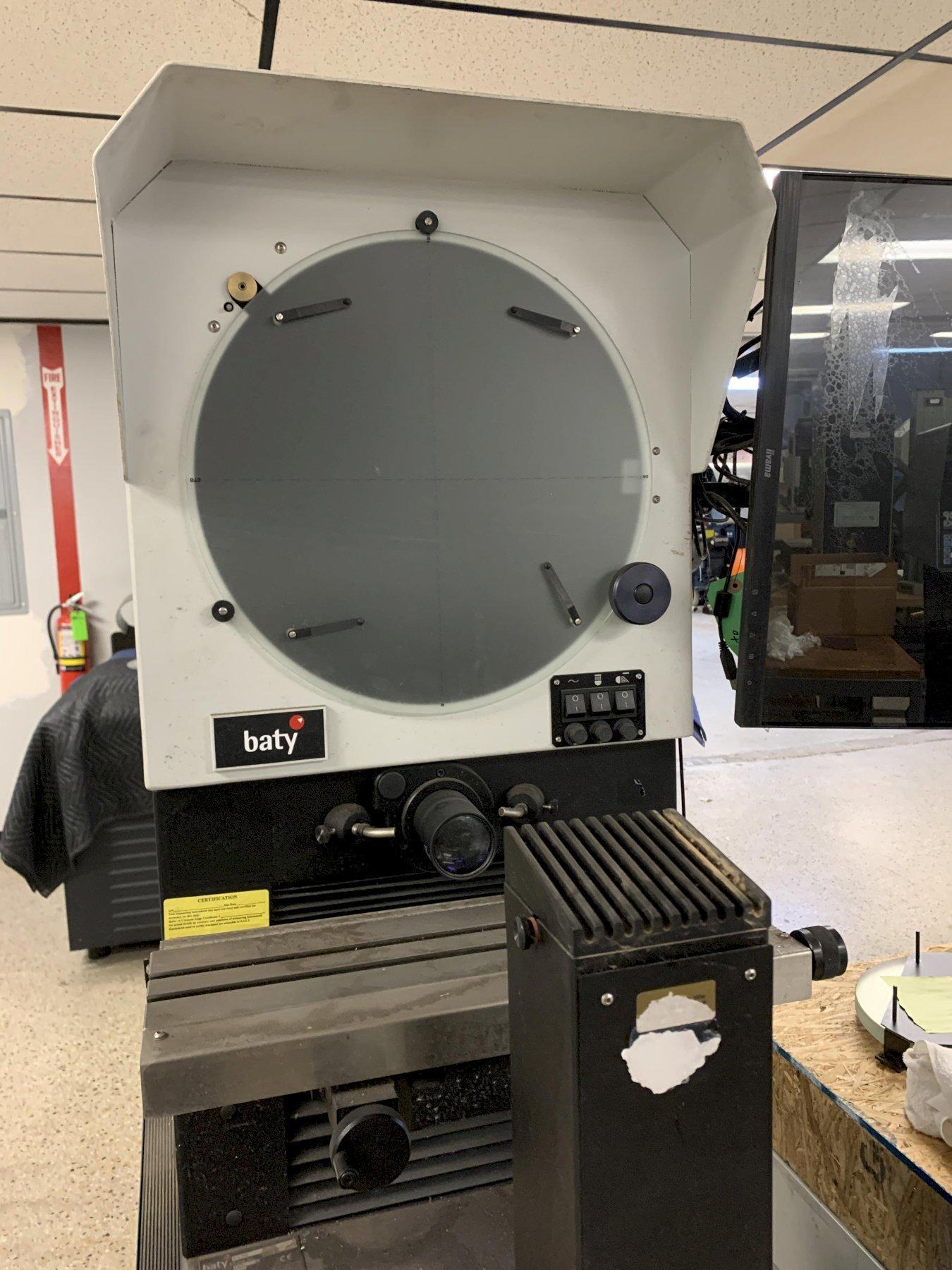

16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
  • 16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
  • 16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
  • 16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
  • 16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.
  • 16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.

16" BATY Model R400 Bench Top Optical Comparator, S/N 2056.

Brand
BATY

Model
R400

Type
Comparators, Optical

Stock #
34949

Condition
Used

Year
2020

Location
Dayton, Ohio
United States

Price
$13,500.00

Request Quote

Specifications

Equipped With

Specifications:
Screen Diameter - 16" with Crosshairs and Chart Clips
Measuring Range - 12" Horizontal and 6" Vertical
Profile Illumination with Halogen Lamp with Green Filter
Surface Illumination with Dual Fiber Optics
Helix Adjustment via Light Source Adjustment
Digital Angle Measuring to 1 Minute
Automatic Edge Sensor (subject to confirmation)

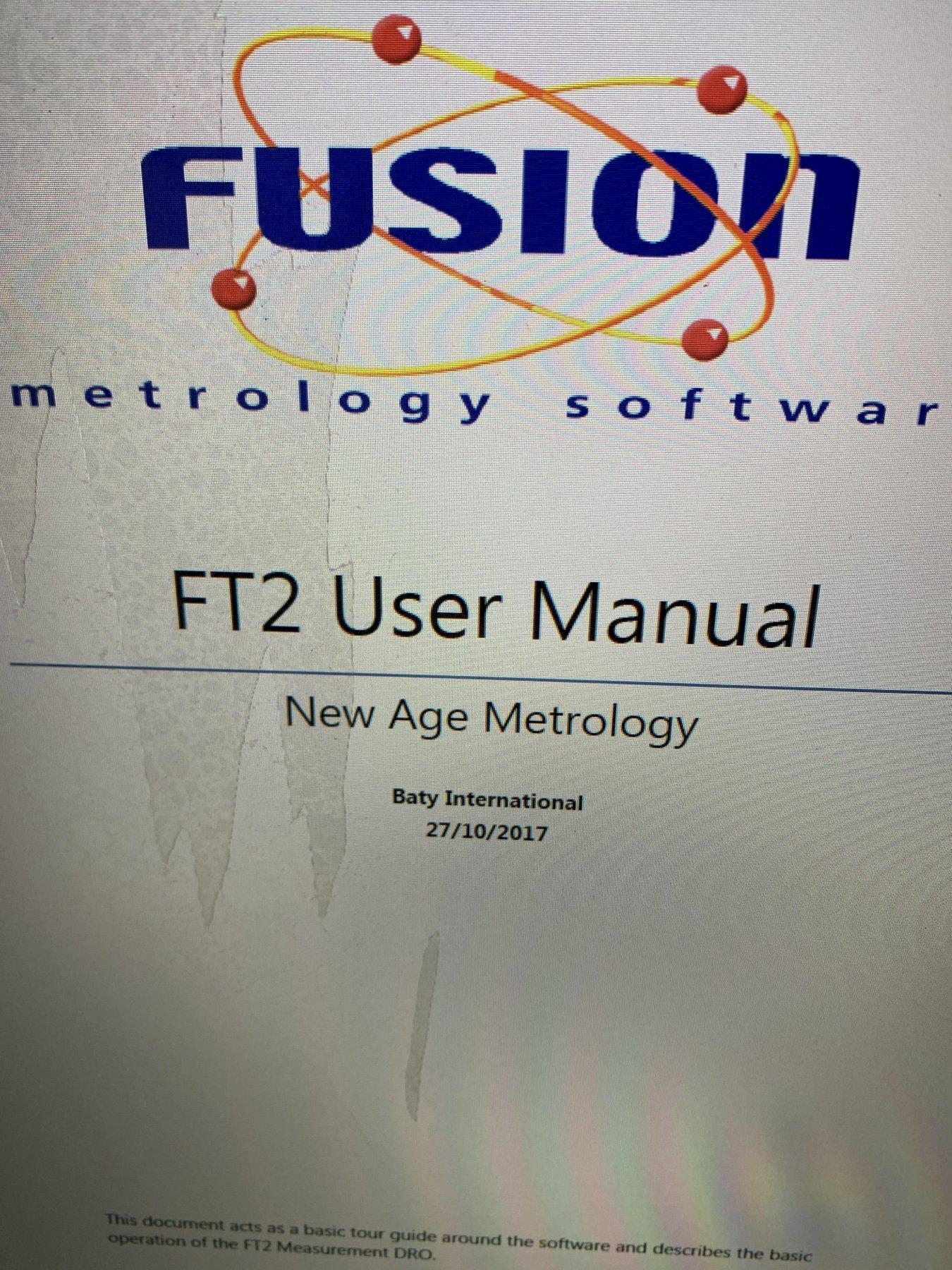

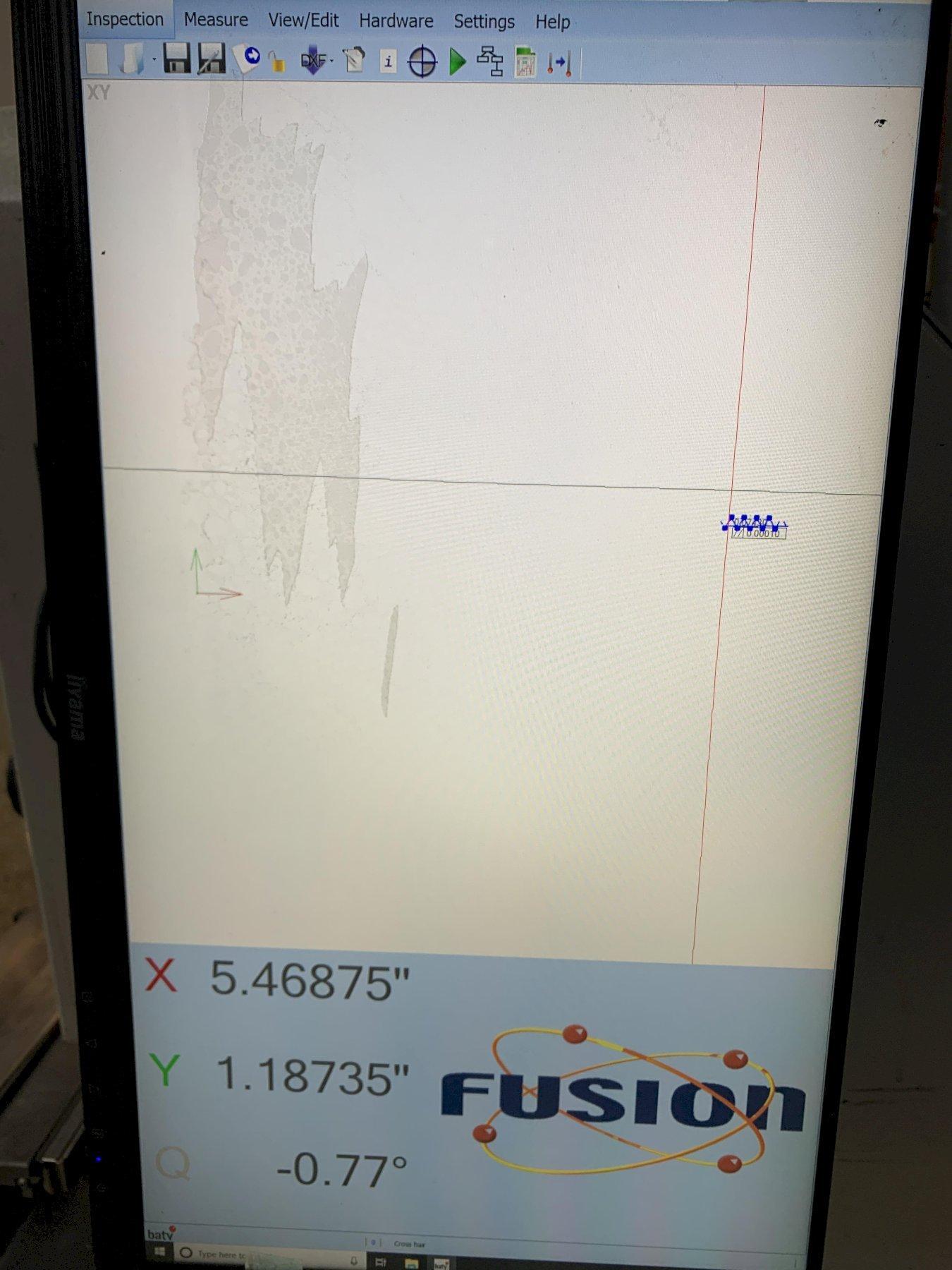

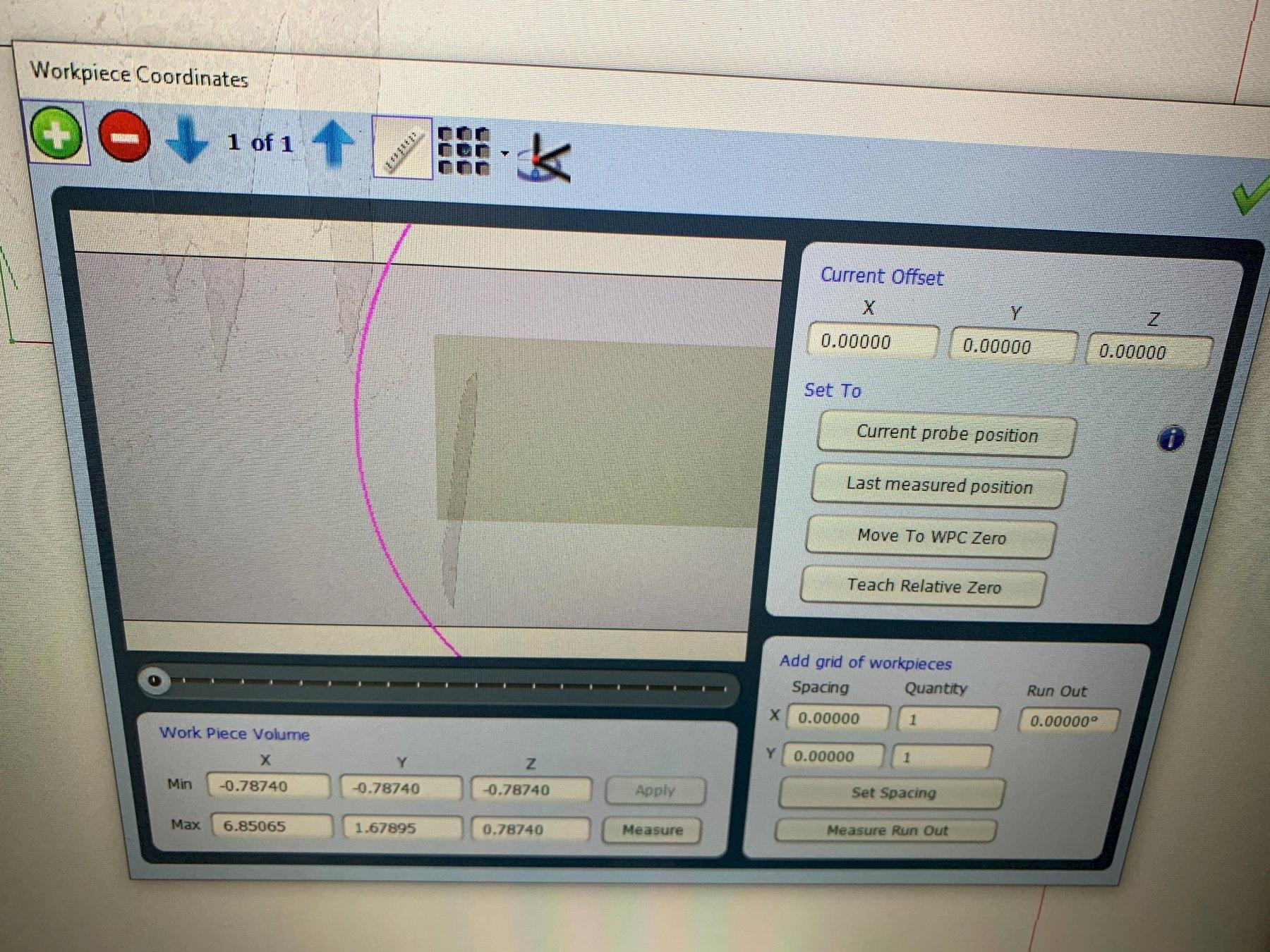

FUSION Touch Screen DRO with Full Geometric Functionality
Single Lens Mount with (1) 10X Lens
Dimensions - LR 20" (plus 13.5" for computer) x 41" FB x 42" H
Net Weight (Estimated) - 325 Lbs.

Notes:
New arrival. Availability pending. (ask for details)
Specifications subject to independent verification by the buyer.
Seller will prep and crate for transport. Buyer responsible for shipping.

The Baty R400 is a premium British-built optical comparator known for it's large 16" screen, generous measuring capacity, and modern digital features that delivery fast, accurate non-contact inspection. This unit stands out with its advanced FUSION Touch Screen DRO offering full geometric functionality, automatic edge sensing, and digital angle measuring.
