Specifications
Equipped With

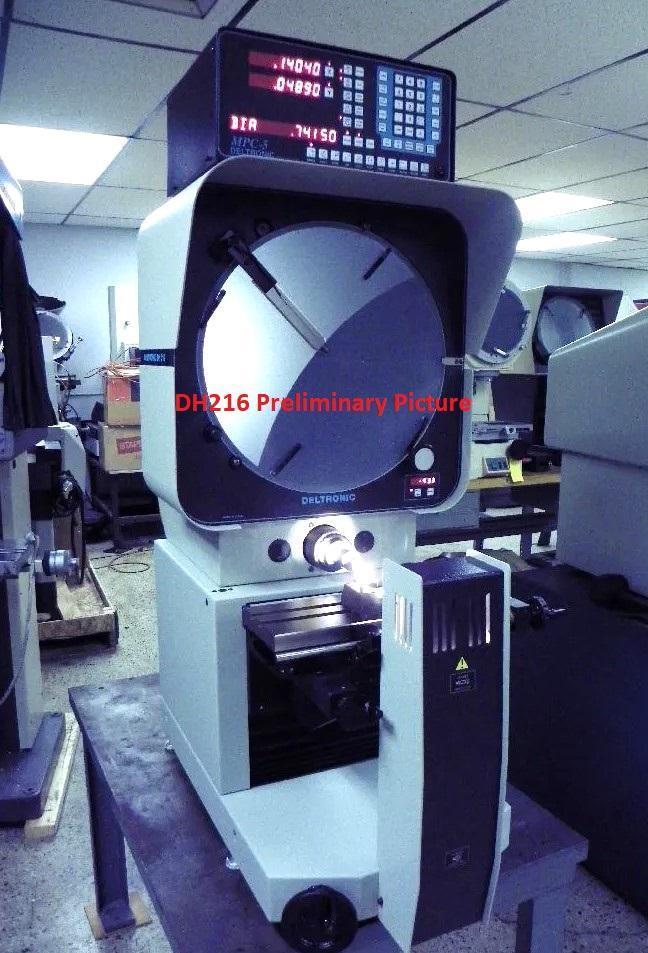

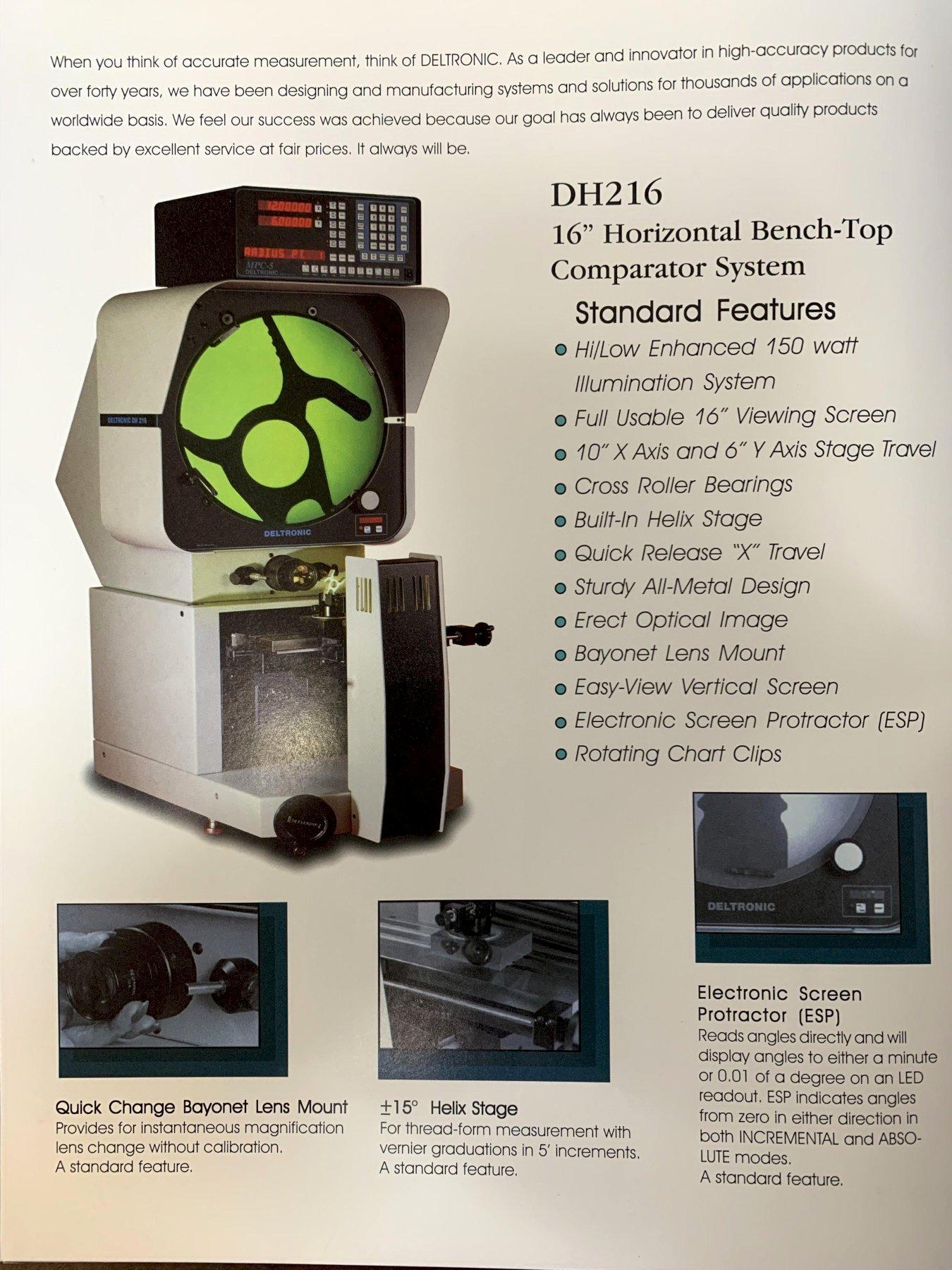

Preliminary Specifications:
Diameter of Glass Screen - 17½"
Full Usable Diameter of Chart - 16"
Table Size - 5" x 15"
Horizontal Table Travel - 10"
Vertical Table Travel - 6"
Focus Travel - 2"
Helix Adjustment - ± 15º
Chart Rotation - 360º
Lens Mount - Single
Electrics - 1/60/120 V
Net Weight, Approx - 315 Lbs.
Estimated Shipping Weight - 600 Lbs.
Equipped with:

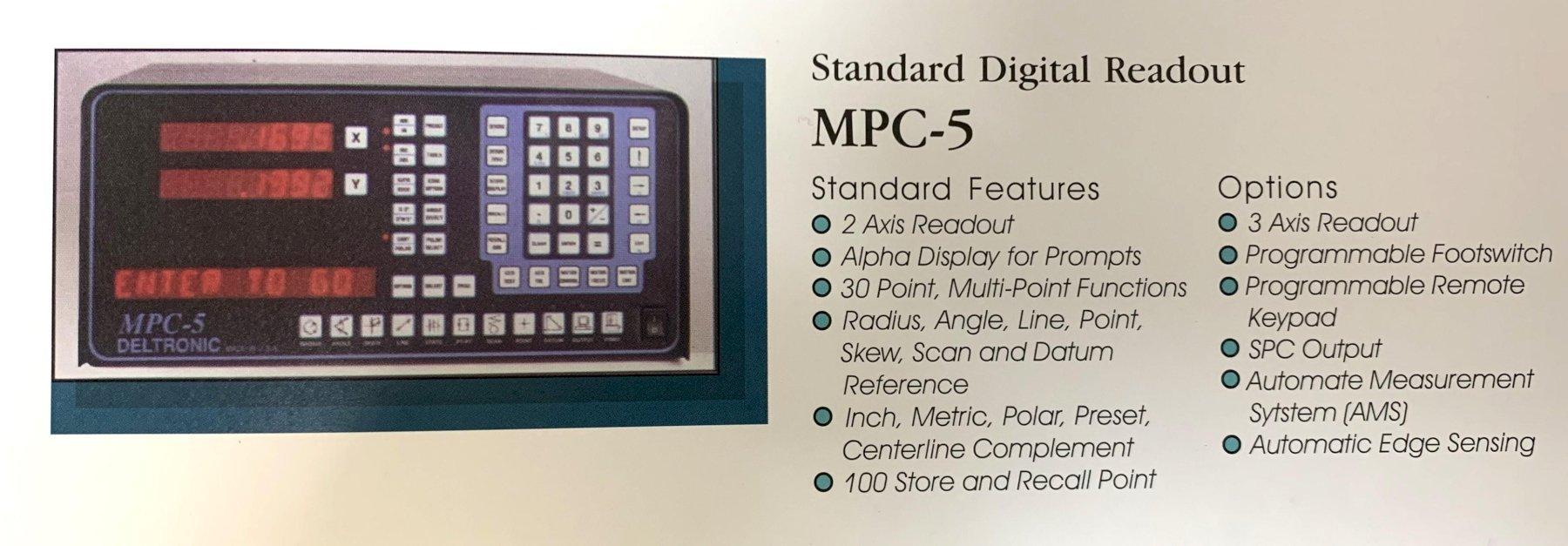

Deltronic MPC-5/E Computational Digital Readout
Auto Edge Sensing
Electronic Screen Protractor
Quick Release X-Axis Travel
Quick Change Bayonet Lens Mount
Fiber Optic Surface Reflection
Vertically Erect Image
(1) 10X Lens
Optional 25X Lens available for purchase ($600) or substitute for 10X.
Optional Cabinet Base, less key (subject to availability) - $700
Notes:
- Arrival and availability pending. Machine will be cleaned and serviced by technician prior to loadout.
- Specifications subject to independent verification by the buyer.
- Buyer responsible for shipping. Seller can provide rates on request.
- Advanced Machinery past sales of Deltronic DH214/DH216 currently totals 36 machines.
