Specifications: Diameter of Glass Screen - 17½" Full Usable Diameter of Chart - 16" Table Size - 5" x 15" Horizontal Table Travel - 10" Vertical Table Travel - 6" Focus Travel - 2" Helix Adjustment - ± 15º Chart Rotation - 360º Lens Mount - Single Electrics - 1/60/120 V Net Weight, Approx - 315 Lbs. Estimated Shipping Weight - 700 Lbs.

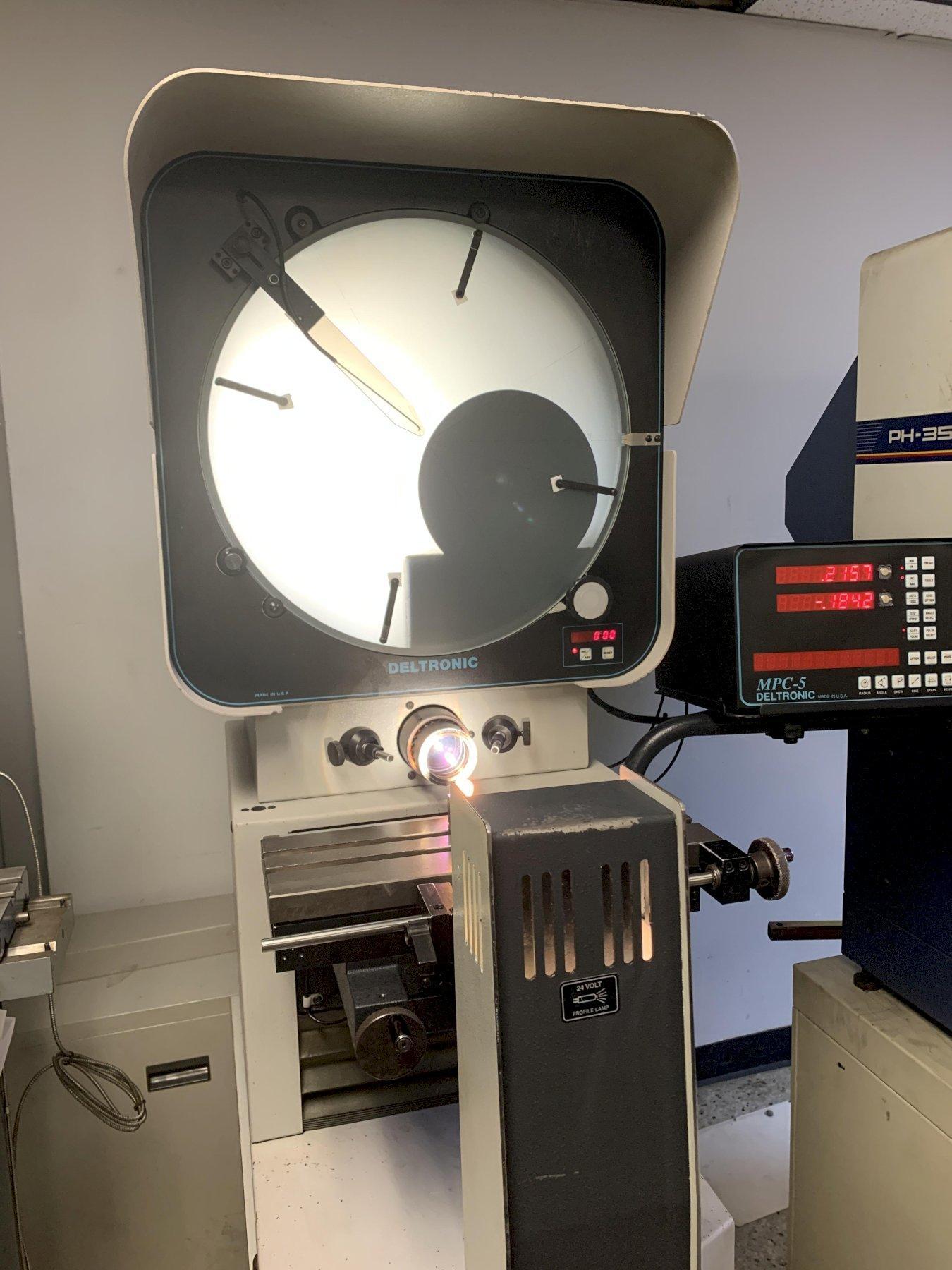

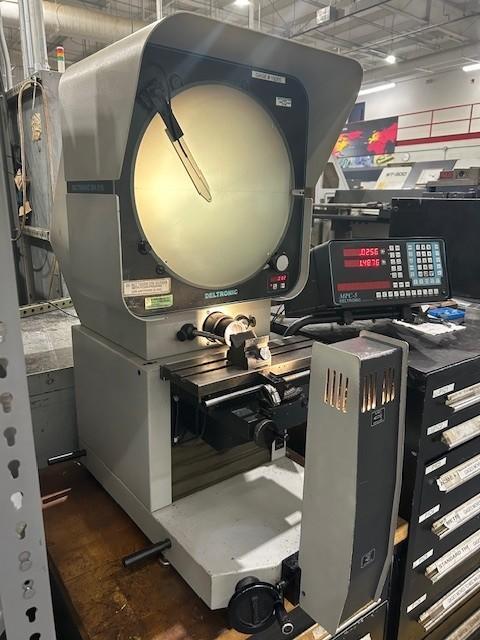

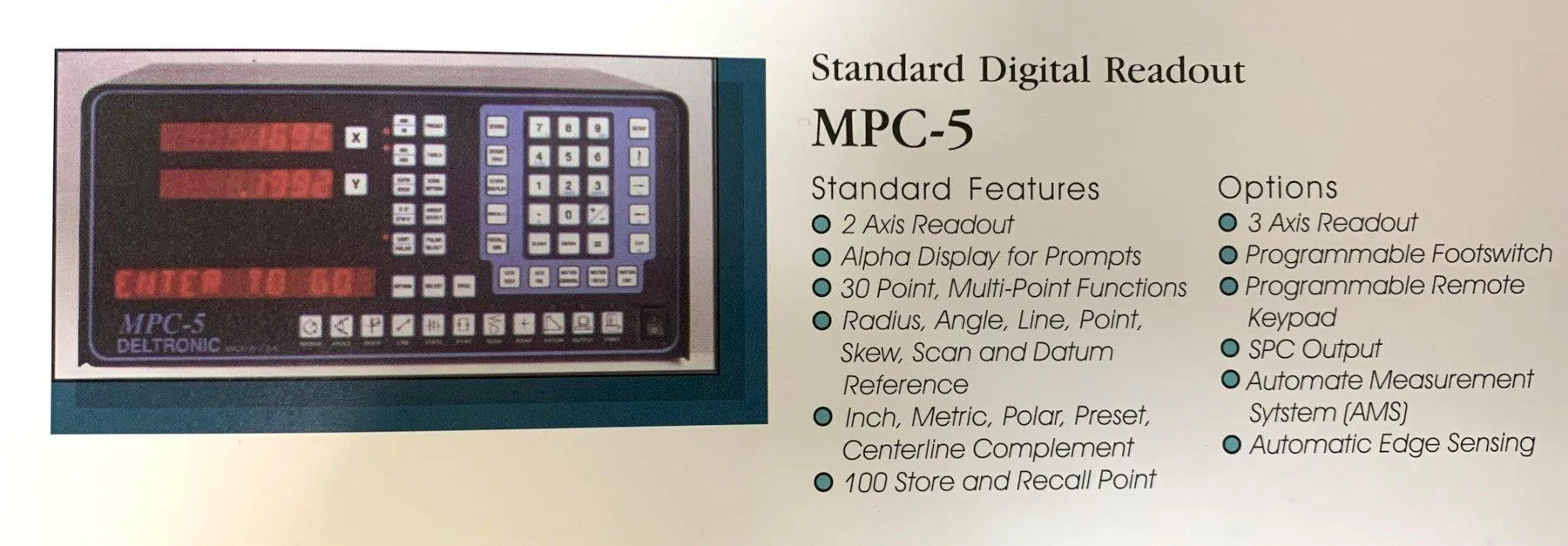

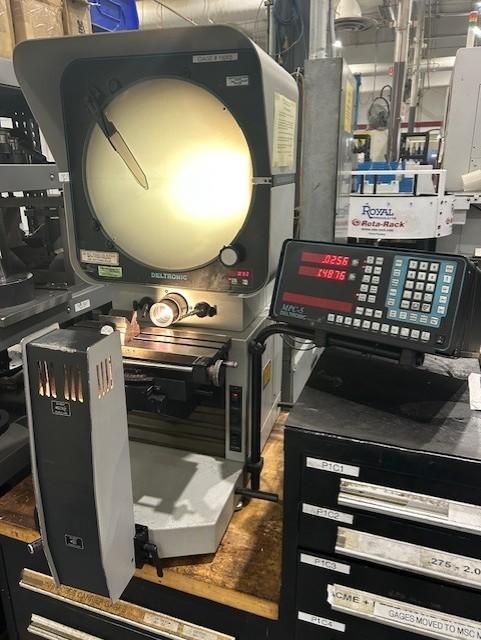

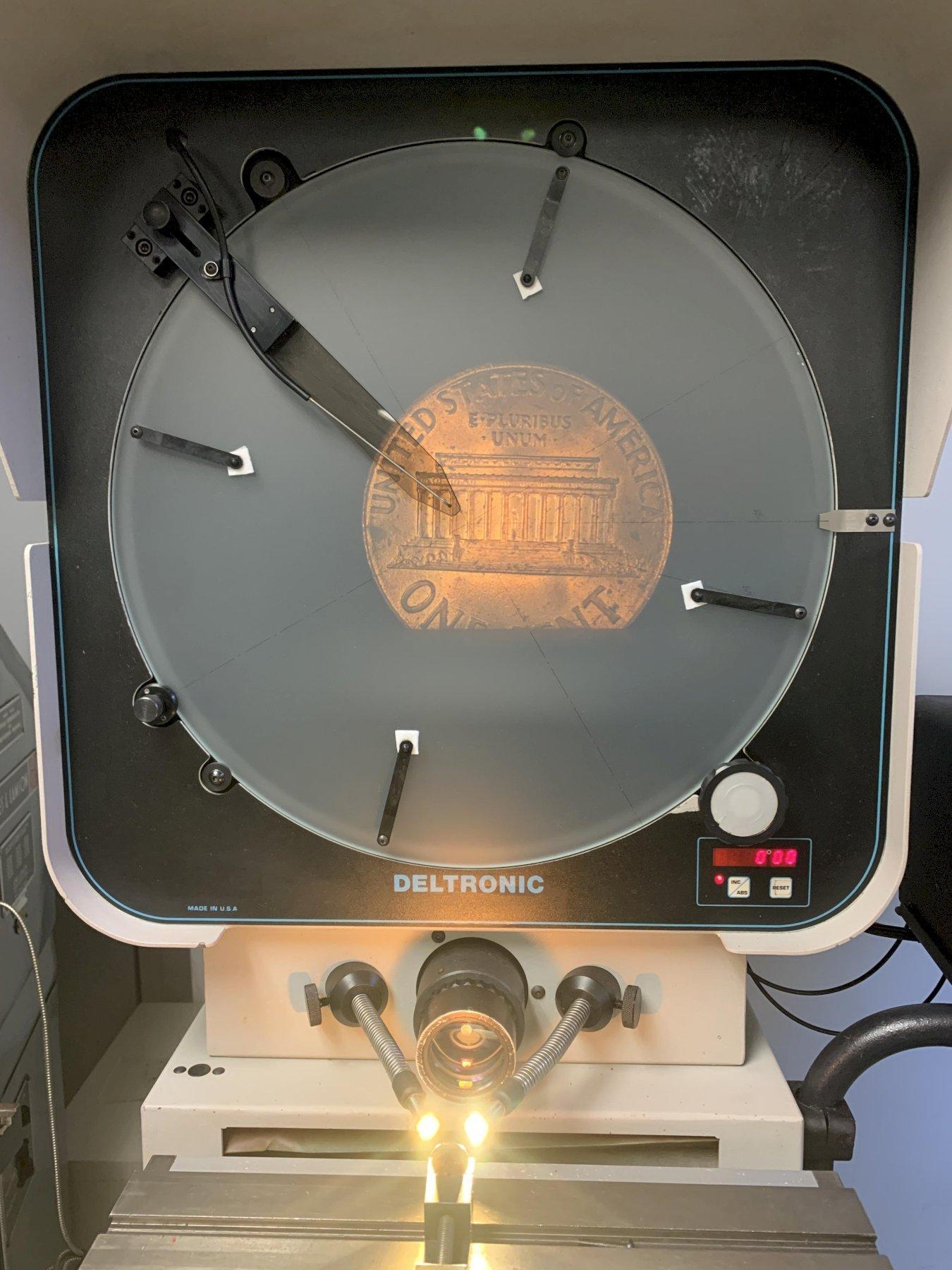

Equipped with: Deltronic MPC-5/E Computational Digital Readout New Front Panel Installed on DRO Auto Edge Sensing Electronic Screen Protractor Quick Release X-Axis Travel Quick Change Bayonet Lens Mount Fiber Optic Surface Reflection Vertically Erect Image (1) 10X Lens (see notes below) New glass crosshair Swing away lamphouse New Cooling Fan in lamphouse Optional Cabinet Base add $400 Notes: - Deltronic DH216 Comparator video - This machine is in good working condition and recently calibrated. (buyer should recal after transport) - Note - The 10x lens has a small, minor chip on the front. This blemish is purely cosmetic and does not affect image, magnification or accuracy. - Please allow 1 week for final preparations and packaging. - Specifications subject to independent verification by the buyer. - Buyer responsible for shipping. Seller can provide rates on request. - Advanced Machinery past sales of Deltronic DH214/DH216 currently totals 37 machines.
