Specifications
Equipped With
Arrival and additional details pending
Specifications:
Screen Diameter Viewing Area - 16"
Workstage Size - 21" x 5"
Measuring Travels - 12" x 6"
Focus Travel - 2"
Table Load Capacity - 110 Lbs.
Table Helix Adjustment - ± 15º
Electrics - 1/60/110 V
Approx Dimensions with DRO - 37" x 41" x 43"
Net Weight of Machine - 320 Lbs.
Crated Shipping Weight, Approx - 700 Lbs.
Prelims:
DRO System tbd (install pending)
Q-Axis Angle Display
Dual Fiber Optic Surface Illumination
Sliding Dual Lens Fixture with (2) Lenses (Customer choice 10x, 20x, 50x, 100x)
Vertically Erect Image
Factory Cabinet Stand
Overhead Canopy Available on request
Notes:
Availability pending for install of dro system, etc.

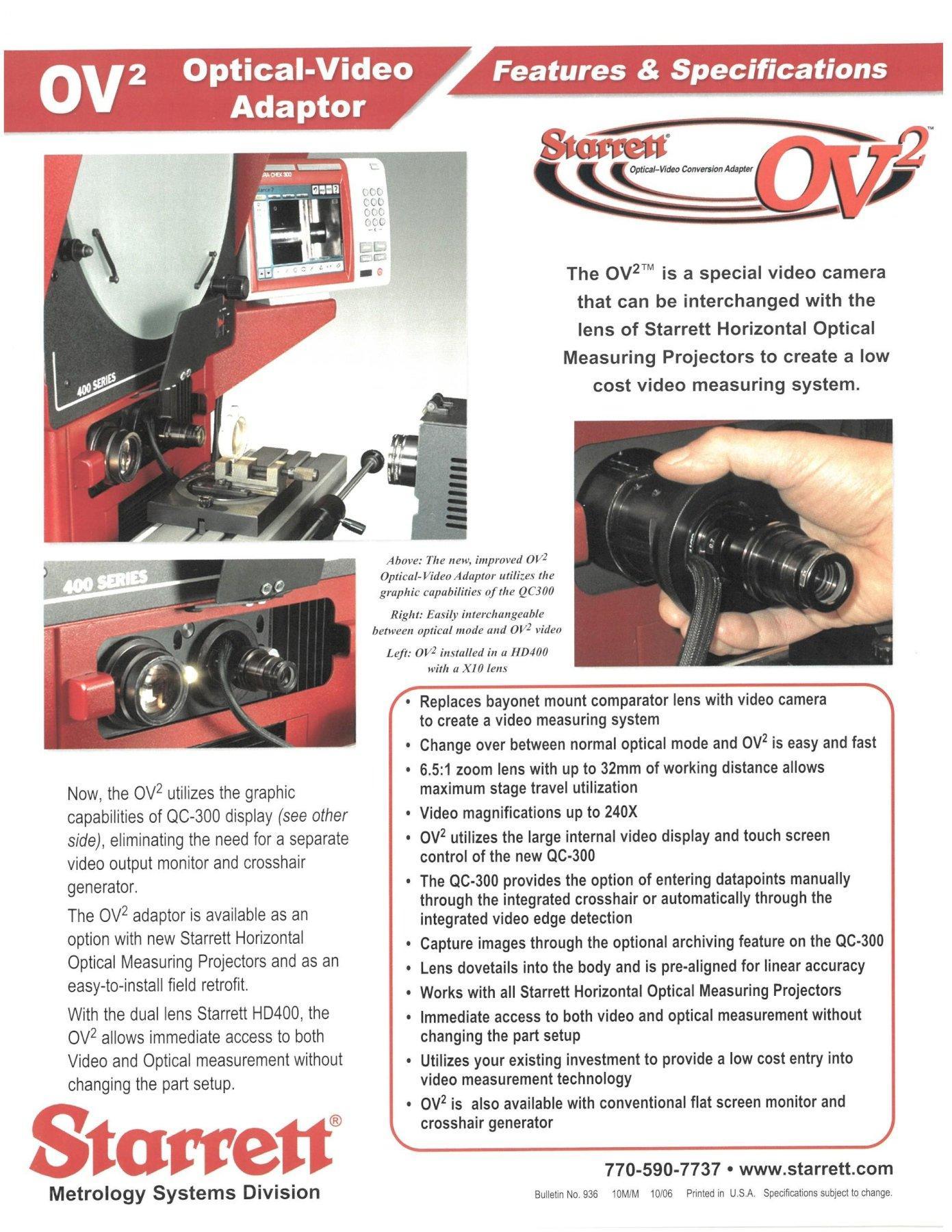

Optional Starrett OV2 Video Adapter may be available at extra cost.
Machine is offered completely serviced and verified to meet calibration requirements.

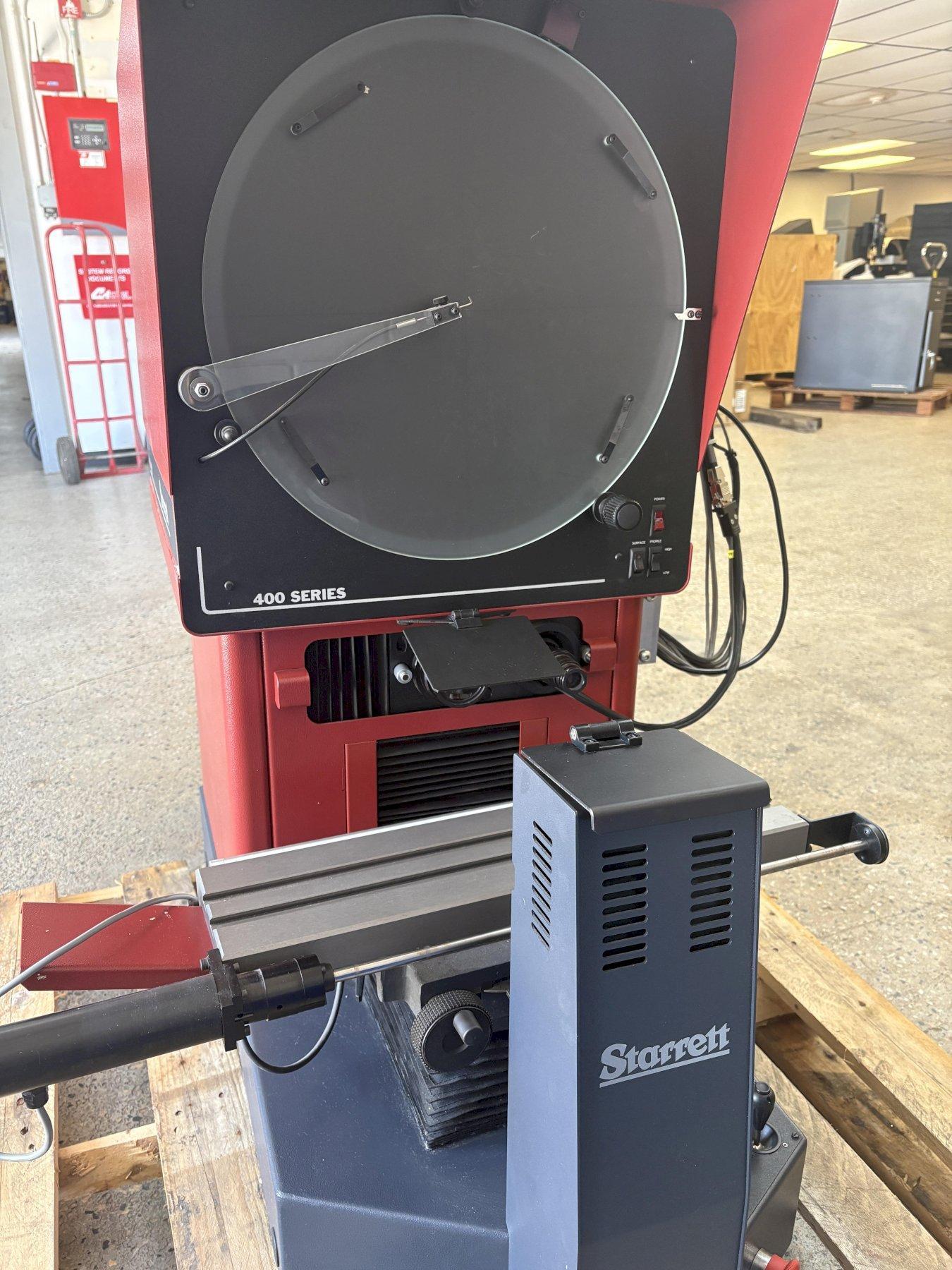

Excellent Condition and Appearance as from Technical College.
Specifications subject to independent verification by the buyer.

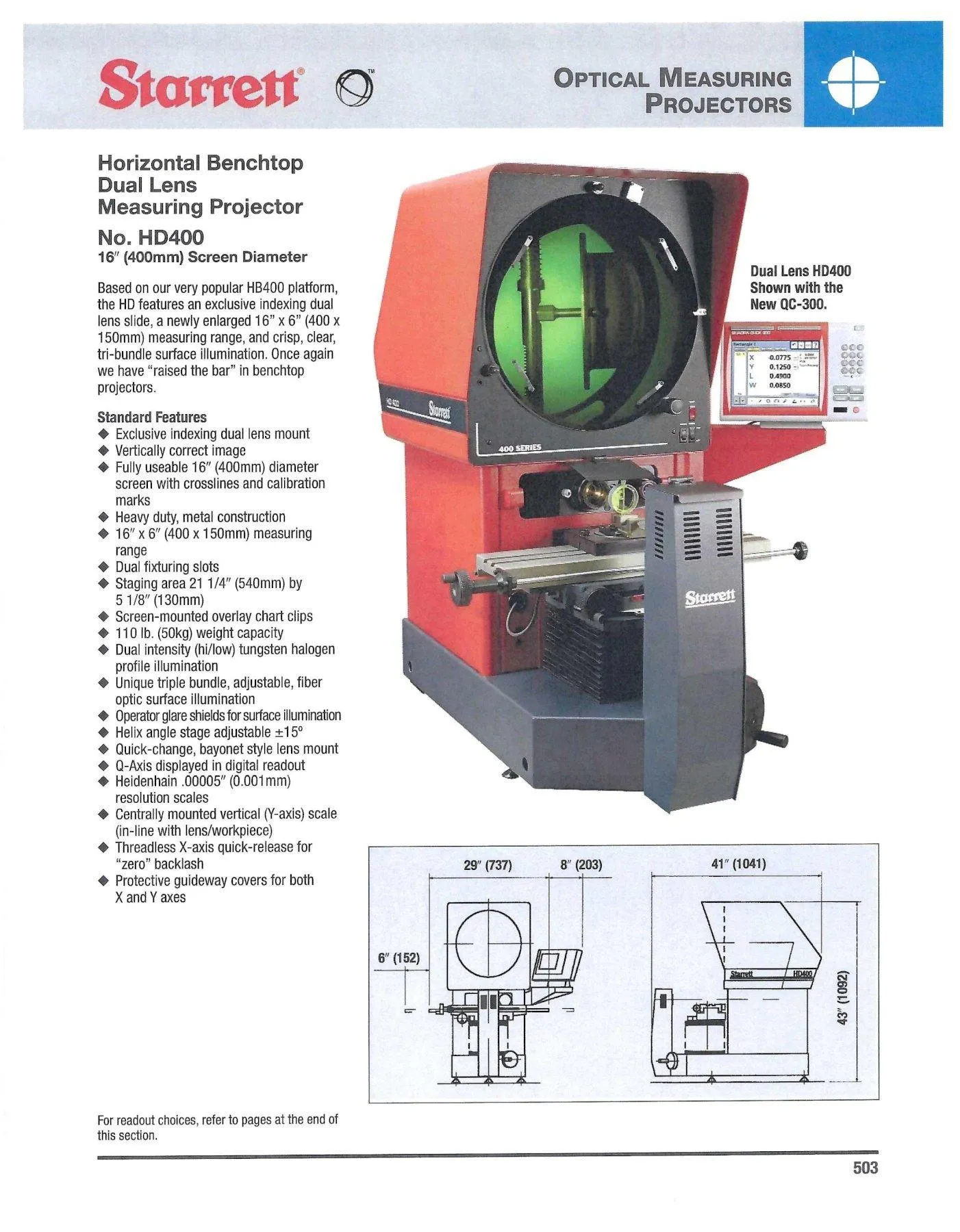

Factory illustrations are for reference only. There may be discrepancies.
