Specifications
Equipped With
Preliminary Specifications:
Screen Diameter Viewing Area - 16"
Workstage Size - 17" x 5"
Measuring Travels - 10" x 6"
Focus Travel - 3"
Table Load Capacity - 110 Lbs.
Table Helix Adjustment - ± 15º
Electrics - 1/60/115 V
Dimensions with DRO - 37" LR " x 41" FB x 43" H
Net Weight - 275 Lbs.
Crated Shipping Weight, Approx - 540 Lbs.
Equipped with:

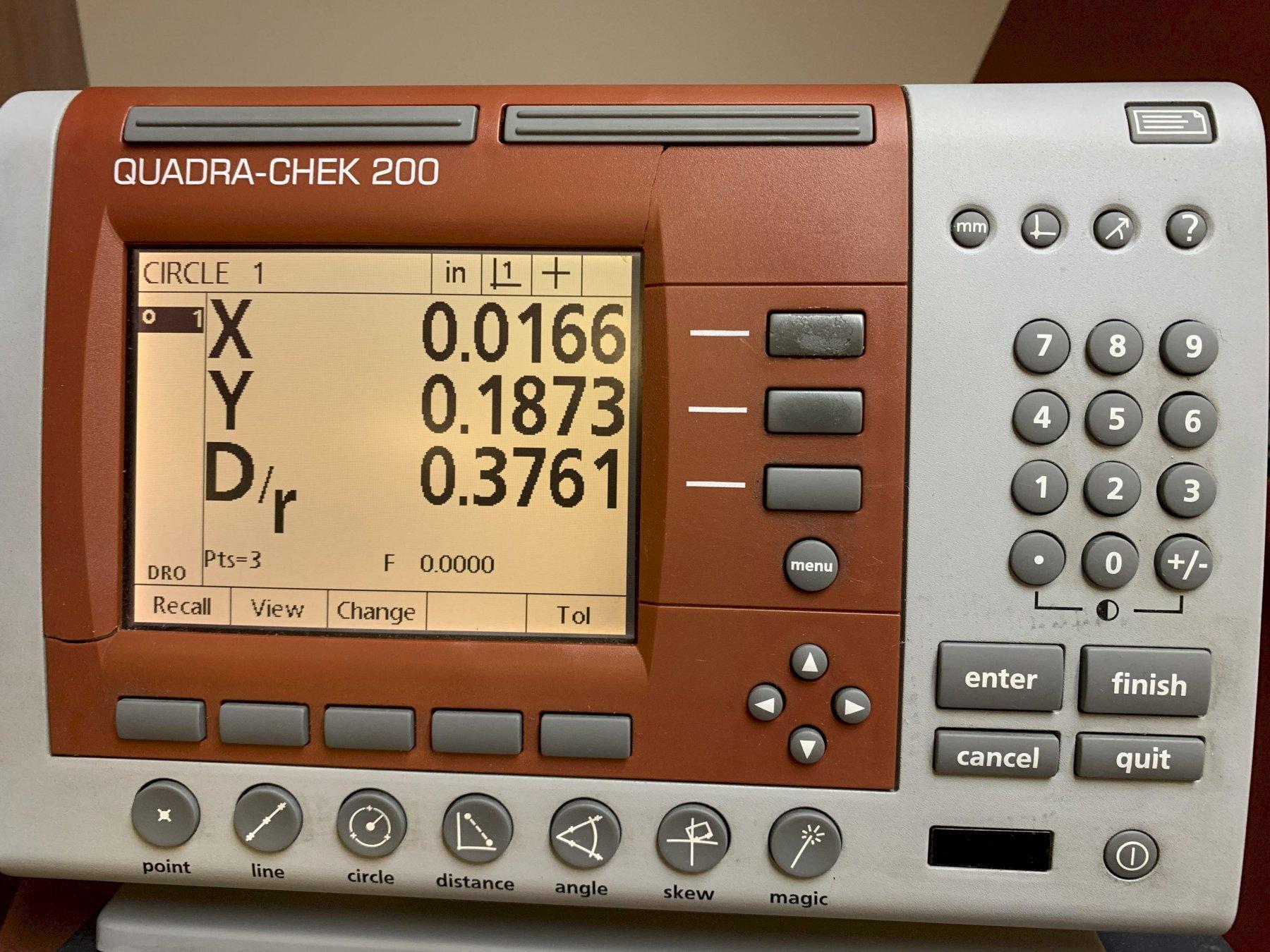

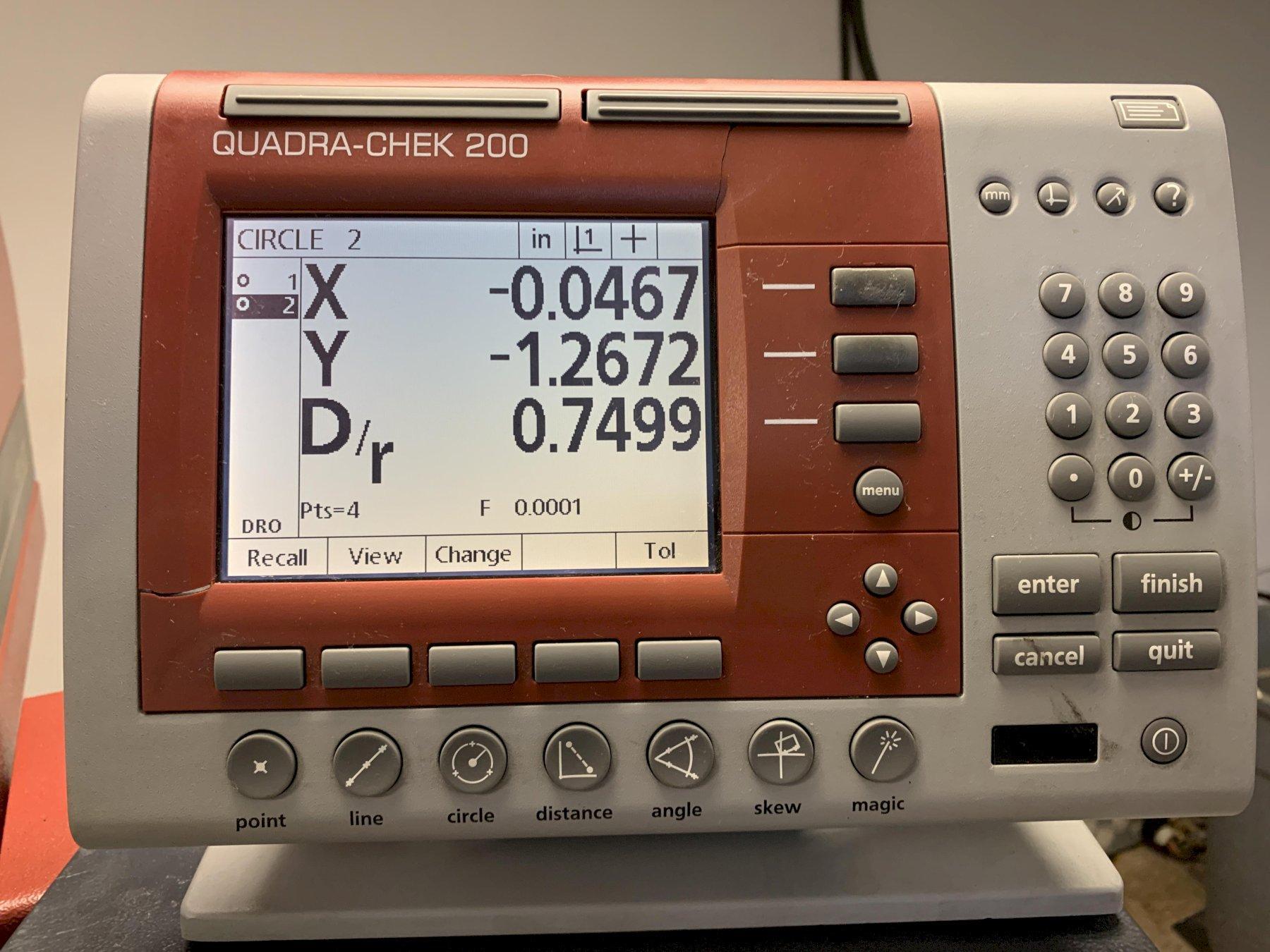

Quadra Chek 200 Digital Readout with Edge Detection
Digital Protractor Angle Measrement
Fully Retractable Duplex Fiber Optic Surface Illumination
Quick Release Table for Fast Positioning (X-Axis)
Fan Cooled Lamp House
Switchable High / Low Profile Intensity with Green Filter
(1) 10X Magnification Lens
New Crosshair Chart with Chart Clips
Vertically Corrected Image
Cabinet Base included.

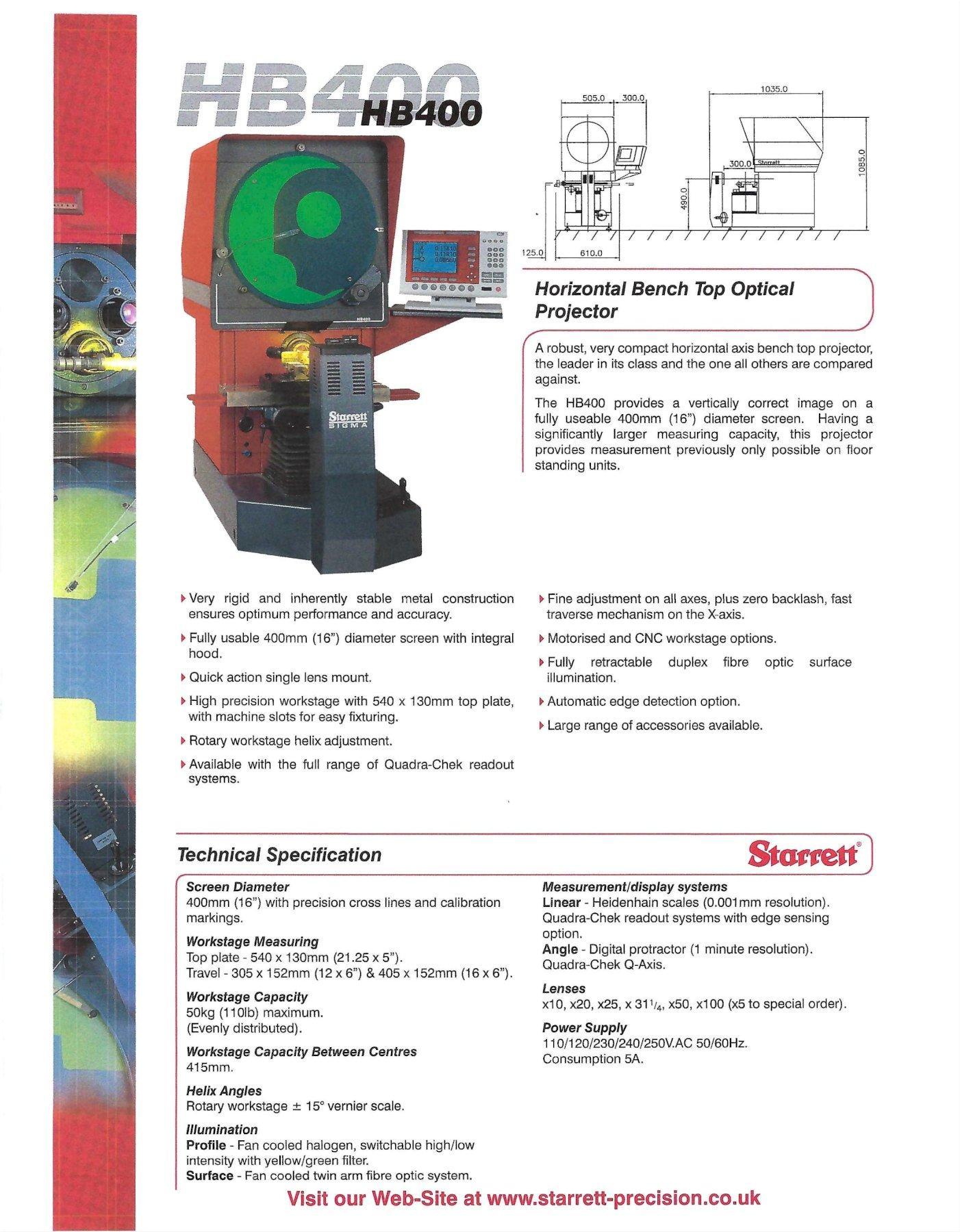

Necessary Manuals available on .pdf
Notes:
- Arrival and availability pending. Machine will be cleaned and serviced by technician prior to loadout.
- Specifications subject to independent verification by the buyer.
- Buyer responsible for shipping. We can assist with quotes on request.
- Advanced Machinery past sales of Starrett HB400 currently totals 34 machines.
