Specifications
Equipped With
Specifications:

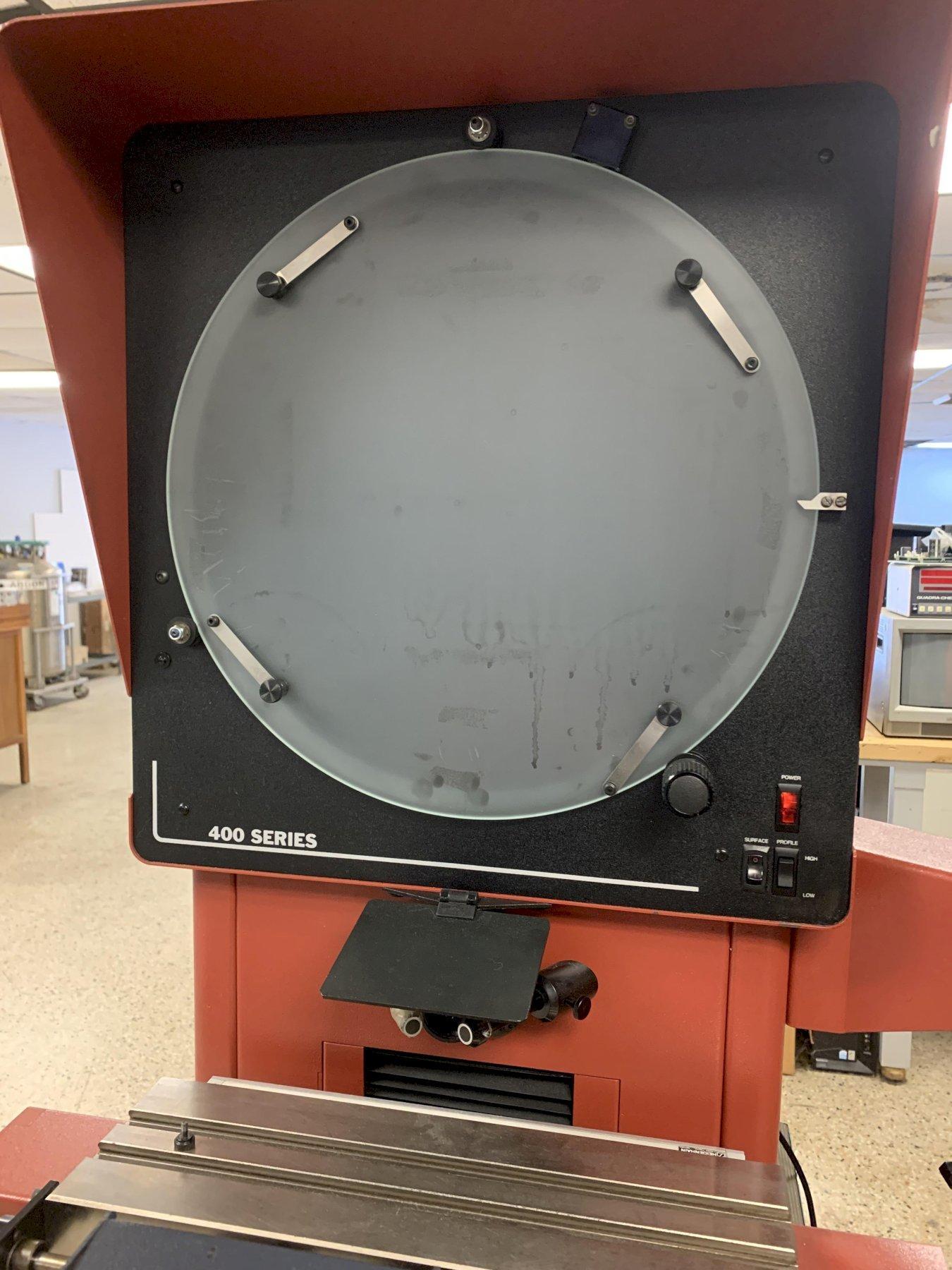

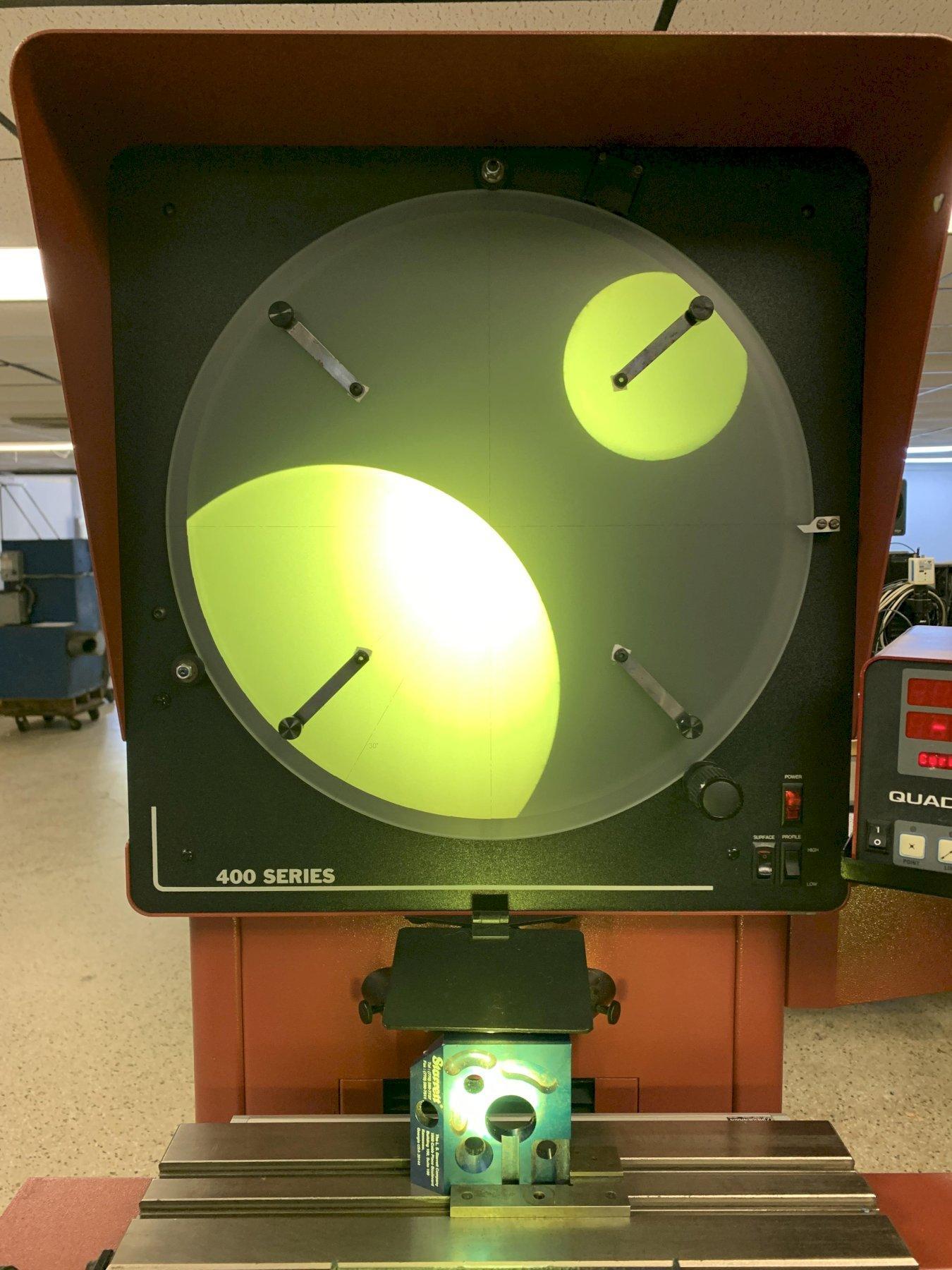

Screen Diameter Viewing Area - 16"
Workstage Size - 17" x 5"
Measuring Travels - 10" x 6"
Focus Travel - 3"
Table Load Capacity - 110 Lbs.
Table Helix Adjustment - ± 15º

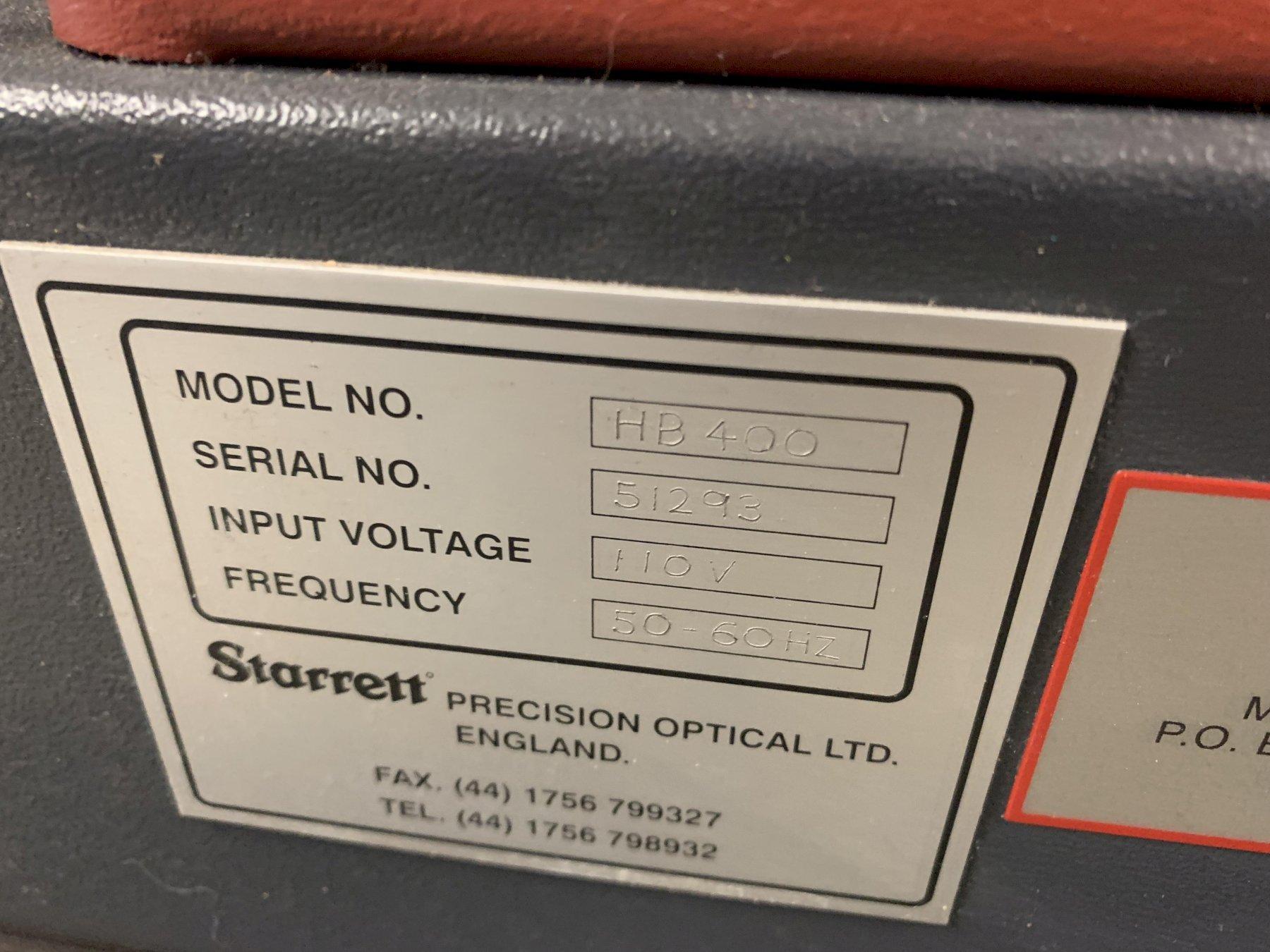

Electrics - 1/60/115 V
Dimensions with DRO - 37" LR " x 41" FB x 43" H
Net Weight - 275 Lbs.
Crated Shipping Weight, Approx - 540 Lbs.
Equipped with:

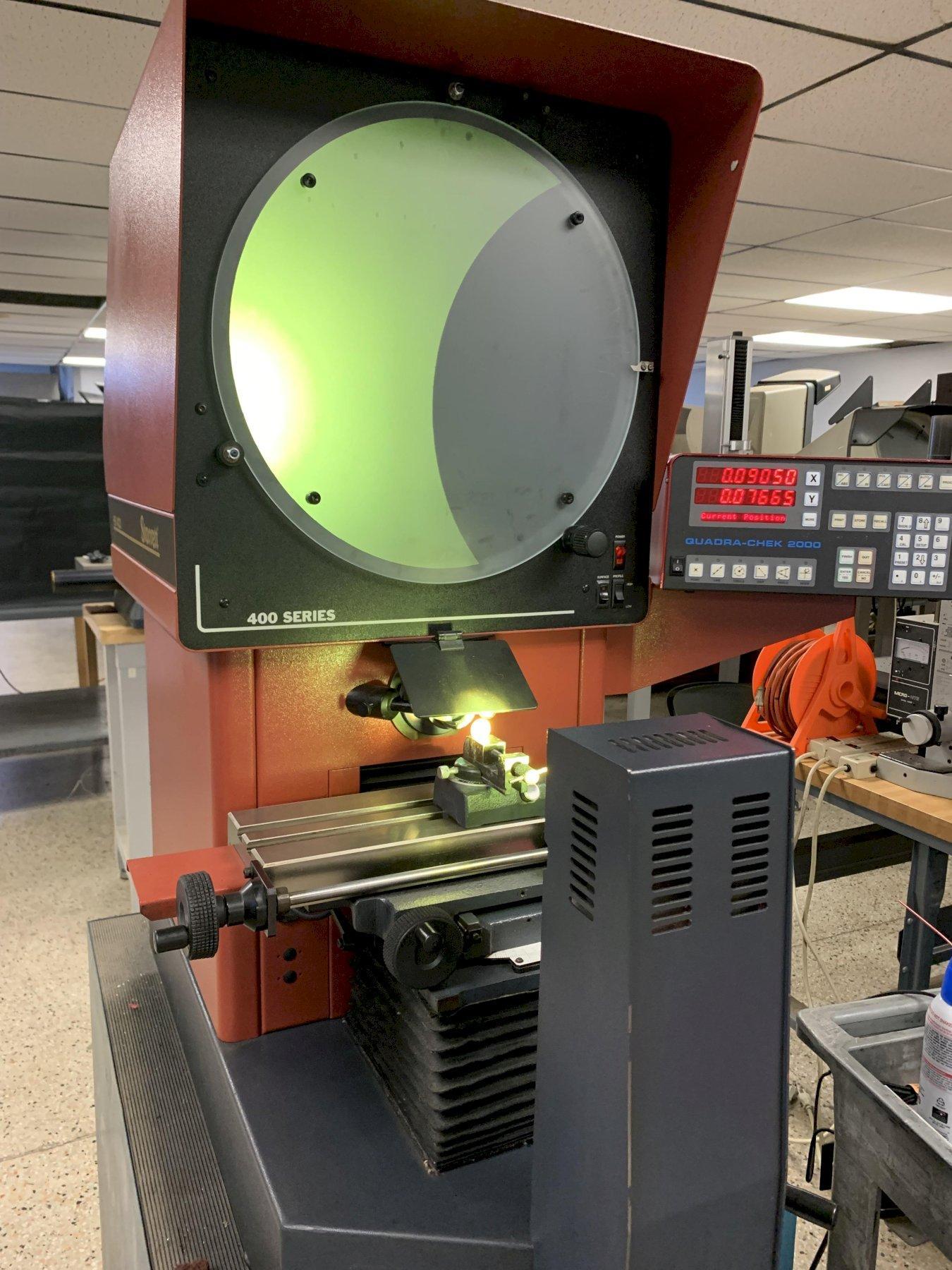

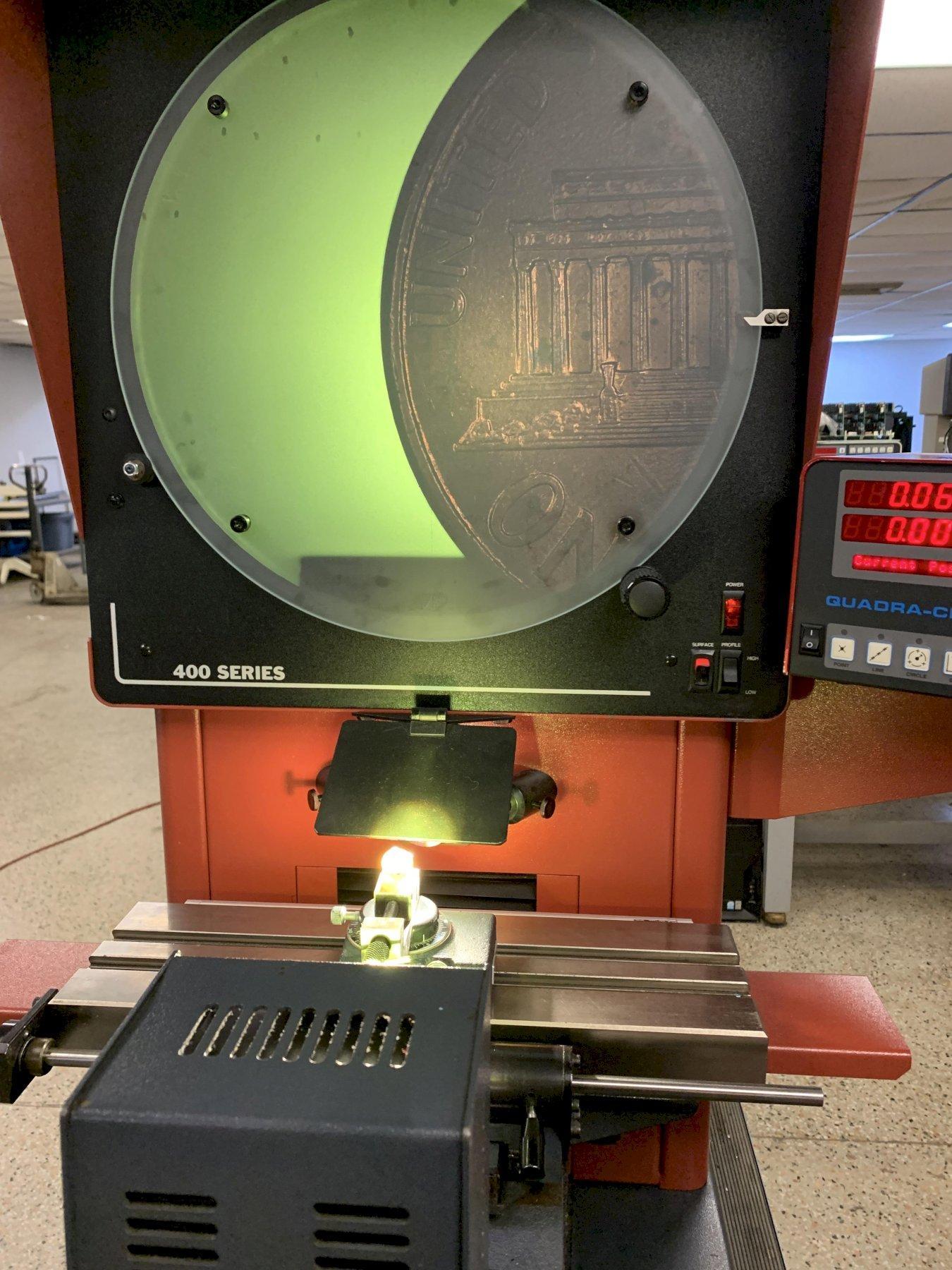

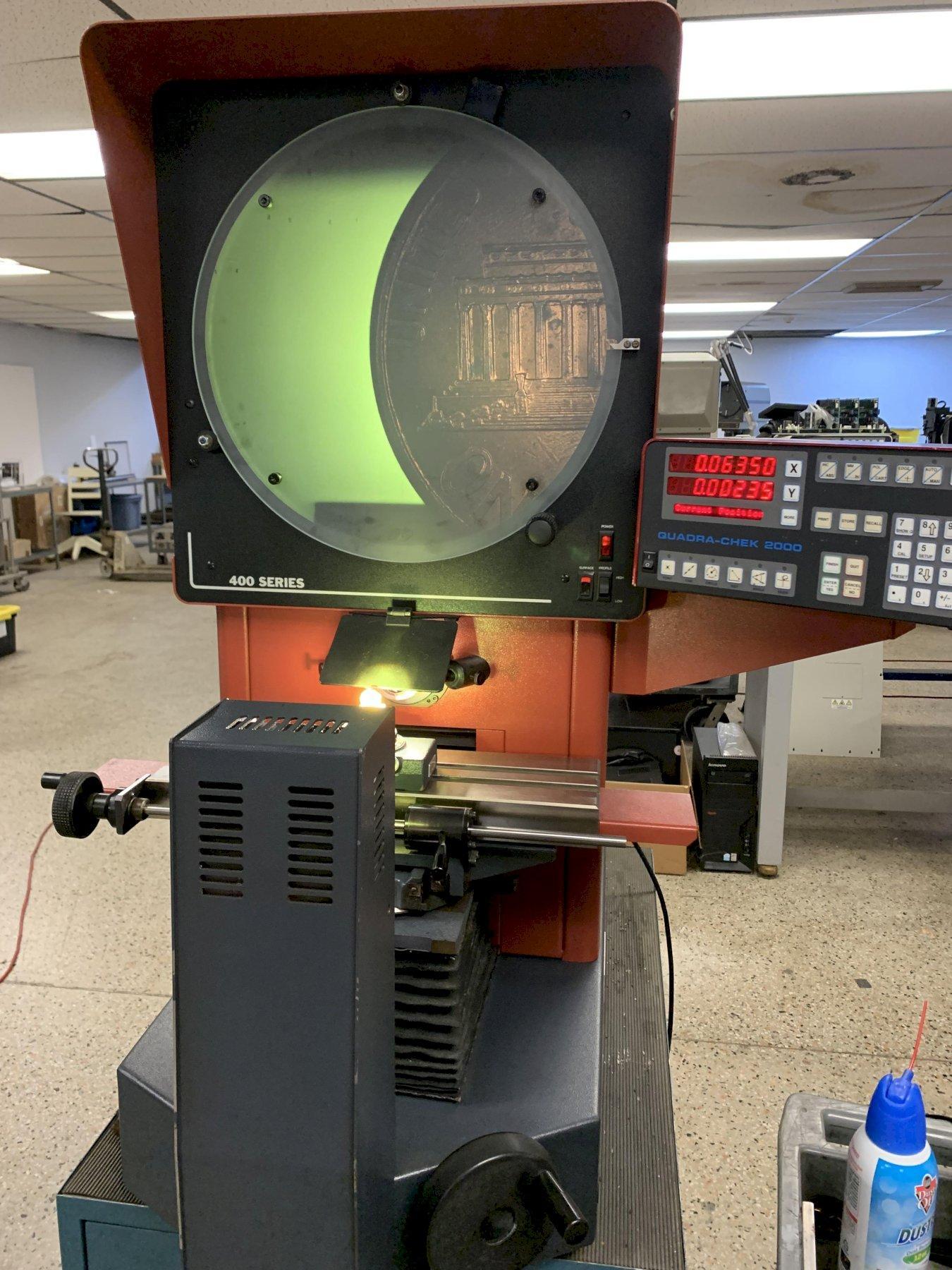

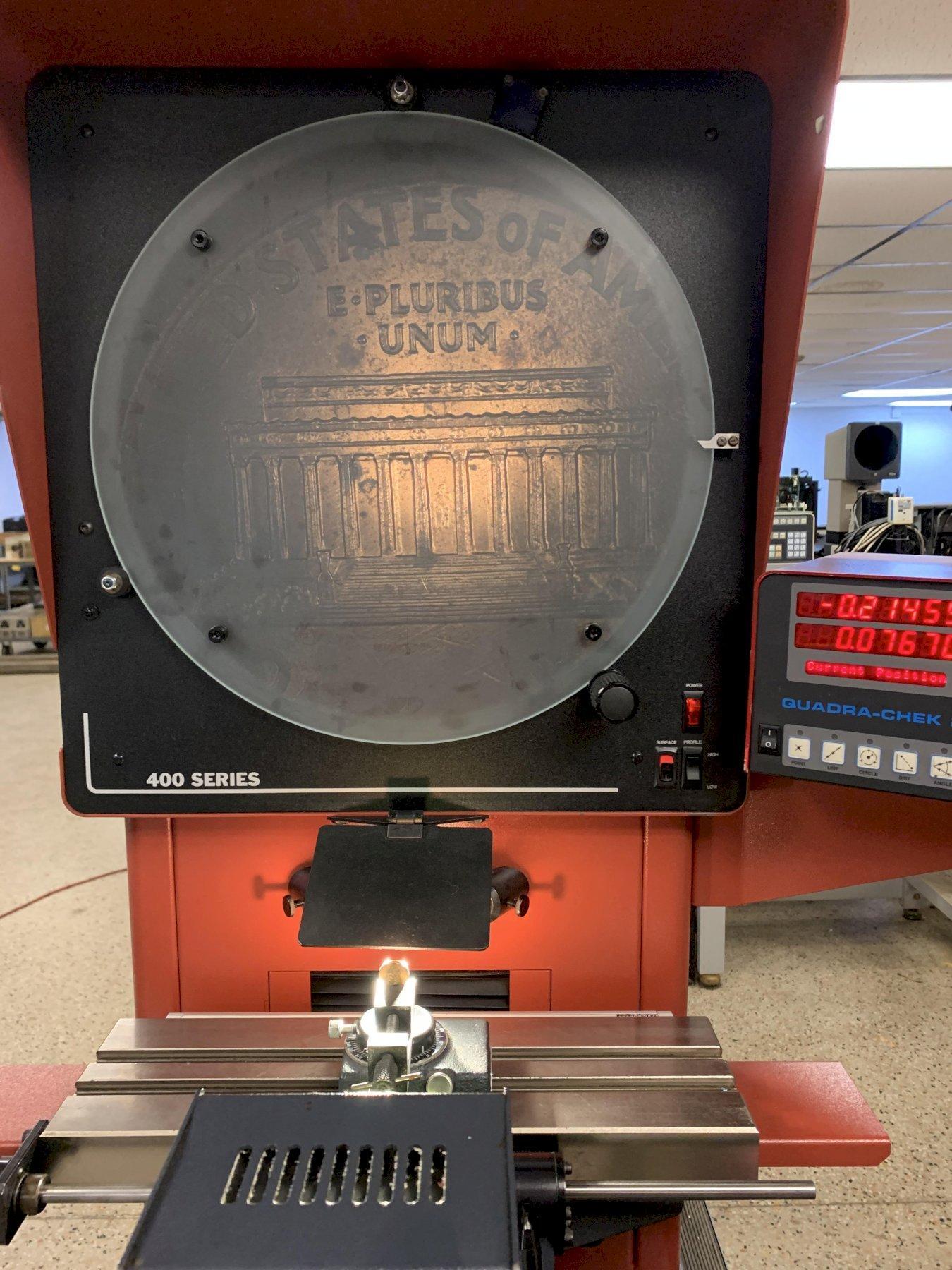

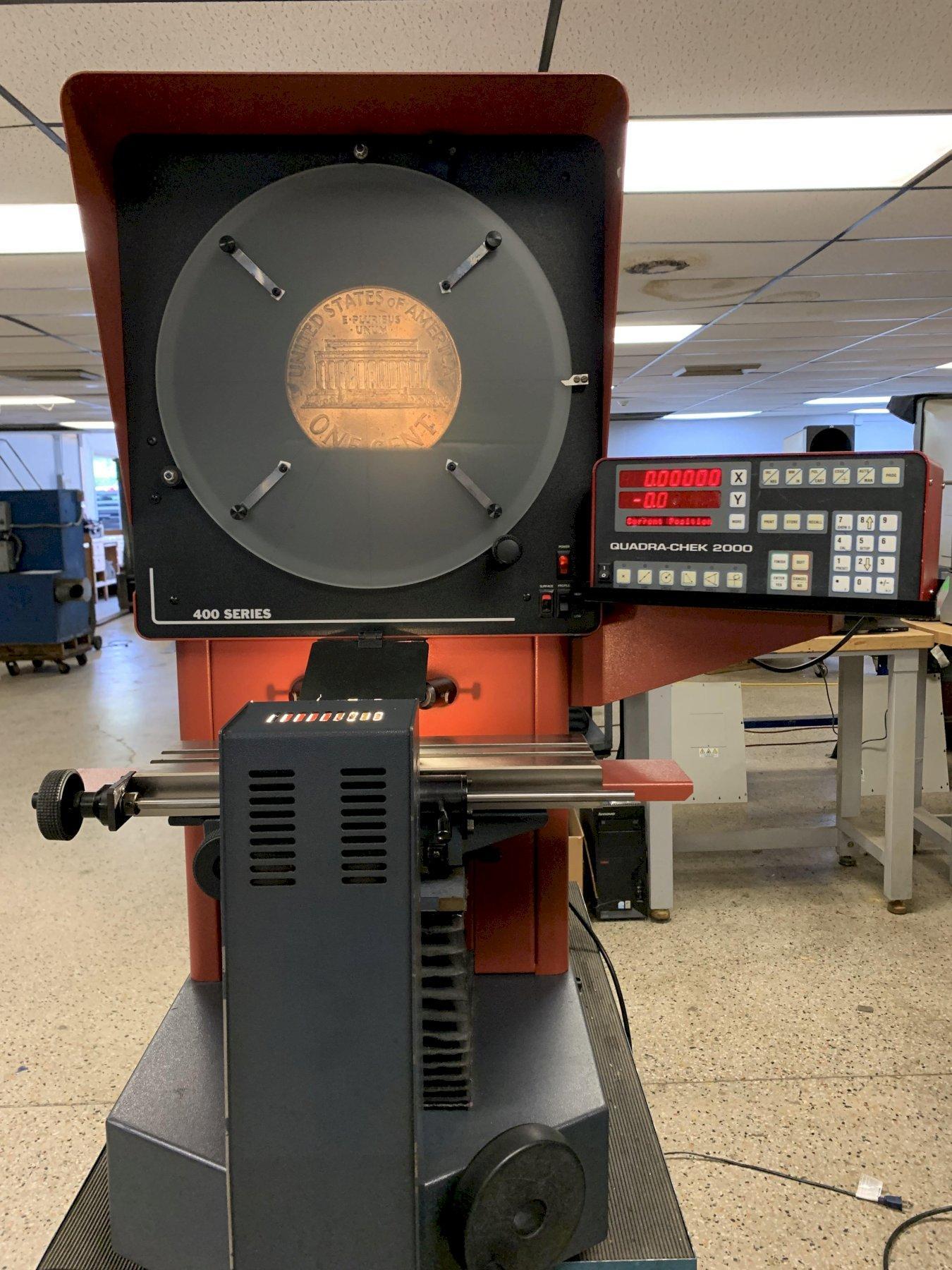

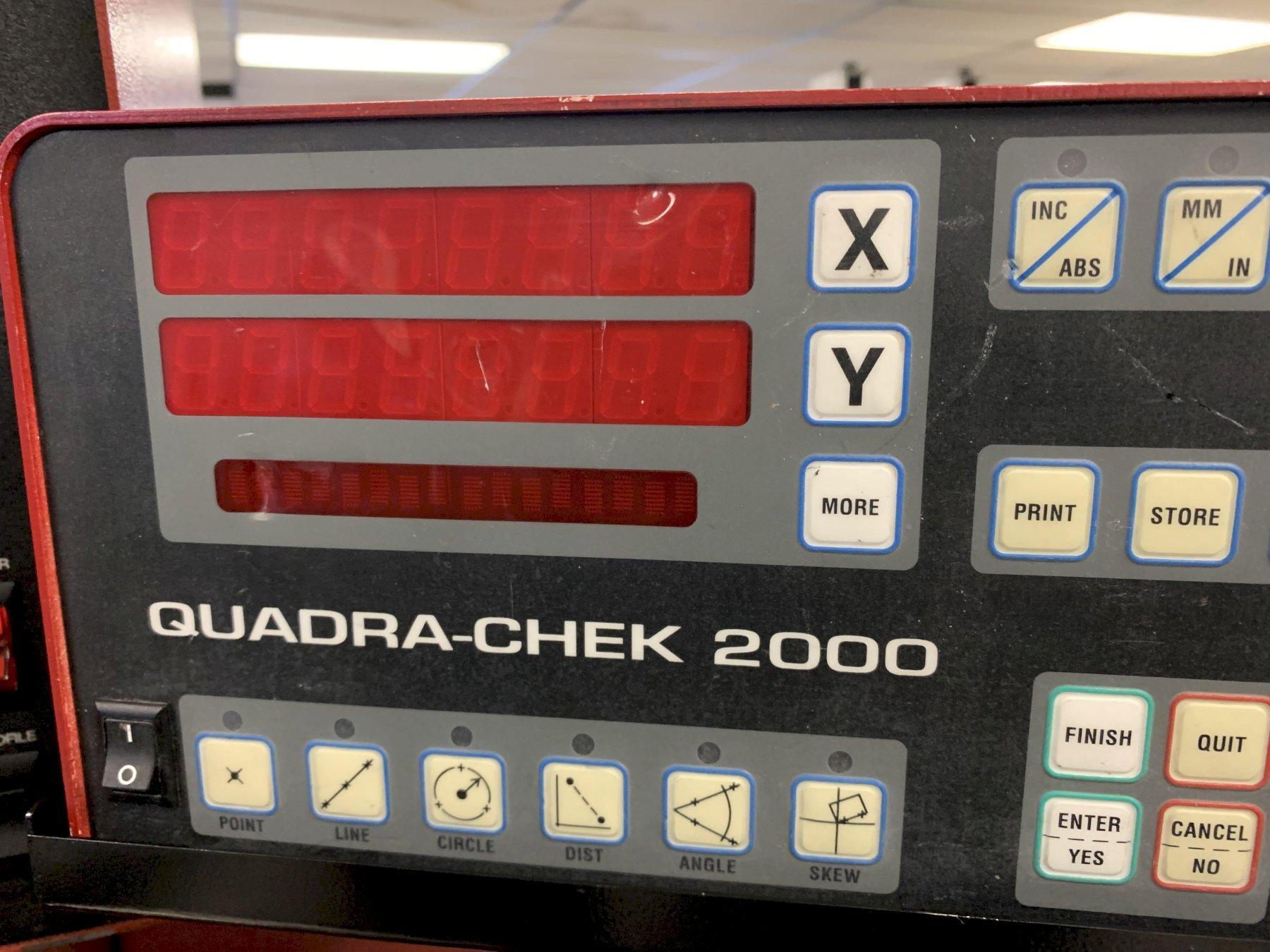

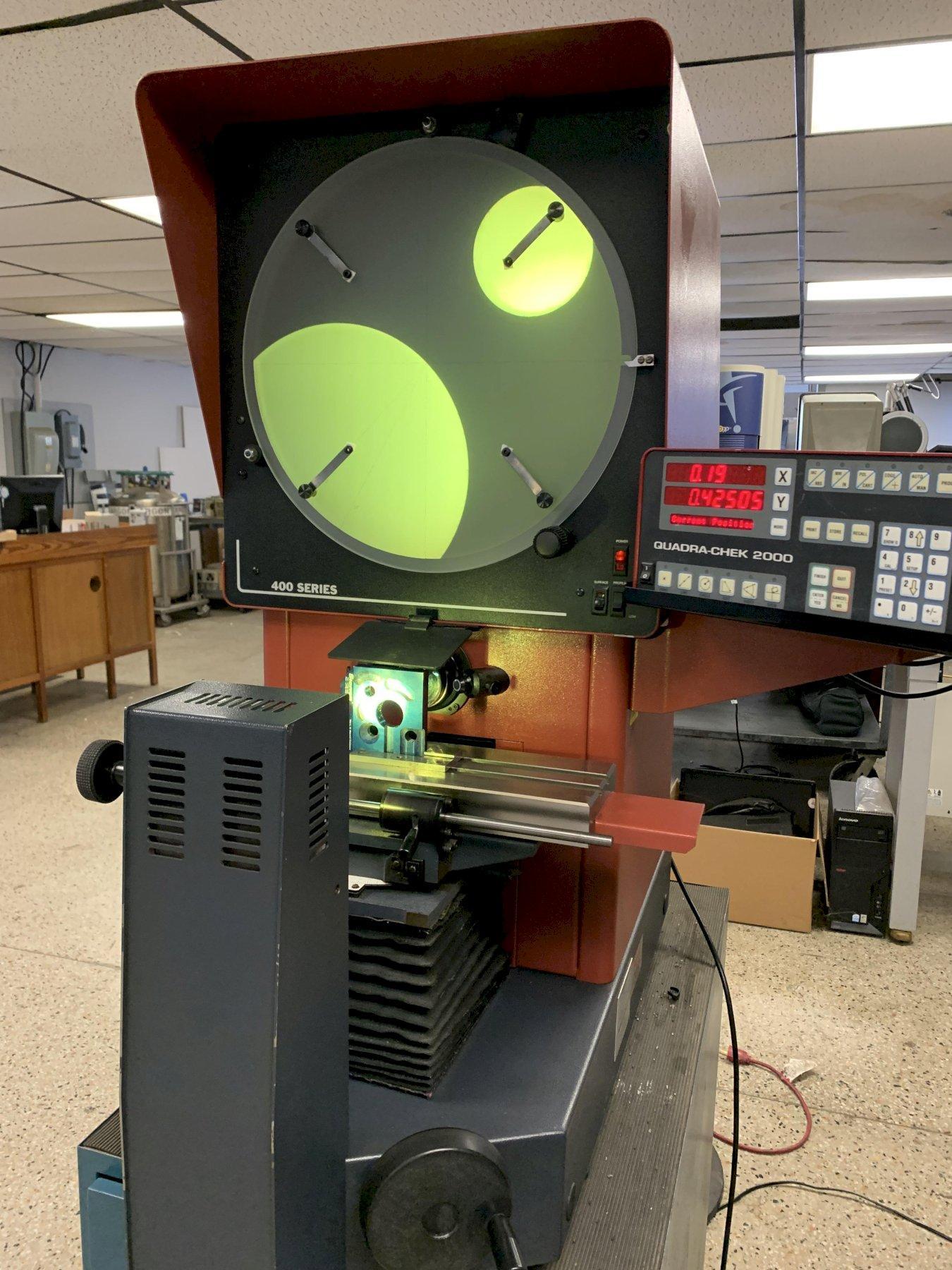

Quadra Chek 2000 Digital Readout (not pictured / install pending)
Heidenhain 0.00005" Resolution Scales
Q-Axis for Angle Measuring

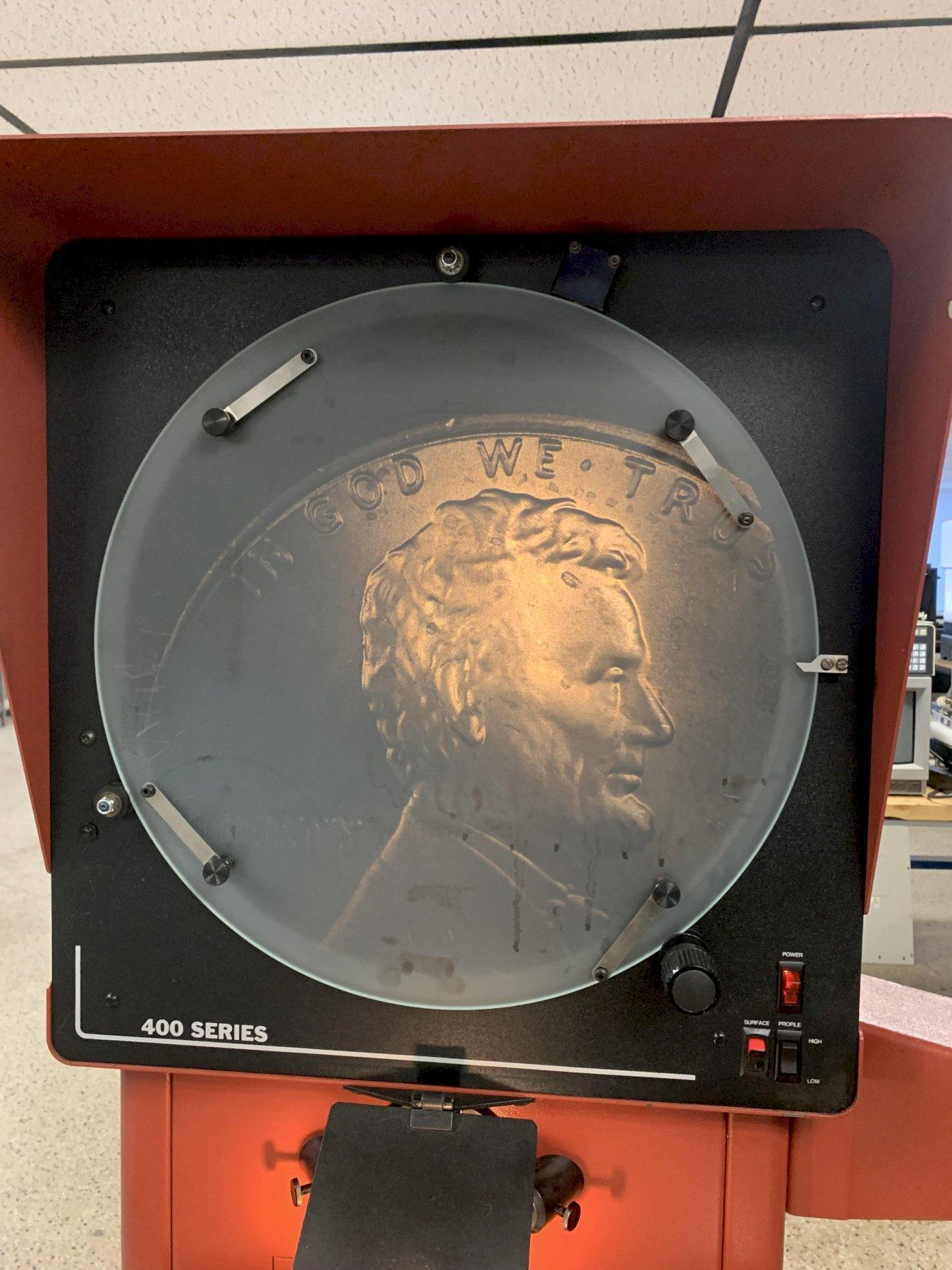

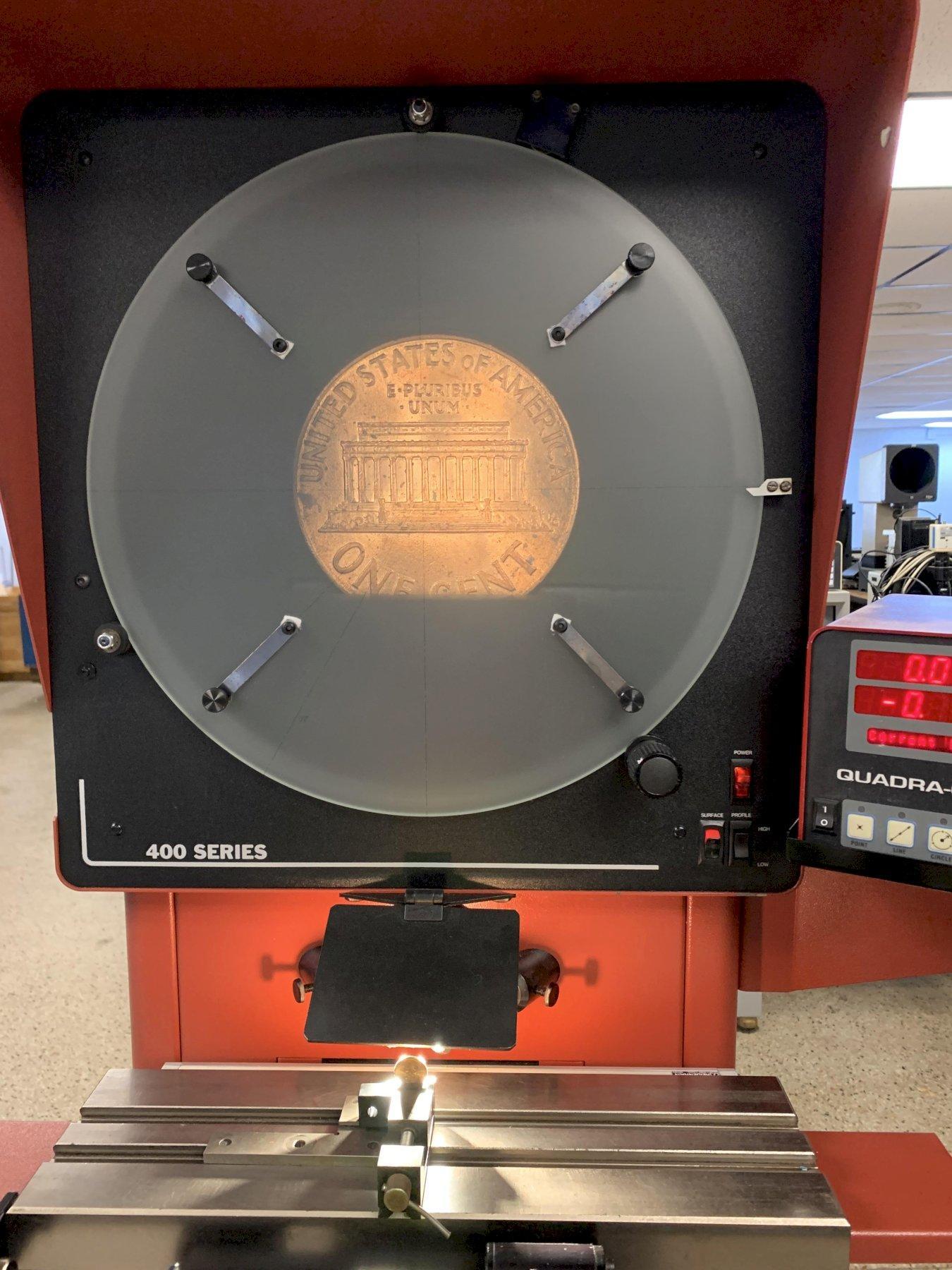

Fully Retractable Duplex Fiber Optic Surface Illumination

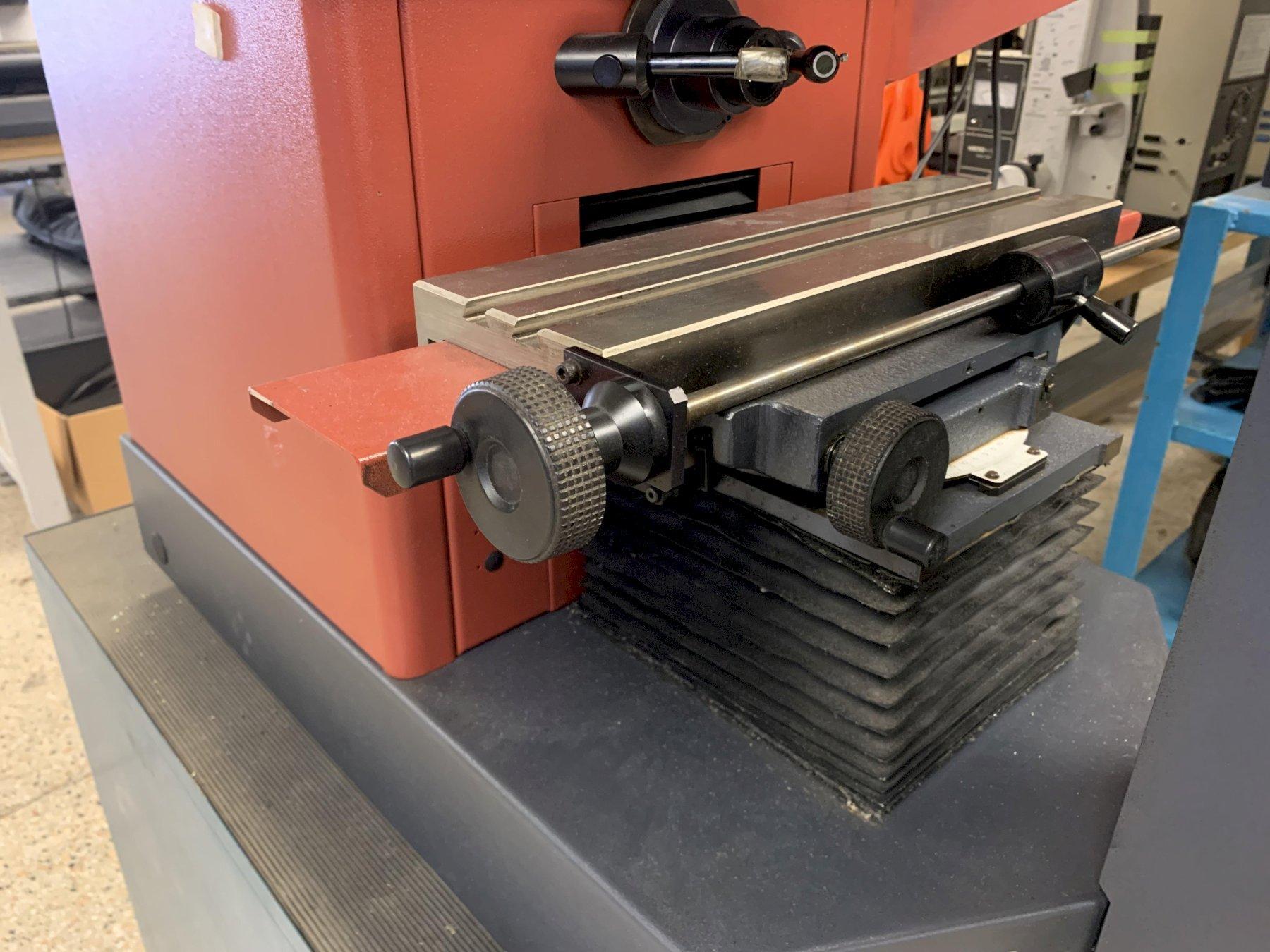

Quick Release Table for Fast Positioning (X-Axis)
Fan Cooled Lamp House
Switchable High / Low Profile Intensity with Green Filter
(1) 20X Magnification Lens (Lens mag subject to confirmation)
Plain Crosshair Chart with Chart Clips
Vertically Corrected Image
Necessary Manuals
Notes:
- Availability pending for machine to be cleaned and serviced. Approx 4 weeks.
- Specifications subject to independent verification by the buyer.
- Buyer responsible for shipping. We can assist with quotes on request.
- Additional Lenses, Staging Fixtures, Cabinets may be available at extra cost.
