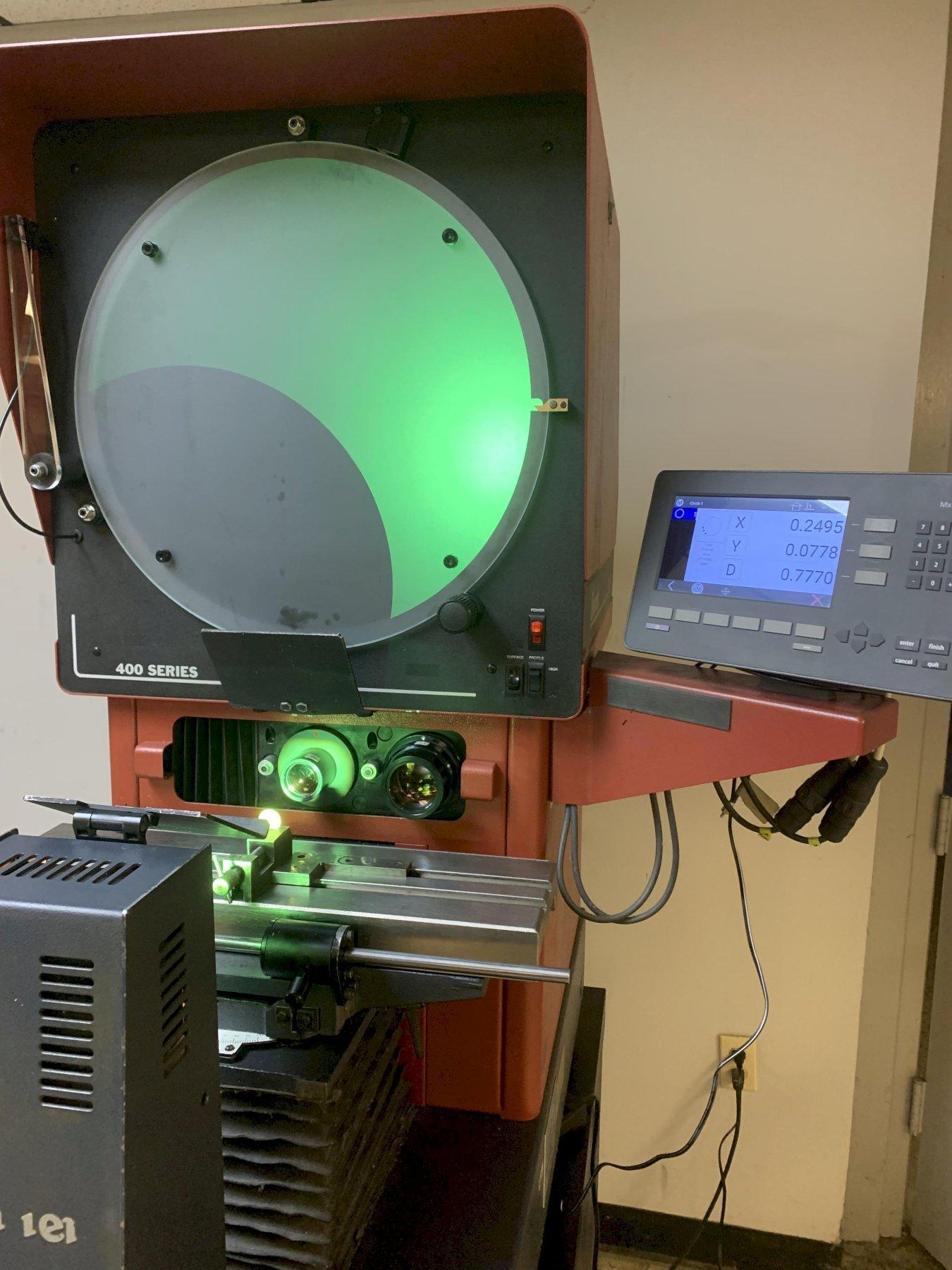

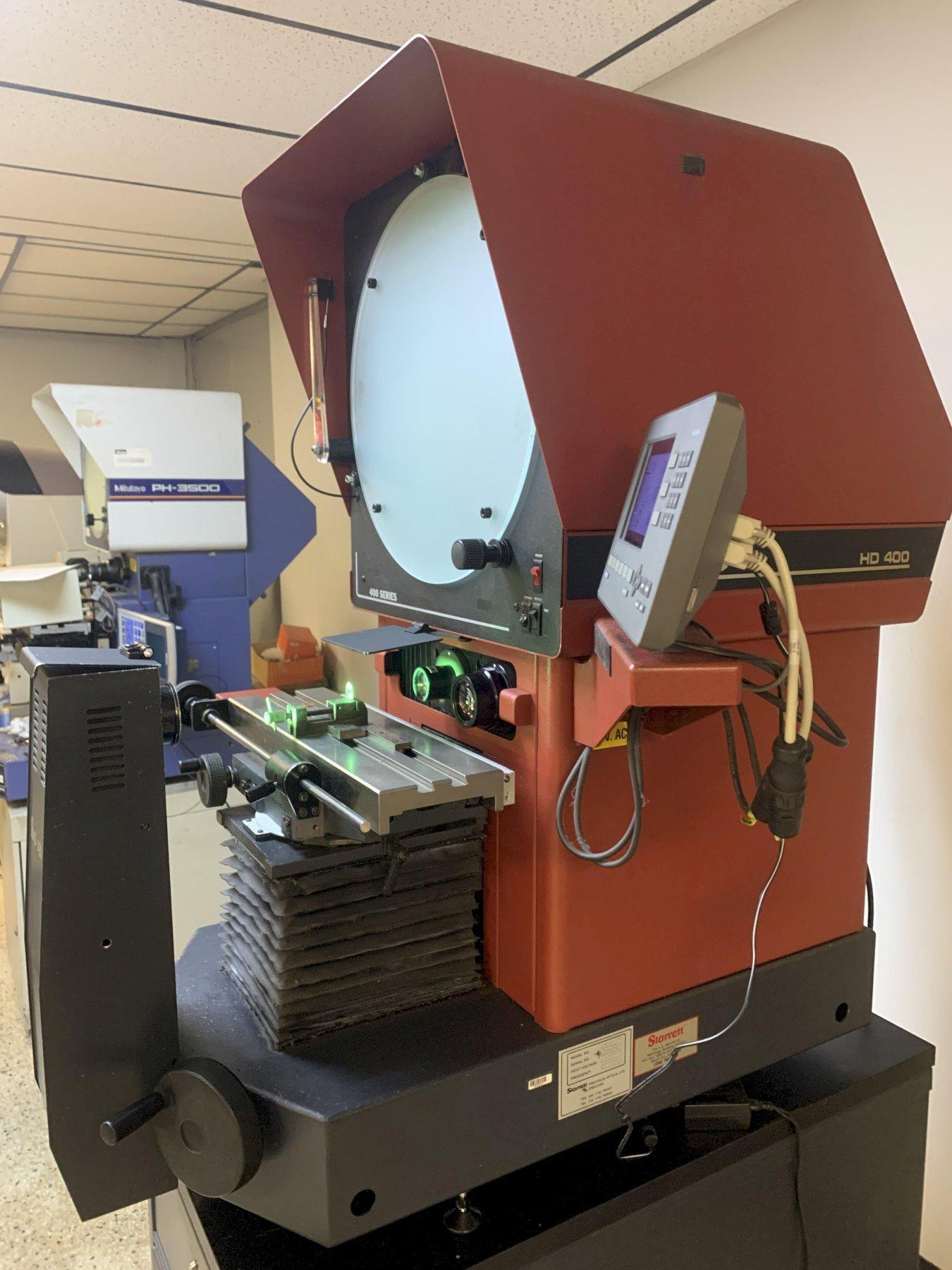

16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.
  • 16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.

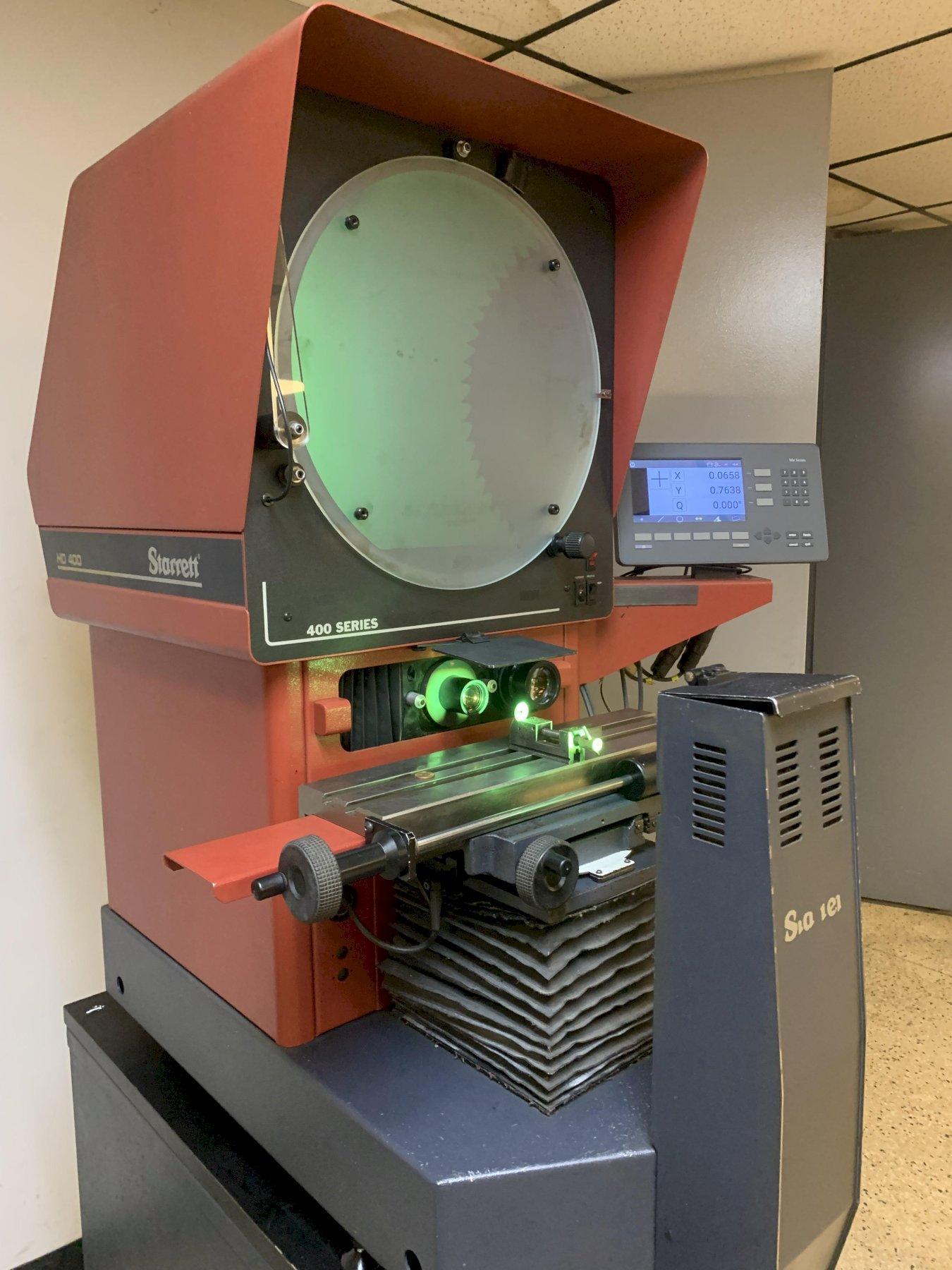

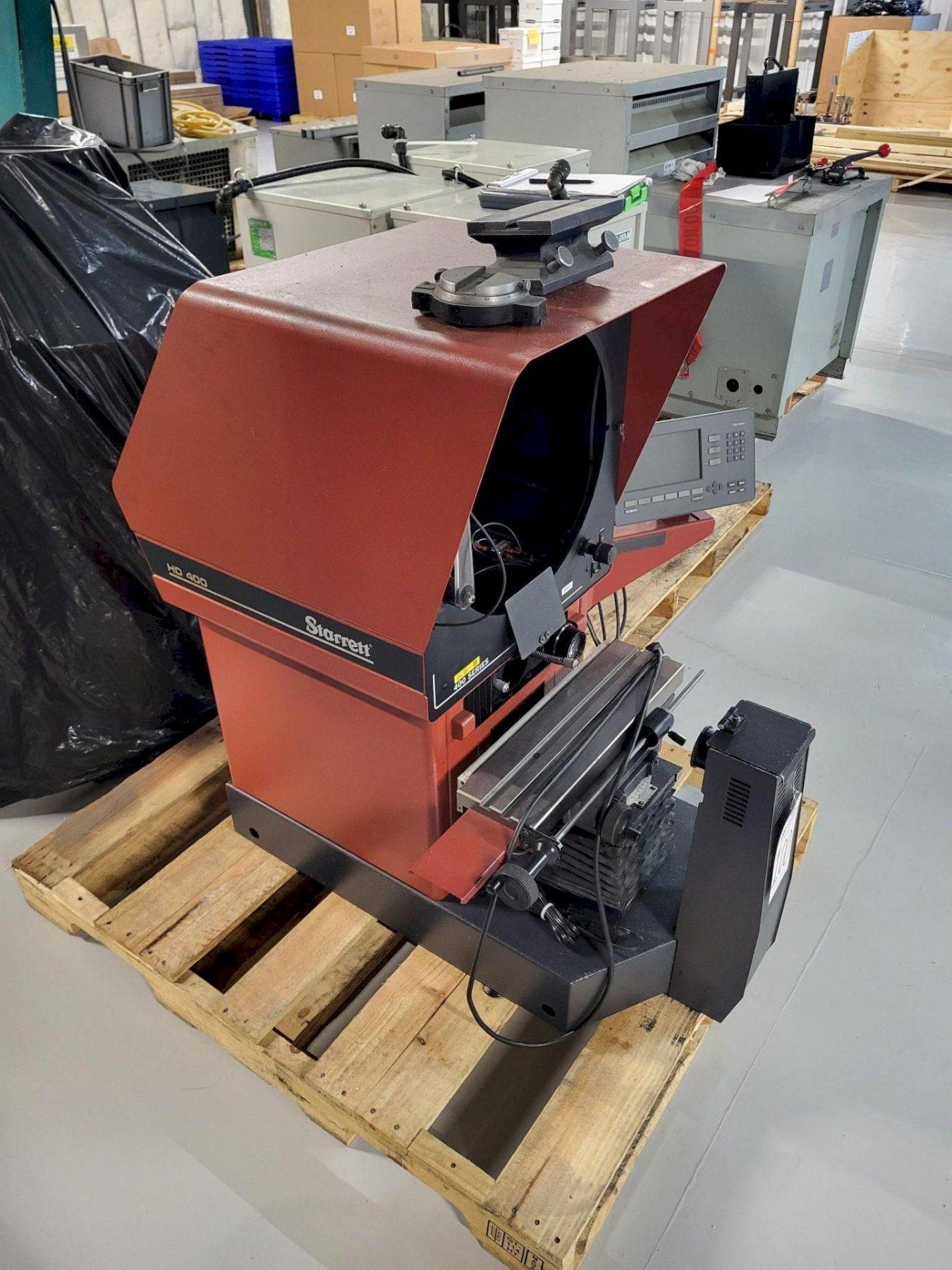

16" STARRETT Model HD400 Bench Top Optical Comparator, S/N 20573.

Brand
STARRETT

Model
HD400

Type
Comparators, Optical

Stock #
34923

Condition
Used

Year
2005

Location
Dayton, Ohio
United States

Price
$10,500.00

Request Quote

Specifications

Equipped With

Specifications:

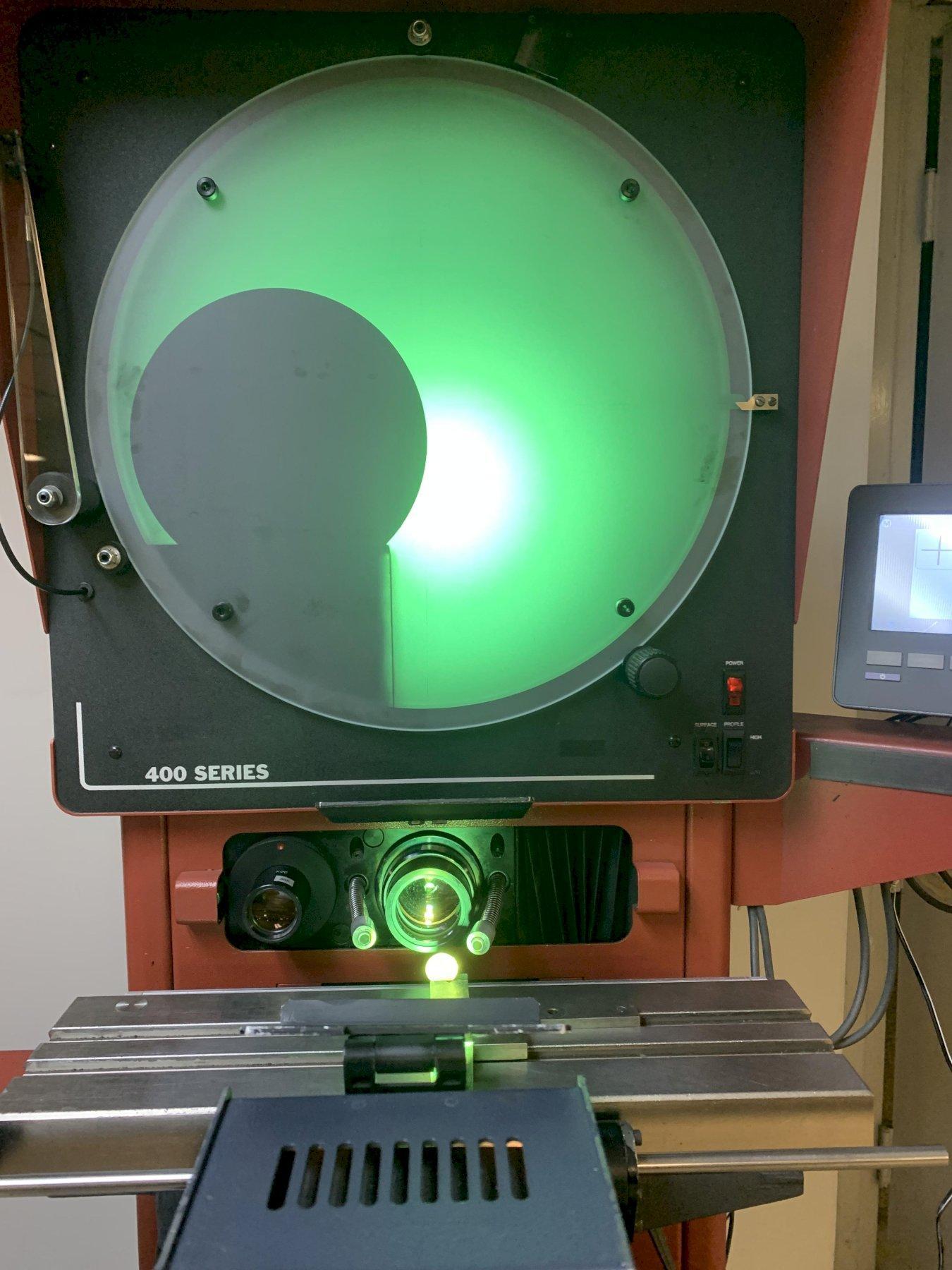

Screen Diameter Viewing Area - 16"
Workstage Size - 21" x 5"
Measuring Travels - 12" x 6"
Focus Travel - 2"
Table Load Capacity - 110 Lbs.
Table Helix Adjustment - ± 15º
Electrics - 1/60/110 V
Approx Dimensions with DRO - 37" x 41" x 43"
Net Weight of Machine - 320 Lbs.
Crated Shipping Weight, Approx - 650 Lbs.

Equipped with:

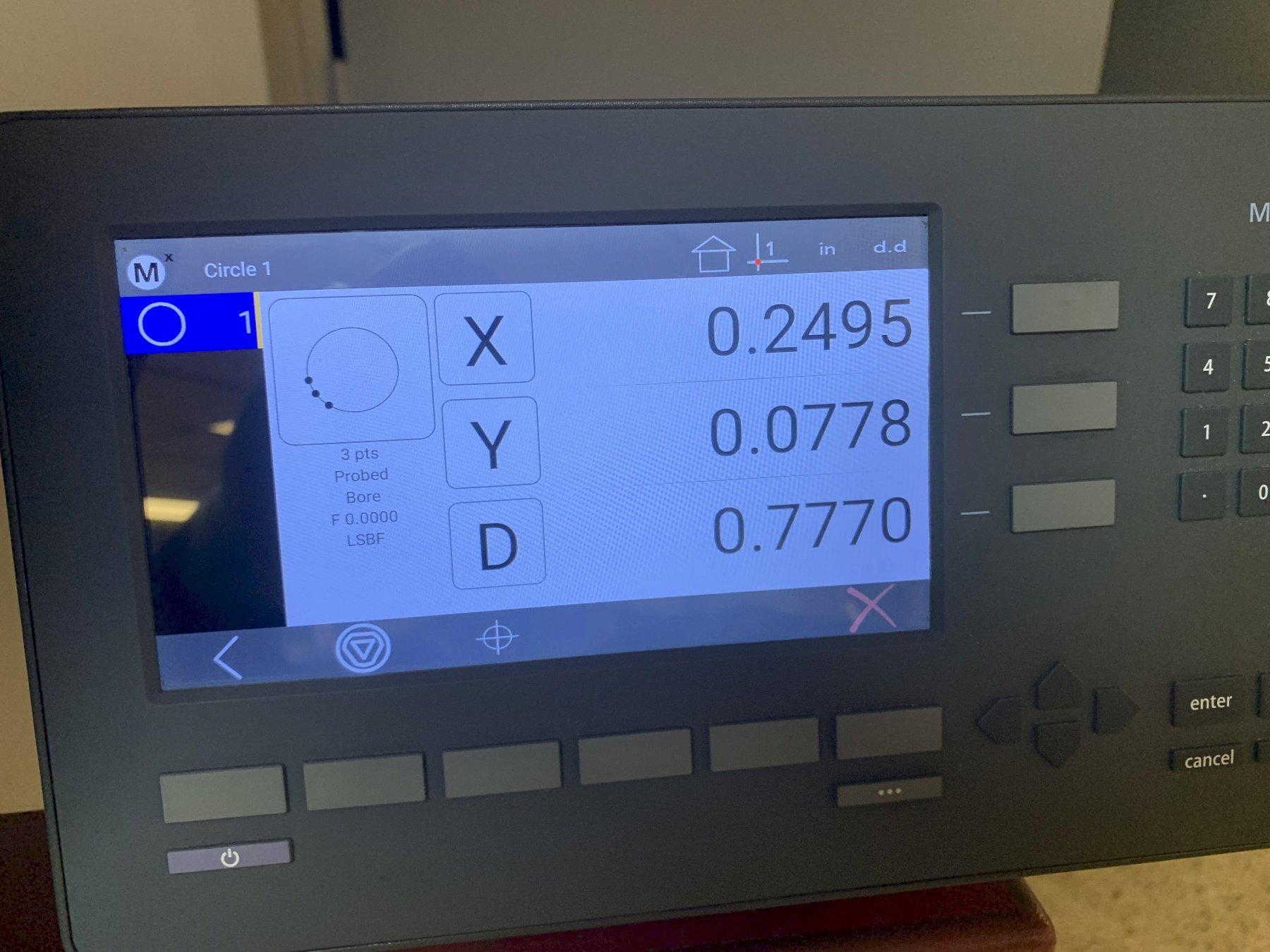

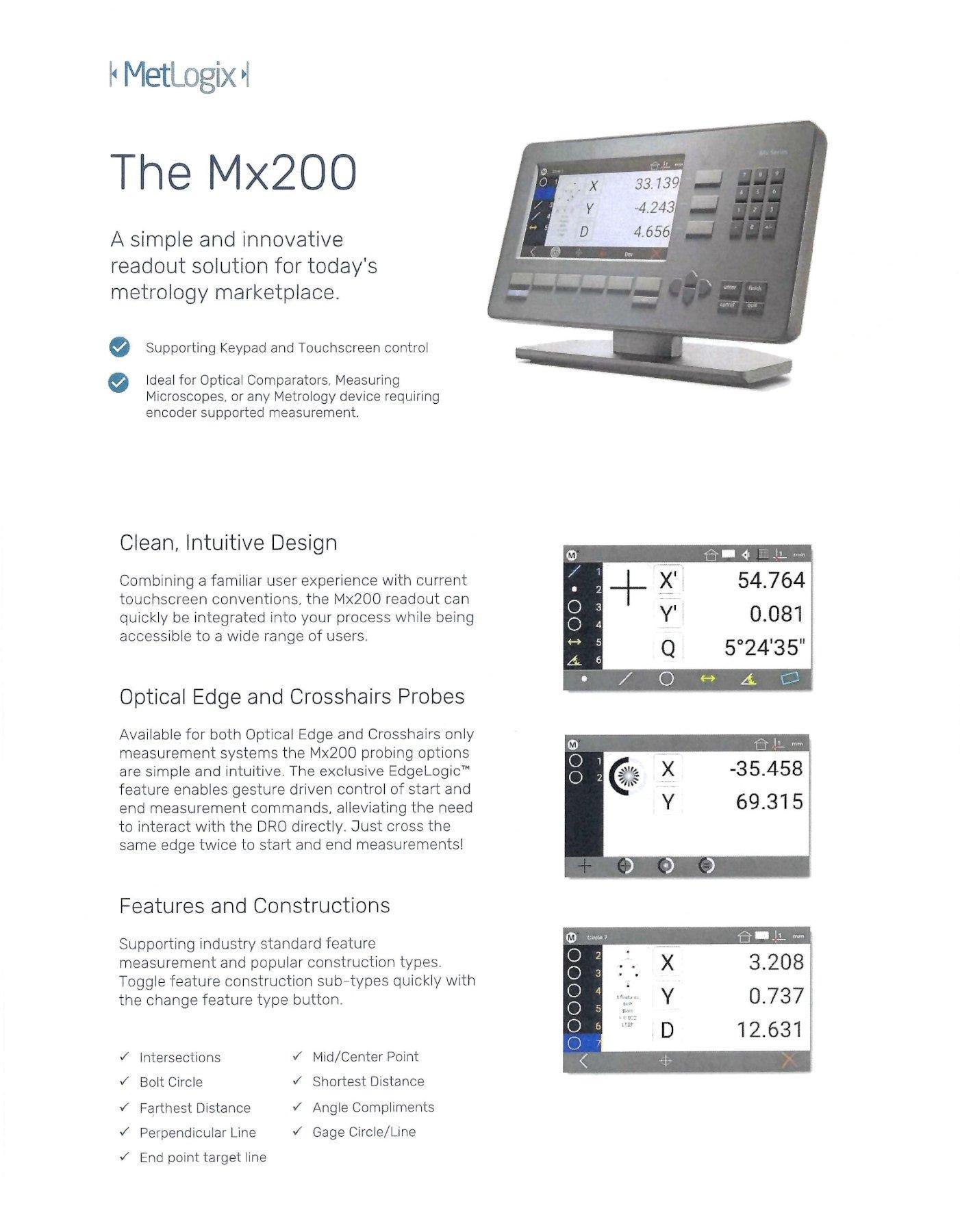

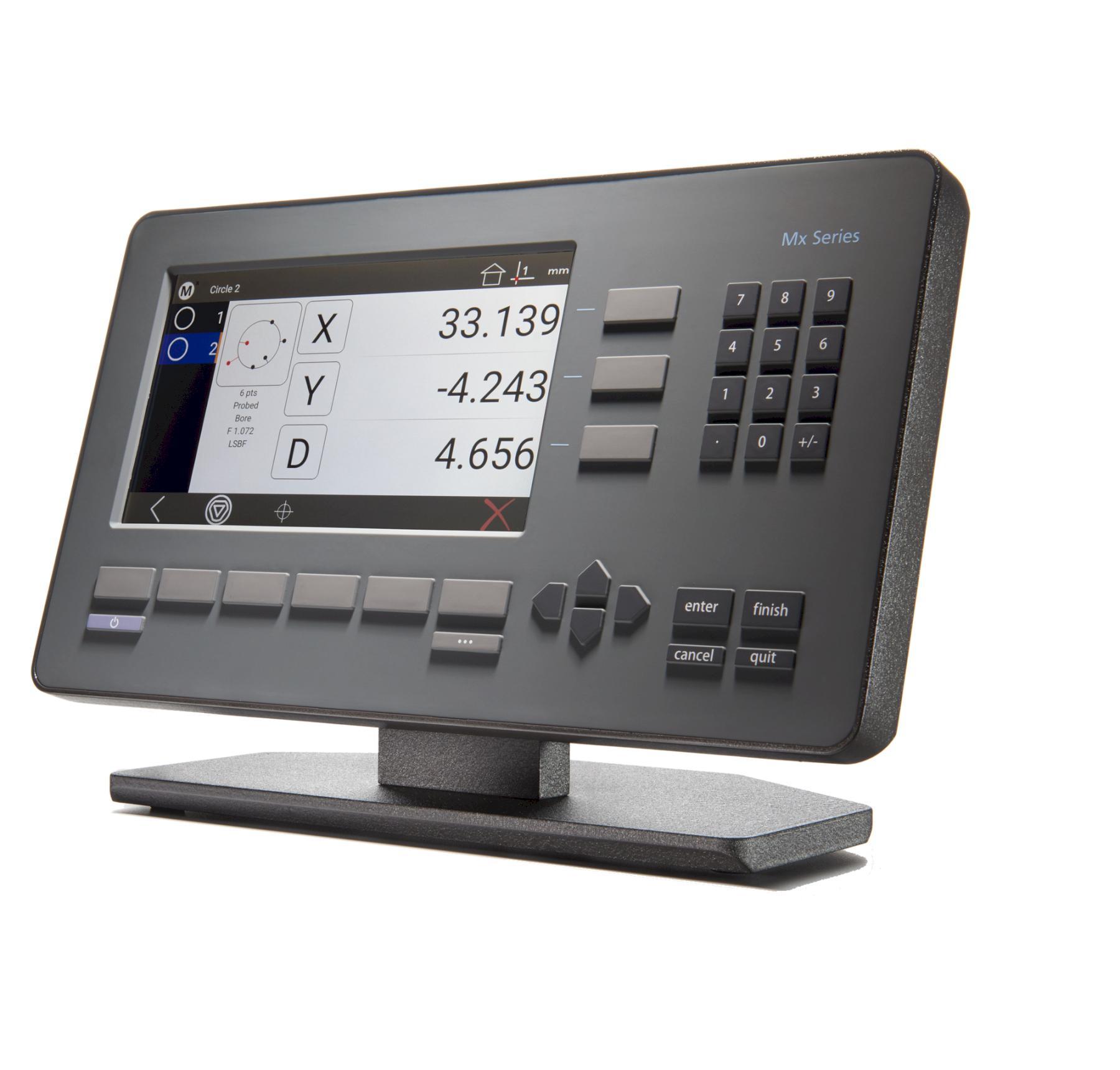

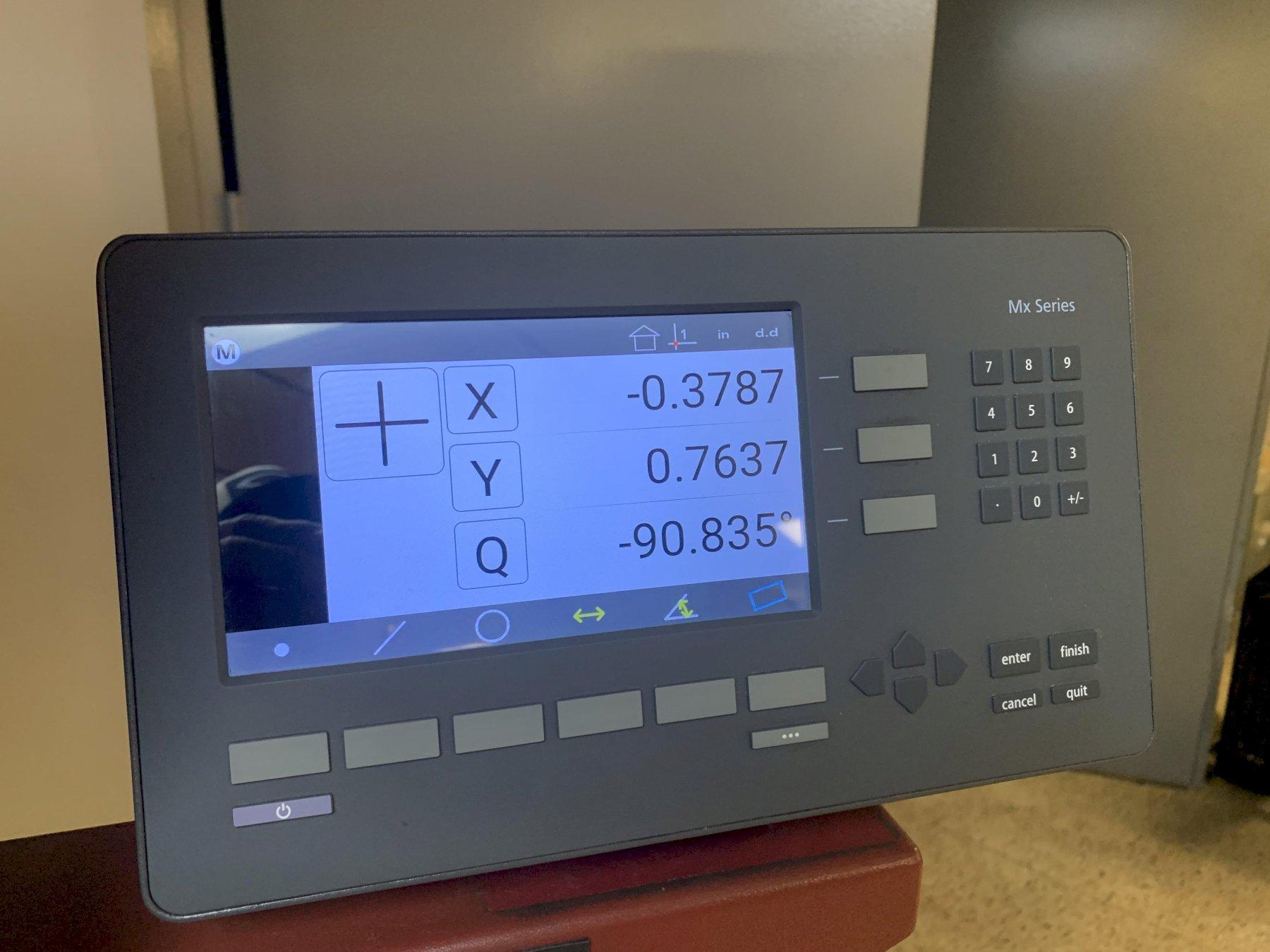

MetLogix Mx Computational Digital Readout
Heidenhain Glass Scales
Digital Protractor for Angle Measurements via Q-Axis
Dual Fiber Optic Surface Reflection
Quick Release Table for Fast Positioning (X-Axis)
Dual Lens Slide, Includes 10X and 20X Lenses
New Glass Crosshair Chart w/Chart Clips (install pending)

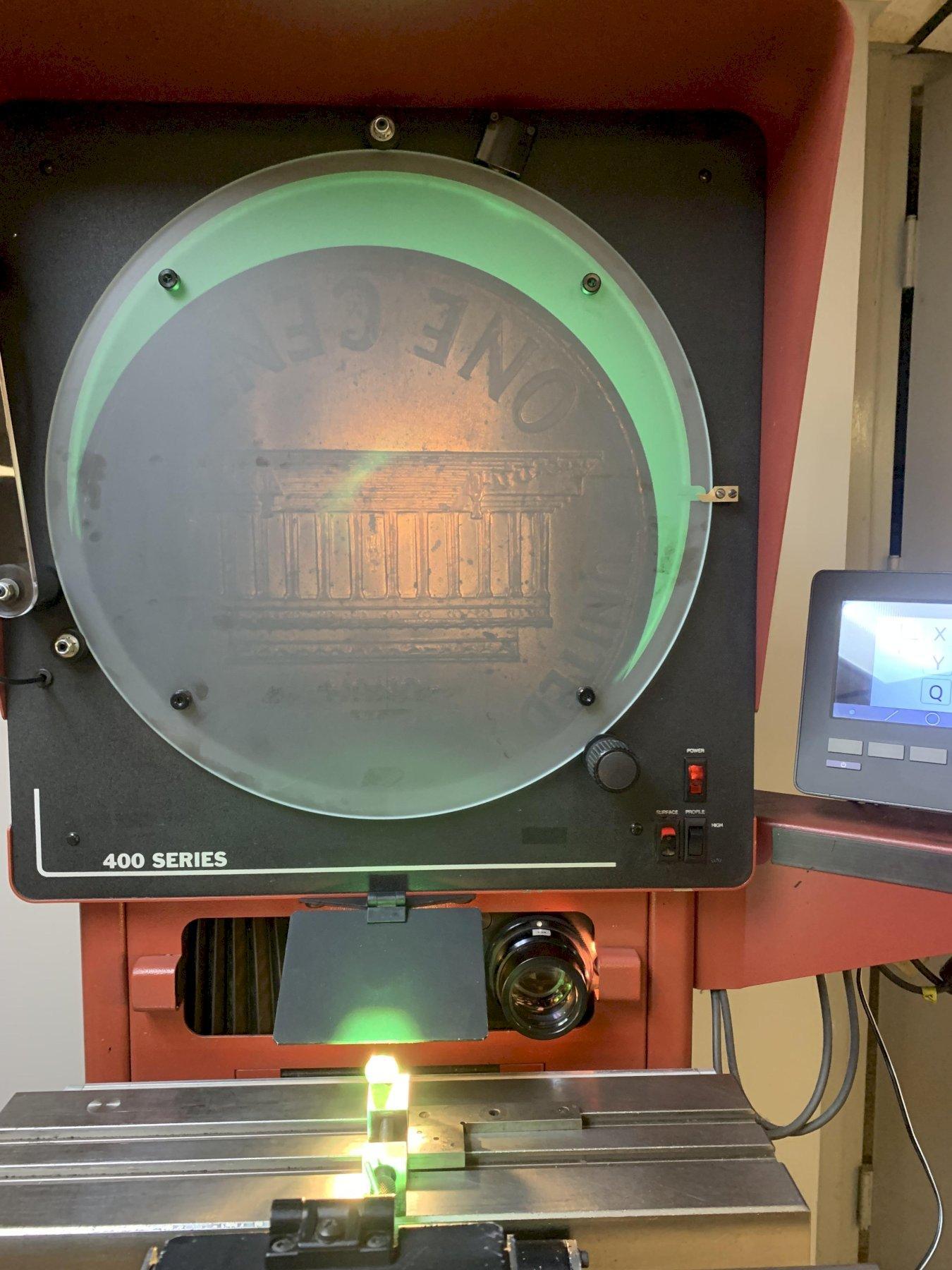

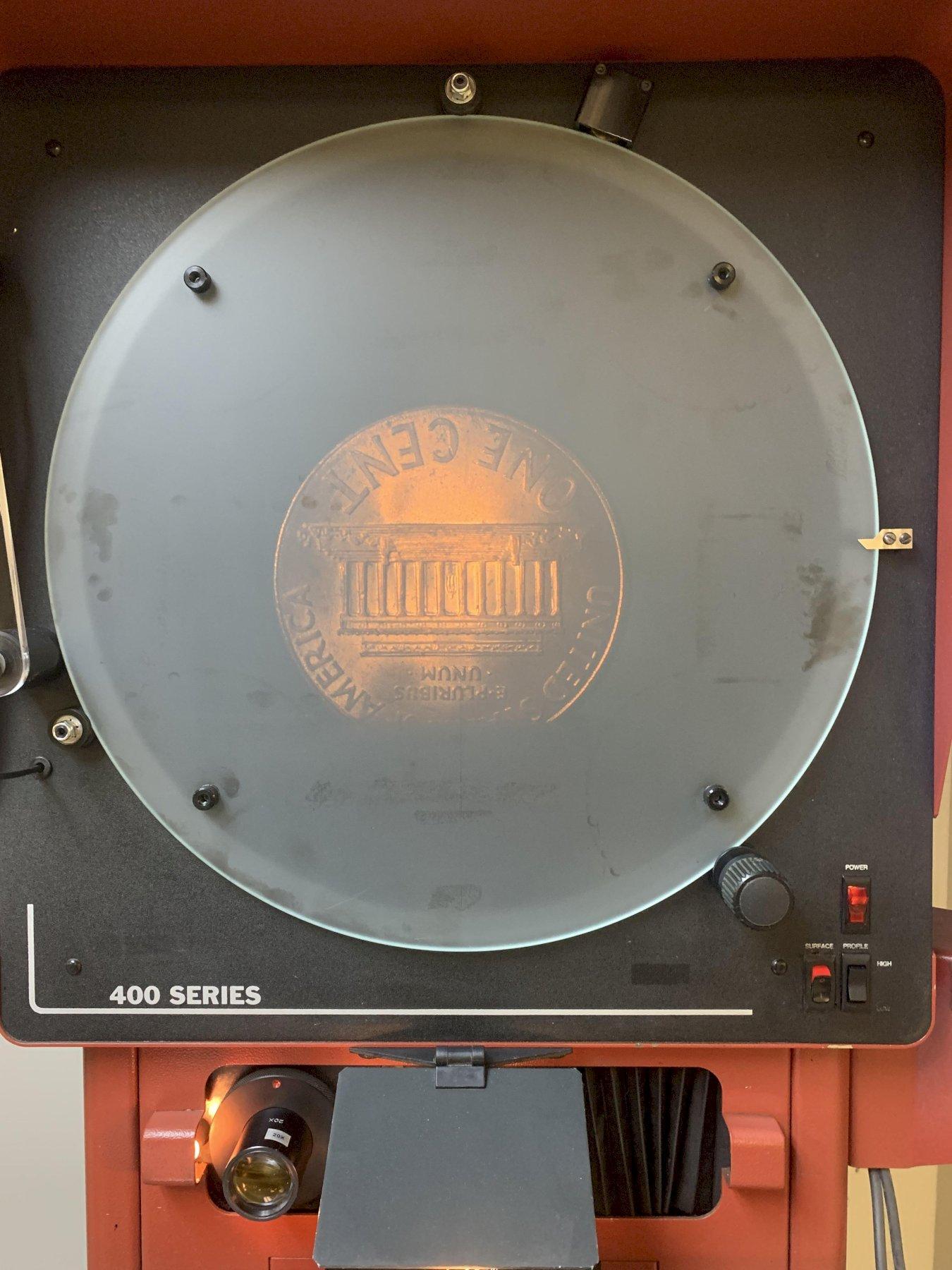

Erect and Reversed Image
All Metal Construction for Optimum Stability
Operators Manuals for machine and dro.
Optional Cabinet Base, subject to availability - $700

Notes:
Machine is wired for edge detection but the digital readout is not edge capable.
Specifications subject to independent verification by the buyer.

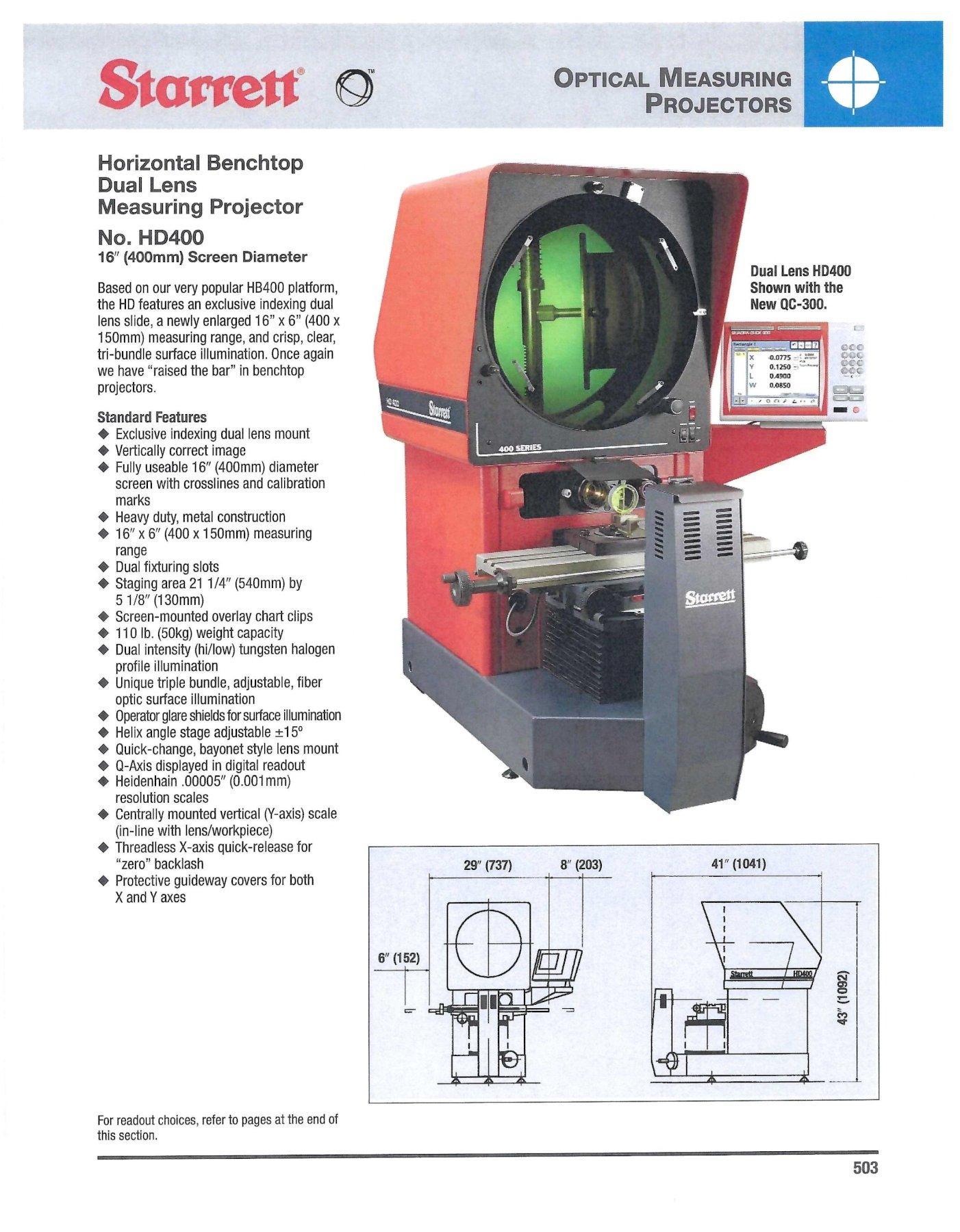

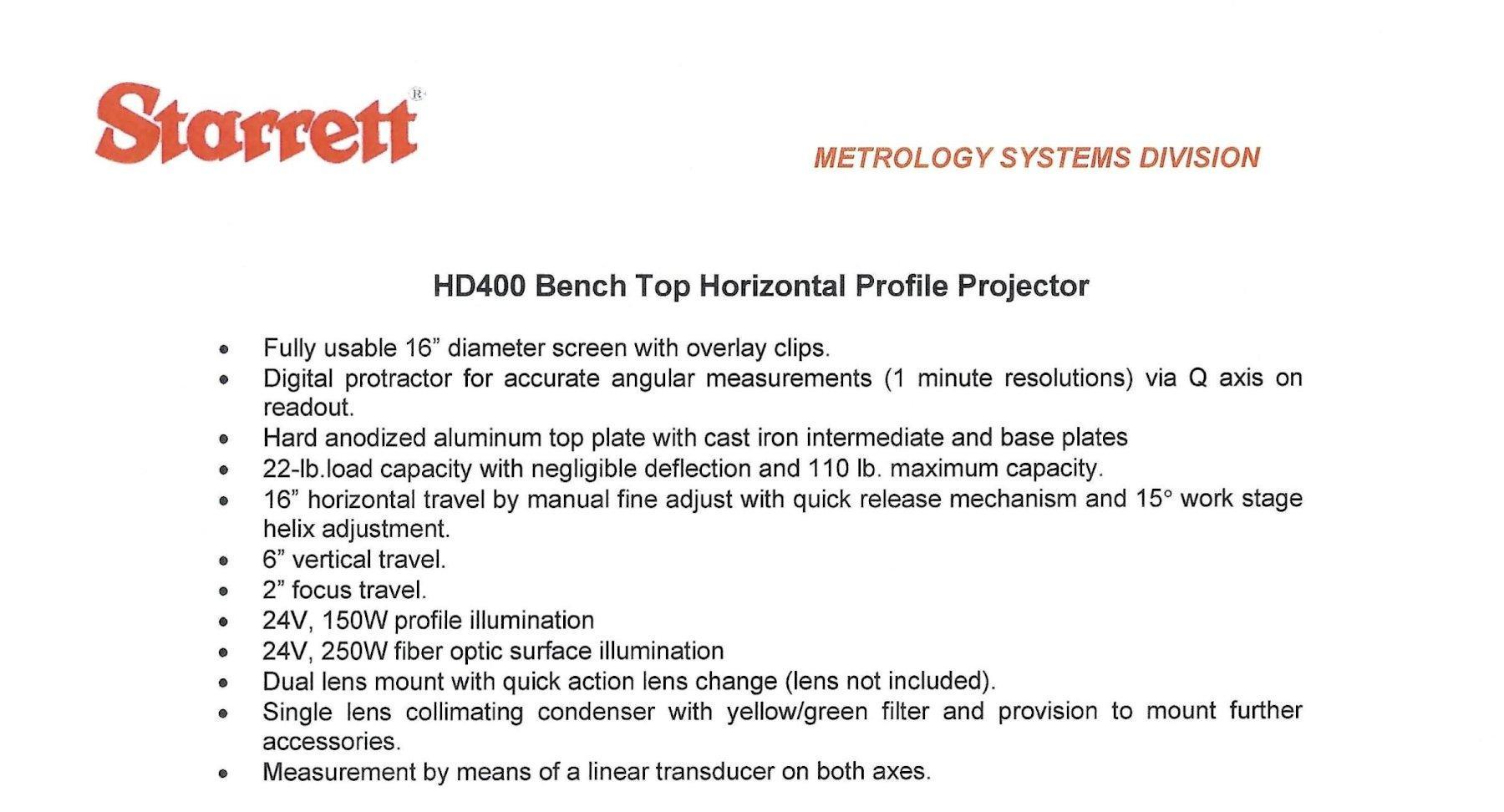

Please note factory literature is for reference only. There may be discrepancies.
Buyers responsible for shipping. We can assist with rate quotes on request.
Advanced Machinery past sales of comparable Starrett HB machines currently totals 34 machines.
