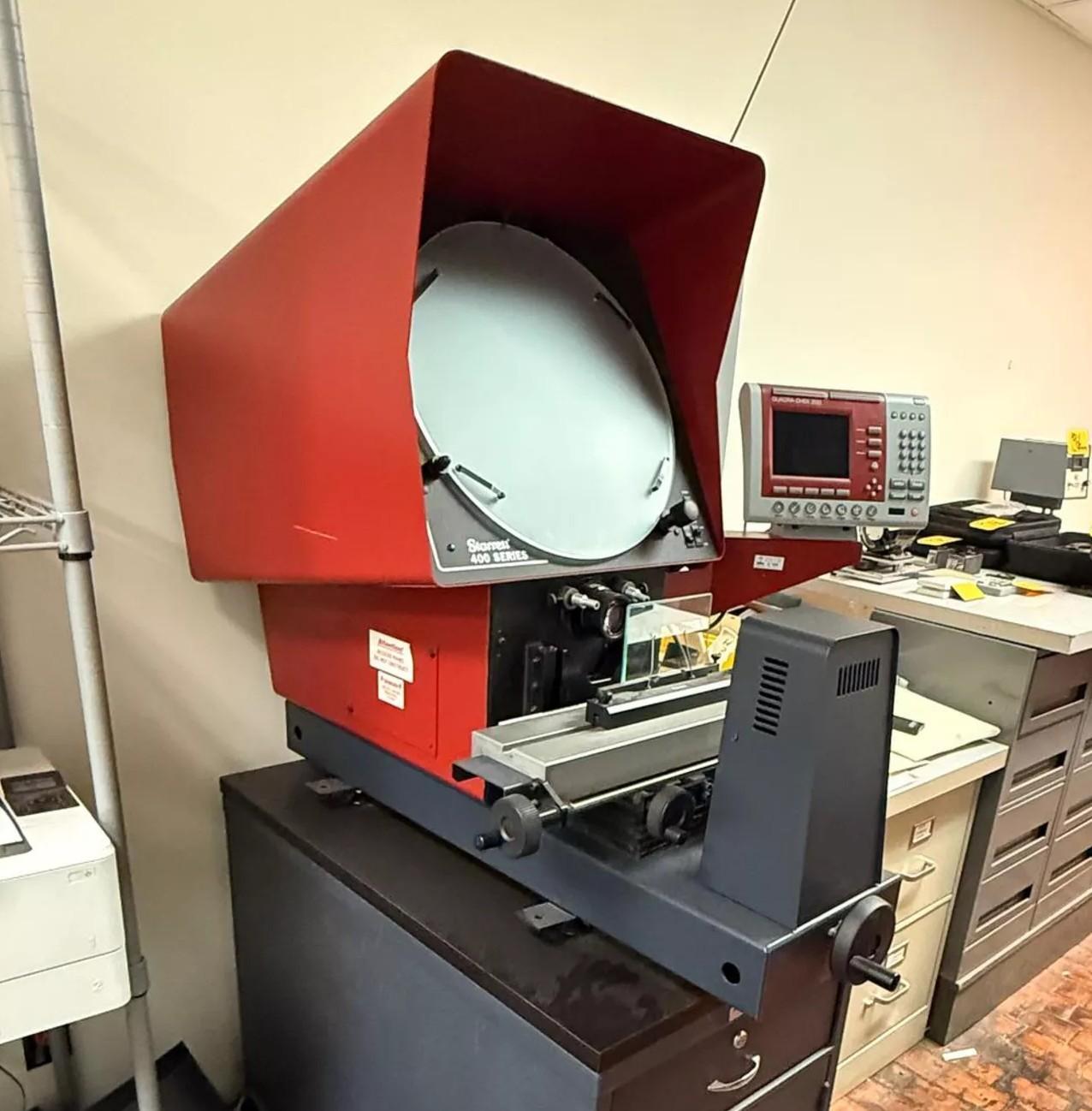

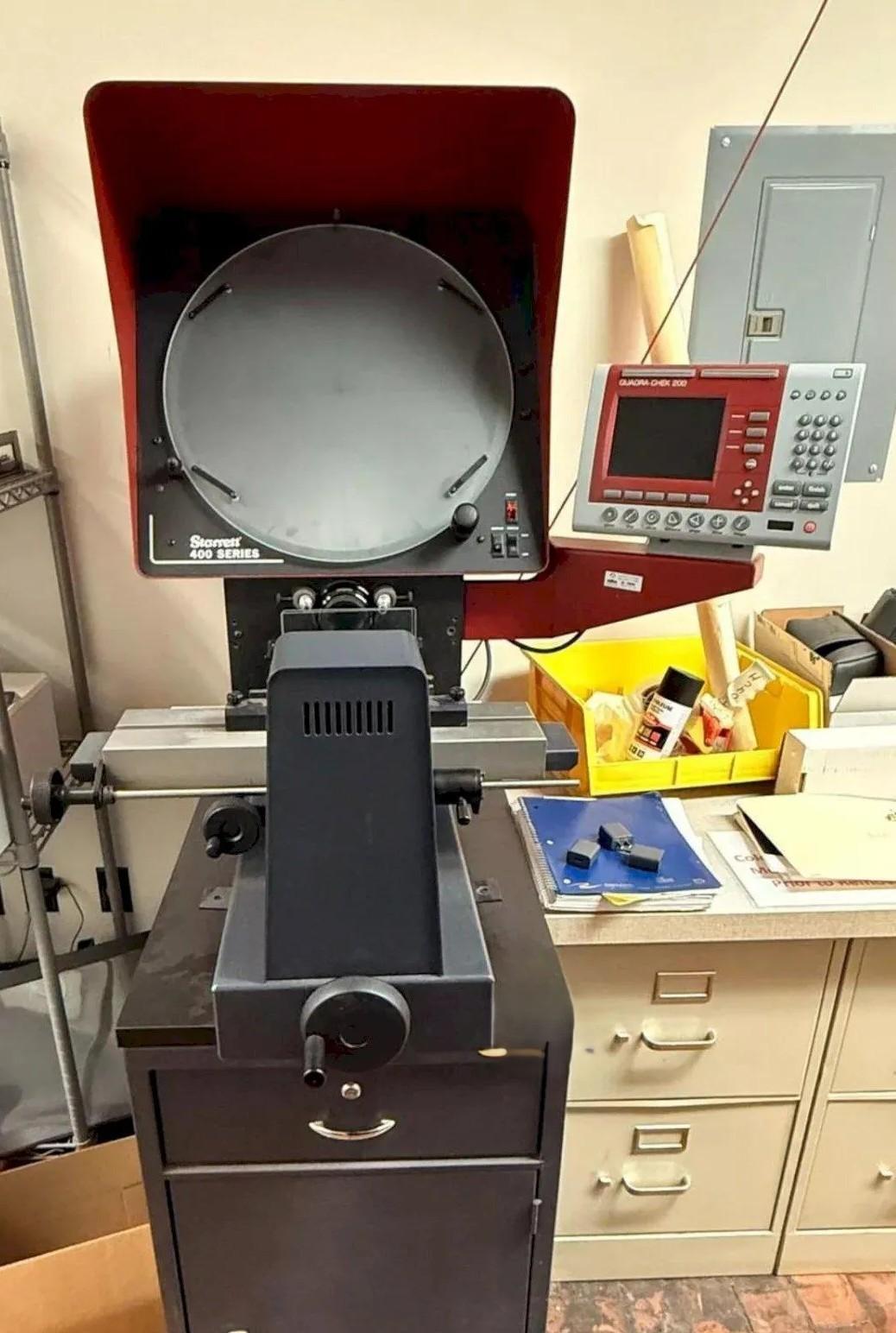

16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.
16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.
16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.
  • 16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.
  • 16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.
  • 16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.

16" STARRETT Model HE400 Bench Top Optical Comparator, S/N 70065.

Brand
STARRETT

Model
HE400

Type
Comparators, Optical

Stock #
34950

Condition
Used

Year
2012

Location
Dayton, Ohio
United States

Price
$8,225.00

Request Quote

Specifications

Equipped With

Specifications:
Screen Diameter - 16"
Table Size - 4.7" x 18.9"
Measuring Travels - 10" x 4"
Focus Travel - 1.5"
Table Load Capacity - 55 Lbs.
Image - Inverted and Reversed
Electrics - 1/60/115 V
Dimensions - 34" LR x 44.8" FB x 37.4" H
Net Weight, Approx - 200 Lbs.
Gross Shipping Weight, Approx - 375 Lbs.

Equipped with:
Quadra Chek 200 Digital Readout
Q-Axis for Angle Measuring
Fiber Optic Surface Reflection
Single Lens Mount with (1) 10X Lens
Quick Release Table for Fast Position on X-Axis Travel
Integral Hood
Operators Manual (.pdf)

* Notes:
* New arrival. Availability pending final preparations.
* Machine will ne cleaned and serviced by tech prior to shipping.
* Specifications subject to independent verification by the buyer.
* Factory Literature is for reference only. There may be discrepancies.

The HE400 is a well-regarded, economical benchtop optical comparator from Starrett, offering a large 16" screen and solid precision for non-contact profile and surface inspection. This unit is equipped with modern digital conveniences that make measurements fast and accurate.
