Specifications
Equipped With
Specifications:
Screen Diameter - 16"
Table Size - 4.7" x 18.9"
Measuring Travels - 10" x 4"
Focus Travel - 1.5"
Table Load Capacity - 55 Lbs.
Image - Inverted and Reversed
Electrics - 1/60/115 V
Dimensions - 34" LR x 44.8" FB x 37.4" H
Net Weight, Approx - 200 Lbs.
Gross Shipping Weight, Approx - 375 Lbs.
Equipped with:

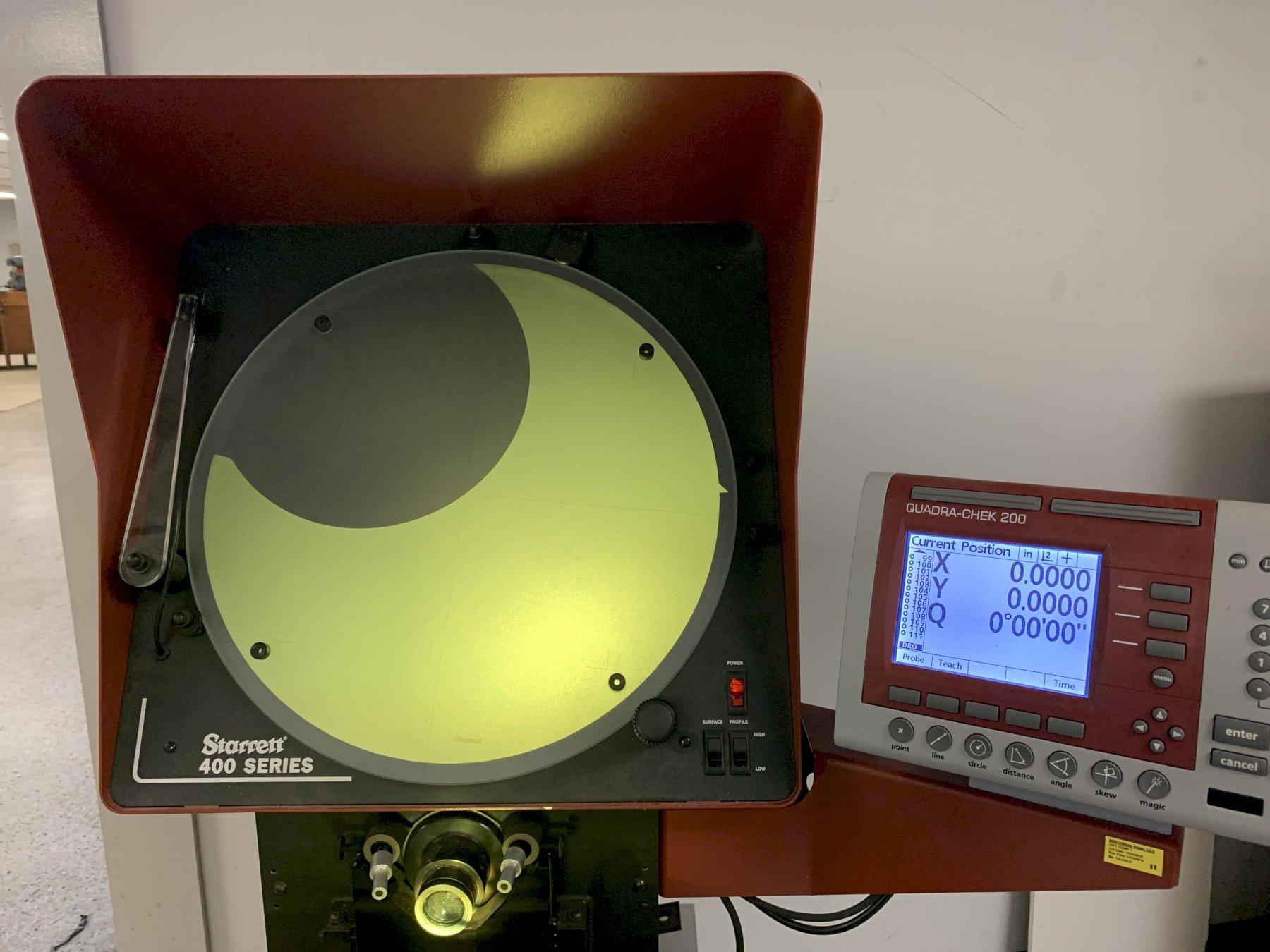

Quadra Chek 221E Digital Readout with Edge Sensing
Q-Axis for Angle Measuring
Fiber Optic Surface Reflection
Single Lens Mount with (1) 20X Lens
Quick Release Table for Fast Position on X-Axis Travel
Integral Hood
Cabinet Base not included

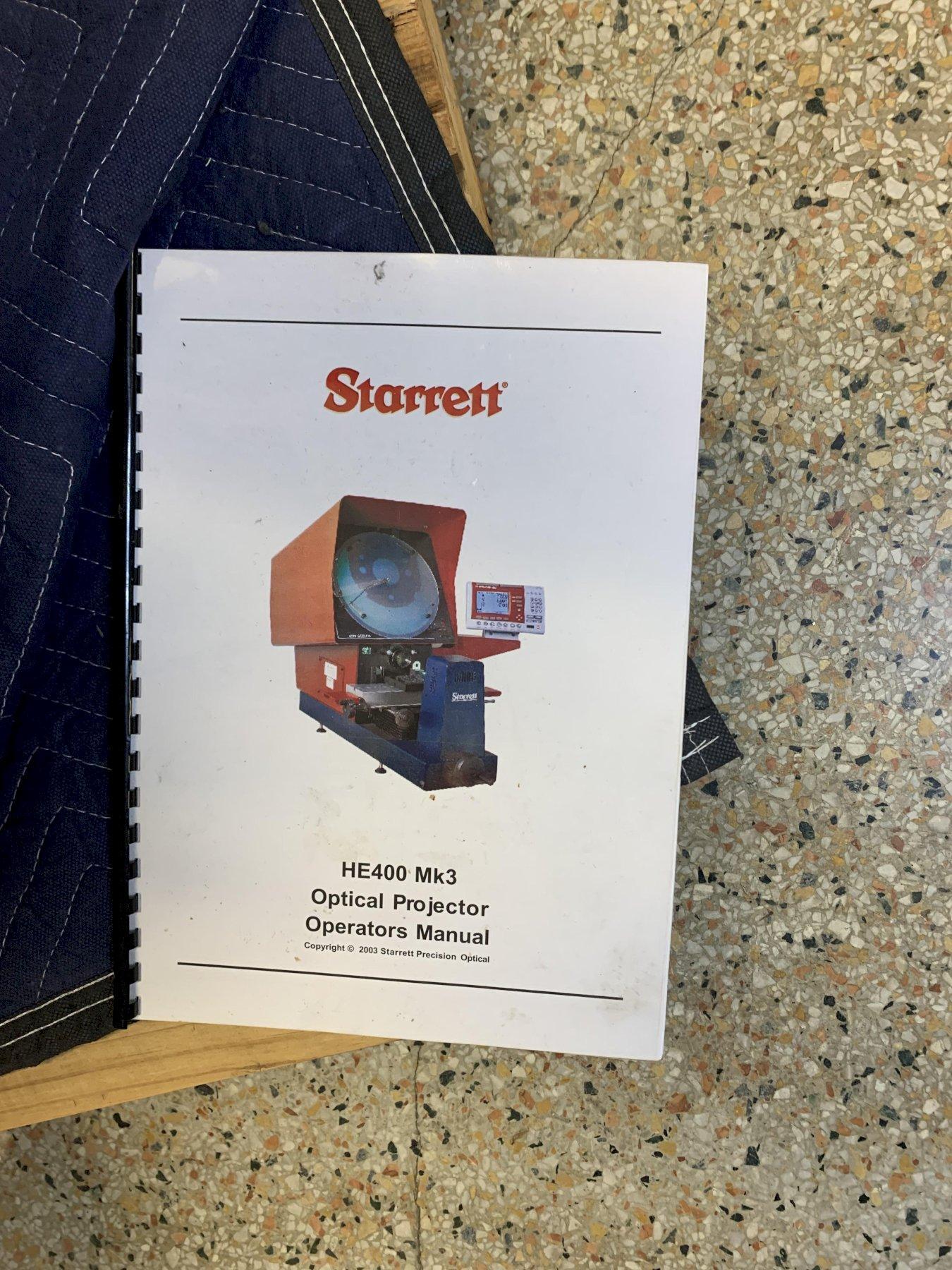

Operators Manual (.pdf)
* Notes:
* From university lab.

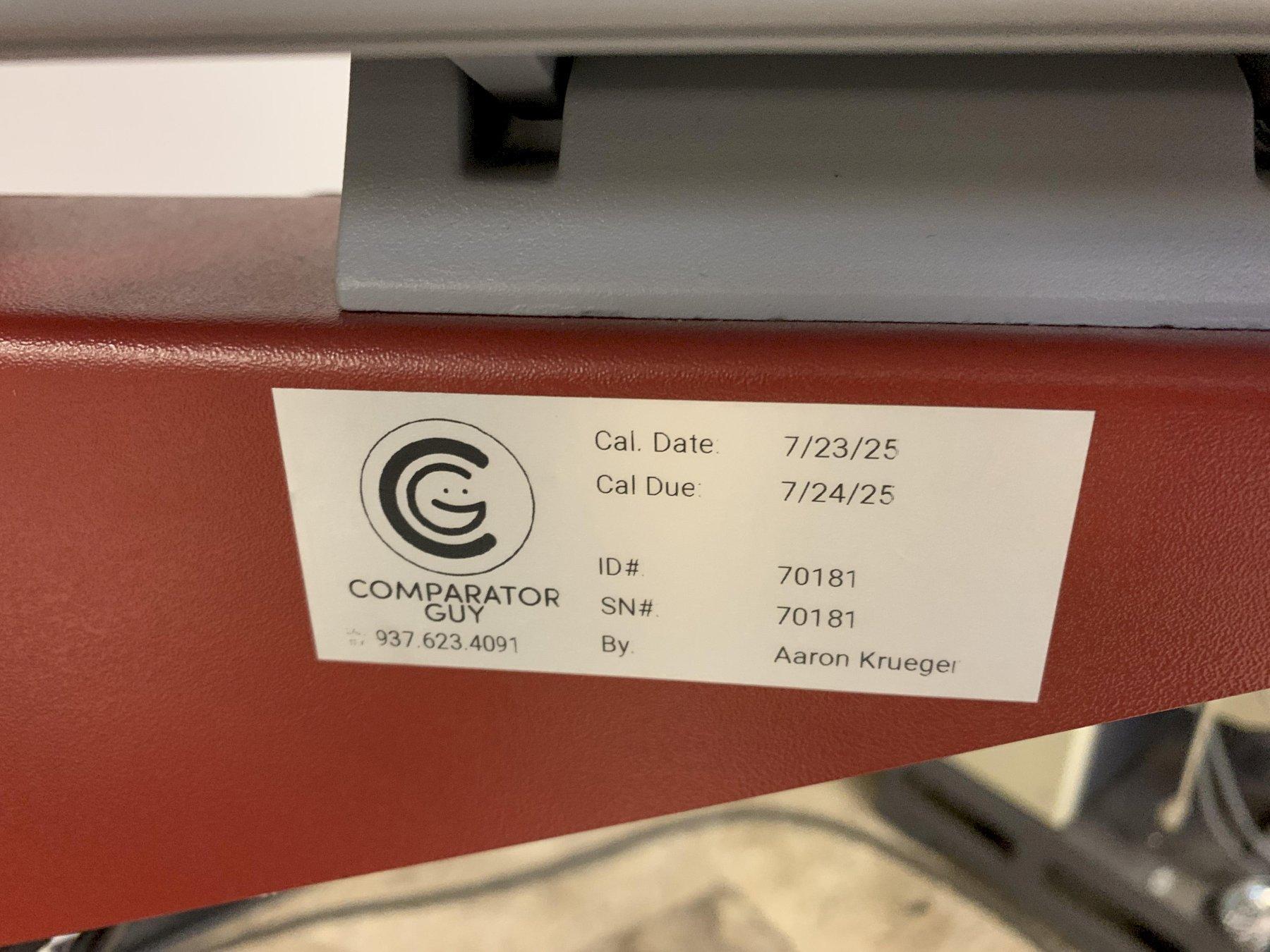

* Machine has been evaluated by technician and passes calibration.
* Staging fixtures and other lenses may be available for purchase.
* Specifications subject to independent verification by the buyer.
