Specifications
Equipped With
Specifications:
Swing over bed - 18.1"
Distance between centers - 40"
Swing over cross slide - 9.8"
Spindle bore - 2"
Spindle motor - 5 hp
Spindle speeds (12) - 25 to 1500 rpm
Machine Weight, approx - 4700 lbs.
Equipped with:
Sony DRO

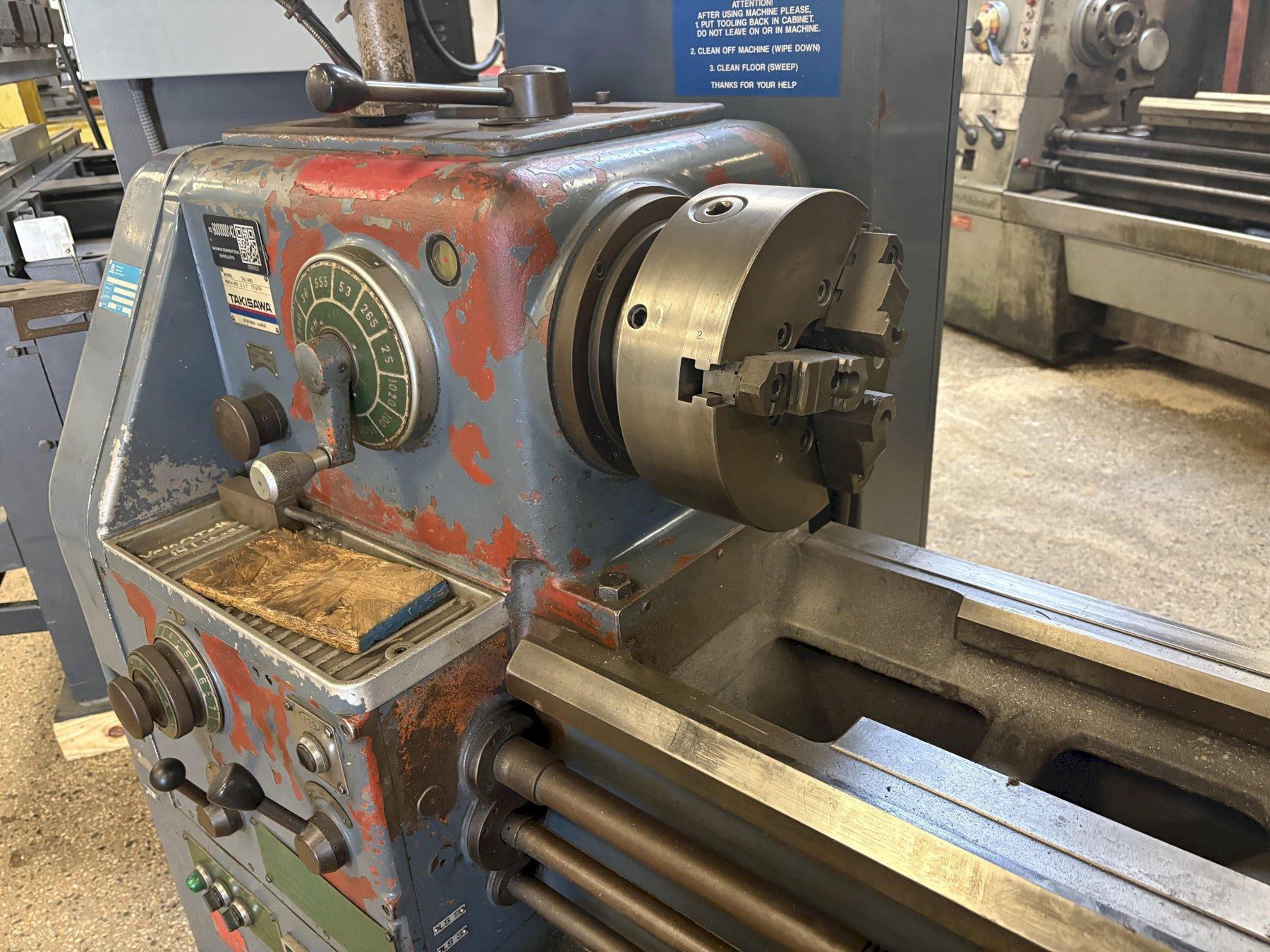

3-Jaw Chuck
Face Plate

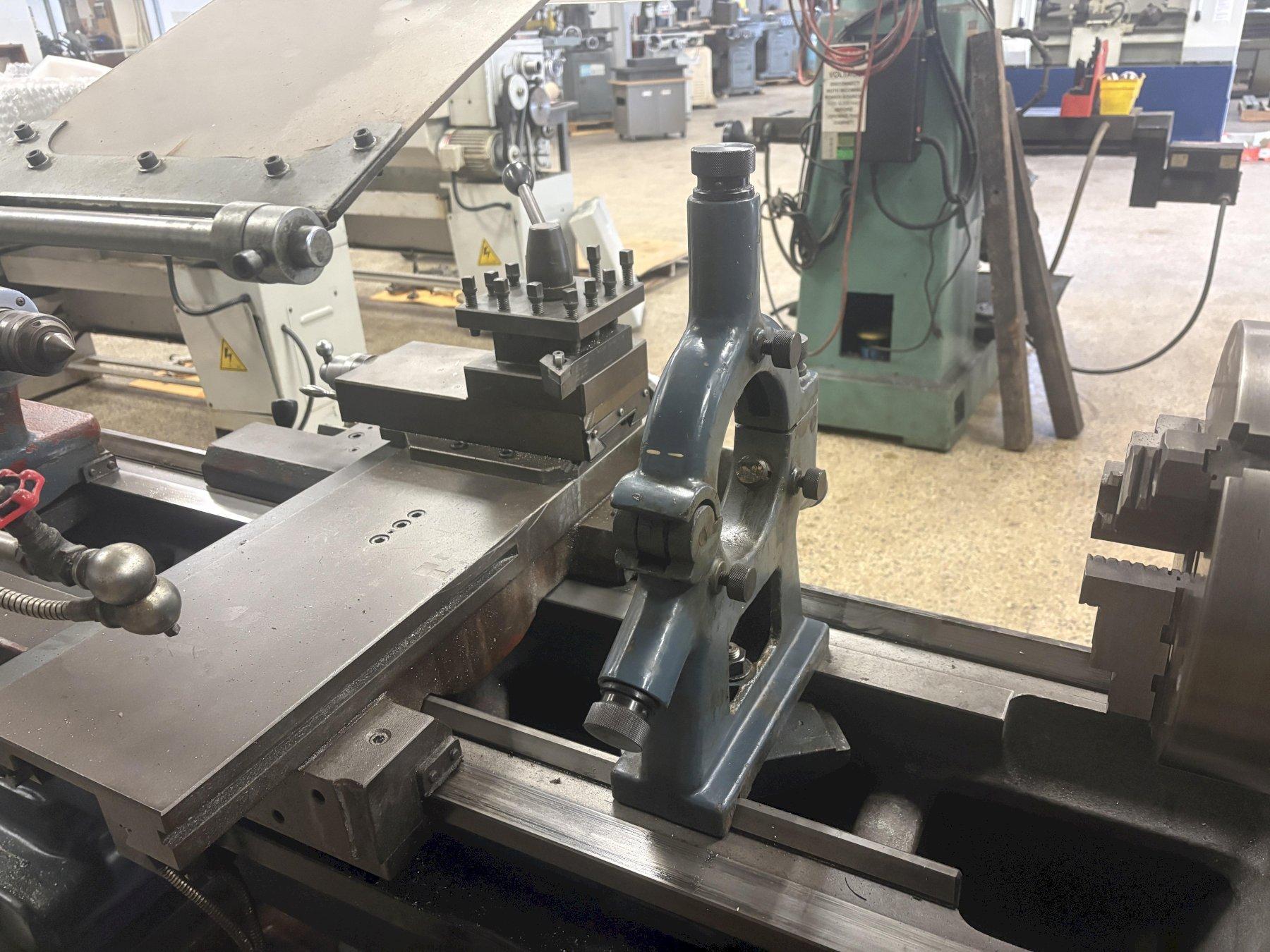

Steady Rest
Follow Rest
Live Center
5C Collet Drawbar with Collets

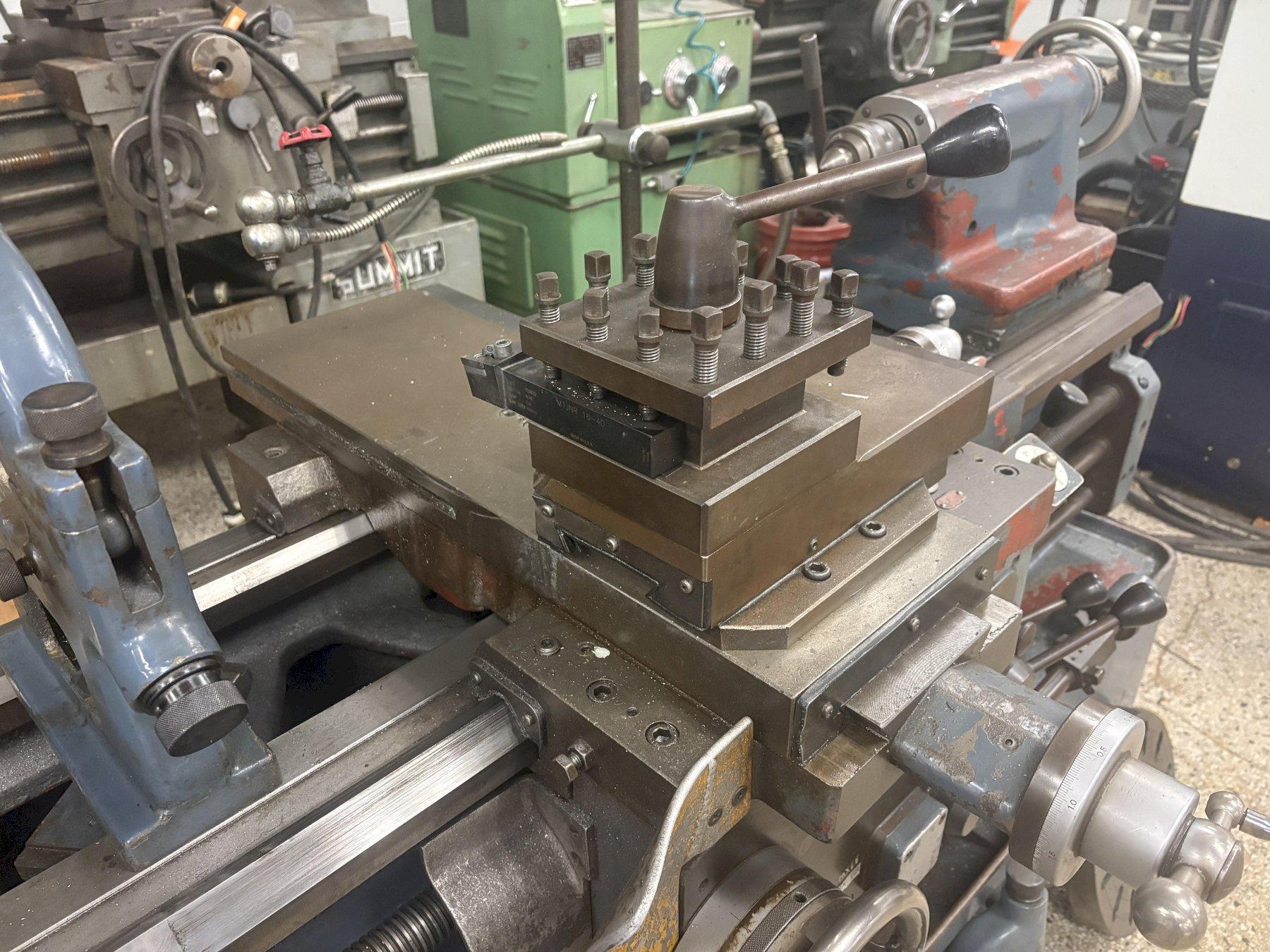

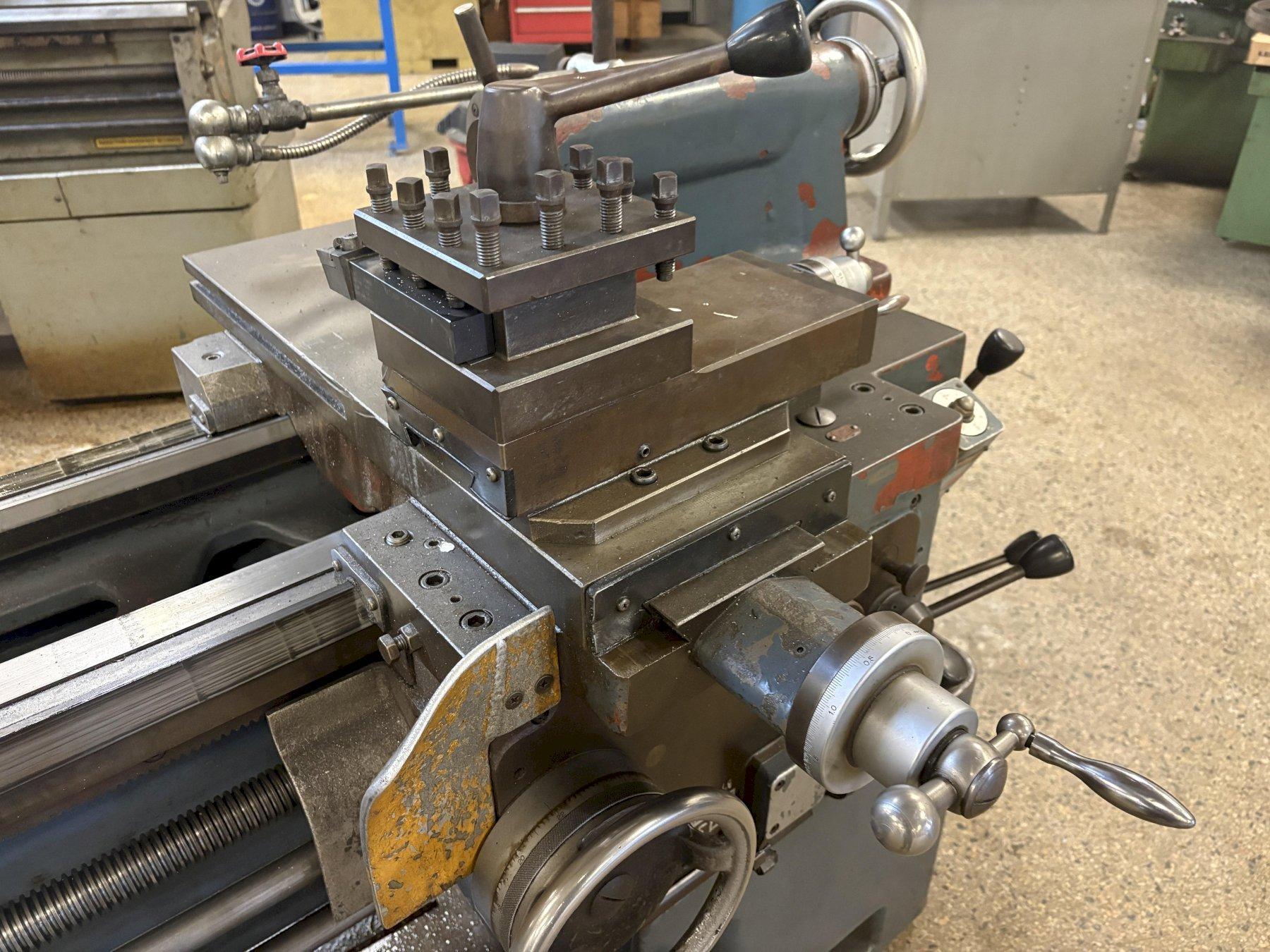

4-Way Turret Toolpost
Foot Treadle Brake
Threading Dial
Automatic Longitudinal Feed Stop Rod

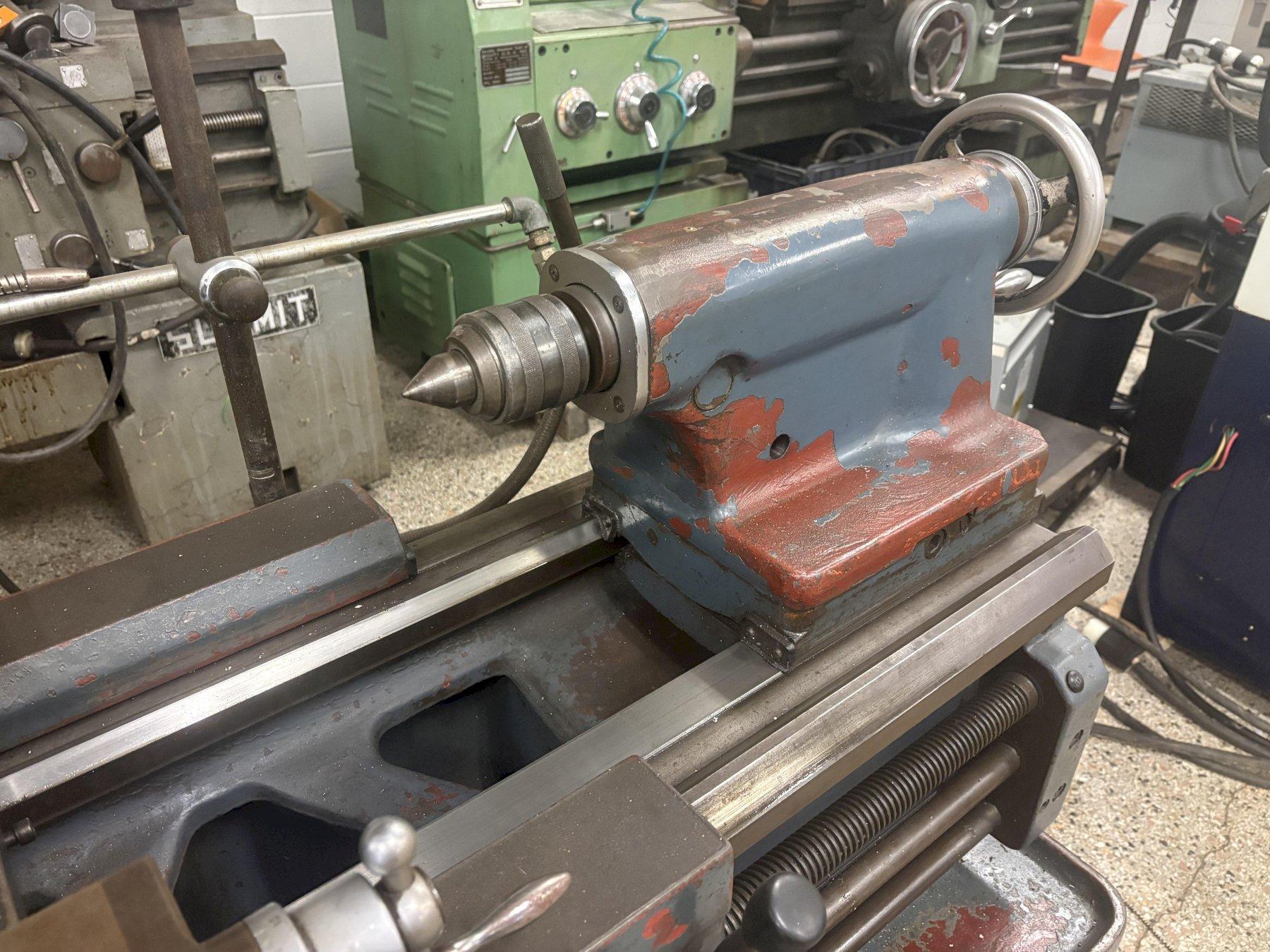

Tailstock
Coolant Pump
Slide in Chip Pan
Specifications subject to independent verification by the buyer.
Seller can load by appointment.
