Specifications
| Type of CNC Control |
Milltronics 8200 |
| # Axis |
3 |
| Spindle Speed |
15000 |
| Spindle Taper |
CT40 |
Equipped With
Specifications:

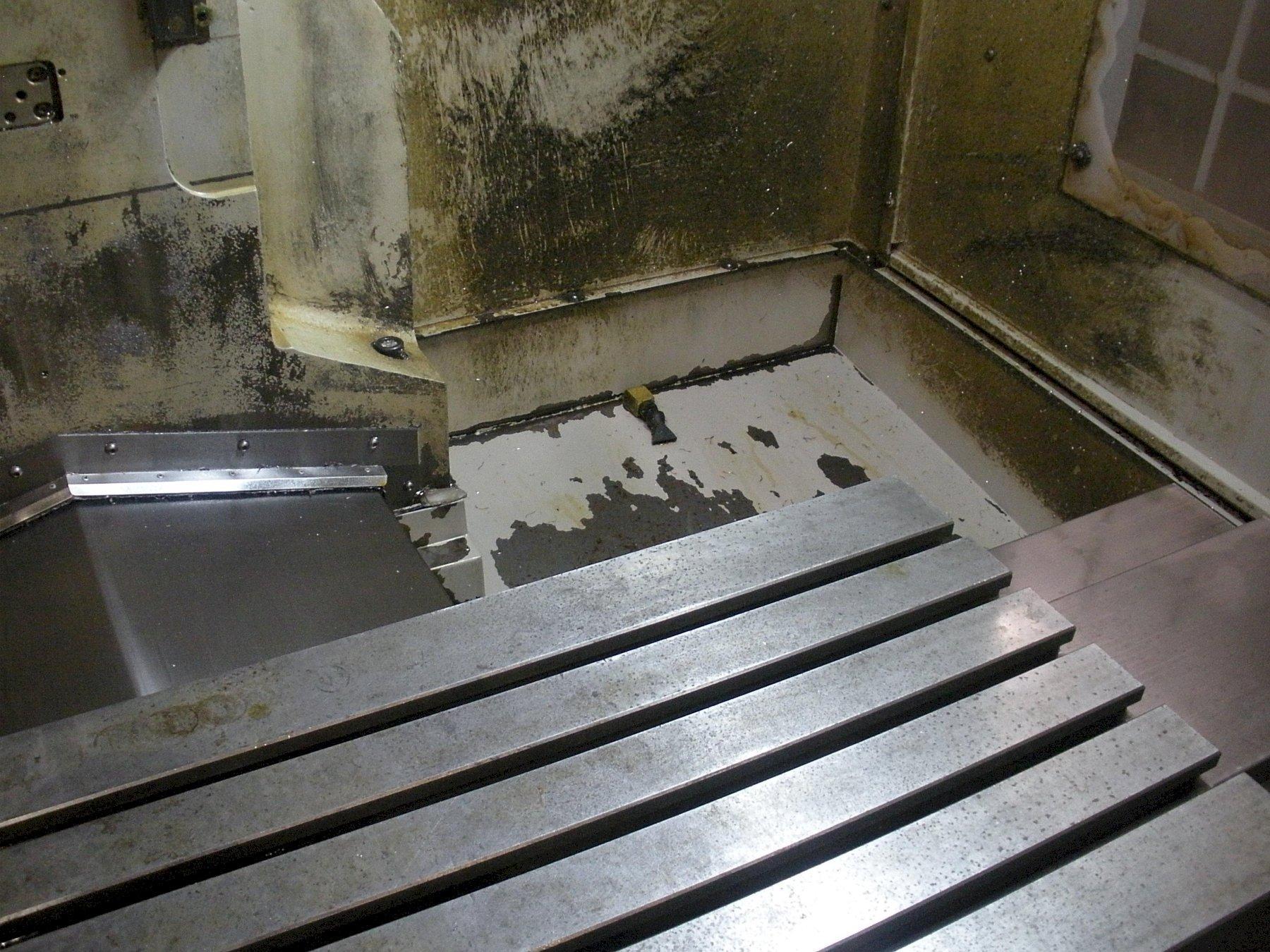

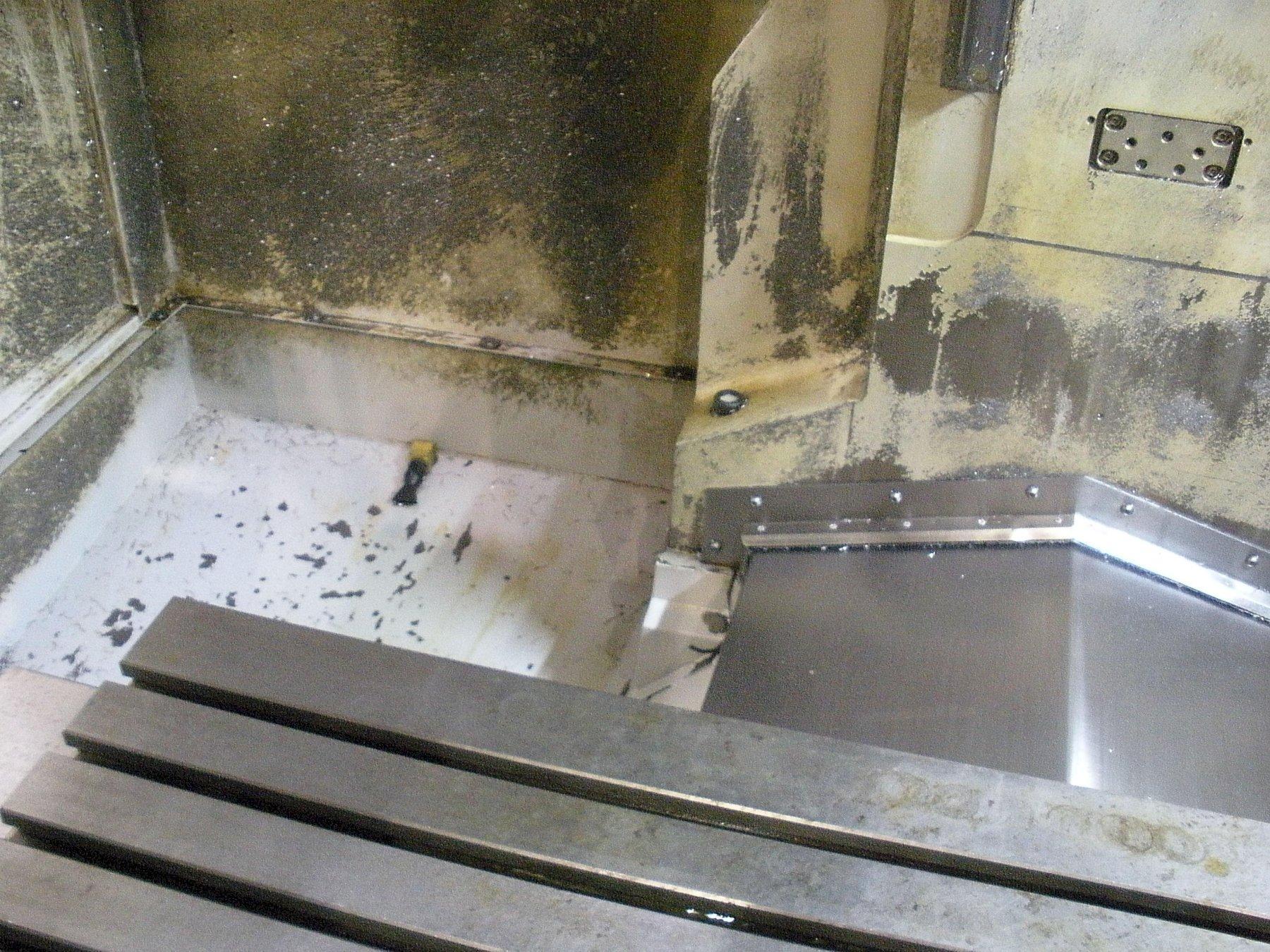

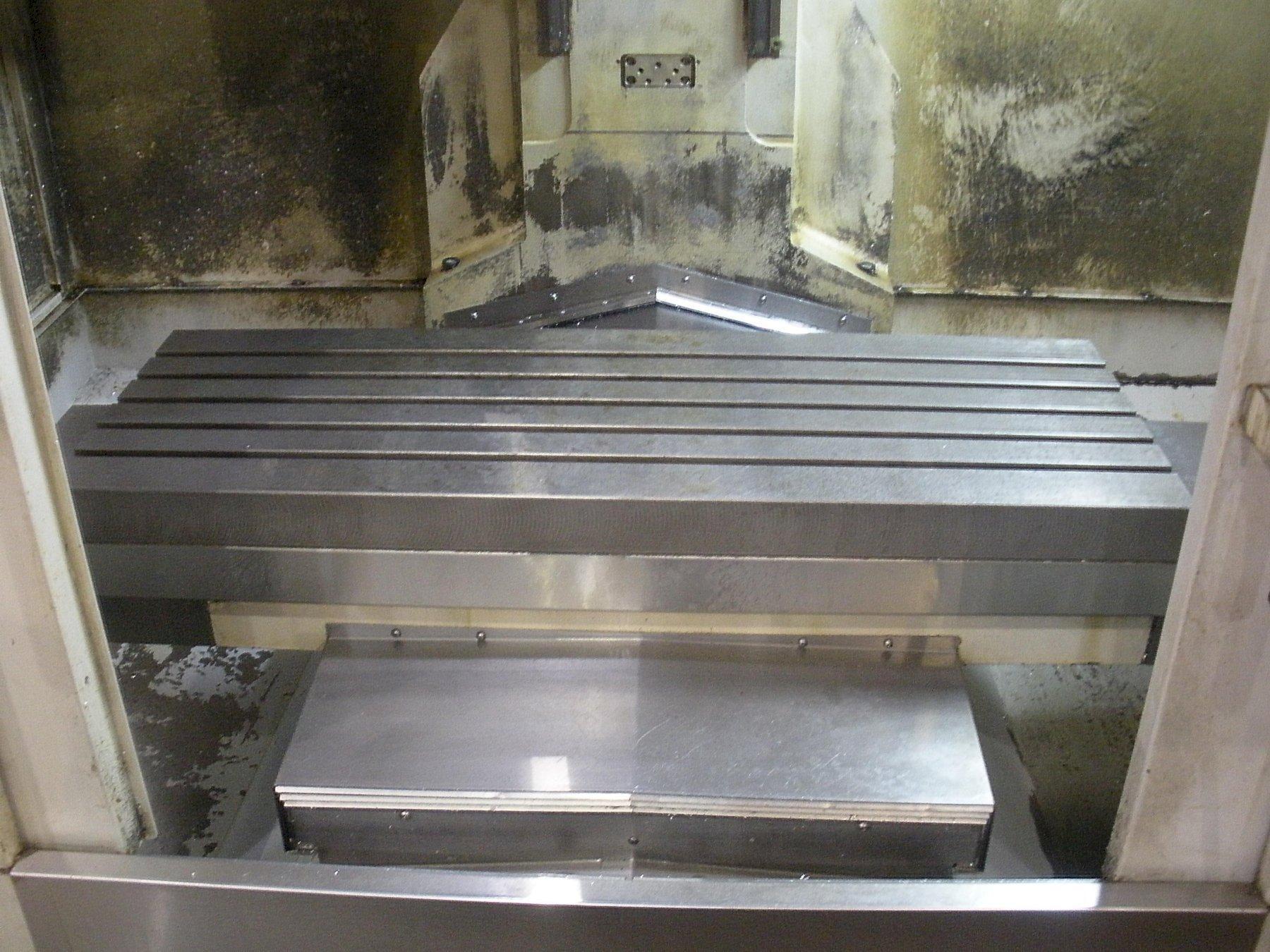

Table Size - 45" x 16"
Travels (XYZ) - 30" x 16" x 20"
Throat Distance, Spindle to Column - 16"
Distance, Spindle to Table Top - 4" to 24"
Maximum Table Load - 1500 Lbs.
Spindle RPM - 15,000
Spindle Taper - CT40
ATC Type - 24 Arm Style
Tool Change Time - 3.5 Seconds
Spindle Motor (1 min / 30 mins) - 24 / 15 hp
Rapid Traverse XY / Z - 1000 / 800 ipm
Max Feedrate (Part Dependent) - 500 ipm
Power - 208-240 VAC 50-60hz, 4 Phase, 50 amps, 19 kVA
Floor Space Requirements - 92" x 90"
Machine Height - 114"
Machine Weight, Approx - 9000 Lbs.
Equipped with:

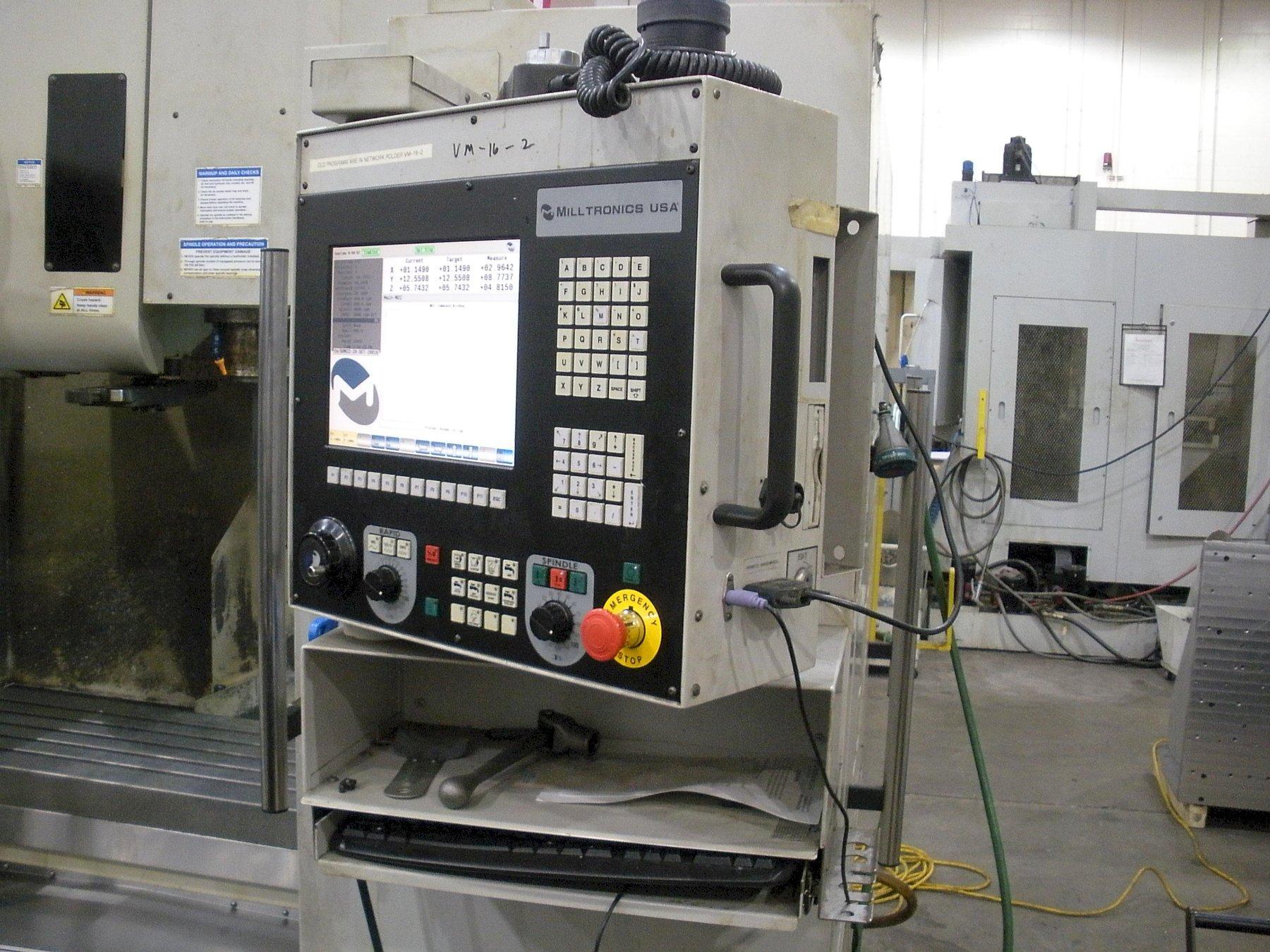

8200 Series Control
12" LCS Active Matrix Color Display
Conversational Plus G & M Code Programming
3D Part and Wire Frame Tool Path Graphics Plus Side Modeling Graphics
Networking
High Torque AC Digital Servo Drives
Electronics Spindle Orient and Rigid Tap
Remote Handwheel
Linear Ball Ways
24 Pocket Swing Arm ATC
Spindle Air Purge
Auto Lubrication
Metal Telescopic Way Covers
Chip Auger
6-Nozzle Flood Coolant
Air and Wash Down Hoses
Full Enclosure
Wide Side Doors for Cleaning Access
Work Light
* Specifications are subject to independent verification by the buyer.
* No tooling or fixturing is included.
* Offered on consignment. No warranty or return privilege.
* Rigging and transportation responsibility of the buyer.
)
