Specifications
Equipped With
Preliminary Specifications:
X Axis Travel - 41.34"
Y-Axis Travel - 22.05"
Z-Axis Travel - 18.11"
Table Size - 22.05" x 51.18"
Table Top to Spindle Nose - 5.91" to 24.02"
Table Load Capacity - 1980 Lbs.
Rapid Traverse XY - 1575 ipm
Rapid Traverse Z - 1262 ipm
Spindle Speeds - 15000 rpm
Spindle Motor - 30/25 HP
Spindle Taper - CT40 Big Plus
ATC Magazine - 32 Tools

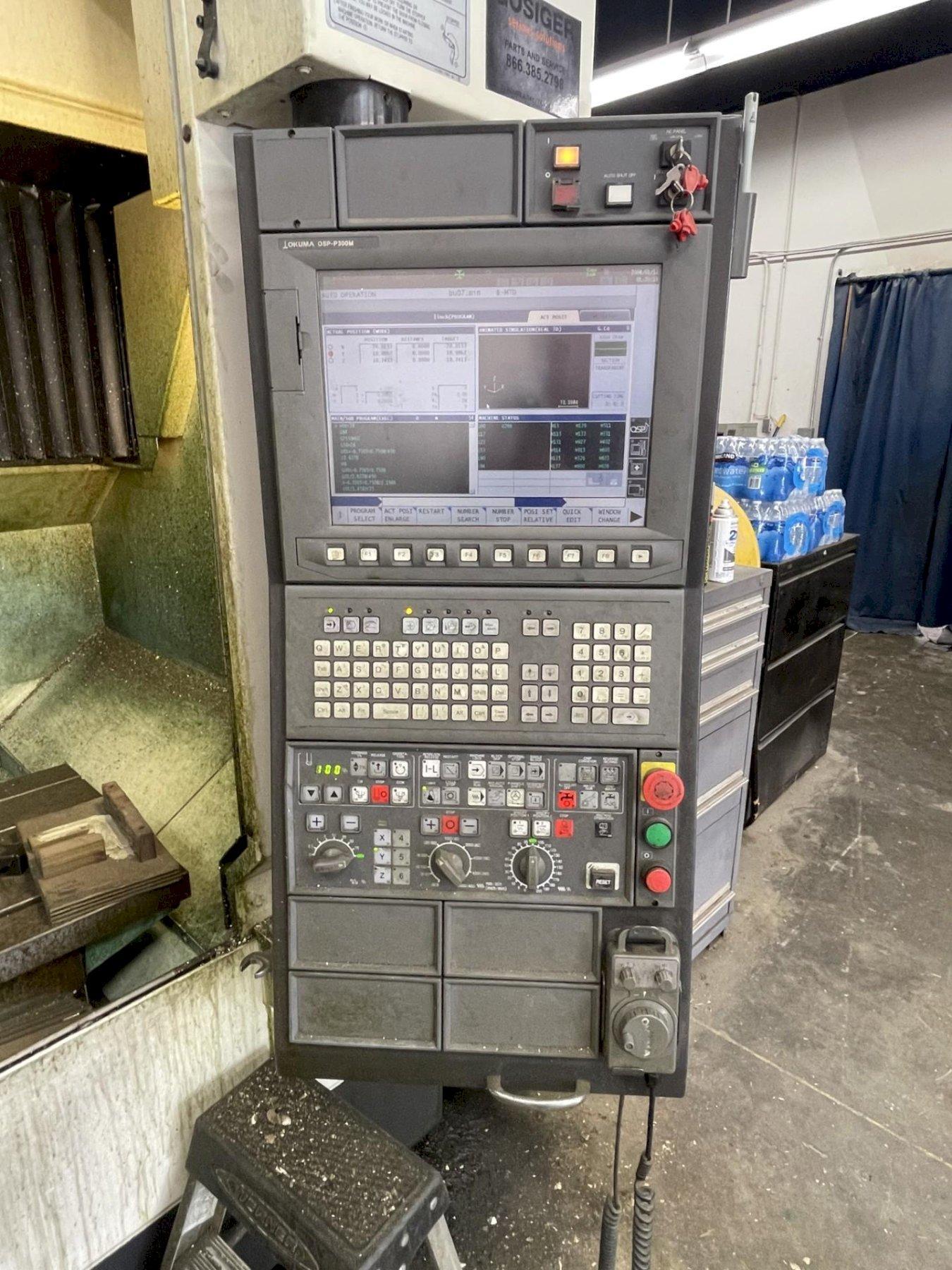

Control - OSP-P300M
Floor Space - 98.82" x 122.05"
Machine Height - 108"
Machine Weight, approx - 13,500 lbs.
Notes:
Offered on consignment. No warranty or return privilege.
Machine is offered subject to consignor approval.
Buyer responsible for rigging expenses.
Specifications subject to independent verification by the buyer.
