Specifications
| Type of CNC Control |
Hurco Dual Screen |
| Taper |
CT40 |
| # ATC |
40 |
Equipped With
Specifications:
Travels (X,Y,Z): 42" x 24" x 24"
B, C Axis Travel: +/- 90 , 360
Max Distance, Spindle Nose to Table: 24.13"

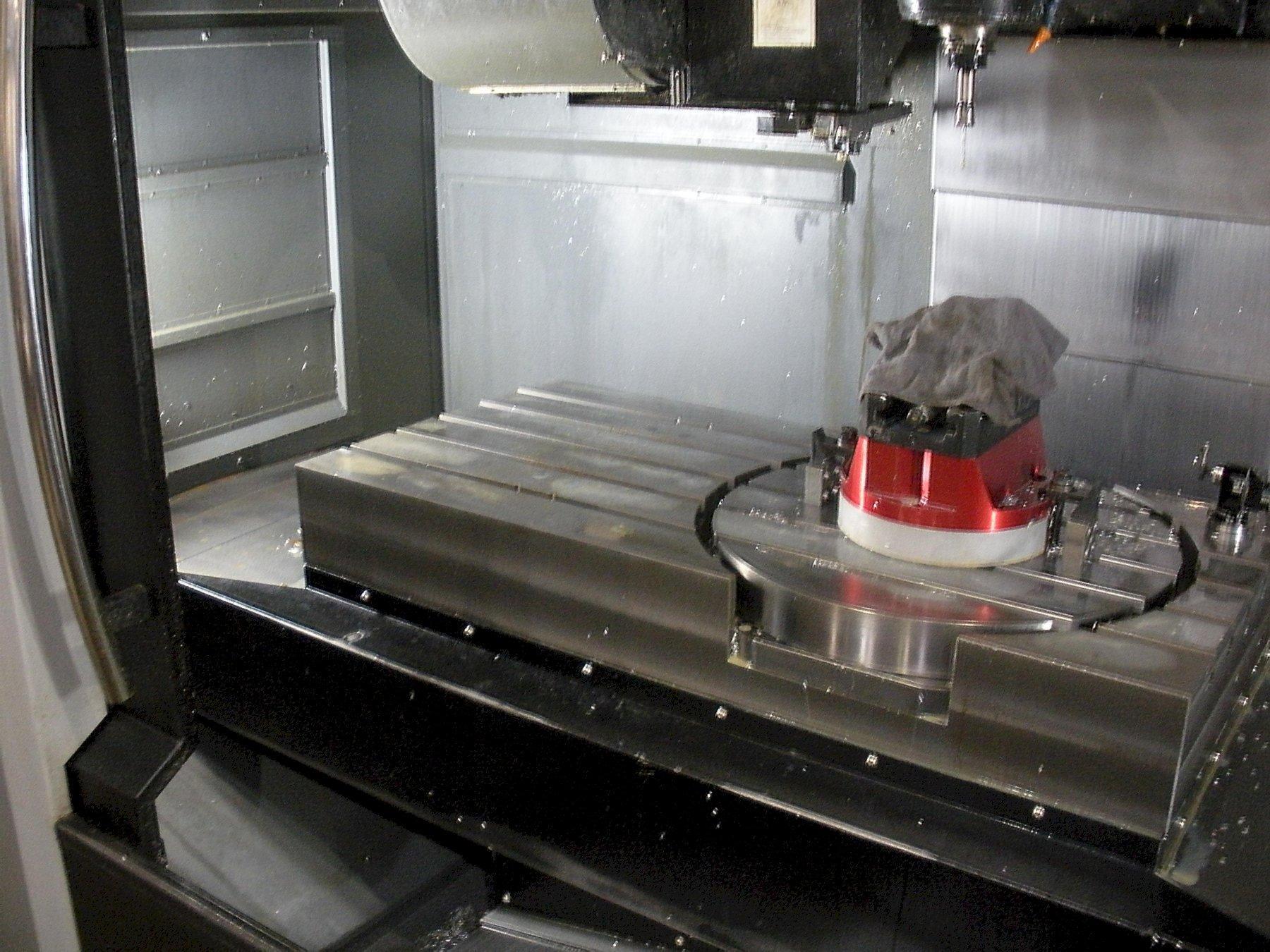

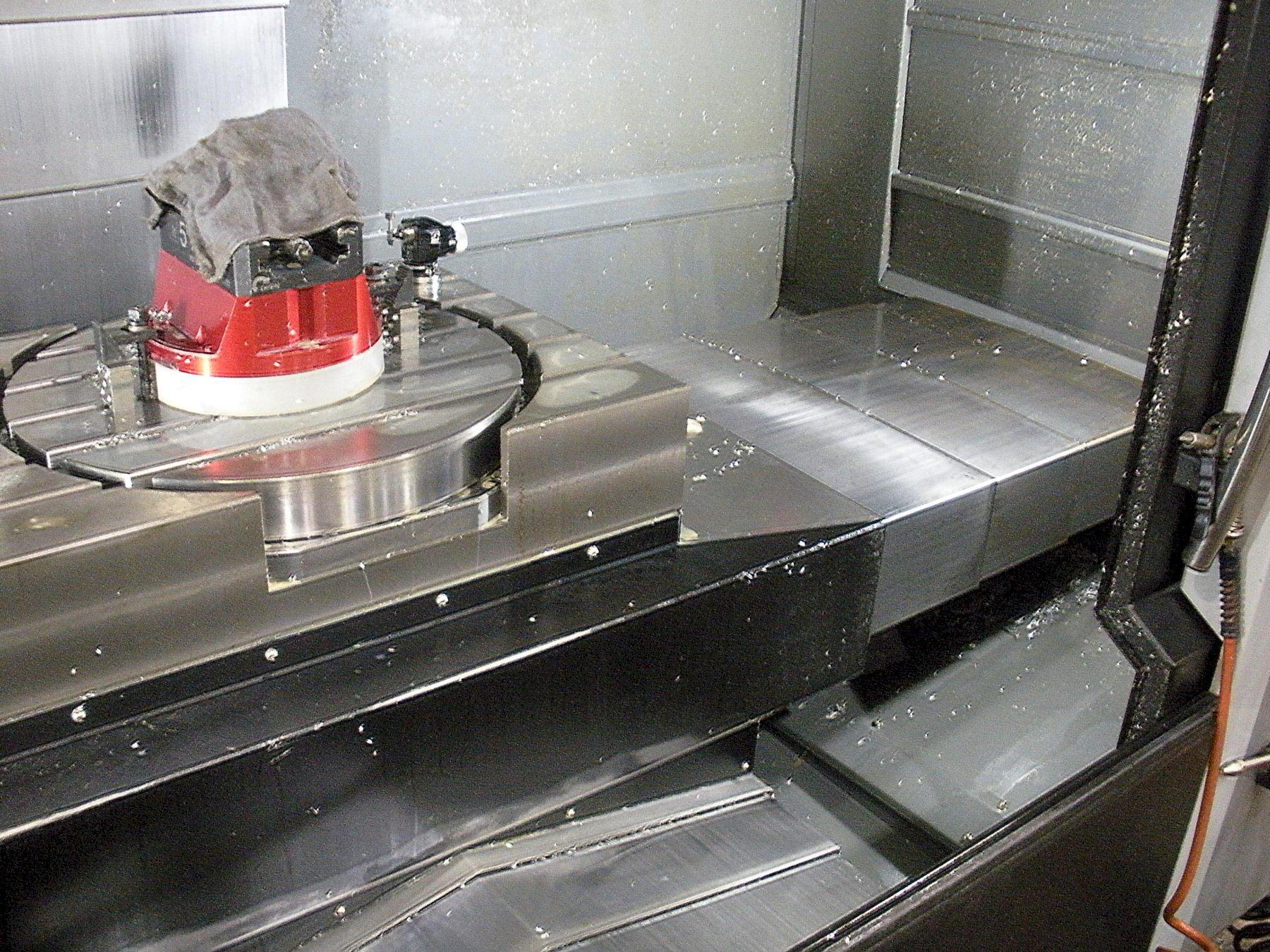

Table Size: 50" x 24"

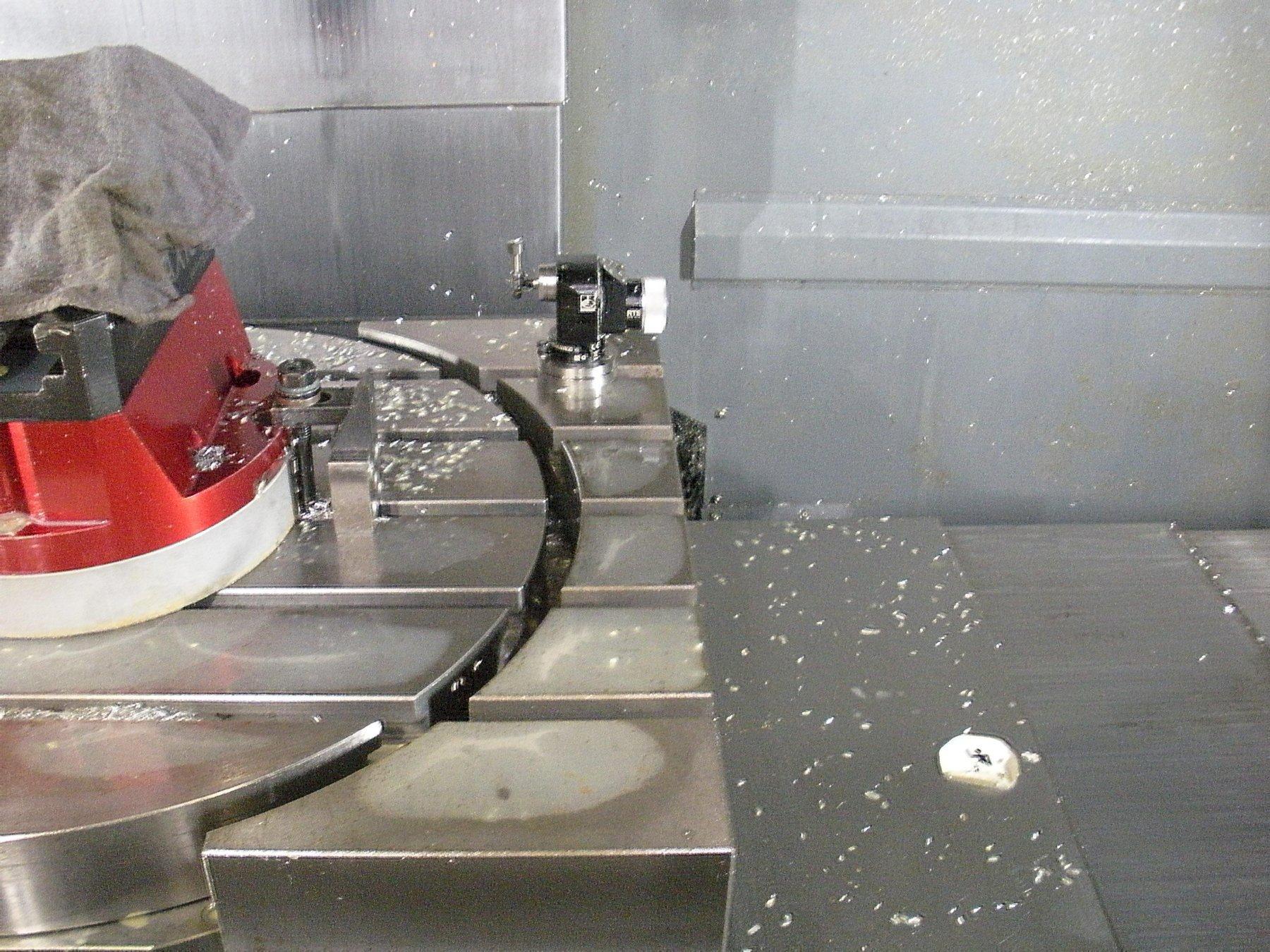

Table Size C: 23.6" dia
Max Weight on Table: 3,000 lbs.
Max Weight on Rotary /Trunnion Table: 1,100 lbs.
T-Slot Size: 5 x .71"

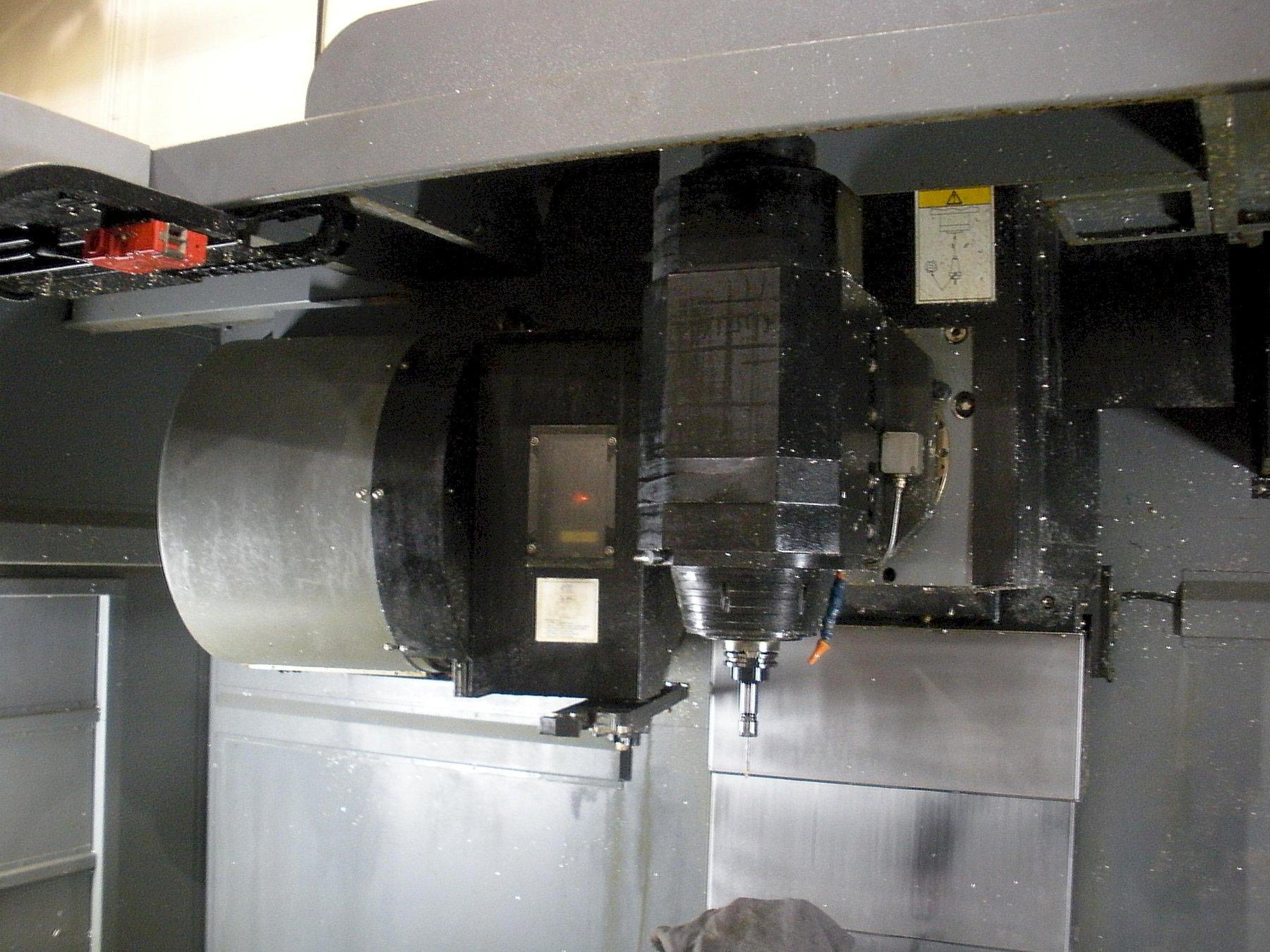

Peak Spindle Motor: 48 HP @ 2,900 rpm
Spindle Speeds: 12,000 rpm
Number of Tools: 40
Spindle Taper: CT40
Max Tool Diameter: 2.95"
Max Tool Length: 11.8"
Max Tool Weight: 15.4 lbs.
Max Programmable Feedrate: 1,181 ipm
Rapid Traverse Rates (XY / Z): 1,378 ipm / 1,181 ipm
Rapid Traverse Rates (B / C): 50 rpm / 100 rpm
Machine Height: 125"
Required Floor Space: 202.4" x 157.4"

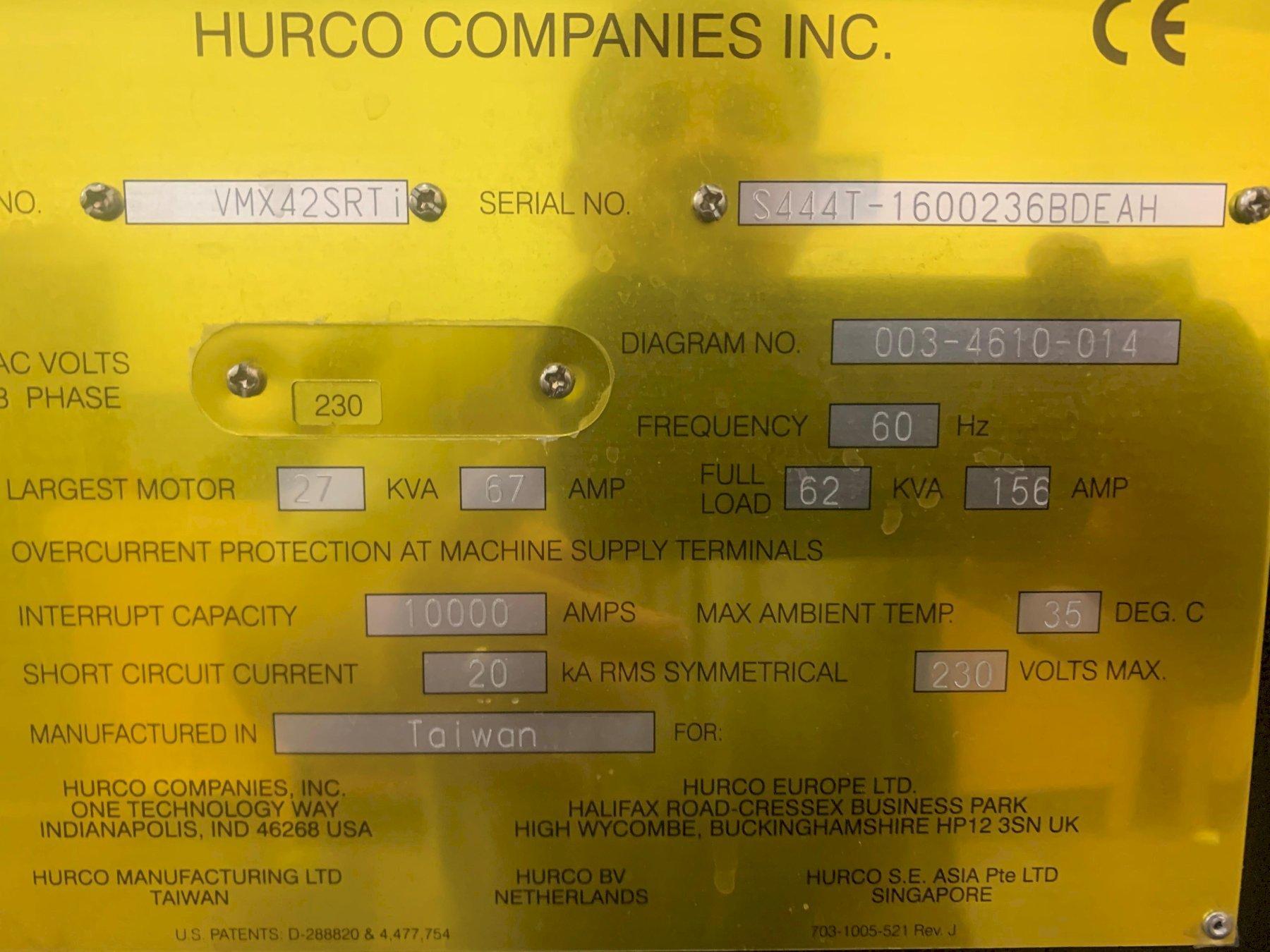

Power Rating / Full Load KVS: 62 KVA
Machine Weight, Approx: 18,520 lbs.
Equipped with:

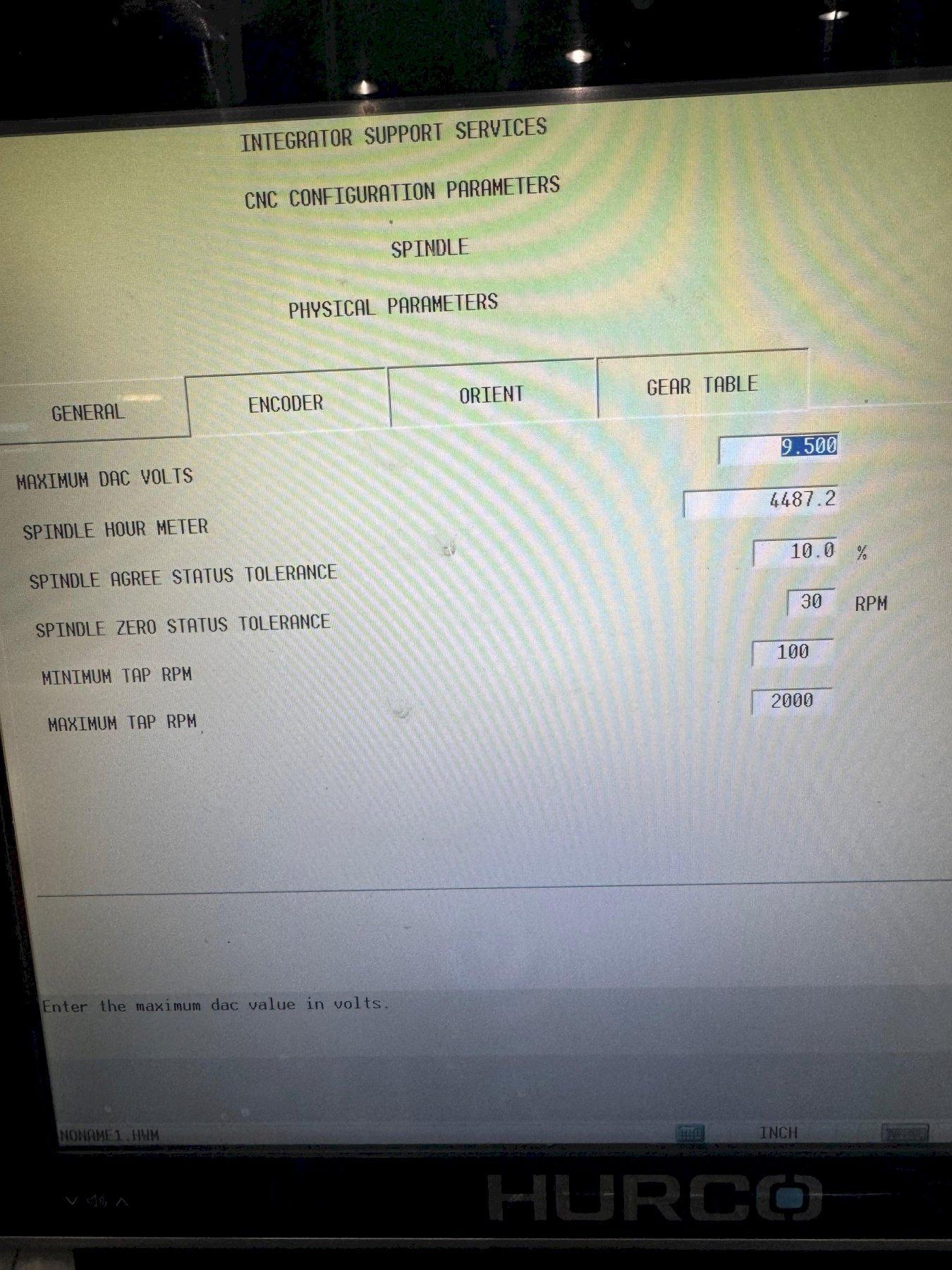

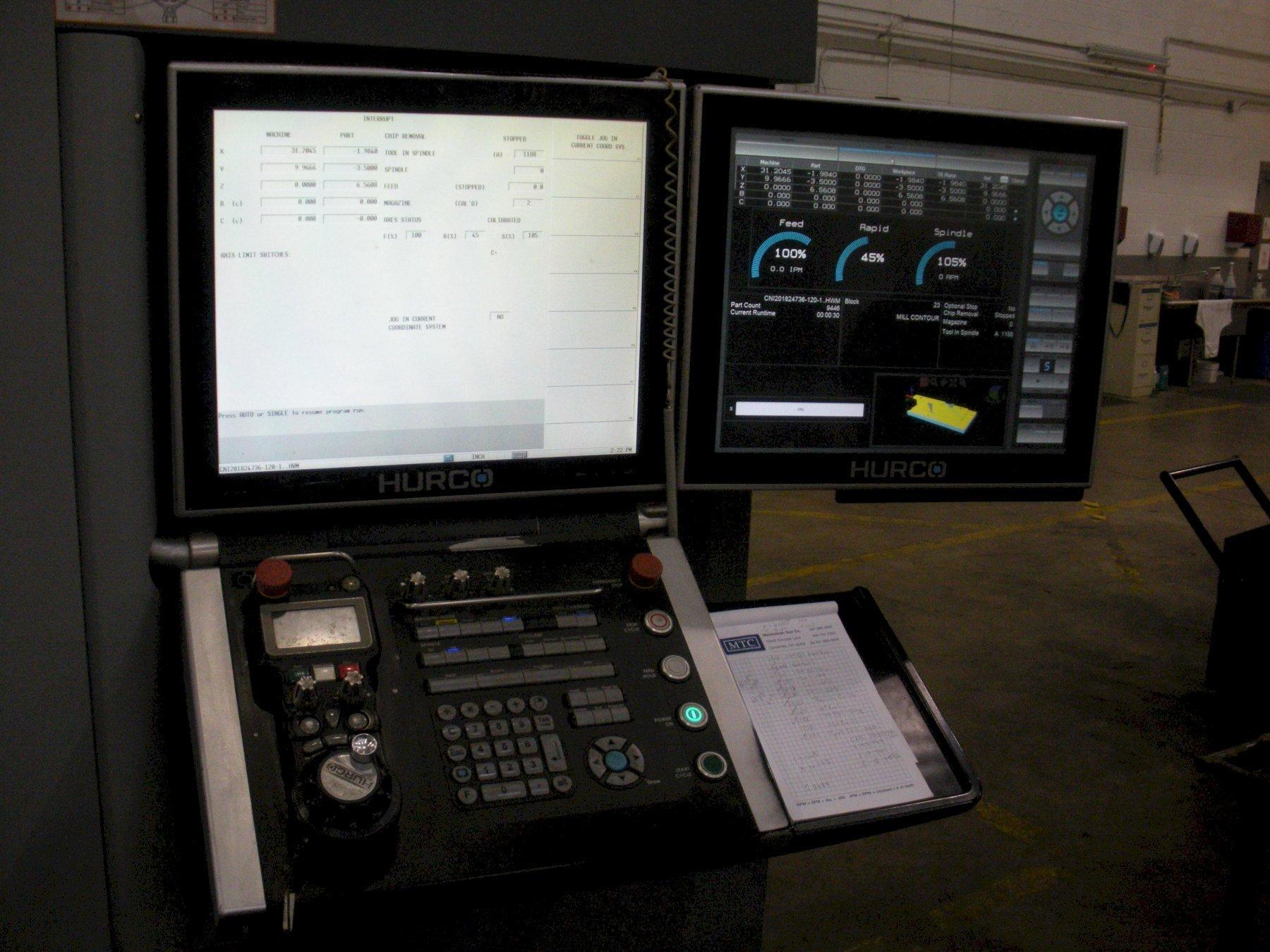

Hurco CNC Control
Ultipocket with Helical Ramp Entry & Insert Pockets Software

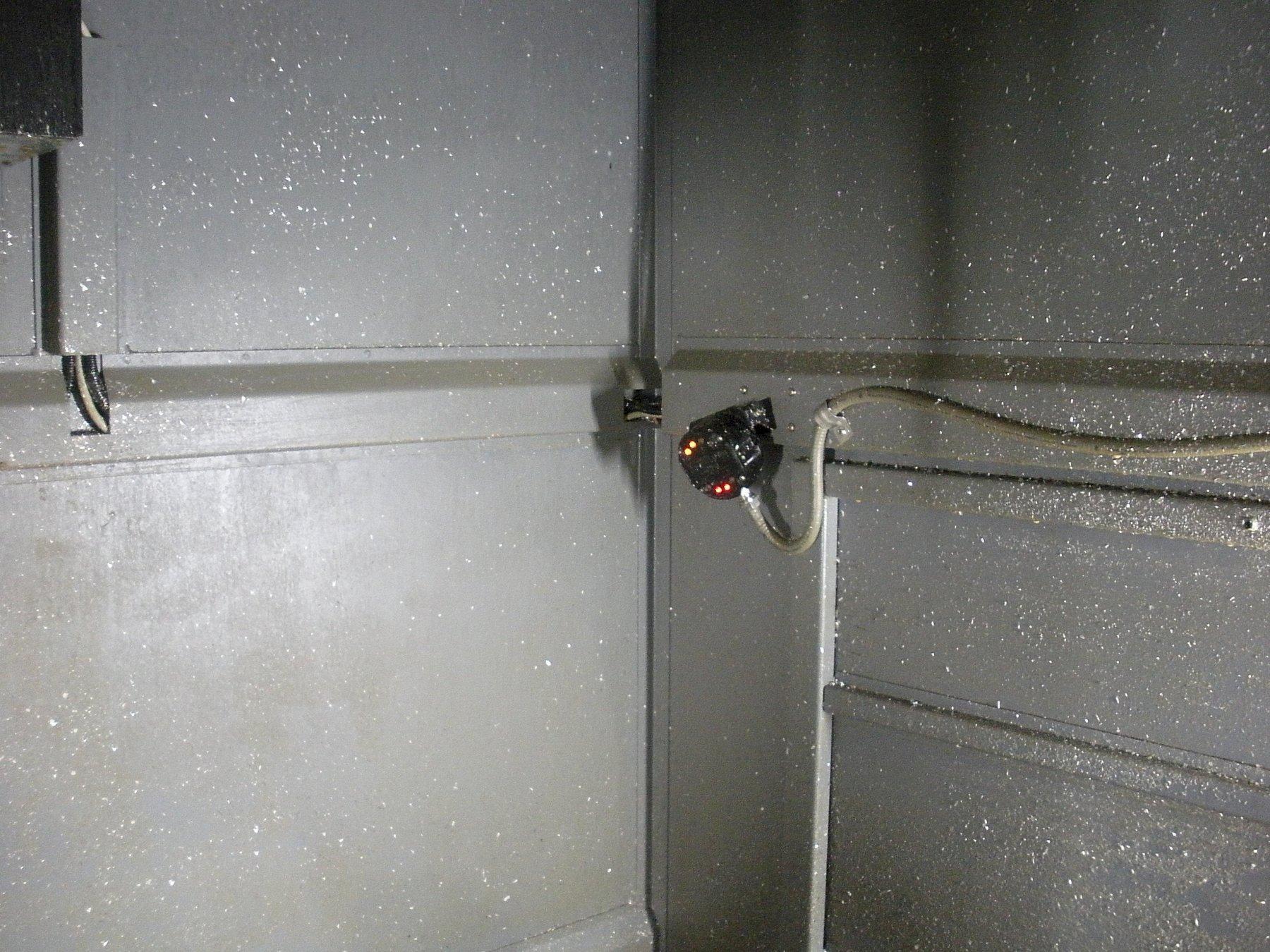

Part & Tool Probe Package with Renishaw RMP600 Radio Part Probe and
Wireless Tool Setting Probe with Interface, Shank, CT40 Probe Tool Shank
Centerline Probing / Including Sphere Kit
NexJen C-Thru Oil Separator Unit
Chip Conveyor
* Specifications are subject to independent verification by the buyer.
* No tooling or fixturing is included.
* Offered on consignment. No warranty or return privilege.
* Rigging and transportation responsibility of the buyer.
)
