Specifications
Equipped With
arrival and details pending
Preliminary Specifications:
Screen Diameter - 30"
Table Size - 8" x 32"
Table Horizontal Travel - 15"
Table Vertical Travel - 9"
Table Helix Adjustment - ± 7.5º
Focus Adjustment - 3"
Constant Working Clearance - 8.4"
Collimator to Focal Plane - 10"
Throat Clearance - 18.4"
Recommended Max Table Capacity - 300 Lbs.
Power Requirements - 115 VAC, 50/60 Hz, 1 Ph
Approx Dimensions - 71" FB x 42" LR x 80" H
Approx Net Weight - 1700 Lbs.
Equipped with:

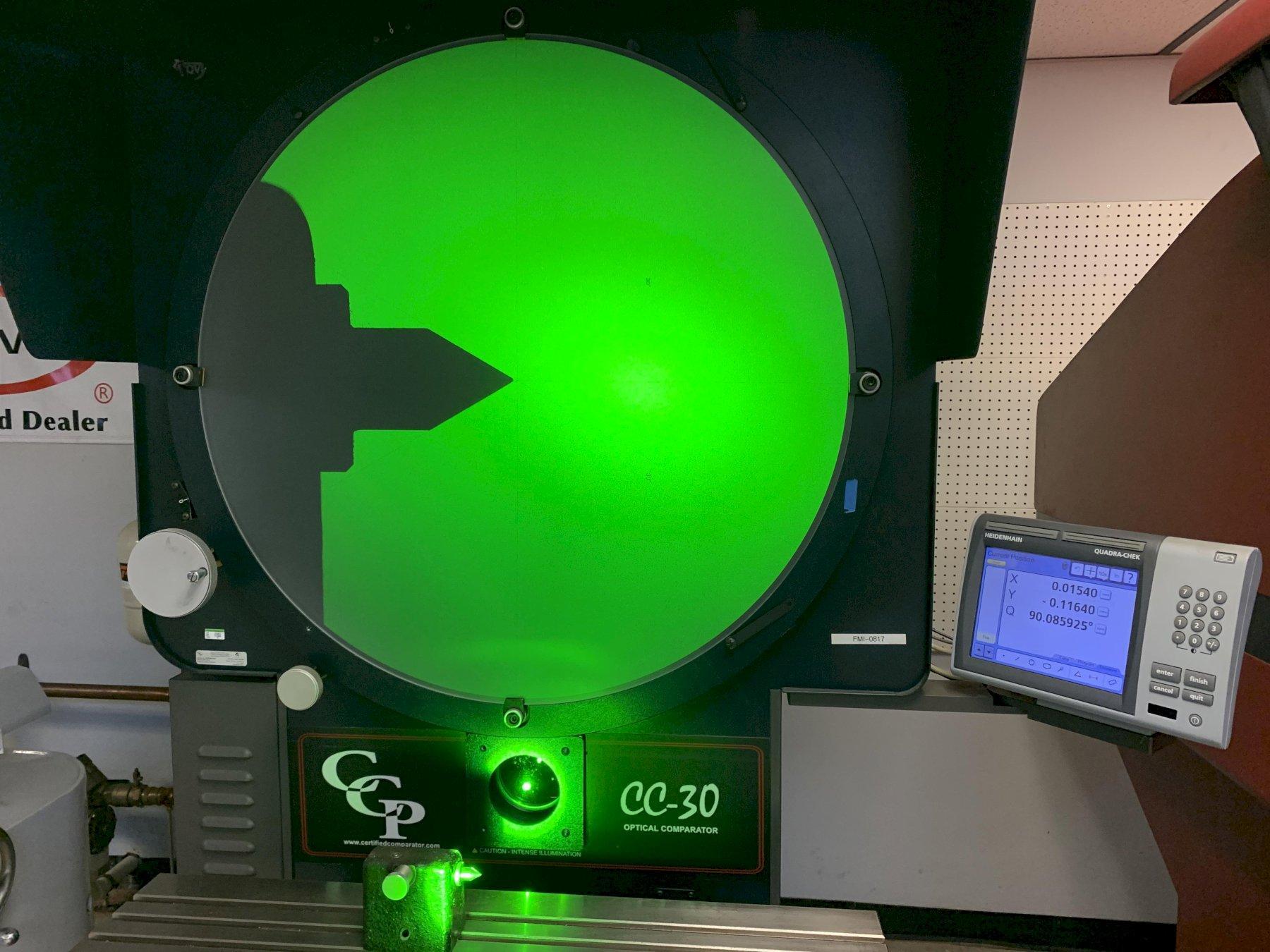

Heidenhain QuadraChek Digital Readout
Edge Detection
0.00004" Resolution Scales
Projectron Internally Mounted Edge Detection
Power Table Travels with Joystick Control
Power Lens Turret
Mercury Arc Projection
Mercury Arc Surface Illumination
Helix Table
Unreversed Image
* Preliminary specifications subject to correction and independent verification by the buyer.
