Specifications
Equipped With
Specifications:

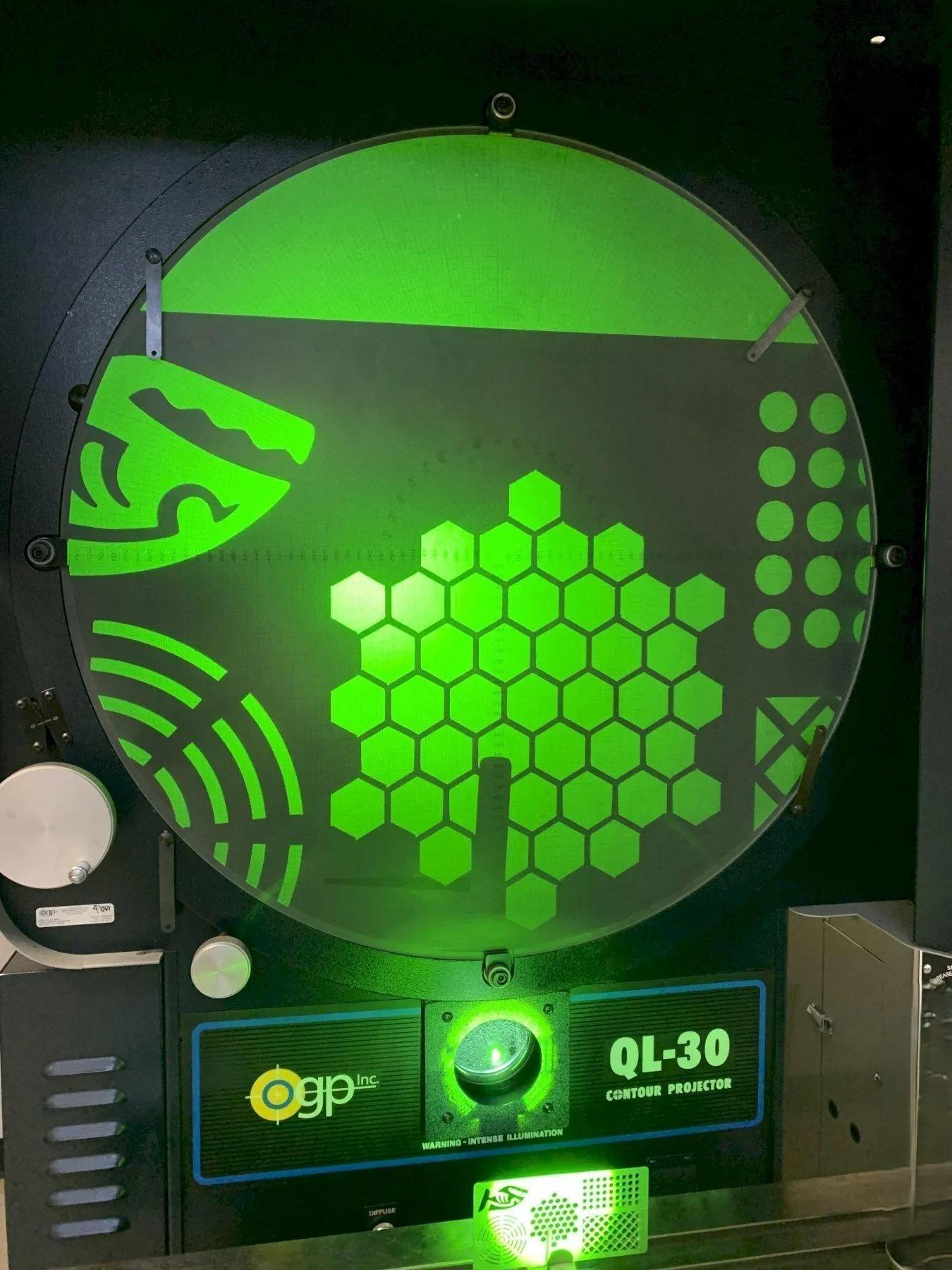

Screen Diameter - 30"
Table Size - 8" x 32"
Table Horizontal Travel - 15"
Table Vertical Travel - 9"
Table Helix Adjustment - ± 15º
Focus Adjustment - 3"
Constant Working Clearance - 8.4"
Collimator to Focal Plane - 10"
Throat Clearance - 18.4"
Table Load Capacity - 550 Lbs.

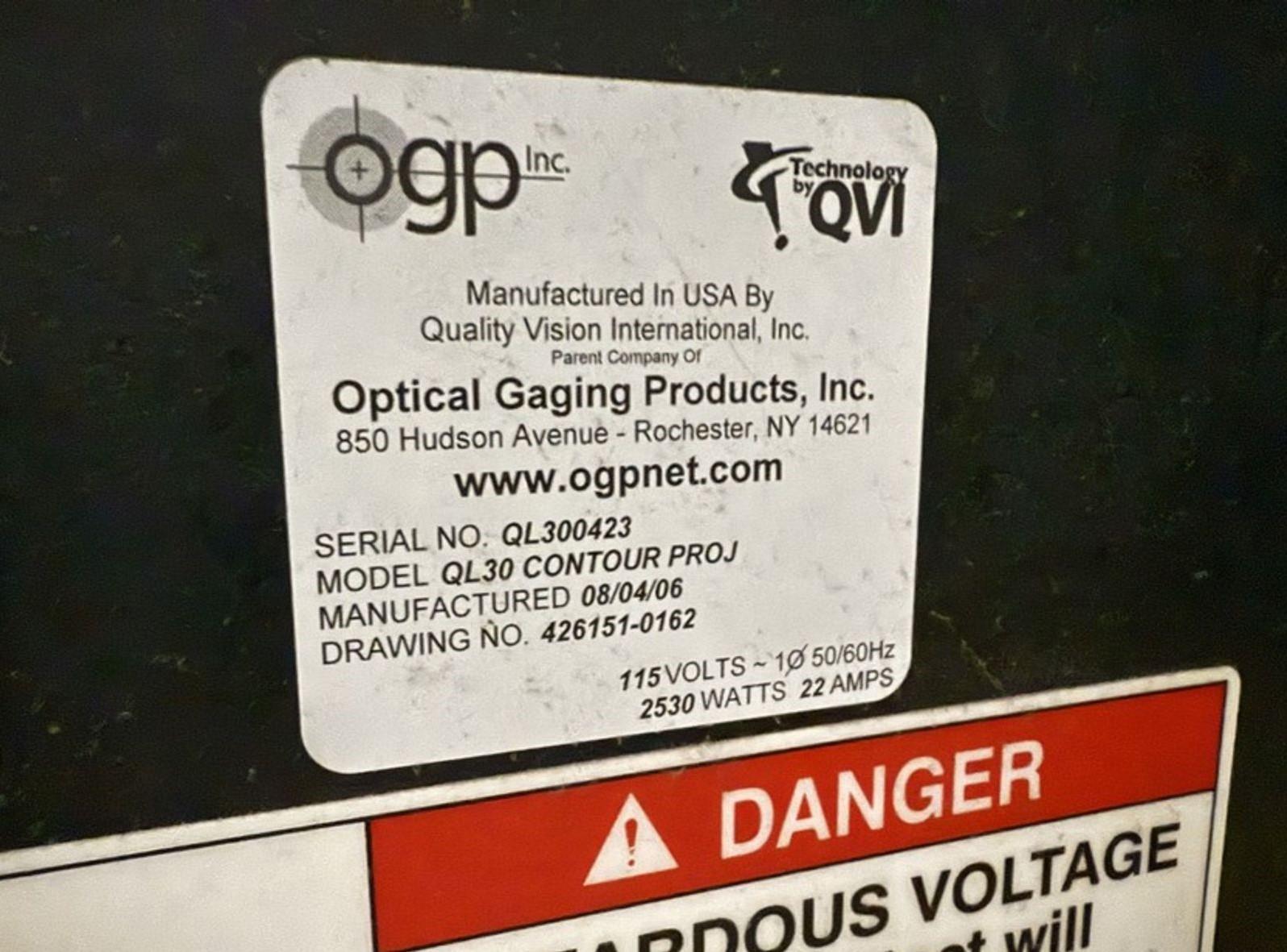

Power Requirements - 115 VAC, 50/60 Hz, 1 Ph
Approx Dimensions - 71" FB x 42" LR x 80" H
Approx Net Weight - 1700 Lbs.
Equipped with:

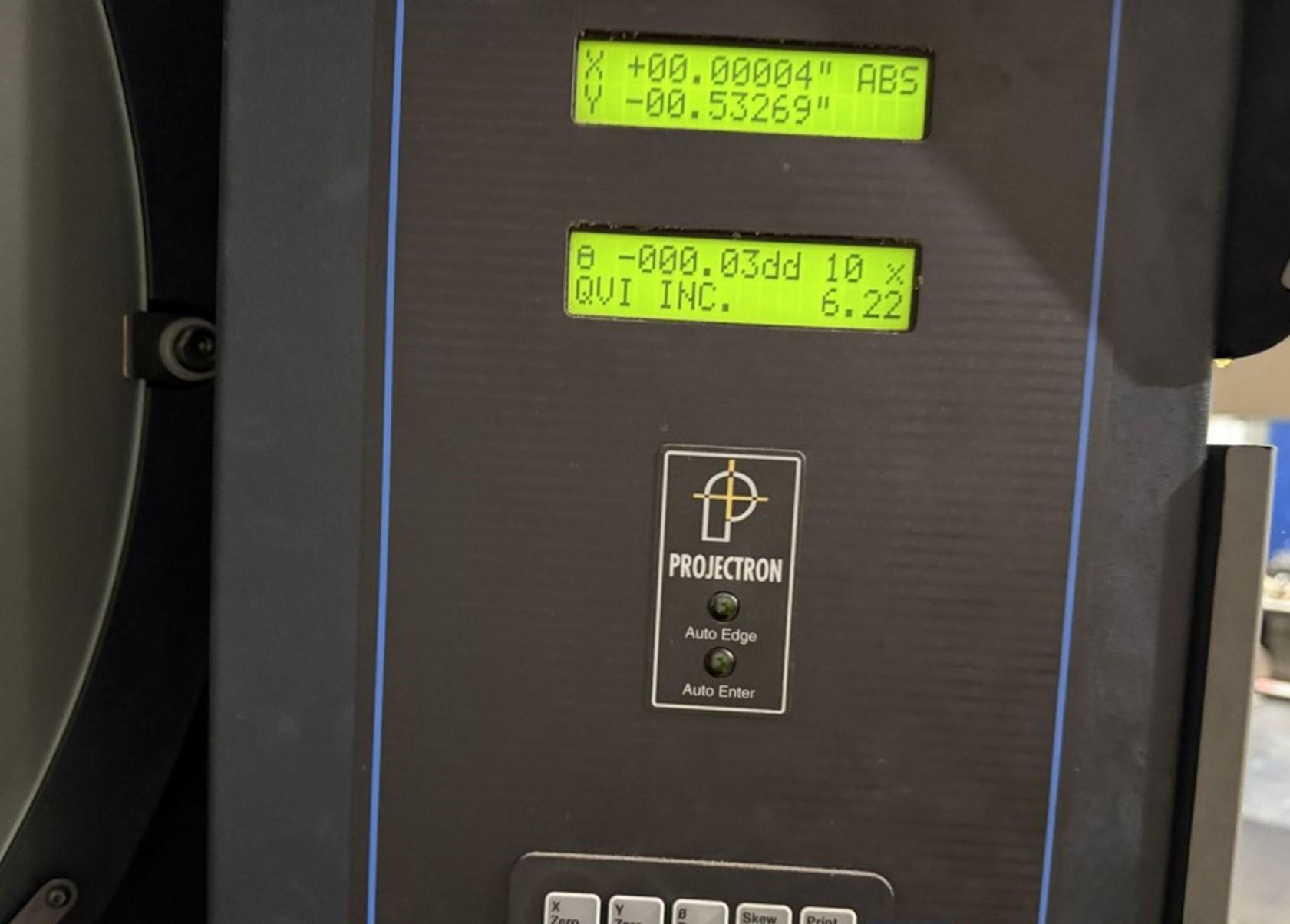

OGP Geometric Measuring Processor / Digital Readout System
0.00004" Resolution Scales
Projectron Internally Mounted Edge Detection
Digital Angle Display
Power Table Travels with Joystick Control
Power Lens Turret with 2 Lenses - 10x and 50x
LED Projection Lighting Upgrade
Mercury Arc Surface Illumination
Helix Table
Unreversed Image
Operator Manual (.pdf)
Notes:
Availability pending. Needs cleaned and serviced.
Preliminary Pictures to be updated once serviced.
Specifications subject to correction and independent verification by the buyer.
Shipping quotes available on request.
Number of OGP QL machines previously sold by AMC - 29
