Specifications
Equipped With
Specifications:
Screen Diameter - 30"
Table Size - 8" x 32"
Table Horizontal Travel - 15"
Table Vertical Travel - 9"
Table Helix Adjustment - ± 15º
Focus Adjustment - 3"
Constant Working Clearance - 8.4"
Collimator to Focal Plane - 10"
Throat Clearance - 18.4"
Table Load Capacity - 550 Lbs.
Power Requirements - 115 VAC, 50/60 Hz, 1 Ph
Approx Dimensions - 71" FB x 42" LR x 80" H
Approx Net Weight - 1700 Lbs.
Equipped with:

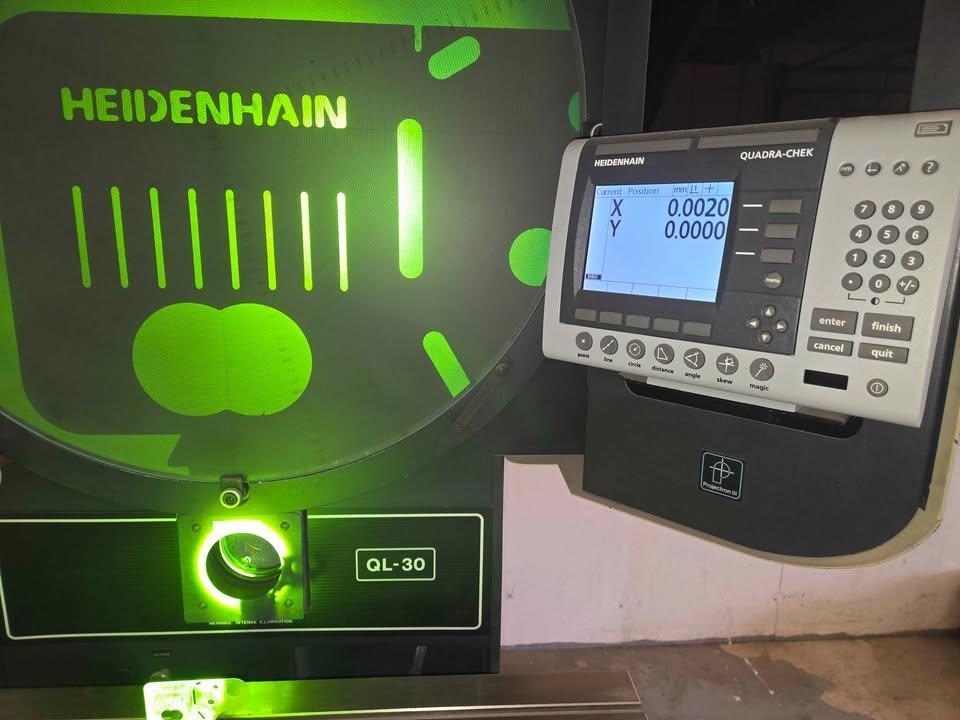

Quadra Chek 200 Digital Readout
Digital Angle Display
Power Table Travels with Joystick Control

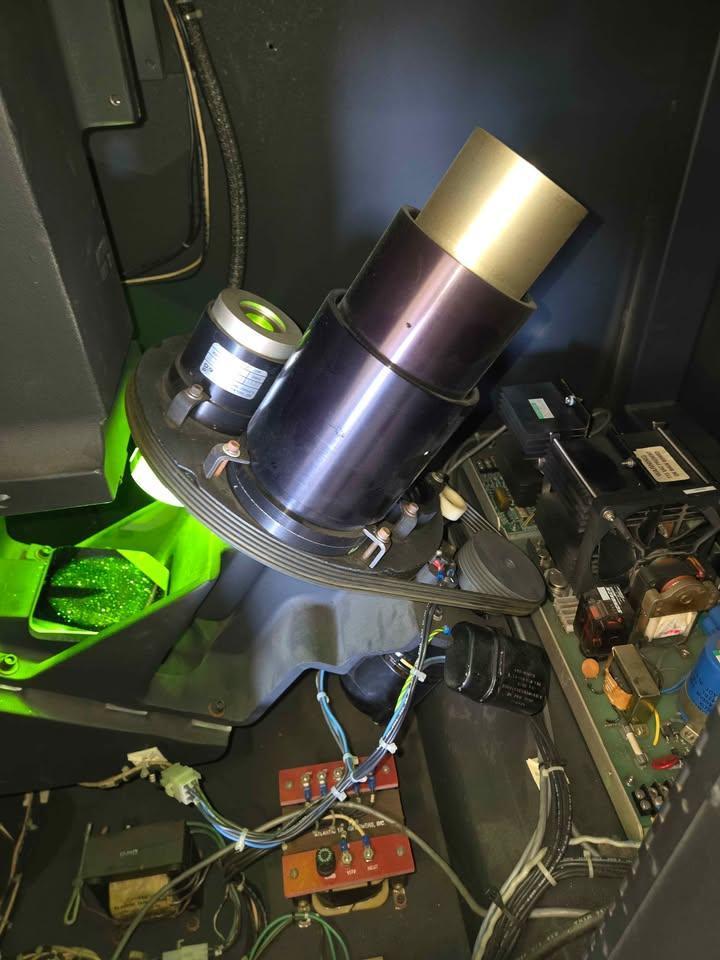

Power Lens Turret with 2 Lenses

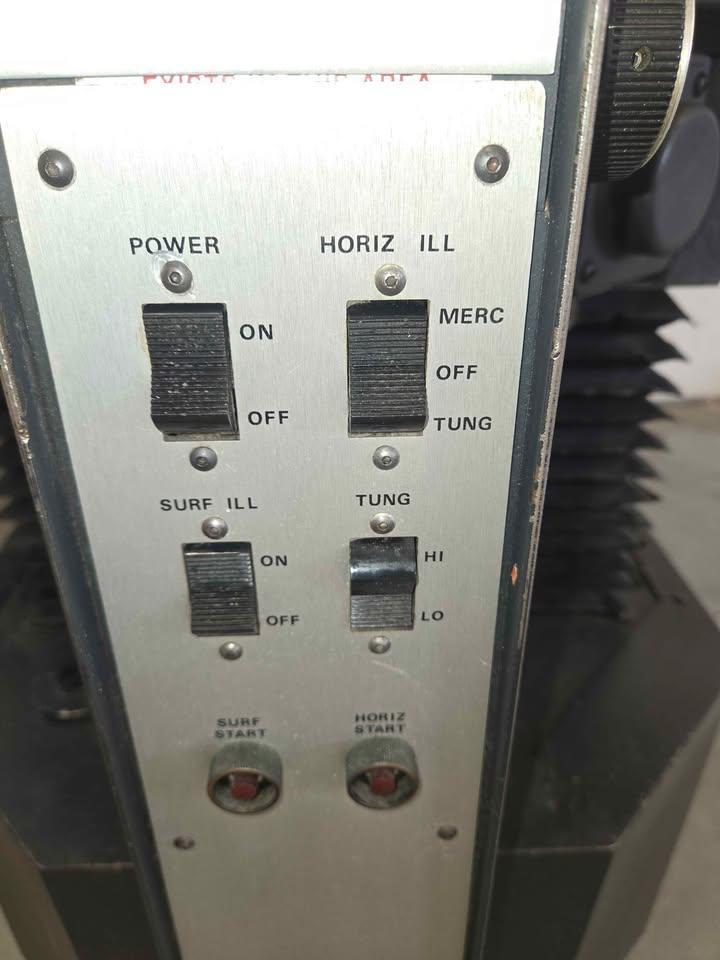

Mercury Arc Projection
Mercury Arc Surface Illumination
Unreversed Image
Operator Manual (.pdf)
Notes:
Availability pending to allow time for final check and preparations.
Specifications subject to correction and independent verification by the buyer.
Shipping quotes available on request.
Number of OGP QL machines previously sold by AMC - 29
Note - this machine is offered on consignment. Is is offered as is, without warranty.
