Specifications:

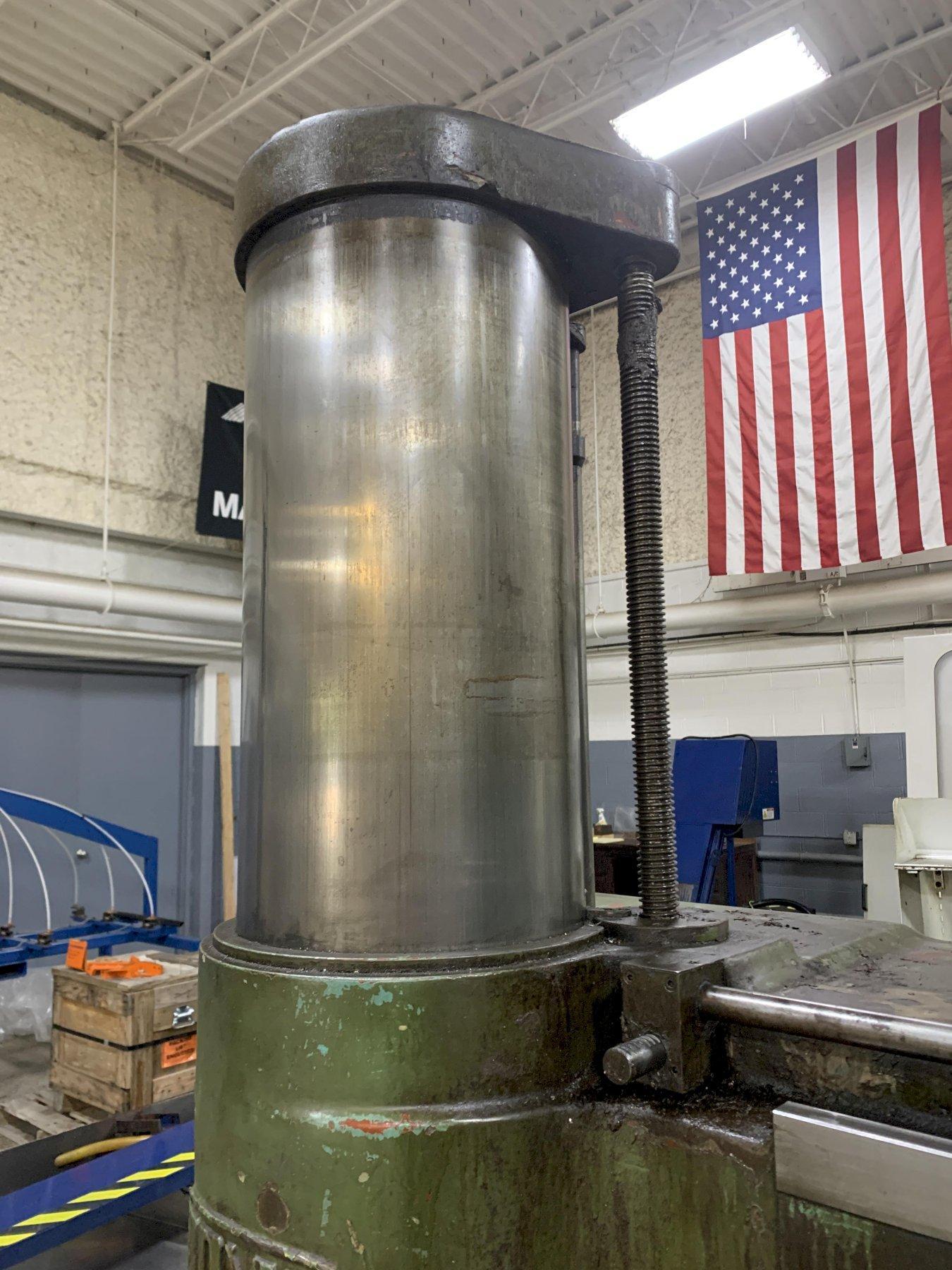

Column Diameter - 12-5/8"
Max Distance, Column Surface to Spindle Center - 48-3/8"
Min Distance, Column Surface to Spindle Center - 11-5/8"

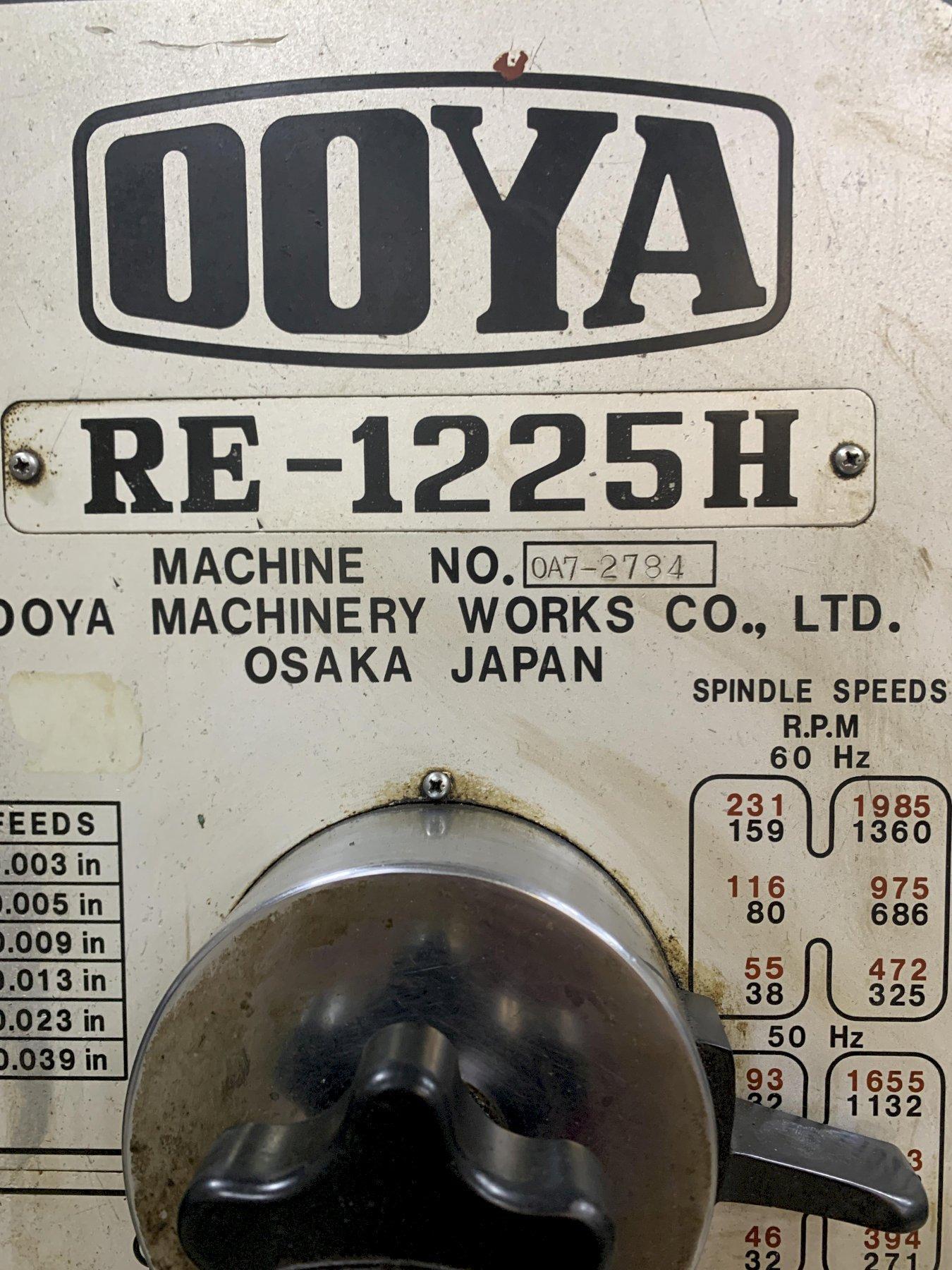

Spindle Speeds (12) - 32 to 1985 RPM
Feeds (6) - .003 to .039 IPR
Spindle Taper - #5MT
Diameter of Spindle - 2-3/8"
Diameter of Quill - 3-1/16"
Vertical Travel of Spindle - 11-13/16"
Horizontal Travel of Spindle Head - 37-3/4"
Max Distance, Base to Spindle - 51-3/4"
Min Distance, Base to Spindle - 13"
Vertical Travel of Arm - 25-5/8"
Drilling Capacity in Steel - 2"
Drilling Capacity in Cast Iron - 2¼"
Boring Capacity in Steel - 4"
Boring Capacity in Cast Iron - 7-1/8"
Spindle Motor - 5 HP
Electrics - 3/60/230V
Floor Space - 75" LR x 30" FB x 86" H
Weight, Approx - 6100 Lbs.
Equipped with:

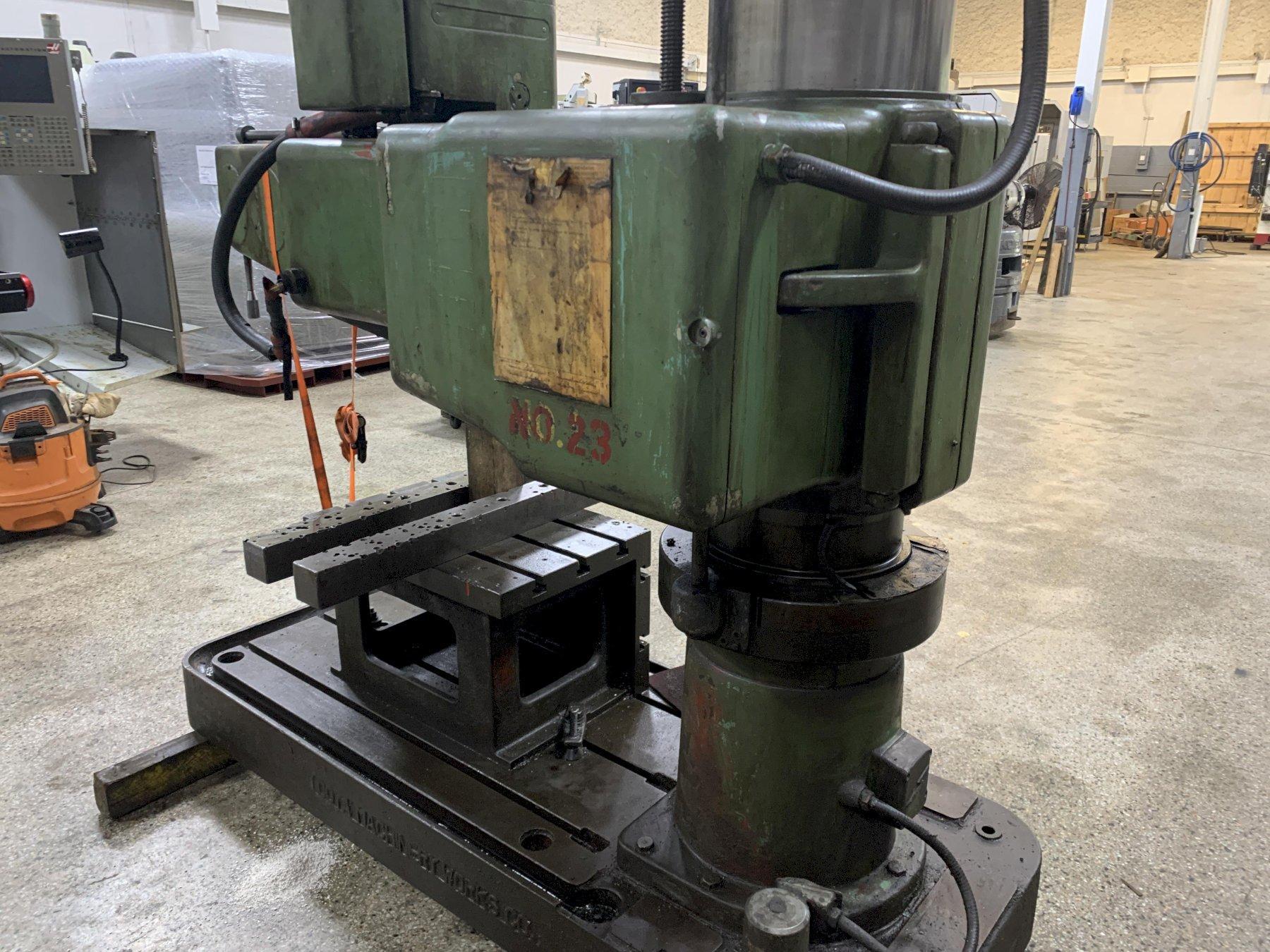

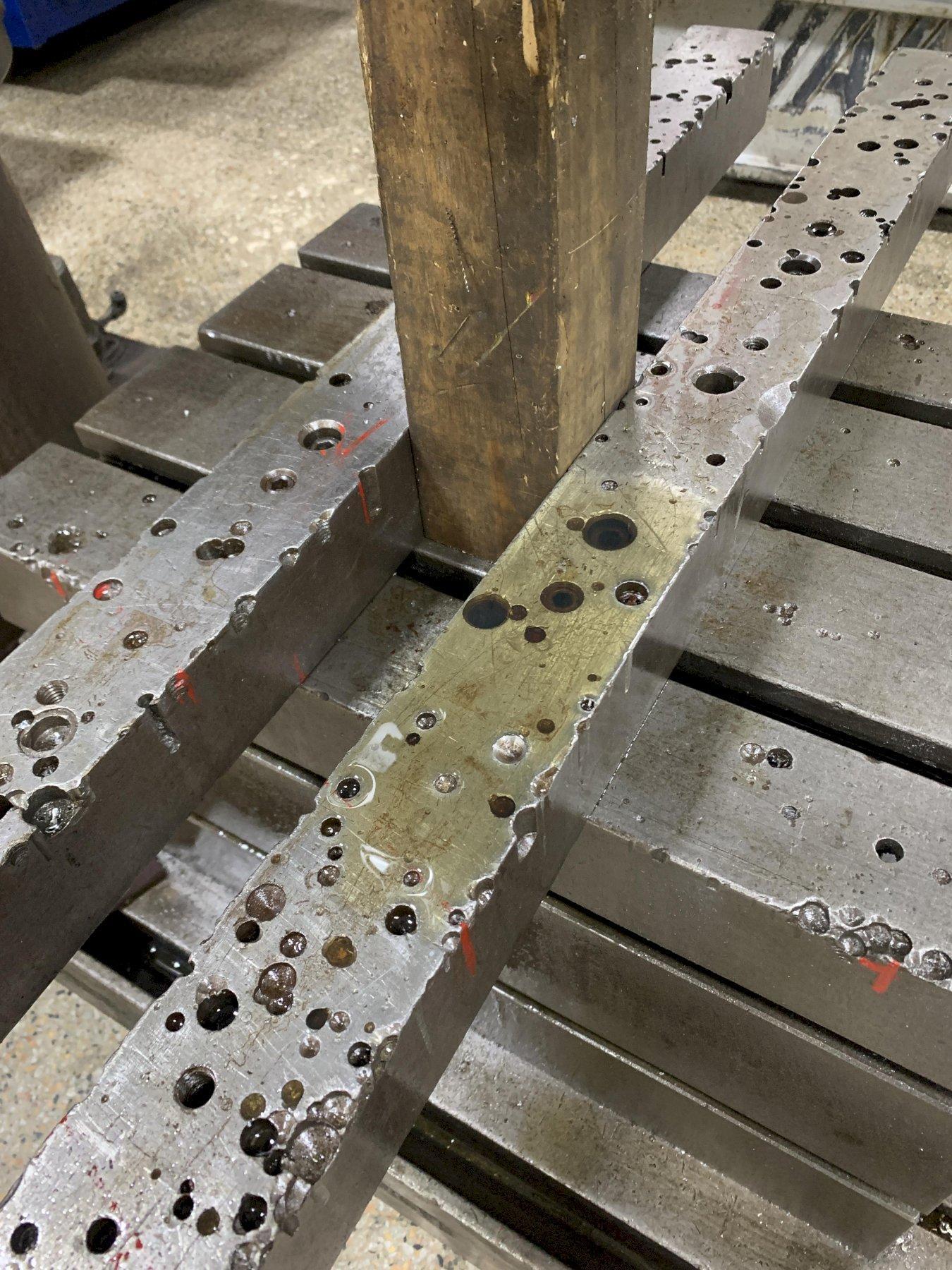

Plain Box Table
Power Clamp
Power Elevation
Coolant Pump
Notes:
Machine is offered as is with any and all faults.
Was in operation at time of removal but has a worn or chipped tooth at the bottom of the the rack and counterweight chain needs replaced. Was used everyday but had to be delicate and run it slow.
Specifications subject to independent verification by the buyer.
Seller can load. Buyer responsible for shipping.
