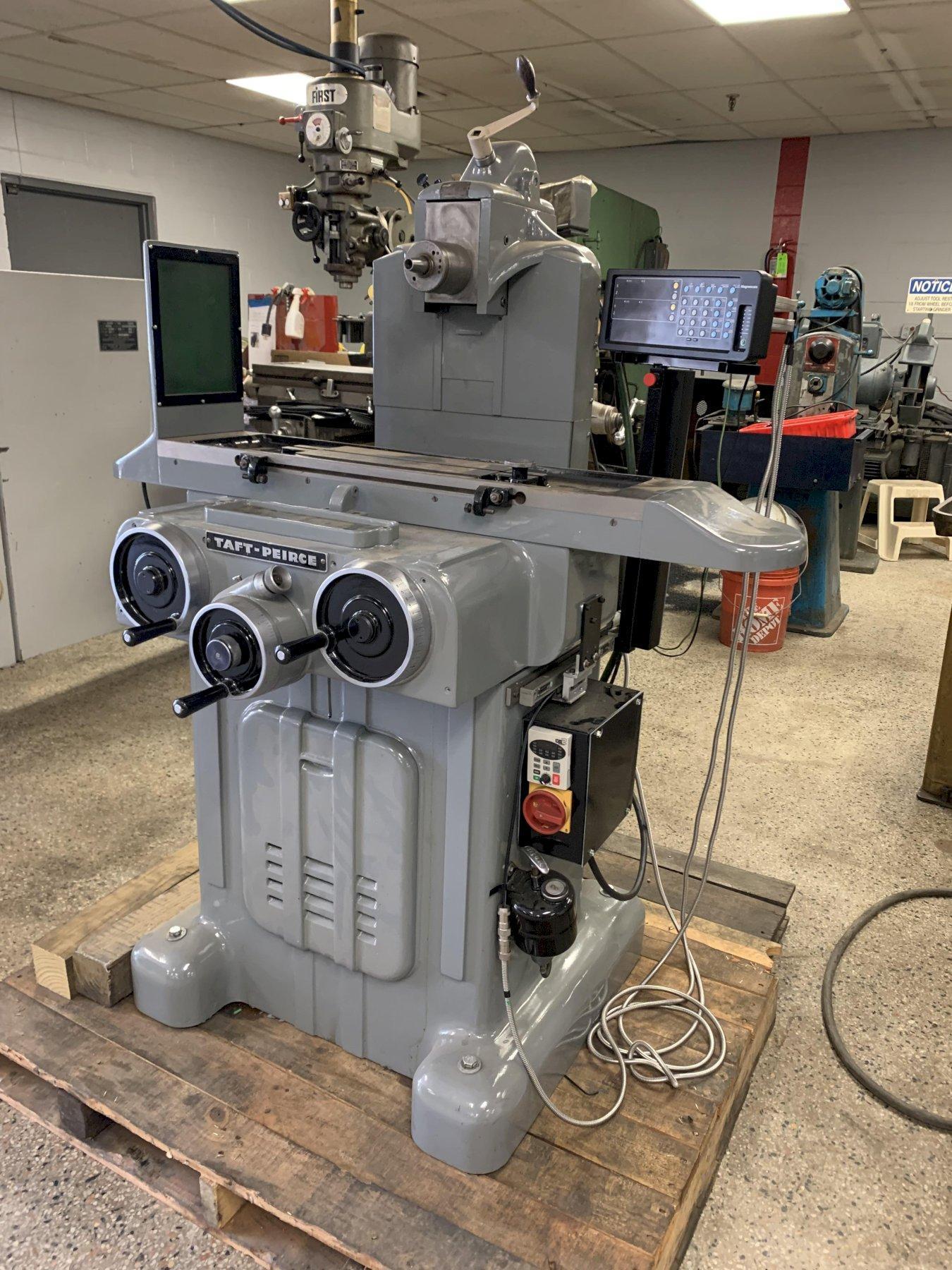

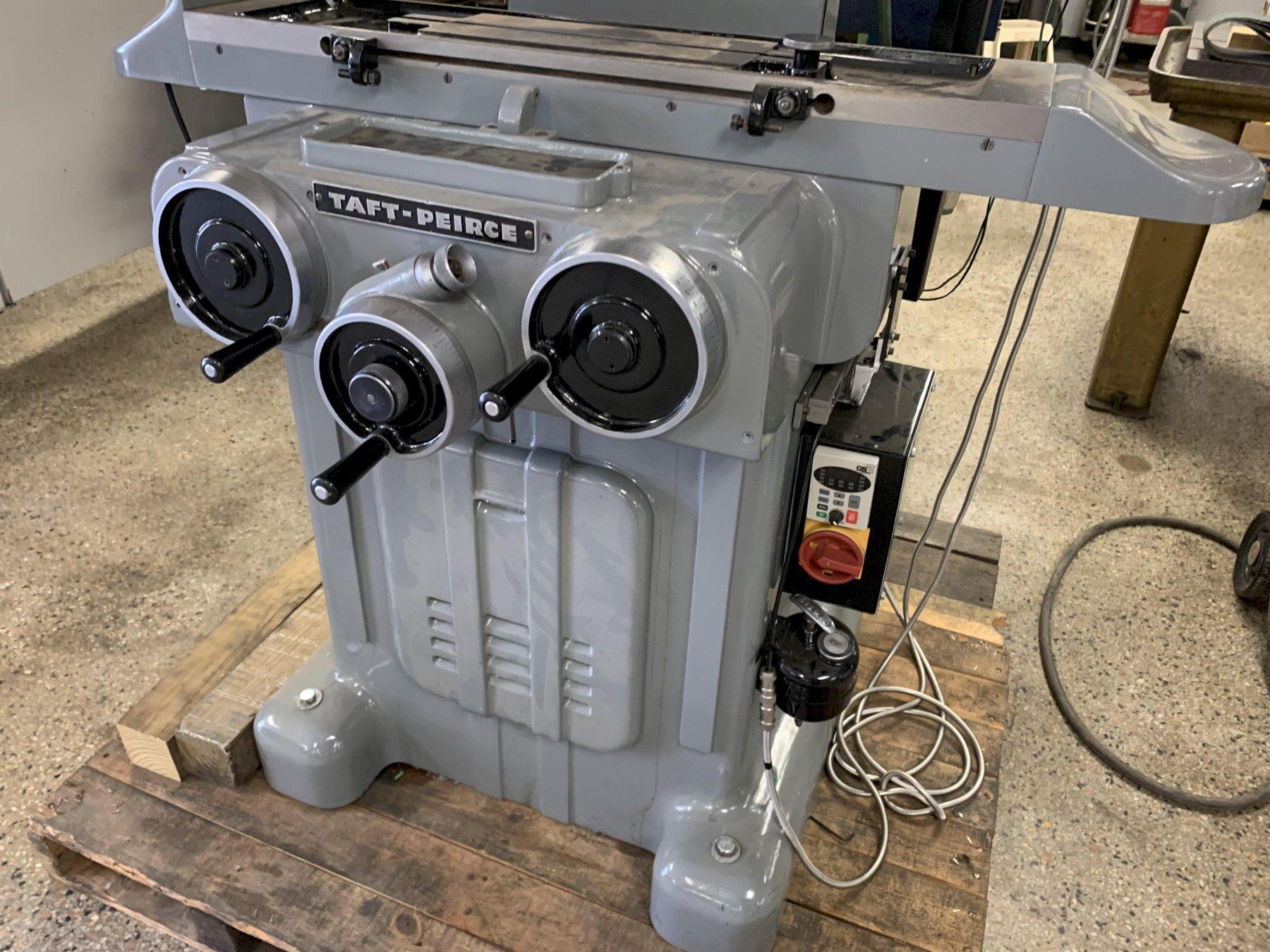

Brand
TAFT-PEIRCE
Model
No. 1
Type
Grinders, Surface, Horizontal
Stock #
34784
Condition
Excellent
Year
Location
Dayton, Ohio
United States
Price
$5,995.00
Specifications:
Table Work Surface – 5” x 12”
Table Size Overall – 8” x 33.25”
Table Height Above Floor – 38.25”
Work Height Under Wheel – 12”
Wheel Size – 7” x ½” x 1.25”
Table Longitudinal Travel – 13.5”
Longitudinal Travel per Rev of Handwheel – 3.4”
Crosseed Travel – 5.5”

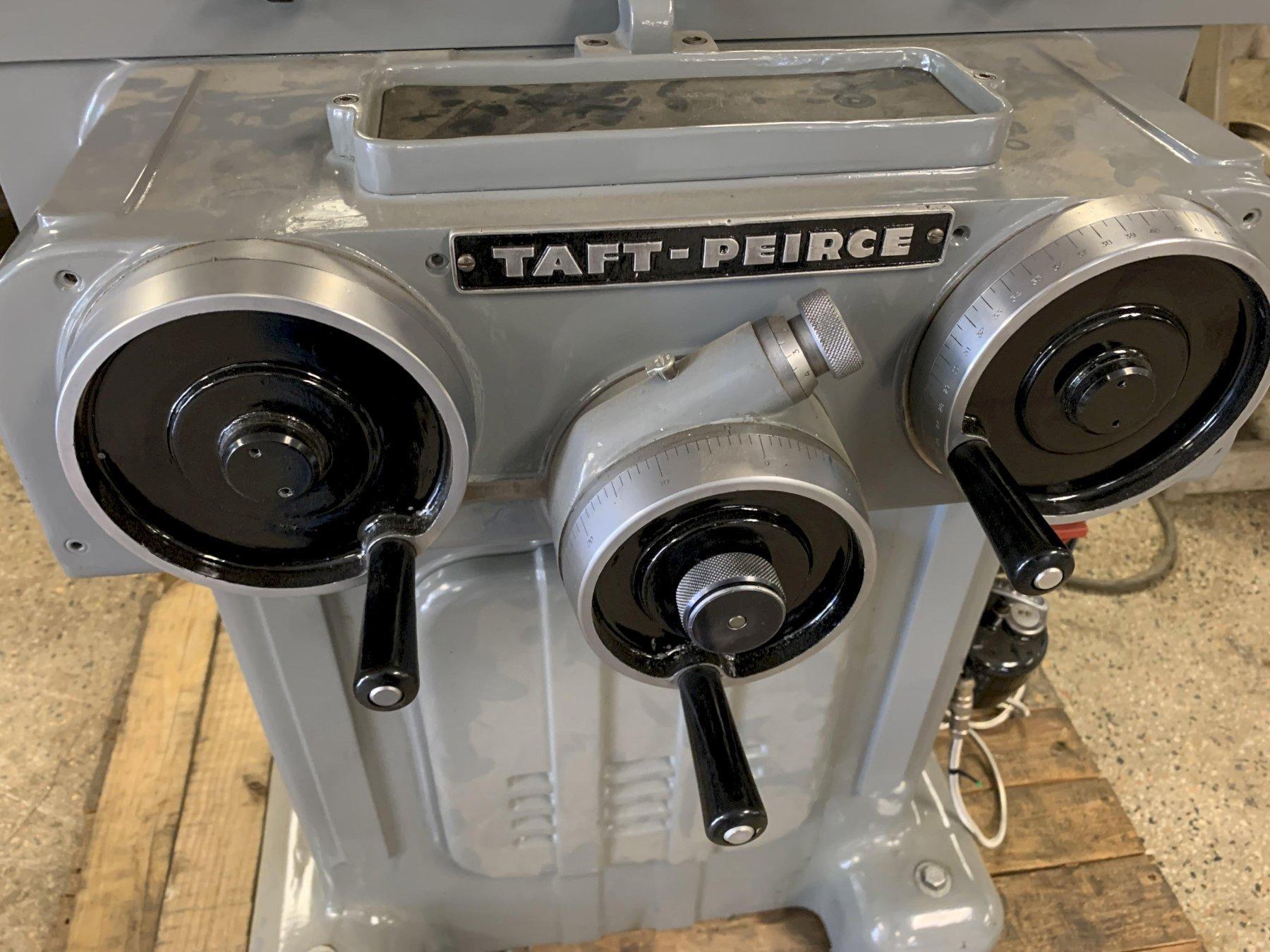

Crossfeed per Rev of Handwheel – 0.100”
Wheel Head Travel – 12”
Wheel Head Tilt – 30 deg max

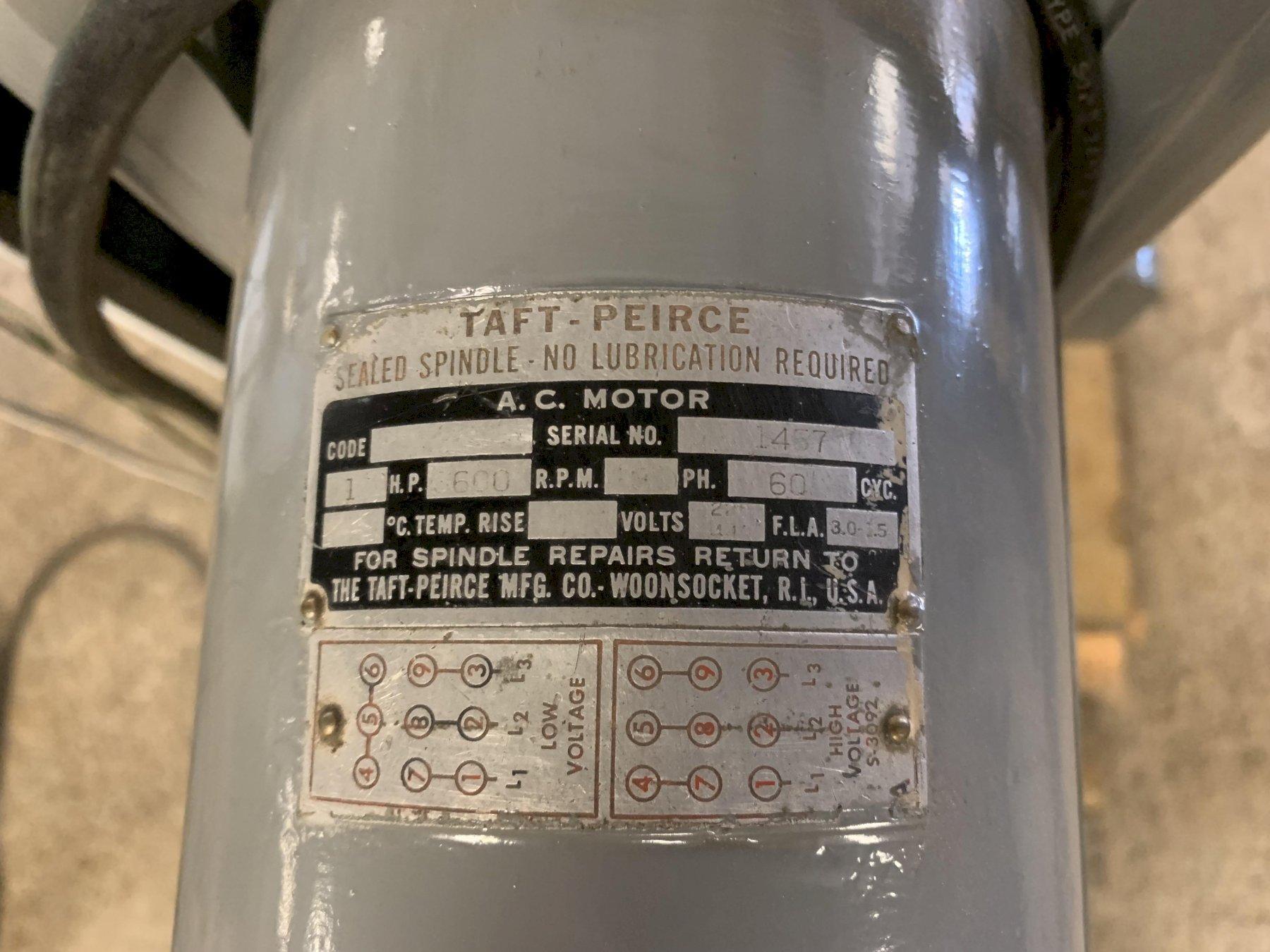

Spindle Motor – 1 HP, 3/60/220-440, 3600 rpm
Weight, approx - 1600 lbs.
Equipped with:

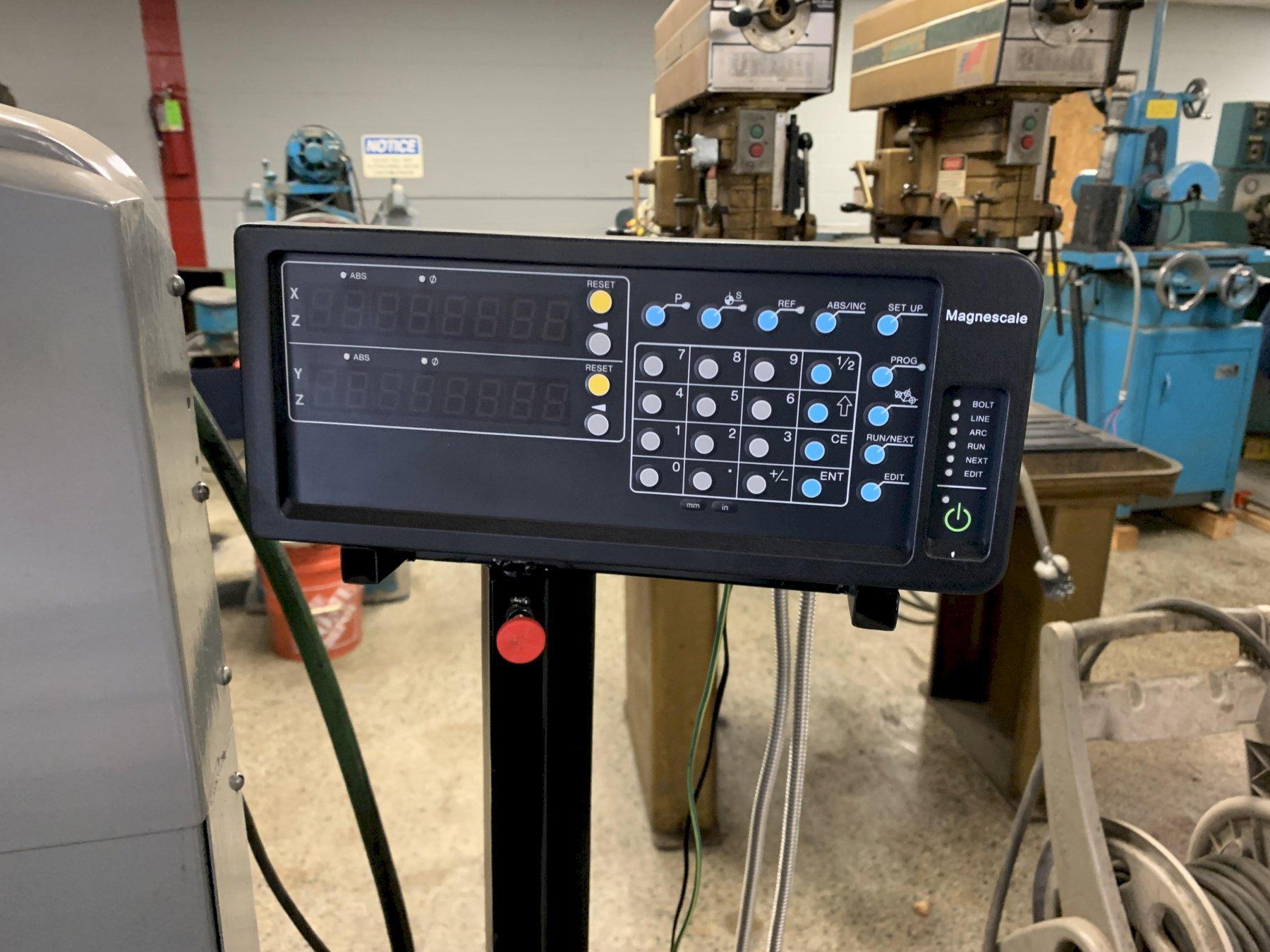

Sony Magnescale DRO
VFD Drive for Single Phase, 220 Volt Operation

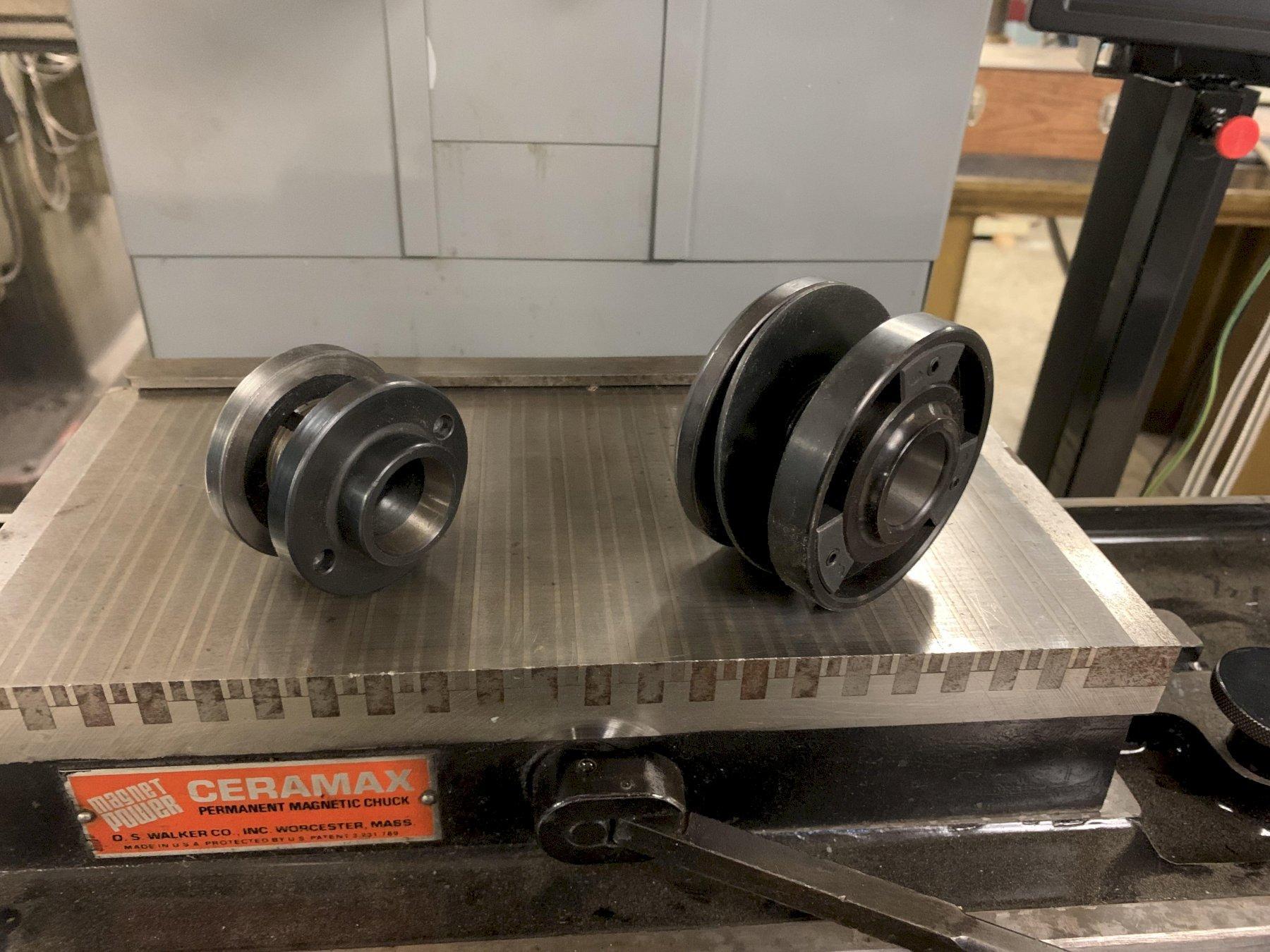

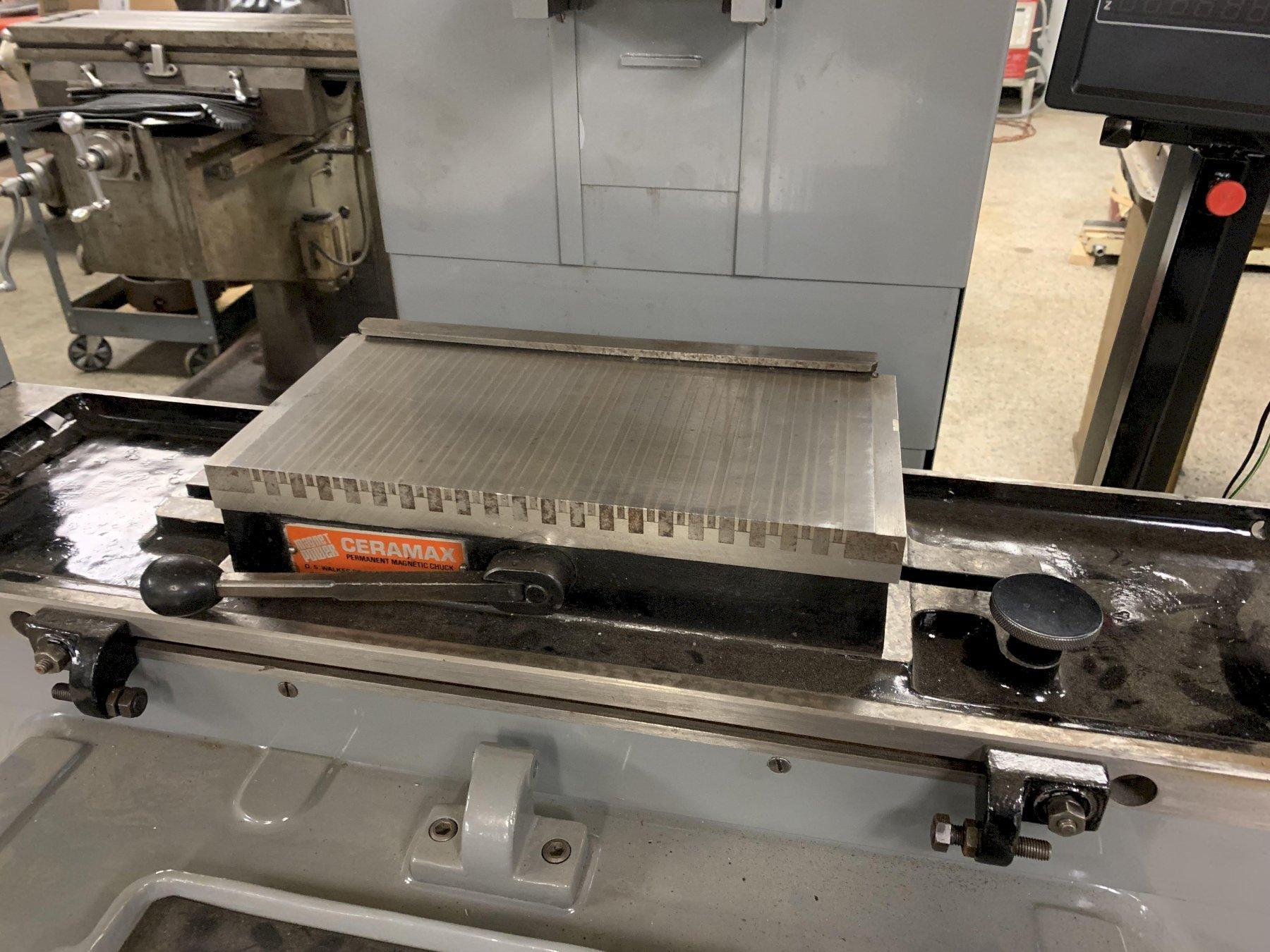

Walker Ceramax 6x12 Permanent Magnetic Chuck
Spindle Tilting Attachment
Sine Setting Sleeve
Fine Feed Vernier to Crossfeed
Ball Roller Table Long & Cross
Ball Roller Vertical Traverse
Hinged Wheel Guard with Dust Extraction Connection
Bijur 1-Shot Lube
Operators Manual

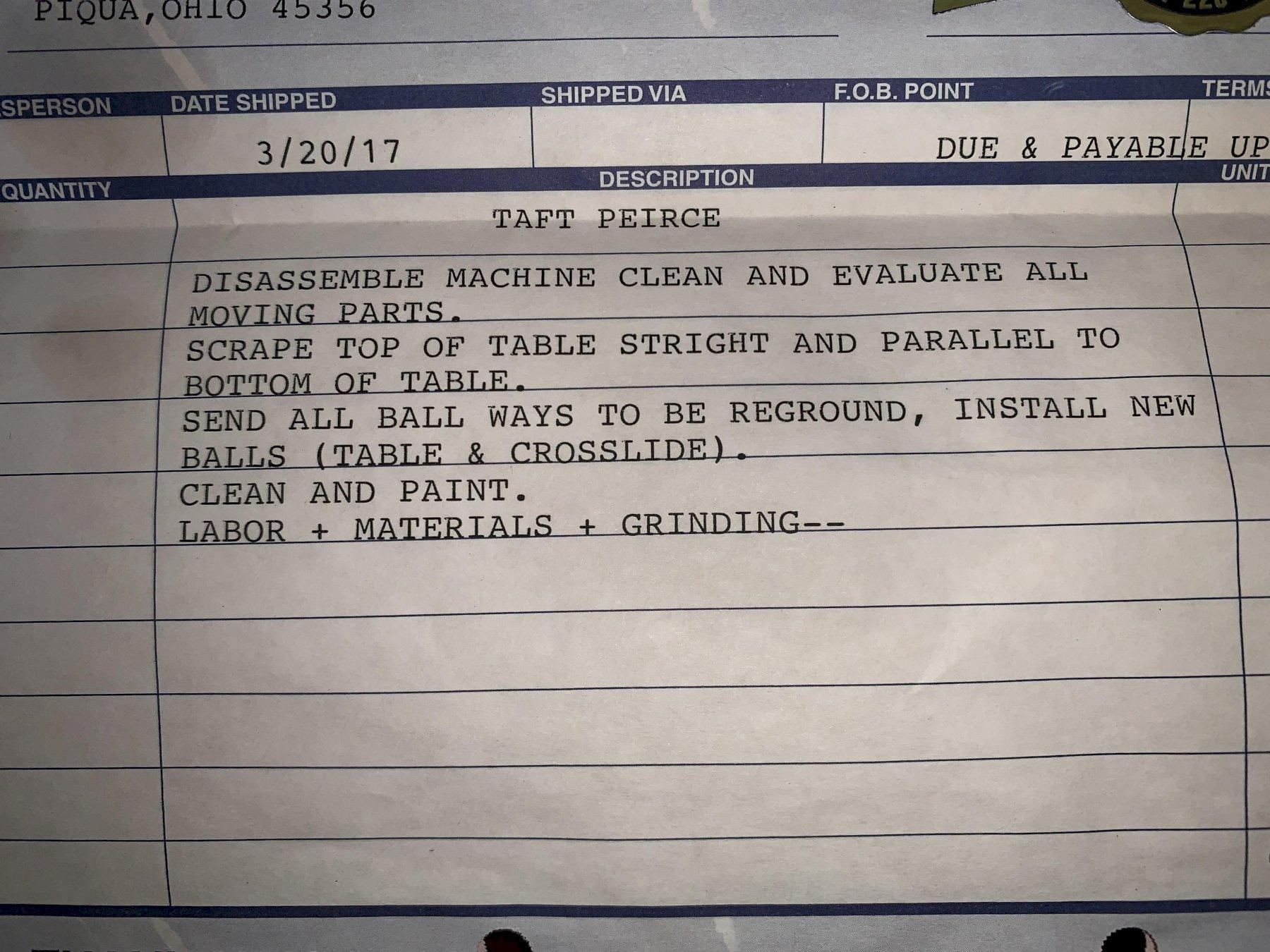

Note 1 – rebuilt by Machine Tool Rebuilders of Columbus OH. Never used after rebuild.
Note 2 - VFD for 1/60/220v operation. Does not reportedly provide variable speeds.
