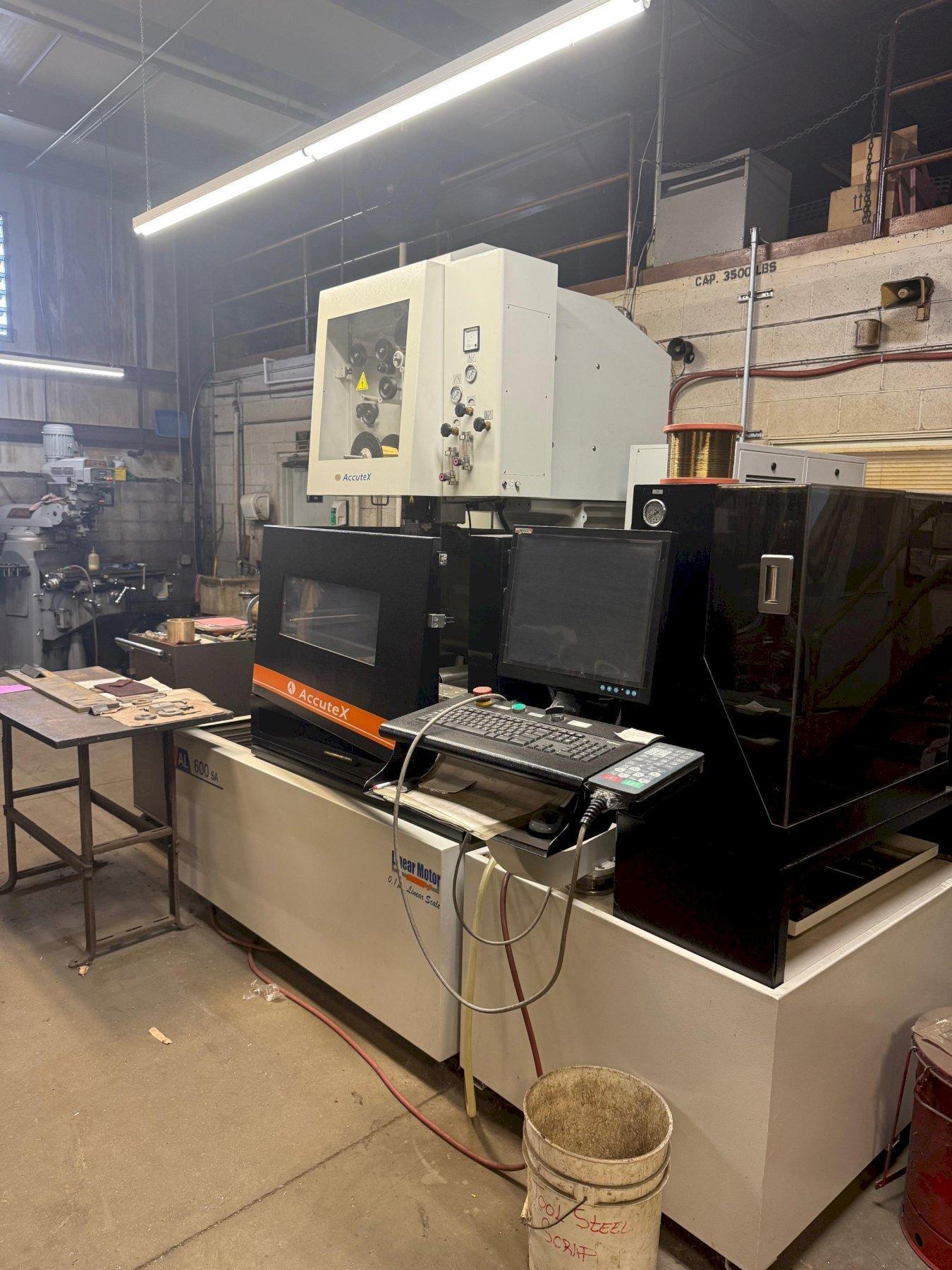

ACCUTEX Model AL-600SA High Precision Submerged Type Wire EDM Machine, New 2018.

Brand
ACCUTEX

Model
AL-600SA

Type
EDM, Wire, CNC

Stock #
34971C

Condition
Used

Year
2018

Location
Dayton, Ohio
United States

Price
$65,000.00

Request Quote

Specifications

Equipped With

Travel & Capacity Specifications
  • X-Axis Travel: 600 mm (23.62")
  • Y-Axis Travel: 400 mm (15.74")
  • Z-Axis Travel: 300 mm (11.81") (400 mm/15.54" optional)
  • U x V Stroke: 100 x 100 mm (3.94" x 3.94")
  • Max. Workpiece Size (L x W x H): 990 x 620 x 295 mm (38.97" x 24.41" x 11.61")
  • Max. Workpiece Weight: 550 kg (1212.54 lbs.)

Cutting & Wire Details
  • Max. Cutting Taper: ±

     21 degrees (at H=100mm)
  • Wire Spool Weight Capacity: 10 kg standard (22 lbs.)

System & Controls
  • Drive System: Direct-drive linear shaft motors on X, Y, U, V axes

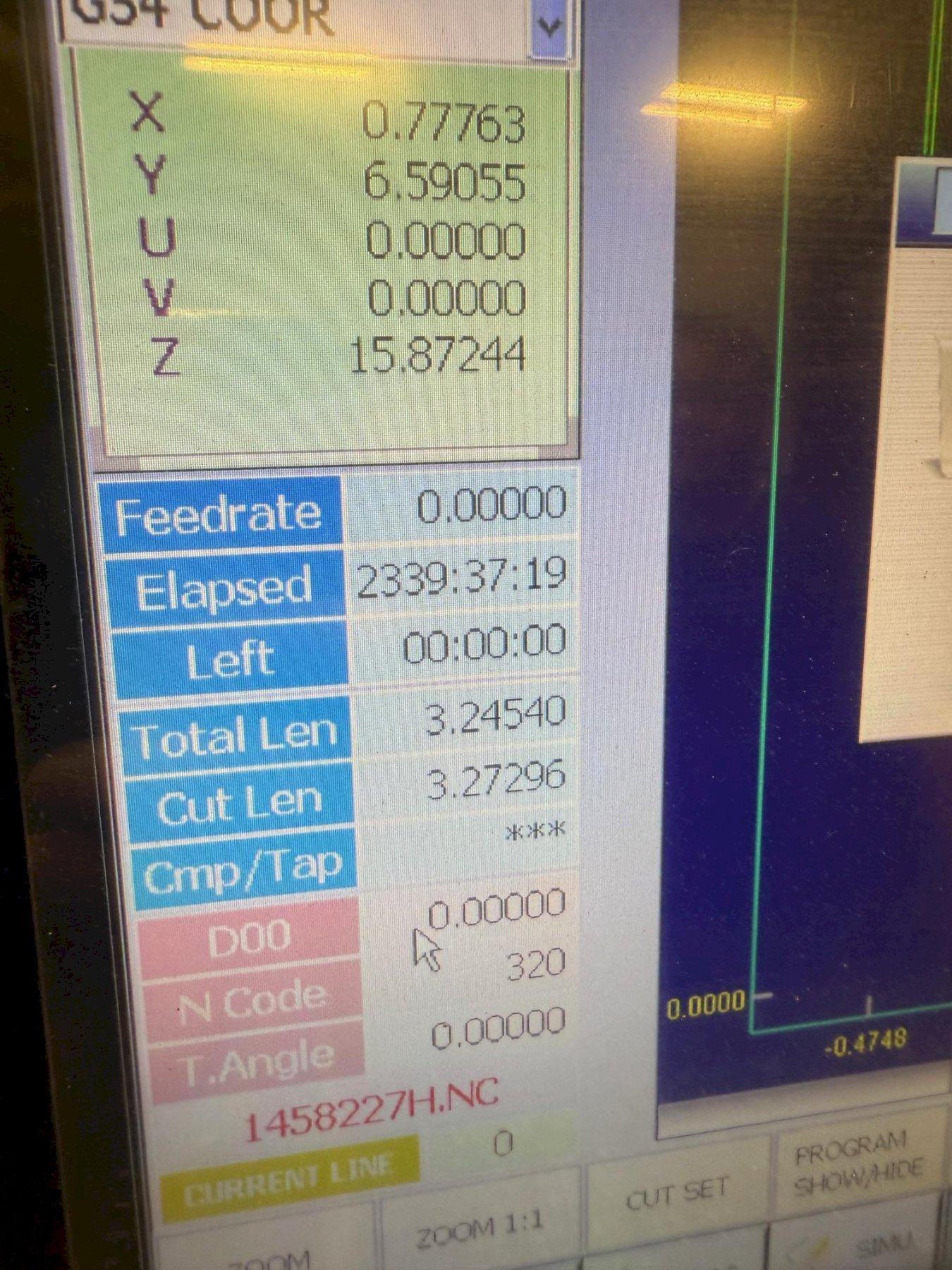

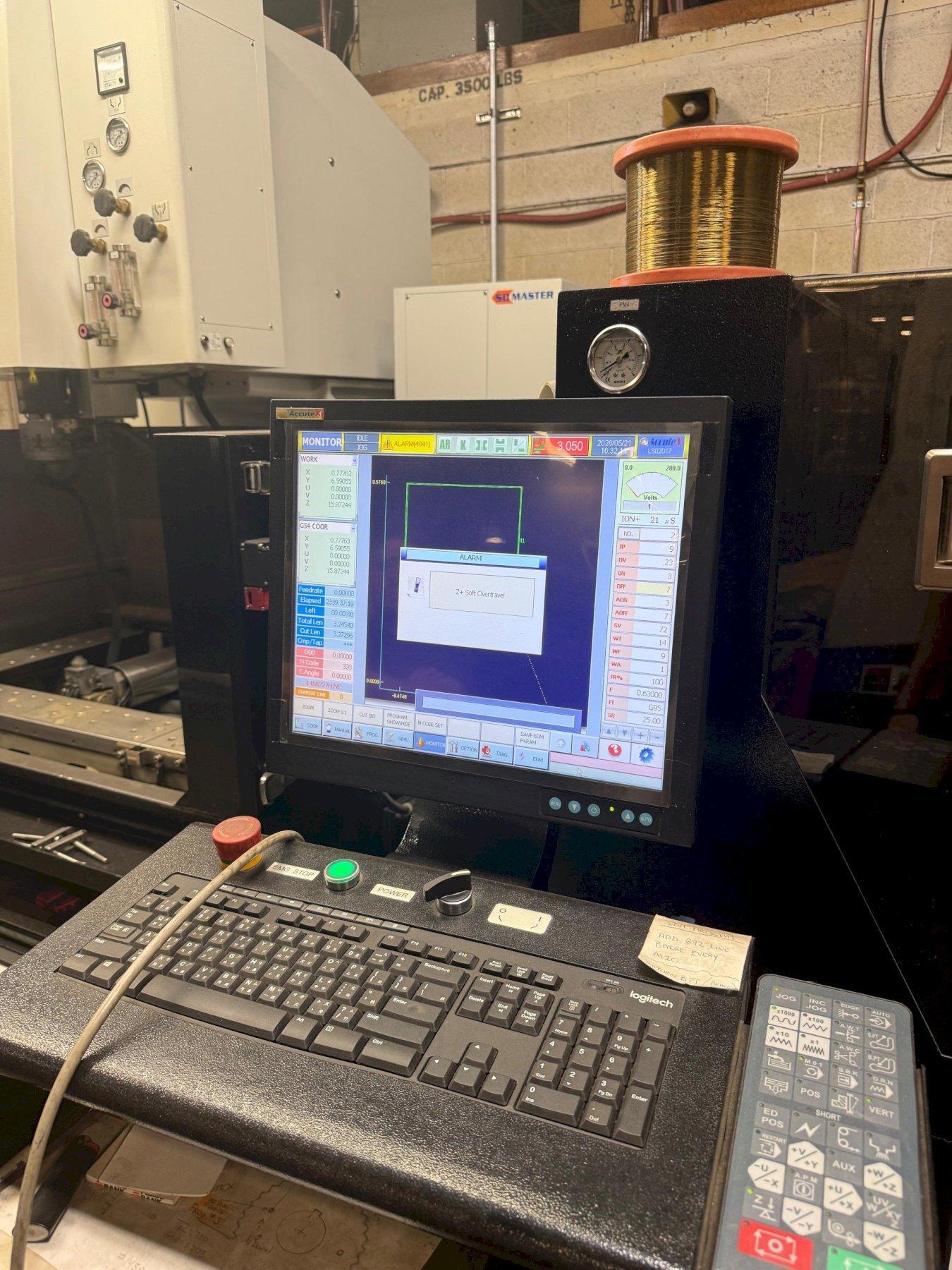

  • CNC Control: 64-Bit Windows CE Based PC with 17" color touch screen
Dimensions & Utilities
  • Tank Capacity: 900 L (237.75 Gallons)
  • Floor Space (W x D x H): 2480 x 2980 x 2210 mm (approx. 98" x 117" x 94")
  • Machine Weight: Approx. 4,400 kg (9,680 lbs)
Manuals included

Notes:
Offered on consignment. No warranty or return privilege.
Specifications subject to independent verification by the buyer.
Seller will decommission and load machine on buyers truck.
