Specifications
Equipped With
Swing over bed - 14"
Swing over gap - 20.75"
Swing over cross - 8.625"
Center distance - 40"
Spindle nose - D14
Spindle bore - 1.5"
Spindle speeds (infinite) - 36 to 2200 rpm

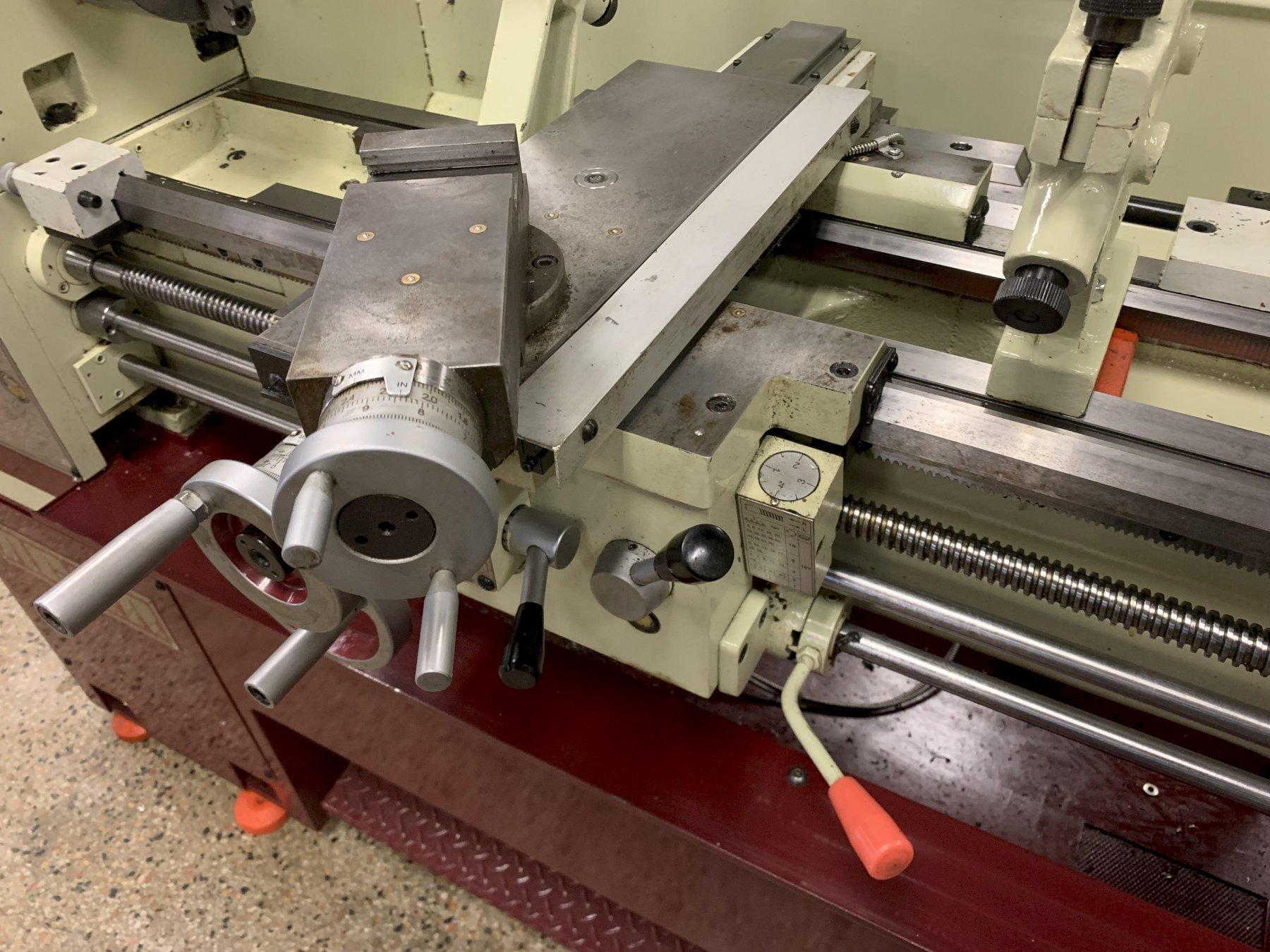

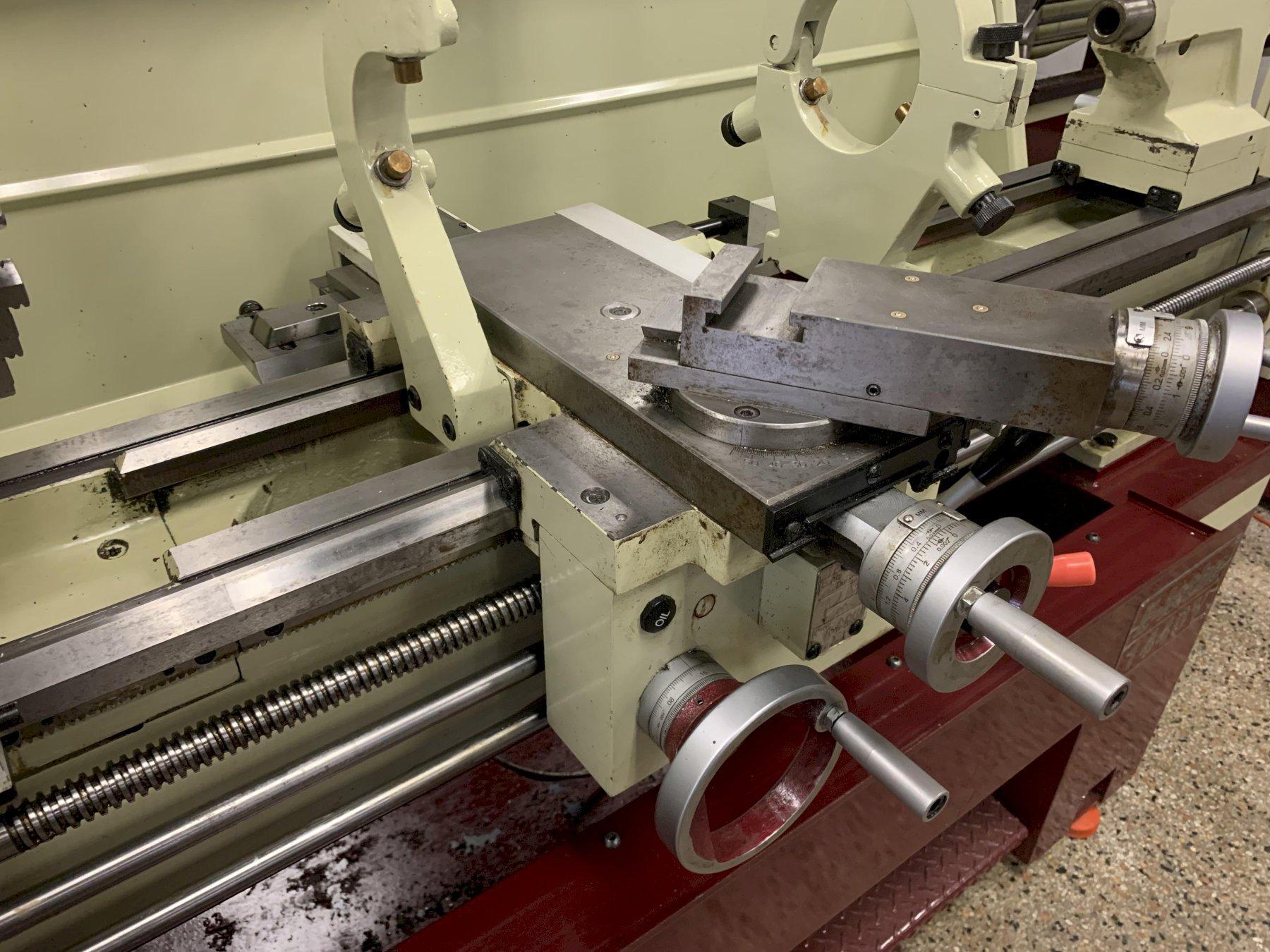

Cross slide travel - 8"
Compound rest travel - 3.5"
Tailstock spindle travel -4"
Tailstock spindle taper - 3MT
Bed length - 54"
Bed width - 9"
Width of gap - 8"
Thread changes (32) - 4 to 56 tpi
Longitudinal feeds - 0.0026" to 0.0368" per rev
Cross feeds - 0.0008" to 0.0122" per rev
Spindle motor - 3 HP

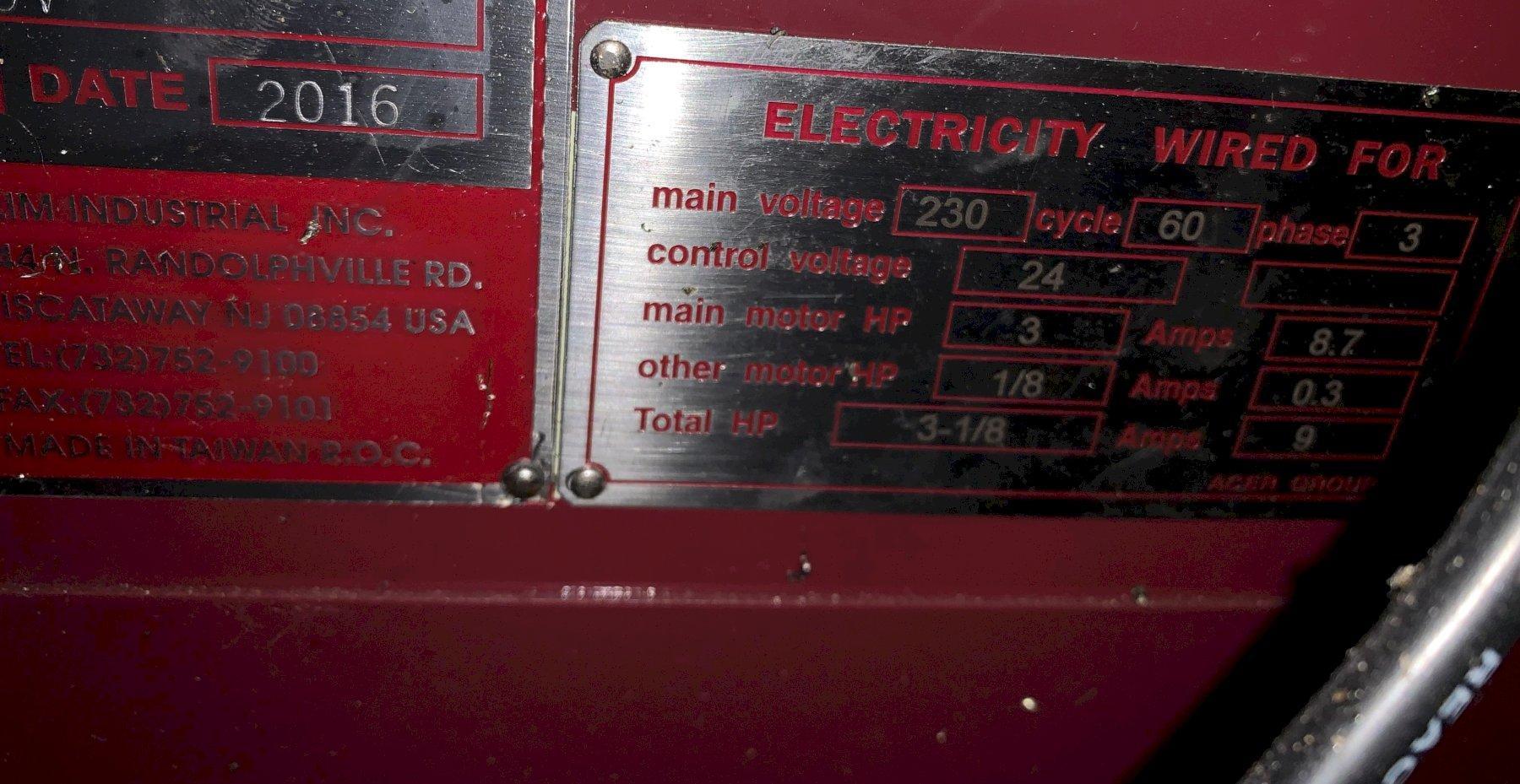

Voltage - 3 ph, 230 volt
Floor dimension - 70" x 32"
Weight, approx - 1600 lbs.
Equipped with:

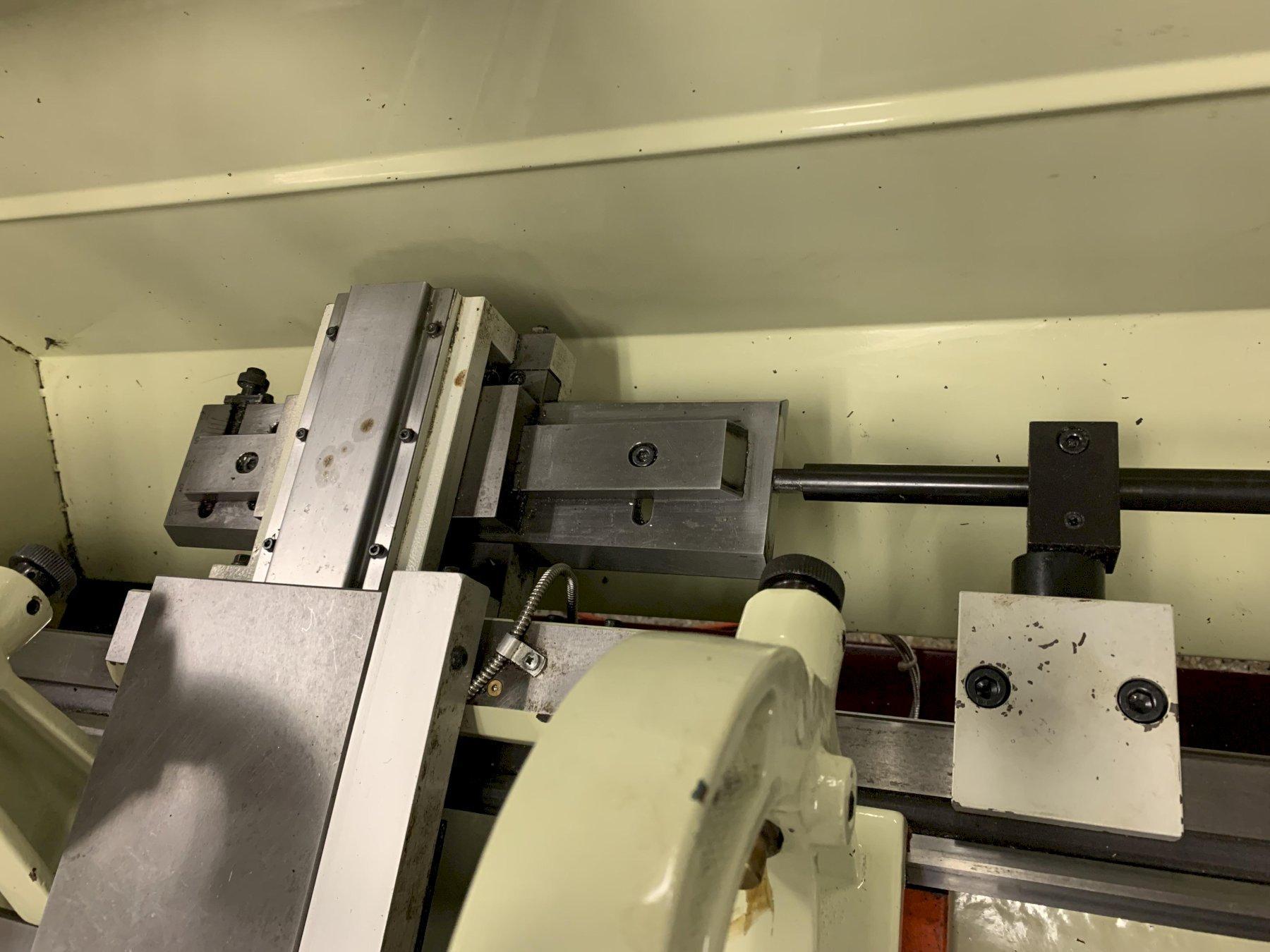

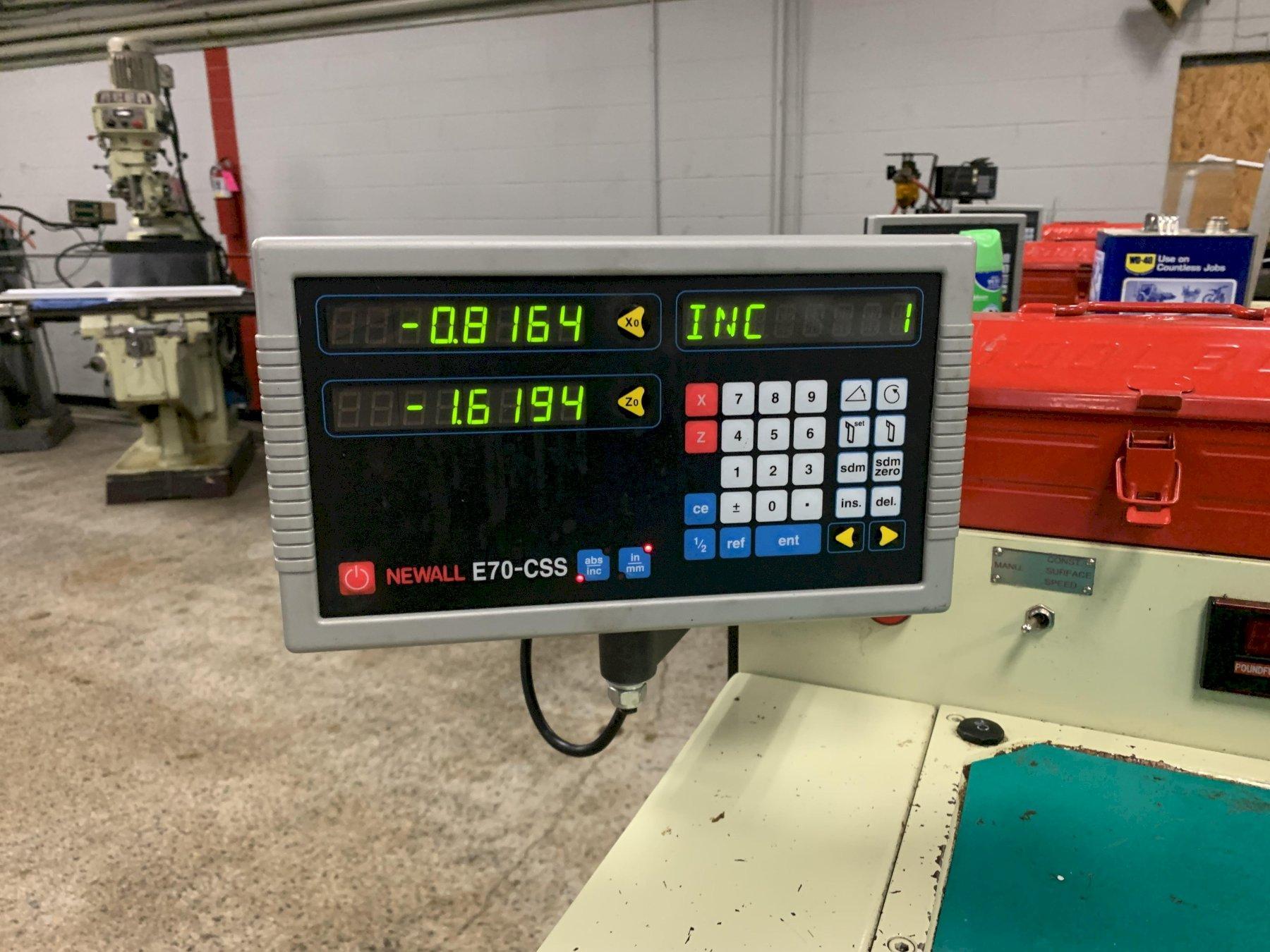

Newall E70-CSS Digital Readout
3-Jaw Chuck

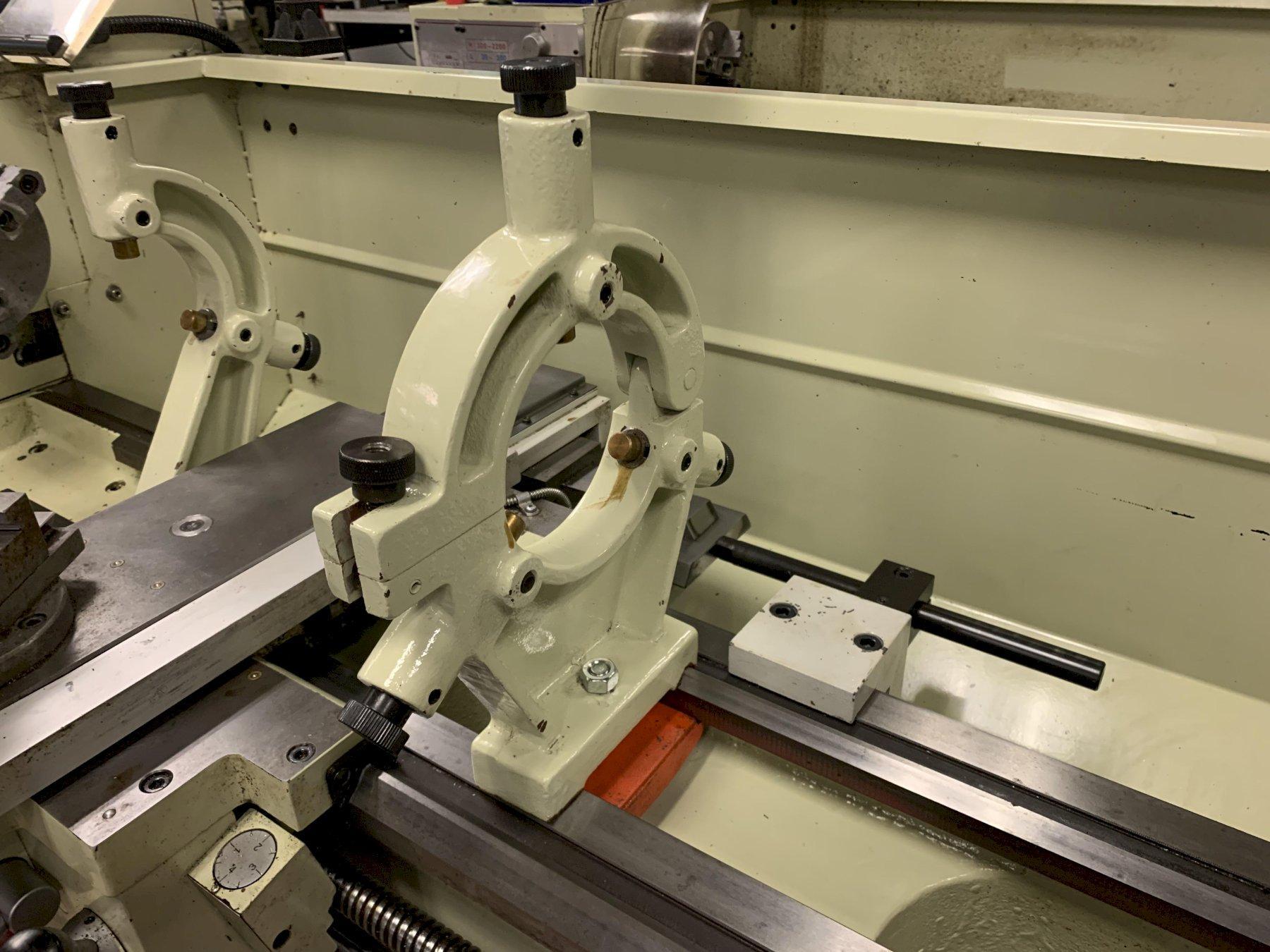

Steady Rest
Follow Rest
Thread Dial
Foot Treadle
Coolant Pump
Back Splash Guard
Work Light
Operation Manual
