Swing over bed - 14"
Swing over gap - 20.75"
Swing over cross - 8.625"
Center distance - 40"
Spindle nose - D14
Spindle bore - 1.5"
Spindle speeds (infinite) - 36 to 2200 rpm
Cross slide travel - 8"
Compound rest travel - 3.5"
Tailstock spindle travel -4"
Tailstock spindle taper - 3MT
Bed length - 54"
Bed width - 9"
Width of gap - 8"
Thread changes (32) - 4 to 56 tpi
Longitudinal feeds - 0.0026" to 0.0368" per rev
Cross feeds - 0.0008" to 0.0122" per rev
Spindle motor - 3 HP
Voltage - 3 ph, 230 volt (can be changed to single phase)
Floor dimension - 70" x 32"
Net Weight, approx - 1600 lbs.
Crated Shipping Weight, approx 1950 lbs.

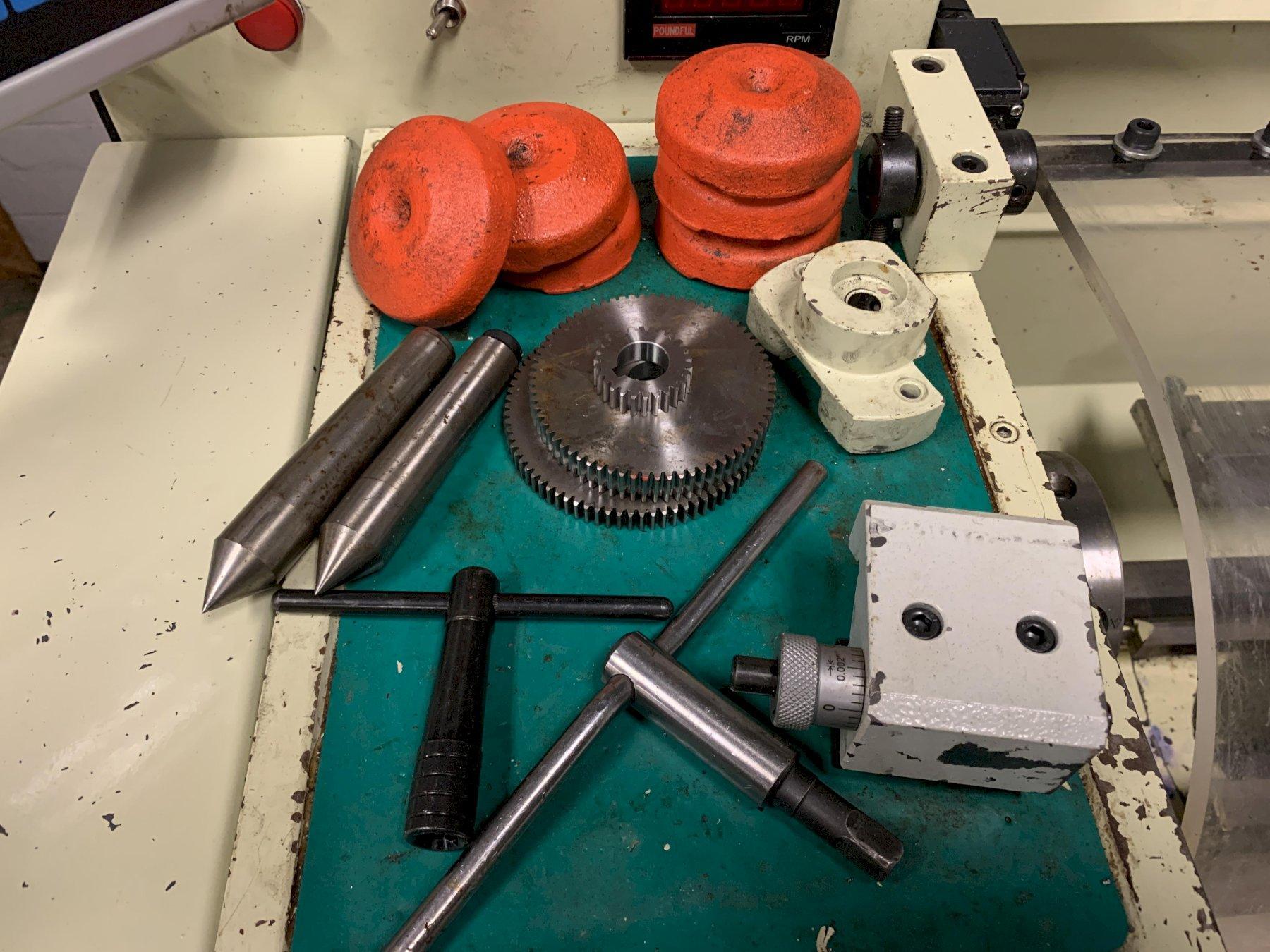

Equipped with:
Newall E70-CSS Digital Readout
Inverter Drive
Taper Attachment
3-Jaw Chuck
Steady Rest
Follow Rest
Micrometer Carriage Stop
Change Gears
Thread Dial
Foot Treadle
Coolant Pump
Back Splash Guard
Work Light
Operation Manual
Acer E-Series Lathe video link* Notes:
Machine was recently removed community college and looks to be in excellent condition.
Specifications taken from sources deem reliable and subject to independent verification by the buyer.
Seller can load by appointment.
Skidding not included but available for extra $300 fee.
Last remaining available machine out of 8.
