Specifications
Equipped With
Catalog Specifications:
Table Size - 10" x 50"
Table Longitudinal Travel - 34"
Saddle Cross Travel - 16"
Knee Vertical Travel - 16"
Quill Travel - 5"
Ram Travel - 20"
Quill Diameter - 3.375"

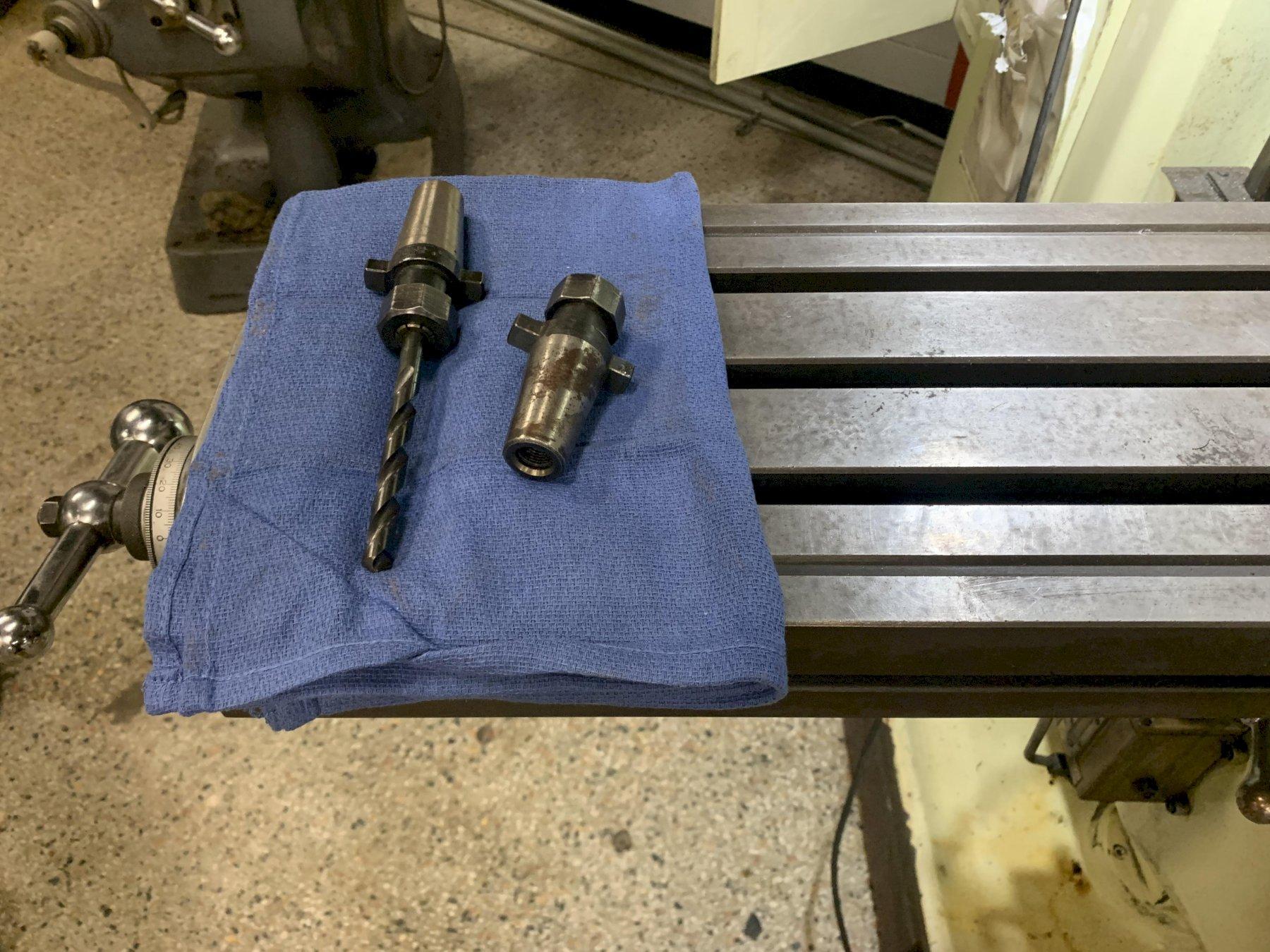

Spindle Taper - Kwik Switch (subject to confirmation)
Head Swivel RL - 90 degrees
Head Tilt - 45 degrees
Spindle Speeds, Infinitely Variable - 60 to 4500 rpm
Power Quill Feeds - .0015 to .006 ipr

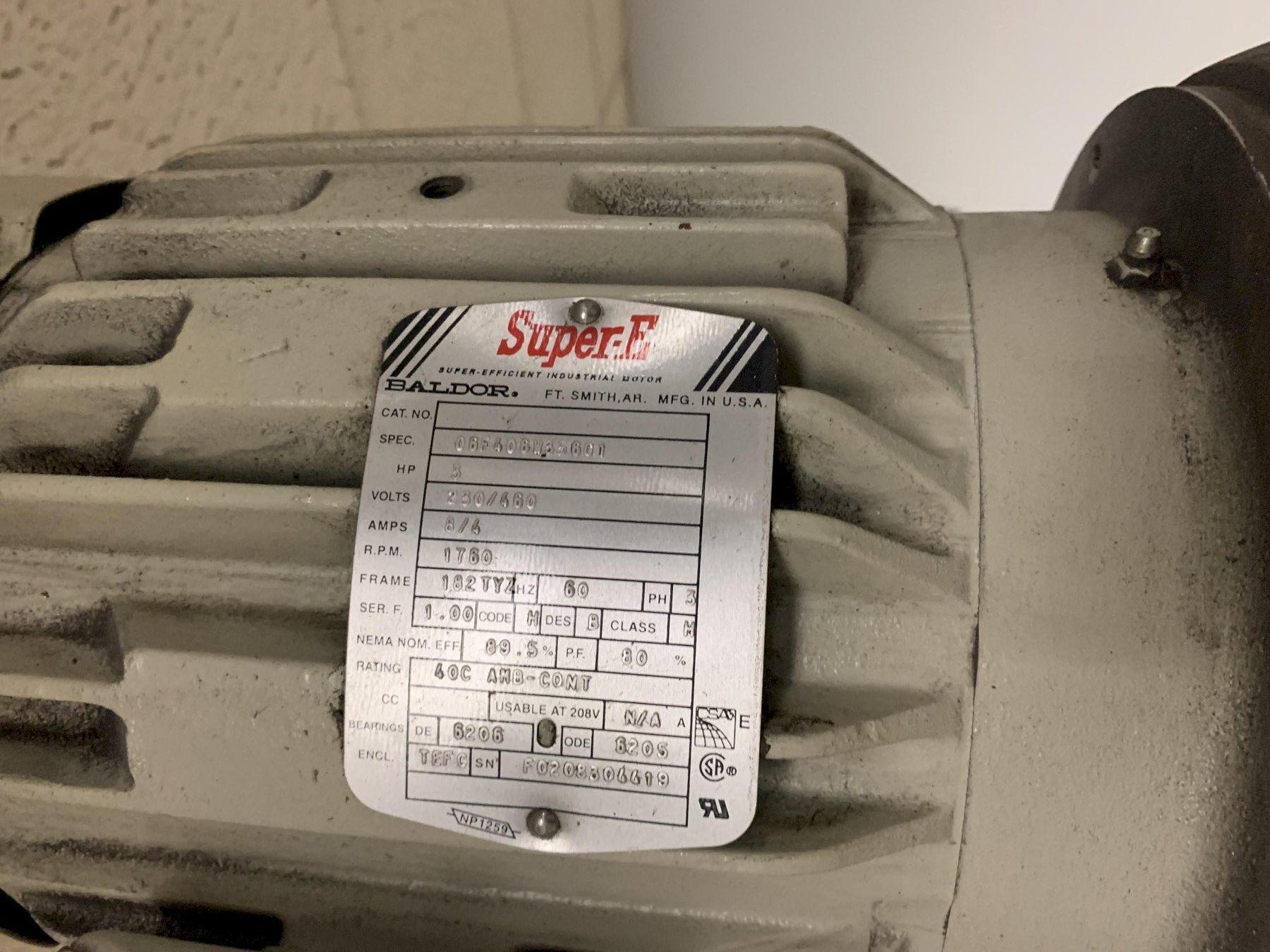

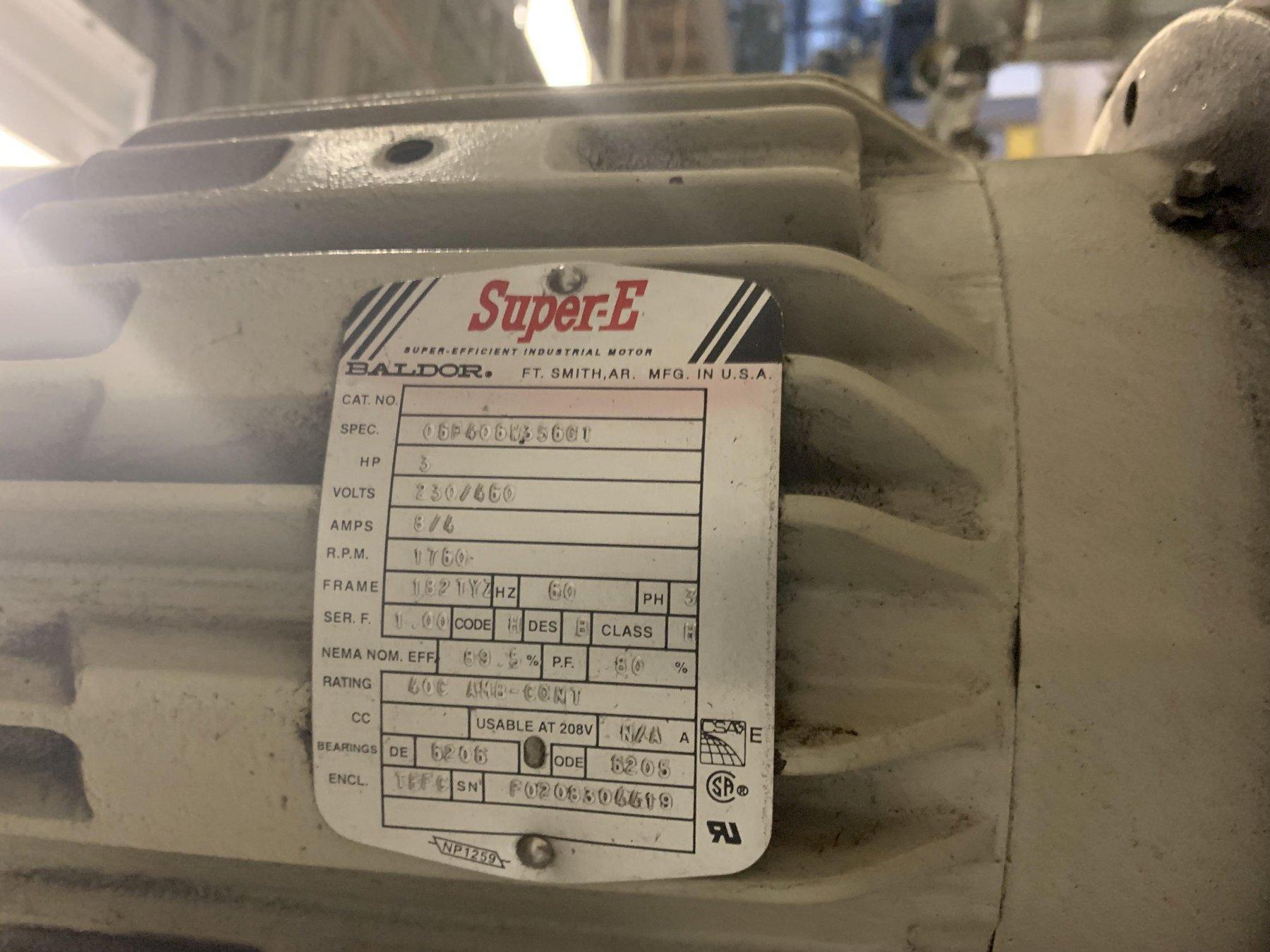

Spindle Motor - 3 HP
Overall Dimensions - 98" x 79"
Weight, Approx - 3100 Lbs.
Equipped with:

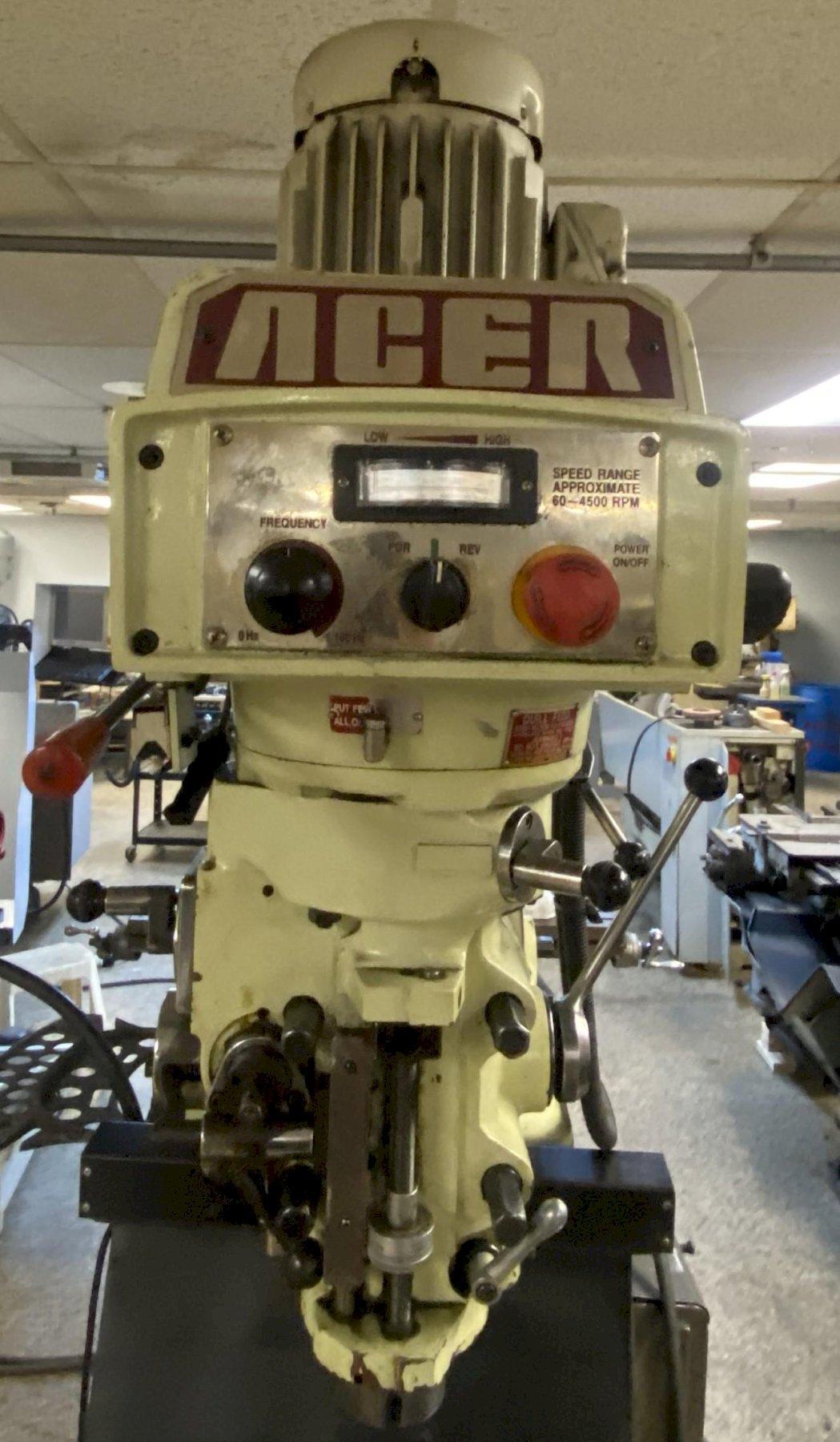

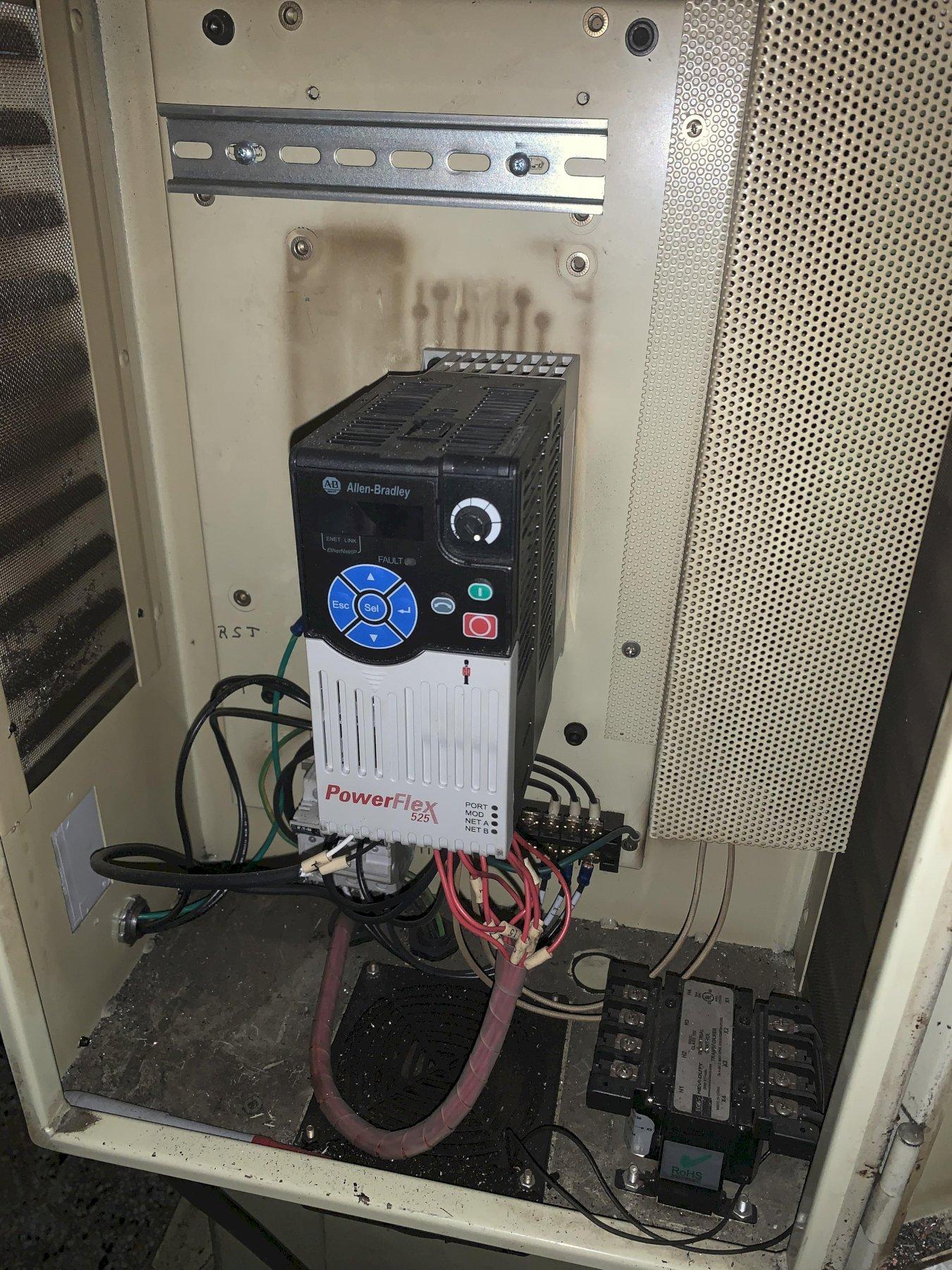

EVS Variable Speed Control
Servo Power Longitudinal Feed
1-Shot Lubrication

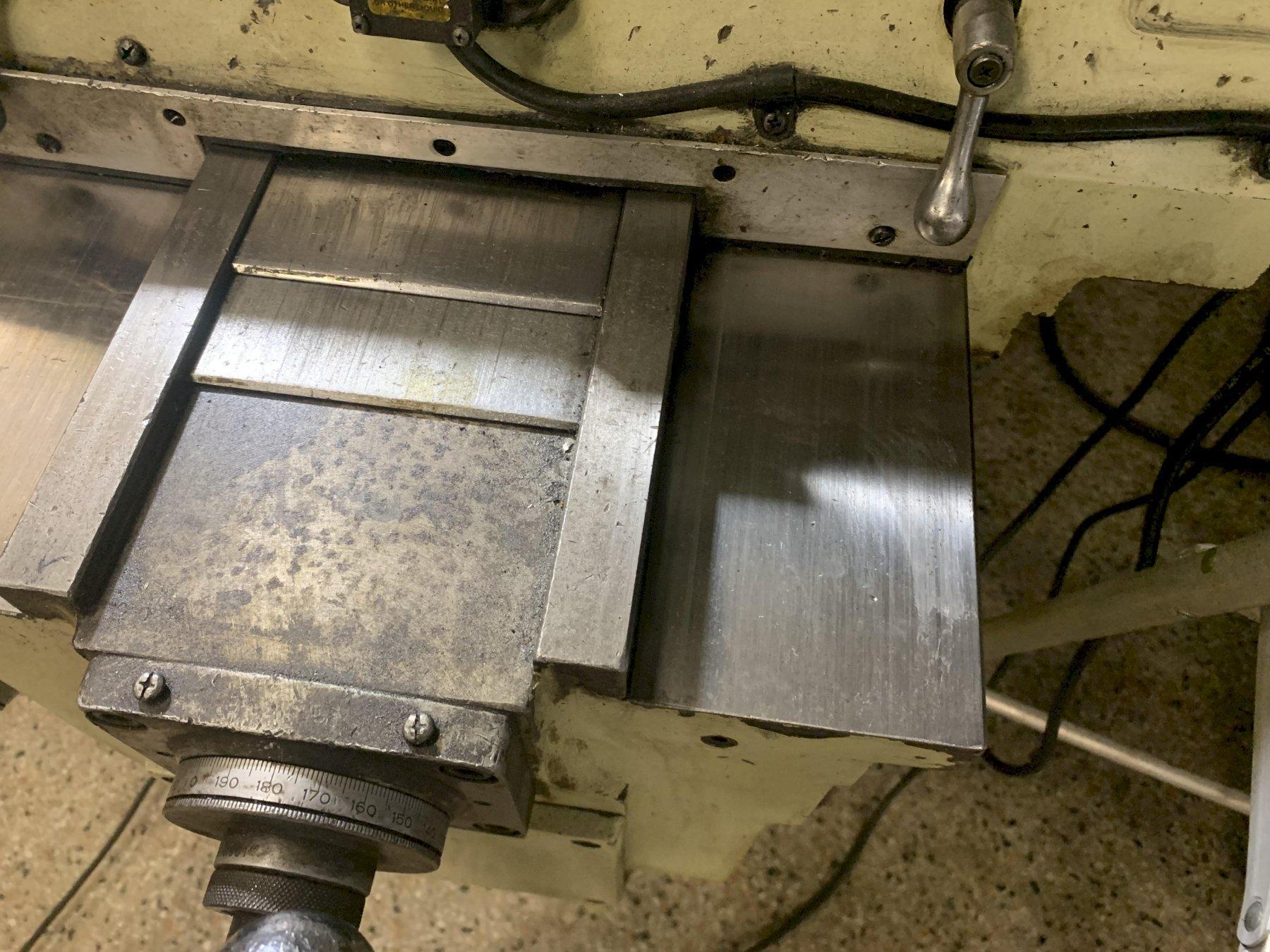

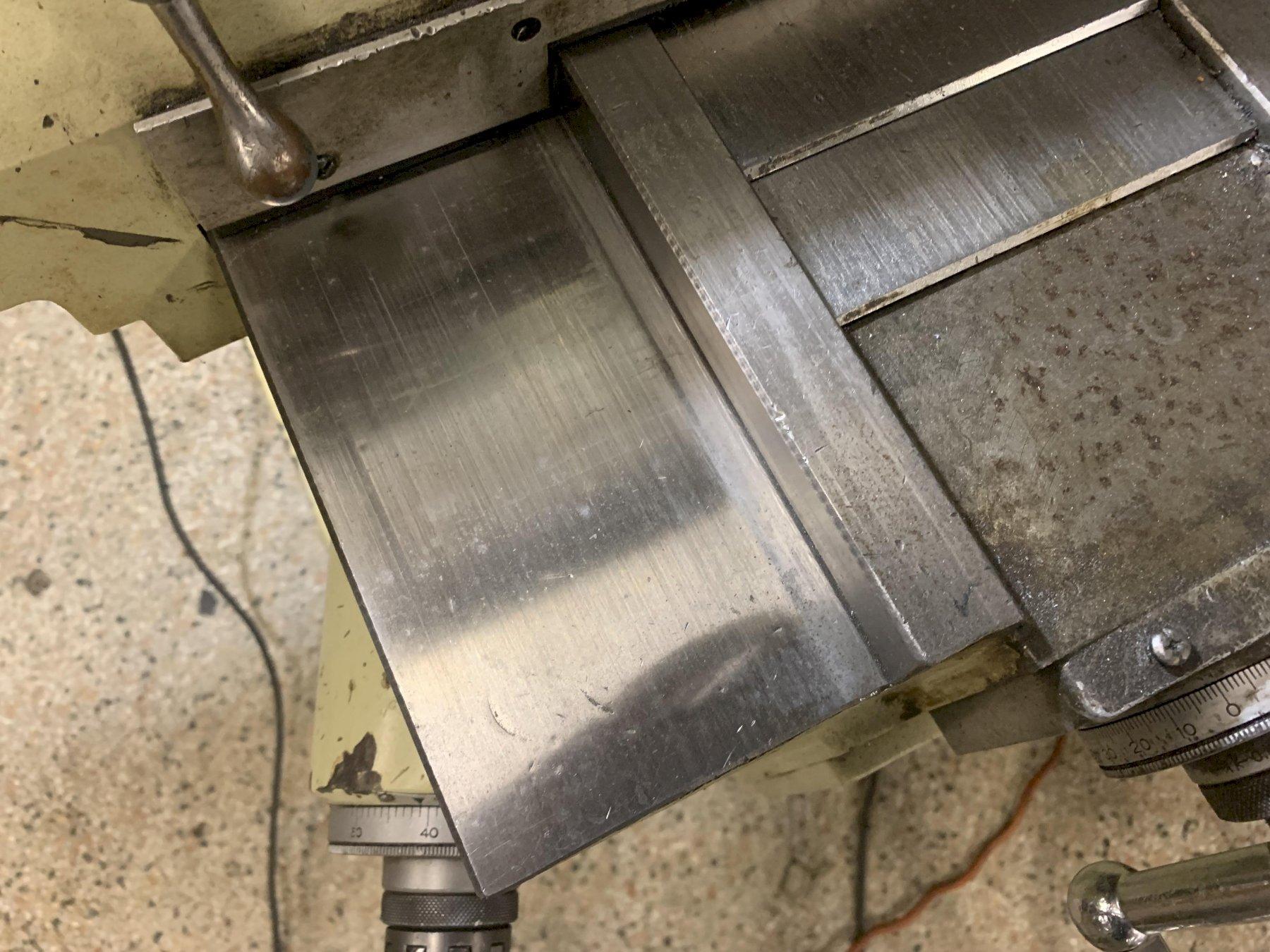

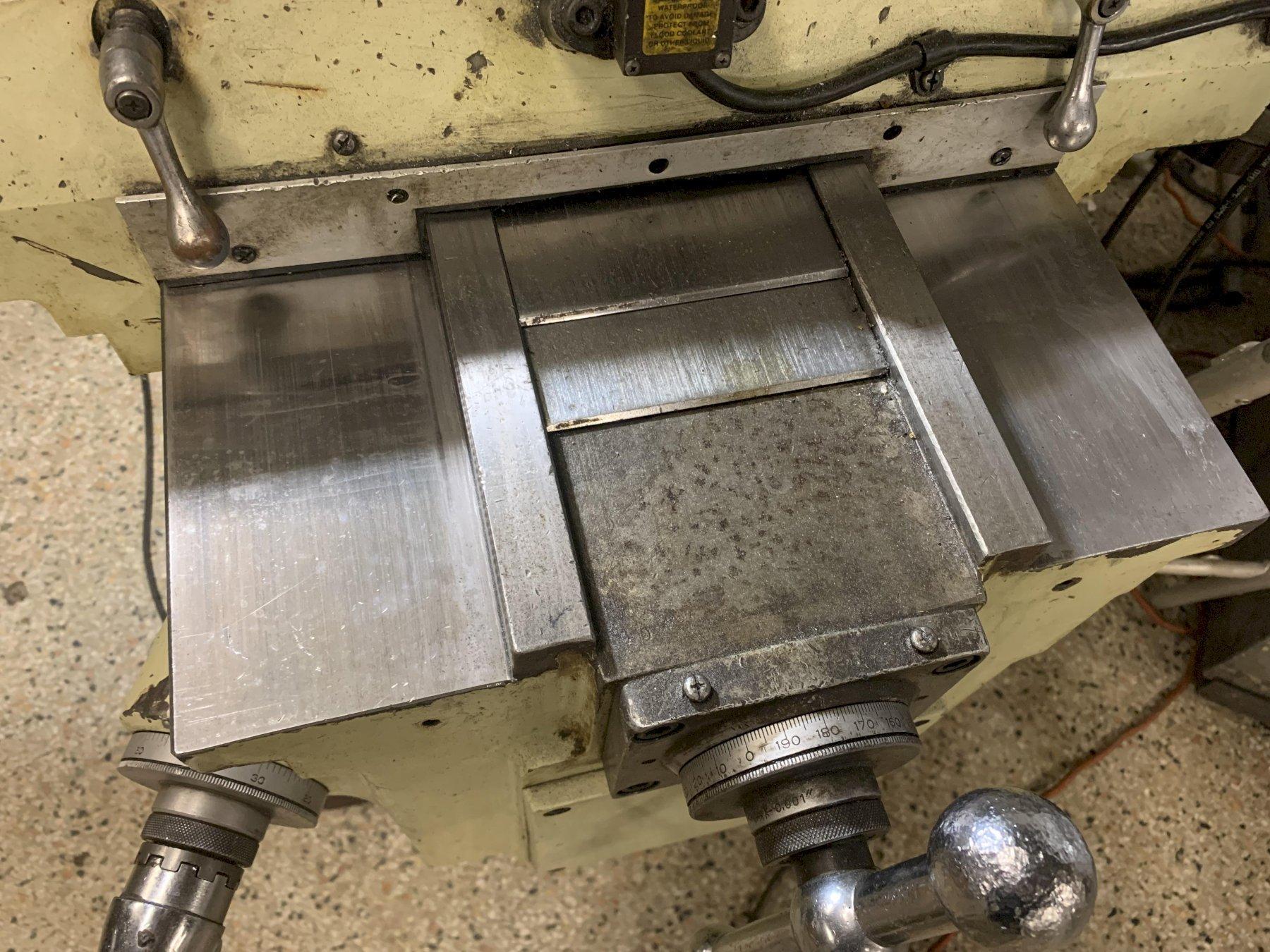

Box Ways
Work Light
