Specifications
Equipped With

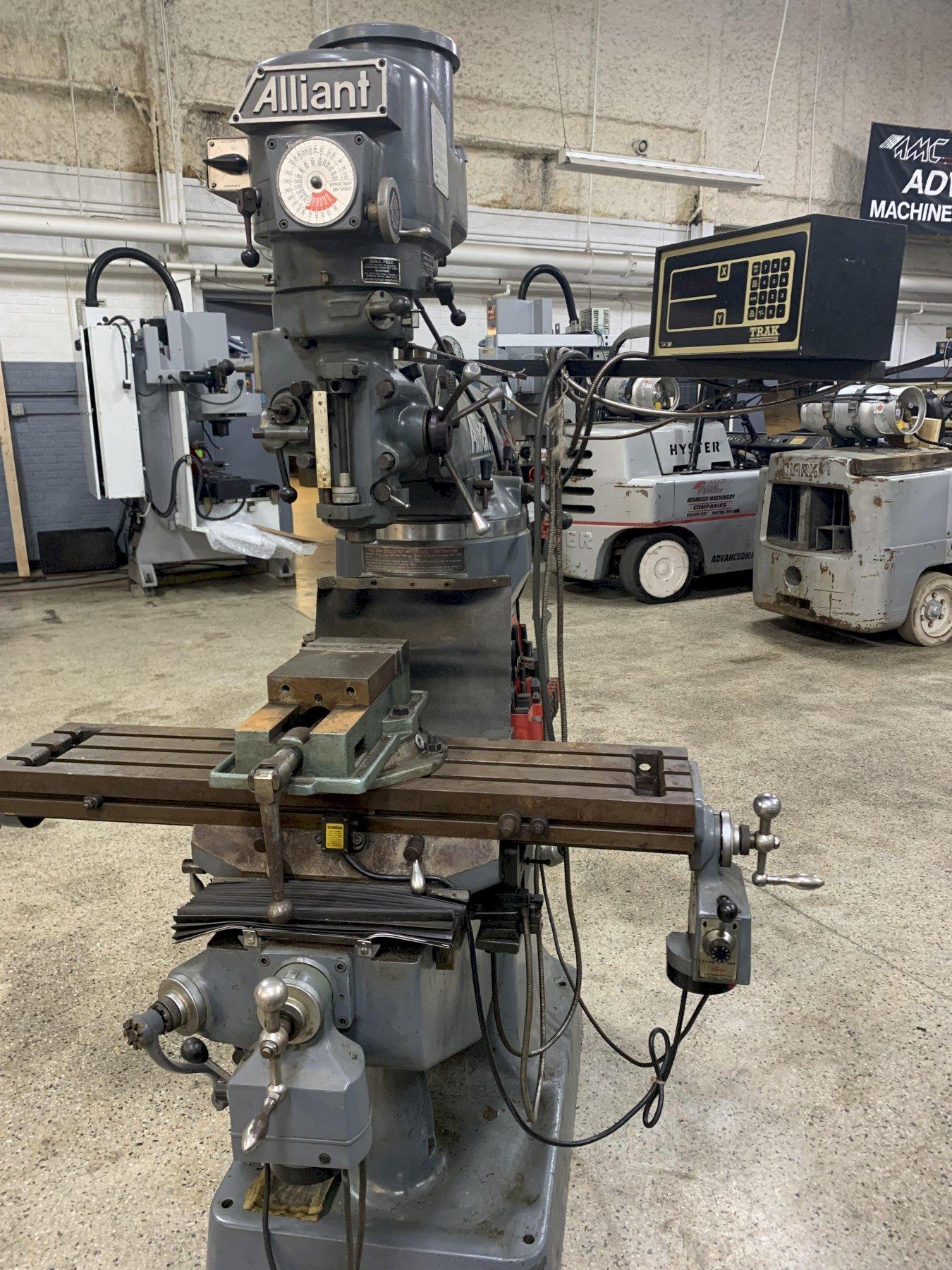

Preliminary Specifications:
Table size – 9” x 42"
Longitudinal travel (x) - 30"
Cross travel (y) – 12”
Vertical travel (z) – 16”
Max height table above floor – 47”
Max workpiece weight – 750 lbs (centered on table)
Ram travel – 12”
Head swivel – 90 deg right / left
Head tilt – 45 deg

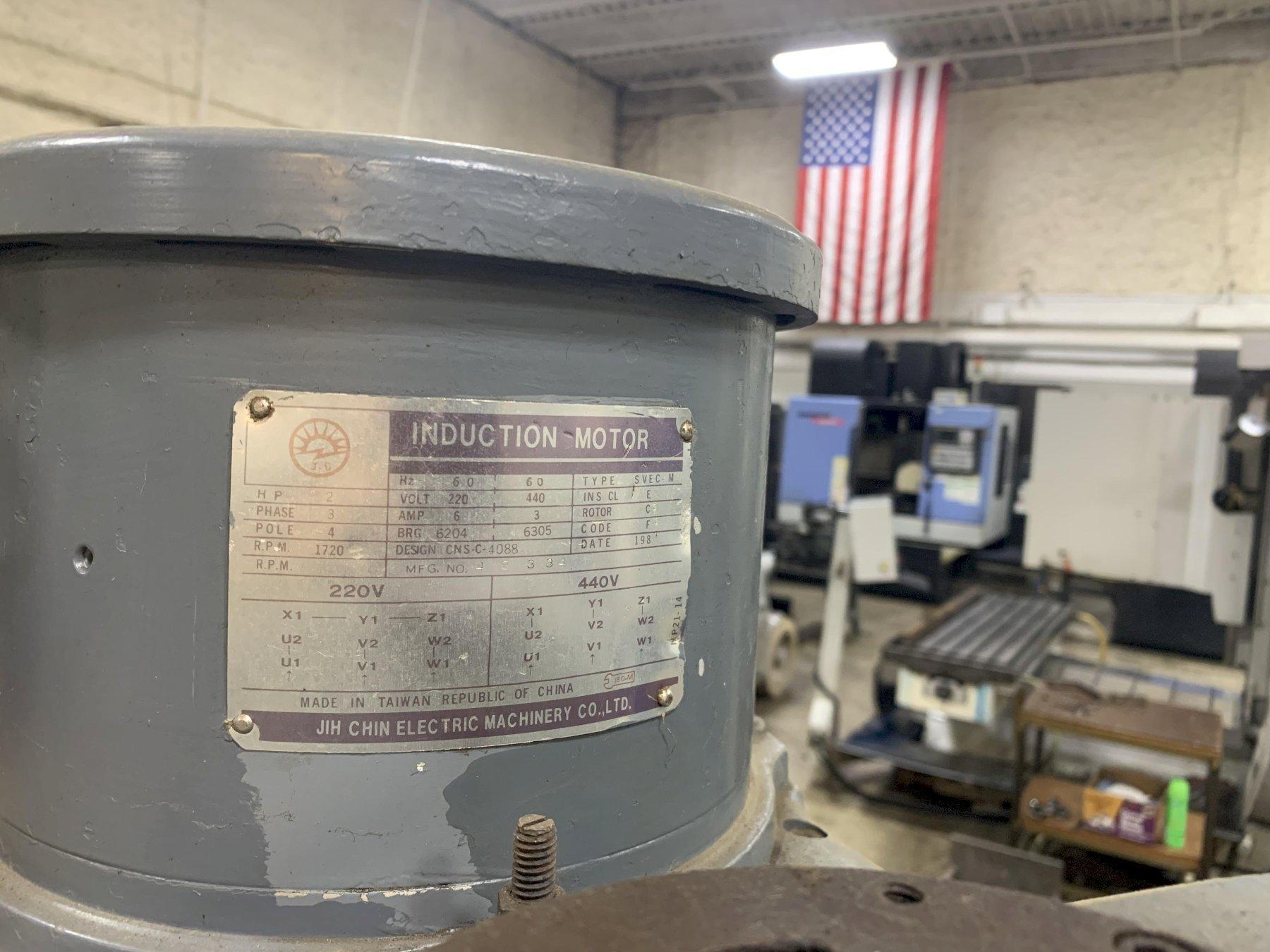

Spindle motor – 2 hp
Spindle speeds, Infinitely Variable - 60 to 4500 rpm
Spindle taper – R8
Quill diameter – 3.375”
Quill travel – 5”
Quill feed rates - .0015, .003, .006 in./rev.
Net Weight, approx – 2227 lbs.
Equipped with:

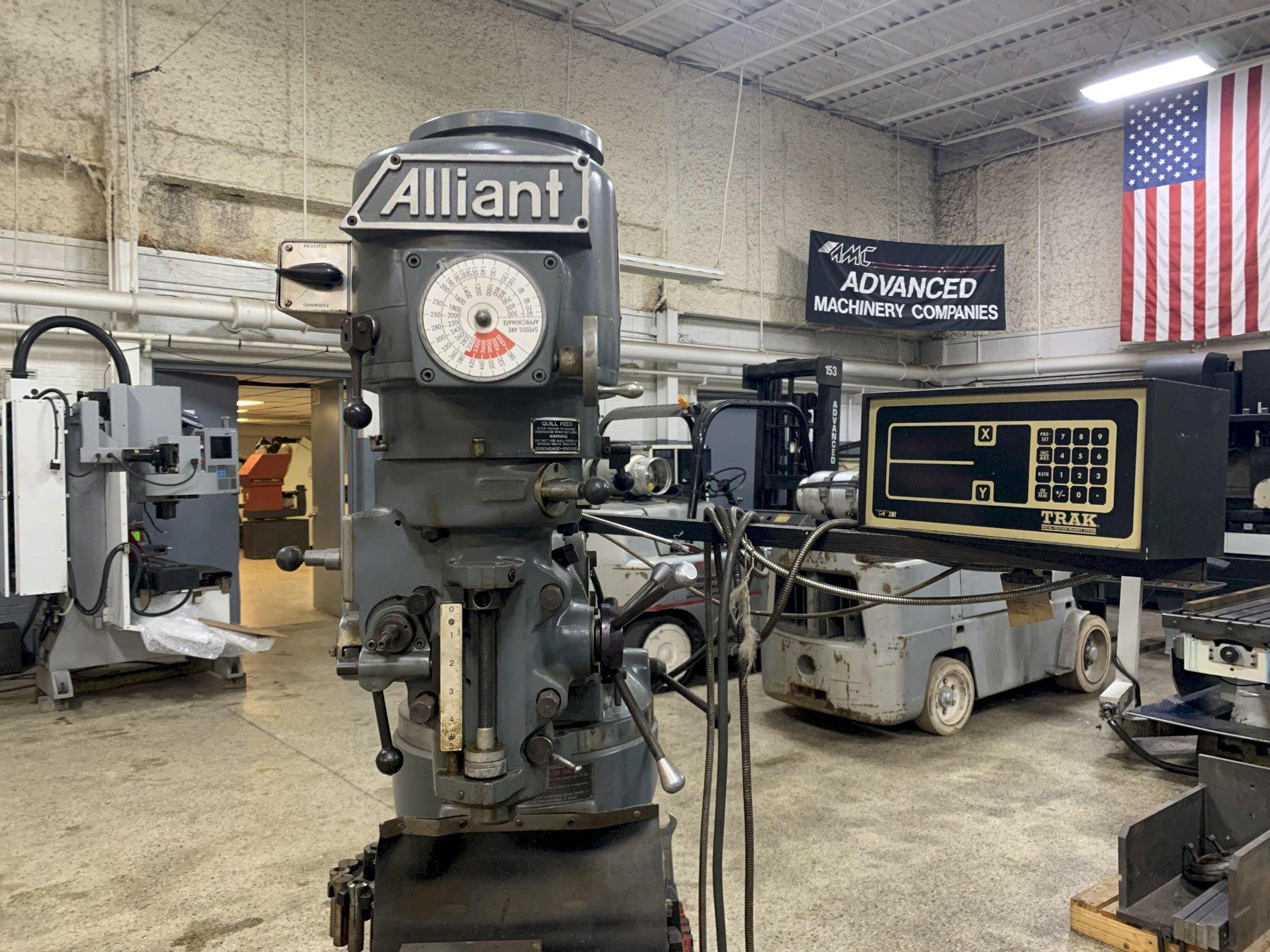

Trak 2-Axis DRO
Servo Powerfeed on X
Servo Powerfeed on Y (non-operable)

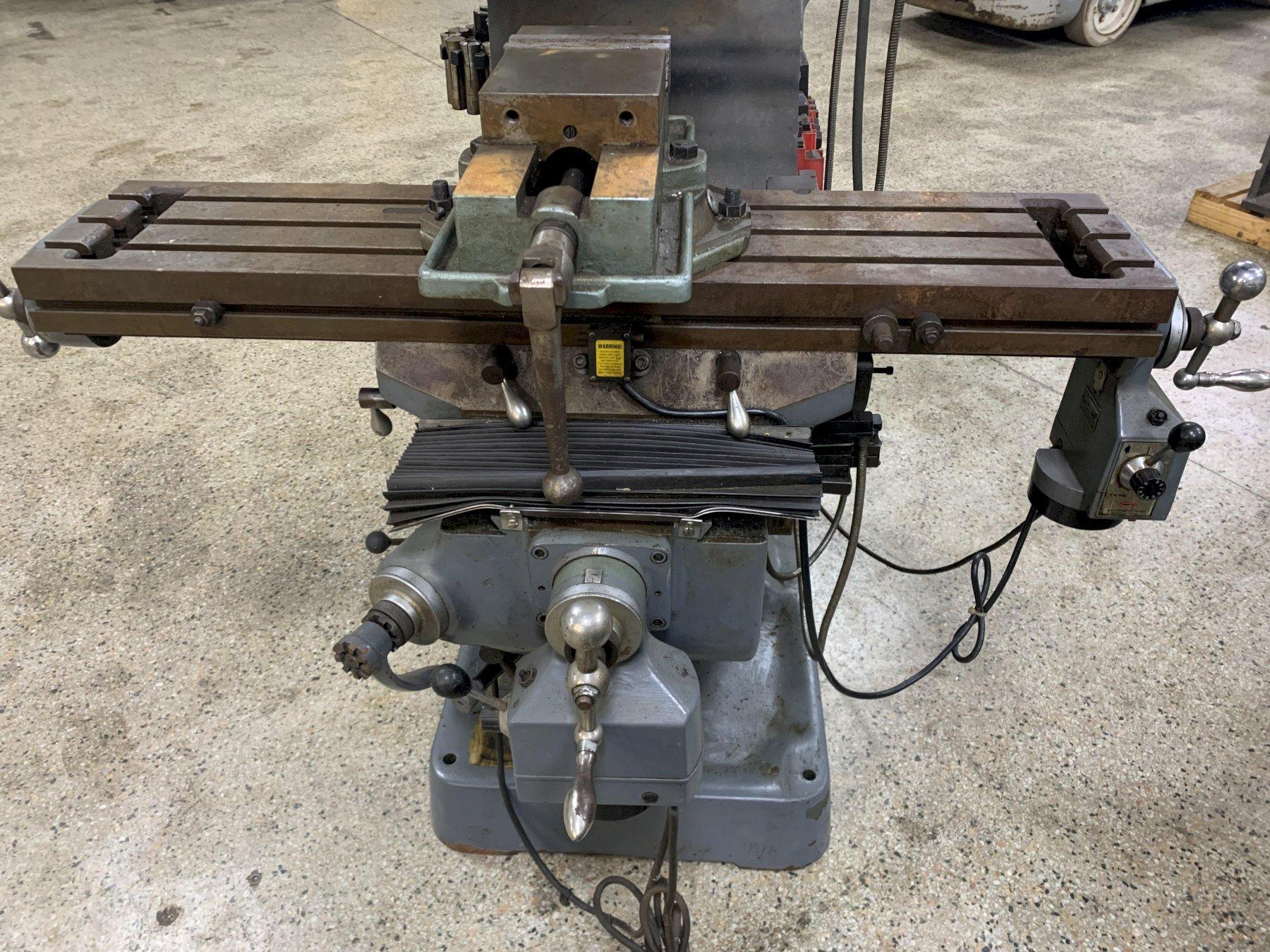

Mill Vise with Swivel Base
All Necessary Handles
Clamp Kit
Work Light
1-Shot Lubrication
Specifications subject to independent verification by the buyer.
Skidding fee will be charged if requested for transport.
Note - the y-axis powerfeed does not operate
Note - the x-axis on the dro does not count
