Specifications
Equipped With
Specifications:
Table Size - 10" x 50"
Longitudinal Table Travel - 30"
Cross Travel - 15-3/8"
Vertical Travel (Knee) - 15"
Table T-Slots - 3
T-Slot Size - 5/8"
Maximum Workpiece Weight - 946 Lbs.
Spindle Motor - 3 HP
Spindle Taper - R8
Spindle Speeds, Infiinitely Variable - 60 to 4200 RPM
Spindle Nose to Table - 1-5/8" to 16-1/2"
Spindle Centerline to Column Surface - 4" - 25-5/8"
Quill Travel - 5"
Automatic Vertical Feeds - .0015, .003, .006 IPR
Head Swivel - 90º L-R, 45º F-B
Overarm Travel - 21-5/8"
Overarm Swivel - 360º
Floor Space (L x W x H) - 101" x 79" x 91"
Weight, Approx 3350 Lbs.

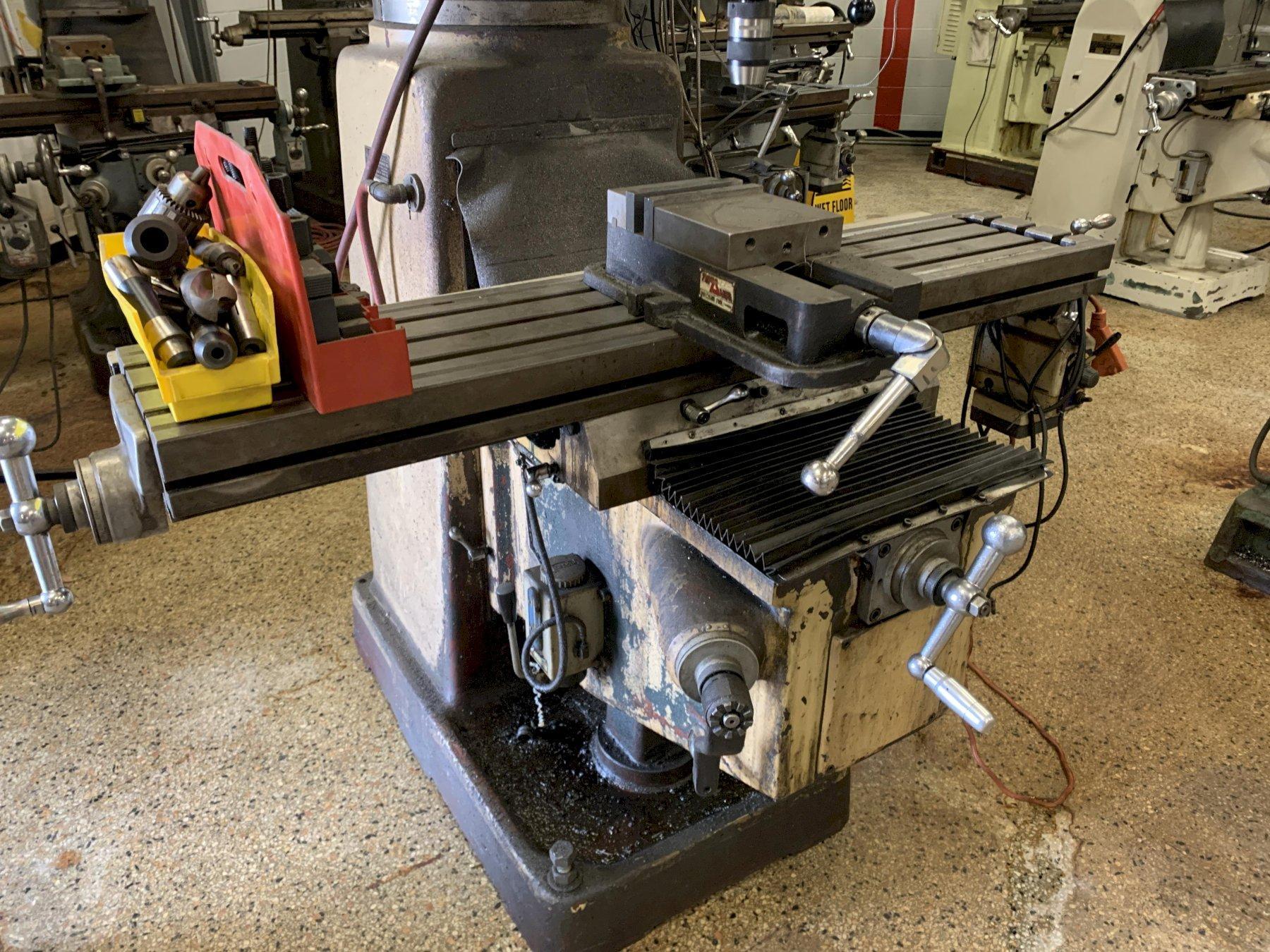

Equipped with:
Newall DP700 3-Axis Digital Readout

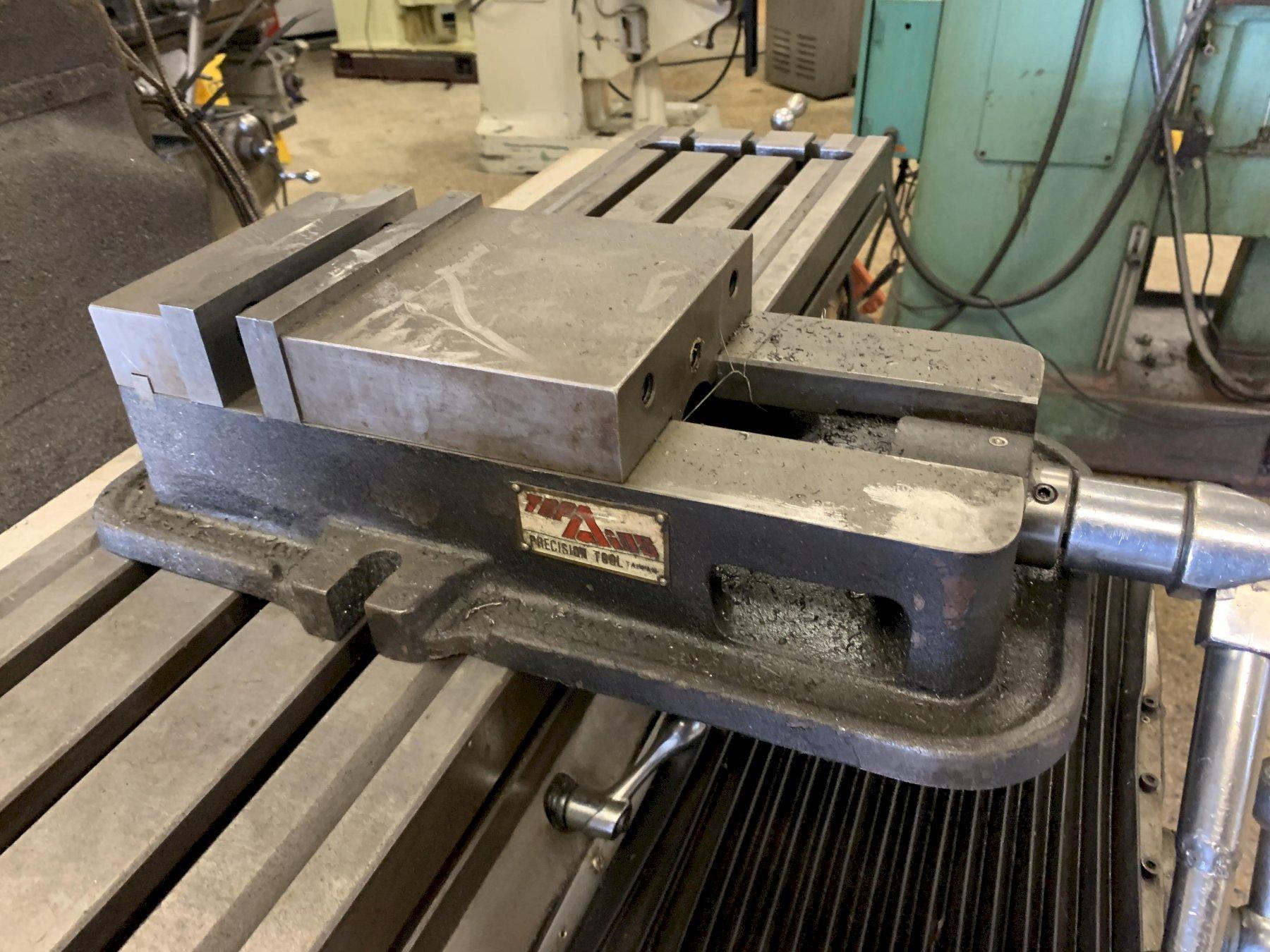

Mill Vise

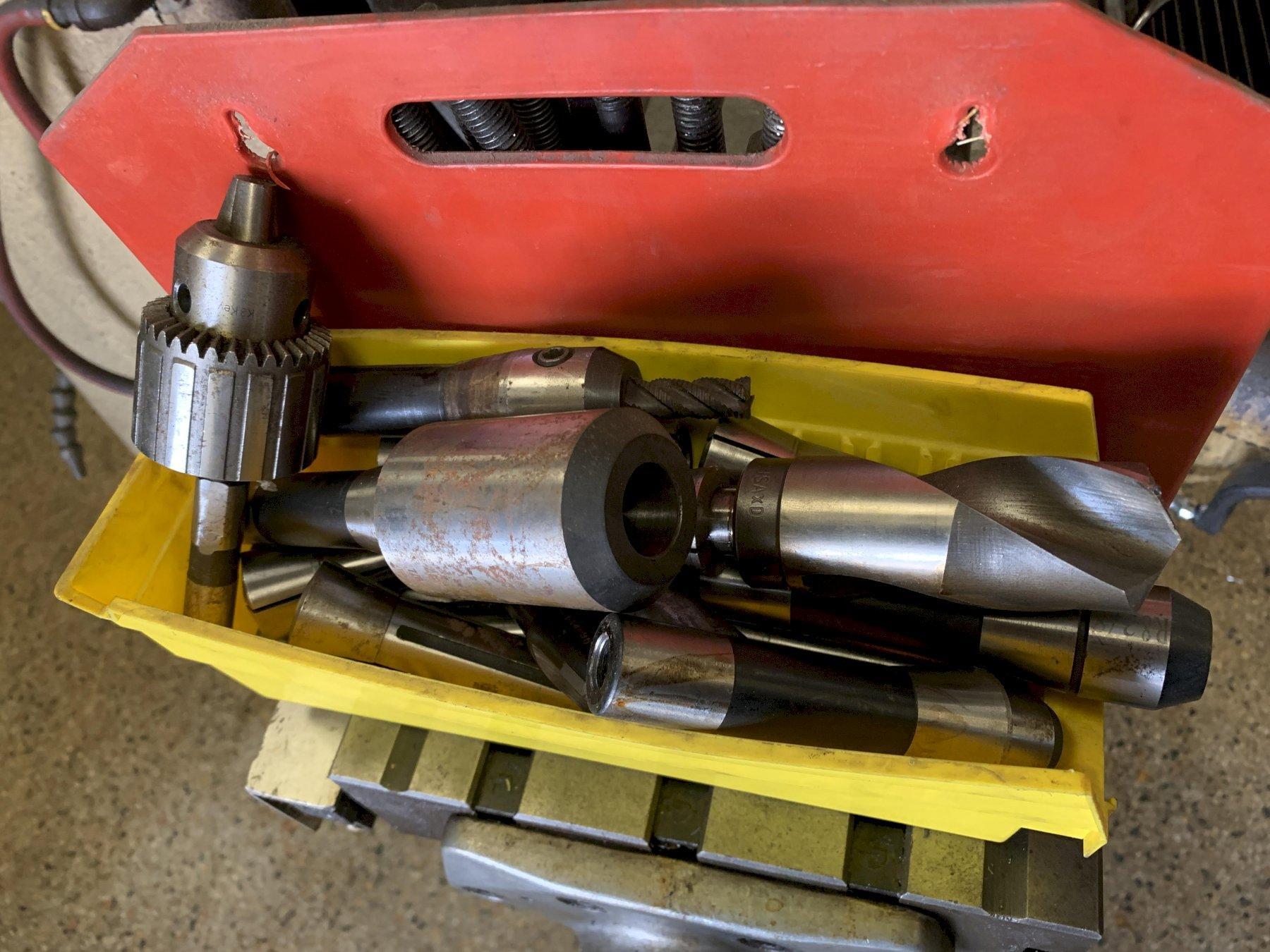

Assorted R8 Collets and Holders

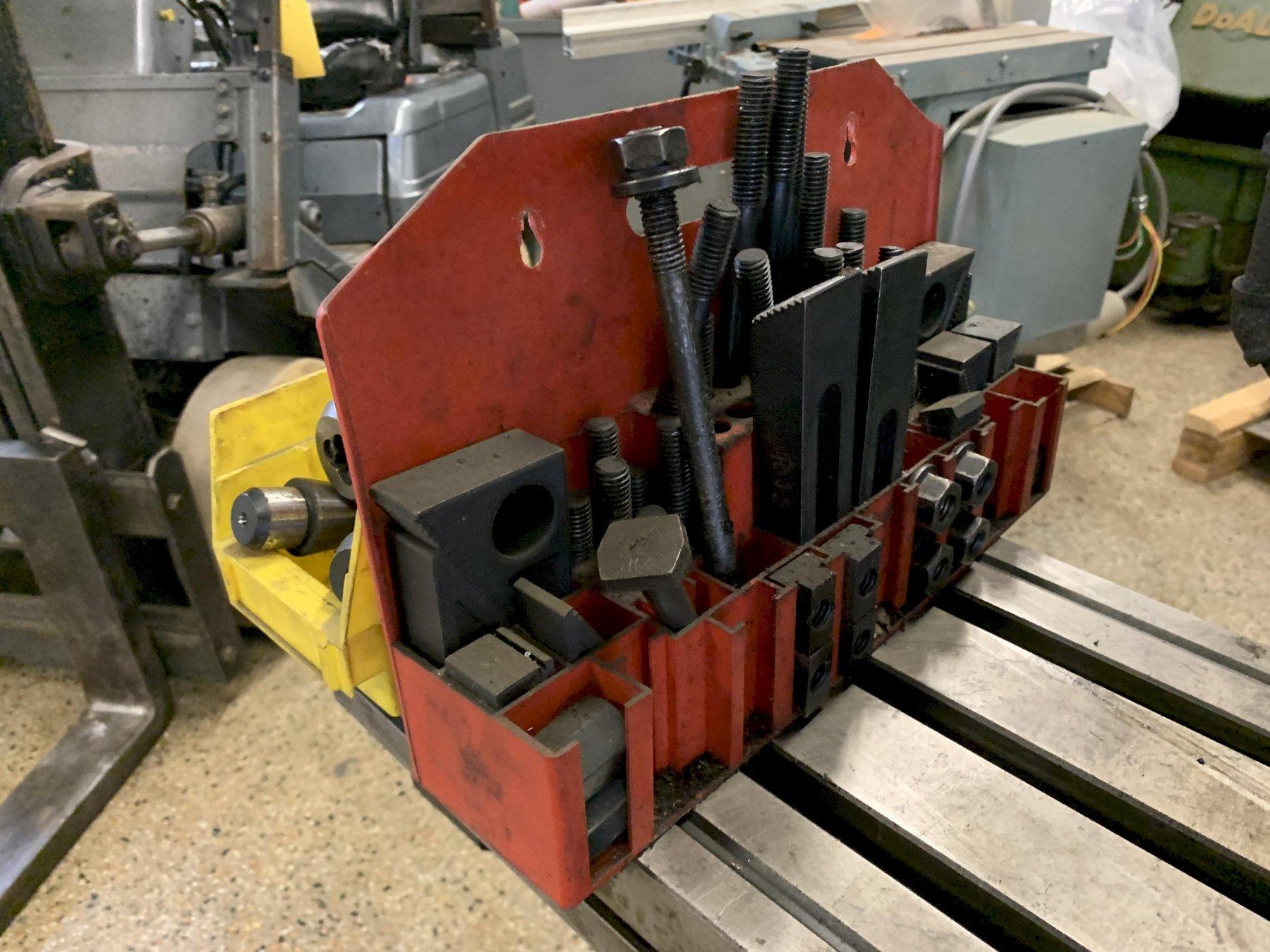

Clamp Kit
Import Power Table Feed
Power Drawbar

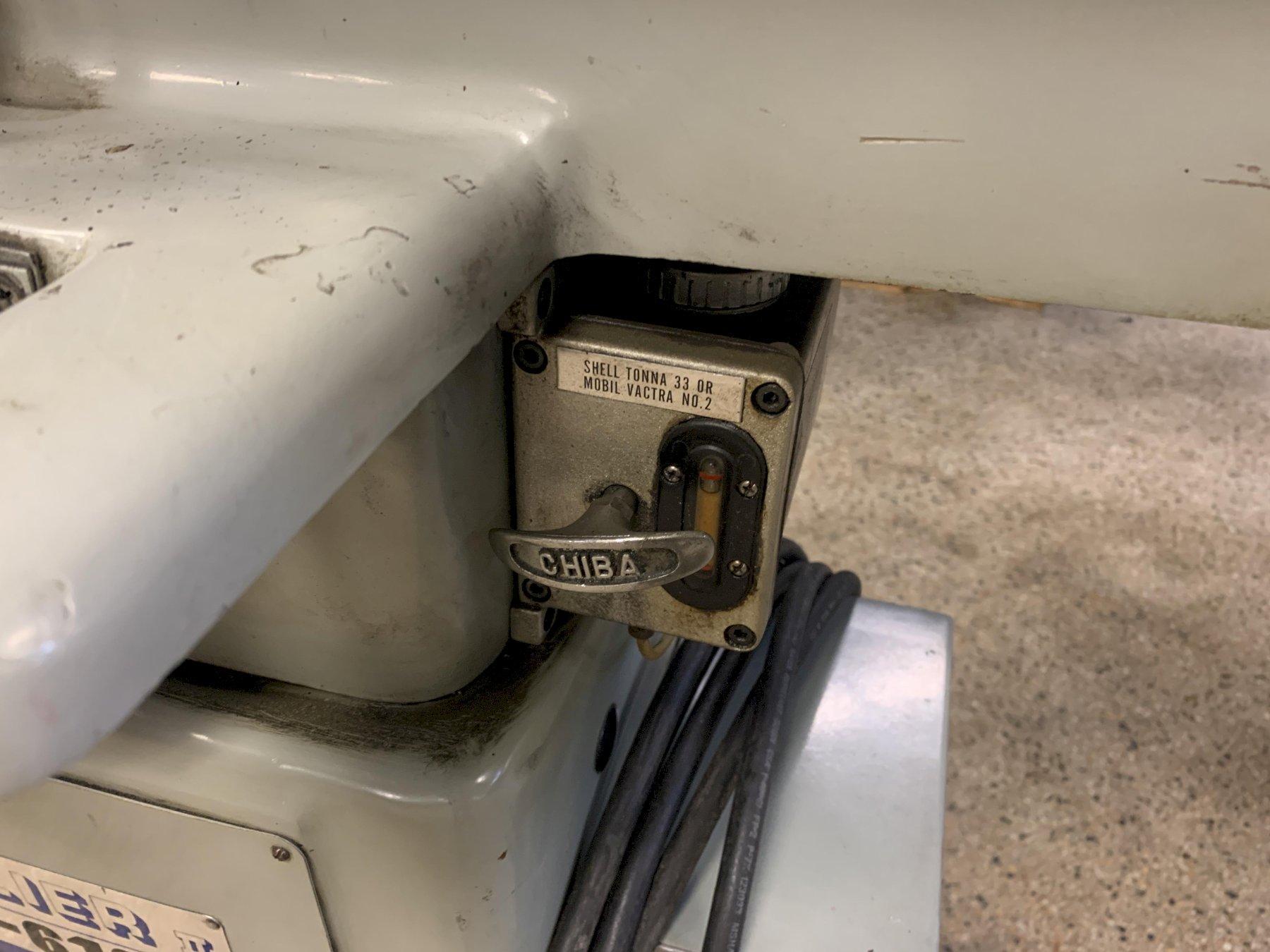

1-Shot Lubrication
Currently untested but will test run prior to loadout or on request. (reportedly some head noise)
Specifications subject to independent verification by the buyer.
Seller can load on to buyers truck.
