Specifications
Equipped With
Preliminary specifications:
Maximum Cutting Capacity:
Round: 12.8"
Square: 12.8" x 12.8"
Rectangle: 12.8" x 15"
Bundle Capacity: Width 7.5” to 11.8”, Height 2.8” to 5.5”
Blade Speed, Variable: 66 - 328 FPM
Blade Size: 1-1/4" x 150.4" x .042"
Blade Tension: Hydraulic (Automatic Blade Breakage Detection)

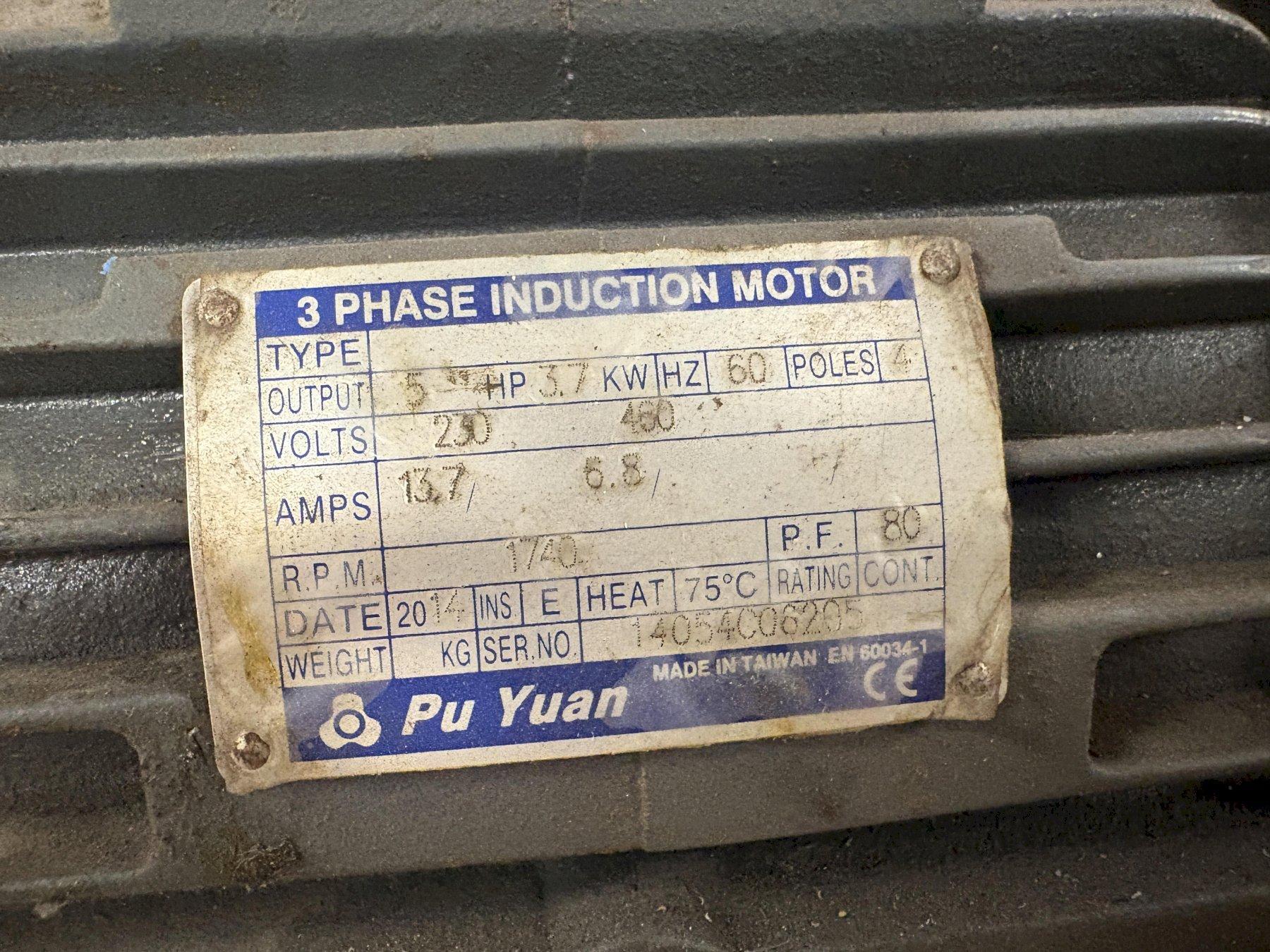

Saw Blade Motor: 5 HP
Hydraulic Motor: 1 HP
Coolant Motor: 1/8 HP
Automatic Material Feed System, Job Storage: Up To 100 Jobs
Single Index Stroke: 0 to 15.9"
Multiple Stroke Indexing: 0 to 999" (Featuring Automatic Kerf Compensation)
Weight: 3970 lbs.
Power: 230V, 3 Phase, 60 Hz
Shipping Dimensions: 77” x 85” x 66”
Floor Space (L x W x H): 80.5" x 79.3" x 53"
Bed Height: 28.37” (720mm)
Specifications subject to independent verification by the buyer.
Seller can load by appointment.
