Specifications
Equipped With
Preliminary Details:
Bending capacity: 0.187" to 0.500" OD
Maximum Standard Tube Length: 59" over mandrel
Maximum Bend Radius: up to 5"
Bend Rotation Speed: 240 deg per second (45 rpm)
Plane of Bend Rotation: 180 deg per second (30 rpm)
Collet Rotation: 360 deg per second (60)

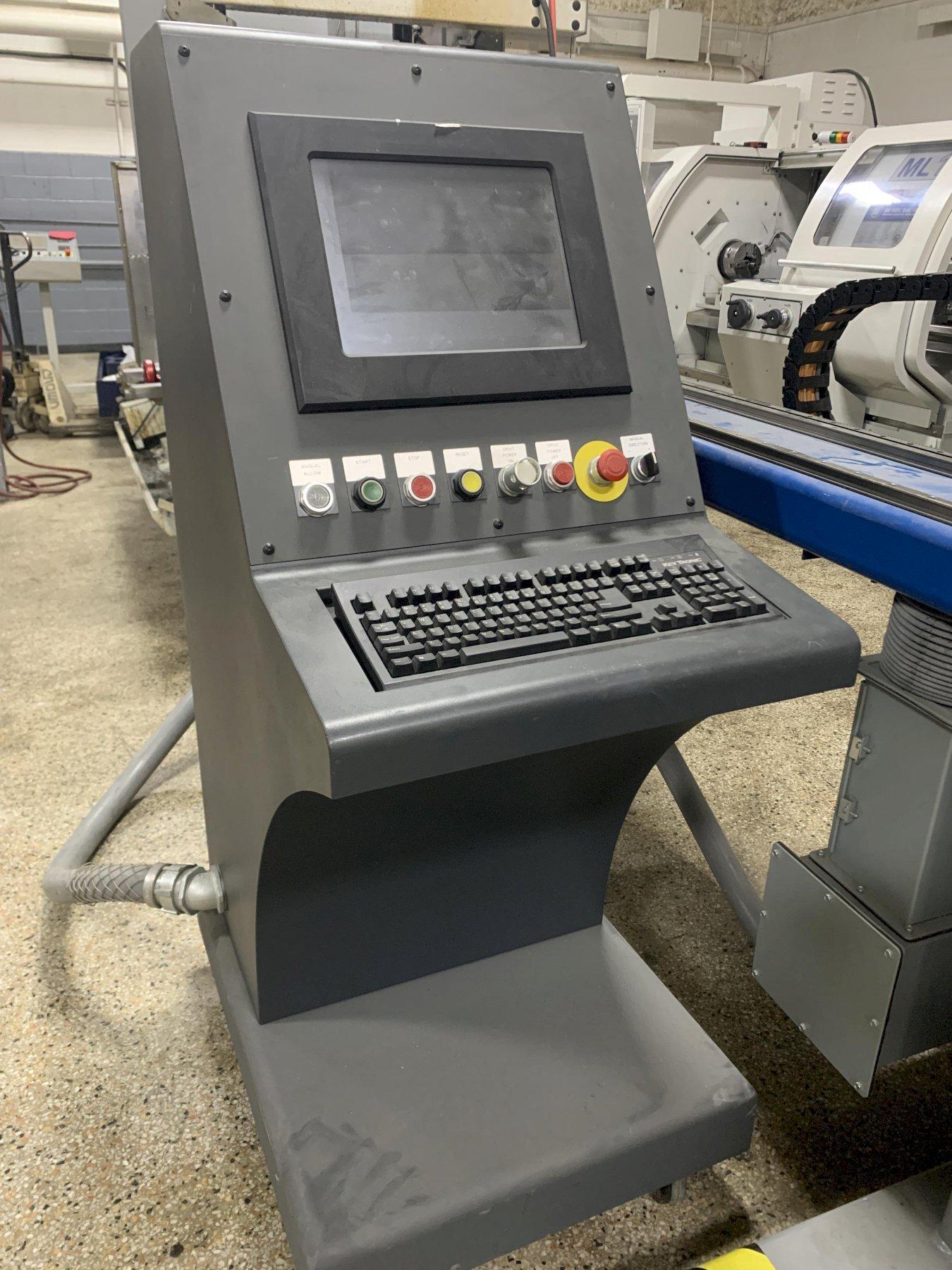

Control System - Eaton Leonard CNC with monitor, full keyboard, emergency stop, and multi-button operator panel. Supports X, Y, Z and LRA programming for lengths, rotations, angles.

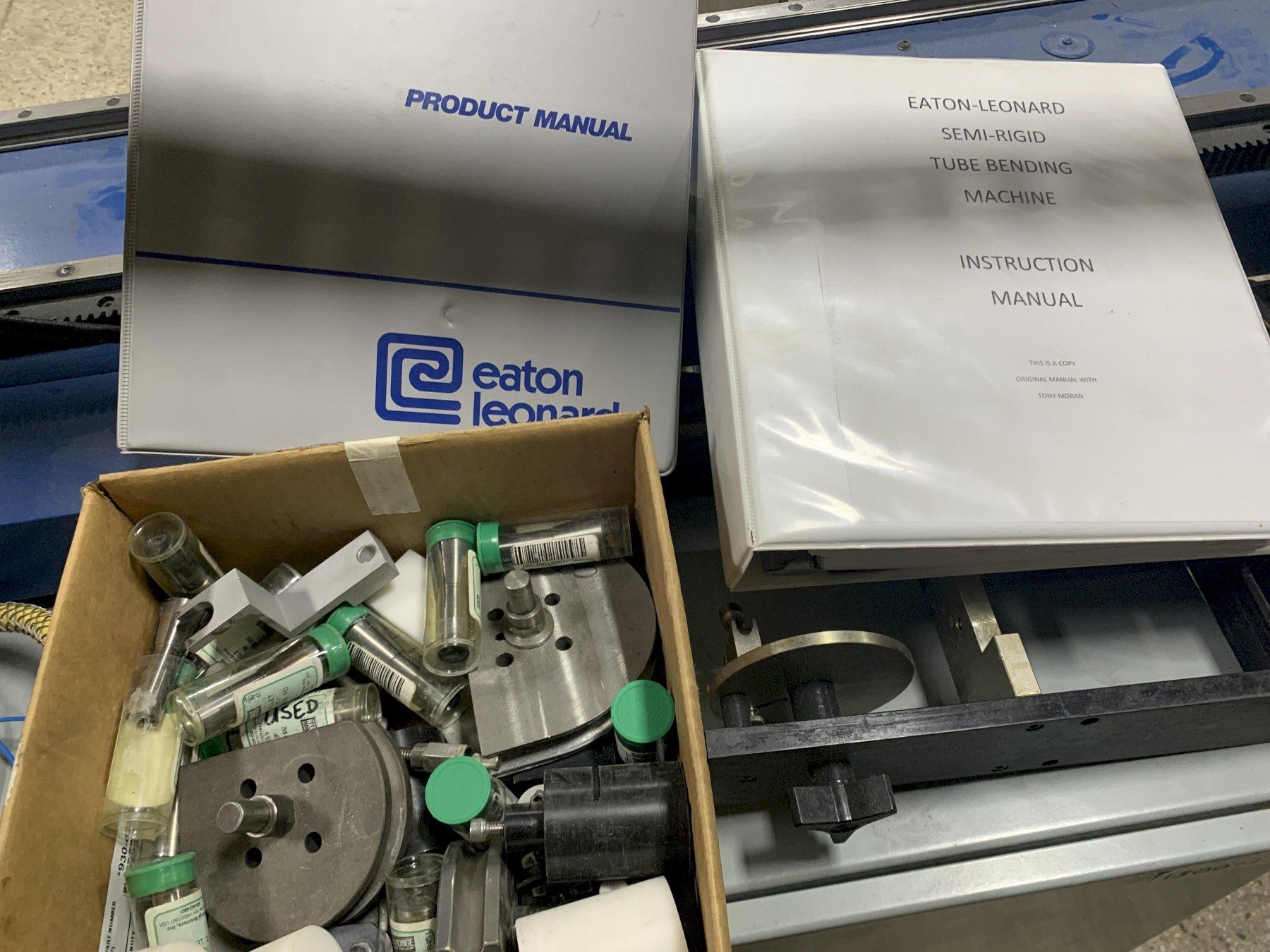

Includes misc tooling, manuals.
Excellent condition, low hours, well maintained as from Fortune 500 Aerospace Facility.
Specifications subject to independent verification by the buyer.
