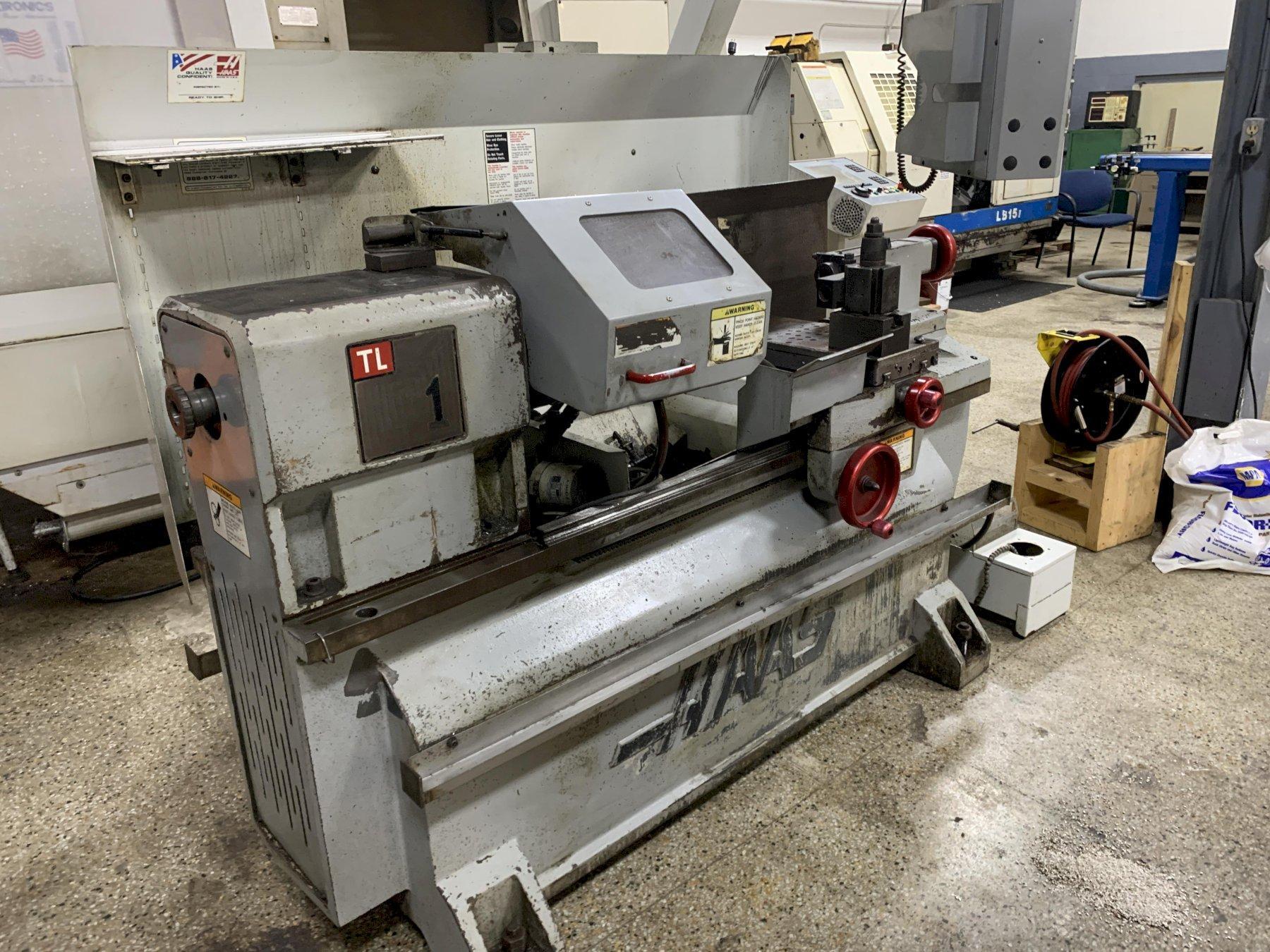

HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
  • HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
  • HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
  • HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
  • HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.
  • HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.

HAAS Model TL-1 CNC Flat Bed Lathe, S/N 70319, New 2005.

Brand
HAAS

Model
TL-1

Type
Lathes, CNC

Stock #
34975T

Condition
Used

Year
2005

Location
Dayton, Ohio
United States

Price
$6,450.00

Request Quote

Specifications

CNC Control yes

Equipped With

Specifications:

  • Between Centers – 30”
  • Max Cutting Dia – 16”
  • Max Cutting Length – 30”
  • Max Spindle Speed – 1800 RPM
  • Max Spindle Motor Rating – 7.5 HP
  • Spindle Nose – A2-5
  • Spindle Bore – 2.31”
  • Swing Diameter Over Front Apron – 16”
  • Swing Diameter Over Cross Slide – 9.5”
  • X-Axis Travel – 8”
  • Z-Axis Travel – 30”
  • Weight, Approx – 4000 Lbs.

Equipped with:

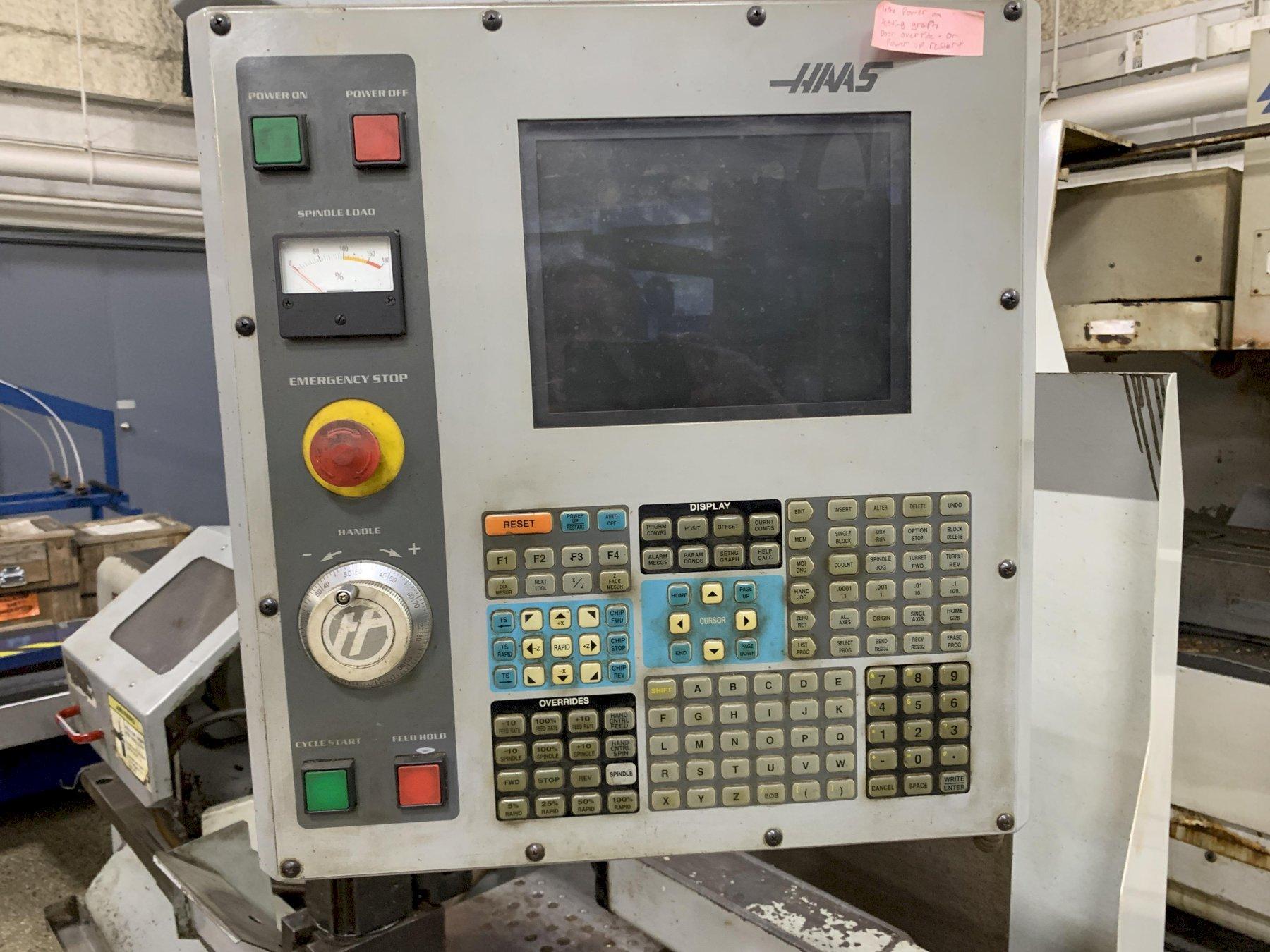

  • Haas CNC Control
  • 8” 3-Jaw Chuck

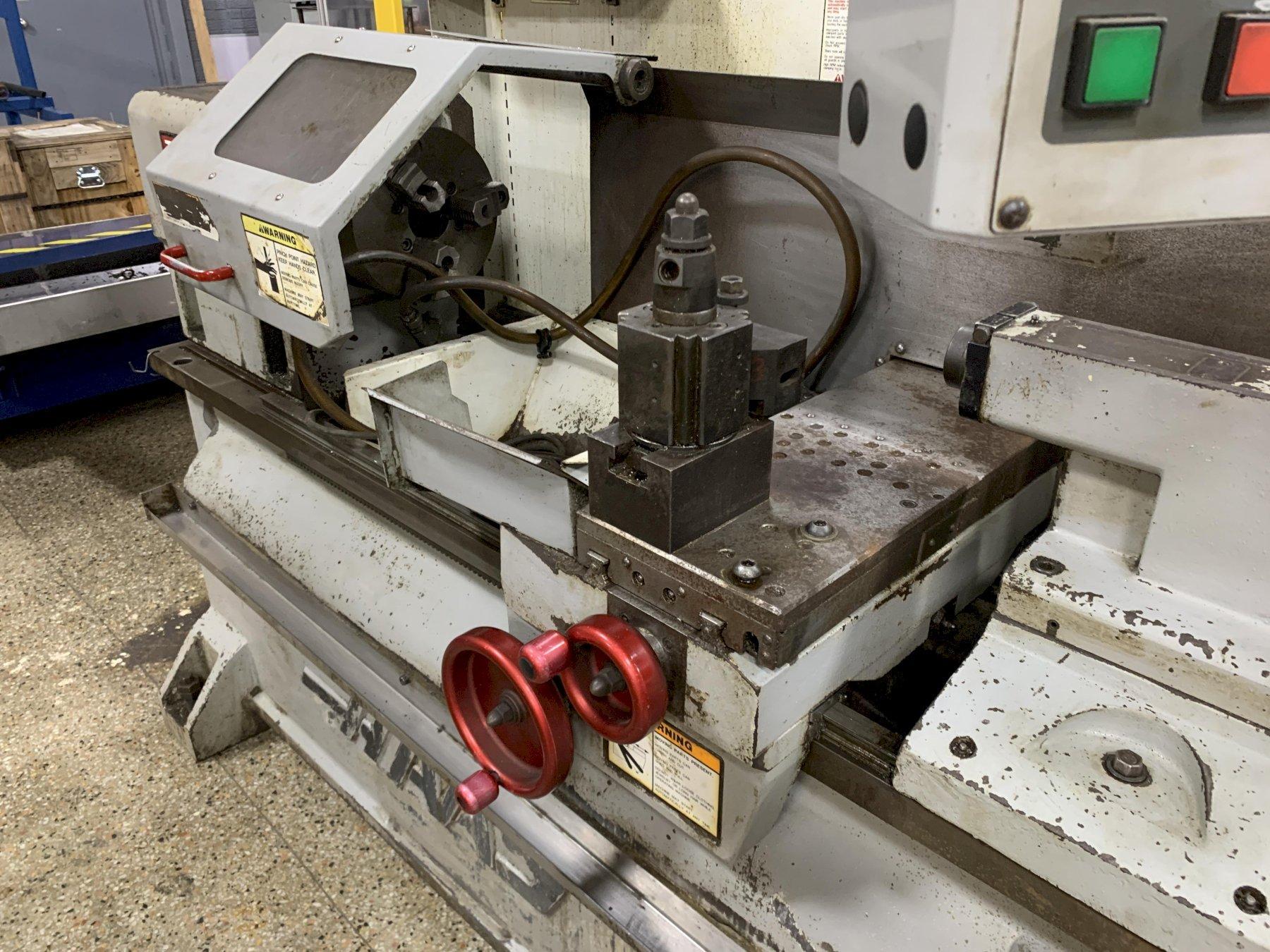

  • Quick Change Toolpost
  • Manual Tailstock
  • Coolant Pump
  • Work Light
  • Manuals
Notes:
Machine is offered as is with any and all faults. It was operational when removed from service but screen was inconsistent and shut off after being on a while. Not sure if LCD, Power Supply Video Board, Etc .....
Specifications subject to independent verification by the buyer.
Seller can load at no extra charge. Buyer responsible for shipping.
