Specifications
Equipped With
Specifications:
Travels (XYZ) - 40" x 20" x 17.5"
Table Size - 20" x 44"
Distance from table surface to spindle nose - 5.9" to 23.6"
Distance from column front to spindle centerline - 25.1"
Max Weight on Table - 1653 Lbs.
Spindle Taper - CT40
Speed Range - 120 to 12,000 rpm
Spindle Power kW / hp:
10 min - 11 kW / 14.75 hp
30 min - 7.5 kW / 10 hp
Cont - 5.5 kW / 7.4 hp
Rapids (X&Y) - 1574 ipm
Rapid (Z) - 944 ipm
Cutting Feeds (XYZ) - 590 ipm
ATC Capacity - 20
Weight, Approx - 18,000 lbs.
Features:
Seicos Sigma 18M CNC Control

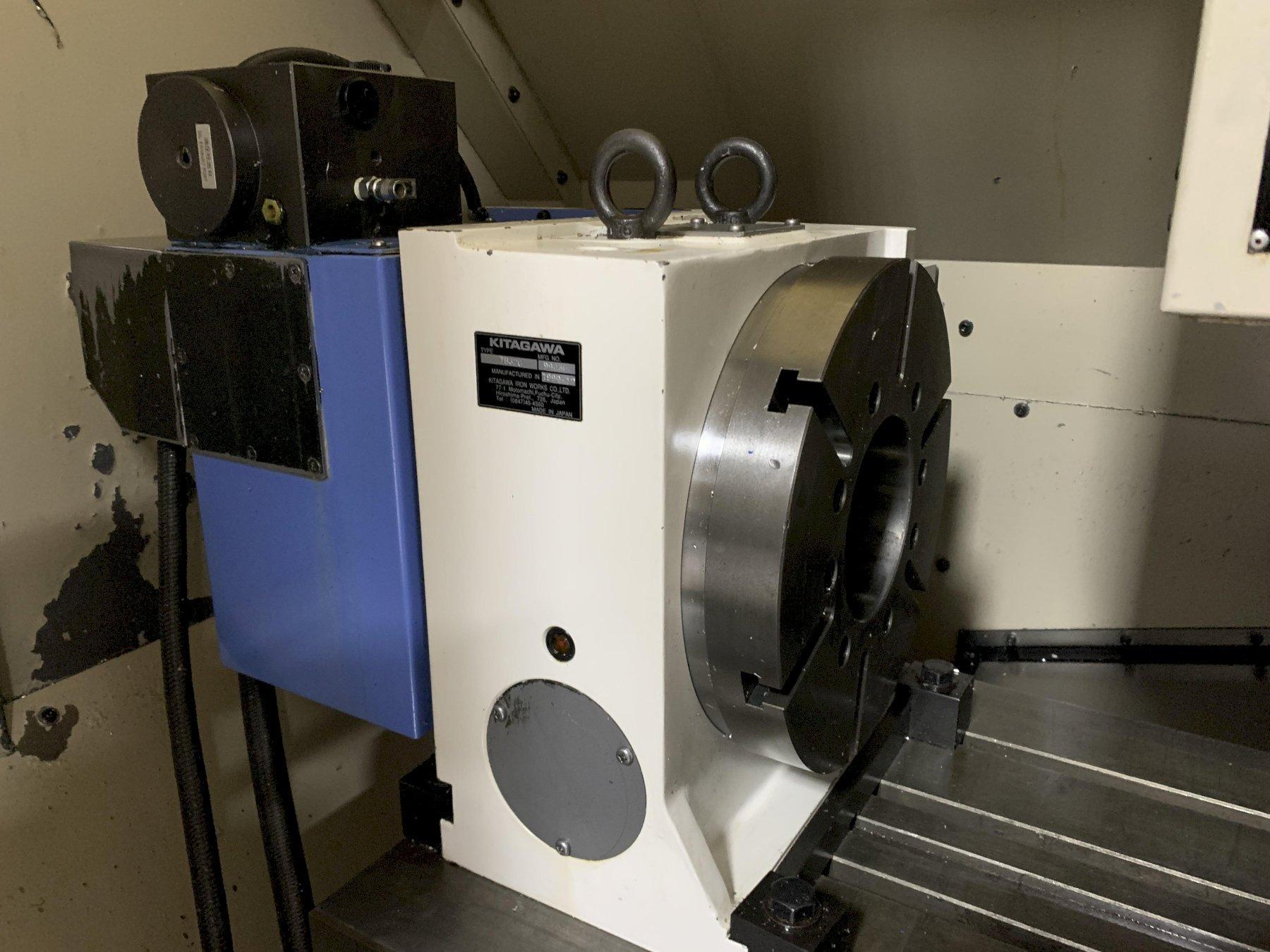

12" diameter Kitigawa 4th Axis Rotary Table

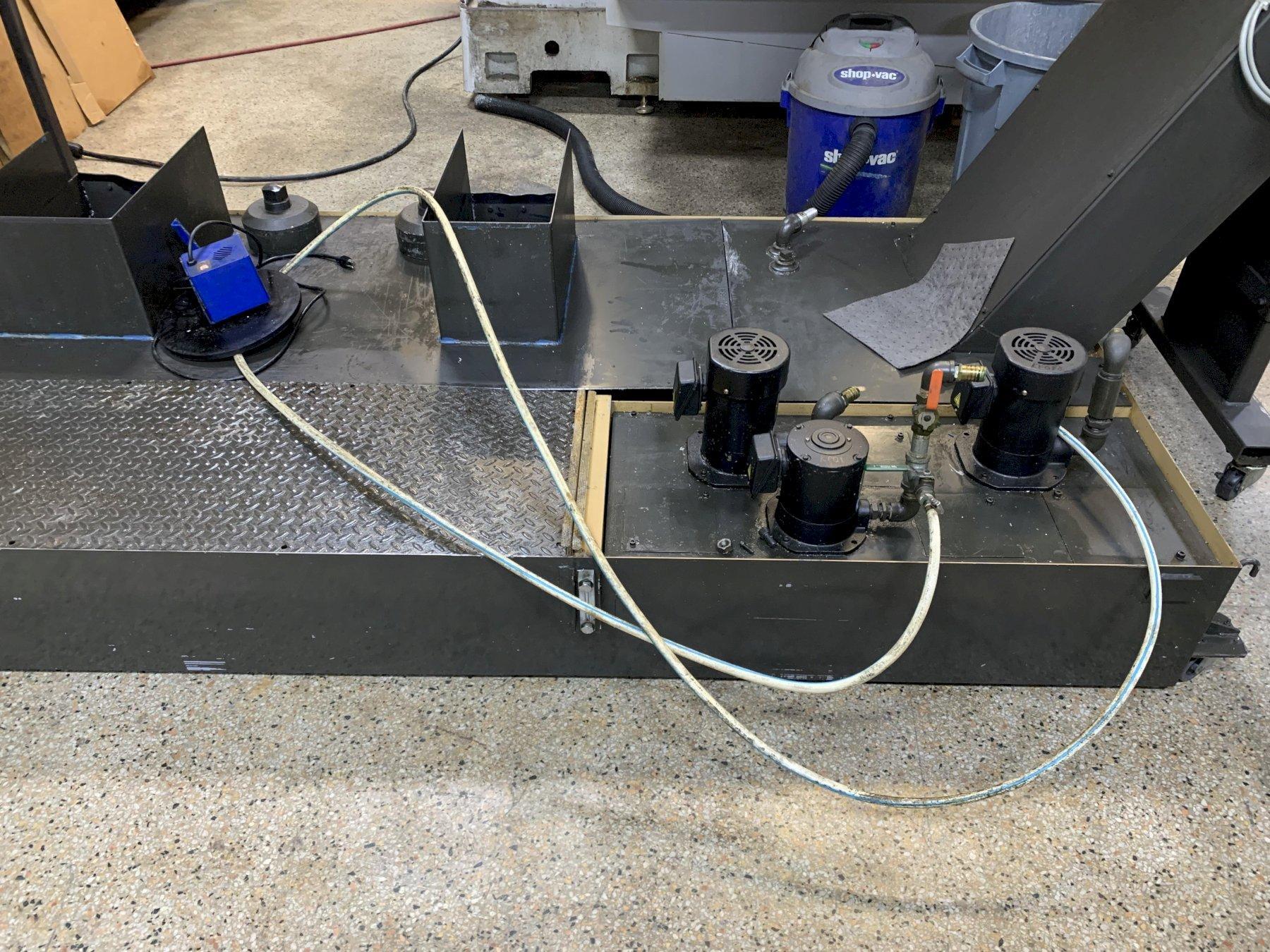

Mayfran Rear Exit Chip Conveyor
Direct Tapping
Bridge Type Construction
Full Enclosure
Coolant System
Spindle Chiller
Transformer 230-208V
Manuals
Specifications taken from sources deemed reliable and subject to independent verification by the buyer.
Offered on consignment for local customer. No warranty or return privilege.
Offered as is, as removed from service.
Buyer responsible for rigging and shipping.
