Specifications
Equipped With

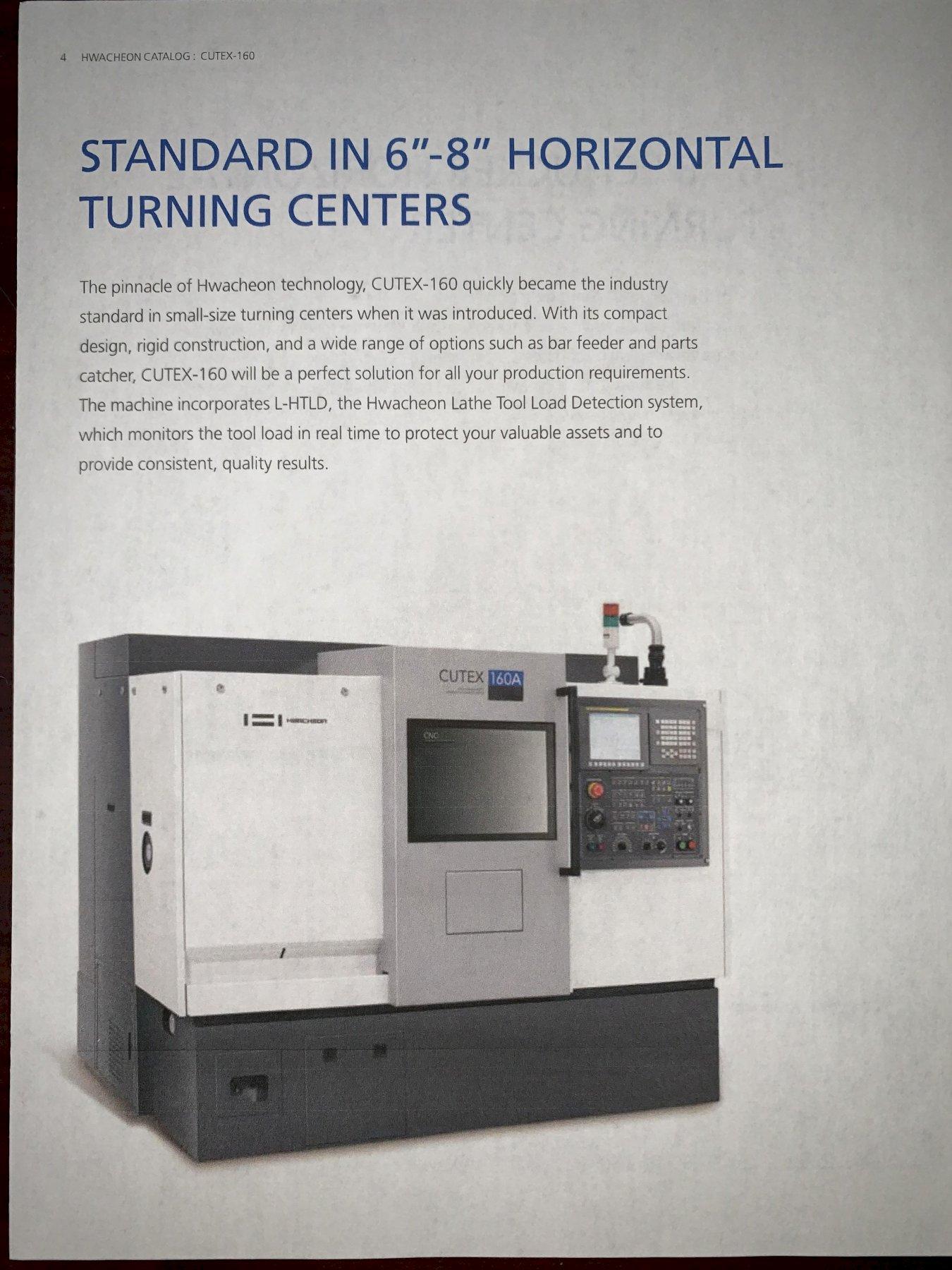

Factory Brochure Specifications:
Swing over bed - 21.65"
Max cutting diameter - 11.81"
Standard cutting diameter - 6.69"
Max cutting length - 11.81"
Chuck size - 6"
Type of spindle nose - A2-5
Max spindle speed - 6000 rpm
Through hole spindle diameter - 2.20"
Max bar size - 1.77"
Spindle motor - 15/10 hp
Turret tool stations - 12
Turret index time - 0.15 sec / step
Max rapid rate X/Z -1417.32 ipm
Tailstock quill dia - 2.36"
Tailstock quill stroke - 3.15"
Tailstock taper hole - 4mt
Height - 67.72"
Floor space (LxW) - 83.47" x 59.84"
Weight, approx - 7055 lbs.
Equipped with:

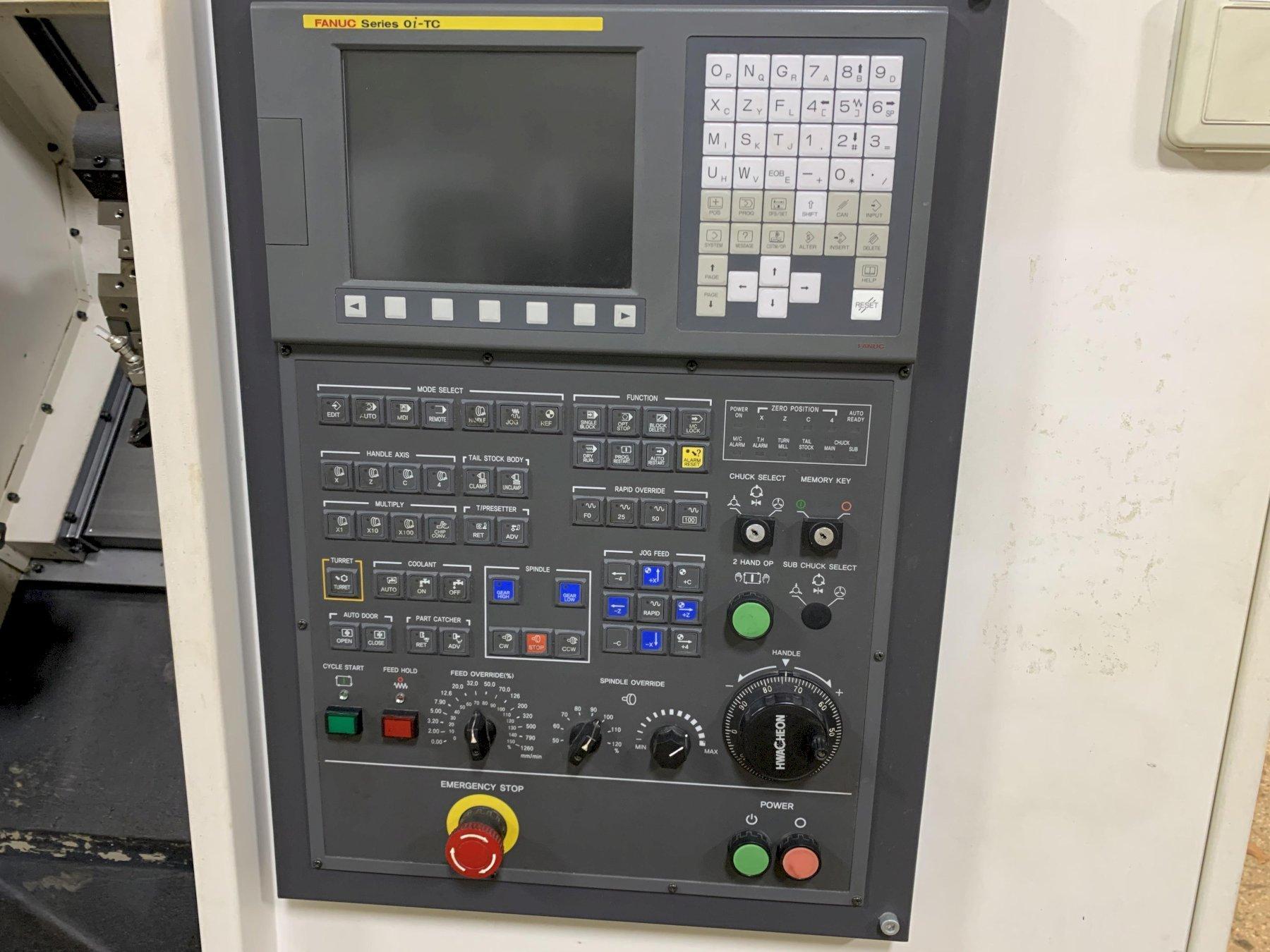

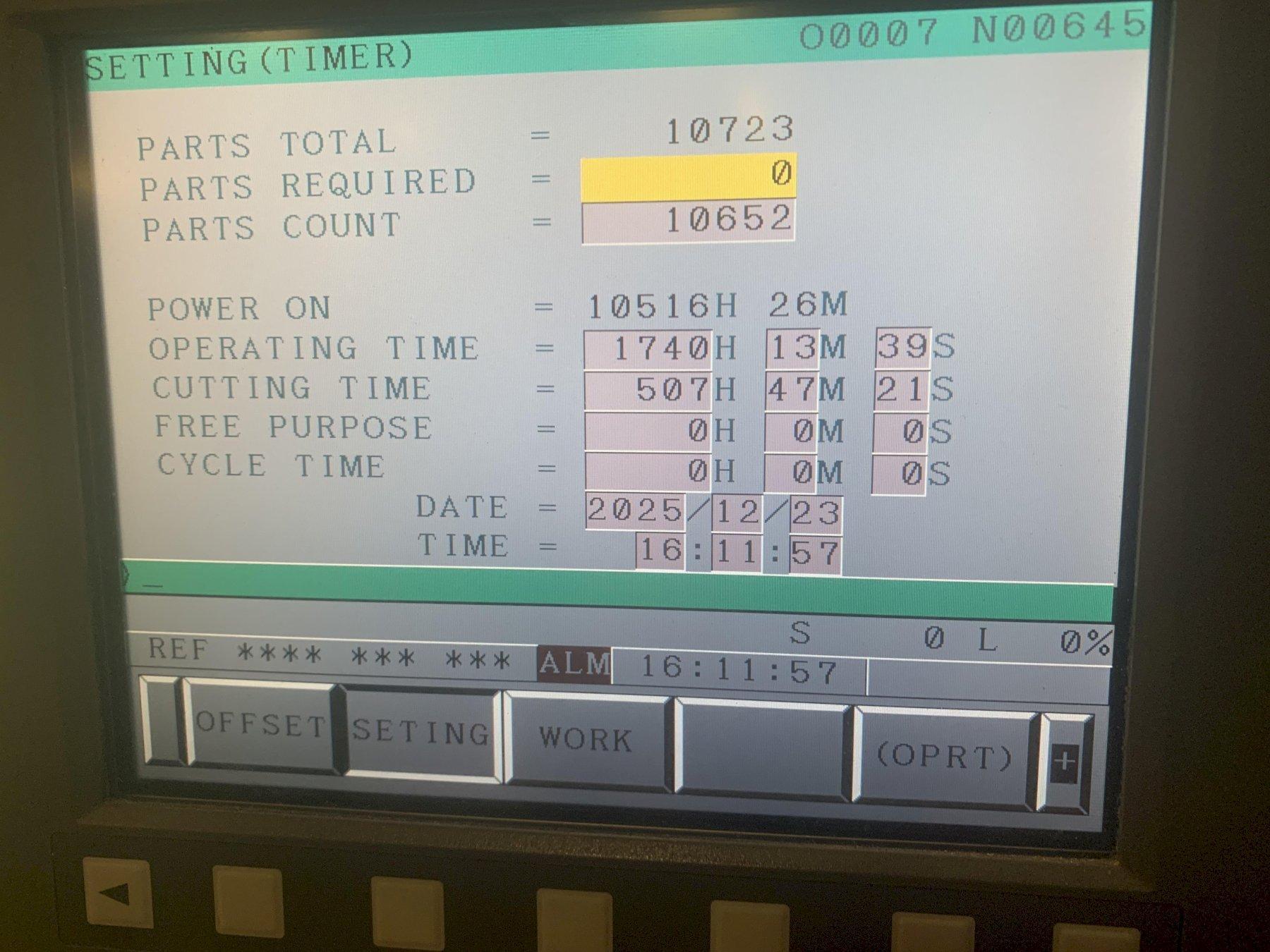

Fanuc 0i-TC control

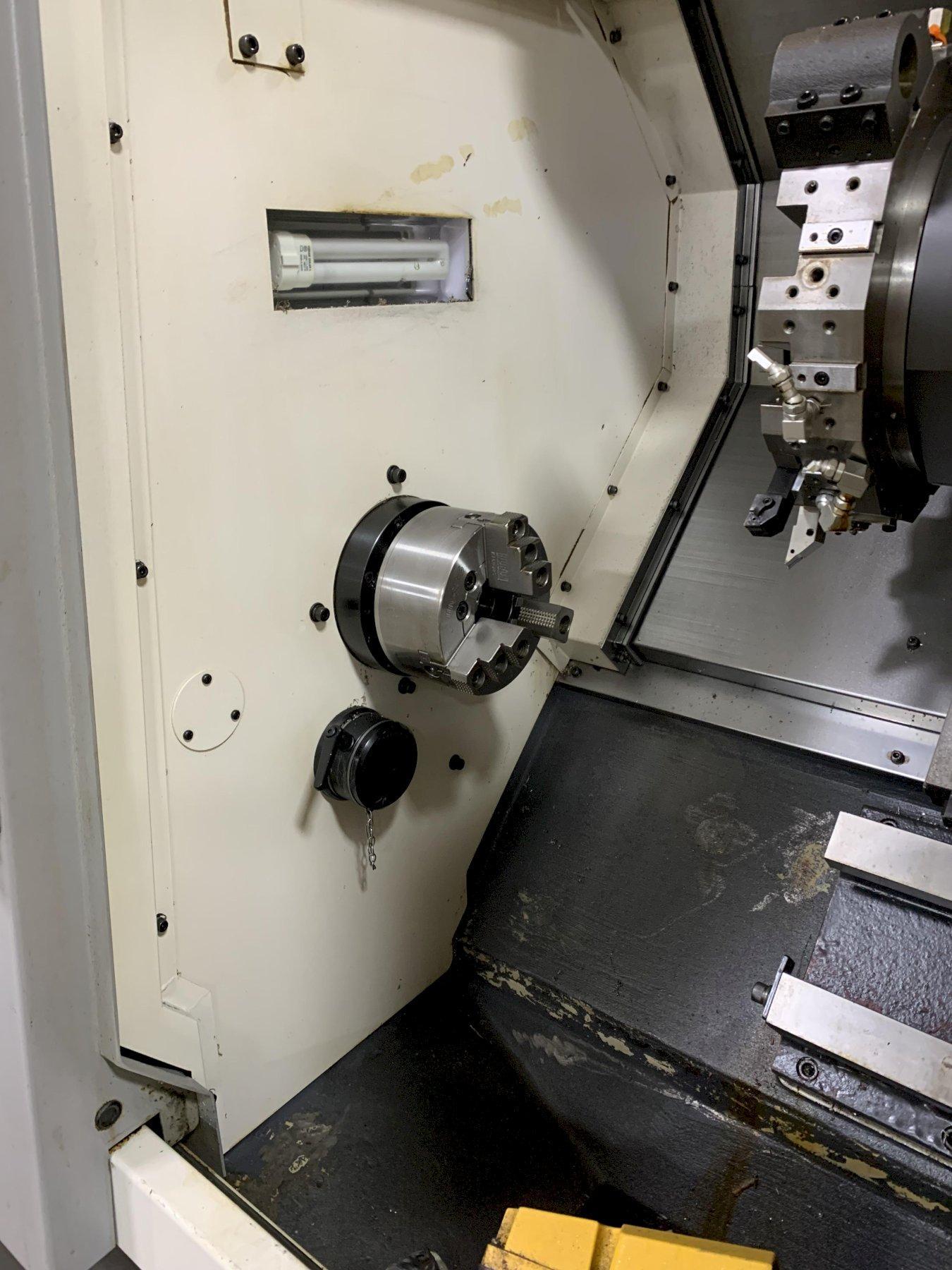

3-Jaw Chuck

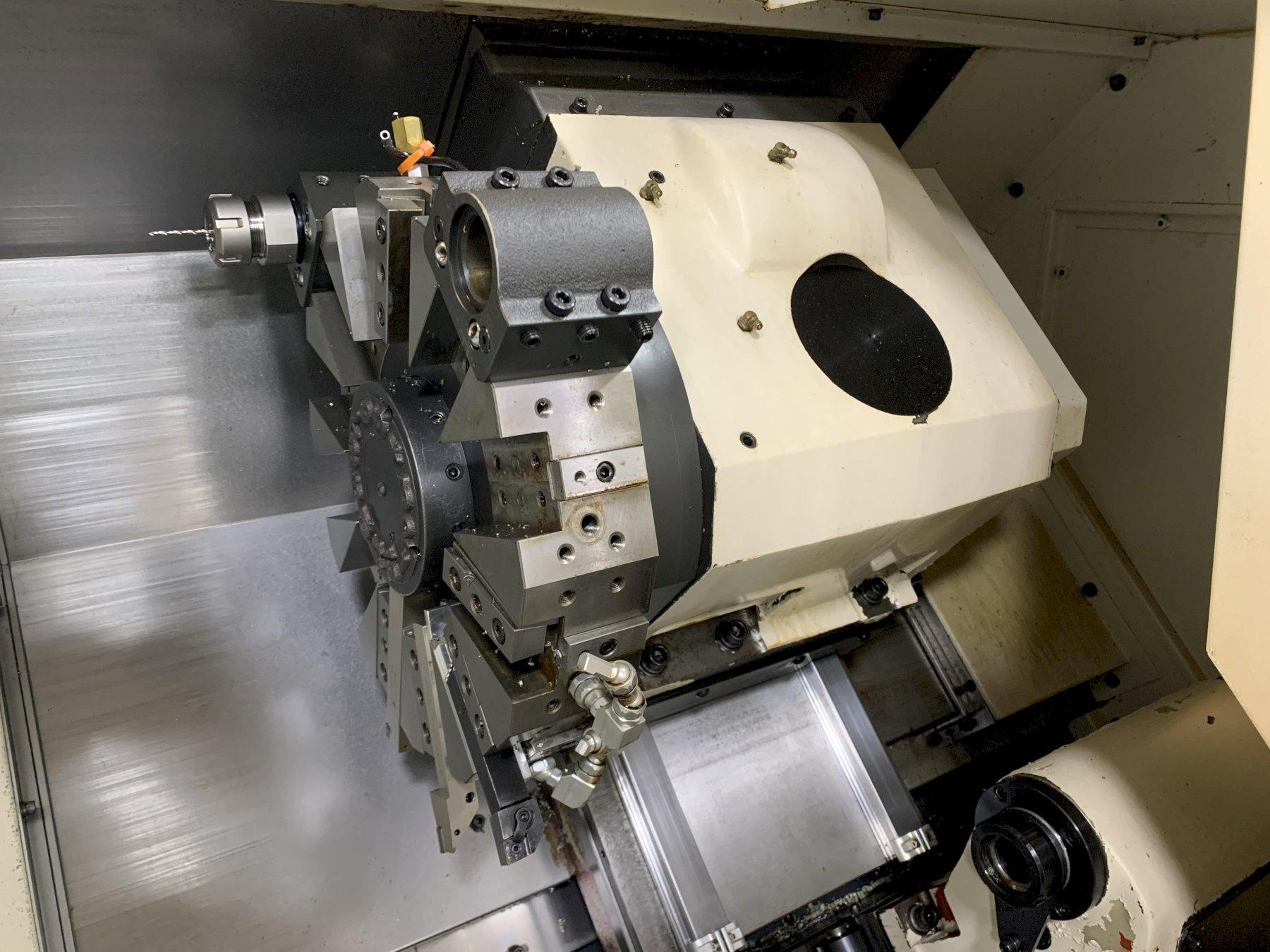

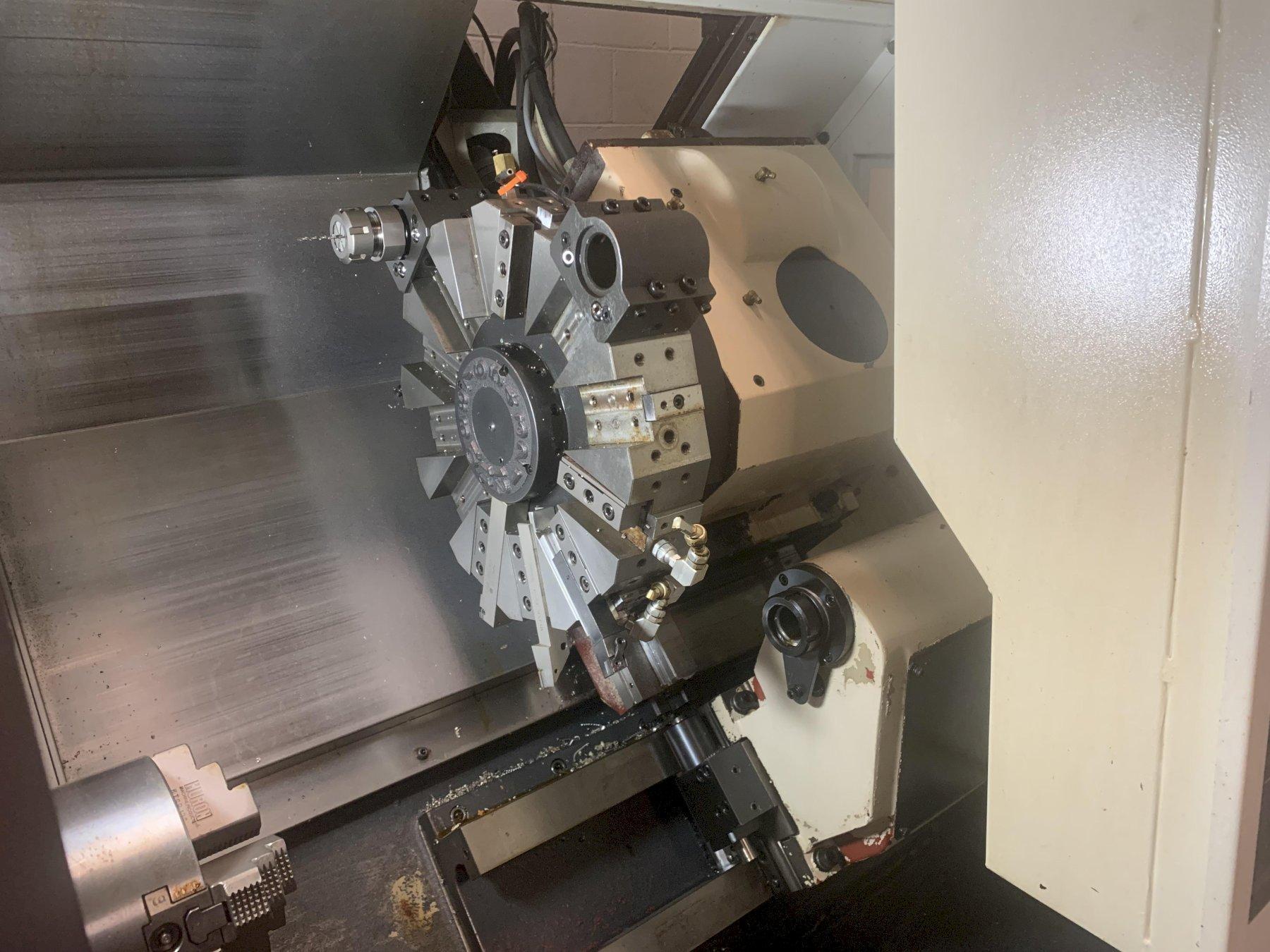

Misc Turret Tooling as shown

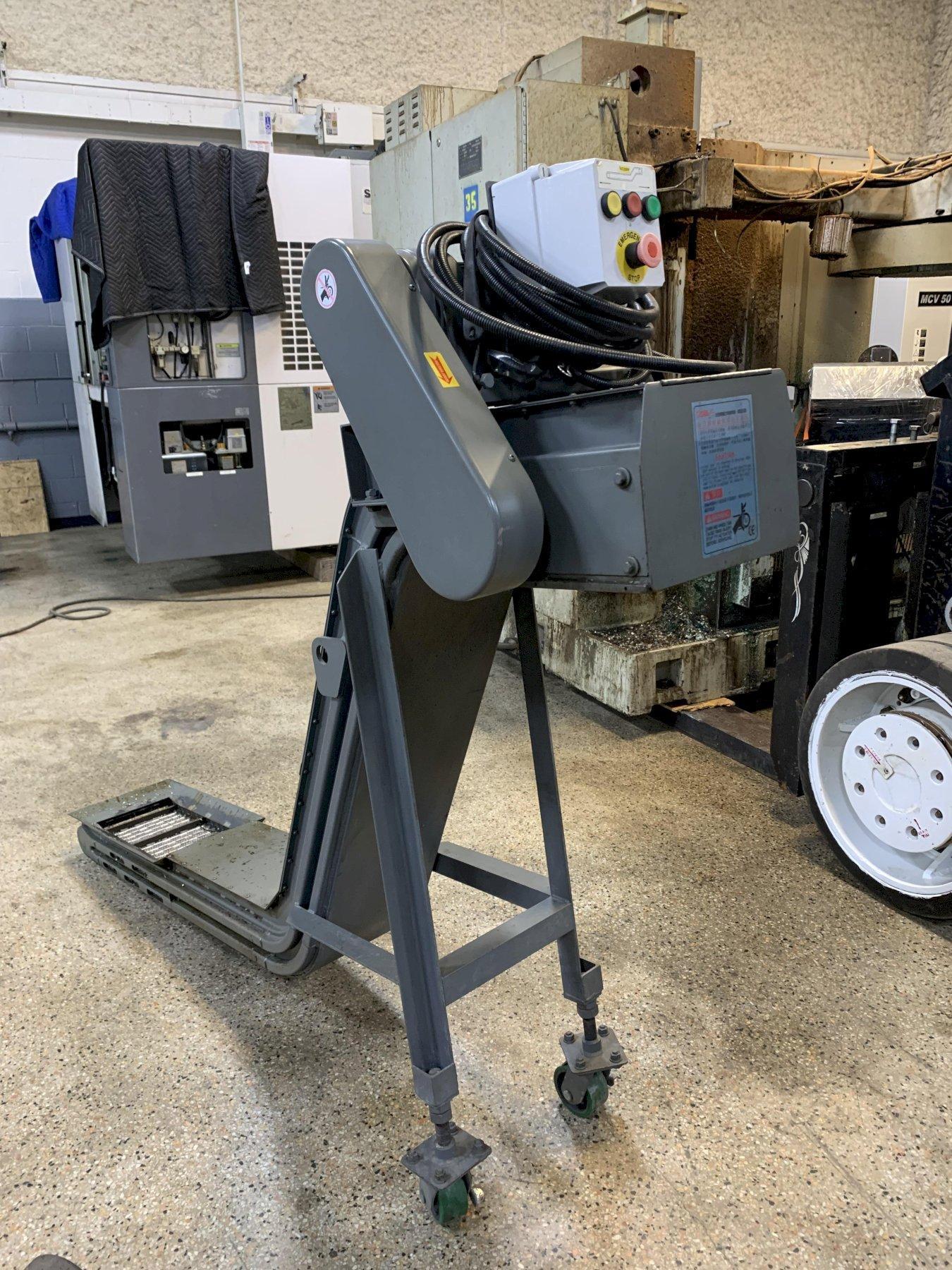

Chip Conveyor

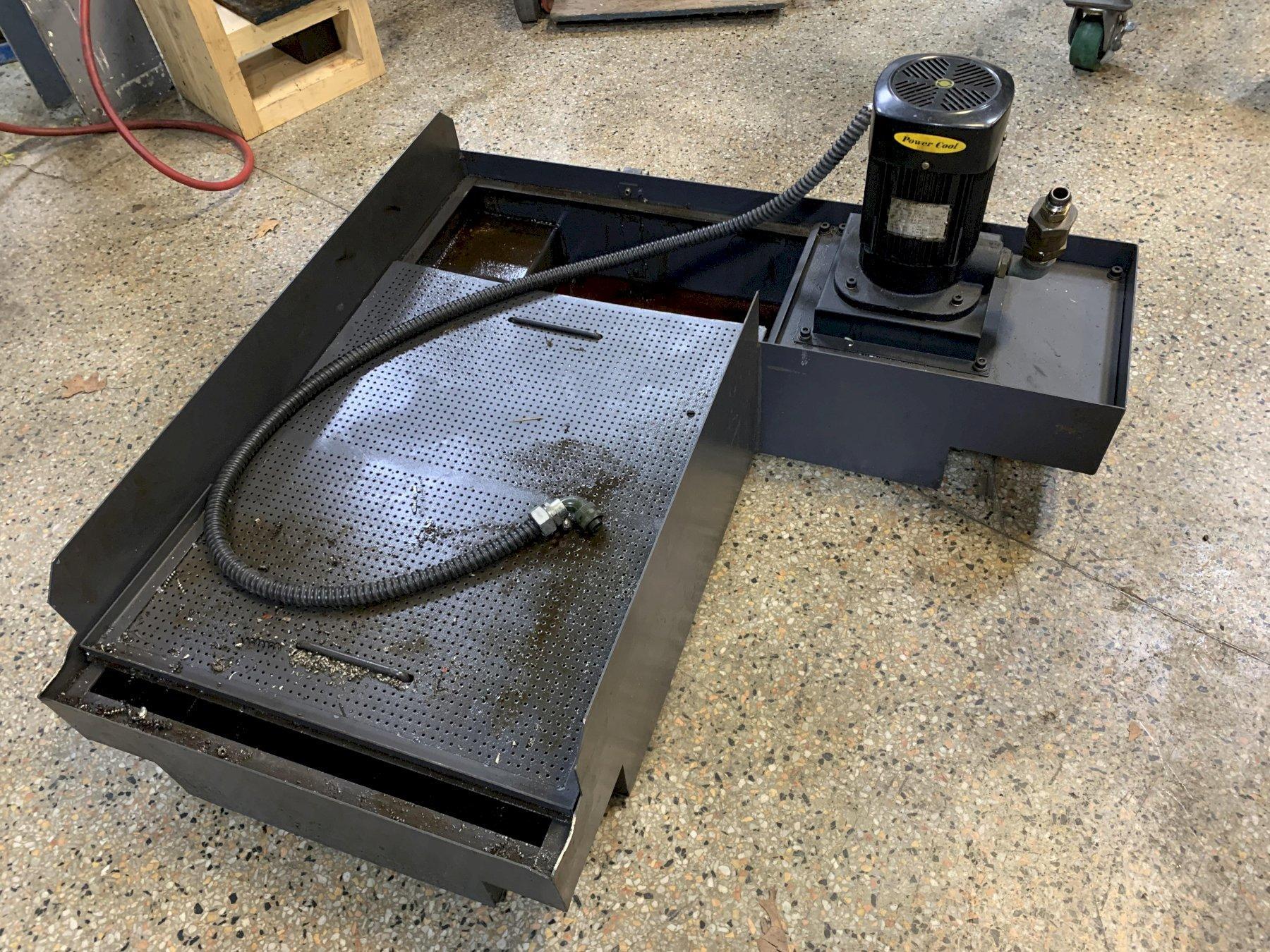

Coolant pump

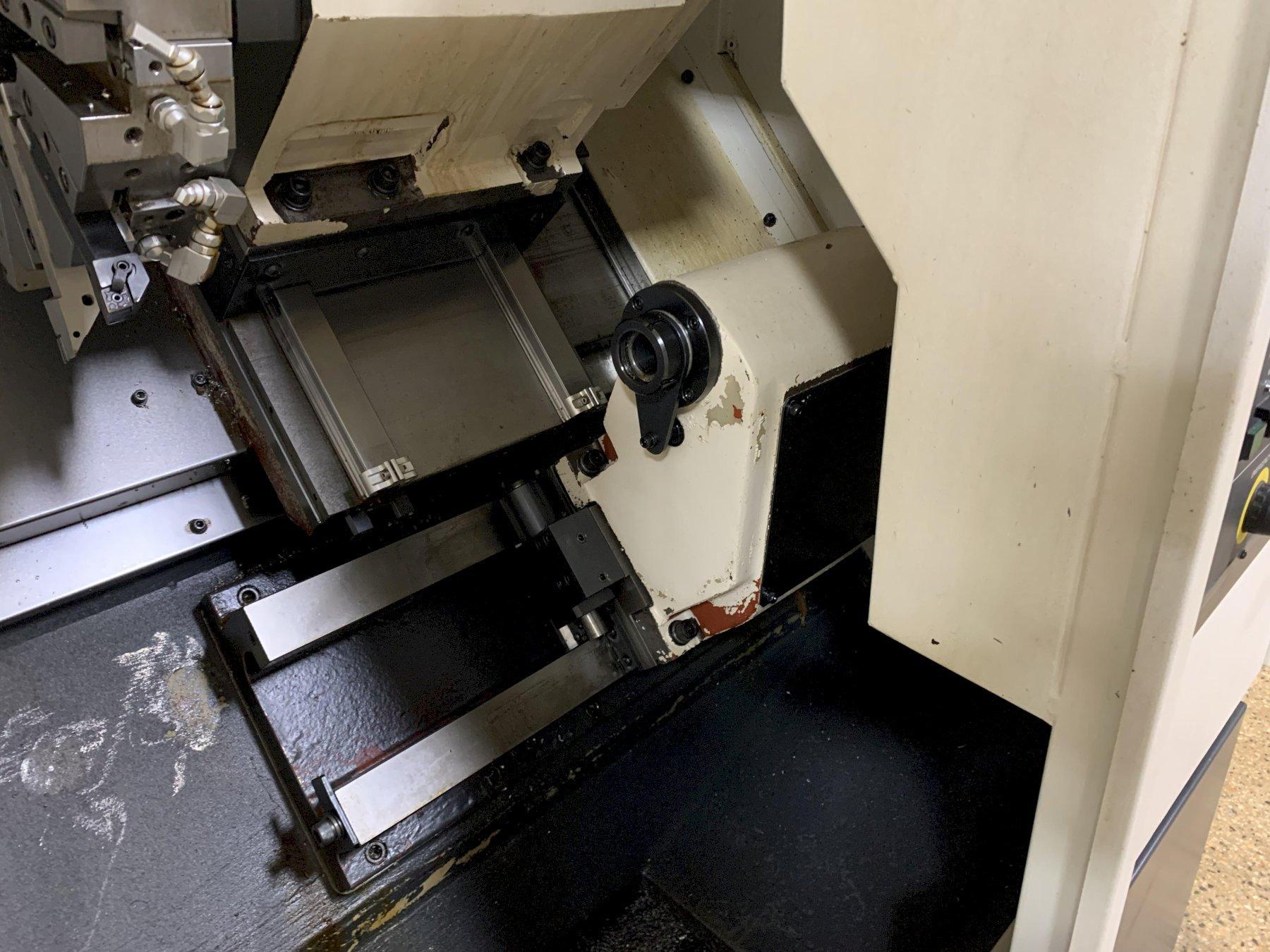

Live Center
* Seller loads by appointment. Must ship via air ride truck.
* Specifications subject to independent verification by the buyer.
* Availability pending
