Specifications
Equipped With
Distance between centers 39-3/8"
Height of centers 6-57/64"
Max Swing over table 13-25/32"
Max table travel 43.25"
Traverse per rev of handwheel, coarse/fine .79/.097"
Traverse speeds (variable) .06-19"
Min movement to reverse table 1/16"
Max table swivel 9 deg
Dwell reversal, variable 0-5 sec
Max wheelslide travel 10-5/8"
Rapid advance & withdrawl .16/.02"
Sparking (seconds or strokes) 0-99
Wheelhead grinding wheel 16"x2.5"x5"
Grinding wheel for right hand spindle end 9"x.75"x3"
Spindle speeds 1530/1750/2040/2450 rpm
Workhead swivel 360 deg

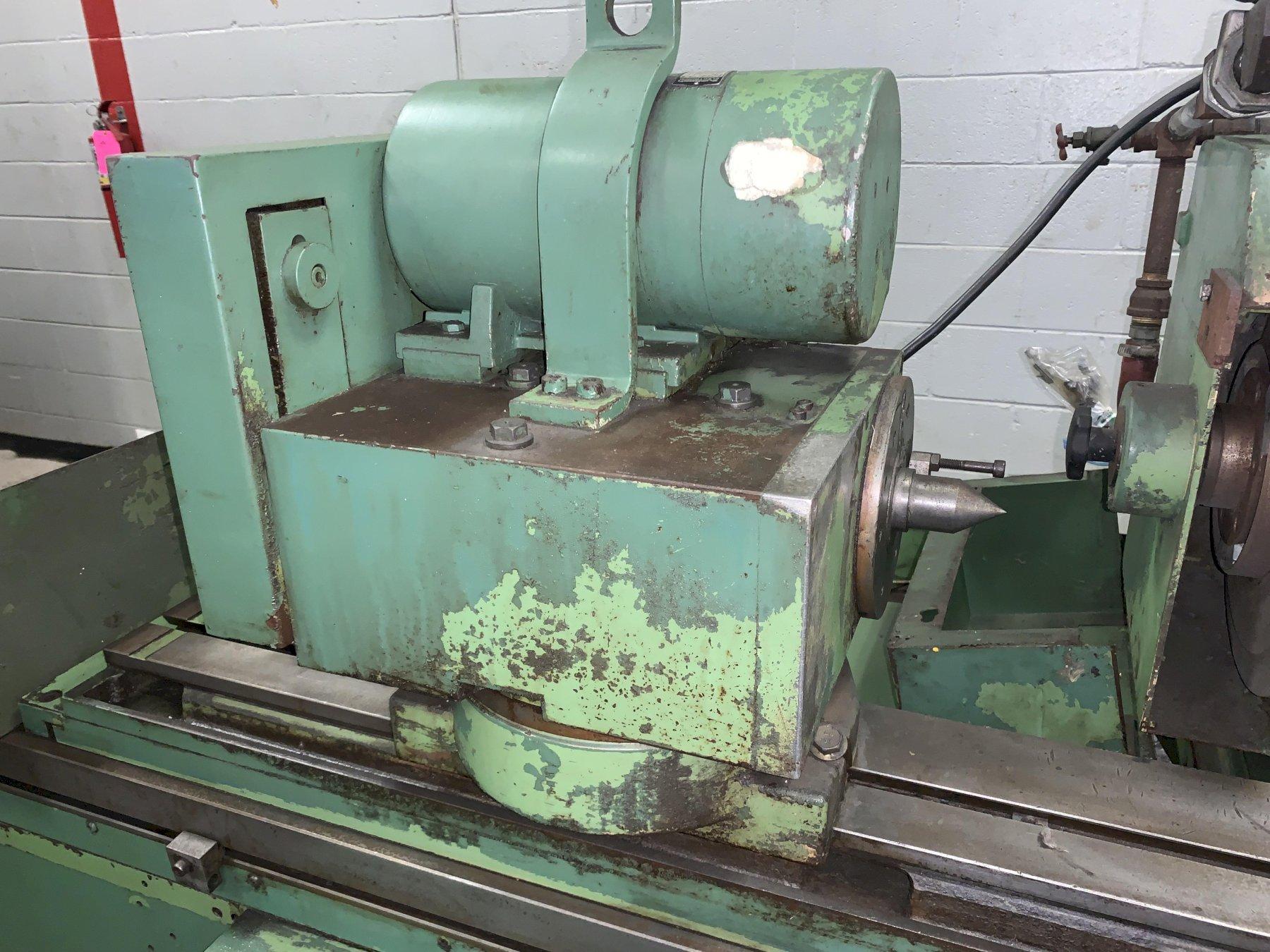

Workhead speeds (variable) 20-400
Workhead Taper MT5

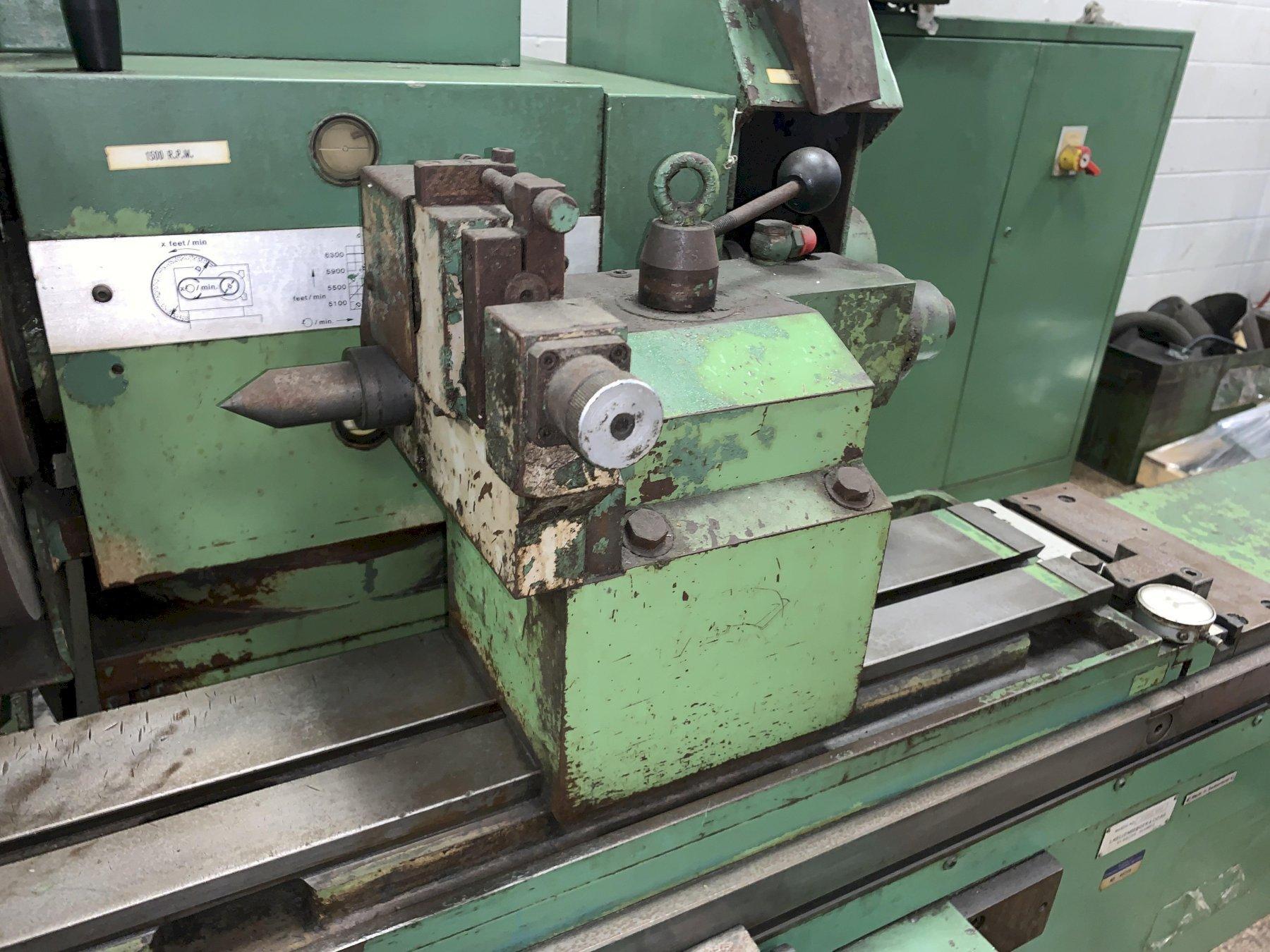

Tailstock taper MT3
Quill retraction 1-3/16"
Wheelhead motor 3000 rpm, 10HP
Workhead motor 150-3000 rpm, 3HP
Floor Space required 157"x80"
Machine weight 6900 lbs
Offered on consignment. No warranty or return.
Specification subject to independent verification by the buyer.
Seller can load. Buyer responsible for freight.
