Specifications
Equipped With

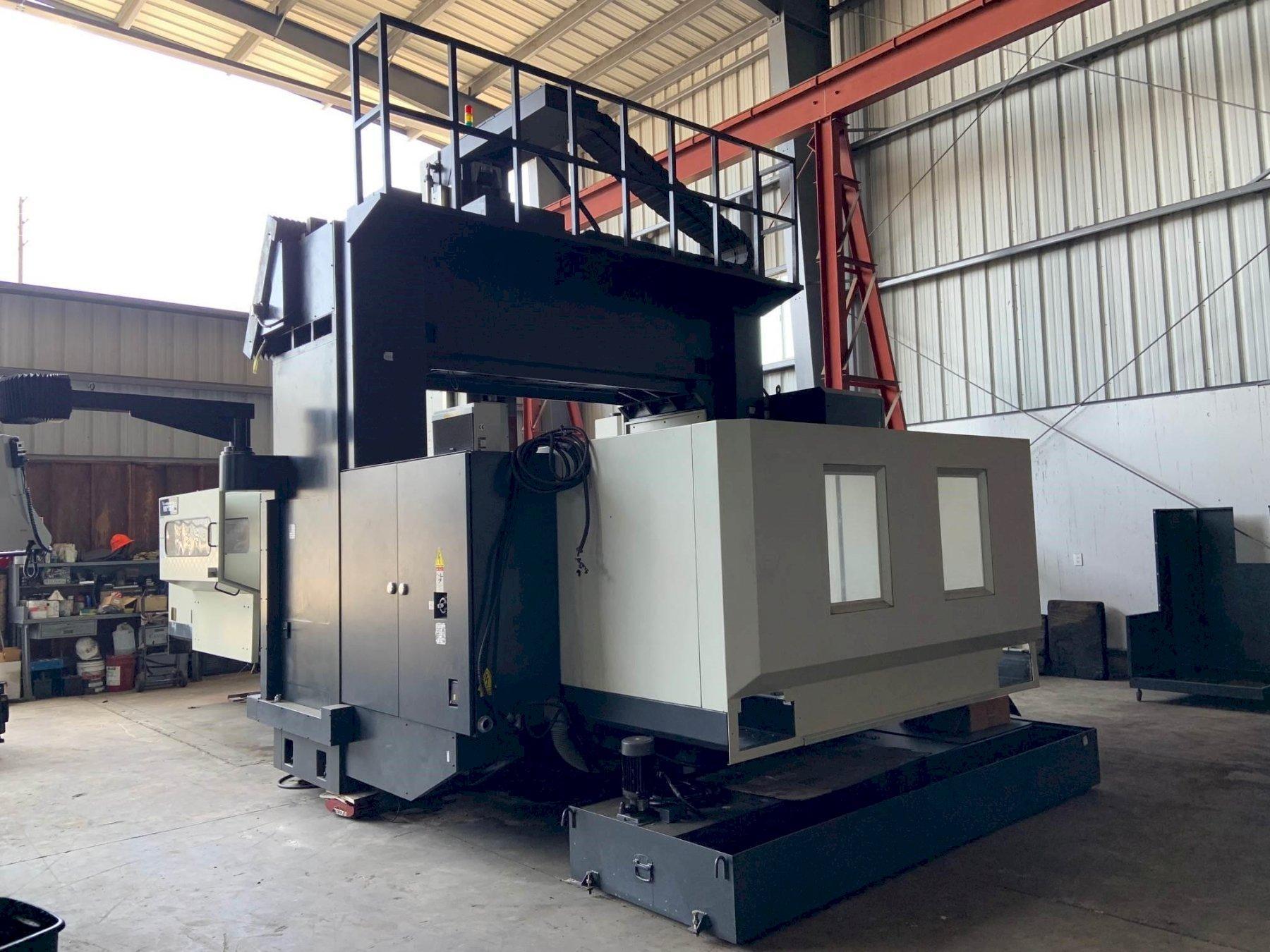

VMC-DZ-3240AG/30HP/M730 VERTICAL MACHINING CENTER
CONTROL:
-MITSUBISHI M730
WORKING TABLE:
-WORKING SURFACE:125.98"X80.31"
-T-SLOT:0.87"Wx7x7.09"P
-MAX TABLE LOAD:24,250LBS
TRAVEL:
-X=120.08", -Y=94.49", -Z=42.13"
-DISTANCE FROM SPINDLE END TO TABLE: 15.35”-57.48"
-WIDTH BETWEEN COLUMN: 98.82"
-DISTANCE FROM SPINDLE CENTER TO COLUMN: 16.22"
SPINDLE:
-SPINDLE TYPE: GEAR
-SPINDLE SPEED: 6000RPM
-SPINDLE NOSE TAPER: #ISO50
FEED:
-CUTTING FEEDRATE:0.34-196.8IPM
-RAPID TRAVERSE(X.Y.Z): 393IPM
TOOL CHANGER:
-AUTOMATIC TOOL CHANGER TYPE: ARM TYPE
-TOOL STORAGE CAPACITY: 40
-MAX. TOOL WEIGHT: 44LBS
-MAX. TOOL SIZE: 5.11"X13.78"
-TOOL SELECTION:RANDOM
-TOOL SHANK: CAT50
-PULL STUD BOLT:P50T-1
MOTOR:
-SPINDLE DRIVE MOTOR:30HP
STANDARD ACCESSORIES:
-AUTO LUBRICATION SYSTEM
-WORK LIGHT
-LEVELING BOLTS AND BLOCKS
-ADJUSTING BOLTS AND BLOCKS
-RS232 INTERFACE
-COOLANT SYSTEM
-SPINDLE OIL COOLER
-LINK TYPE CHIP CONVEYOR x 4
-AUTOMATIC POWER OFF
-CONVECTION HEAT EXCHANGER IN CONTROL CABINET
-OPERATION MANUAL & ELECTRICAL DRAWING
-REMOTE MANUAL PULSE GENERATOR
-OPERATION FINISH LAMP
FOB TRUCK PRESENT TORRANCE CA LOCATION.
NO TOOLING, VISES, OR FIXTURES INCLUDED.
OFFERED AS IS.
