Specifications
Equipped With

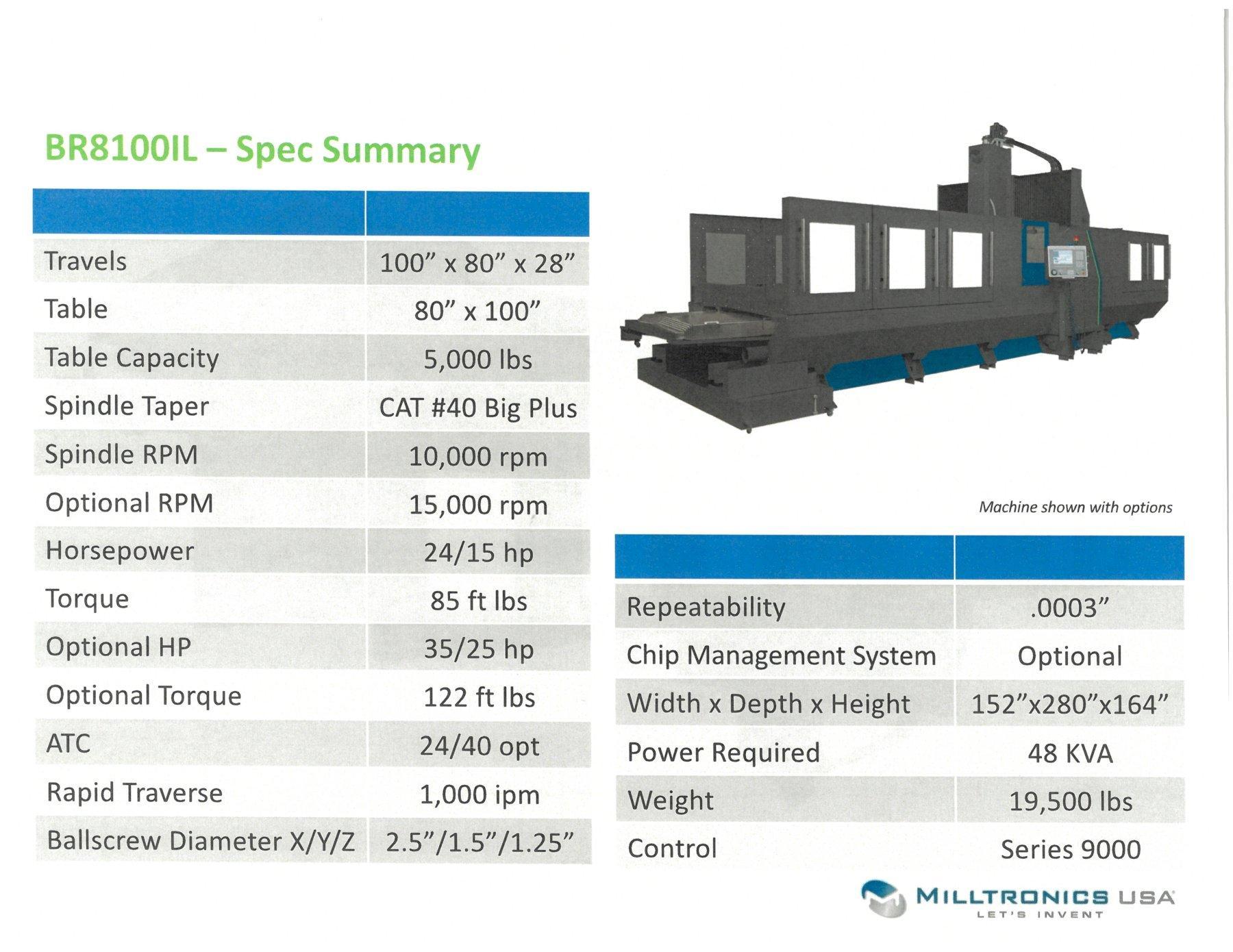

Factory Specifications:
X axis travel - 100"
Y axis travel - 80"
Z axis travel - 28"

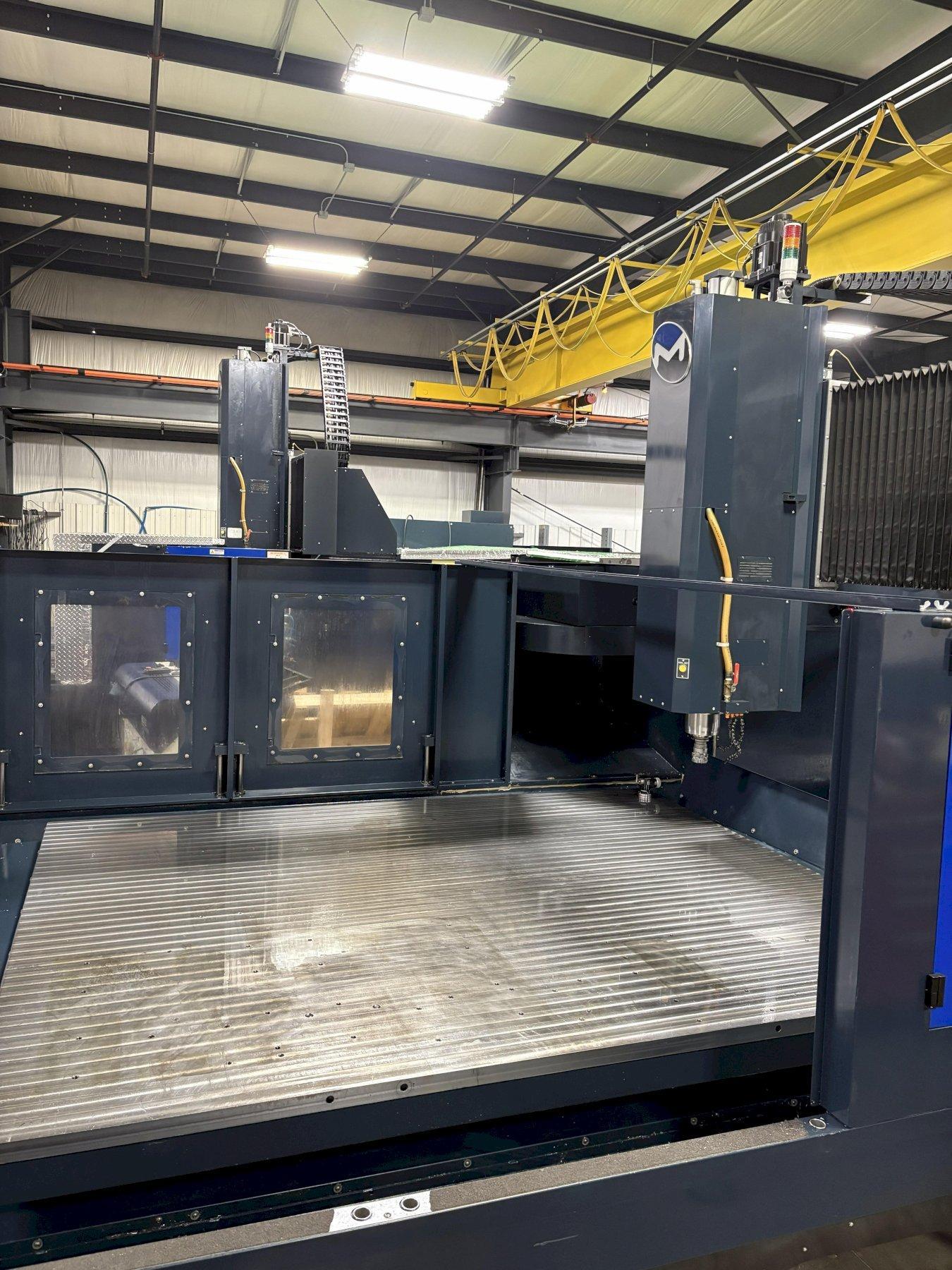

Table size 80" x 100"
Allowable table load 5000 lbs.
Spindle gage line to table distance 4" - 32"
Spindle taper BIG-PLUS ISO No. 40
Spindle speed 15,000 RPM
AC spindle motor 24/15 HP
Spindle torque 85 ft-lbs

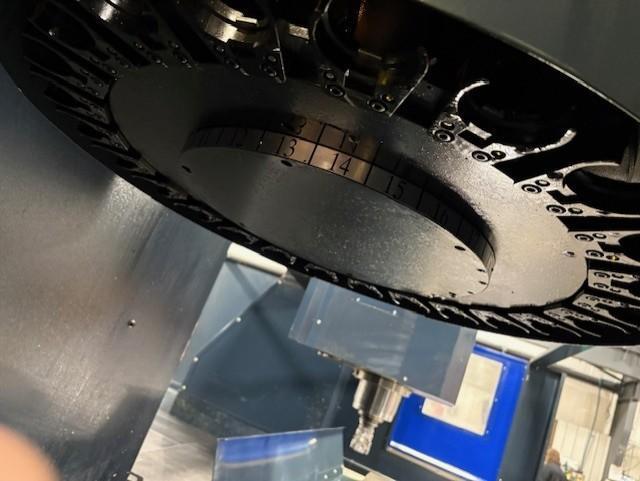

ATC Type Carousel 24 pocket
Tool shank CT-40
Pull stud MAX 60deg Retention Knob
Max tool diameter 3.5"
Max tool length 11"
Max tool weight 15 lbs.
X/Y Z axis rapid traverse rate 1000 IPM
Max. cutting feed rage 500 IPM
X axis ball screw diameter 2.48"
Y axis ball screw diameter 1.57"
Z axis ball screw diameter 1.25"
Lease command increment 0.0001"
Axis thrust (peak) 5000 lbs.
Machine height 152"
Floor space required 280" x 164"
Machine weight 29,500 lbs.
Power requirement 48 kVA / 125 A
Voltage requirement 208-240 Volts / 3 Phase

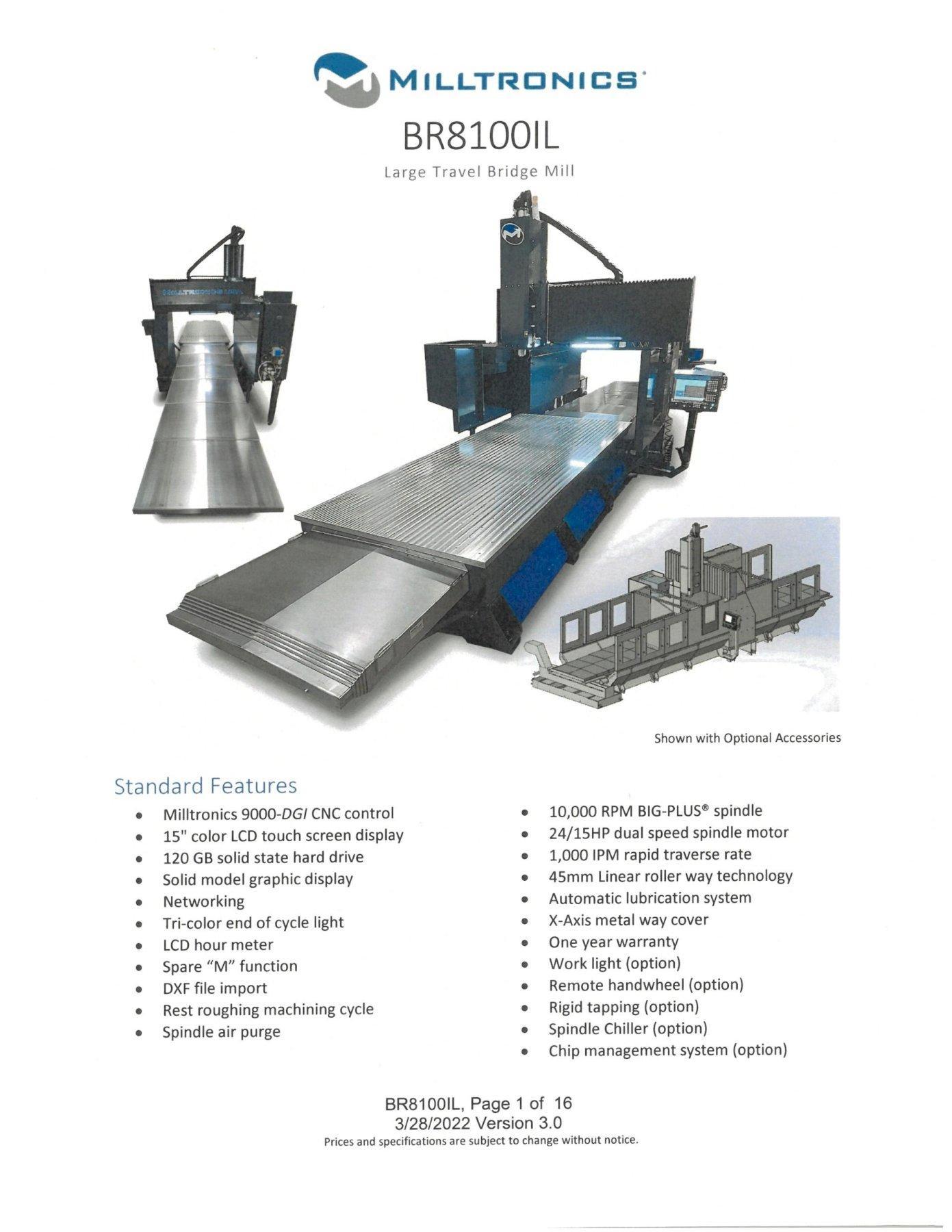

Features:

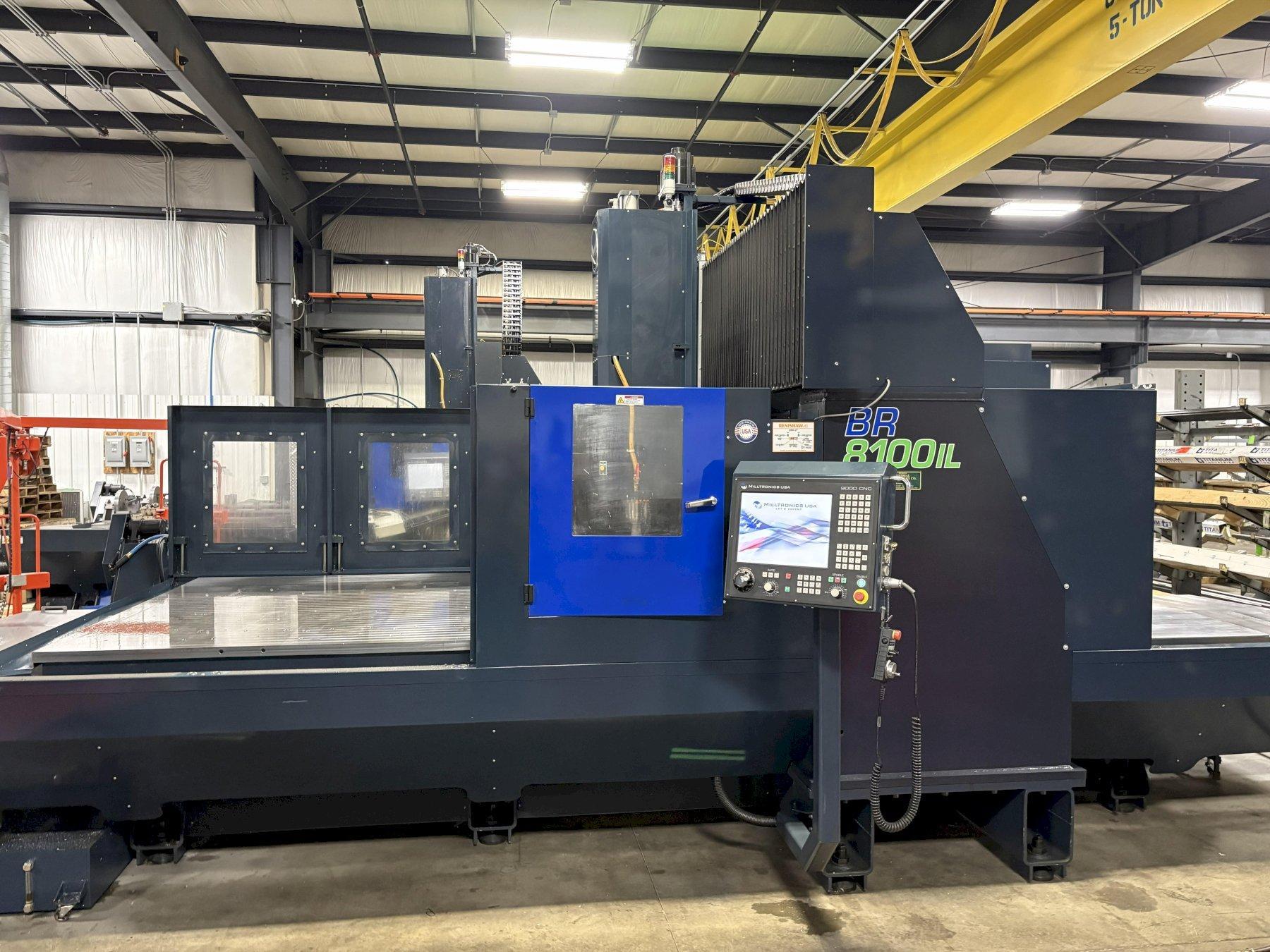

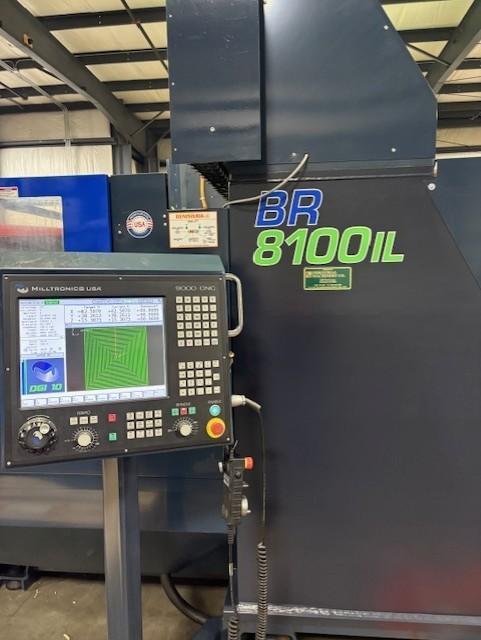

Milltronics 9000-DGI CNC Control
15" color LCD touch screen display
120 GB solid state hard drive
Solid model graphic display
Networking
Remote Handwheel
Rigid Tap
Tri-color end of cycle light
LCD hour meter
Spare "M" function
DXF file import
Rest roughing machining cycle
Spindle air purge
45mm Linear roller way technology
Automatic lubrication system

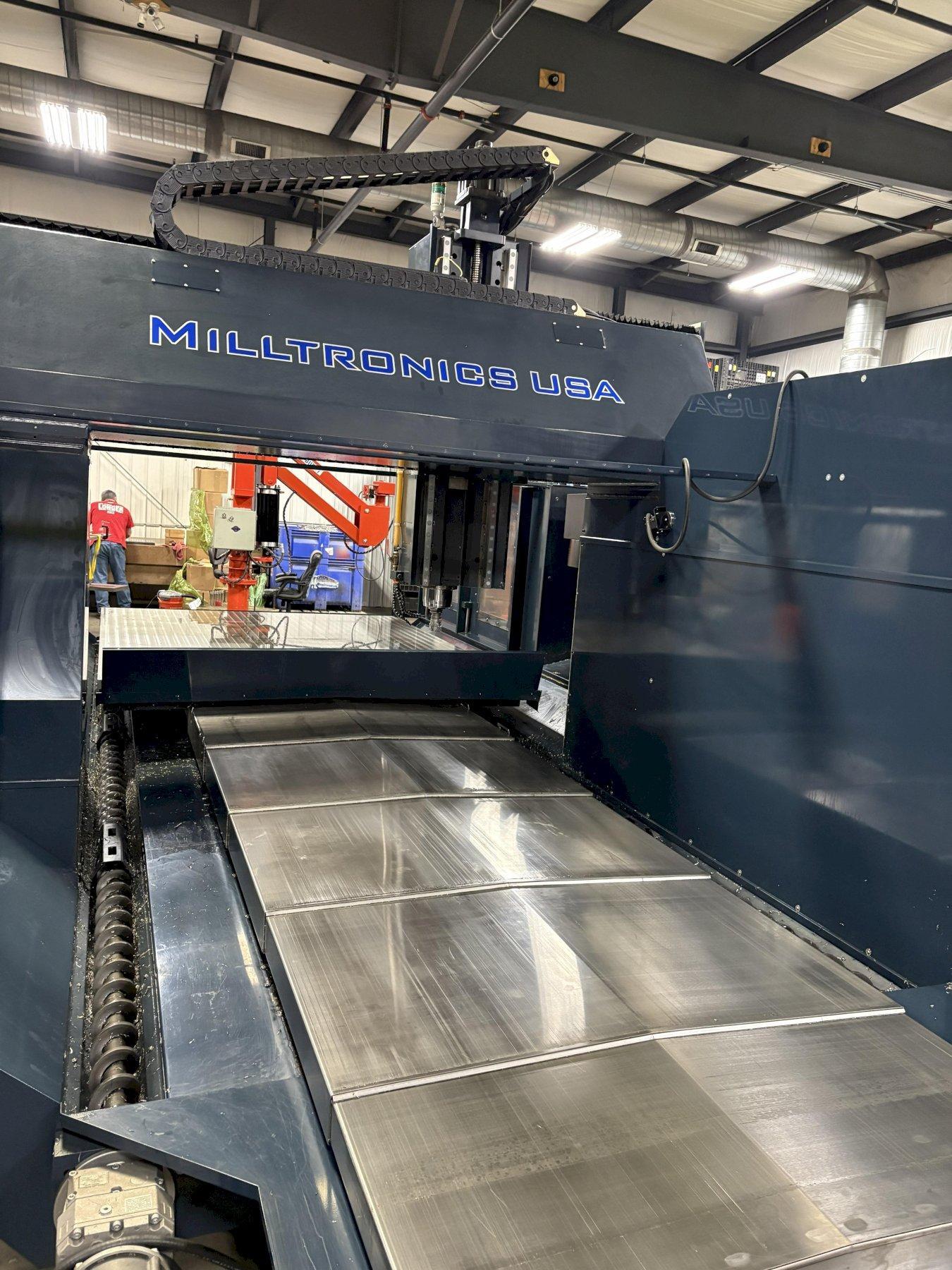

X-Axis metal way cover

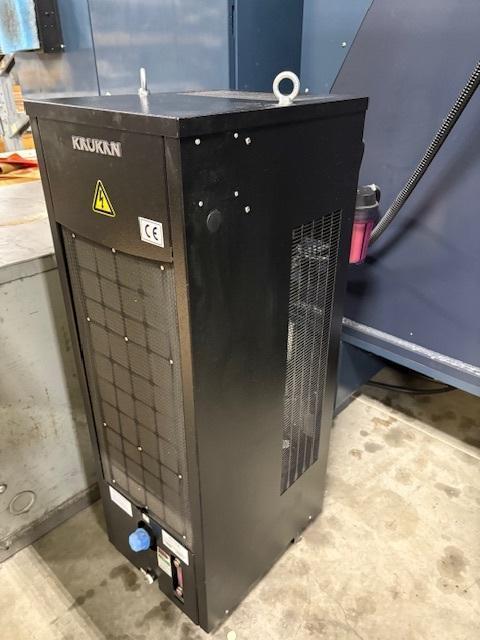

Spindle chiller

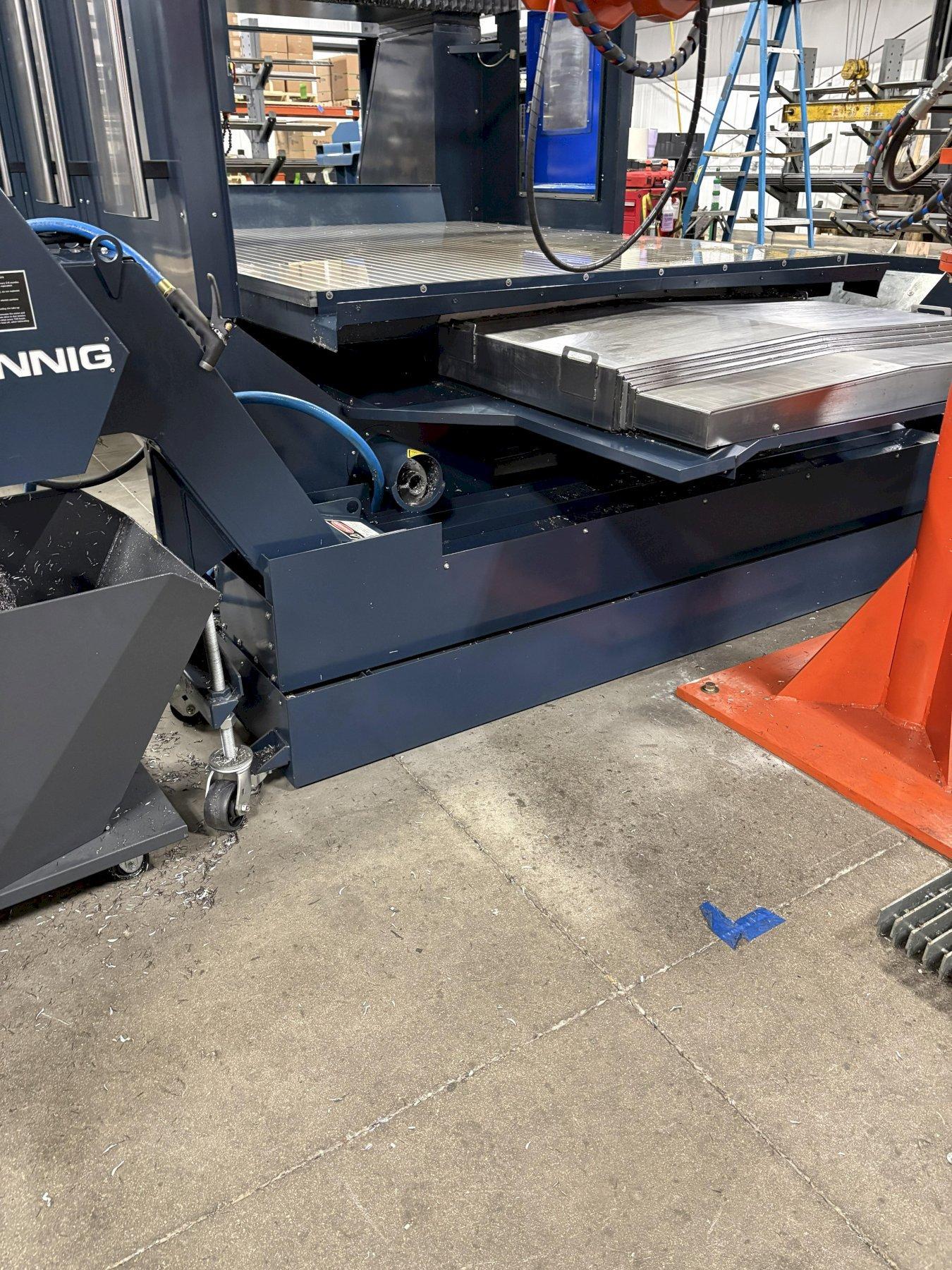

Chip management system with augers and conveyor

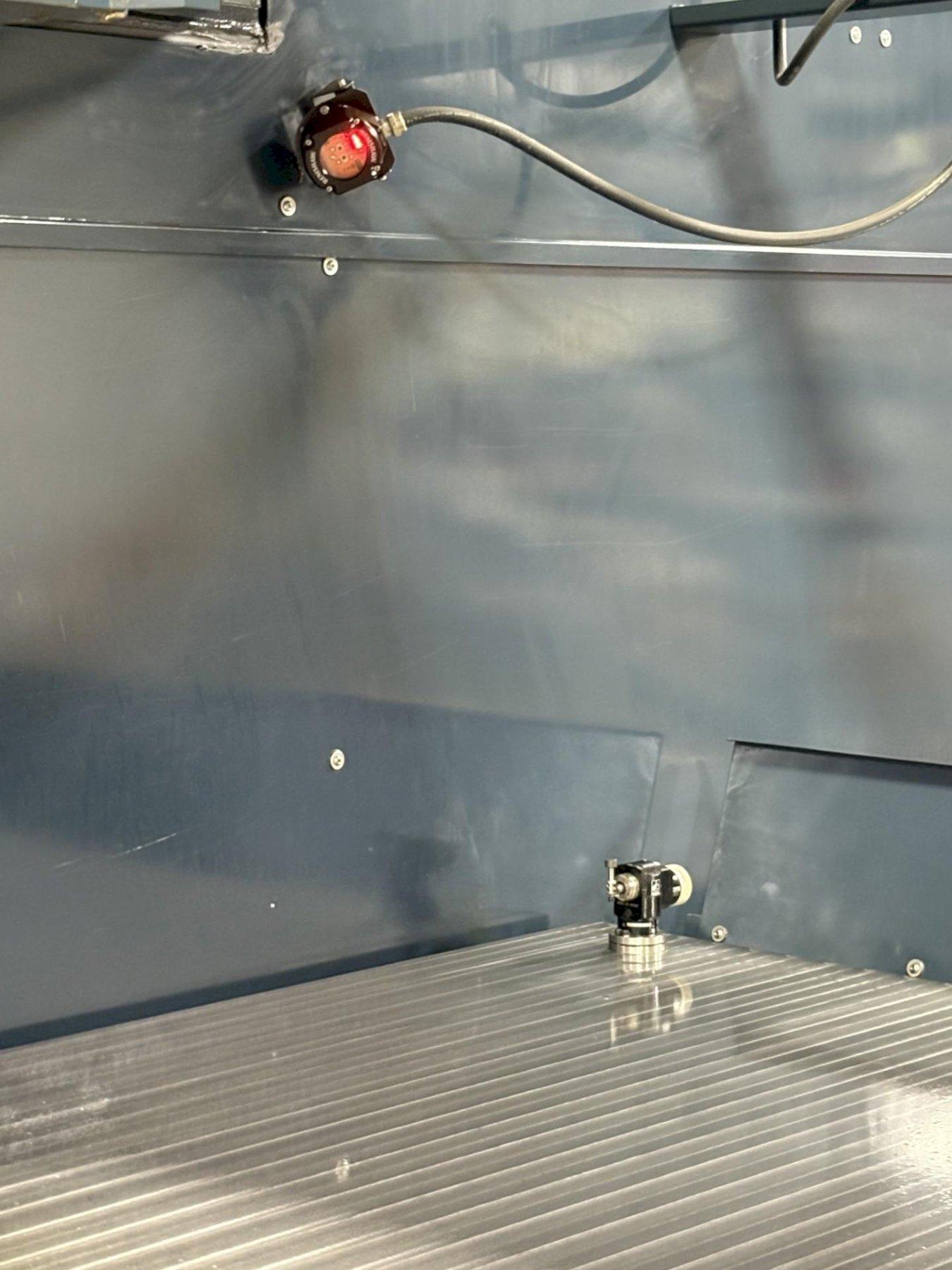

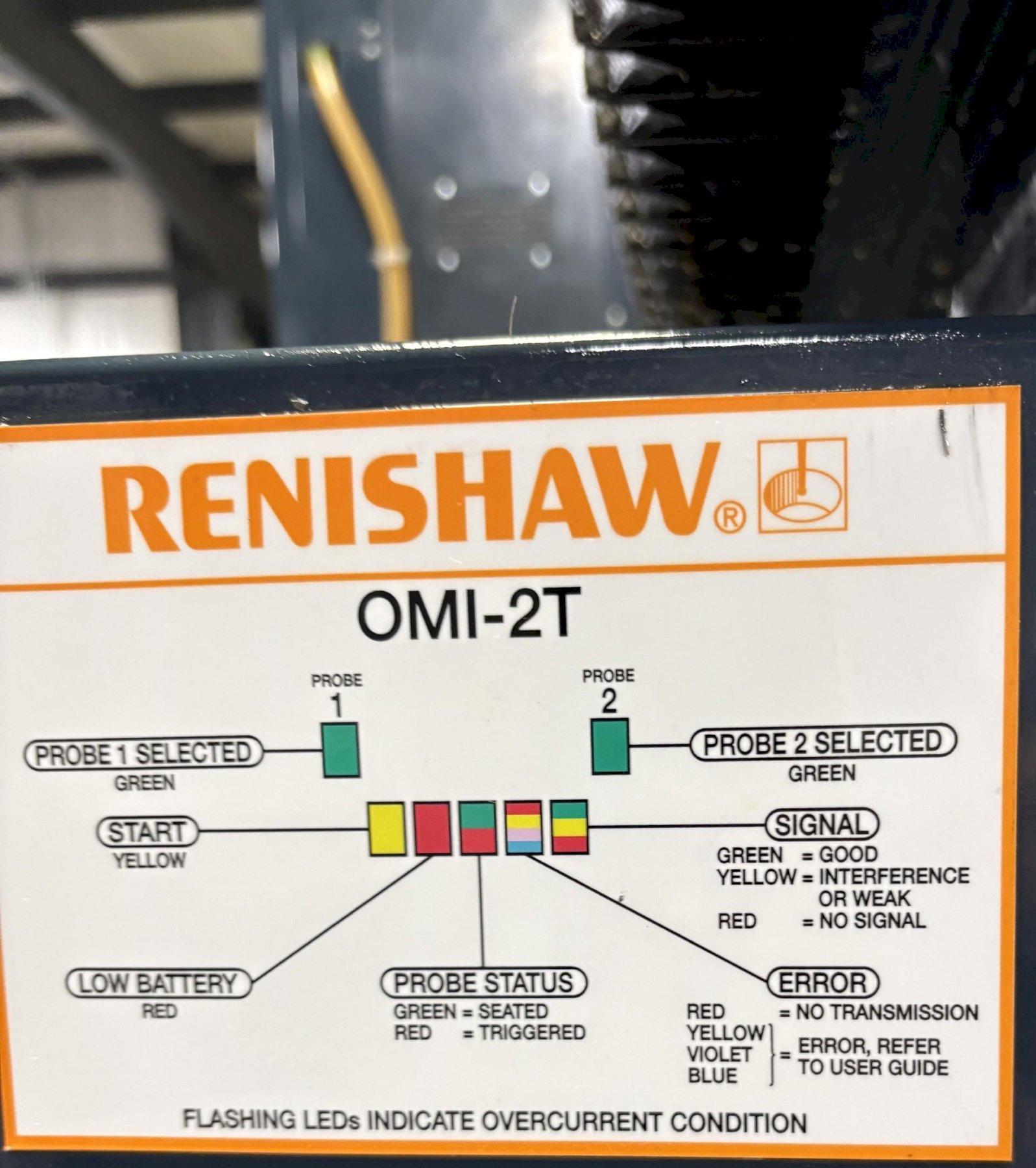

Renishaw OMI-2T Interface including the Renishaw OMP40-2 Optical Spindle Probe
w/ Macro and the Renishaw OTS contact tool setter w/ Macros.
Notes:
Reportedly only 20 hours of light machining.
Specifications subject to independent verification by the buyer.
Offered on consignment. No warranty or return privilege.
No tooling or vises included.
Located in precision shop in Michigan.
Buyer will be responsible for rigging on to their truck.
