Specifications
Equipped With
Specifications:
Table Size - 13" x 50"
Table X-Axis Travel - 32"
Saddle Y-Axis Travel - 19"
Head Z-Axis Travel - 23"
Manual Quill Travel - 5"
Throat Distance - 20"
Quill Diameter - 3.375"
Spindle to Table Top (Quill up) - 4.5" to 27.5"
Table Capacity - 1500 Lbs.
Spindle Taper - CT30
Spindle Speeds, Low - 60 to 600 rpm
Spindle Speeds, High - 100 to 4500 rpm
Rapid Traverse Rate XY - 500 ipm
Rapid Traverse Rate Z - 300 ipm
Feedrate - .2 to 200 ipm
Motor (Peak / Intermittent) - 5 / 3 HP

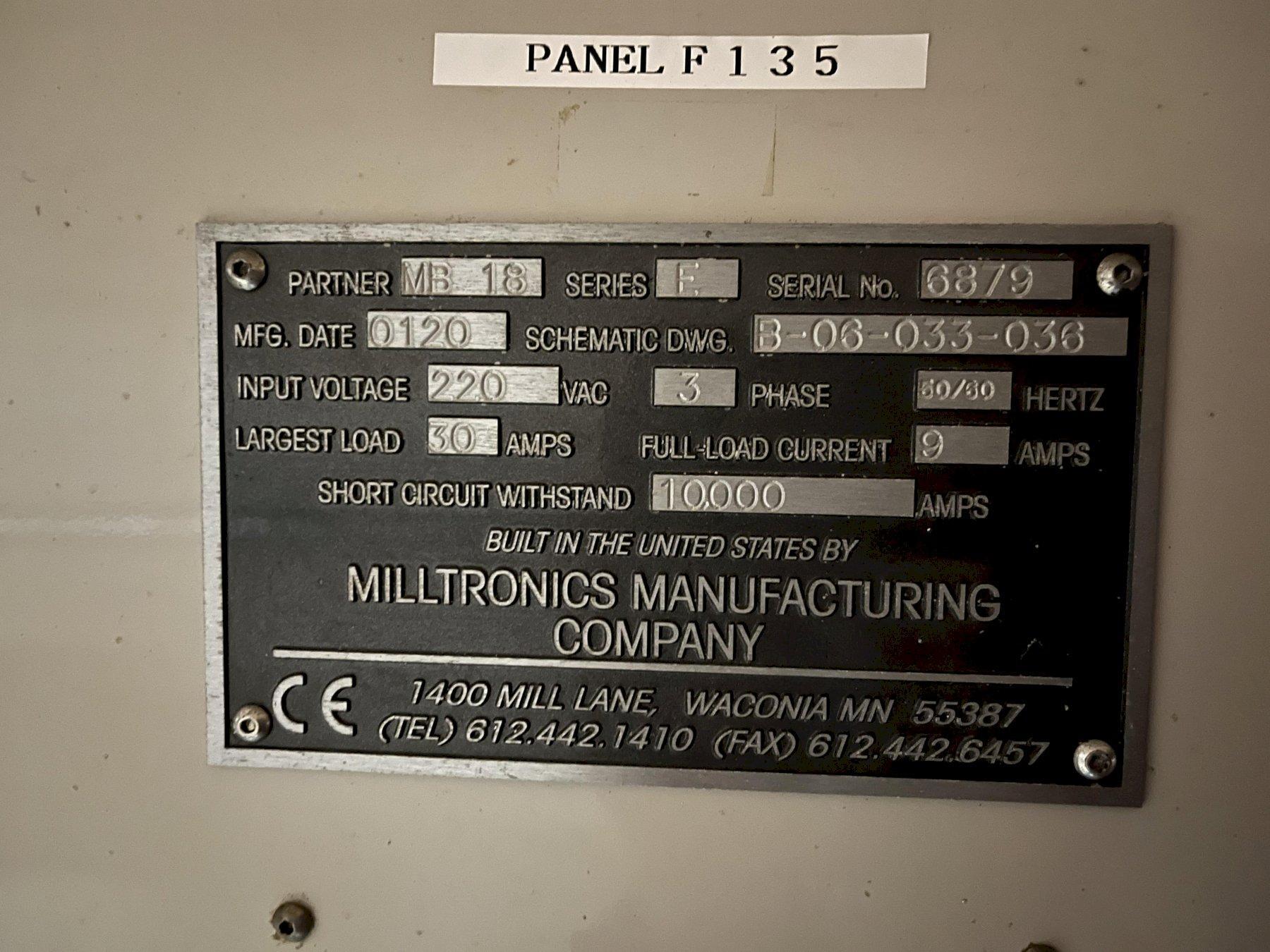

Electrics - 3/60/220v
Floor Space Requirements - 127" x 78"
Weight, Approx - 5900 LBs.
Equipped with:

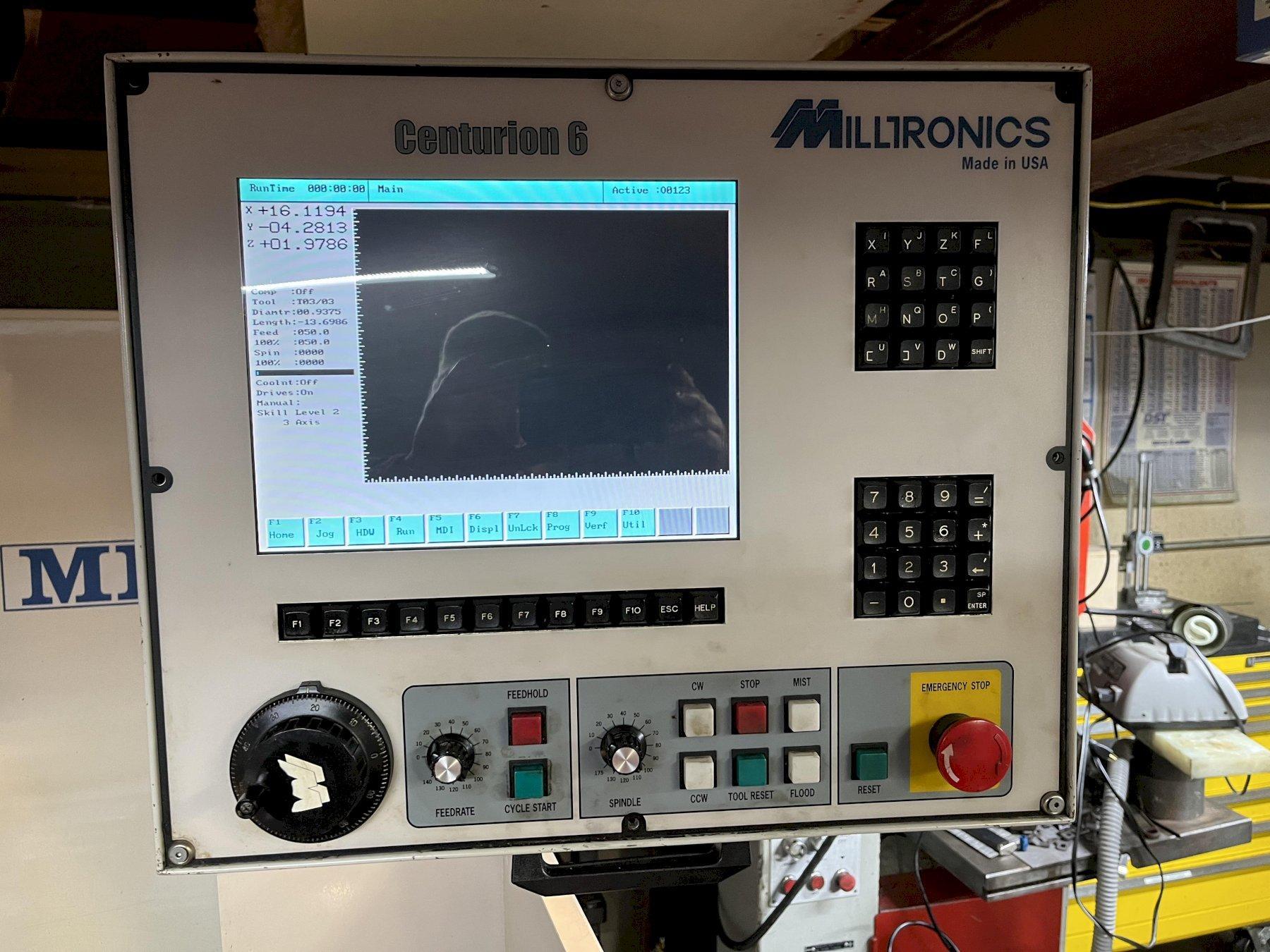

Cent 6 Conversational Control
Color Display with 3D Graphics
Programmable Spindle Speeds
Power Drawbar
Rigid Tapping
Quill Kit
USB EMULATOR
Lyndex CT30 Tool Holders Included
Huot Tool Stand
Kurt Vise

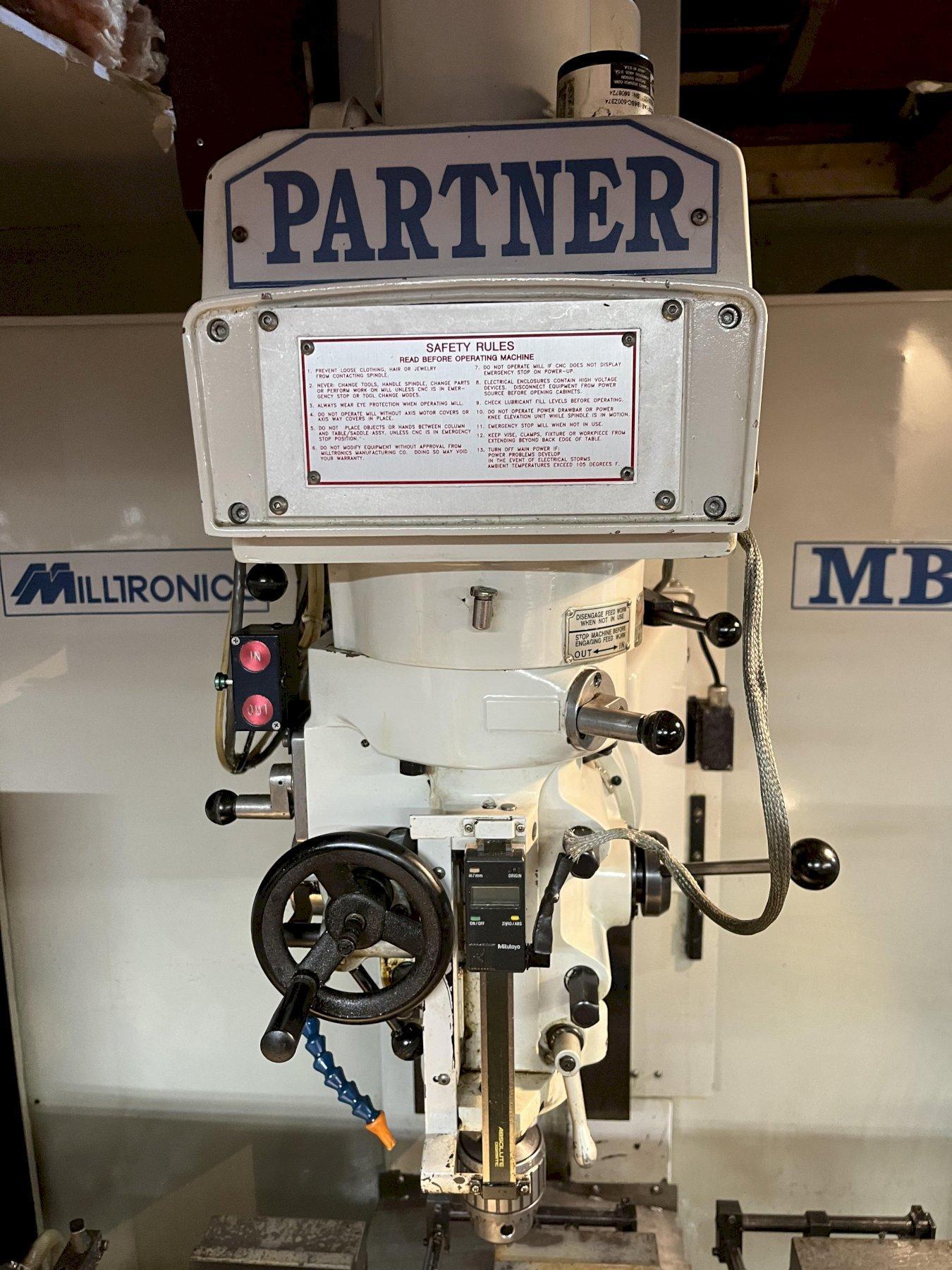

Head recently rebuilt, new belts, bearings, etc. Sounds great.
Note - This machine is offered on consignment from local customers floor.
It is offered without warranty or return and also subject to availability.
Loading not included and will be additional expense for buyer.
)
