Specifications
Equipped With
Specifications:
Table Size - 35" x 16"
Travels (XYZ) - 30" x 18" x 18"
Throat Distance, Spindle to Column - 18"
Distance, Spindle to Table Top - 4" to 22"
Maximum Table Load - 1000 Lbs.
Spindle Taper - CT40
Spindle RPM - 50 to 8000 RPM
Spindle Motor (1 min / 30 min) - 12/10 HP
Rapid Traverse XY - 500 IPM
Rapid Traverse Z - 300 IPM
Carousel ATC - 16 Pocket
Tool Change Time - 7 Sec.
Floor Space Requirement - 110" 'x 78"
Machine Weight - 7000 Lbs.
Equipped with:

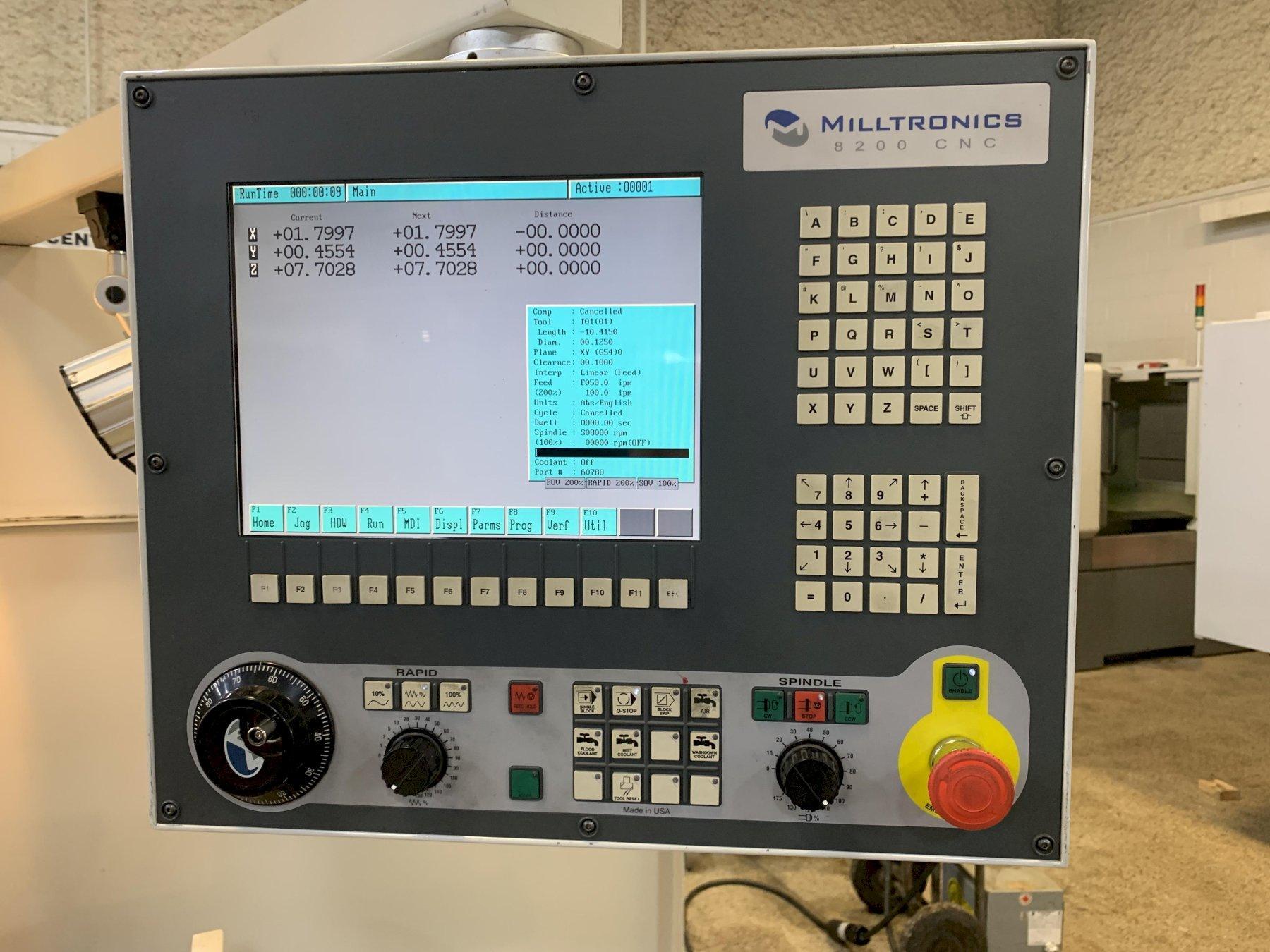

Milltronics 8200 CNC Control
Conversational Programming
12" LCD Display

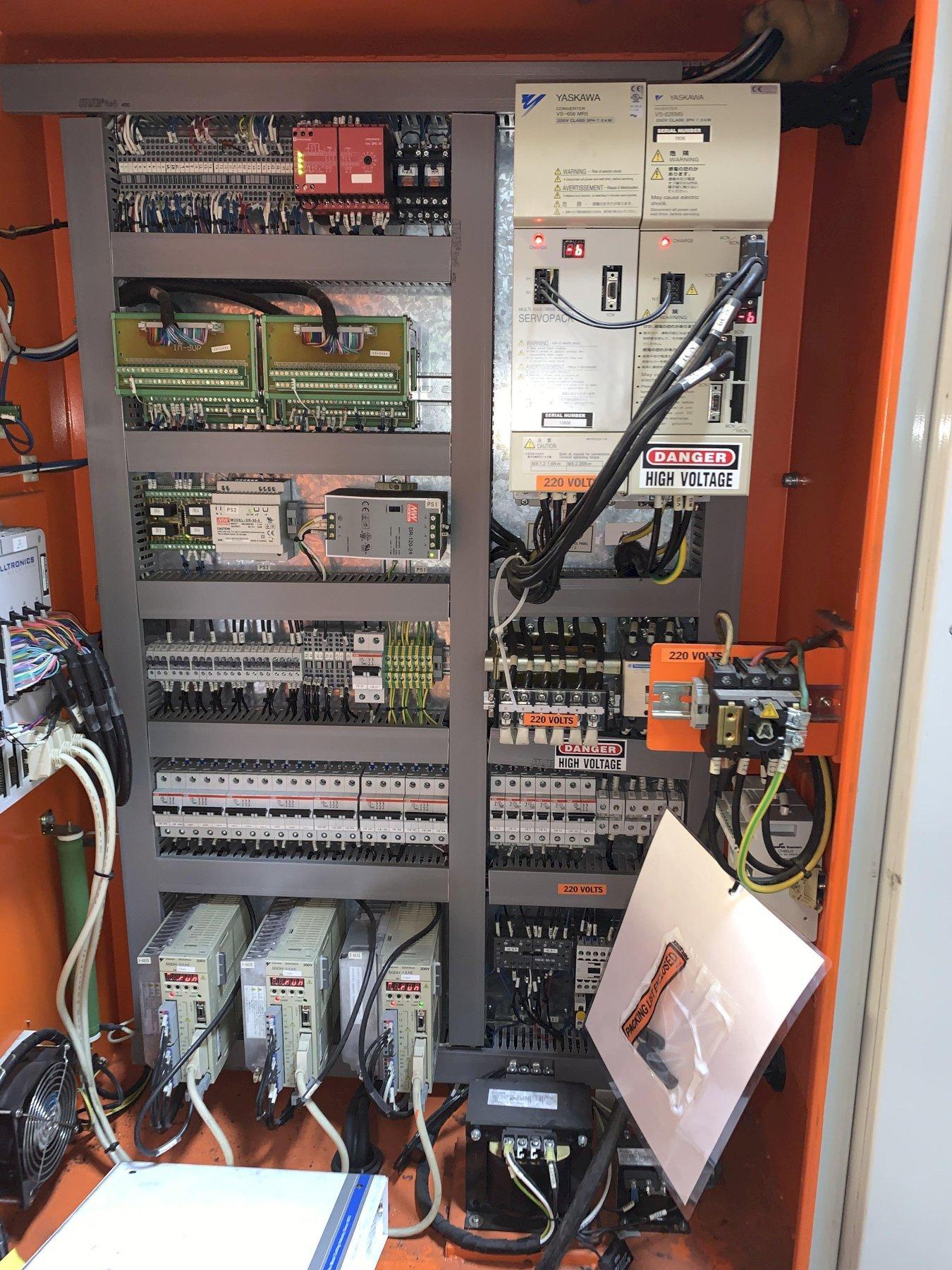

AC Digital Servos

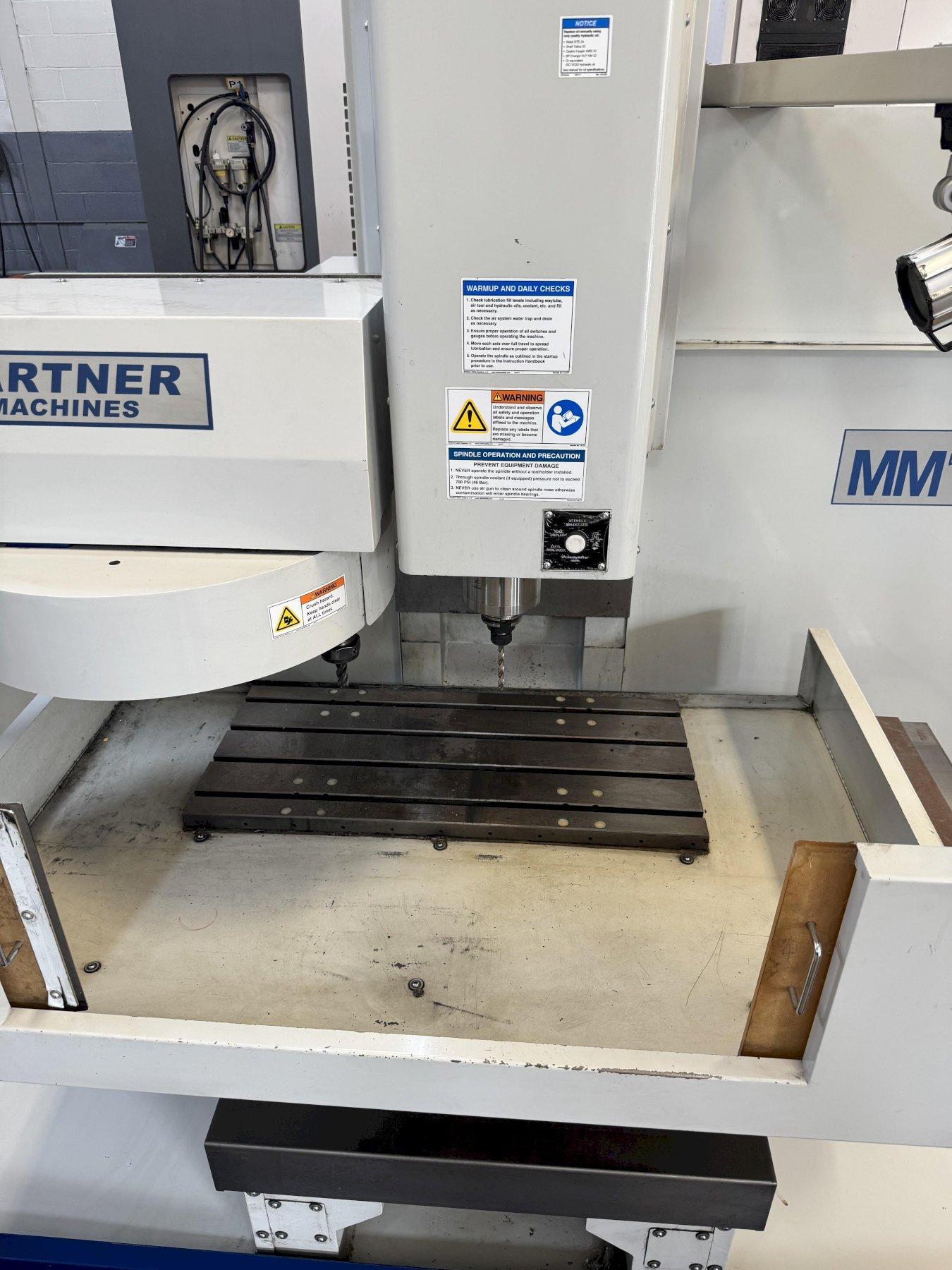

Table Enclosure
16 Pocket Carousel ATC
Auto Lube
Metal Way Covers

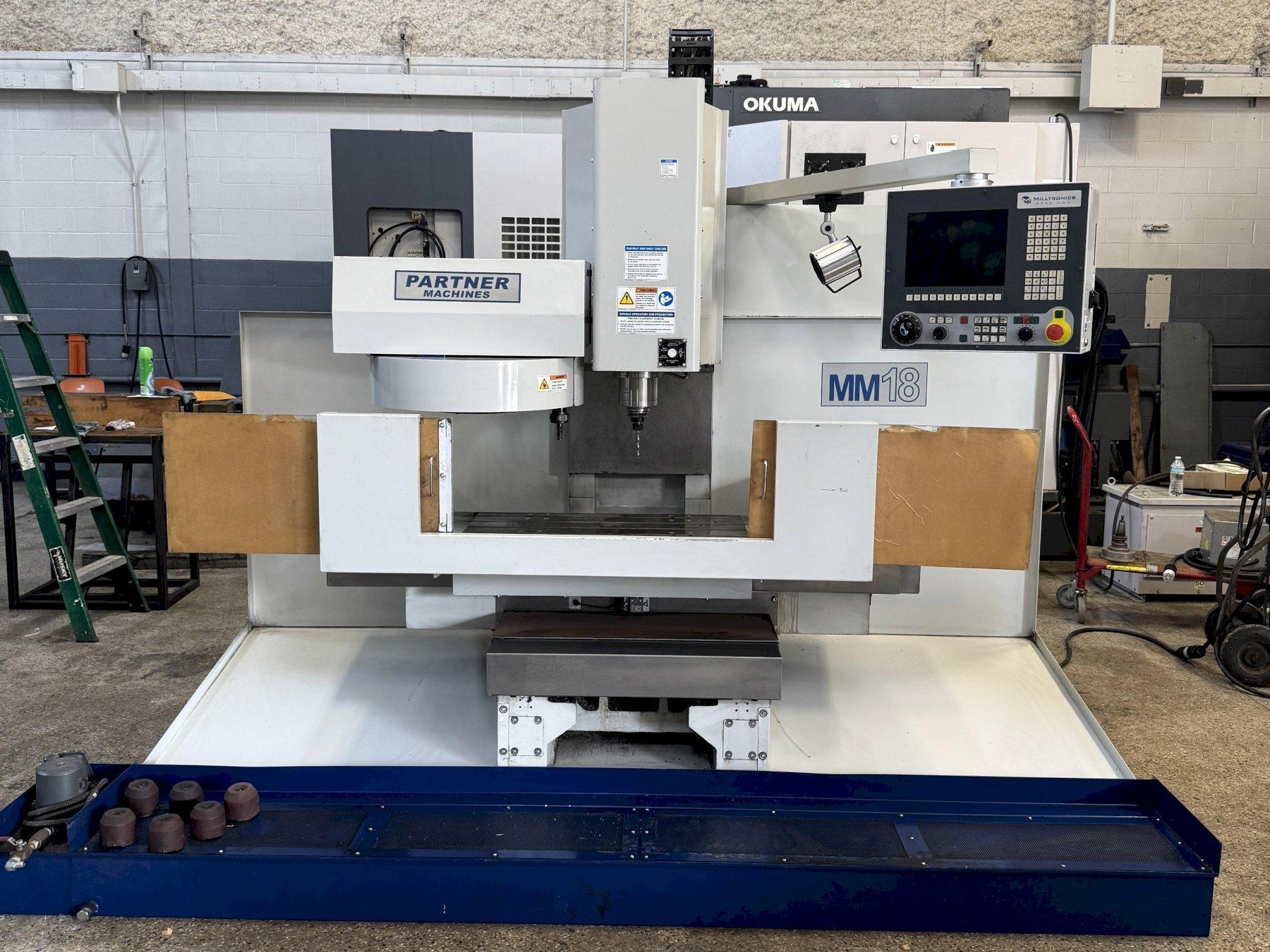

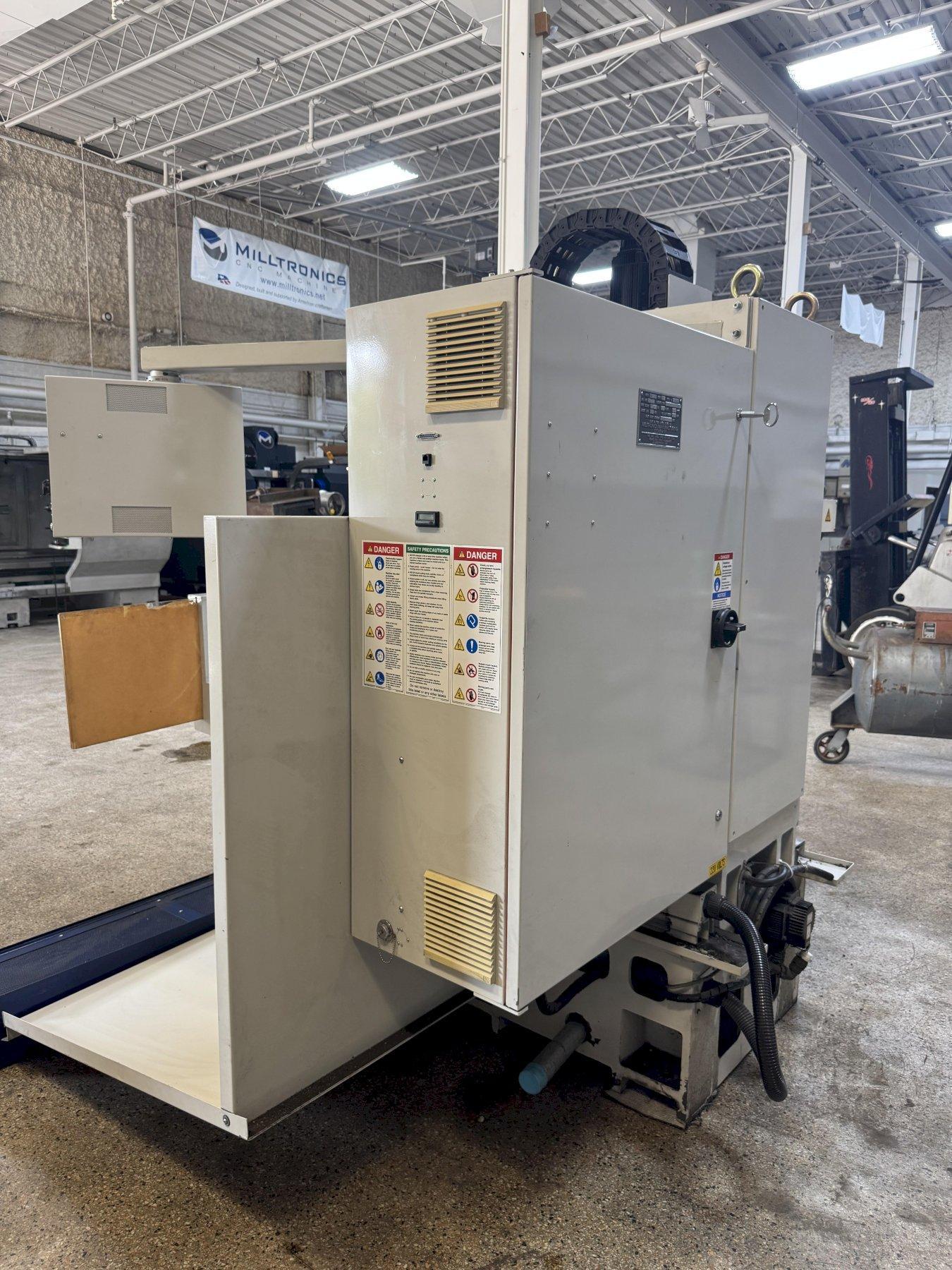

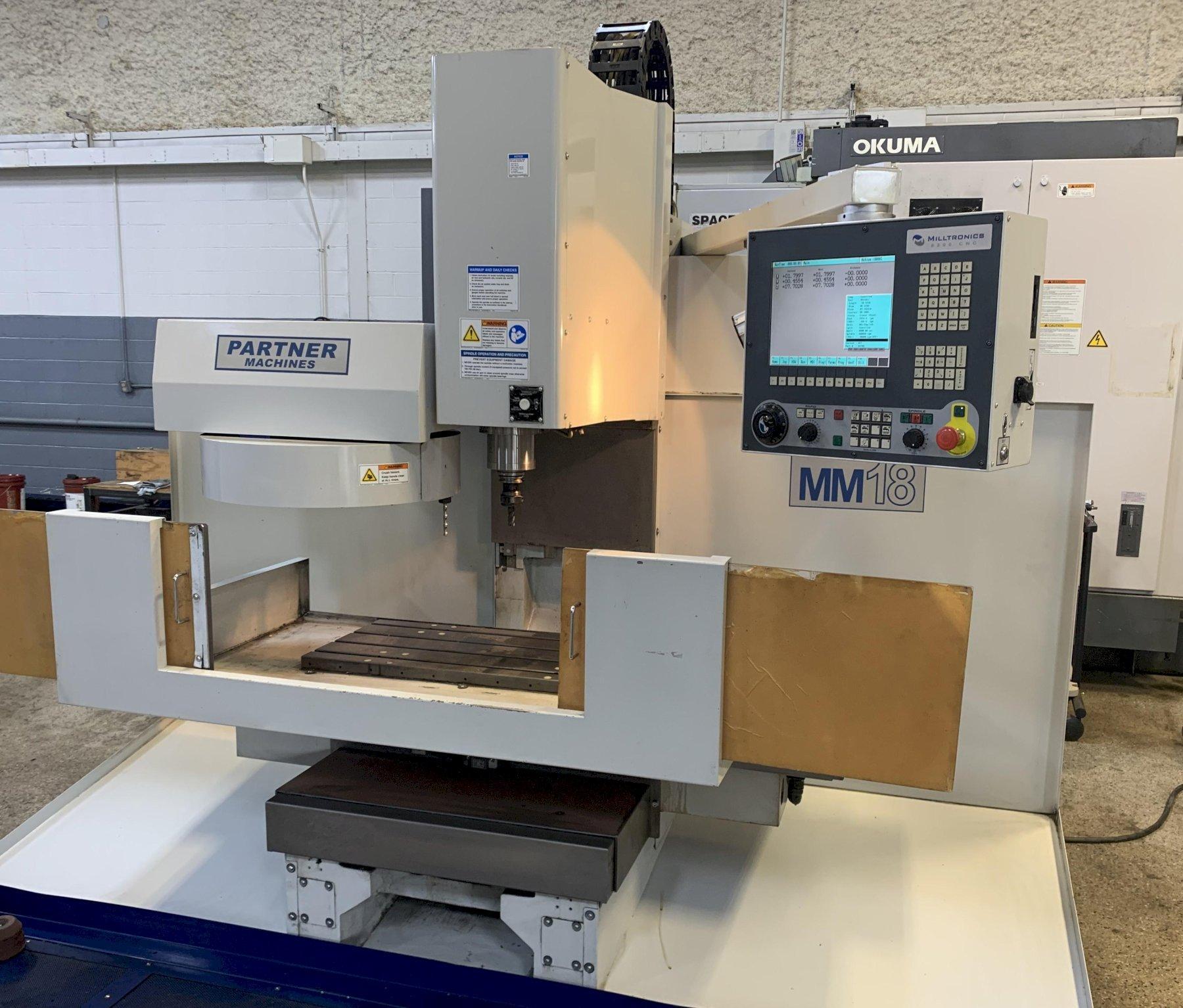

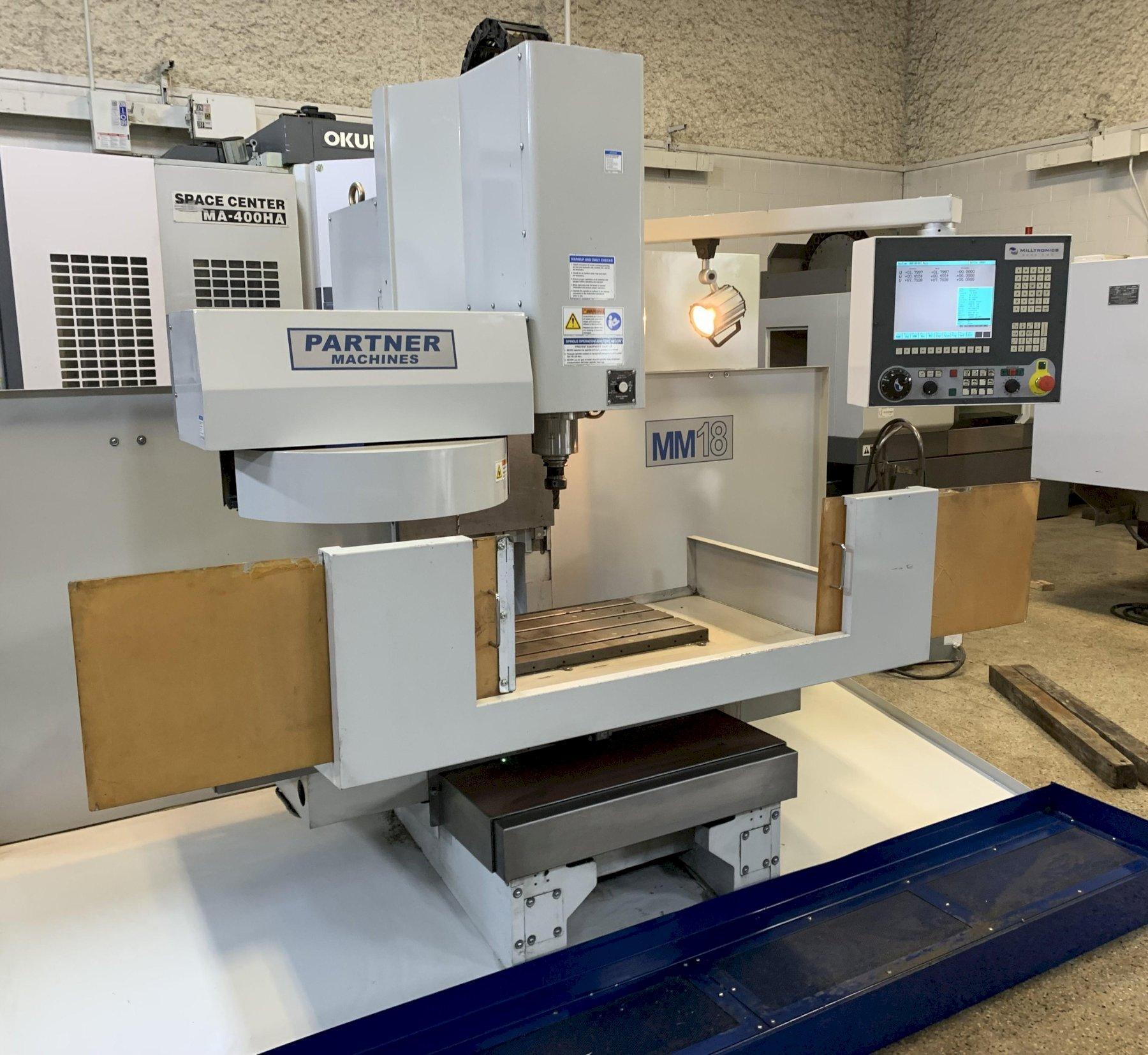

This machine looks to be in fantastic condition and is available for inspection under power here in our Dayton OH warehouse.
Specifications are subject to independent verification by the buyer.
Seller can load. Buyer responsible for shipping. Must ship on air ride.
)
