Specifications
Equipped With
Specifications:

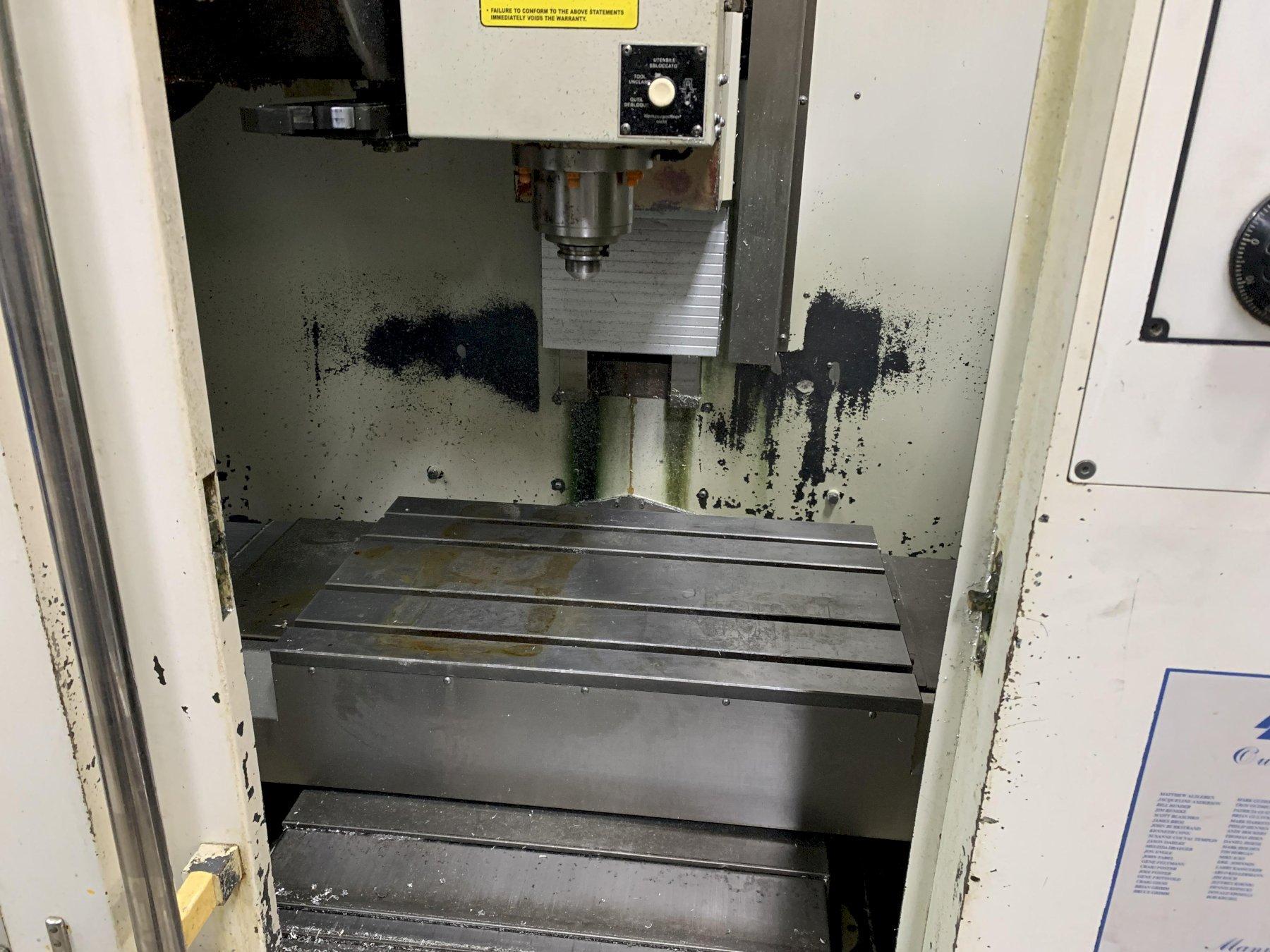

Table Size - 30" x 18"
Table Travel X-Axis - 25"
Saddle Travel Y-Axis - 20"
Head Travel Z-Axis - 20.5"
Throat Distance, Spindle to Column - 20"
Maximum Table Load - 750 Lbs.
Spindle Motor (1 min / 30 min) - 15 / 10 HP
Spindle Speeds - 100 to 8000 RPM
Spindle Taper - CT40
Rapid Traverse (XY / Z) - 1000 / 800 IPM
Feedrate Range - .1 to 300 IPM
Tool Changer - 16 Pocket Double Arm
Tool Change Time - 3.5 Seconds
Max Tool Diameter / Length / Weight - 4" / 12" / 15 lbs.
Floor Space Requirement - 73" x 80"
Machine Weight, Approx - 8500 Lbs.
Equipped with:

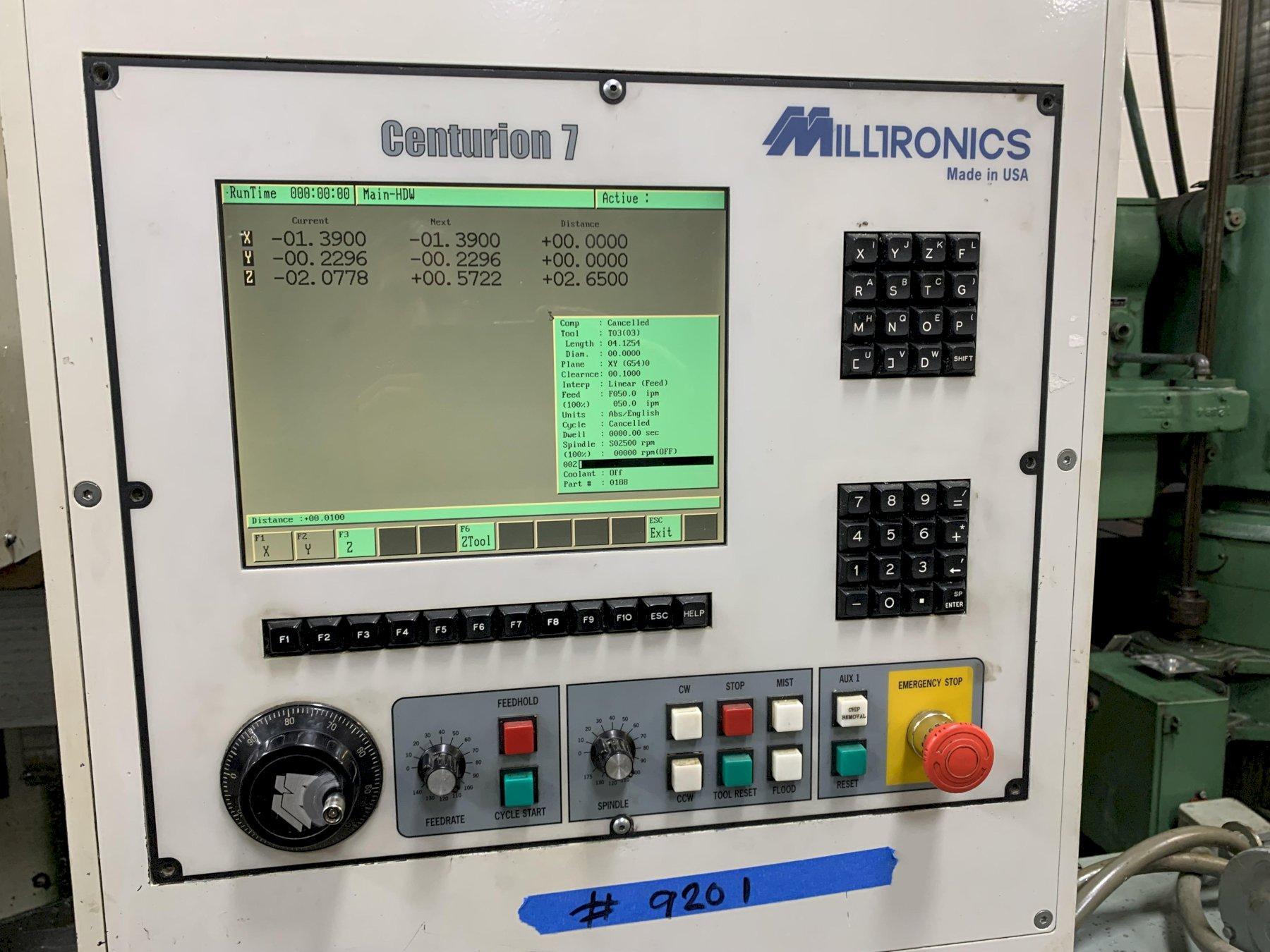

Milltronics Centurion 7 Conversational Control
Color LCD with 3D Grpahics
Arm Style ATC
Box Ways

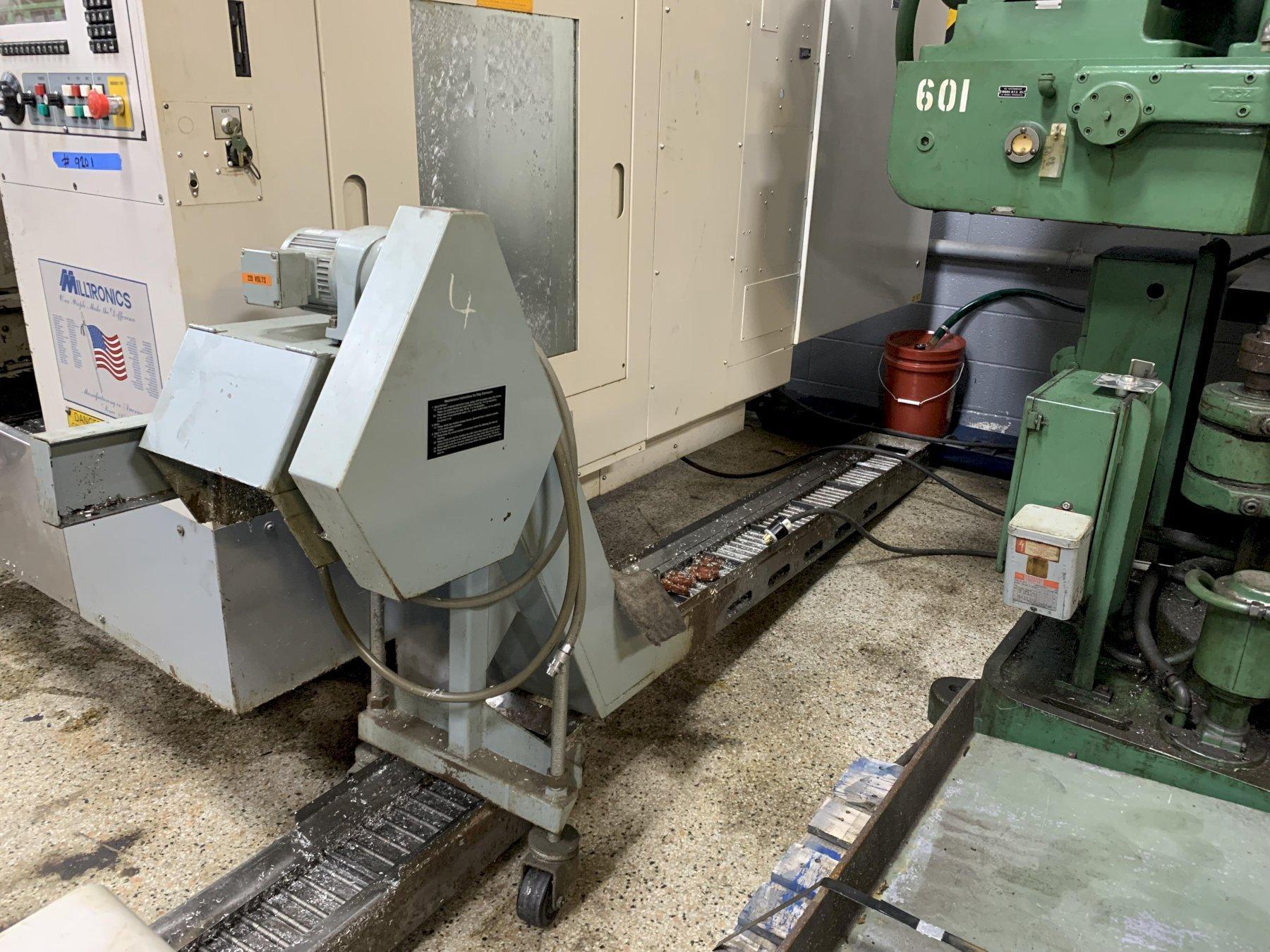

Chip Conveyor
Flood Coolant
Automatic Metered Lubrication
Full Enclosure
Seller can load by appointment.
Specifications subject to independent verification by the buyer.
)
