Specifications
Equipped With
Specifications:
Swing Over Way Cover - 20"
Swing Over Carriage - 9"
Travel (X Axis) Cross Slide - 8"
Travel (Z-Axis) Long Slide - 21"
Bar Capacity, Diameter - 1.65"
Chuck Size - 6" (currently equipped with collet chuck)
Spindle Load Capacity (Work Holding & Part) - 300 Lbs.
Turning Diameter - 12.25"
Spindle Motor - 12/10 HP
Spindle Nose - A2-5
Spindle Speeds - 50 to 6000 RPM
Tail Stock Quill Stroke - 2"
Tail Stock Quill Diameter - 2.55"
Tail Stock Quill Taper - No. 4MT
Turret Tool Size - 3/4"
Turret Index Time, 1 Station - 0.7 Sec.
Rapid Traverse X & Z - 1,000 IPM
Maximum Feedrate - 500 IPM
Bed Inclination - 30 Degrees
Machine Dimensions Without Accessories - 91" L x 68" D x 63" H
Machine Weight, Approx - 7000 Lbs.
Equipped with:

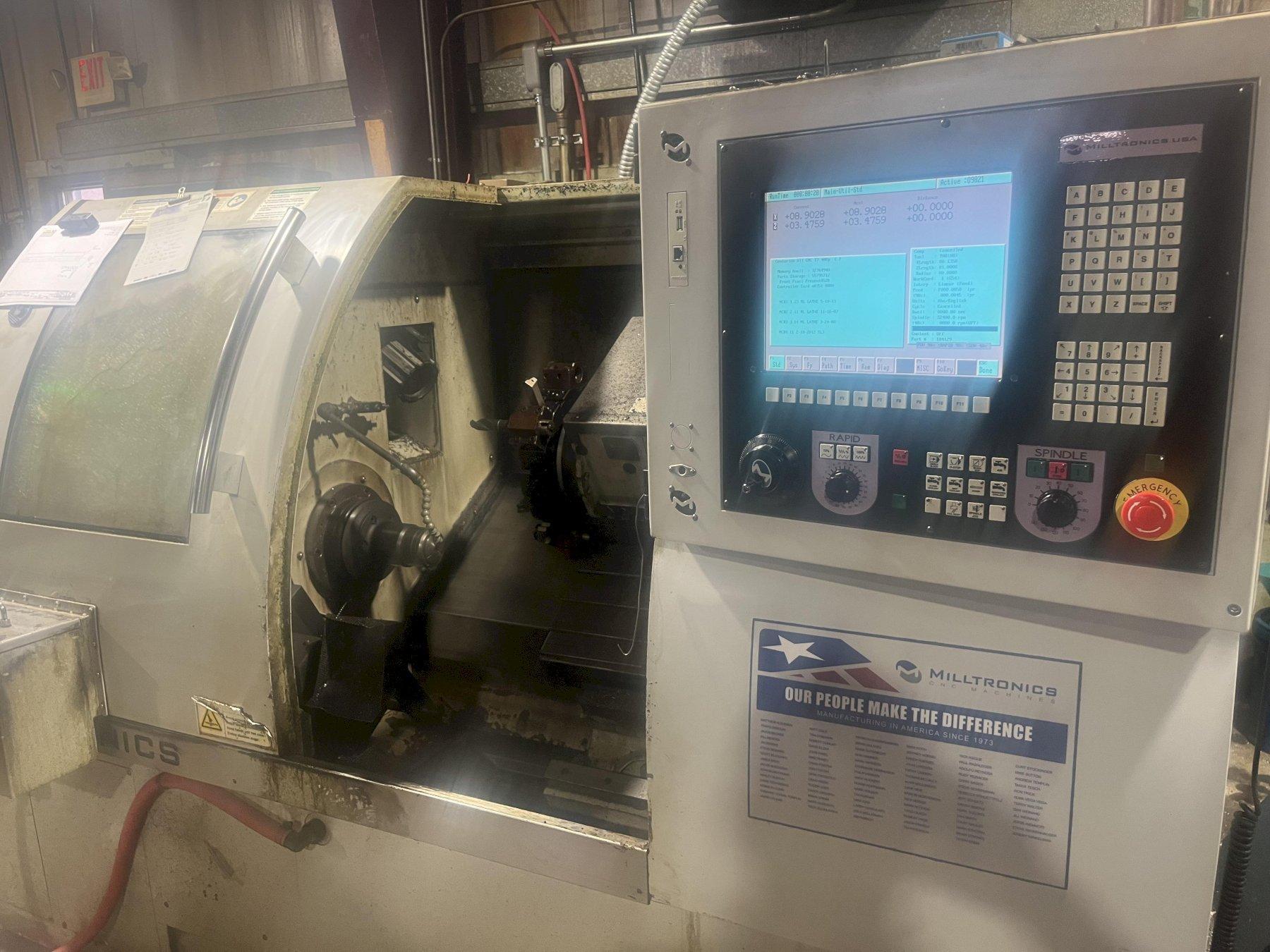

Milltronics 7200 Conversational Control
12" Color LCD Display
Collet Chuck
Linear Way Construction
Automatic Metered Lubrication

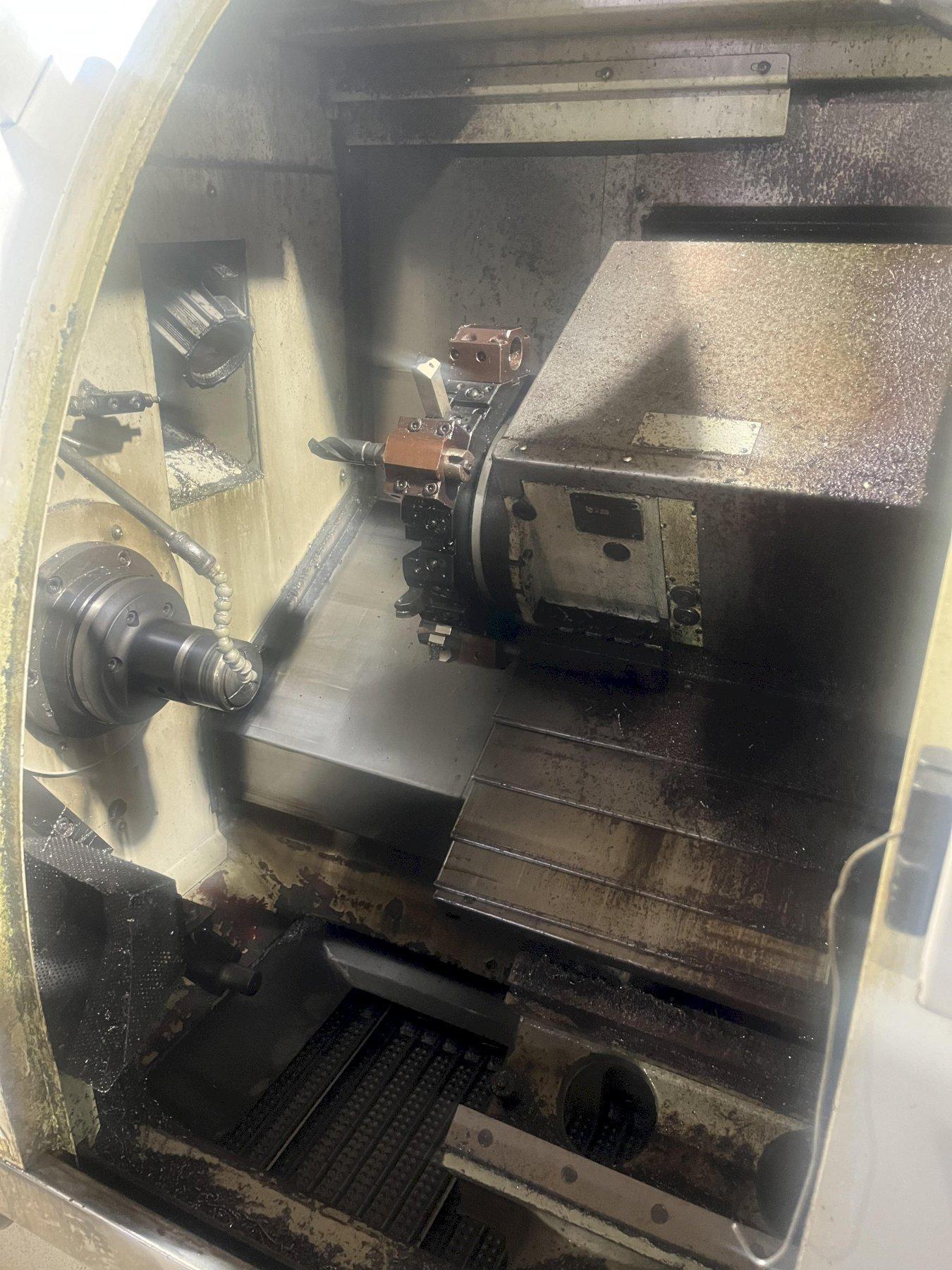

Auto Indexing Turret (3/4")
Hydraulic Tailstock
Chip Conveyor
Flood Coolant System
Notes:
Machine is located in northeast Ohio shop.
No collets or tooling included,
Offered on consignment. No warranty or return privilege.
Seller can load. Shipping not included.
Specifications subject to independent verification by the buyer.
