Specifications
Equipped With
Factory Specifications:
X-Axis Travel - 7"
Z-Axis Travel - 14"
Swing Over Bed - 15.9"
Swing Over Cross Slide - 9.45"
Max Turning Diameter - 12.4"
Max Turning Length - 13.4"
Spindle Nose - A25
Draw tube Diameter Spindle - 1.77"
Spindle Bore Diameter - 2.2"
Chuck Size - 6"
Spindle Range - 0 to 6000 rpm
AC Spindle Motor Max - 17/10 HP

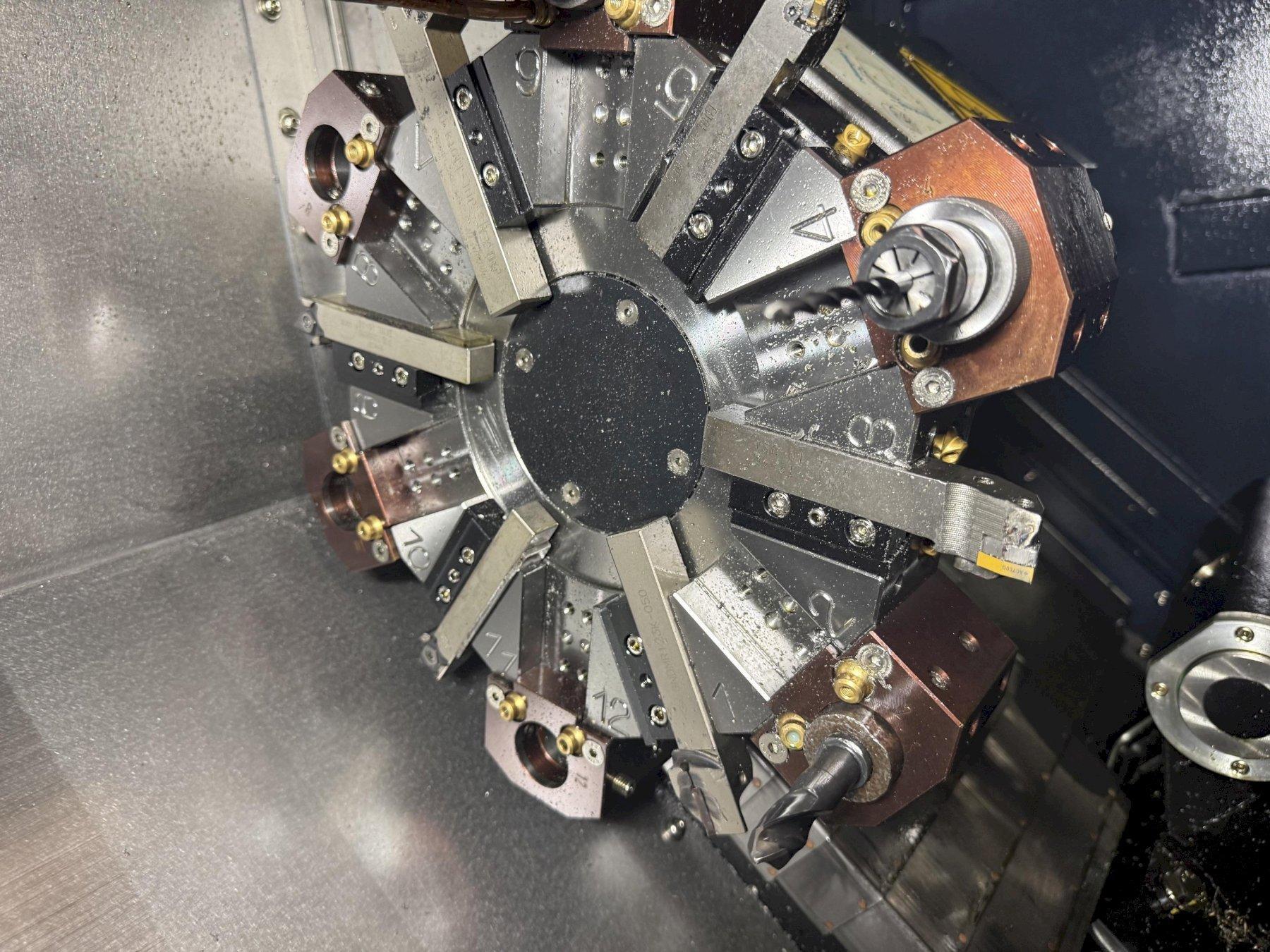

Turret (Bi-Directional) - 12 Position
Tool Size - 0.75
Boring Bar Capacity - 1.25"
Turret Index Time - 0.6" sec
Tailstock Quill Travel - 3.46"
Tailstock Quill Diameter - 2.28"
Tailstock Quill Taper - 4MT
Rapids XYZ - 1,181 ipm
Max Cutting Feed Rate - 400 ipm
X Axis Ballscrew Diameter - 1.25"
Z Axis Ballscrew Diameter - 1.25"
Machine Height - 72.1"
Floor Space Required - 125.2" x 98.6"
Machine Weight - 7,050 Lbs
Power Required - 16 KVA / 39A
Voltage Required - 208-240 / 3 Ph
Equipped with:

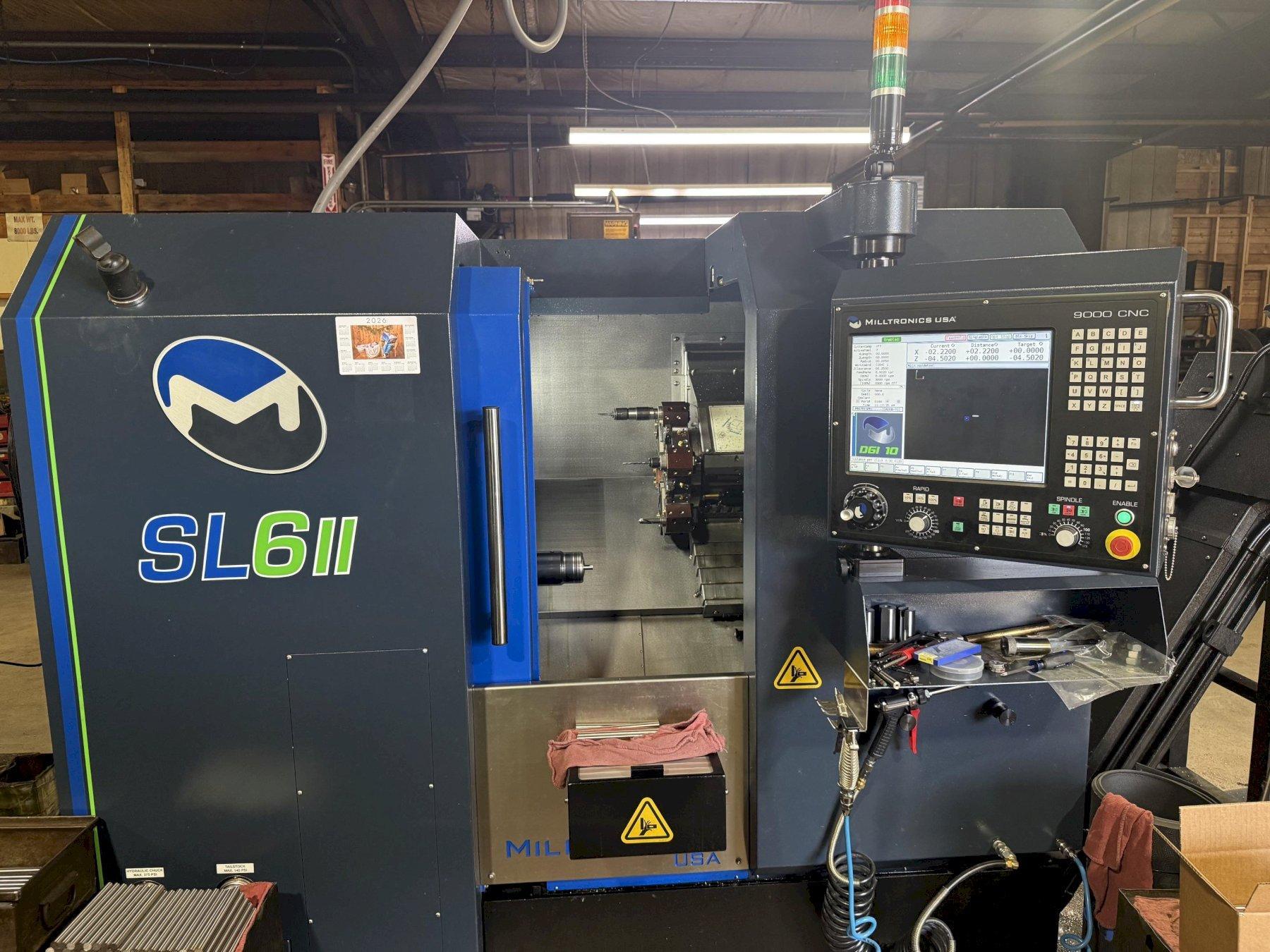

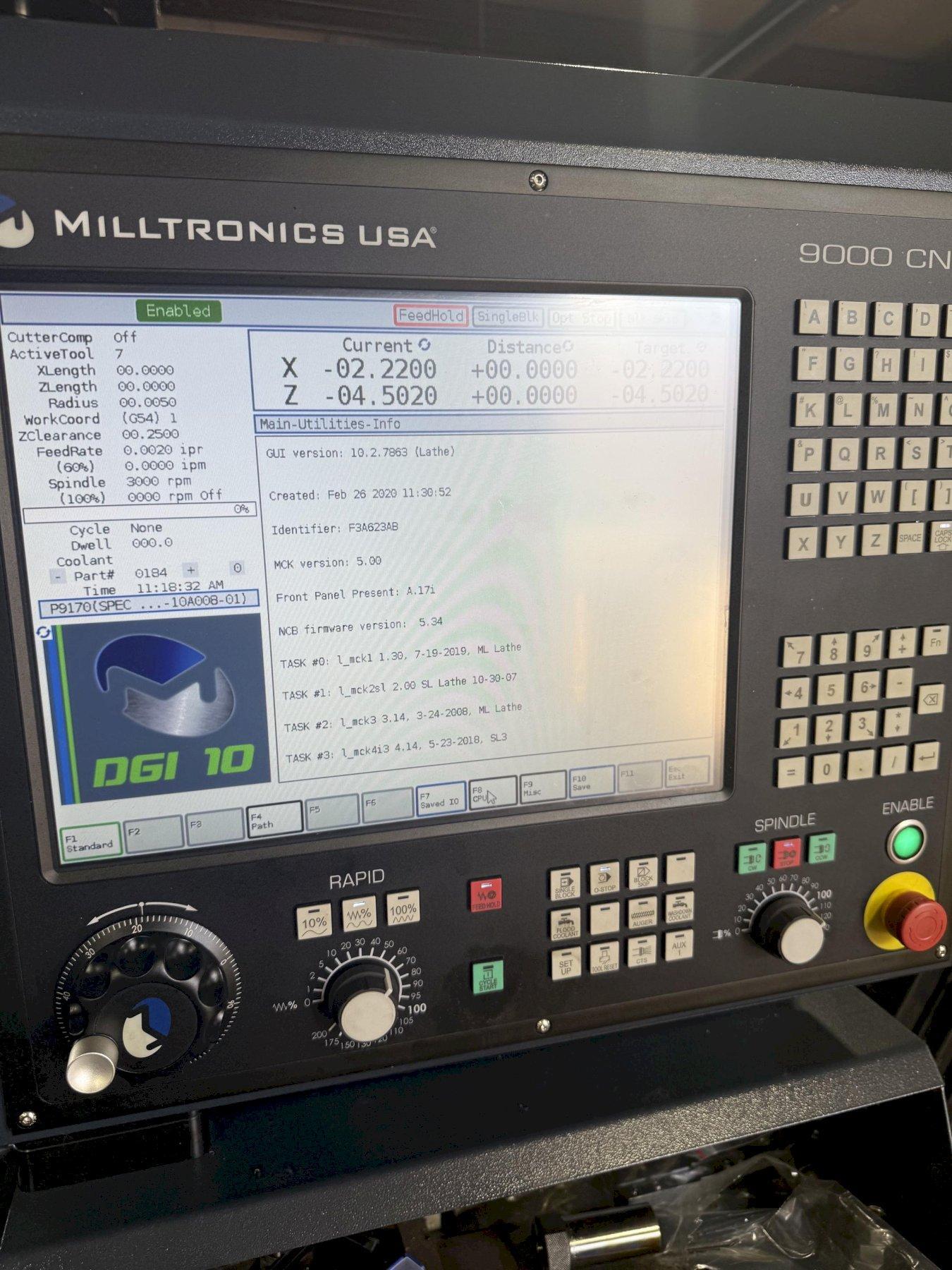

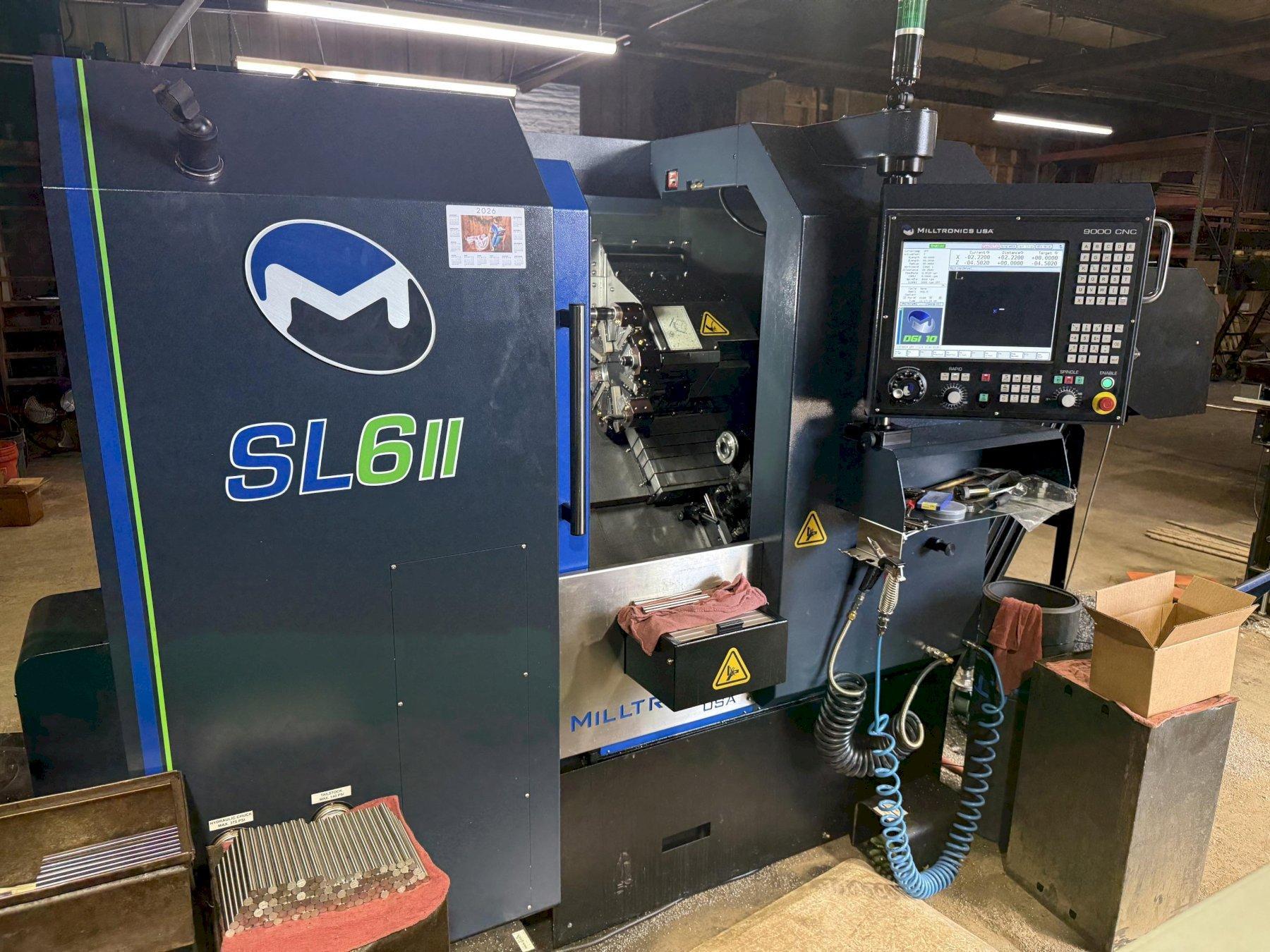

Milltronics 9000-DGI CNC Control

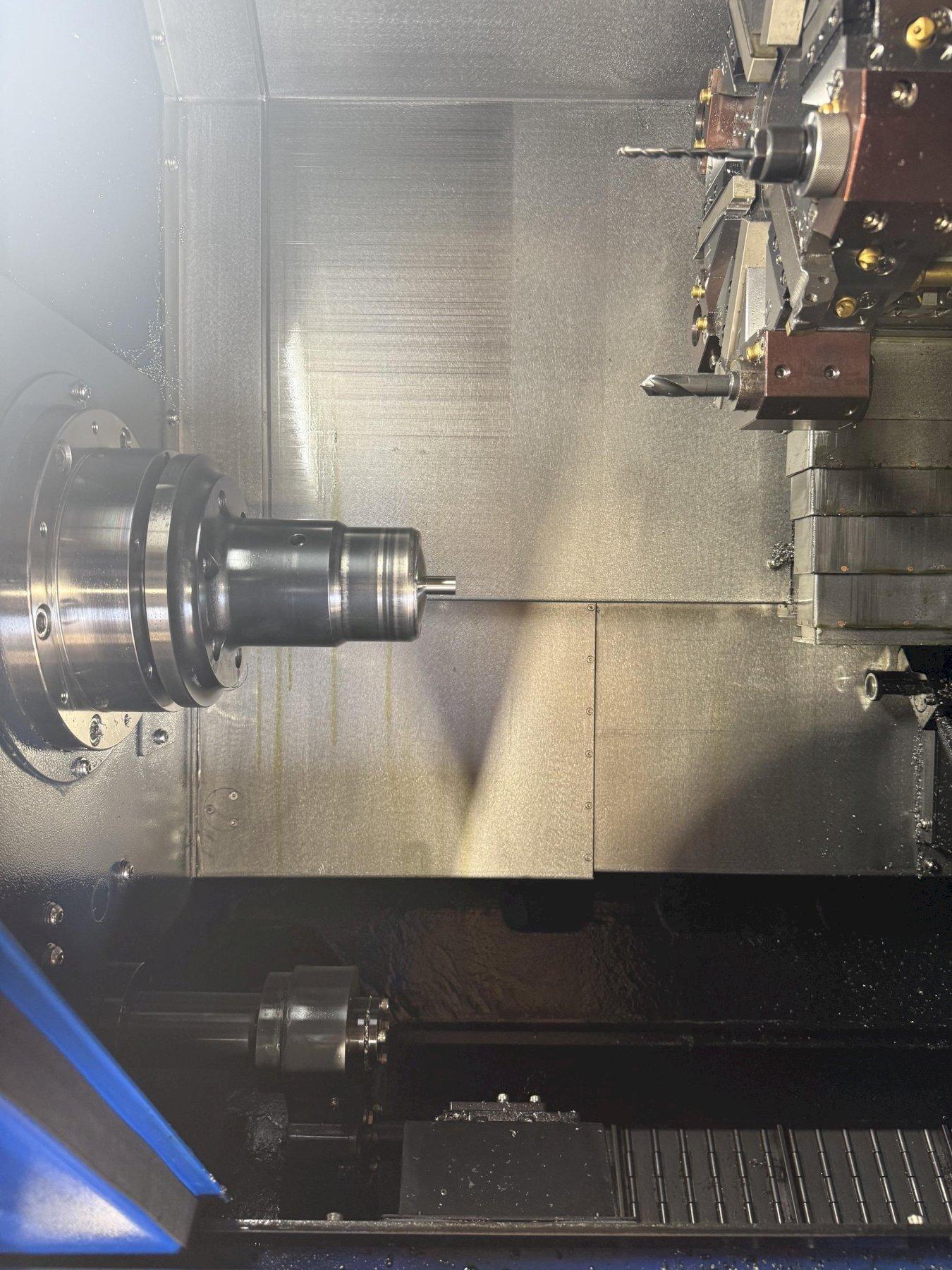

6" 3-Jaw Chuck
Bar Feed Interface (bar feed not included)
Parts Catcher

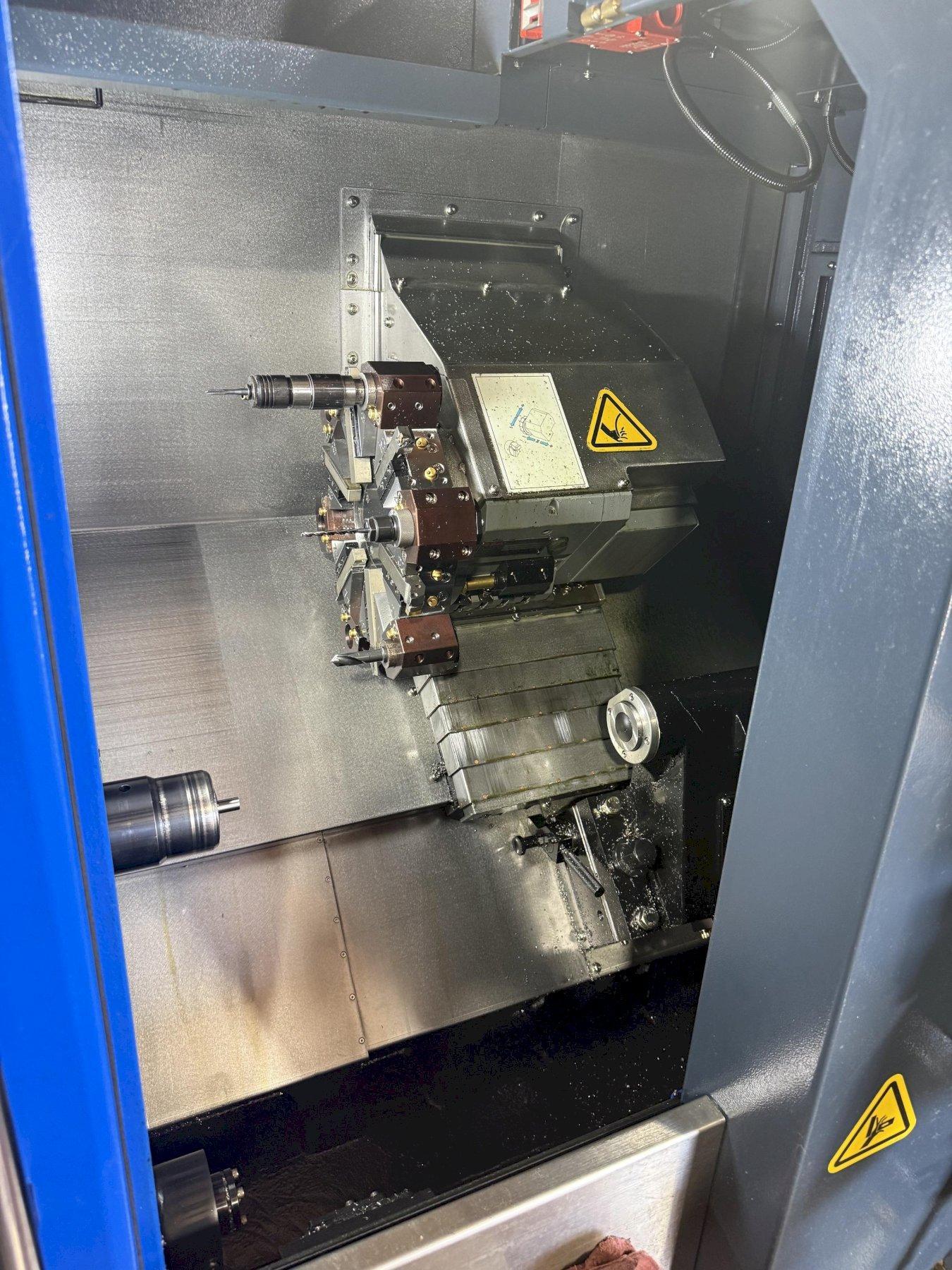

12 Position Turret
True Slant Bed Design with One Piece Base Casting
Linear Motion Guideways with Roller Type Bearings
Hydraulic Tailstock with Foot Switch
Constant Surface Speed

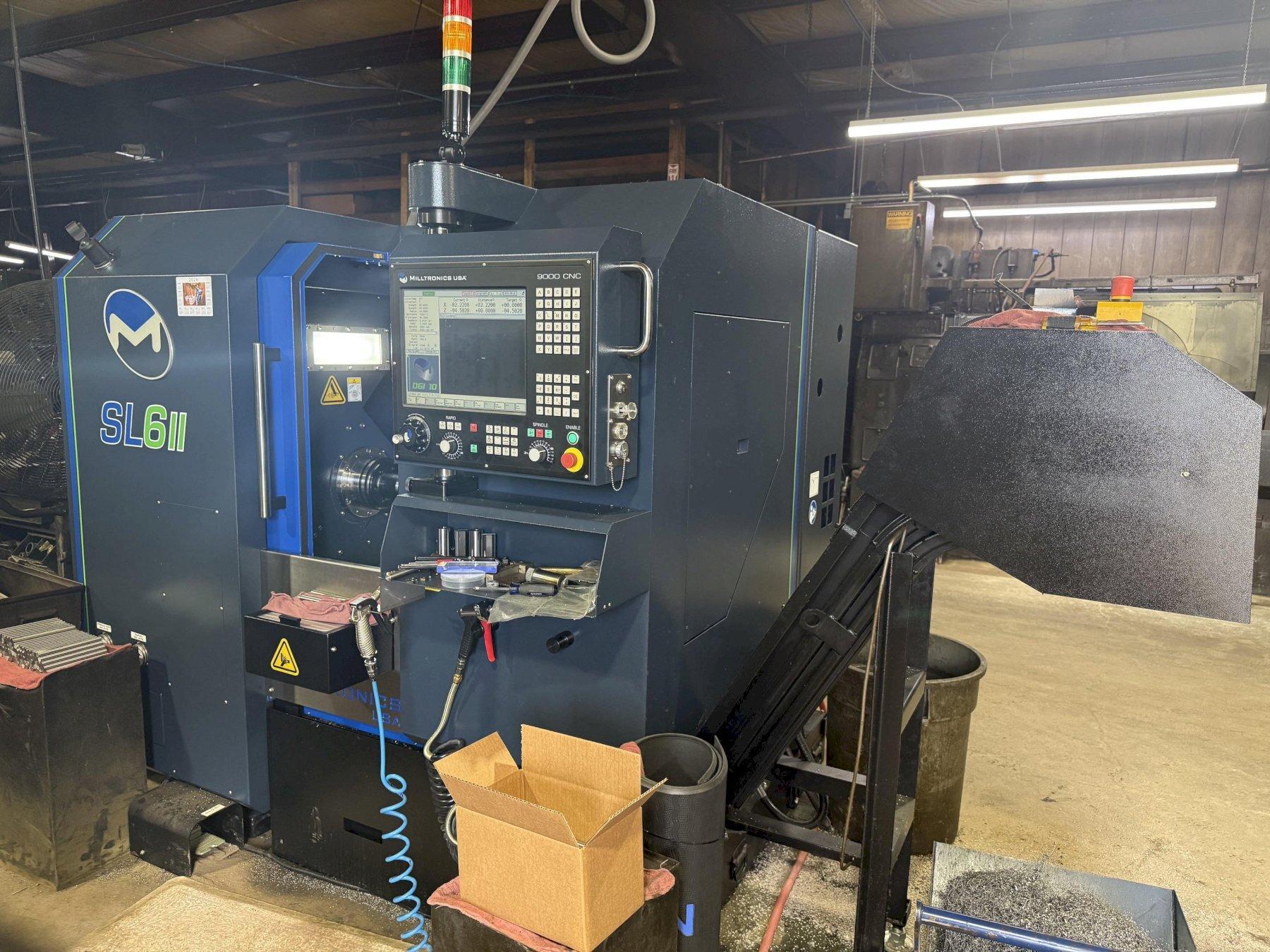

Chip Conveyor
Full Enclosure w/Sliding Door
Flood Coolant
Auto Lubrication
Optional 16J Collet Chuck available
Notes:
Specifications subject to independent verification by the buyer.
Offered on consignment. No warranty or return.

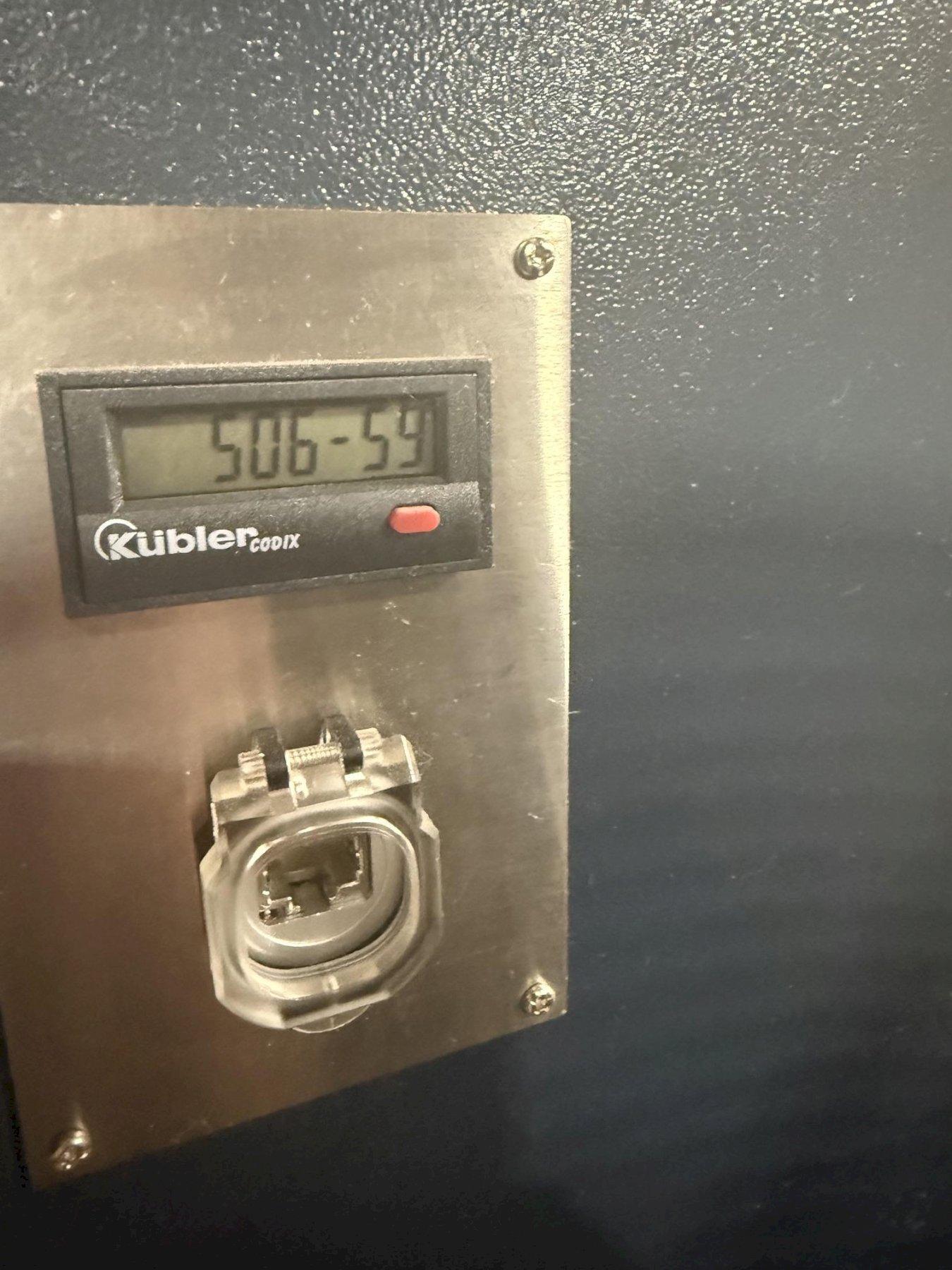

Installed December 2025. Less than 1000 hours at time of posting.
Prep for transport and loading on customer truck included.
