Specifications:

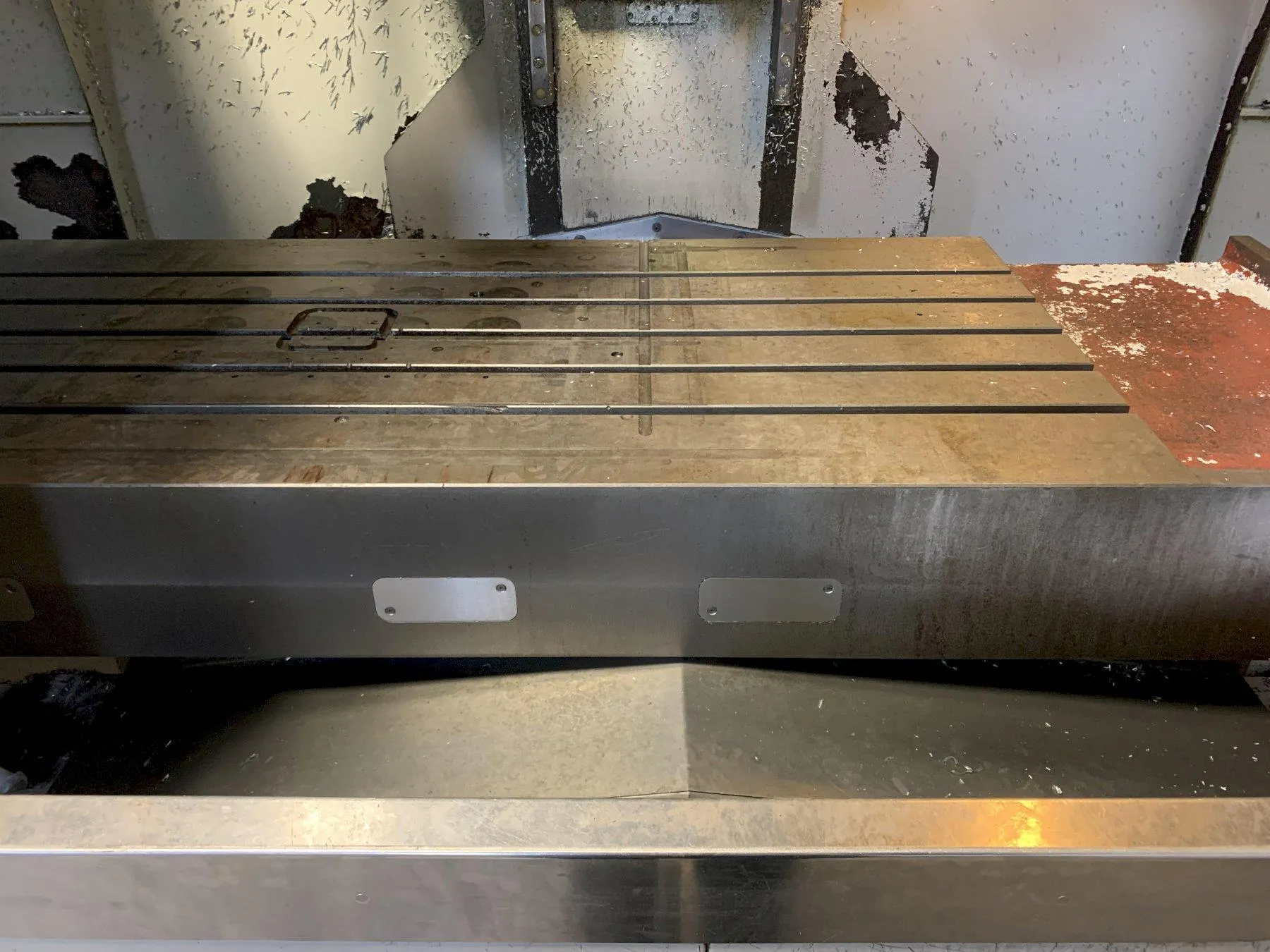

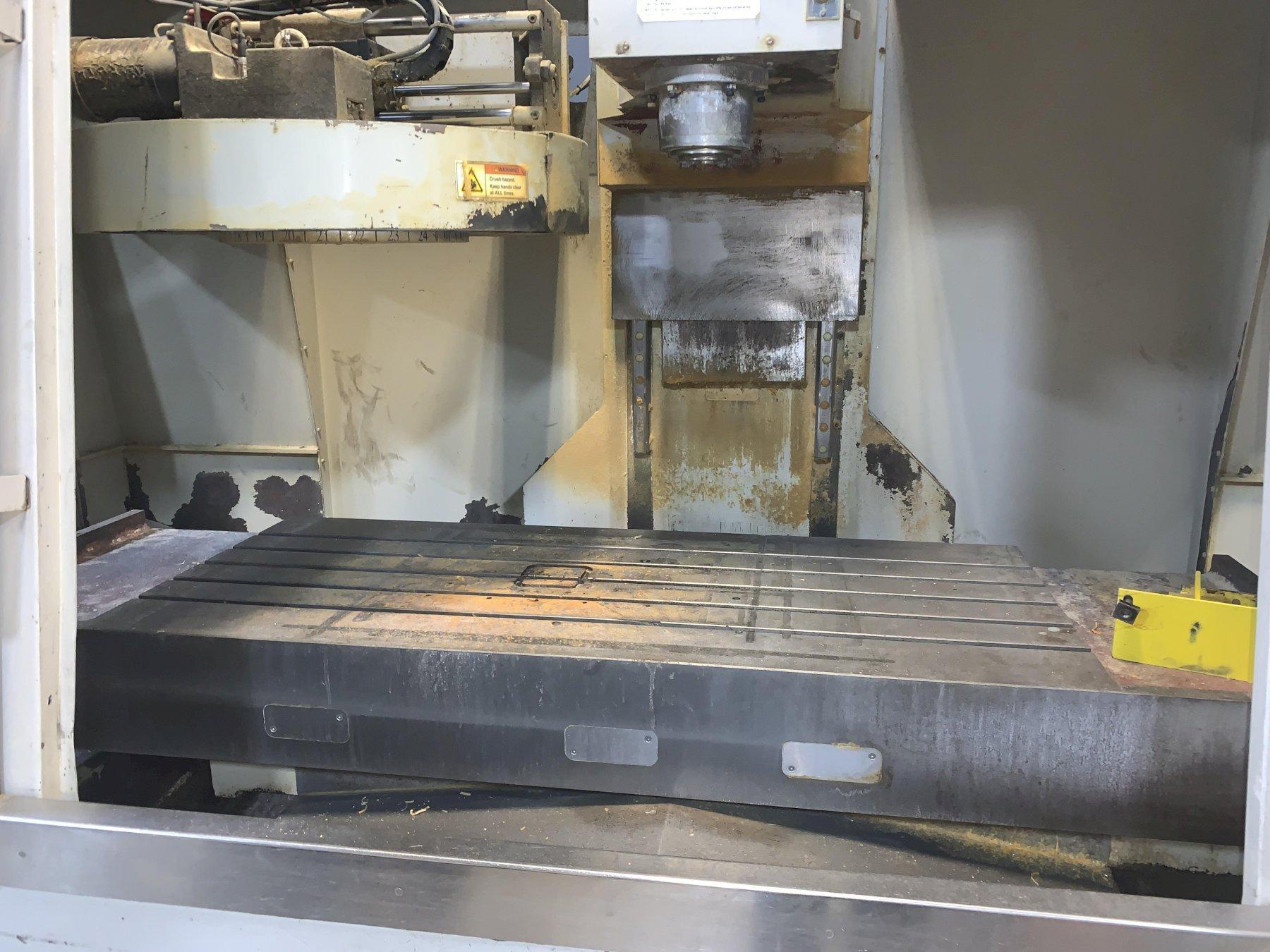

• Table Size – 56” x 24”
• Travels (XYZ) – 50” x 25” x 24”
• Throat Distance – 25”
• Distance, Spindle to Table Top – 4” to 28”
• Table Weight Capacity – 4000 Lbs.
• Spindle Taper – CT40
• Spindle Motor (1 min / 30 min) - 24/15 HP

• Spindle Speeds – 50 to 10,000 rpm

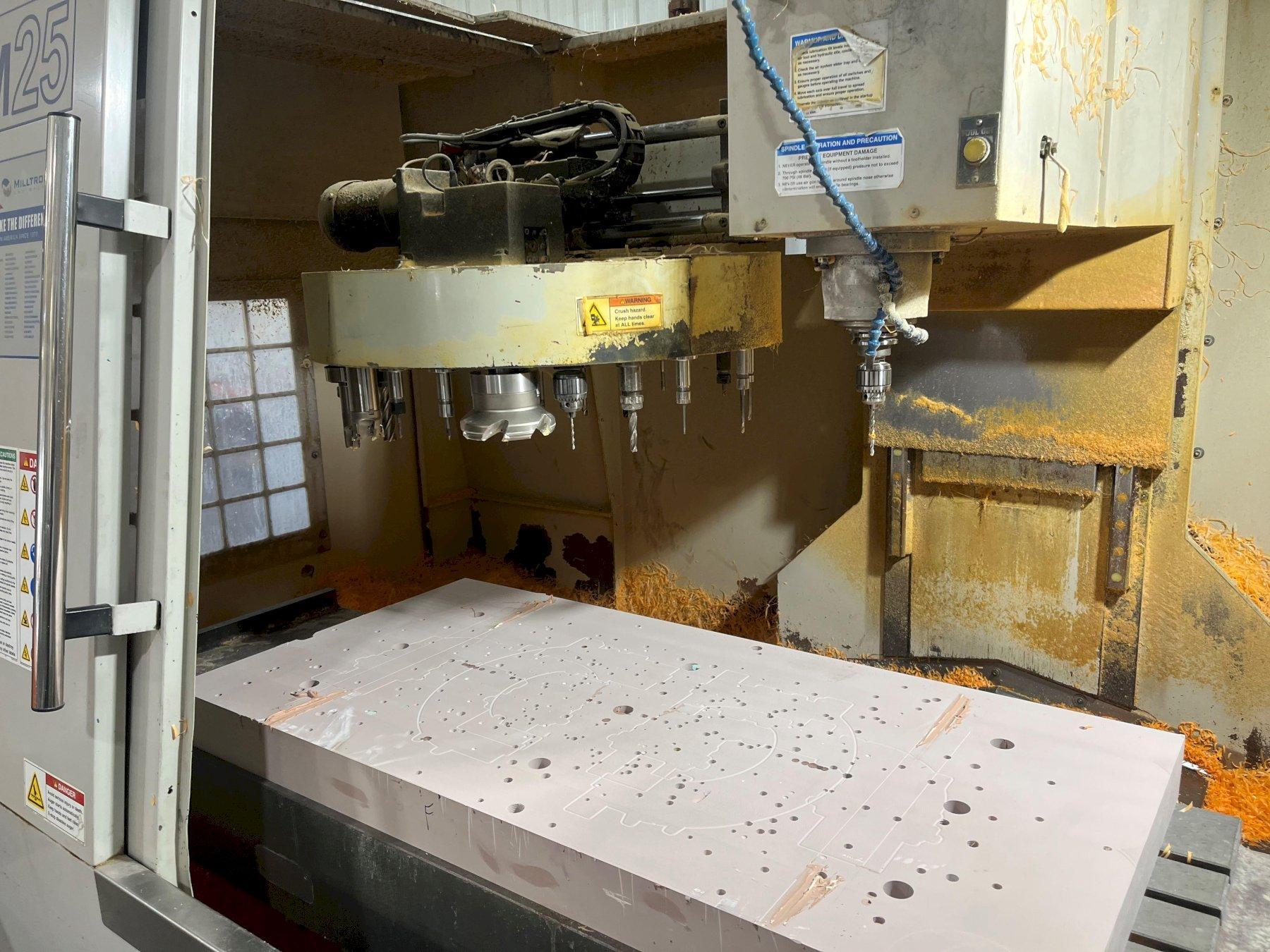

• ATC – 24 Pocket Caroulsel ATC
• Tool Change – 8 Sec
• Rapid Traverse XY / Z – 1600 / 1200 ipm
• Max Feedrate (Part Dependent) – 500 ipm
• Floor Space Required – 144” x 114”
• Weight, Approx – 19,000 Lbs.
•
• Equipped with:

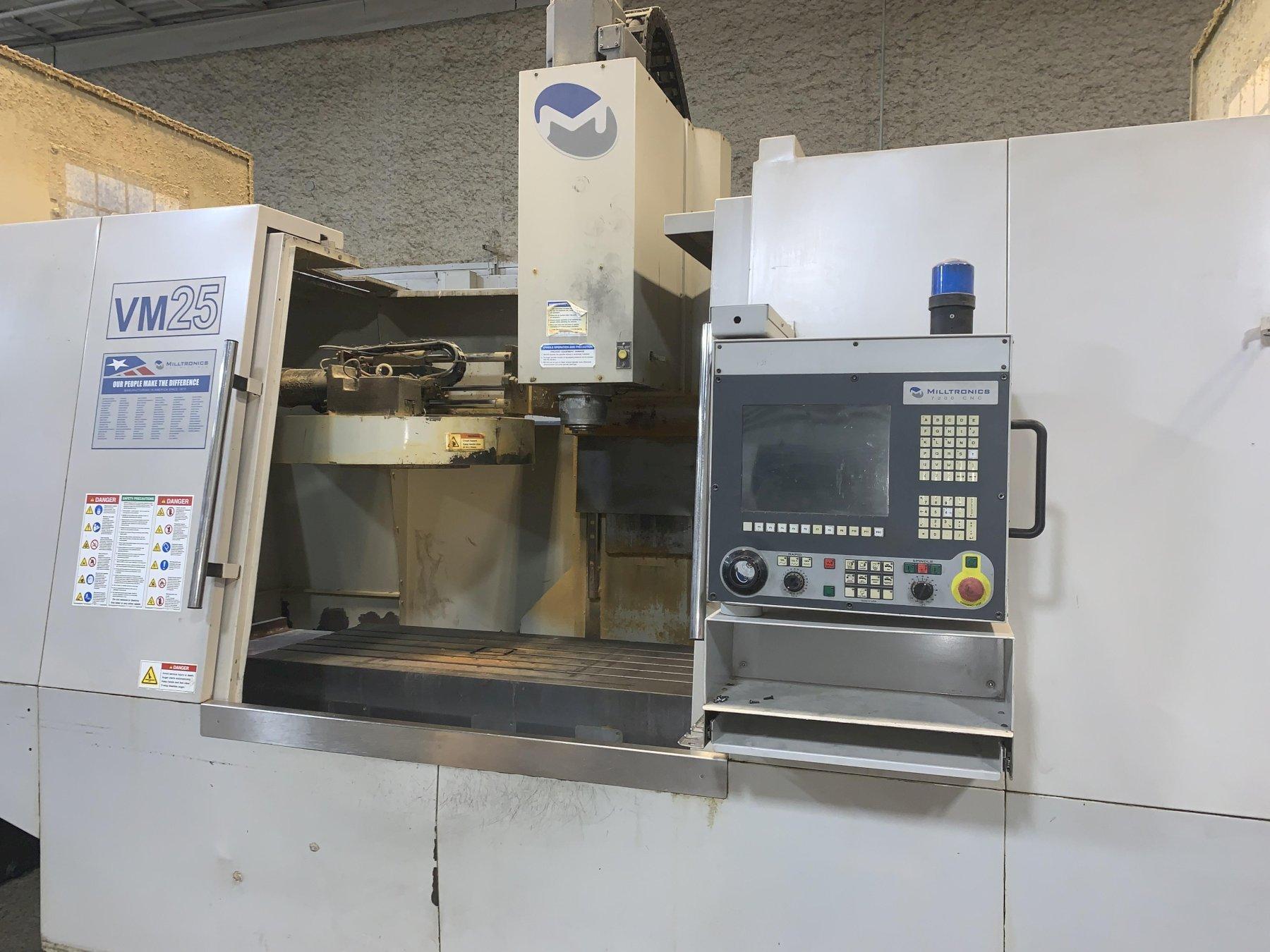

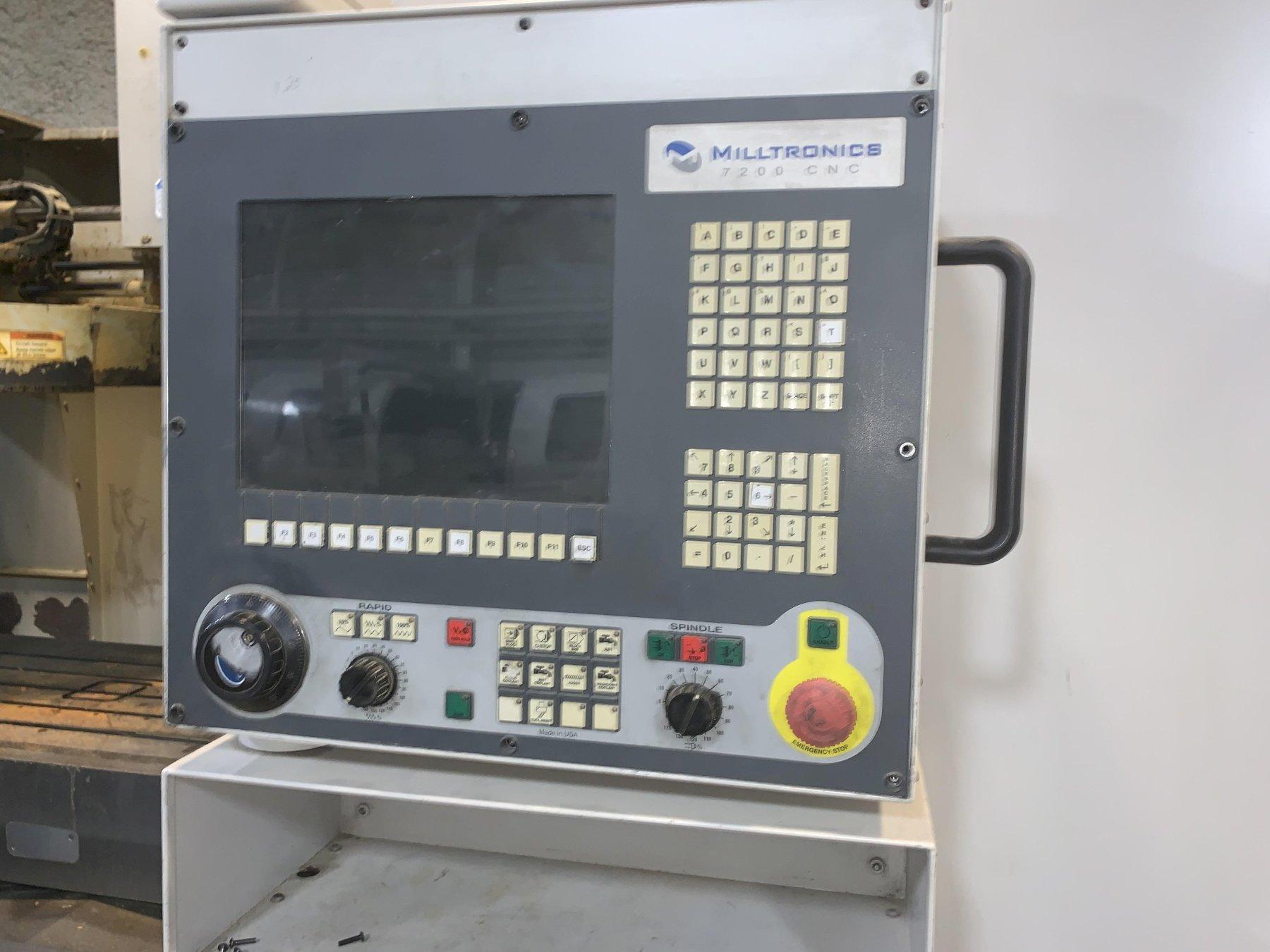

• Milltronics Conversational CNC Control
• Digital AC Brushless Servos
• Chip Auger
• Coolant System
• Full Enclosure
