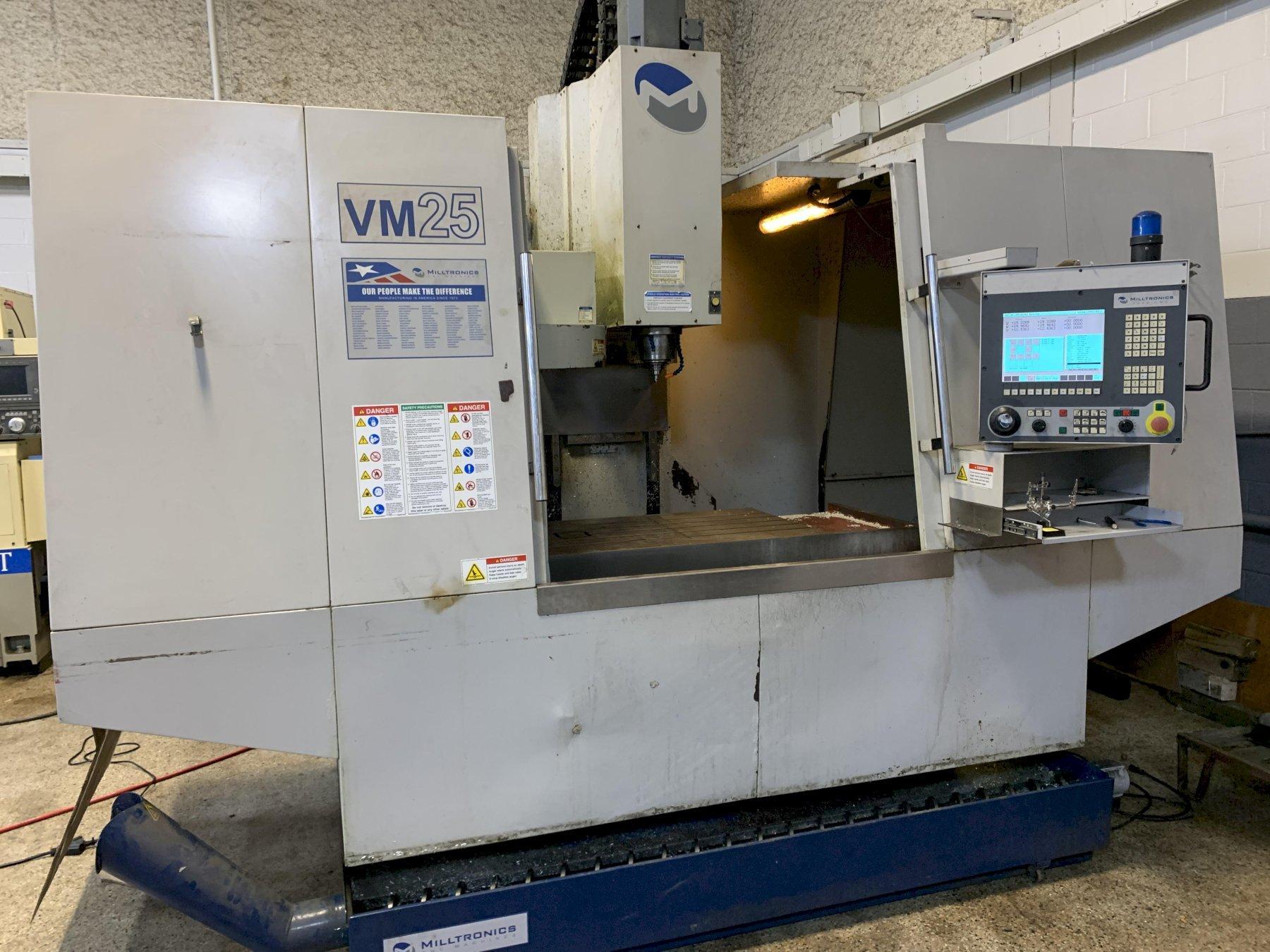

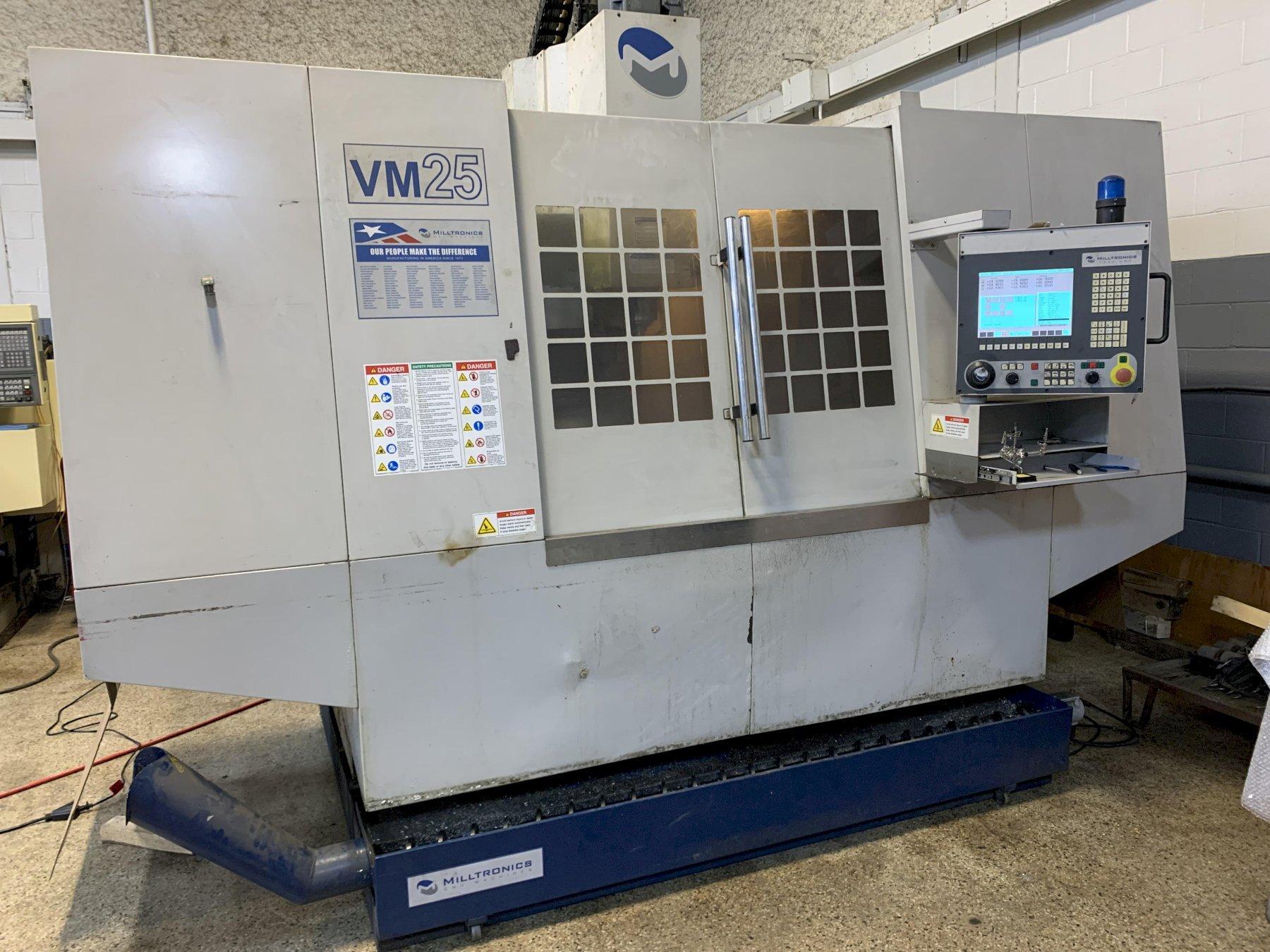

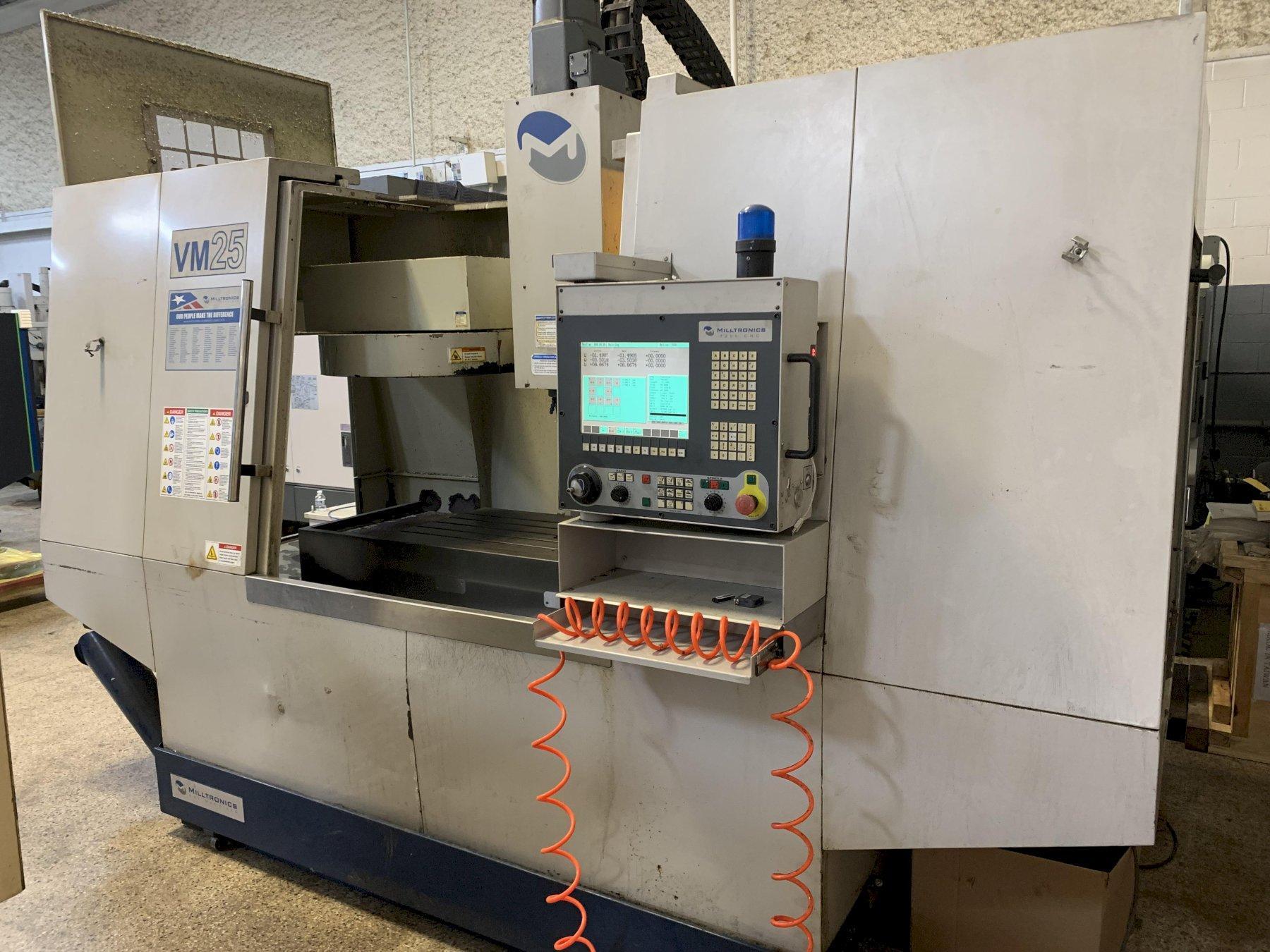

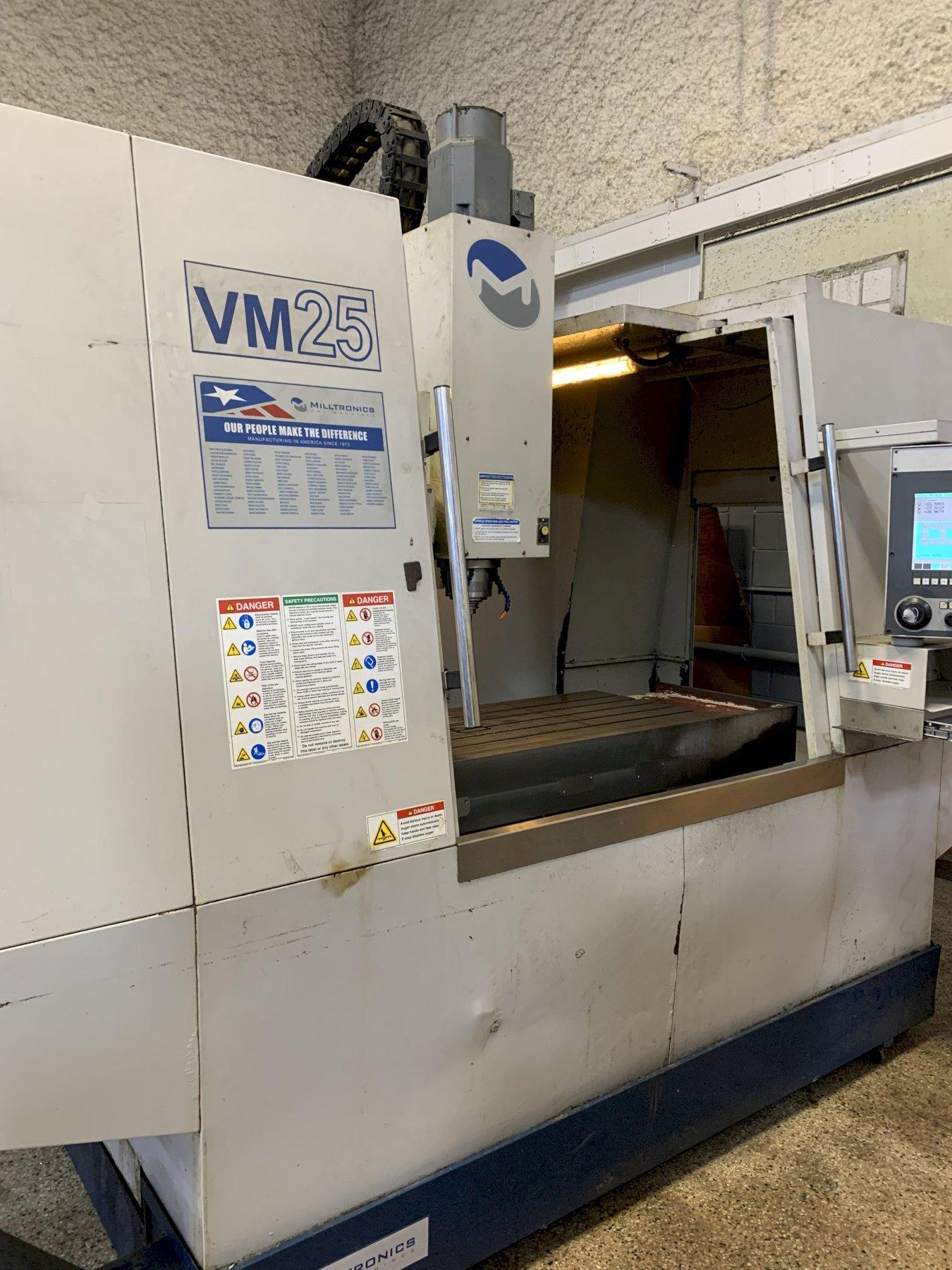

Milltronics Model VM25IL CNC Vertical Machining Center

Brand
MILLTRONICS

Model
VM-25IL

Type
Machining Centers, Vertical

Stock #
34690

Condition
Used

Year
2008

Location
Dayton, Ohio
United States

Price
$22,500.00

Request Quote

Specifications

Equipped With

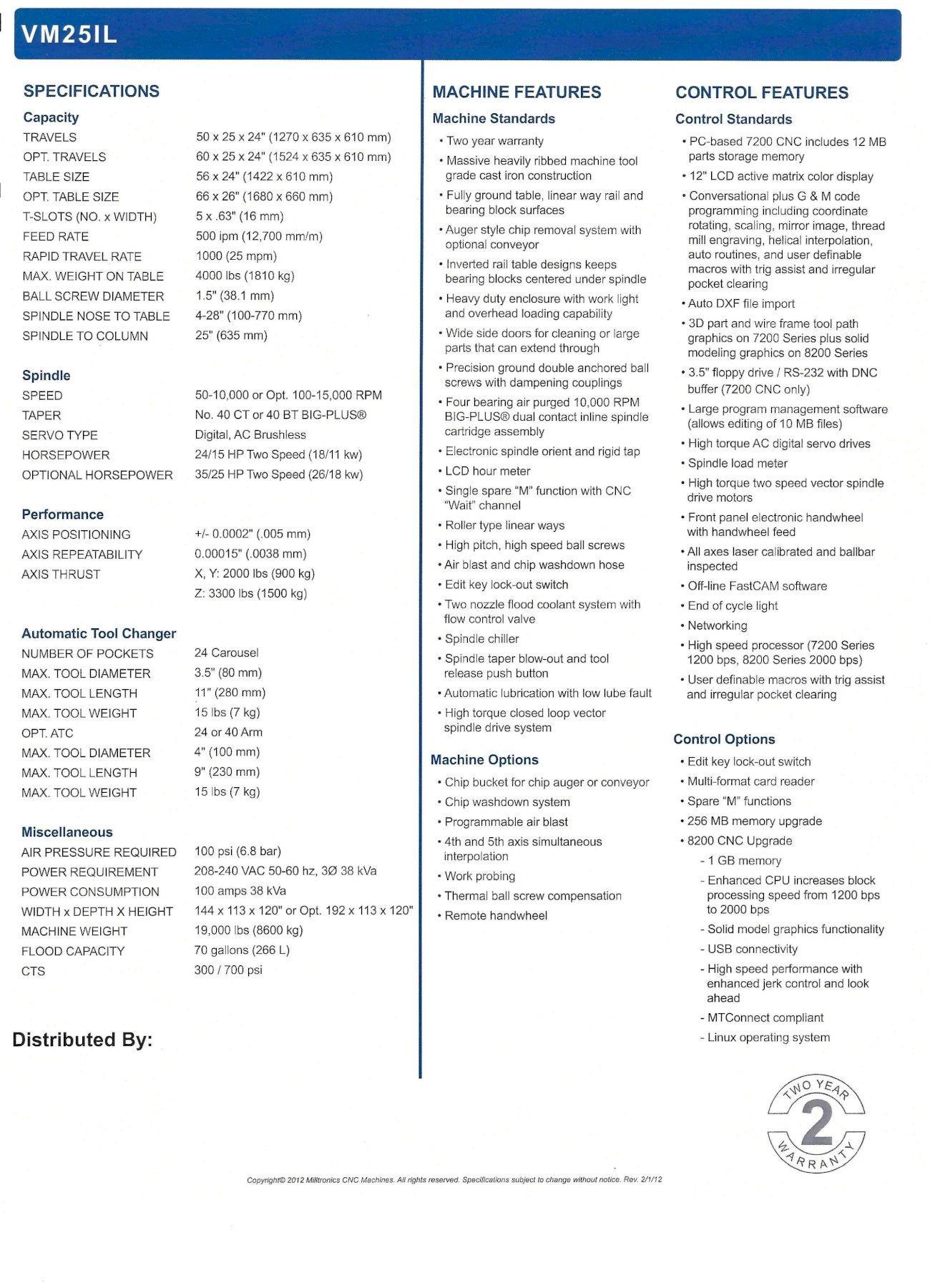

Specifications:

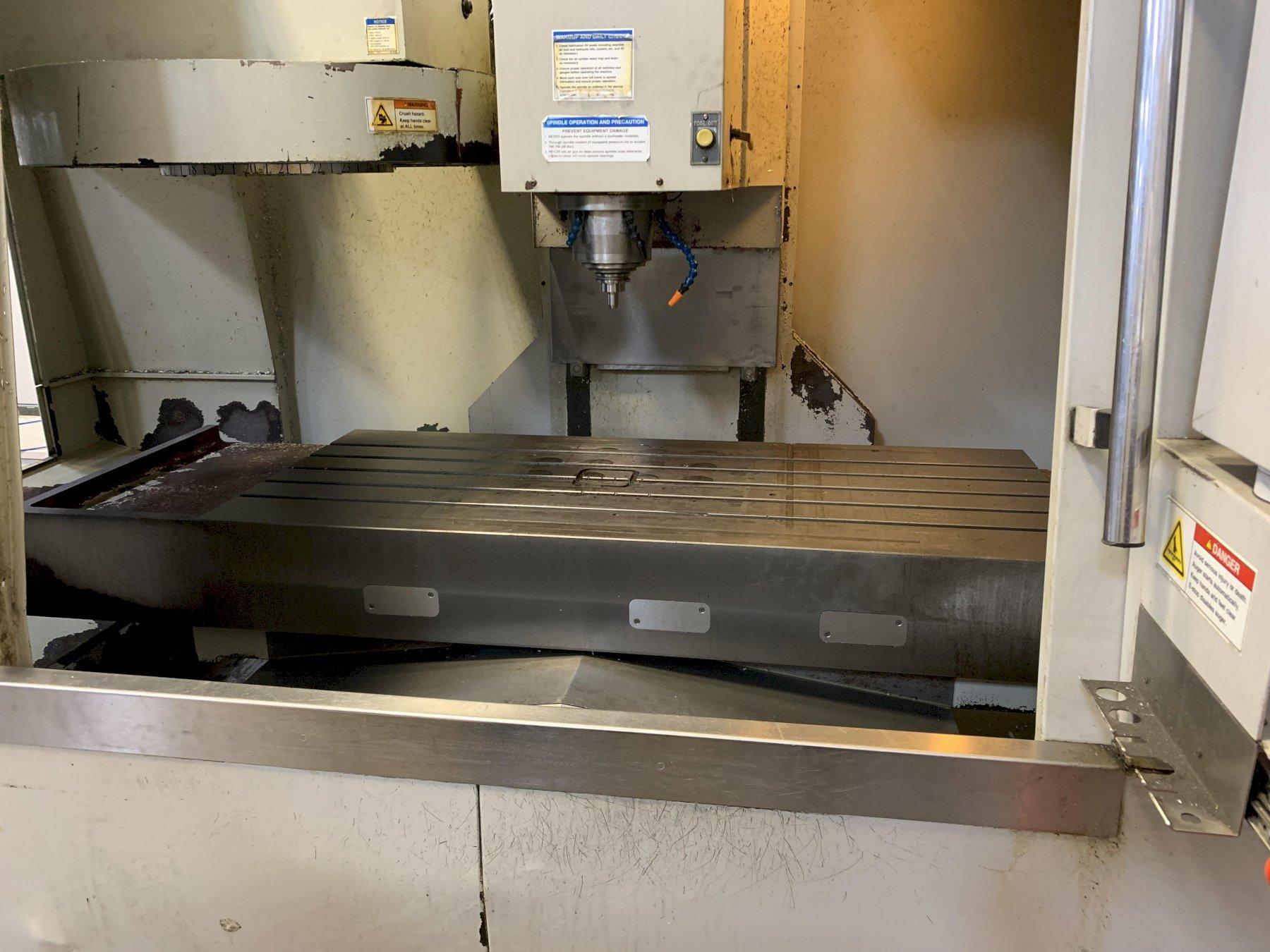

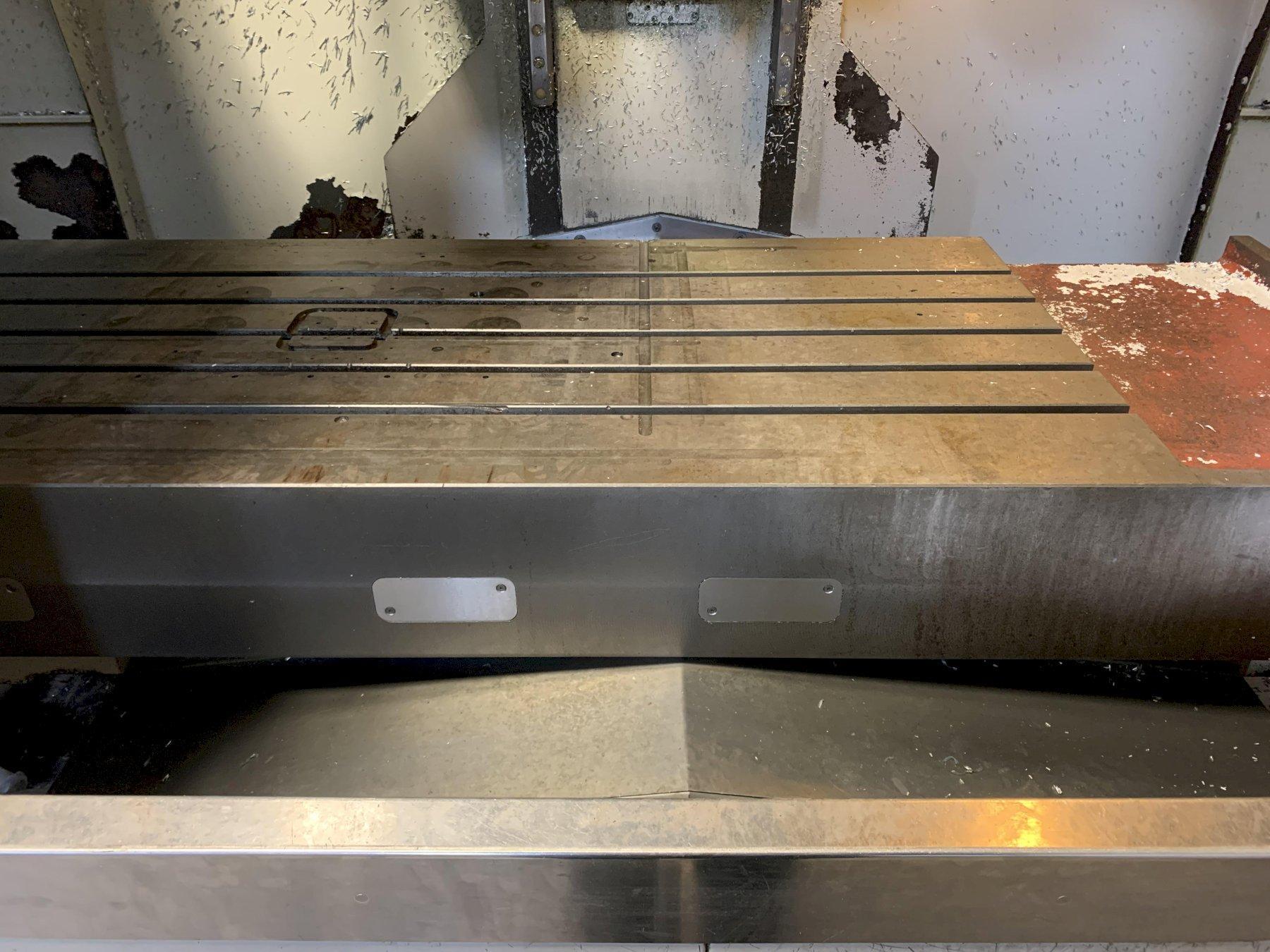

  • Table Size – 56” x 24”
  • Travels (XYZ) – 50” x 25” x 24”
  • Throat Distance – 25”
  • Distance, Spindle to Table Top – 4” to 28”
  • Table Weight Capacity – 4000 Lbs.

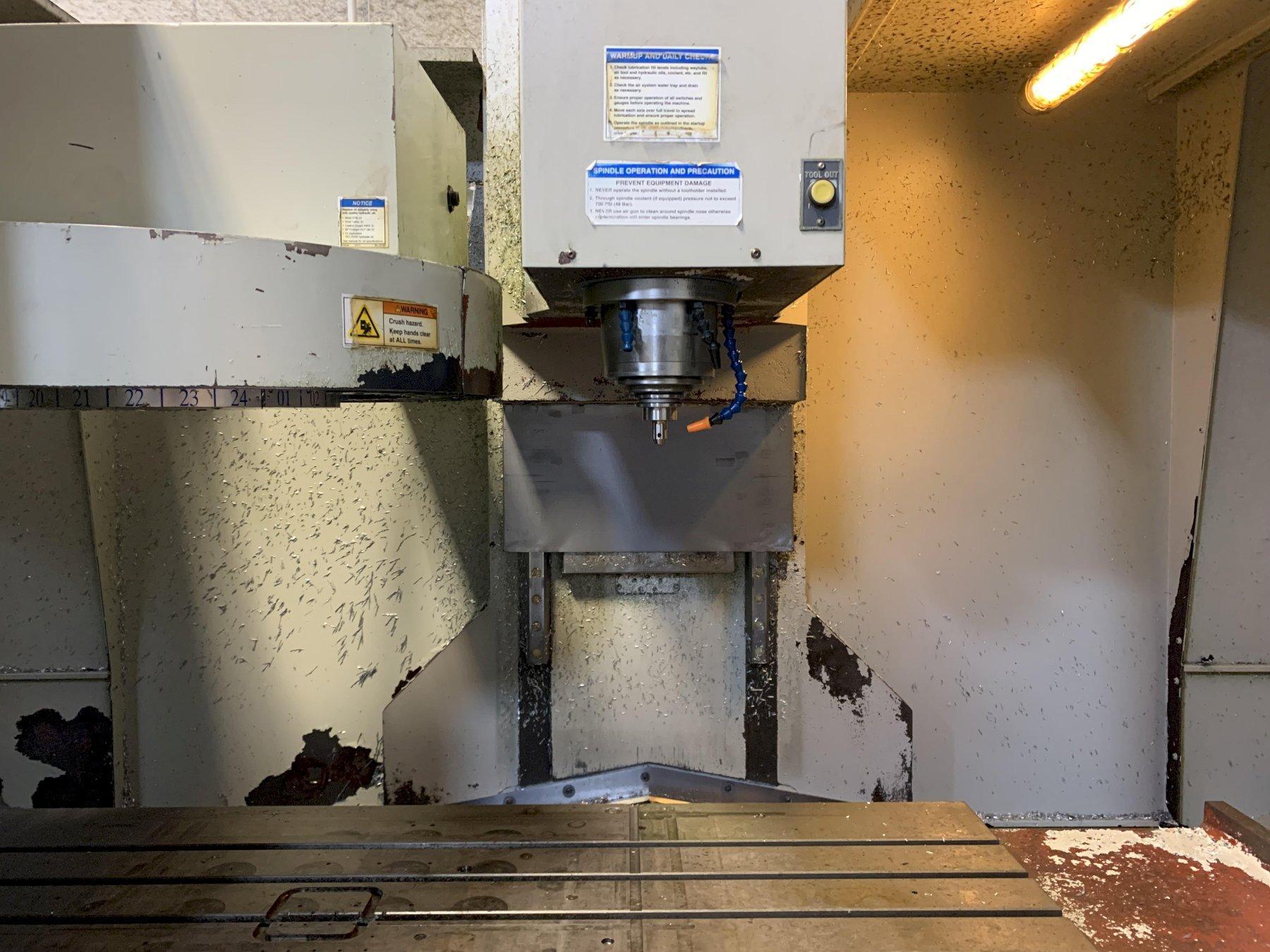

  • Spindle Taper – CT40
  • Spindle Motor (1 min / 30 min) - 24/15 HP
  • Spindle Speeds – 50 to 10,000 rpm
  • ATC – 24 Pocket Caroulsel ATC
  • Tool Change – 8 Sec
  • Rapid Traverse XY / Z – 1600 / 1200 ipm
  • Max Feedrate (Part Dependent) – 500 ipm
  • Floor Space Required – 144” x 114”
  • Weight, Approx – 19,000 Lbs.
  •
  • Equipped with:

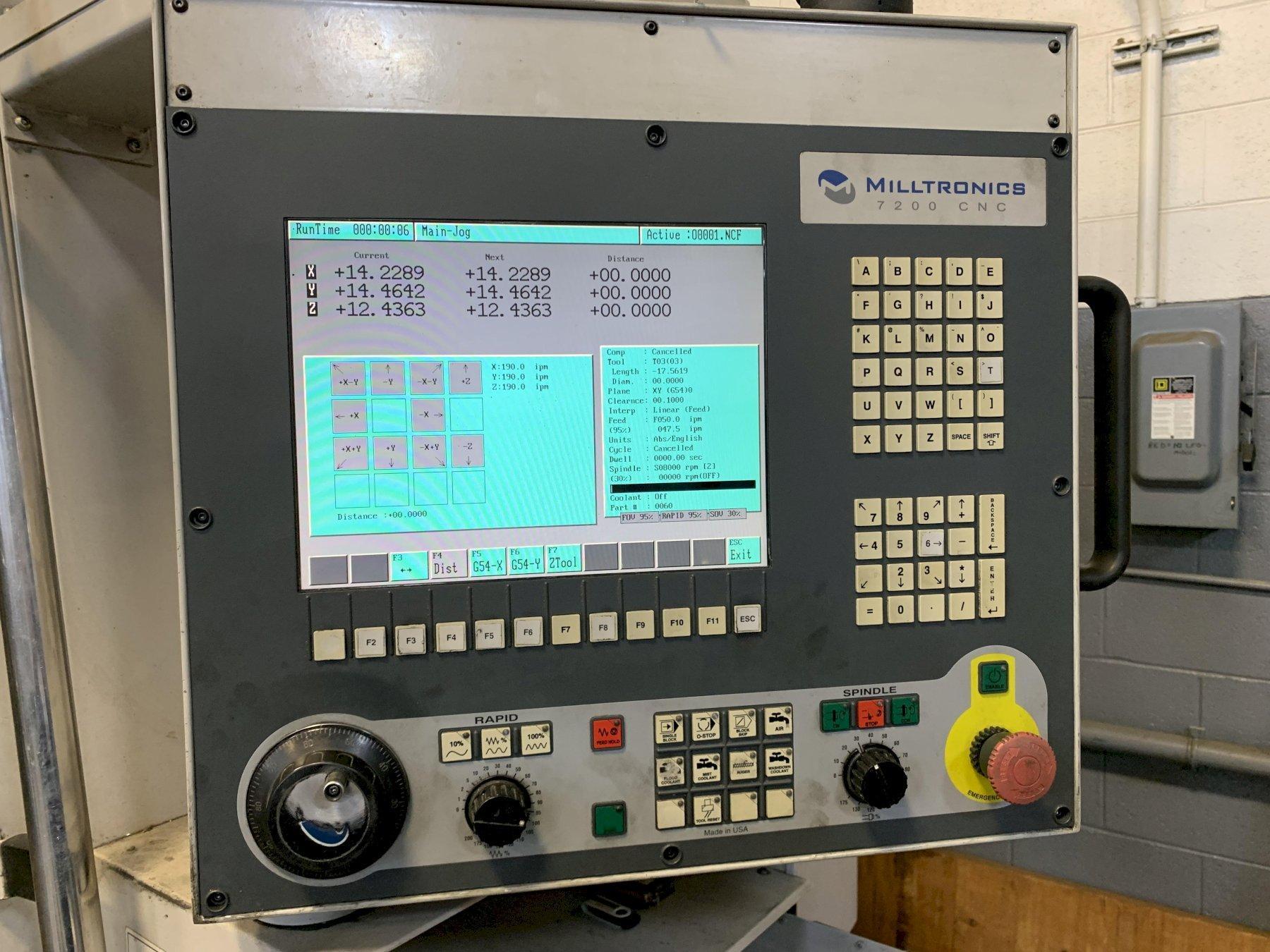

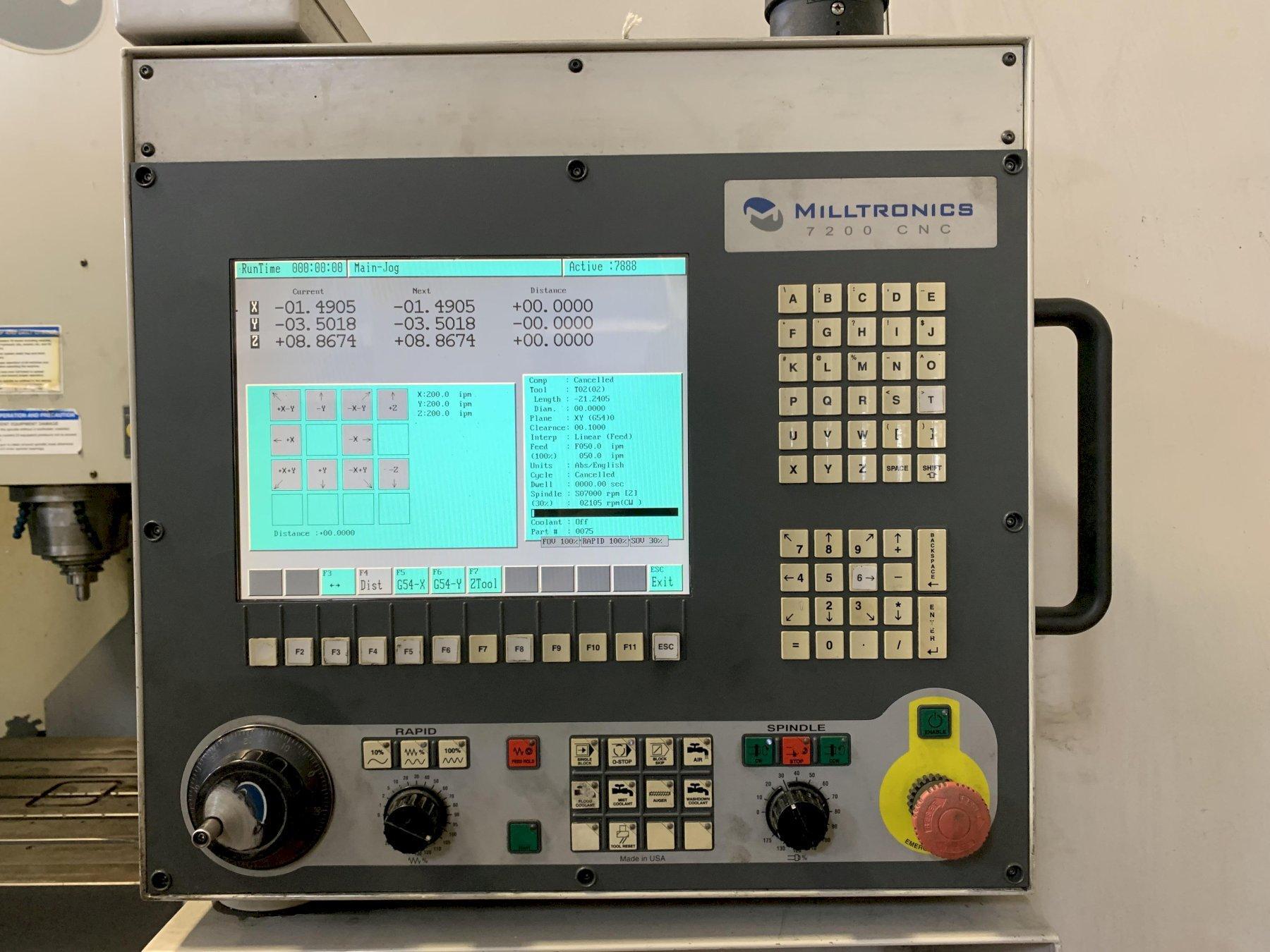

  • Milltronics Conversational CNC Control
  • Digital AC Brushless Servos
  • Chip Auger
  • Coolant System
  • Full Enclosure
Specifications subject to independent verification by the buyer.
Seller can load.

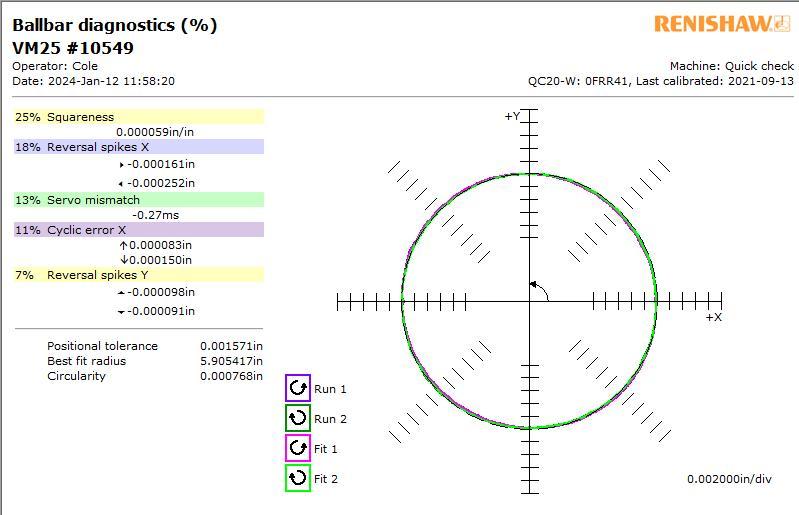

Ballbar included in pictures.
