Specifications
Equipped With
Specifications:
Capacity:
X-Axis Travel - 50"
Y-Axis Travel - 25"
Z-Axis Travel - 24"
Table Size - 54" x 25"
Allowable Table Load - 4190 lbs
T-Slot (6 total) - 0.71" on 3.94" centers
Spindle:
Spindle Gage Lin to Table Distance - 6" to 30"
Way Cover to Spindle Center - 28.7"
Spindle Taper - ISO No. 50 (Supports BIG-PLUS Tools)
Spindle Speed - 8000 RPM
AC Spindle Motor - 35/25 HP
Automatic Tool Changer:
ATC Type - Double Arm
Number of Tools - 30
Tool Shank - CT50
Max Tool Diameter / Adjacent Location Empty - 4.9" / 8.7"
Max Tool Length - 11.8"
Max Tool Weight - 33 Lbs.
Motion:
X/Y , Z Axis Rapid Traverse Rate - 1000 / 787 IPM
Max Cutting Feed Rate - 500 IPM
Least Command Increment - 0.0001"
X-Axis Thrust (Peak) - 6065 Lbs
Y-Axis Thrust (Peak) - 6065 Lbs
Z-Axis Thrust (Peak) - 9531 Lbs.
General:
Machine Height - 123"
Floor Space Required (W x D) - 128" x 108"
Additional Width for Conveyor Discharge - 37"
Machine Weight - 29,100 Lbs.
Power Required (FL kVA/FL A @230V) - 38kVA / 94A
Voltage Required - 208-240 Volts / 3 Phase
Equipped with:

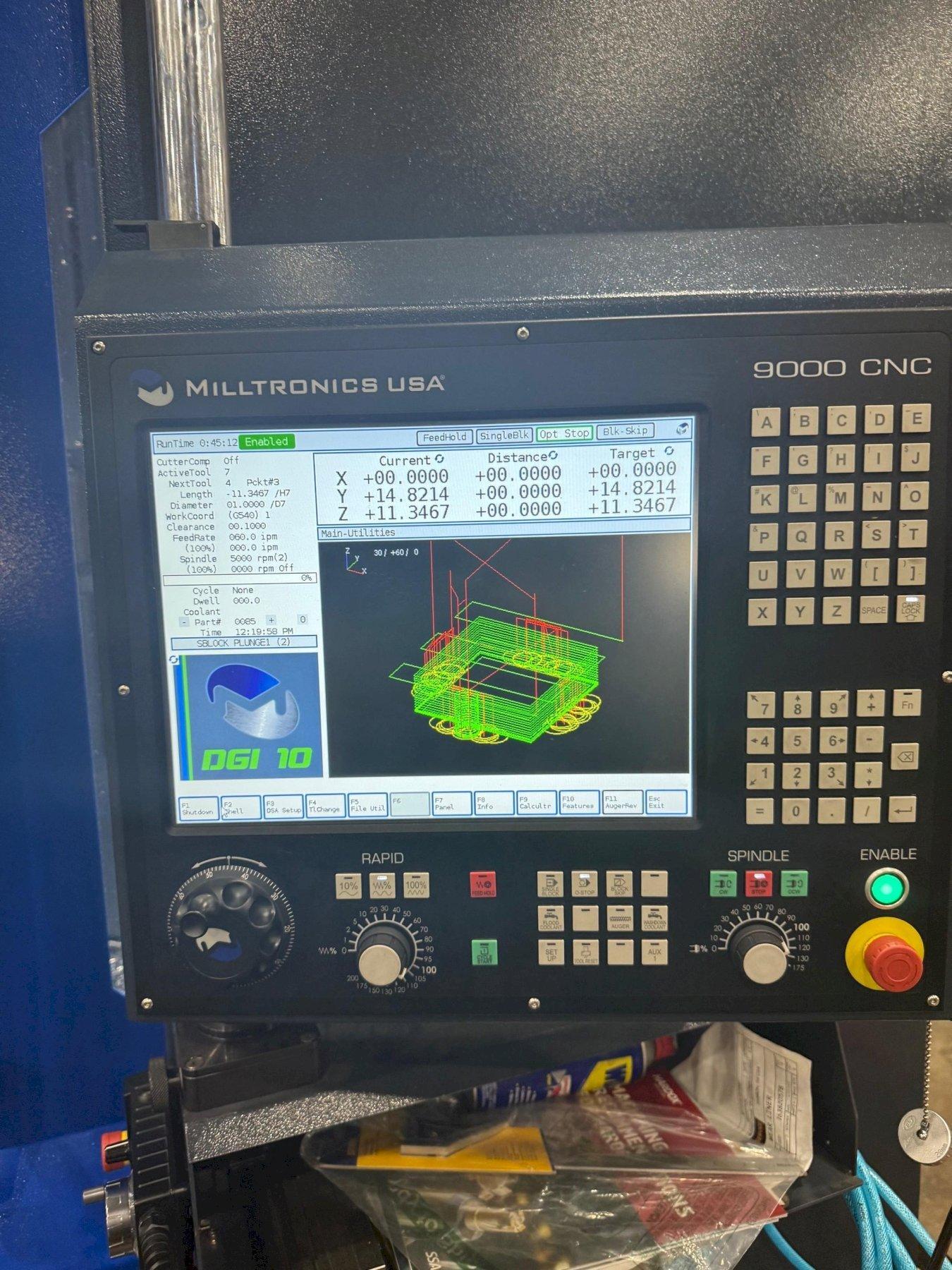

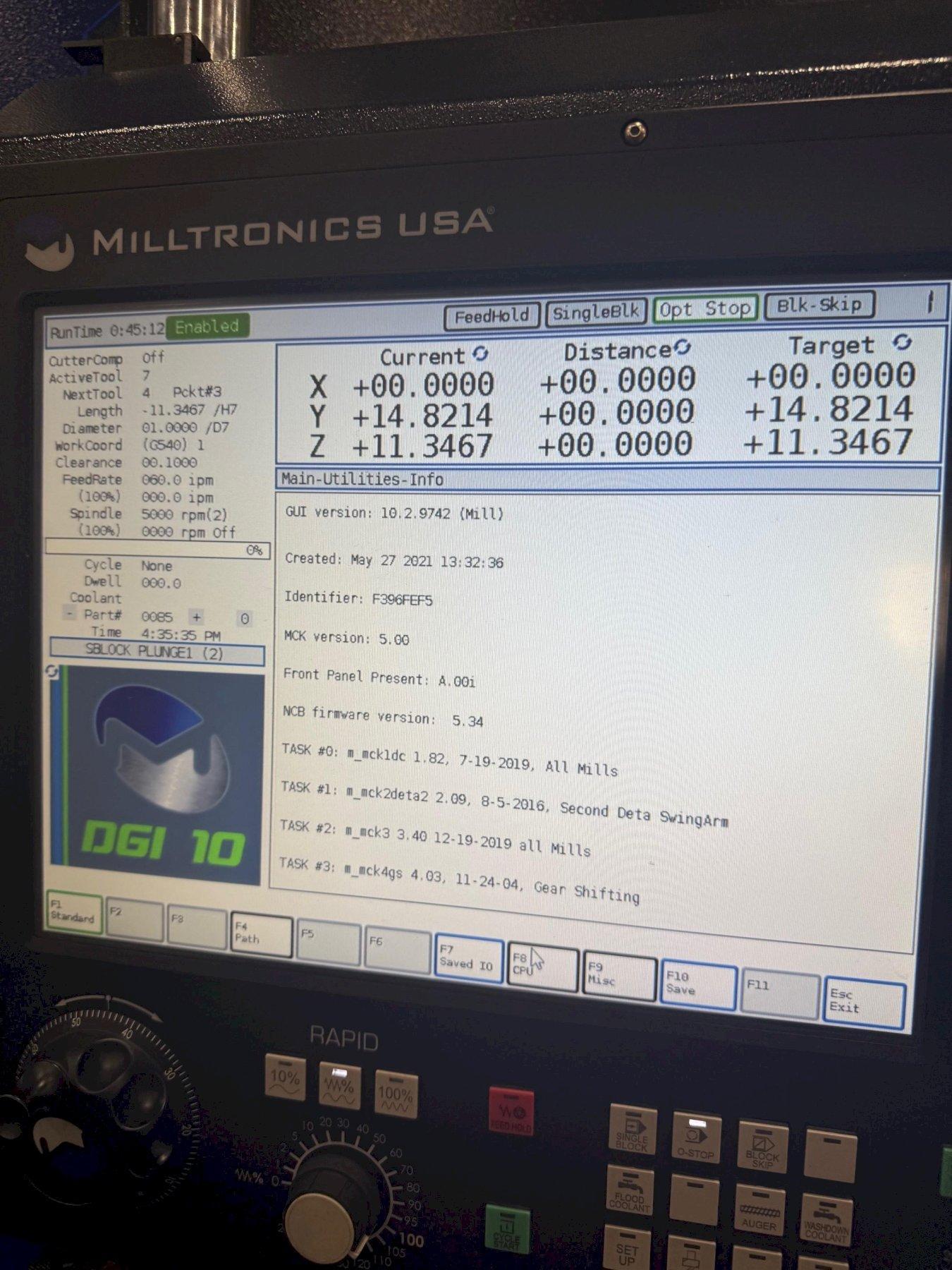

9000 Control with DGI 10 Software
15" color LCD Touch Screen Display
30 Pocket Double Arm ATC
8000 RPM Belt-Driven Spindle
Chip Conveyor
Chip Wash Down
Full Enclosure with Side Doors
Rigid Tapping
Spare "M" Funstion
Solid Model Graphic Display
120 GB Solid State Hard Drive
DXF File Import
Rest Roughing Machining Cycle
Notes:

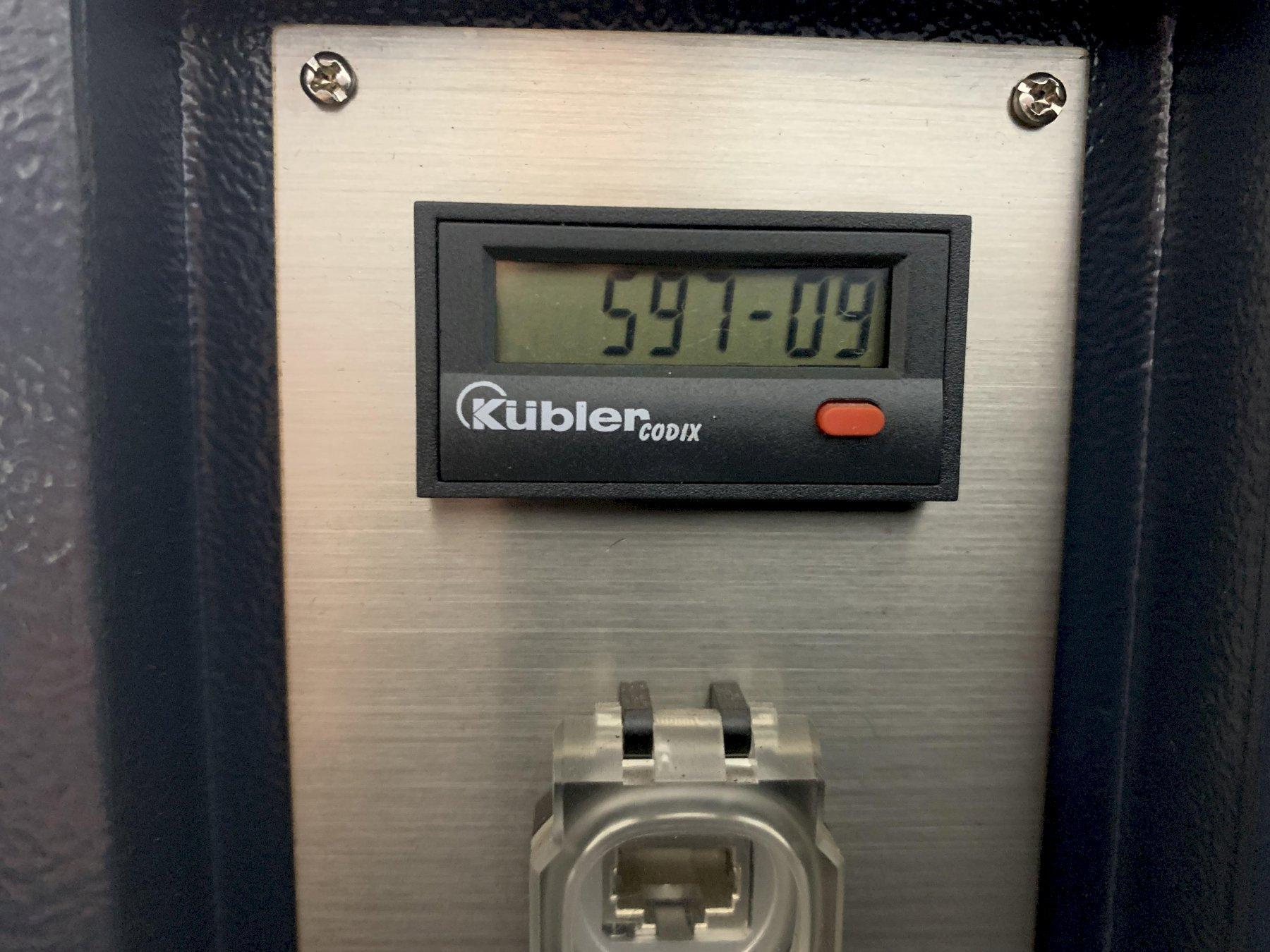

Machine was a demo/loaner machine and has approx 1000 hrs
Includes 1 year parts and labor warranty
Includes $5000 Ingersoll Cutting Tools Certificate
Includes 25% discount on all accessories and options
Available for sale to delivery in OH, KY, IN, WV.
Availability pending on or after October 17.
