Specifications
Equipped With
X-Axis Travel - 8"
Z-Axis Travel - 21"
Swing Over Bed - 21.7"
Swing Over Cross Slide - 11.8"
Max Turning Diameter - 14"
Max Turning Length - 21"
Spindle Nose - A26
Draw tube Diameter Spindle - 2.54"
Bore Diameter - 3.07"
Chuck Size - 8"
Spindle Range - 0 to 4000 rpm
AC Spindle Motor Max - 22/15 HP
Turret - 12 Position
Tool Size - 1" x 1"
Boring Bar Capacity - 1.5"
Turret Index Time - 0.6" sec
Tailstock Quill Travel - 3.46"
Tailstock Quill Diameter - 2.28"
Tailstock Quill Taper - 4MT
Rapids XYZ - 1,181 ipm
Max Cutting Feed Rate - 400 ipm
X Axis Ballscrew Diameter - 1.25"
Z Axis Ballscrew Diameter - 1.25"
Machine Height - 83.7"
Floor Space Required - 169.1" x 104.4"
Machine Weight - 8,885 Lbs
Power Required - 26 KVA
Voltage Required - 208-240 / 3 Ph
Equipped with:
Milltronics 9000 CNC Control

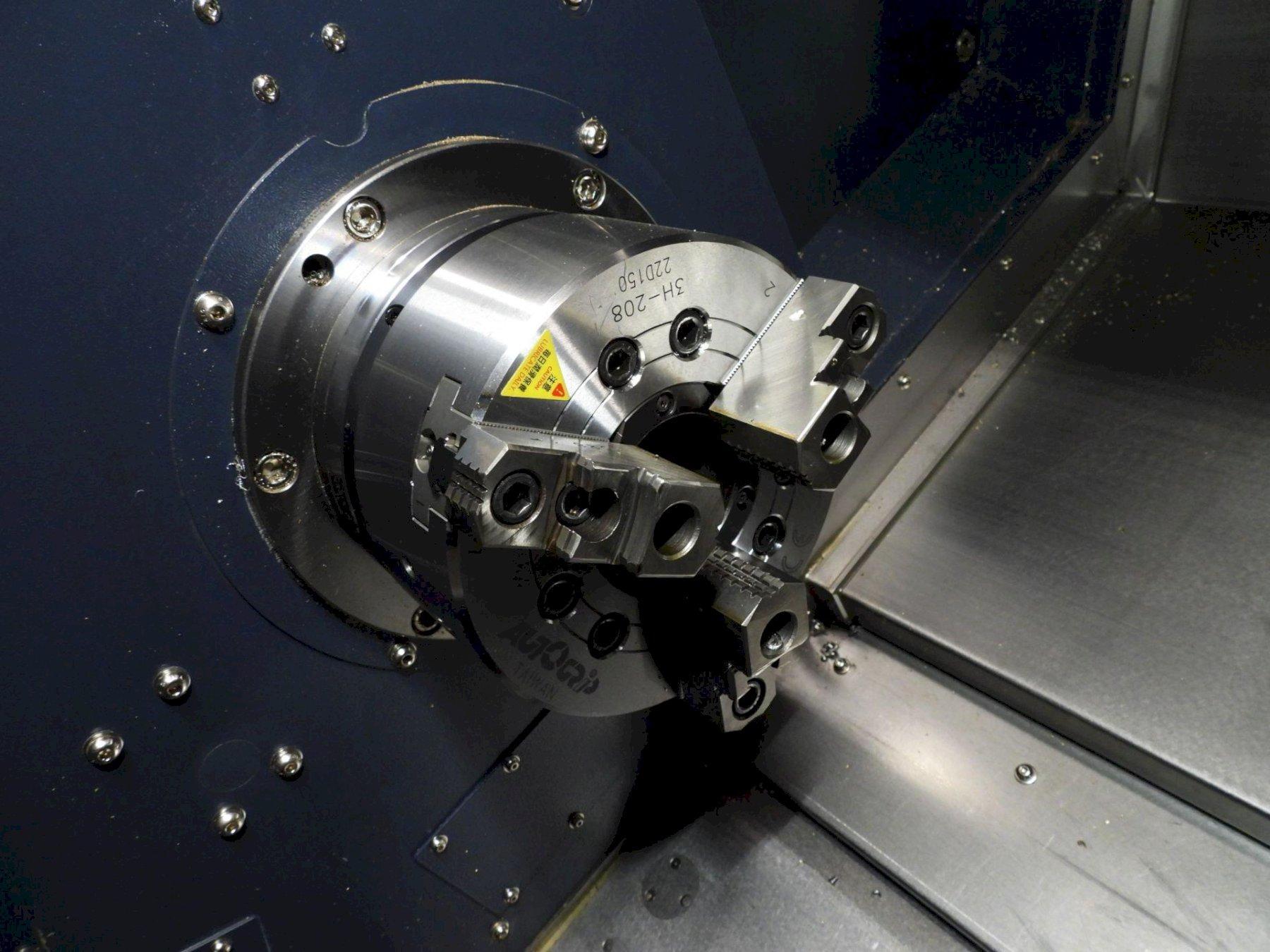

8" 3-Jaw Chuck

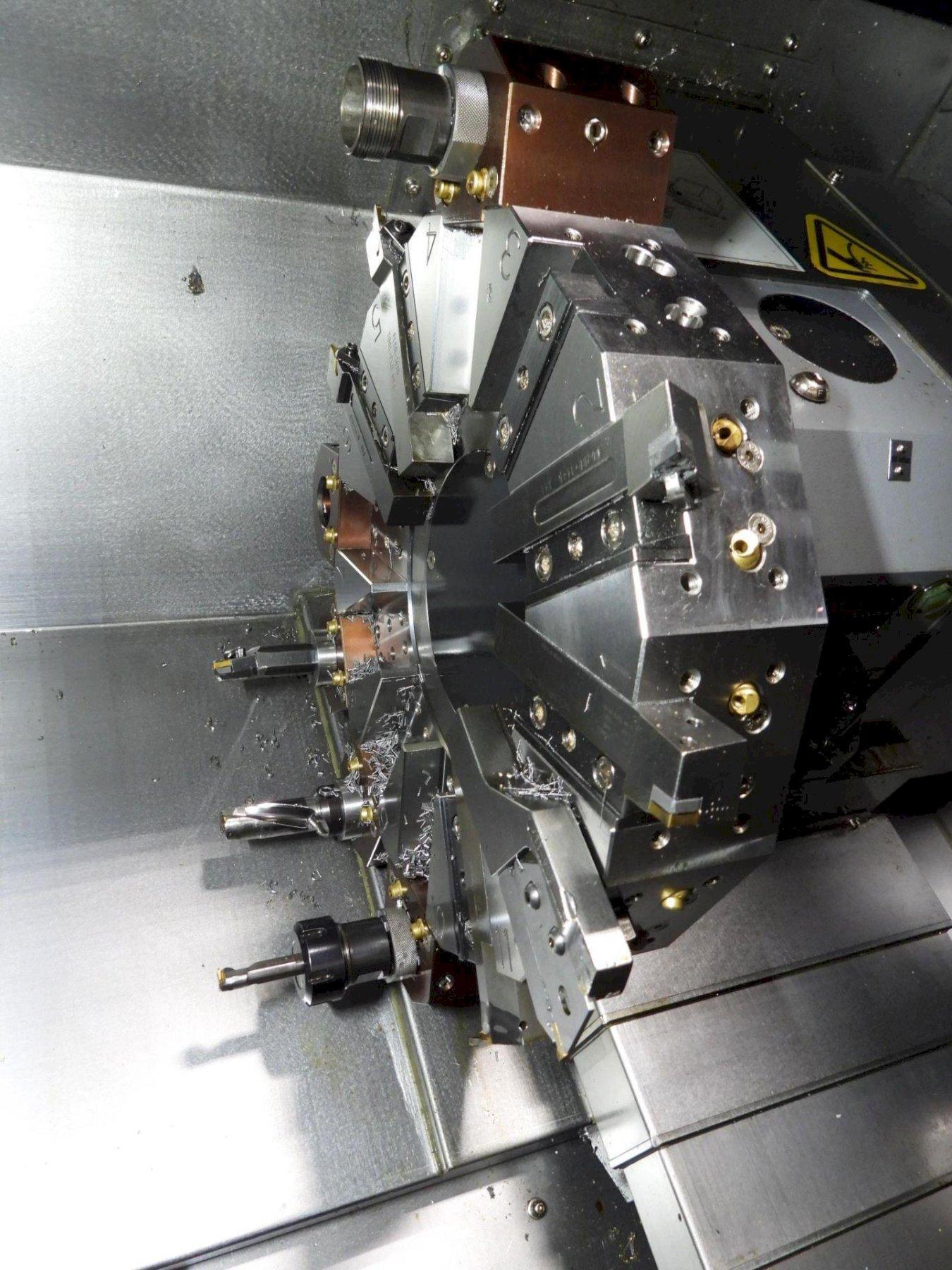

12 Position Turret
Constant Surface Speed
Chip Conveyor
Full Enclosure w/Sliding Door
Flood Coolant
Auto Lubrication
Notes:

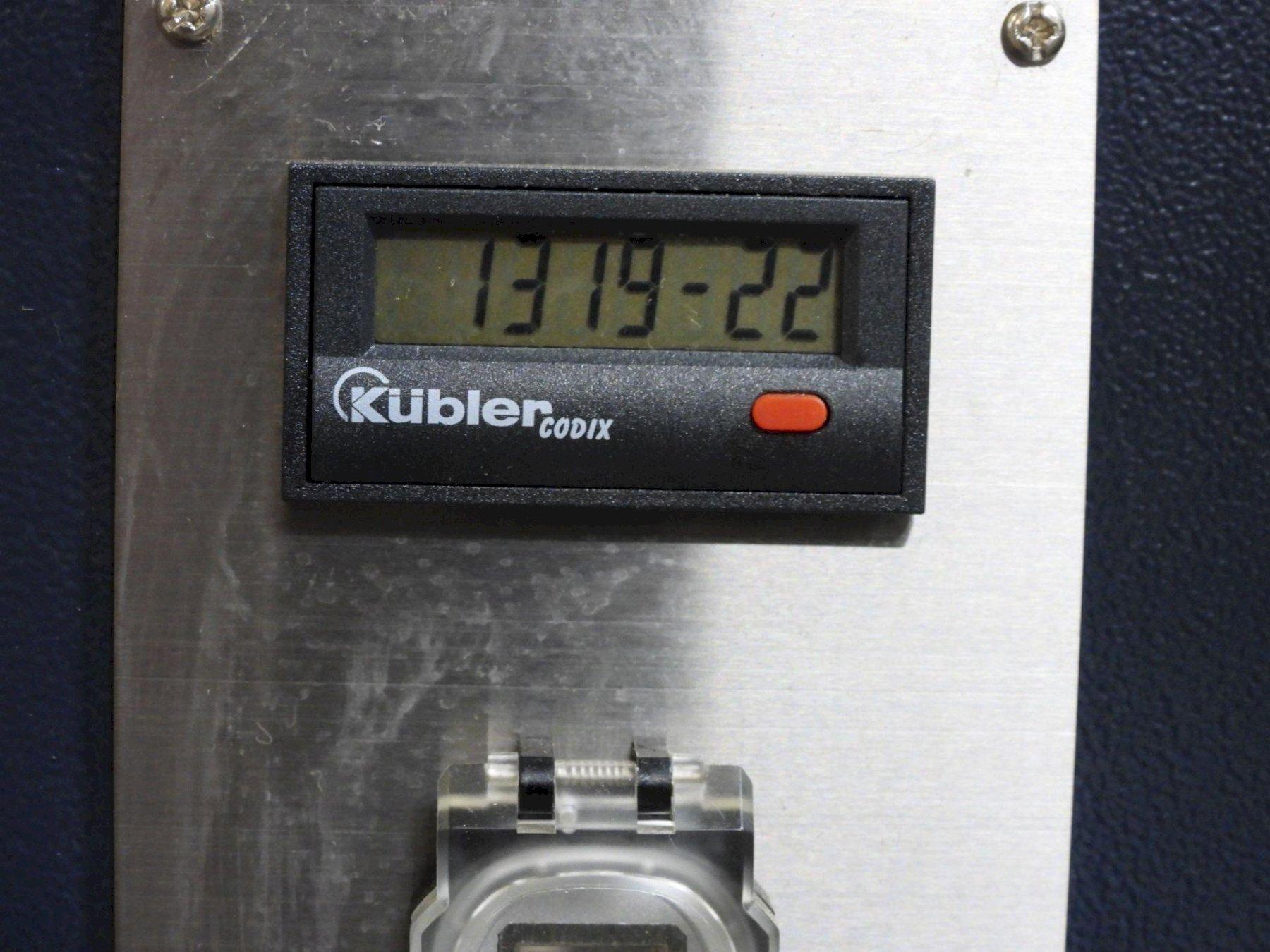

Total on time hours at time of listing = 1319 hrs
Machine was installed in 2024 and has seen minimal usage
Specifications subject to independent verification by the buyer.
Comparable new price $84,900
