Specifications
Equipped With
Specifications:
Swing Over Bed - 14"
Swing Over Cross Slide - 7.8"
Bed Length - 40"
Travel (X-axis) Cross Slide - 7"
Travel (Z-Axis) Long Slide - 30.5"
Center Height - 7"
Center Distance - 36"
Bed Width - 9.8"
Standard Motor - 12/10 HP
Spindle Bore - 1.65"
Spindle Nose - Camlock D1-5
Spindle Taper - #4MT
Spindle Speeds - 100 to 3000 rpm
Standard Chuck Size - 6"
Tailstock Quill Travel - 5.5"
Tailstock Quill Diameter - 1.875"
Tailstock Quill Taper - #3MT
Rapid Traverse - 300 ipm
Feedrate Range - .1 to 100 ipm
Machine Weight, Approx - 4000 lbs.
Equipped with:

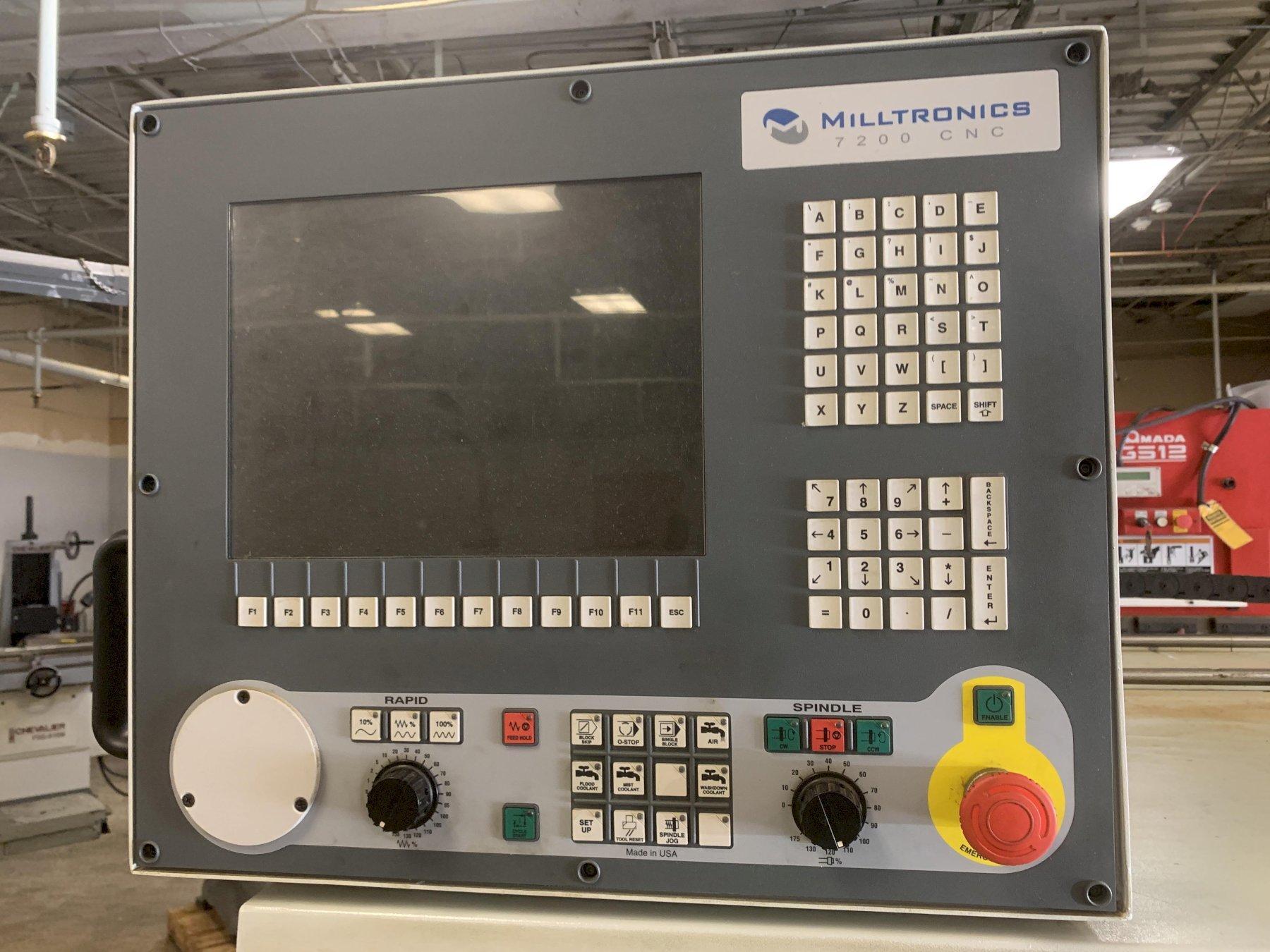

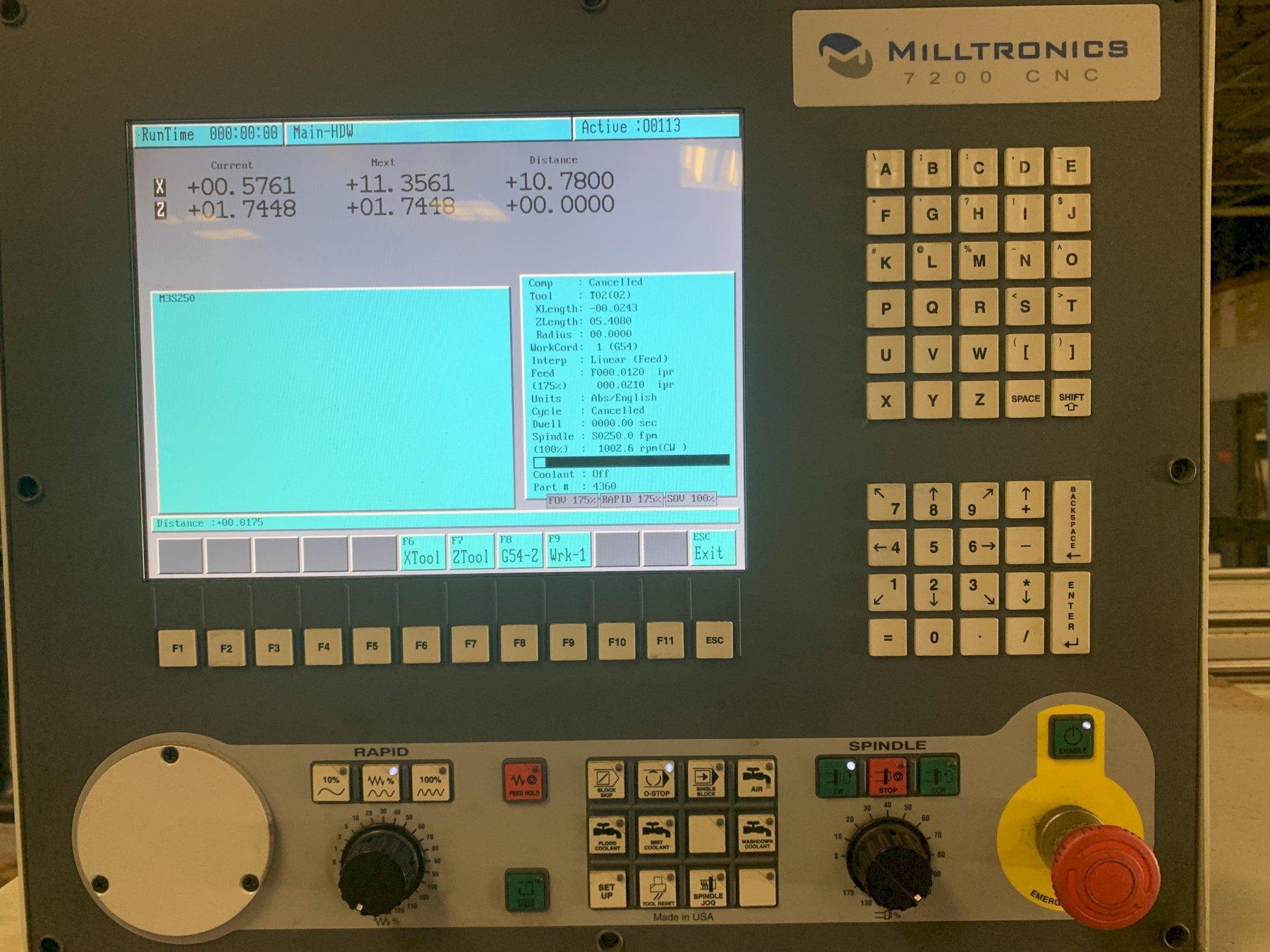

Milltronics 7200 CNC Conversational Control

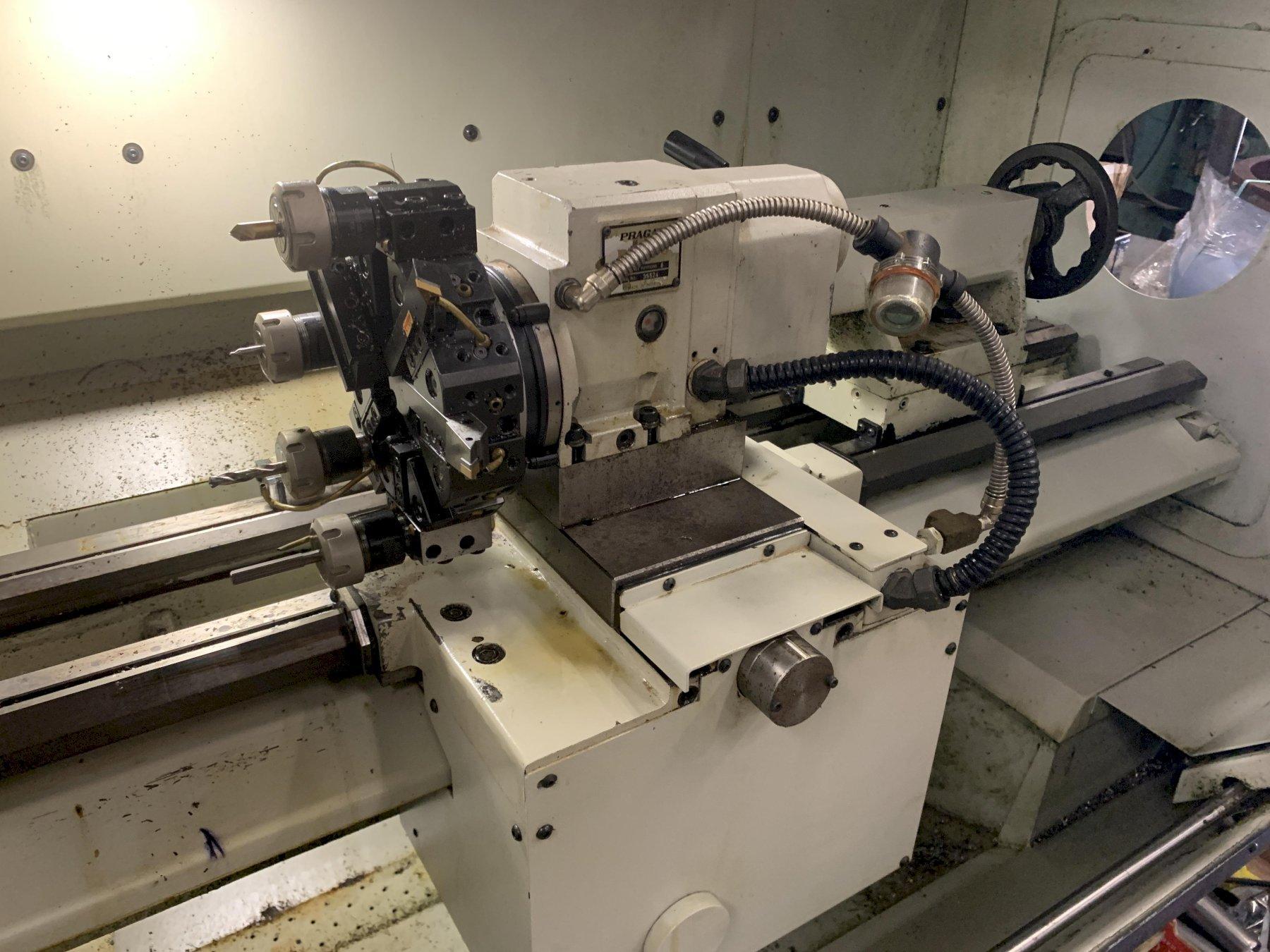

8-Station Automatic Turret
Air Operated 5C Collet Closer with Foot Pedal
6" 3-Jaw Chuck
Dual Electronic Hand Wheels
Full Enclosure with Sliding Doors
Auto Metered Lubrication
Tailstock
Work Light
Availability pending. Ask for details.
Seller can load.
Specifications subject to independent verification by the buyer.
