Specifications
Equipped With
Table Size - 56" x 24"
Travels XYZ - 50" x 25" x 24"
Max Weight on Table - 5000 lbs.
Distance Spindle Nose to Table - 4" to 28"
Distance Spindle to Column - 25"
Feed Rate - 500 ipm
Rapids - 1000 ipm
Spindle Speeds - 50 to 8000 rpm
Spindle Motor - 35/25 Two Speed Upgrade
Spindle Taper - CT40

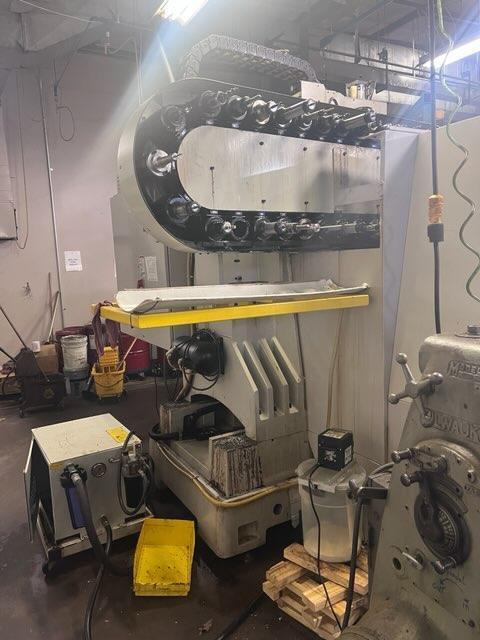

Tool Changer - 32 Pocket Double Arm ATC
Servo Type - Digital AC Brushless
Coolant Through Spindle 300 PSI Low Pressure System
Electronic Spindle Orient and Rigid Tap
Combo Pack - Contact and Work Tool Offset Probing

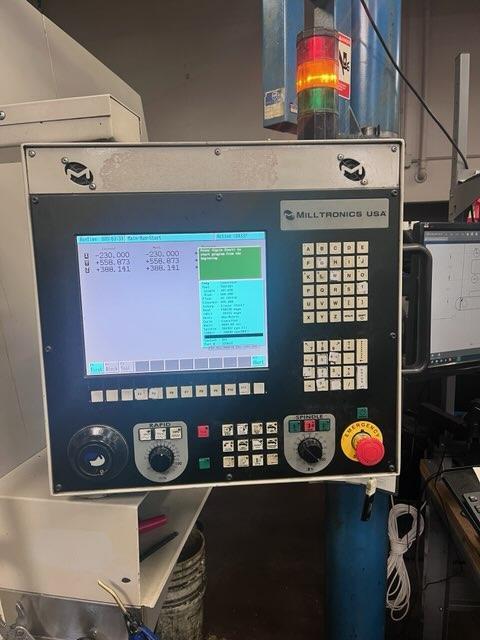

Control - Milltronics 7200 Series
Power Required - 19 KVA 50 amps (subject to confirmation)
Voltage Required - 3/60/208-240
Floor Space Required - 144" x 113"
Machine Height - 120"
Weight, Approx - 21,000 Lbs
Equipped with:
Milltronics 7200 Series Control
32 Pocket Dual Arm ATC
8000 RPM Spindle
Automatic Lubrication
Chip Auger
2-Speed 35/25 HP Spindle Motor (upgrade)
Roller Type Linear Ways on all axes
Flood Coolant
Rigid Tapping
Full Enclosure
Specifications subject to independent verification by the buyer.
Machine location - Delafield WI warehouse.
No tooling or vises included.
