Specifications:
X axis travel - 60"
Y axis travel - 30"
Z axis travel - 24"

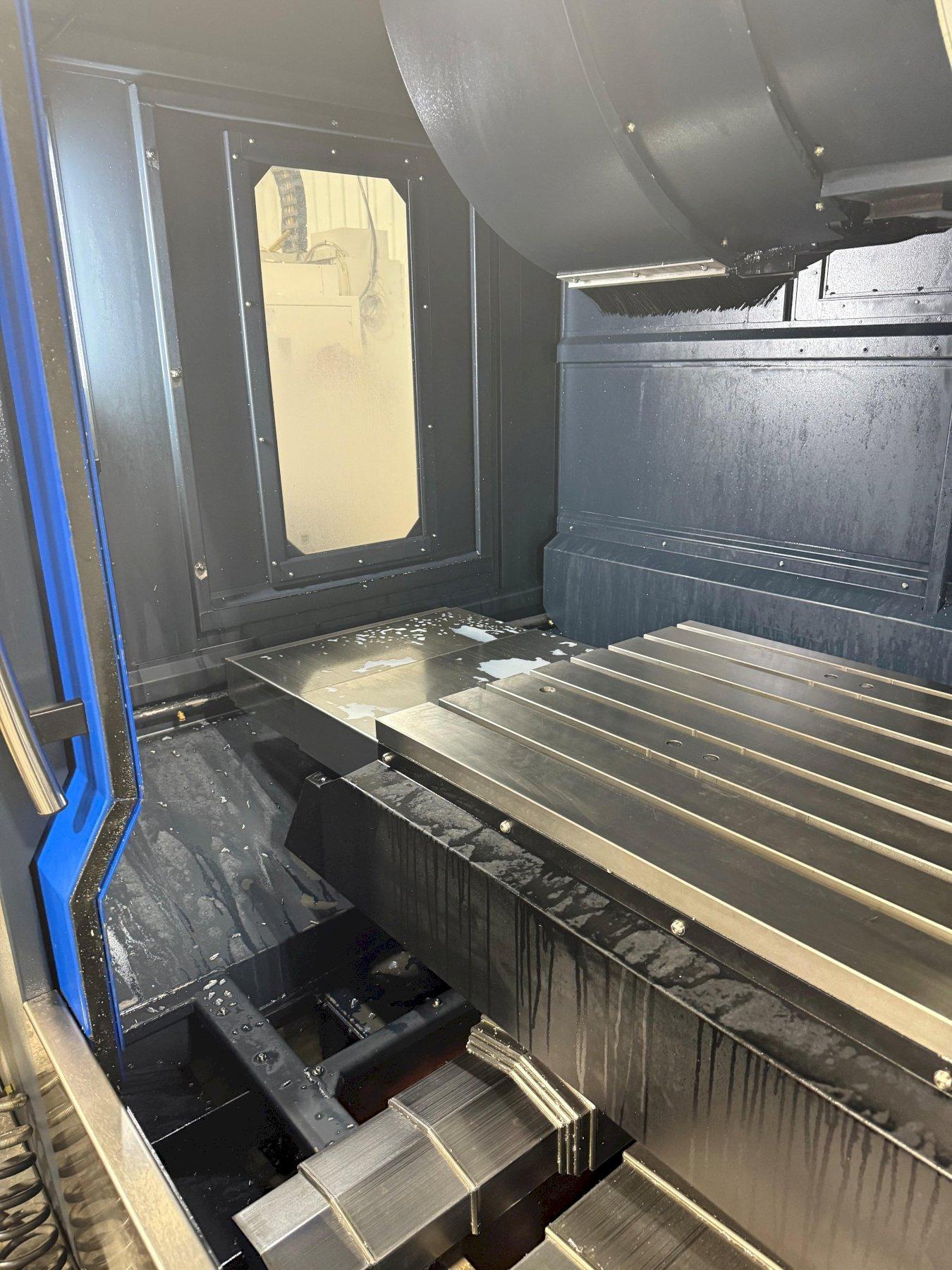

Table size - 66" x 30"
Allowable table load - 3000 lbs.
T-slot size (7 total) - 0.71" (18mm) on 3.94" (100mm) centers
Spindle nose to table distance - 4" to 28"
Way cover to spindle center - 32.4"

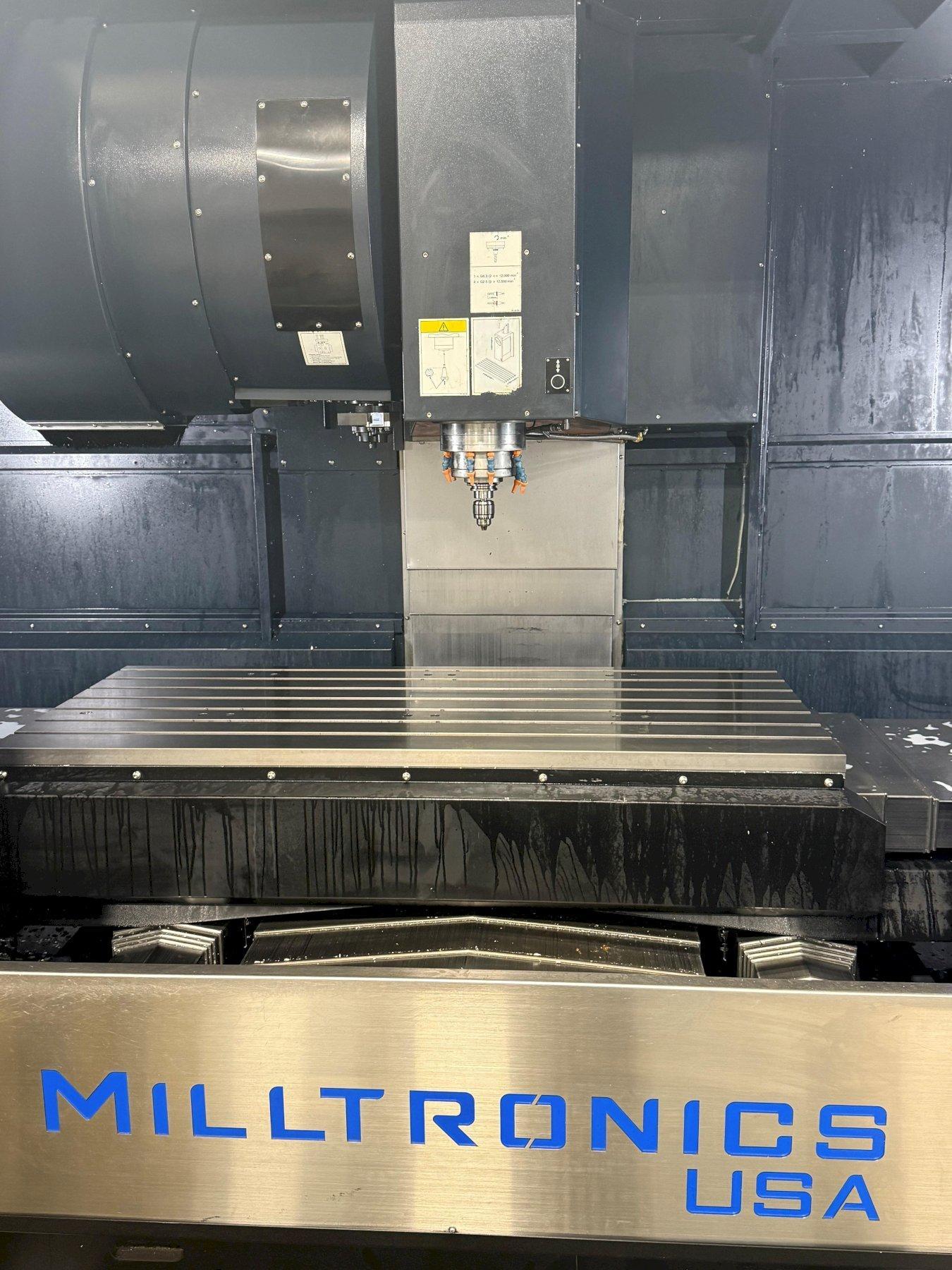

Spindle taper - ISO No. 40
Standard spindle speed - 10,000 rpm (Inline Spindle)
AC spindle motor - 35/25 HP
ATC Type - Double Arm, 30 pocket
Tool shank - CT40
Pull stud - MAS 60deg Retention Knob Style CT-Flange 40 Taper
Max tool diameter / adjacent pot empty - 3.1" / 5.1"
Max tool length - 11.8"
Max tool weight - 15 lbs.
X, YZ rapid traverse rate - 1000/787 ipm
Max cutting feed rate - 500 ipm
Least command increment - 0.0001"
Machine height - 123"
Floor space required (W x D) - 150" x 115"
Additional width for conveyor discharge - 38"
Machine weight - 21,800 lbs

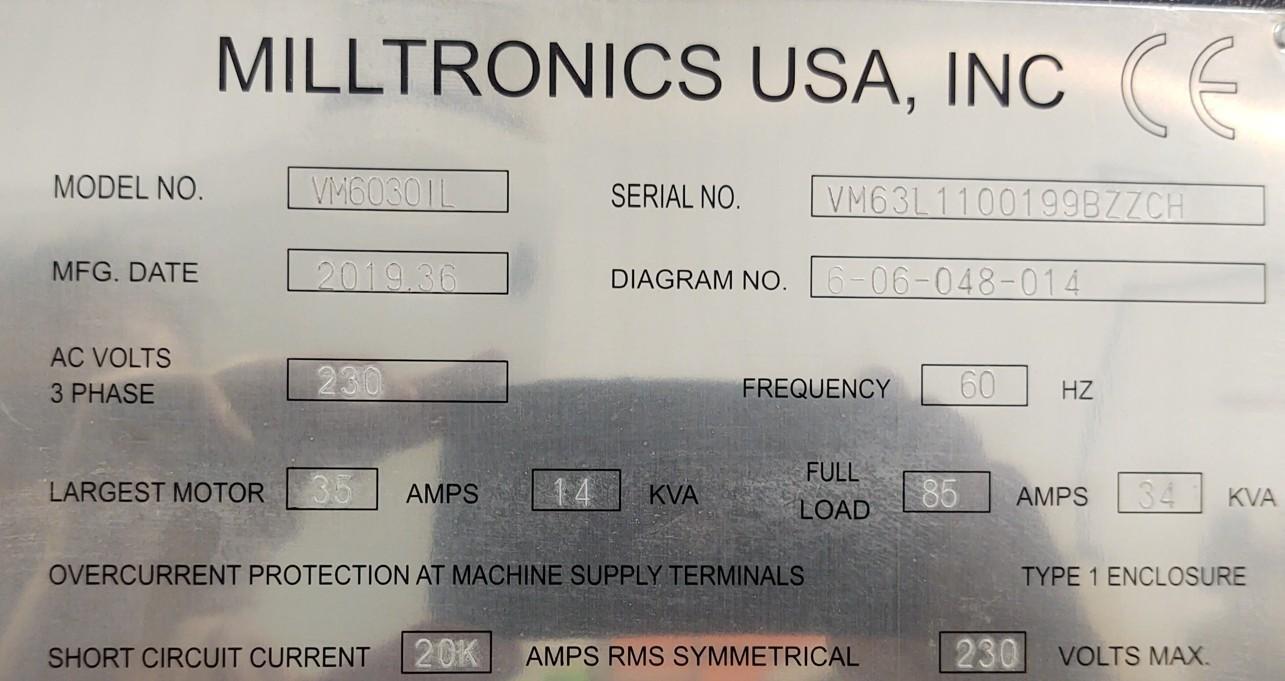

Power required - 48 KVA / 125 amps
Voltage required - 208-240 volts / 3 ph

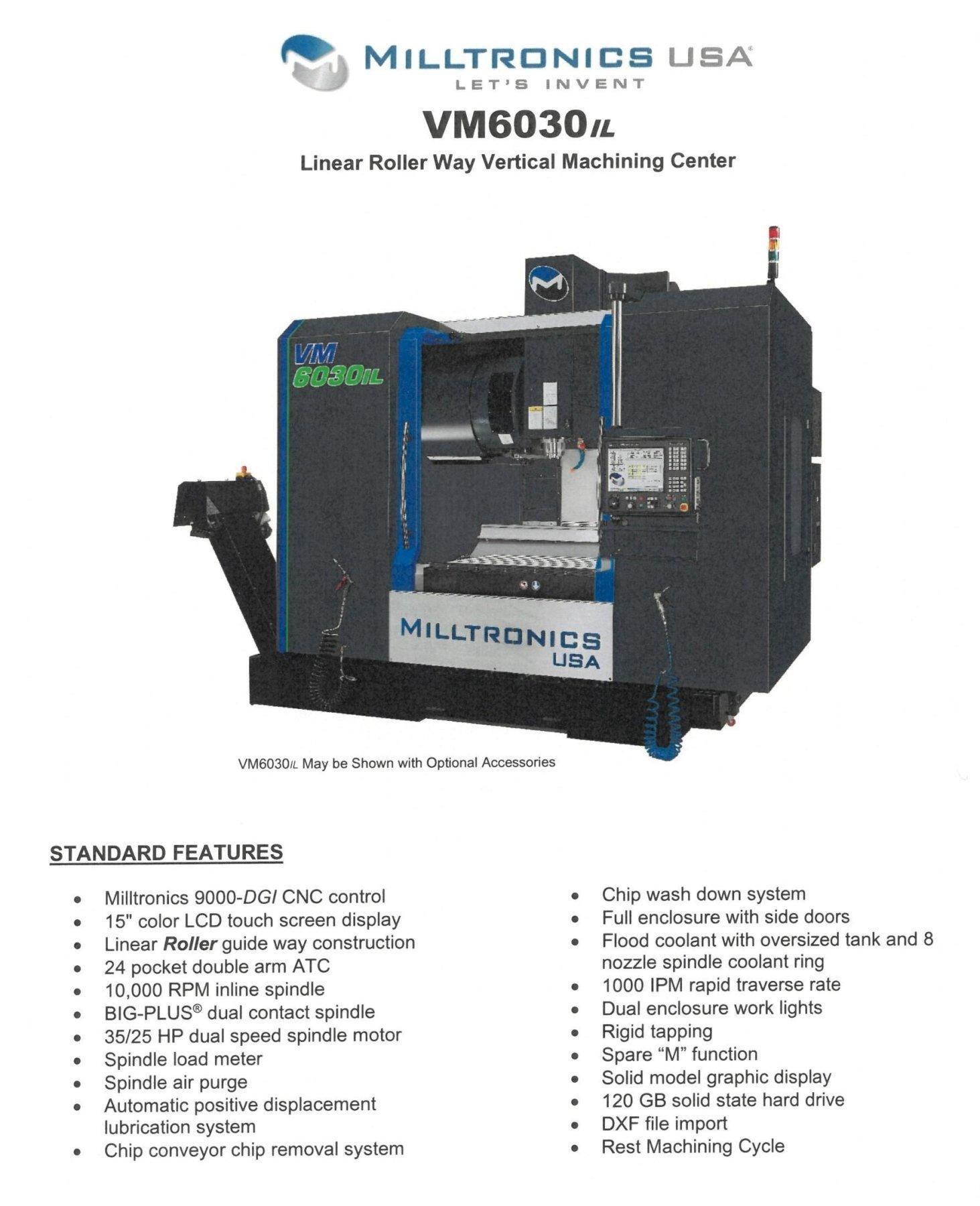

Standard Features:
Milltronics 9000 Series CNC Control version 10.2.9742
15" color LCD touch screen display
Linear Roller guide way construction
Spindle load meter
Spindle air purge
Automatic lubrication
Chip conveyor
Chip wash down
Full enclosure with side doors
Flood coolant
Dual enclosure work lights
Rigid tapping
Spare "M" function
Solid model graphic display
120 GB solid state hard drive
DXF file import
Rest machining cycle
Spindle chiller
Mist Fit Model MF-550 Mist Collection Unit
New Z-Axis Ballscrew and Thrust Bearings installed March 2026.

Availability pending arrival of customer new machine.
Specifications subject to independent verification by the buyer.
Offered on consignment. No warranty or return privilege.
Price includes machine prep for transport and loading on buyers truck.
Total on time hours at this writing 24,205 (from Pattern shop that takes light cuts, has long cycle times and keeps their machines on all the time)
