Specifications
Equipped With

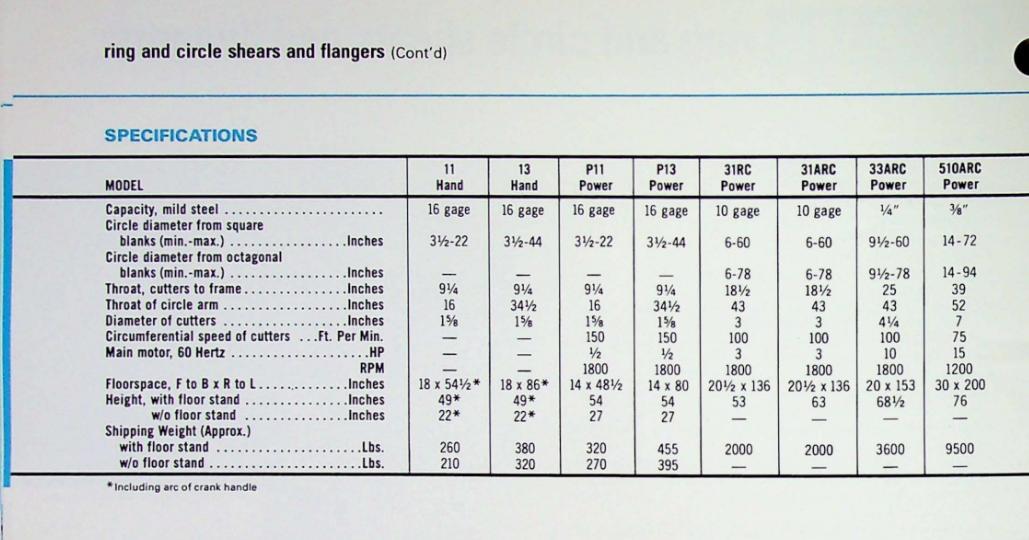

CATALOG SPECIFICATIONS:
MAXIMUM CAPACITY (MILD STEEL) ..................... 10 GAGE
CIRCLE DIAMETER FROM SQUARE BLANKS (MIN-MAX) ...... 6"-60"
CIRCLE DIAMETER FROM OCTAGONAL BLANKS (MIN-MAX) ... 6"-78"
SLITTING GAGE RANGE ............................... 7/8" - 17-1/4"
THROAT, CUTTERS TO FRAME .......................... 18-1/2"
THROAT OF CIRCLE ARM .............................. 43"
DIAMETER OF CUTTERS ............................... 3"
CIRCUMFERENTIAL SPEED OF CUTTERS .................. 100 FPM
MAIN MOTOR:
3 HP 3/60/220-440V
1710 RPM
WITH CONTROLS & FOOT PEDAL OPERATION
FLOOR SPACE: 136" L-R x 20-1/2" F-B
OVERALL DIMENSIONS: 9'10"L x 1'8"W x 4'8"H
SHIPPING WEIGHT: (APPROX.) 2,000 LBS.
NOTES:
SPECIFICATIONS SUBJECT TO INDEPENDENT VERIFICATION BY THE BUYER.
LOADING ASSISTANCE TO BE DETERMINED.
OFFERED ON CONSIGNMENT. NO WARRANTY OR RETURN PRIVILEGE.
